Page 2249 of 2389

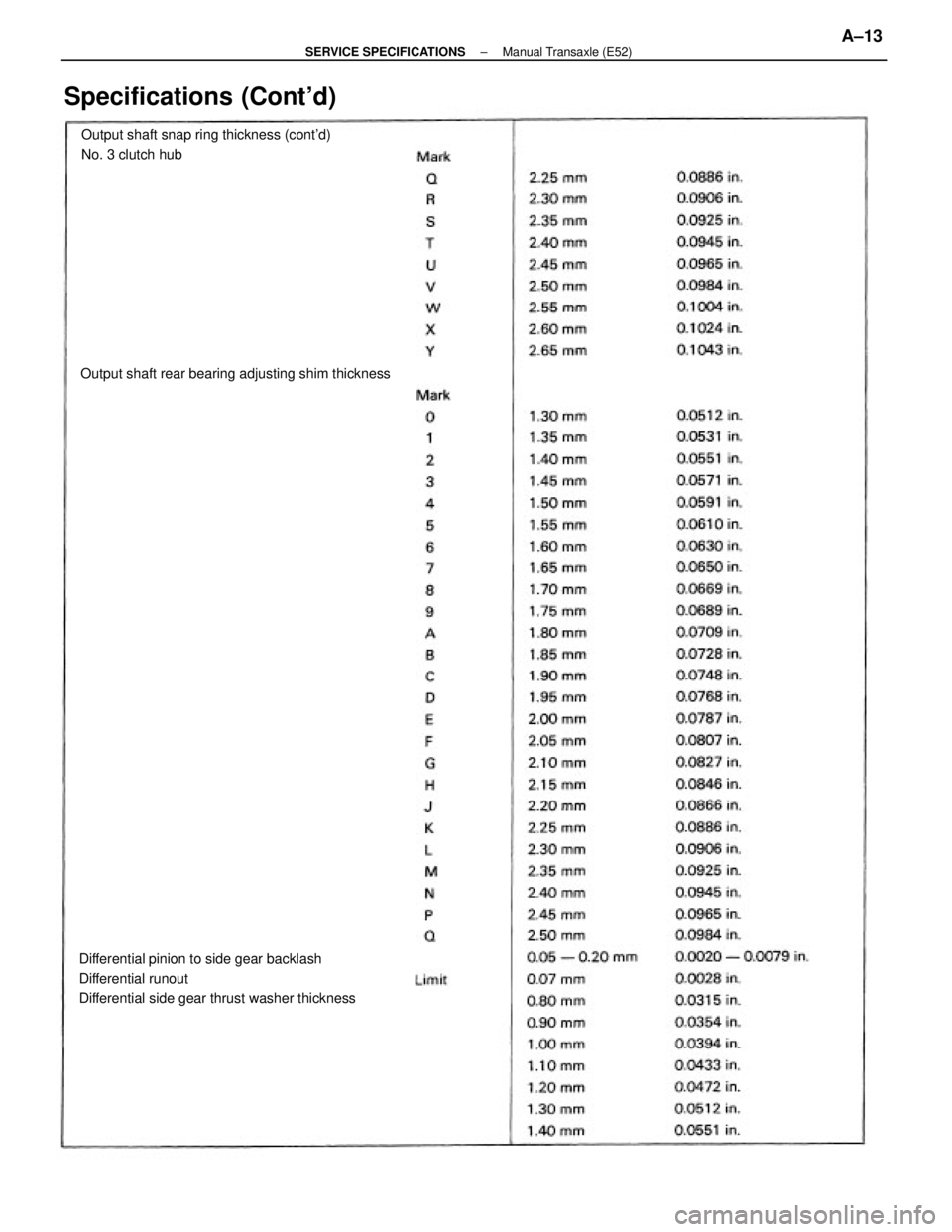

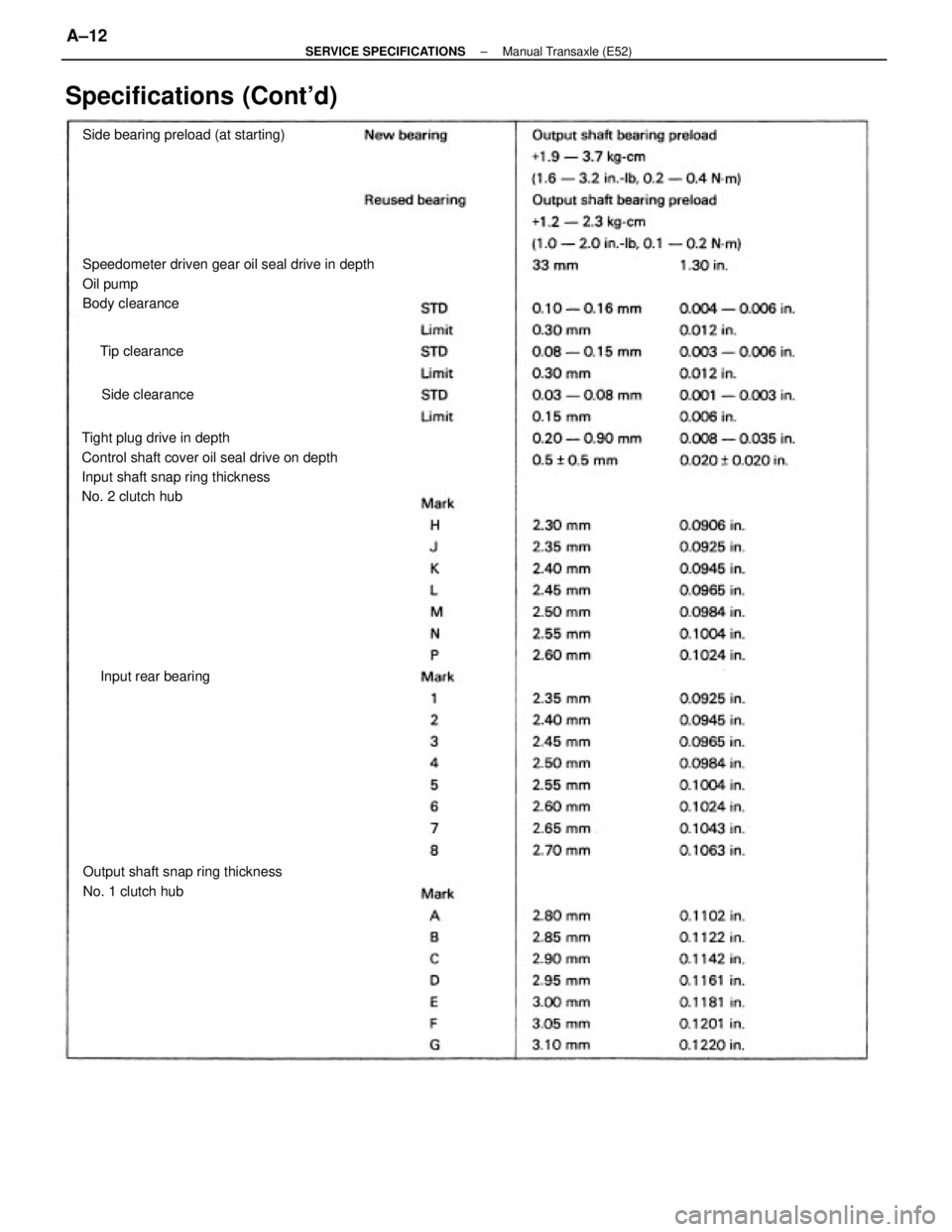

TOYOTA CAMRY V20 1986 Service Information Tight plug drive in depth Control shaft cover oil seal drive on depth Input shaft snap ring thickness No. 2 clutch hubSpeedometer driven gear oil seal drive in depth Oil pump Body clearance Output sha

Page 2250 of 2389

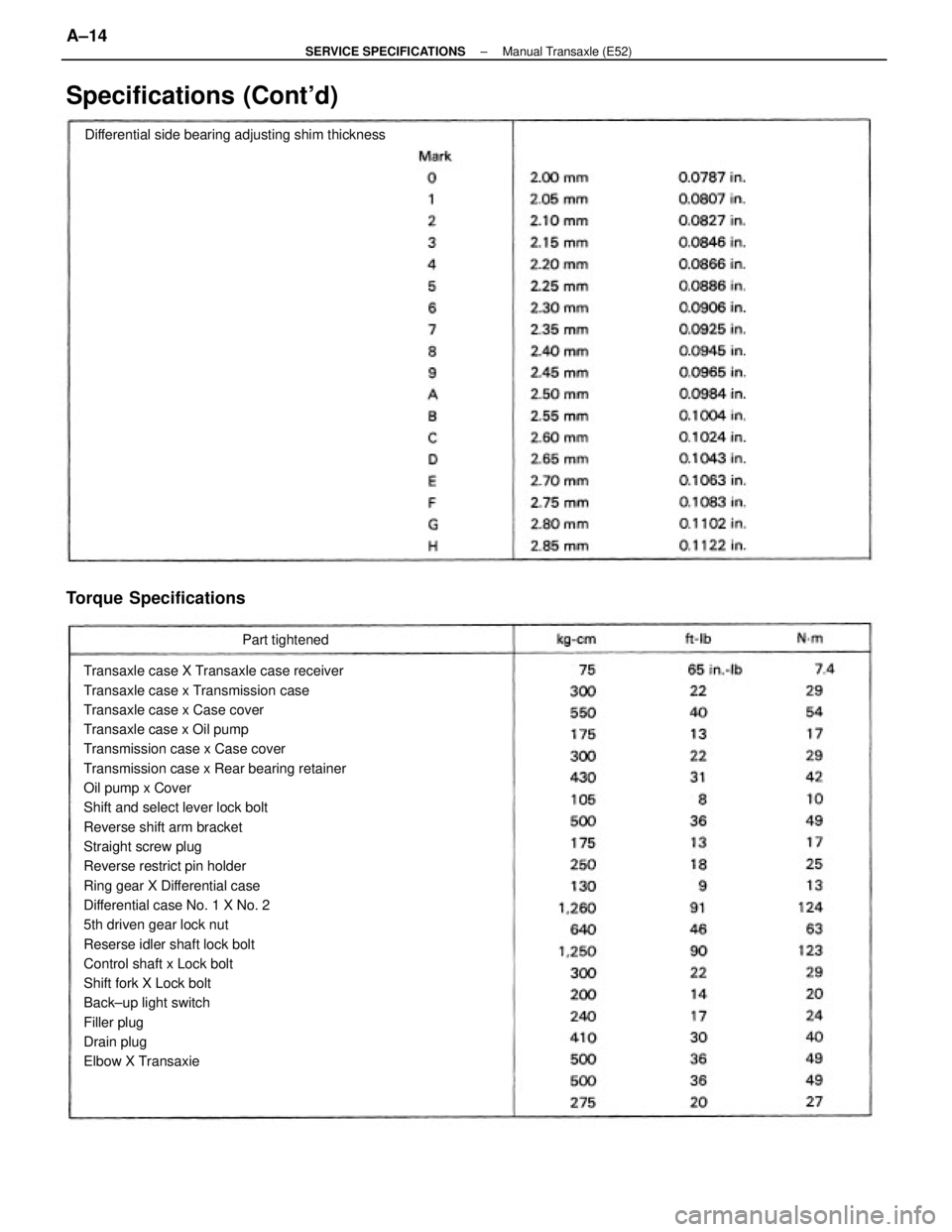

TOYOTA CAMRY V20 1986 Service Information Differential pinion to side gear backlash Differential runout Differential side gear thrust washer thicknessOutput shaft snap ring thickness (contd) No. 3 clutch hub Output shaft rear bearing adjusti

Page 2251 of 2389

TOYOTA CAMRY V20 1986 Service Information Transaxle case X Transaxle case receiver Transaxle case x Transmission case Transaxle case x Case cover Transaxle case x Oil pump Transmission case x Case cover Transmission case x Rear bearing retain

Page 2252 of 2389

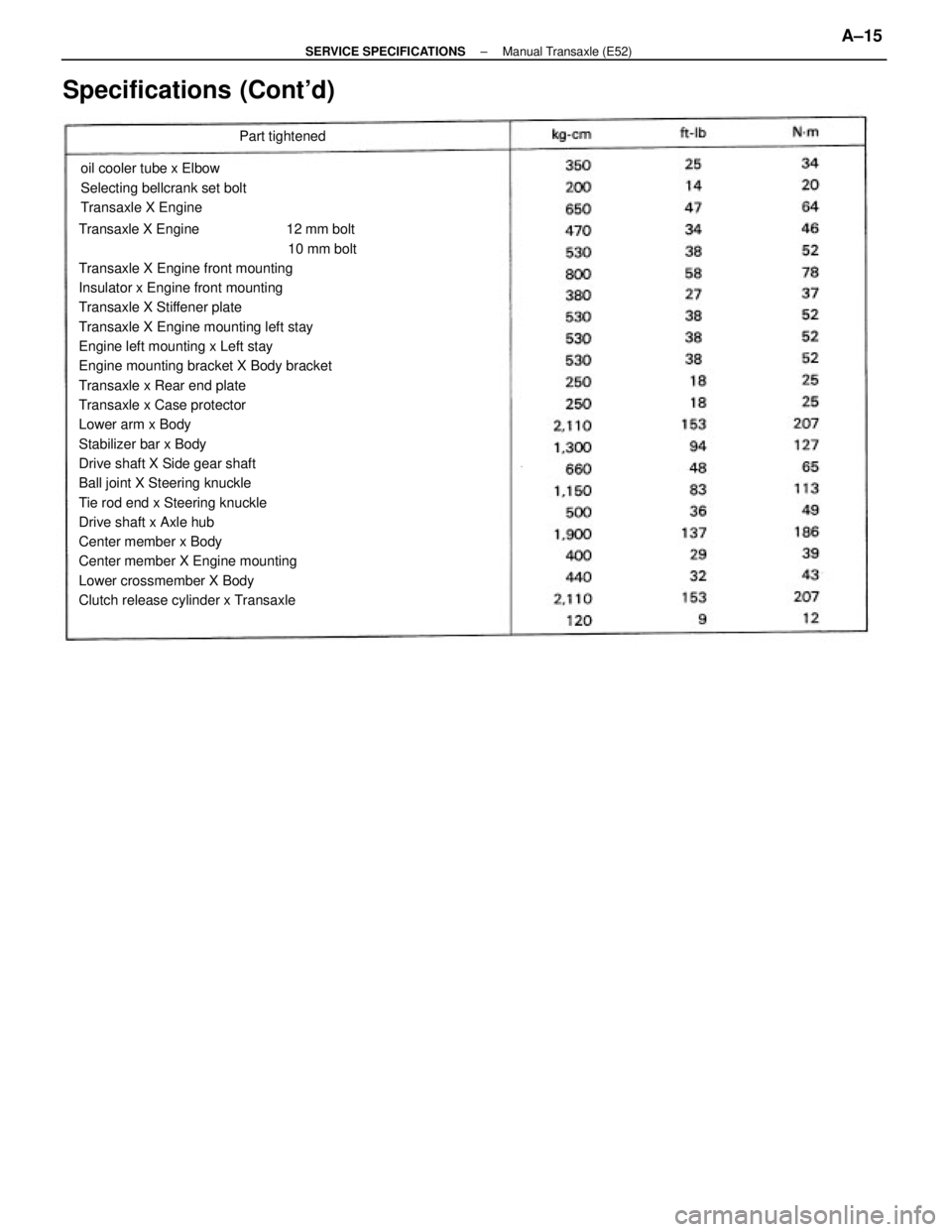

TOYOTA CAMRY V20 1986 Service Information Transaxle X Engine 12 mm bolt 10 mm bolt Transaxle X Engine front mounting Insulator x Engine front mounting Transaxle X Stiffener plate Transaxle X Engine mounting left stay Eng

Page 2253 of 2389

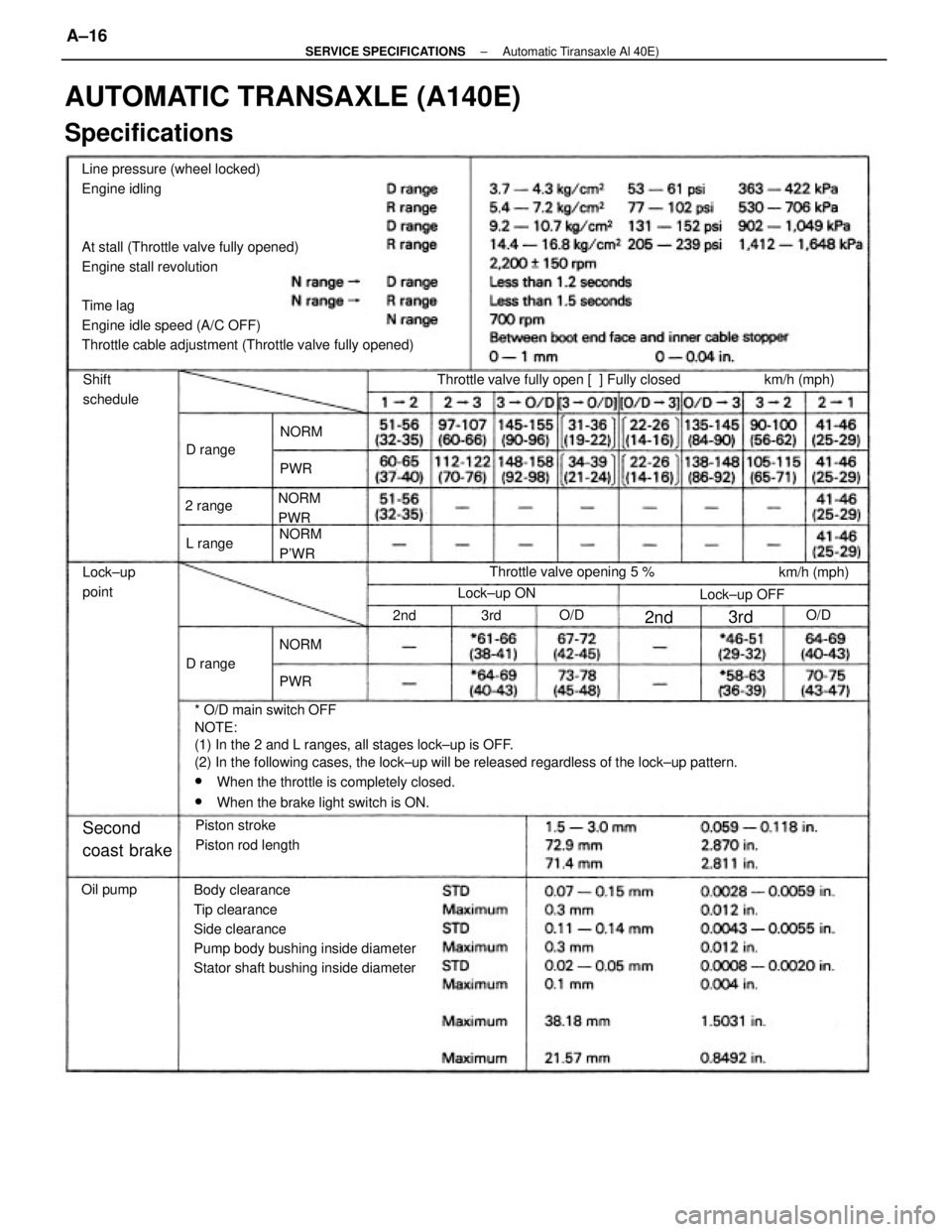

TOYOTA CAMRY V20 1986 Service Information Line pressure (wheel locked) Engine idling At stall (Throttle valve fully opened) Engine stall revolution Time lag Engine idle speed (A/C OFF) Throttle cable adjustment (Throttle valve fully opened) *

Page 2254 of 2389

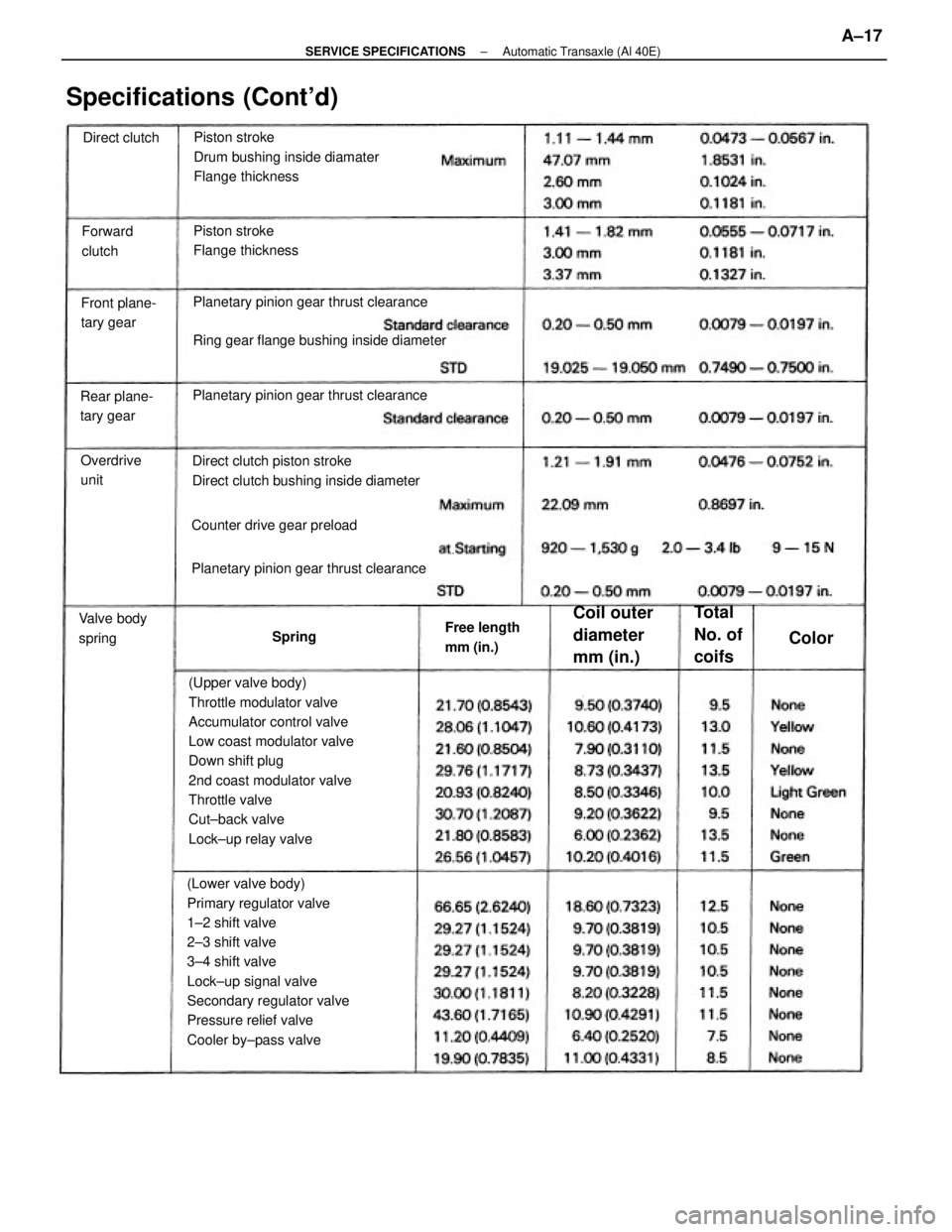

TOYOTA CAMRY V20 1986 Service Information (Upper valve body) Throttle modulator valve Accumulator control valve Low coast modulator valve Down shift plug 2nd coast modulator valve Throttle valve Cut±back valve Lock±up relay valve (Lower val

Page 2255 of 2389

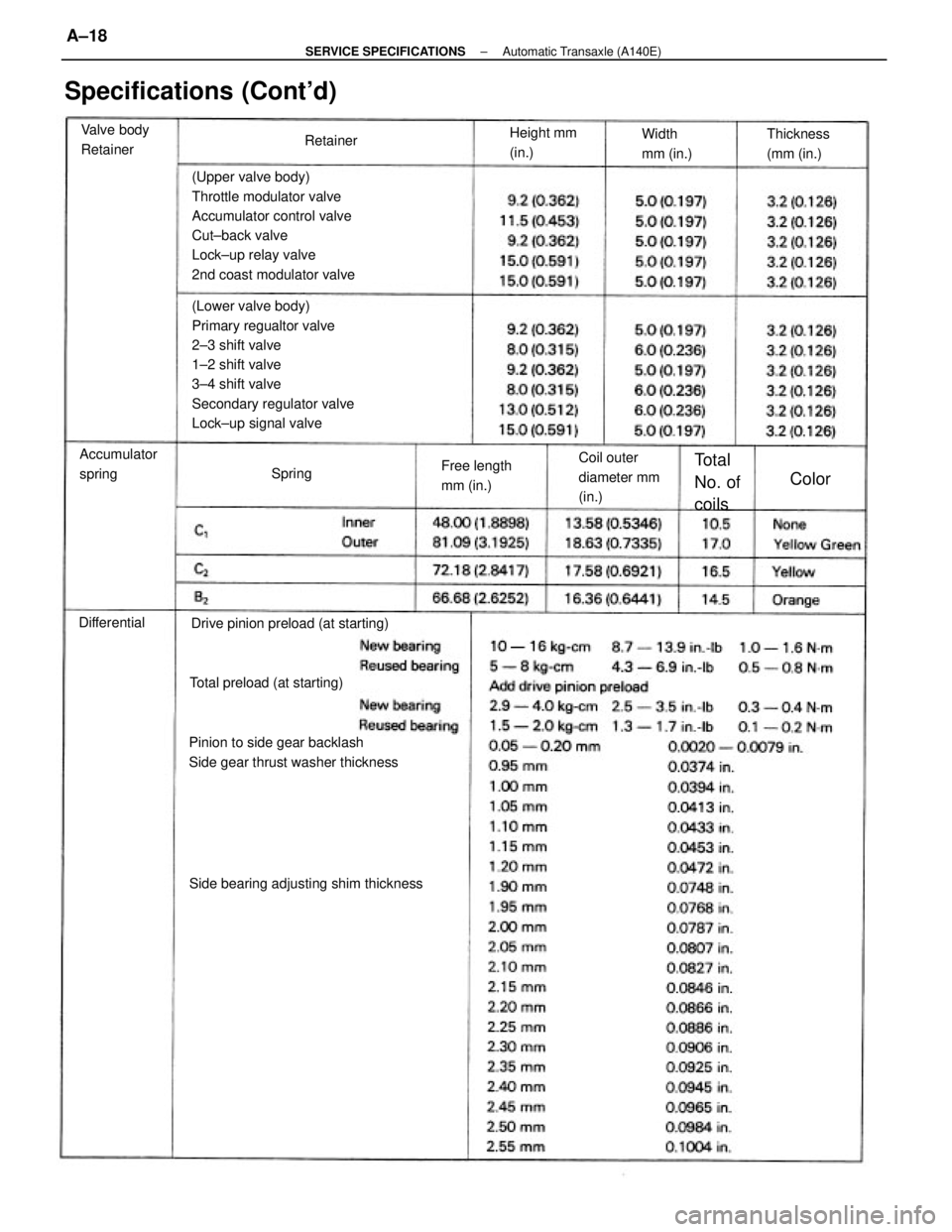

TOYOTA CAMRY V20 1986 Service Information (Lower valve body) Primary regualtor valve 2±3 shift valve 1±2 shift valve 3±4 shift valve Secondary regulator valve Lock±up signal valve (Upper valve body) Throttle modulator valve Accumulator co

Page 2256 of 2389

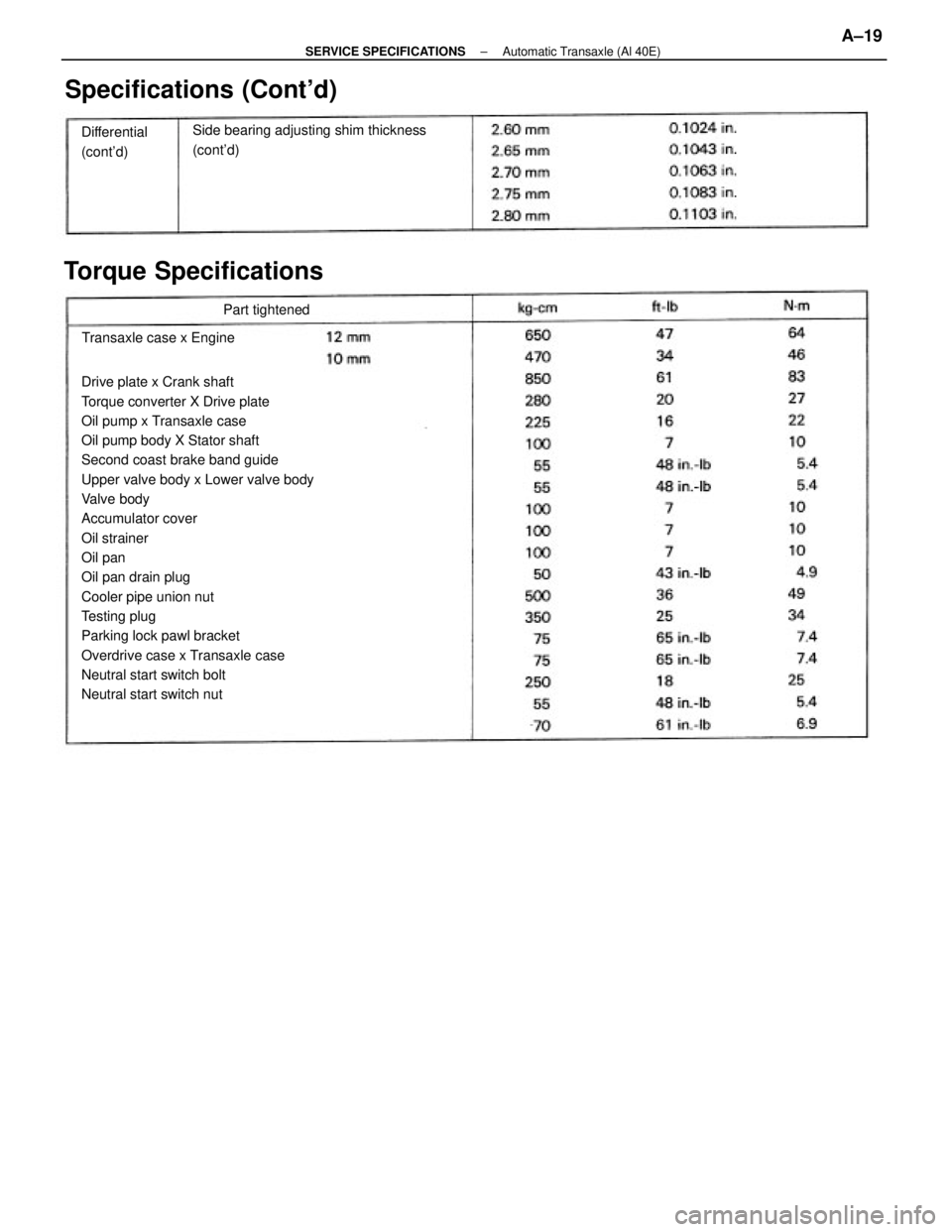

TOYOTA CAMRY V20 1986 Service Information Drive plate x Crank shaft Torque converter X Drive plate Oil pump x Transaxle case Oil pump body X Stator shaft Second coast brake band guide Upper valve body x Lower valve body Valve body Accumulator
