1996 ACURA RL KA9 Service Repair Manual

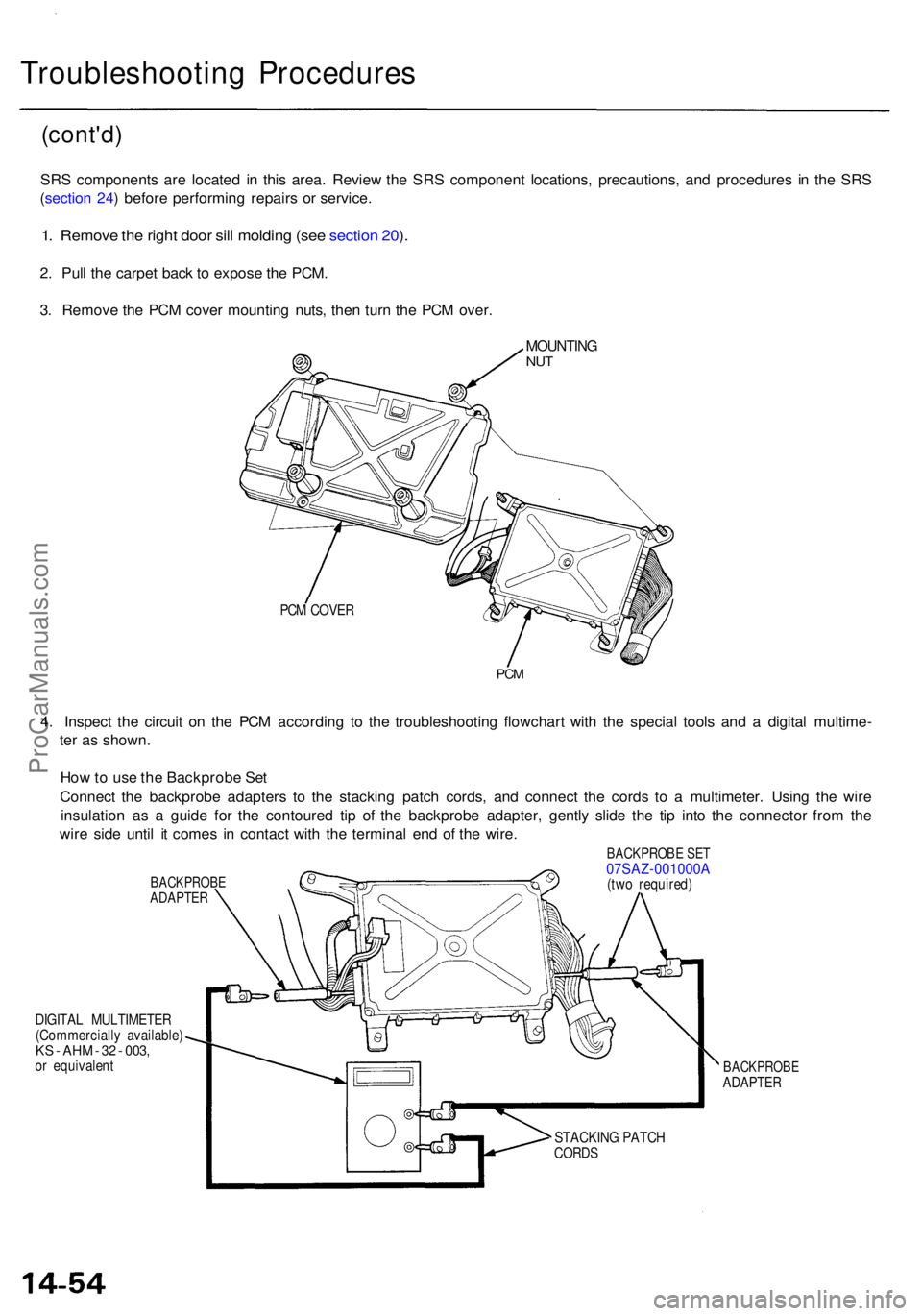

Troubleshooting Procedure s
(cont'd)
SRS component s ar e locate d i n thi s area . Revie w th e SR S componen t locations , precautions , an d procedure s i n th e SR S
( sectio n 24 ) befor e performin g repair s o r service .
1. Remov e th e righ t doo r sil l moldin g (se e sectio n 20 ).
2 . Pul l th e carpe t bac k t o expos e th e PCM .
3 . Remov e th e PC M cove r mountin g nuts , the n tur n th e PC M over .
PCM COVE R
PCM
4. Inspec t th e circui t o n th e PC M accordin g t o th e troubleshootin g flowchar t wit h th e specia l tool s an d a digita l multime -
te r a s shown .
Ho w to us e th e Backprob e Se t
Connec t th e backprob e adapter s t o th e stackin g patc h cords , an d connec t th e cord s t o a multimeter . Usin g th e wir e
insulatio n a s a guid e fo r th e contoure d ti p o f th e backprob e adapter , gentl y slid e th e ti p int o th e connecto r fro m th e
wir e sid e unti l i t come s i n contac t wit h th e termina l en d o f th e wire .
BACKPROB EADAPTER
DIGITAL MULTIMETE R
(Commerciall y available )
KS - AH M - 3 2 - 003 ,or equivalen t
BACKPROB E SE T07SAZ-001000 A(two required )
BACKPROB EADAPTER
STACKIN G PATC HCORDS
MOUNTIN GNUT
ProCarManuals.com

PCM Rese t Procedur e
1 . Mak e sur e yo u hav e th e anti-thef t cod e fo r th e radio , the n writ e dow n th e frequencie s fo r th e radio' s prese t buttons .
2 . Tur n th e ignitio n switc h OFF .
3 . Remov e th e No . 5 6 BAC K UP , RADI O fus e (7. 5 A ) fro m th e under-hoo d fuse/rela y bo x fo r 1 0 second s t o rese t th e PCM .
NOTE :
• Th e A/ T contro l syste m memor y canno t b e cleare d b y usin g th e OB D II Sca n Too l o r Hond a PG M Tester ; b e sur e t o
remov e th e BAC K UP , RADI O fus e t o rese t th e A/ T contro l syste m memory .
• Th e PC M memor y mus t b e rese t afte r reconnectin g th e batter y o r th e BAC K UP , RADI O fus e (se e pag e 11-111 ).
BAC K UP , RADI O(7.5 A ) FUS E
UNDER-HOO DFUSE/RELAY BO XFina l Procedur e
NOTE : Thi s procedur e mus t b e don e afte r an y troubleshooting .
1 . Tur n th e ignitio n switc h OFF .
2 . Disconnec t th e OB D II Sca n Too l o r Hond a PG M Teste r fro m th e Dat a Lin k Connecto r (16P) , o r remov e th e specia l too l
fro m th e Servic e Chec k Connector .
3. Rese t th e PCM .
4. Tur n th e ignitio n switc h O N (II) .
5 . Ente r th e anti-thef t cod e fo r th e radio , the n ente r th e customer' s radi o statio n presets .
6 . Memoriz e th e engin e idl e spee d signa l i n th e PC M (se e pag e 11-111 ).
ProCarManuals.com

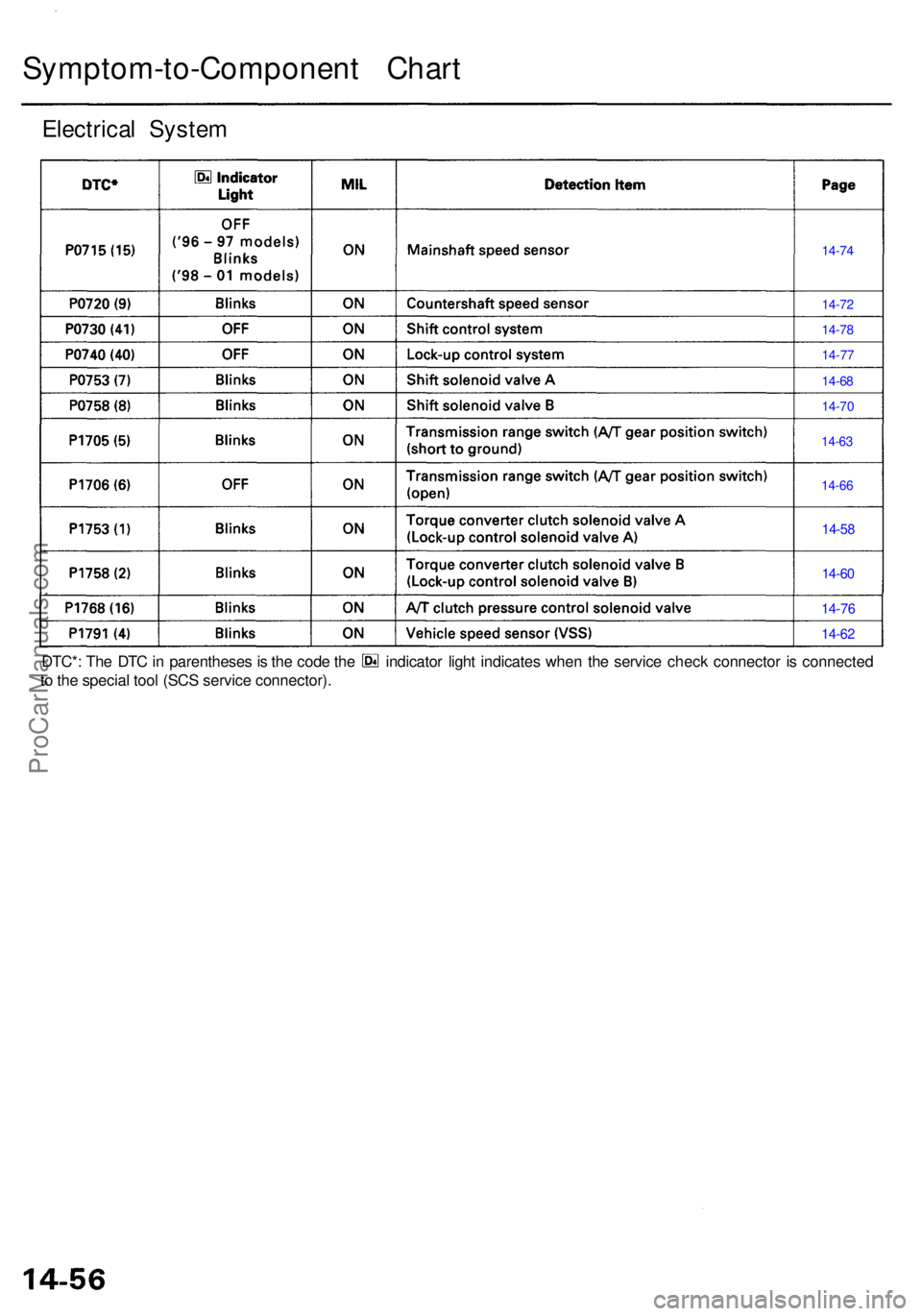

Symptom-to-Component Char t
Electrica l Syste m
14-74
14-7 2
14-7 8
14-7 7
14-68
14-7 0
14-6 3
14-6 6
14-58
14-6 0
14-7 6
14-6 2
DTC* : Th e DT C in parenthese s is th e cod e th e indicato r ligh t indicate s whe n th e servic e chec k connecto r i s connecte d
t o th e specia l too l (SC S servic e connector) .
ProCarManuals.com

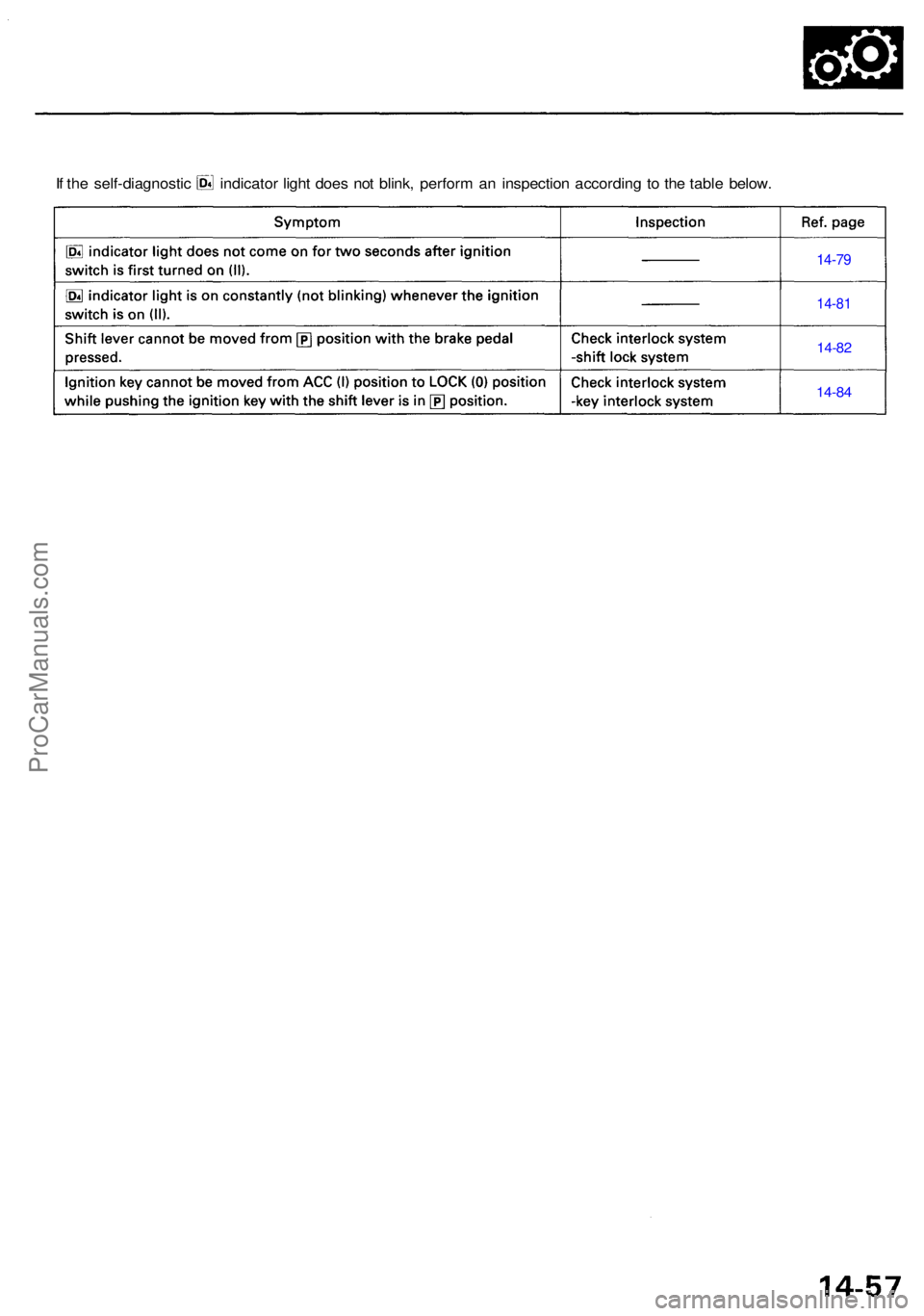

If th e self-diagnosti c indicato r ligh t doe s no t blink , perfor m a n inspectio n accordin g t o th e tabl e below .
14-79
14-8 1
14-82
14-84
ProCarManuals.com

Electrical Troubleshootin g
Troubleshooting Flowchar t — Torqu e Converte r Clutc h (Lock-u p Control )
Solenoi d Valv e A
• OB D II Sca n Too l indicate s Cod eP1753 .• Self-diagnosi s indicato rlight blink s once .
Chec k fo r a Shor t t o Power :1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e A (26P ) an d E
(26P ) connector s fro m th e PCM .
3. Tur n th e ignitio n switc h O N (II) .4. Measur e th e voltag e betwee nthe E1 3 an d A2 6 terminals .
Is ther e voltage ?
Measur e Torqu e Converte r Clutc h
Solenoi d Valv e A Resistance :
1. Tur n th e ignitio n switc h OFF .2. Measur e th e resistanc e
betwee n th e E1 3 an d A2 6 ter -
minals .
Is th e resistanc e 12-2 5
T o pag e 14-5 9 Possibl
e Caus e
• Disconnecte d torqu e converte r
clutc h solenoi d valv e A connec -
tor• Shor t o r ope n i n torqu e con -
verte r clutc h solenoi d valv e A
wir e
• Fault y torqu e converte r clutc h
solenoi d valv e A
• Ope n in V B SO L lin e
Repai r shor t t o powe r i n th e wir e
betwee n th e E1 3 termina l an d th etorqu e converte r clutc h solenoi d
valv e A .
Chec k fo r loos e PC M connectors .
I f necessary , substitut e a known -
goo d solenoi d valve s A an d B or
PC M an d recheck . PC
M CONNECTOR S
Wir e sid e o f femal e terminal s
