1996 ACURA RL KA9 Service Repair Manual

Engine Installation :
Instal l th e engin e in th e revers e orde r o f removal .
Reinstal l th e moun t bolts/nut s i n th e followin g sequence .
Failur e t o follo w thes e procedure s ma y caus e excessiv e
nois e an d vibration , an d reduc e bushin g life .
CAUTION : Tak e car e no t t o damag e th e rea r bea m whe n
installin g th e engine/transmissio n assembly .
REAR BEA M
Instal l th e engin e s o tha t
th e rea r bea m doe s no t
hi t th e transmission .
1. Instal l th e transmissio n moun t bracket , the n tighte n
th e mountin g bolts .
TRANSMISSIO N
MOUN T BRACKE T
TRANSMISSIO NMOUNT
2. Instal l th e transmissio n mount . D o no t tighte n th e
bolt .
3. Tighte n th e nu t o n th e righ t engin e moun t bracket ,
the n instal l th e vacuu m hose .
12 x 1.2 5 mm64 N- m (6. 5 kgf-m ,
4 7 Ibf-ft )
VACUU M
HOSE
4. Tighte n th e nu t o n th e lef t engin e moun t bracket ,
the n instal l th e vacuu m hose .
12 x 1.2 5 mm64 N- m (6. 5 kgf-m ,
4 7 Ibf-ft )
VACUU M
HOSE
10 x 1.2 5 mm38 N- m (3. 9 kgf-m ,
2 8 Ibf-ft )
ProCarManuals.com

Engine Removal/Installatio n
Installation (cont'd )
5. Instal l th e transmissio n beam , the n tighte n th e bolt s
in th e numbere d sequenc e show n ( ) .
12 x 1.2 5 mm54 N- m (5. 5 kgf-m ,40 Ibf-ft )10 x 1.2 5 mm38 N- m (3. 9 kgf-m ,28 Ibf-ft )
10 x 1.2 5 mm38 N- m (3. 9 kgf-m ,28 Ibf-ft )
6. Tighte n th e lef t fron t moun t mountin g bolt .
12 x 1.2 5 mm74 N- m (7. 5 kgf-m ,52 Ibf-ft )
7. Tighte n th e righ t fron t moun t mountin g bolt .
12 x 1.2 5 mm74 N- m (7. 5 kgf-m ,52 Ibf-ft )
8. D o th e followin g check s an d adjustments :
Chec k tha t th e se t ring s o n th e end s o f th e drive -
shaf t an d intermediat e shaf t clic k int o place .
CAUTION : Us e ne w se t rings .
Adjus t th e shif t cabl e (se e sectio n 14 ).
Adjus t th e throttl e cabl e (se e sectio n 11 ).
Adjus t th e cruis e contro l cabl e (se e sectio n 4 ).
Refil l th e engin e wit h engin e oi l (se e pag e 8-4 ).
Refil l th e transmissio n wit h AT F (se e sectio n 14 ).
Refil l th e differentia l wit h differentia l oi l (se e
sectio n 15 ).
Refil l th e radiato r wit h engin e coolan t (se e pag e
10-5).
Blee d ai r fro m th e coolin g syste m a t th e blee d
bolt wit h th e heate r valv e ope n (se e pag e 10-5 ).
Clea n th e batter y post s an d cabl e terminal s wit h
sandpaper , assembl e them , the n appl y greas e to
preven t corrosion .
Inspec t fo r fue l leakag e (se e sectio n 11 ).
— Afte r assemblin g al l fue l lin e parts , tur n o n
th e ignitio n switc h (d o no t operat e th e starter )
s o tha t th e fue l pum p operate s fo r approxi -
matel y 2 second s an d pressurize s th e fue l
line .
— Repea t thi s operatio n 2 or 3 times , the n chec k
for fue l leakag e a t an y poin t i n th e fue l line .
Ente r th e anti-thef t cod e fo r th e radio , the n ente r
th e customer' s radi o statio n presets .
ProCarManuals.com

Mount and Bracket Bolts/Nuts Torque Value Specifications:

10 x 1.25 mm bolts/nuts: 38 N-m (3.9 kgf-m, 28 Ibf-ft)

RIGHT ENGINE MOUNT

LEFT ENGINE MOUNT

RIGHT FRONT MOUNT

LEFT FRONT MOUNTProCarManuals.com

Engine Moun t Contro l Syste m
Componen t Locatio n Inde x
ENGIN E MOUN T CONTRO LSOLENOI D VALV E
Troubleshooting , pag e 5-2 0 POWERTRAI
N CONTRO L
MODUL E (PCM )
Troubleshooting , pag e 5-2 0
ENGIN E MOUN TDIAPHRAG M ACTUATO R
Test , pag e 5-2 2
ProCarManuals.com

Engine Moun t Contro l Syste m
Troubleshootin g Flowchar t
NOTE:
Check th e vacuu m hose s an d line s fo r damag e an d prope r connections .
Refe r t o th e Troubleshootin g Procedure s (se e sectio n 11 ).
Th e engin e vibrate s excessivel y
whe n idling .
Chec k Idl e Speed :
War m u p engin e t o norma l oper -
ating temperatur e (th e coolin gfan come s o n 2 times) .
I s th e idl e spee d les s tha n
70 0 rpm ? Adjus
t th e idl e spee d (se e
sectio n 11 ).
Chec k th e Engin e Moun t Contro l
System:1. Full y depres s th e brak e pedal .
2 . Wit h th e transmissio n i n gear ,
hav e a n assistan t disconnec t
and reconnec t th e IMRC /engine moun t contro l solenoi d
valv e assembl y 6 P connector .
I s ther e a noticeabl e chang e in
idl e smoothnes s whe n th e
IMRC/engin e moun t contro lsolenoi d valv e assembl y 6 P con -
necto r i s disconnected ? Reconnec
t th e IMRC/engin e
moun t contro l solenoi d valv e
assembl y 6 P connector . Th e
engin e moun t contro l syste m isOK .
IMRC/ENGIN E MOUN T
CONTRO L SOLENOI D
VALV E ASSEMBL Y 6P
CONNECTO R
Test th e Engin e Moun t Contro l
Solenoi d Valv e Wire :
1. Shif t t o o r position .
2 . Disconnec t th e IMRC/engin e
moun t contro l solenoi d valv e
assembl y 6 P connector .
3 . Measur e voltag e betwee n th e
No. 3 termina l an d bod y
ground .
Is ther e batter y voltage ? Repai
r ope n i n BLK/YE L wir e
betwee n th e IMRC/engin e
moun t contro l solenoi d valv e
assembl y 6 P connecto r an d PC M
fuse (2 0 A) .
Wir e sid e o f femal e
terminal s

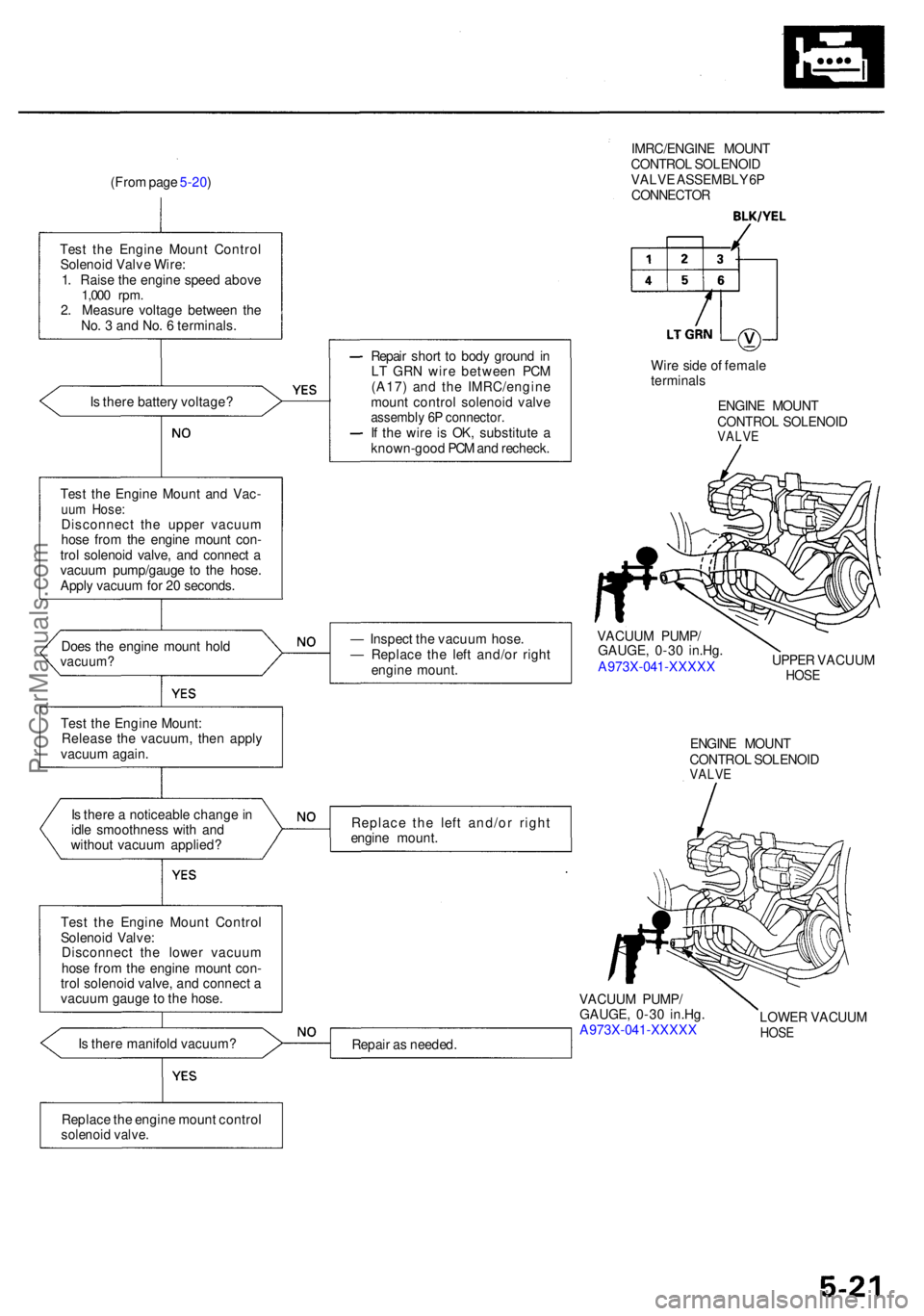

Tes t th e Engin e Moun t Contro l
Solenoi d Valv e Wire :
Measur e voltag e betwee n th e
No . 3 an d No . 6 terminals .
I s ther e batter y voltage ?
NO
(T o pag e 5-21 ) —
Repai r ope n i n L T GR N wir e
betwee n PC M (A17 ) an d th e
IMRC/engin e moun t contro l
solenoi d valv e assembl y 6 P
connector .— If th e wir e i s OK , substitut e a
known-goo d PC M an d recheck .
