1996 ACURA RL KA9 Service Repair Manual

Cellular Phone Antenna Replacement

1. Remove the rear ceiling light.

2. Disconnect the connectors from the cellular phone

antenna and the XM antenna.

3. Remove the nuts from the cellular phone antenna

and the XM antenna.

4. Remove the cellular phone antenna and the XM

antenna.

NUT

5 N-m

(0.5 kgf-m, 4 Ibf-ft)

5. Remove from the cellular phone antenna from the

XM antenna.

XM ANTENNA

CELLULAR PHONE

ANTENNAProCarManuals.com

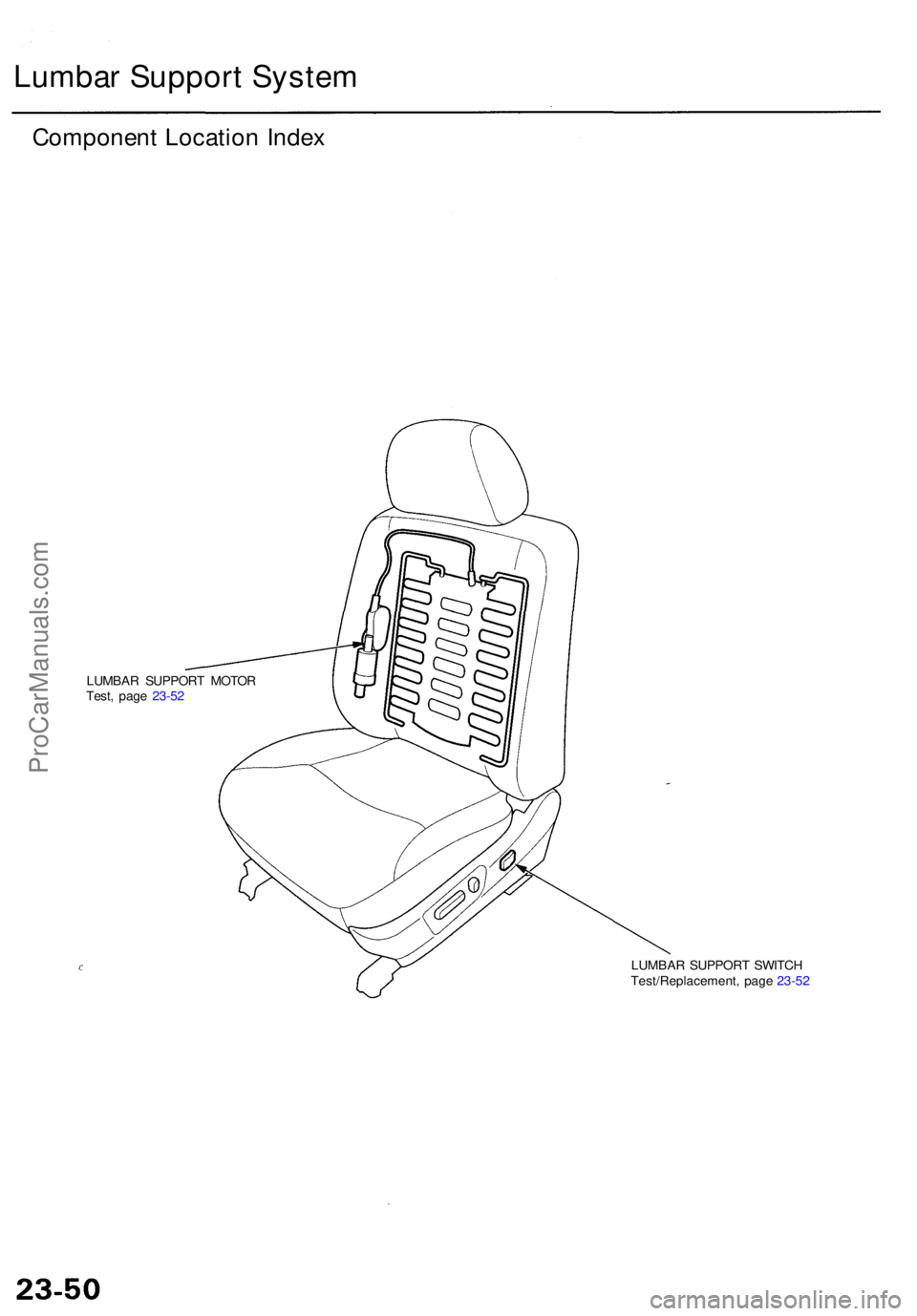

Lumbar Suppor t Syste m
Componen t Locatio n Inde x
LUMBA R SUPPOR T MOTO R
Test , pag e 23-5 2
LUMBAR SUPPOR T SWITC H
Test/Replacement , pag e 23-5 2
ProCarManuals.com

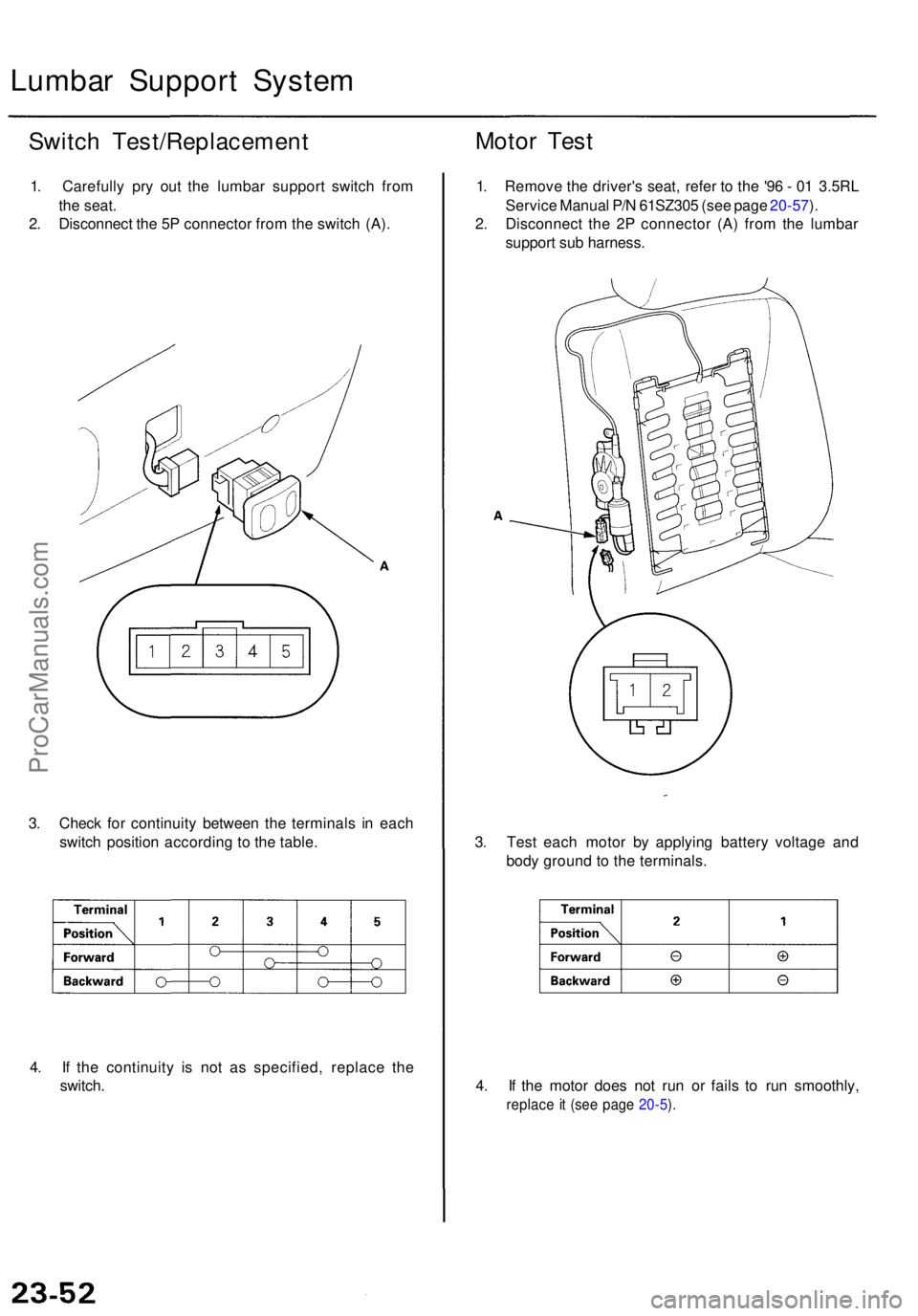

Lumbar Suppor t Syste m
Switch Test/Replacemen t
1. Carefull y pr y ou t th e lumba r suppor t switc h fro m
th e seat .
2 . Disconnec t th e 5 P connecto r fro m th e switc h (A) .
3 . Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table .
4 . I f th e continuit y i s no t a s specified , replac e th e
switch .
Motor Tes t
1. Remov e th e driver' s seat , refe r t o th e '9 6 - 0 1 3.5R L
Servic e Manua l P/ N 61SZ30 5 (se e pag e 20-57 ).
2 . Disconnec t th e 2 P connecto r (A ) fro m th e lumba r
support sub harness.
3. Tes t eac h moto r b y applyin g batter y voltag e an d
bod y groun d t o th e terminals .
4 . I f th e moto r doe s no t ru n o r fail s t o ru n smoothly ,
replace it (se e pag e 20-5 ).
ProCarManuals.com

Component Locatio n Inde x
VOIC E CONTRO L SWITC H
Removal/Installation , pag e 23-5 4
MICROPHON E (Locate d i n th e ceiling )
Replacement , 200 4 3.5R L Servic e Manua l
Supplement , pag e 23-4 8
GPS ANTENN A(Located unde r th e rea r shelf )
Removal/Installation , pag e 23-5 3
DISPLA
Y UNI T
Removal/Installation , pag e 23-5 4
NAVIGATIO N UNI TRemoval/Installation , pag e 23-5 3 NAVIGATIO
N SERVIC E CHEC K CONNECTO R
Force d startin g o f display , pag e 23-5 2
ProCarManuals.com

Navigation Syste m
Genera l Troubleshootin g Informatio n
General Operatio n
Refer t o th e Acur a Navigatio n Syste m Owner' s manua l
fo r th e navigatio n syste m operatin g procedures .
Anti-theft Featur e
The navigatio n syste m ha s a code d thef t protectio n cir -
cuit . B e sur e t o ge t th e customer' s 4-digi t securit y cod e
numbe r before :
• disconnectin g th e batter y
• disconnectin g th e navigatio n uni t 8 P connecto r
• removin g th e No . 5 6 (7.5A ) fus e fro m th e under-hoo d
fuse/rela y bo x
Afte r service , reconnec t powe r t o th e navigatio n unit ,
an d tur n th e ignitio n switc h O N (II) . Ente r th e 4-digi t
securit y code , the n selec t "Done" .
I f th e cod e canno t b e found , us e th e interactiv e Networ k
( iN ) t o loo k i t up . Yo u wil l nee d th e seria l numbe r fo r
th e navigatio n uni t i n th e trunk . I t i s o n a ta g o n th e
undersid e o f th e unit . Alternatively , yo u ca n vie w th e
seria l numbe r i n on e o f th e Nav i EC U diagnosti c
screens.
When replacin g th e navigatio n unit , b e sur e t o giv e th e
custome r th e ne w anti-thef t securit y code .
Sympto m Diagnosi s
Under som e circumstances , th e navigatio n syste m ma y
behav e in a n inconsisten t manner . Som e customer s ma y
thin k tha t thi s indicate s a proble m when , i n fact , th e
syste m is workin g properly . Kee p th e followin g item s i n
min d whe n interviewin g customer s abou t symptom s
o f th e navigatio n system .
Self-lnertia l Navigatio n Limitation s
When GP S signal s canno t b e receive d (lik e in a tunne l o r
i n a n urba n environmen t o f tal l buildings) , th e syste m is
totall y dependan t o n th e ya w rat e an d spee d senso r t o
positio n th e vehicl e o h th e map . Unde r thes e circum -
stance s smal l error s i n th e ya w rat e an d spee d senso r
ca n accumulat e an d displa y th e vehicl e positio n o n a n
adjacen t street , o r laggin g behin d th e actua l position .
Thi s i s normal , an d usuall y correct s itsel f onc e sate -
llit e receptio n is re-established .
Th e followin g circumstance s ma y cause s vehicl e posi -
tionin g errors . •
Movin g th e vehicl e wit h th e navigatio n syste m o n an d
th e vehicl e stopped , suc h a s b y ferr y o r to w truck , o r i f
th e vehicl e is spu n o n a tur n tabl e
• Tir e slippage , change s i n tir e rollin g diameters , an d
som e drivin g situation s ma y caus e discrepancie s i n
trave l distances . Example s o f thi s include :
- Continuou s tir e slippag e o n a slipper y surfac e
- Drivin g wit h sno w chain s mounte d
-Abnorma l tir e pressur e
- Incorrec t tir e siz e
- Frequen t lan e change s acros s a wid e highwa y
-Continuou s drivin g o n a straigh t o r gentl y curvin g
highwa y
• Tolerance s i n th e syste m an d ma p inaccuracie s some -
times limi t ho w precisel y th e vehicl e positio n i s indi -
cated . Example s o f thi s include :
- Drivin g o n road s no t show n o n th e ma p (ma p match -
in g i s no t possible )
- Drivin g o n a roa d tha t wind s i n on e direction , suc h a s
a loo p bridge , a n interchange , o r a spira l parkin g
garage
-Drivin g o n a roa d wit h a serie s o f shar p hair-pi n
turn s
- Drivin g nea r a gradua l highwa y exi t o r transitio n
- Drivin g o n on e o f tw o close paralle l road s
- Makin g man y 9 0 degre e turn s
Globa l Positionin g Syste m (GPS ) Limitation s
The GP S canno t detec t th e vehicle' s positio n durin g th e
followin g instances :
• Fo r th e firs t 5 to 1 0 minute s afte r reconnectin g th e bat -
ter y (thi s ca n tak e a s lon g a s 4 5 minutes )
• Whe n th e satellit e signal s ar e blocke d b y tal l building ,
mountains , tunnels , larg e trees , o r larg e truck s
• Whe n ther e i s n o satellit e signa l outpu t (Signa l outpu t
i s sometime s stoppe d fo r satellit e servicing )
• Whe n th e satellit e signal s ar e blocke d b y th e operatio n
of som e electroni c aftermarke t accessorie s including ,
but no t limite d t o non-DE M in-das h entertainmen t
unit s (radio , C D players/changers , an d L o Jack ) an d
windo w tintin g abov e th e GP S antenn a
Th e accurac y o f GP S is reduce d durin g thes e instances :
• Whe n onl y tw o satellit e signal s ca n b e receive d (Thre e
satellit e signal s ar e require d fo r accurat e positioning )
• Whe n th e satellit e contro l center s ar e experiencin g
problem s
• Whe n drivin g hea r hig h tensio n powe r lines .
• Whe n drivin g nea r tal l building s tha t reflec t satellit e
signals , creatin g fals e positio n locatio n readings .
• I f electroni c GP S jammin g i s occurrin g eithe r inten -
tionally , o r unintentionally .
• I f loos e item s o r pet s ar e restin g abov e th e antenn a
o n th e rea r shelf .
