1996 ACURA RL KA9 Service Repair Manual

Symptom Troubleshootin g
No pictur e is displaye d
Diagnosti c Test : Navigatio n Syste m Lin k
1 . Chec k th e No . 5 6 (7.5A ) fus e in th e under-hoo d fuse /
rela y bo x an d No . 4 (10A ) fus e in th e under-das h fuse /
relay box , an d reinstal l th e fuse s i f the y are-OK .
Are the fuses OK?
YES—G o to ste p 2 .
NO—Replac e th e fus e an d recheck .
2 . Tur n th e ignitio n switc h t o AC C (I) .
3 . Operat e th e radi o an d liste n t o th e audio .
Can audio be heard?
YES—G o to ste p 4 .
NO—Chec k th e AC C circuit .
4 . Tur n th e ignitio n switc h O N (II) .
5 . Measur e th e voltag e betwee n bod y groun d an d navi -
gatio n uni t connecto r C (8P ) terminal s No . 1 an d No .
2 individually .
Wire sid e o f femal e terminal s
Is there battery voltage?
YES—G o to ste p 6 .
NO—I f th e + B wir e doe s no t hav e voltage , repai r
ope n in th e wir e betwee n th e under-hoo d fus e rela y
bo x an d th e navigatio n unit .
I f th e AC C wir e doe s no t hav e voltage , repai r ope n in
th e wir e betwee n th e under-das h fus e rela y bo x an d
th e navigatio n unit . 6
. Chec k fo r continuit y betwee n navigatio n uni t connec -
to r C (8P ) termina l No . 4 an d bod y ground .
NAVIGATIO N UNI T CONNECTO R C (8P )
Wire sid e o f femal e terminal s
Is there continuity?
YES—G o to ste p 7 .
NO—Repai r ope n i n th e wir e betwee n th e navigatio n
unit an d bod y groun d (G603) .
7 . Tur n th e ignitio n switc h OFF .
8 . Perfor m th e force d startin g o f th e displa y (se e pag e
23-52 )
Is the diagnosis menu of the picture diagnosis dis-
played?
YES—G o int o th e Diagnosti c mod e an d us e th e "Nav i
Syste m Link " diagnosti c (se e pag e 23-40 ) t o chec k
the links .
NO—G o to ste p 9 .
9 . Shiel d th e displa y uni t fro m th e su n wit h you r hand ,
an d chec k tha t th e displa y i s blac k (onl y bac k ligh t i s
ON) .
Can you see the back light?
YES—Replac e th e navigatio n uni t
(see pag e 23-53 ).
NO—Replac e th e displa y uni t (se e pag e 23-53 ).
ProCarManuals.com

Navigation Syste m
Sympto m Troubleshootin g (cont'd )

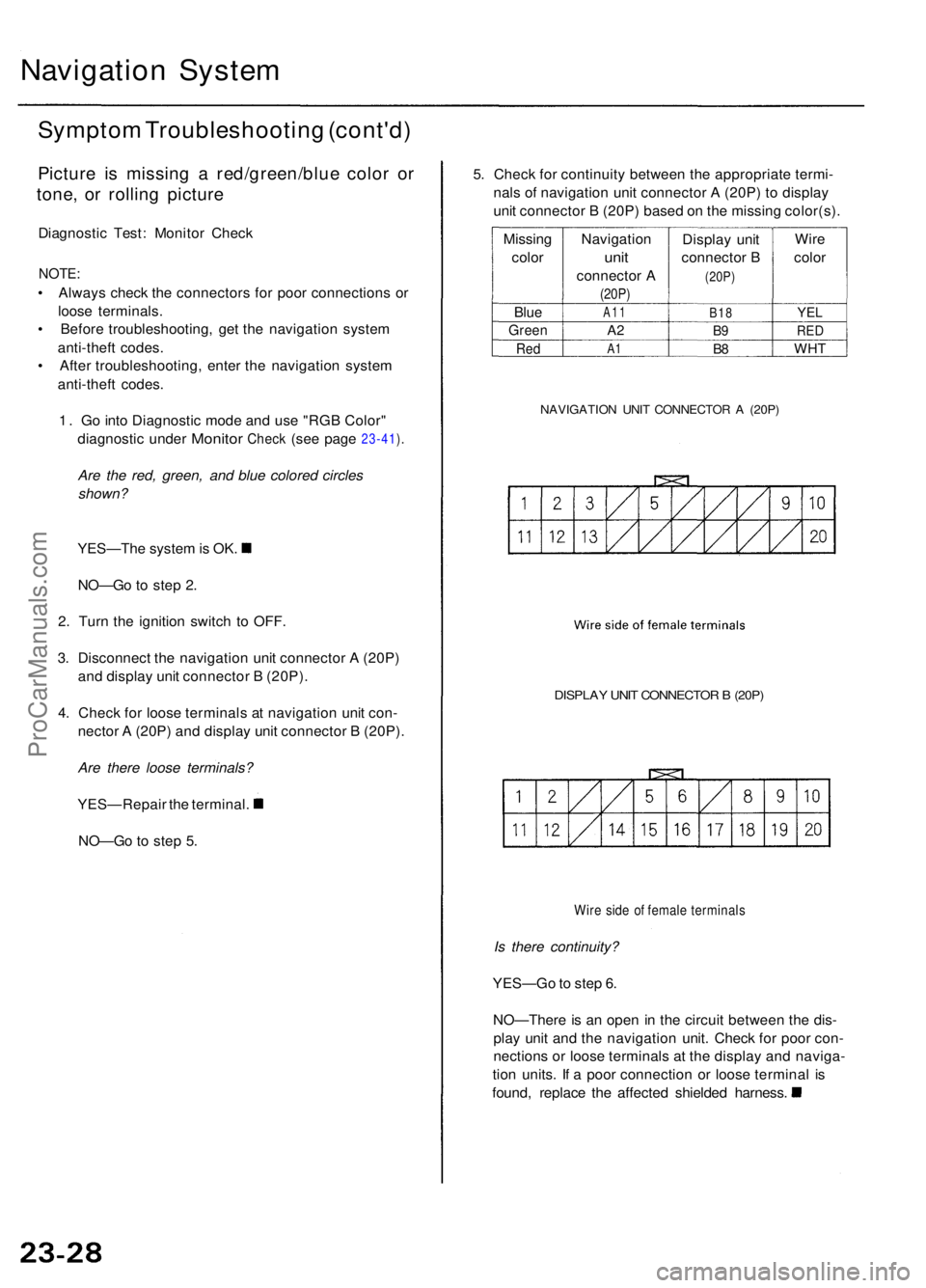

Picture i s missin g a red/green/blu e colo r o r
