1996 ACURA RL KA9 Service Repair Manual

Clock Displa y Siz e an d Locatio n Adjustmen t
'00 - 0 1 model s onl y
1. Tur n th e ignitio n switc h O N (II) .
2 . Whe n th e disclaime r i s show n o n th e navigatio n displa y unit , touc h "OK. "
3 . Whe n th e "Ente r destinatio n by: " scree n i s shown , touc h "Setup. "
4 . Whe n th e "Setu p Screen " i s shown , touc h Displa y "Off. "
5 . Touc h th e number s o f th e cloc k t o chang e th e cloc k siz e an d location .
• I f th e cloc k i s smal l an d i n th e lowe r righ t han d come r o f th e screen , i t wil l increas e in siz e an d mov e t o th e cente r o f
th e screen .
• I f th e cloc k i s larg e an d i n th e cente r o f th e screen , i t wil l decreas e i n siz e an d mov e t o th e lowe r righ t han d corne r o f
th e screen .
6 . Pus h th e MEN U butto n t o retur n t o th e "Ente r destinatio n by: " screen .
The cloc k displa y setting s wil l b e saved .
ProCarManuals.com

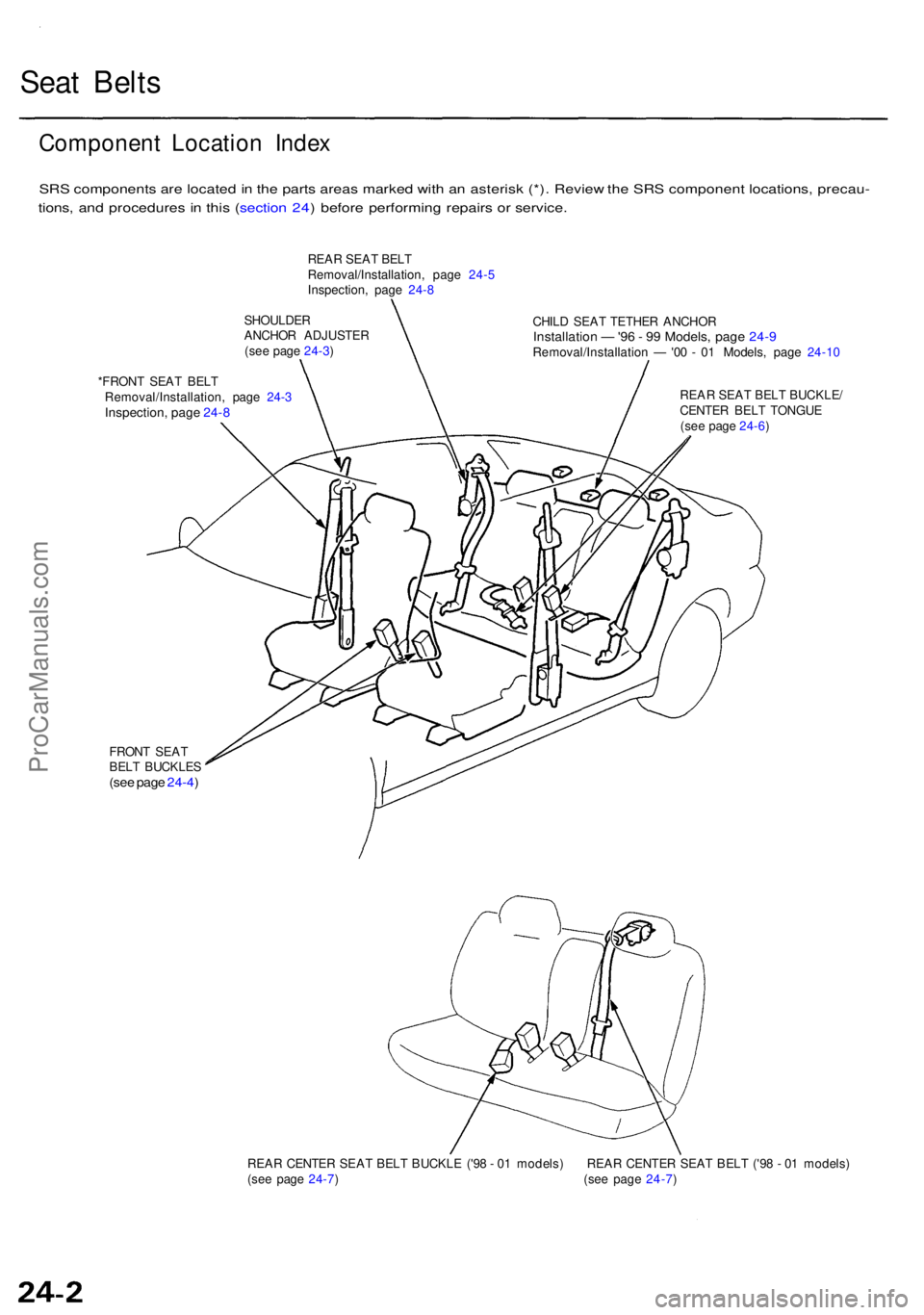

Seat Belt s
Componen t Locatio n Inde x
SRS component s ar e locate d in th e part s area s marke d wit h a n asteris k (*) . Revie w th e SR S componen t locations , precau -
tions , an d procedure s i n thi s ( sectio n 24 ) befor e performin g repair s o r service .
REAR SEA T BEL T
Removal/Installation , pag e 24- 5
Inspection , pag e 24- 8
SHOULDE R
ANCHO R ADJUSTE R
(se e pag e 24-3 )
*FRON T SEA T BEL T
Removal/Installation , pag e 24- 3
Inspection , pag e 24-8
CHIL D SEA T TETHE R ANCHO RInstallatio n — '96 - 9 9 Models , pag e 24- 9Removal/Installatio n — '00 - 0 1 Models , pag e 24-1 0
REA R SEA T BEL T BUCKLE /
CENTE R BEL T TONGU E
(se e pag e 24-6 )
FRON T SEA T
BEL T BUCKLE S
(see pag e 24-4 )
REA R CENTE R SEA T BEL T BUCKL E ('9 8 - 0 1 models ) REA R CENTE R SEA T BEL T ('9 8 - 0 1 models )
(se e pag e 24-7 ) (se e pag e 24-7 )
ProCarManuals.com

Front Sea t Bel t
Removal/Installatio n
SRS component s ar e locate d in thi s area . Revie w th e SR S
componen t locations , precautions , an d procedure s i n thi s
( sectio n 24 ) befor e performin g repair s o r service .
CAUTION : Chec k th e fron t sea t belt s fo r damage , an d
replac e the n if necessary . B e carefu l no t t o damag e the m
durin g remova l an d installation .
Fron t sea t belt :
1. Mak e sur e yo u hav e th e anti-thef t cod e fo r th e
radio , the n writ e dow n th e frequencie s fo r th e pre -
se t buttons .
2 . Disconnec t th e negativ e batter y cable , an d wai t a t
leas t 3 minute s befor e beginnin g work .
3 . Slid e th e fron t sea t forwar d fully .
4 . Remove :
• Fron t an d rea r sid e tri m (se e sectio n 20 )
• Fron t an d rea r doo r tri m (se e sectio n 20 )
5 . Remov e th e lowe r ancho r cap , the n remov e th e lowe r
ancho r bolt .
SHOULDE R
ANCHO R
ADJUSTE R
UPPER ANCHO R BOL T
7/16-2 0 UN F
3 2 N- m (3. 3 kgf-m ,
24 Ibf-ft )
RETRACTO RMOUNTING BOL T6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,
7. 2 Ibf-ft )
SEA T BEL T
TENSIO NREDUCE RCONNECTO R
LOWERANCHO RCAP
FRON T SEA TBELT
RETRACTO R
SEAT BEL T
TENSIONE R
CONNECTO R
RETRACTOR BOL T7/16-2 0 UN F32 N- m (3. 3 kgf-m ,24 Ibf-ft )
LOWE R ANCHO R BOL T
7/16-2 0 UN F
3 2 N- m (3. 3 kgf-m , 2 4 Ibf-ft )
6. Remov e th e cente r pilla r tri m (se e sectio n 20 ).
7 . Disconnec t th e sea t bel t tensio n reduce r connecto r
an d sea t bel t tensione r connector .
T o avoi d accidenta l deploymen t an d
possibl e injury , alway s disconnec t th e sea t bel t ten -
sione r connecto r befor e removin g th e retracto r (se e
pag e 24-17 )
8. Remov e th e uppe r ancho r bol t an d retracto r bolt ,
remov e th e retracto r mountin g bolt , the n remov e
th e fron t sea t bel t an d retractor .
9 . Remov e th e shoulde r ancho r adjuster .
10 x 1.2 5 mm31 N- m (3. 2 kgf-m ,
2 3 Ibf-ft )
SHOULDE R
ANCHO R
ADJUSTE R
10. Installatio n is th e revers e o f th e remova l procedure .
NOTE:
• Chec k tha t th e retracto r lockin g mechanis m func -
tions a s described on pag e 24-8 .
• Mak e sur e yo u assembl e th e washer s an d collar s
on th e uppe r an d lowe r ancho r bolt s a s shown .
• Befor e installin g th e ancho r bolts , mak e sur e ther e
ar e n o twist s o r kink s i n th e fron t sea t belt .
• Mak e sur e th e sea t bel t tensio n reduce r connec -
tor an d sea t bel t tensione r connecto r ar e connec -
te d securely .
• Ente r th e anti-thef t cod e fo r th e radio , the n ente r
th e customer' s radi o statio n presets .
ProCarManuals.com

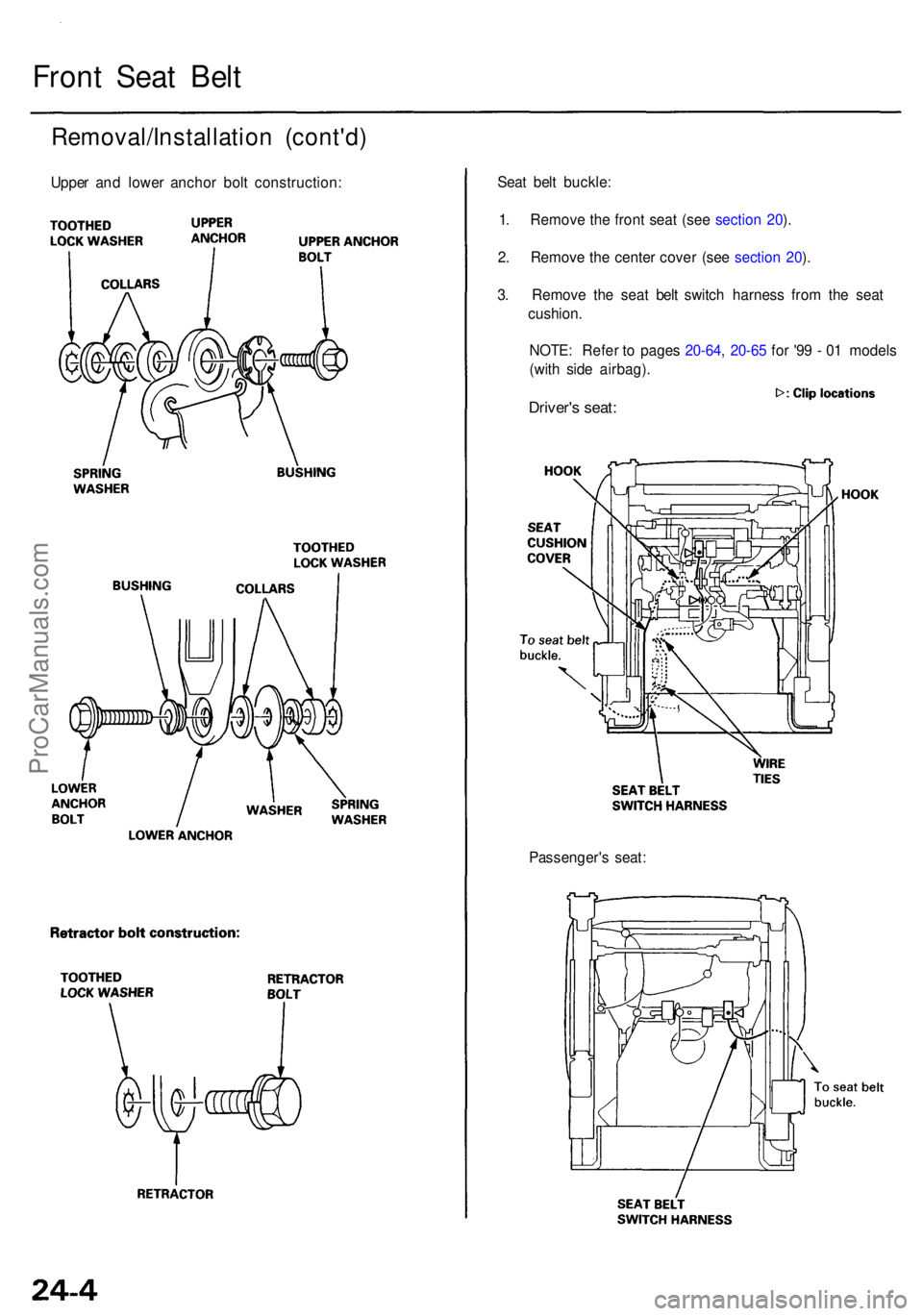

Front Sea t Bel t
Removal/Installatio n (cont'd )
Upper an d lowe r ancho r bol t construction : Sea
t bel t buckle :
1 . Remov e th e fron t sea t (se e sectio n 20 ).
2 . Remov e th e cente r cove r (se e sectio n 20 ).
3 . Remov e th e sea t bel t switc h harnes s fro m th e sea t
cushion .
NOTE : Refe r t o page s 20-64 , 20-6 5 fo r '9 9 - 0 1 model s
(wit h sid e airbag) .
Driver's seat :
Passenger' s seat :
