Troubleshooting
TCS Indicato r Ligh t Doe s No t Com e O n
Th e TC S indicato r ligh t doe s no t com e o n whe n ignitio n switc h i s turne d O N (II) .
The TC S indicato r ligh t doe s no t
com e o n whe n ignitio n switc h is
turne d O N (II) .
Chec k th e METE R (1 5 A ) fus e in th e
under-hoo d fuse/rela y bo x an d
METE R (7. 5 A ) fus e i n th e under -
das h fuse/rela y box .
Ar e th e fuse s OK ?
Chec k fo r a n ope n in th e IG 1 cir -
cuit :
1 . Disconnec t th e gaug e assem -
bl y 22 P connector .
2. Tur n th e ignitio n switc h O N (II) .3. Measur e th e voltag e betwee n
th e gaug e assembl y 22 P con -
necto r termina l No . 2 2 an d
body ground .
Is ther e batter y voltage ?
Is th e bul b OK ?
Chec k th e gaug e assembly :
1 . Connec t th e gaug e assembl y
22 P connector .
2 . Connec t th e gaug e assembl y
22 P connecto r termina l No . 7
t o bod y groun d wit h a jumpe r
wire .
Doe s th e TC S indicato r ligh t
com e on ?
T o pag e 19-16 3 NOTE
: Al l indicato r light s excep t th e chargin g
system indicato r ligh t wil l no t com e o n whe none o f thes e fuse s i s blown .
Replac e th e fuse(s ) an d recheck .
NOTE : Reinstal l th e fuse s if the y ar e OK . GAUG
E ASSEMBL Y 22 P CONNECTO R
Repai r ope n in th e wir e betwee n
th e METE R (1 5 A ) fus e i n th e
under-hoo d fuse/rela y bo x an d
gaug e assembly .
Repai r ope n in th e wir e betwee n
th e METE R (7. 5 A ) fus e i n th e
under-das h fuse/rela y bo x an d
bod y ground .
Mete r rela y stuc k OFF .
Replac e th e under-hoo d fuse /
relay bo x o r under-das h fuse /relay box .
(Ope n circui t insid e th e fuse /
rela y box ) Wir
e sid e o f femal e terminal s
Replac e th e TC S indicato r ligh t
bulb.
JUMPE R WIR E
Replac e th e printe d circui t boar d
i n th e gaug e assembly .
Chec
k th e TC S indicato r ligh t bul b
i n th e gaug e assembly .
ProCarManuals.com
Page 1202 of 1954

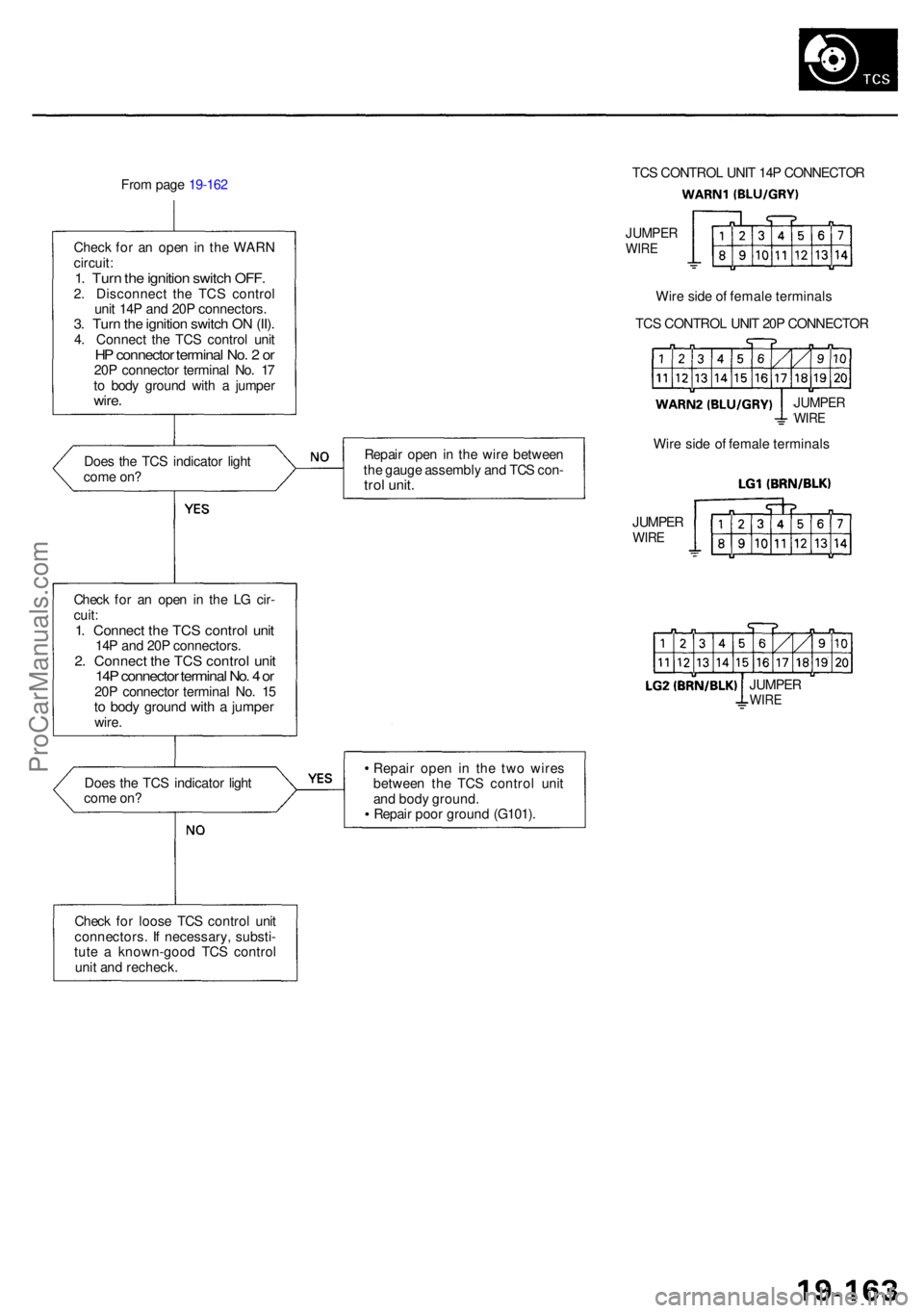

From pag e 19-16 2
Chec k fo r a n ope n in th e WAR N
circuit :
1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e TC S contro l
uni t 14 P an d 20 P connectors .
3. Tur n th e ignitio n switc h O N (II) .4. Connec t th e TC S contro l uni tHP connecto r termina l No . 2 or20 P connecto r termina l No . 1 7
t o bod y groun d wit h a jumpe r
wire.
Doe s th e TC S indicato r ligh t
com e on ?
Chec k fo r a n ope n i n th e L G cir -
cuit :
1. Connec t th e TC S contro l uni t14P an d 20 P connectors .2. Connec t th e TC S contro l uni t14P connecto r termina l No . 4 or20 P connecto r termina l No . 1 5to bod y groun d wit h a jumpe rwire.
Doe s th e TC S indicato r ligh t
com e on ?
Chec k fo r loos e TC S contro l uni t
connectors . I f necessary , substi -
tut e a known-goo d TC S contro l
uni t an d recheck . TC
S CONTRO L UNI T 14 P CONNECTO R
JUMPERWIRE
Wire sid e o f femal e terminal s
TC S CONTRO L UNI T 20 P CONNECTO R
Repai r ope n in th e wir e betwee n
th e gaug e assembl y an d TC S con -
trol unit .
Repai r ope n i n th e tw o wire s
betwee n th e TC S contro l uni t
an d bod y ground .
Repai r poo r groun d (G101) . JUMPE
R
WIRE
JUMPE RWIRE
Wire sid e o f femal e terminal s
JUMPERWIRE
ProCarManuals.com
Page 1203 of 1954

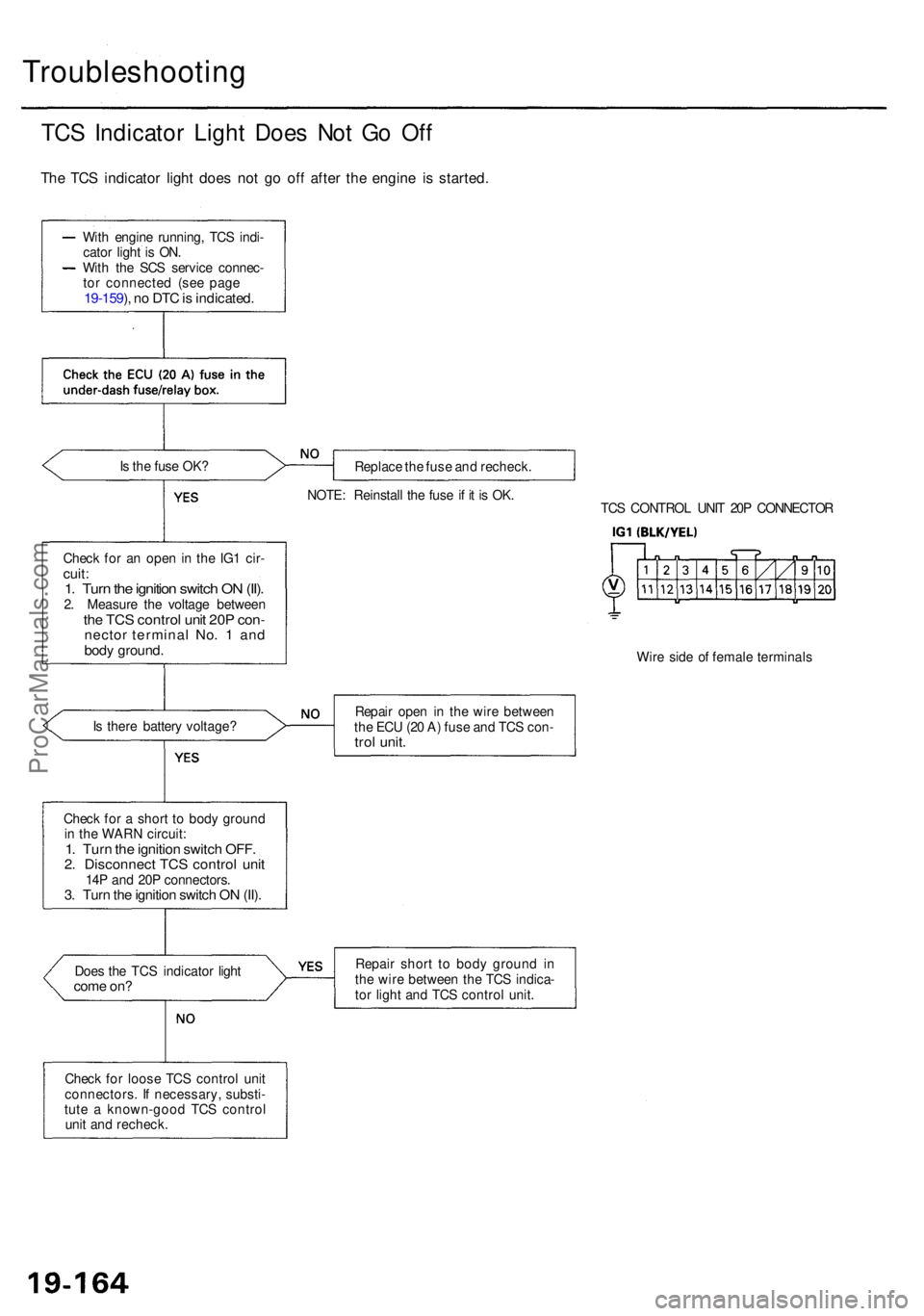

Troubleshooting
TCS Indicato r Ligh t Doe s No t G o Of f
The TC S indicato r ligh t doe s no t g o of f afte r th e engin e i s started .
Is th e fus e OK ?
Chec k fo r a n ope n in th e IG 1 cir -
cuit :1. Tur n th e ignitio n switc h O N (II) .2. Measur e th e voltag e betwee nthe TC S control unit 20 P con -necto r termina l No . 1 an dbody ground .
Is ther e batter y voltage ?
Chec k fo r a shor t t o bod y groun d
i n th e WAR N circuit :
1. Tur n th e ignitio n switc h OFF .
2 . Disconnec t TC S contro l uni t
14P an d 20 P connectors .3. Tur n th e ignitio n switc h O N (II) .
Doe s th e TC S indicato r ligh tcom e on ?
Replac e th e fus e an d recheck .
NOTE : Reinstal l th e fus e if i t i s OK .
TCS CONTRO L UNI T 20 P CONNECTO R
Wir e sid e o f femal e terminal s
Repai r ope n i n th e wir e betwee n
th e EC U (2 0 A ) fus e an d TC S con -
trol unit .
Repai r shor t t o bod y groun d i n
th e wir e betwee n th e TC S indica -
to r ligh t an d TC S contro l unit .
Chec k fo r loos e TC S contro l uni t
connectors . I f necessary , substi -
tut e a known-goo d TC S contro l
uni t an d recheck .
Wit
h engin e running , TC S indi -
cato r ligh t i s ON .
Wit h th e SC S servic e connec -
to r connecte d (se e pag e
19-159 ), n o DT C is indicated .
ProCarManuals.com
Page 1204 of 1954

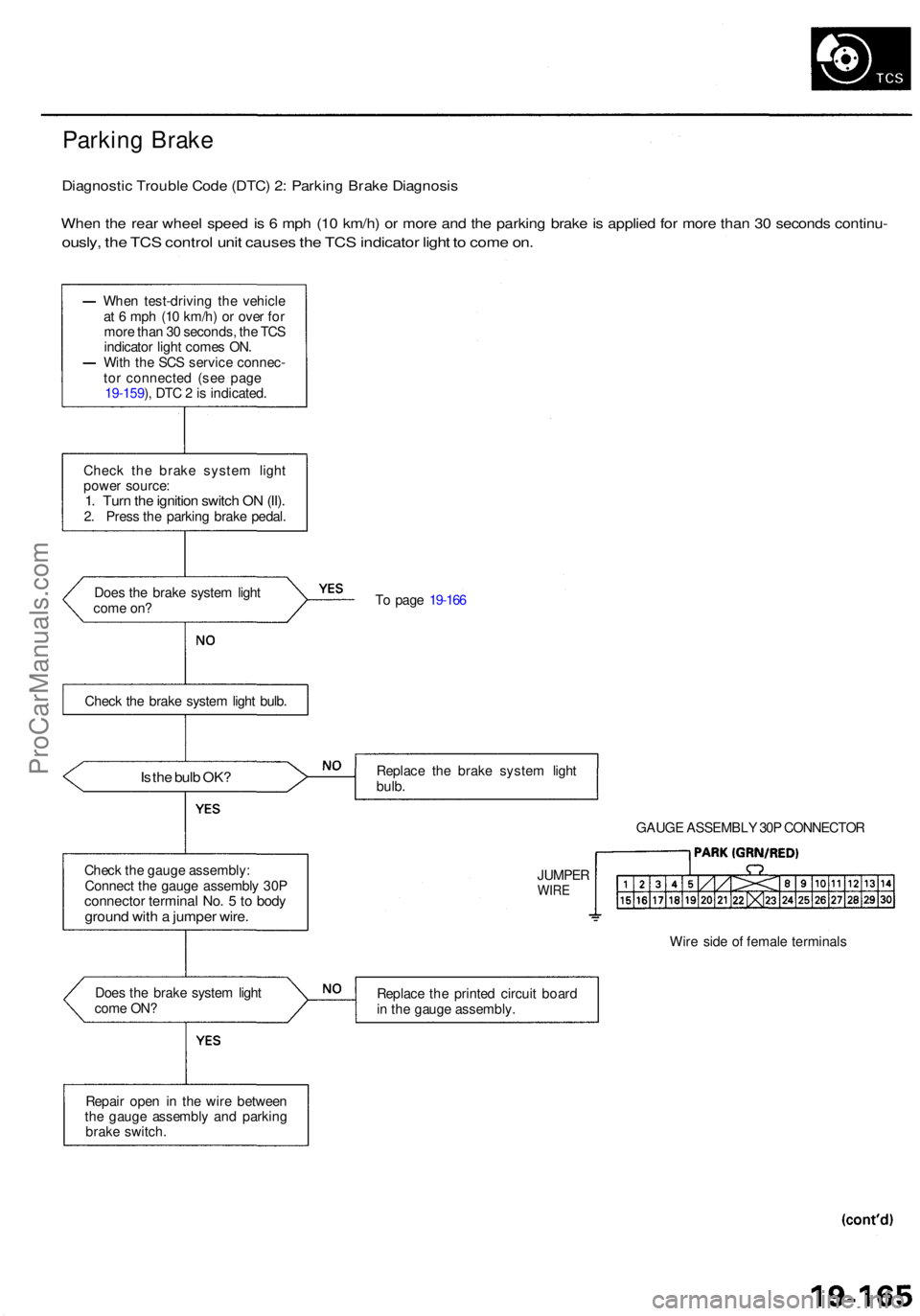

Parking Brak e
Diagnosti c Troubl e Cod e (DTC ) 2 : Parkin g Brak e Diagnosi s
When th e rea r whee l spee d i s 6 mp h (1 0 km/h ) o r mor e an d th e parkin g brak e is applie d fo r mor e tha n 3 0 second s continu -
ously, th e TC S contro l uni t cause s th e TC S indicato r ligh t t o com e on .
Doe s th e brak e syste m ligh t
com e on ? T
o pag e 19-16 6
Is th e bul b OK ?Replac e th e brak e syste m ligh t
bulb .
GAUGE ASSEMBL Y 30 P CONNECTO R
Chec k th e gaug e assembly :
Connec t th e gaug e assembl y 30 P
connecto r termina l No . 5 to bod ygroun d wit h a jumpe r wire .
Wire sid e o f femal e terminal s
Doe s th e brak e syste m ligh t
com e ON ? Replac
e th e printe d circui t boar d
i n th e gaug e assembly .
Repai r ope n i n th e wir e betwee n
th e gaug e assembl y an d parkin g
brak e switch . JUMPE
R
WIRE
Chec k th e brak e syste m ligh t bulb .
Whe
n test-drivin g th e vehicl e
a t 6 mp h (1 0 km/h ) o r ove r fo r
mor e tha n 3 0 seconds , th e TC S
indicato r ligh t come s ON .
Wit h th e SC S servic e connec -
to r connecte d (se e page
19-159 ), DT C 2 is indicated .
Chec k th e brak e syste m ligh t
powe r source :
1. Tur n th e ignitio n switc h O N (II) .2. Pres s th e parkin g brak e pedal .
ProCarManuals.com
Page 1205 of 1954

Troubleshooting

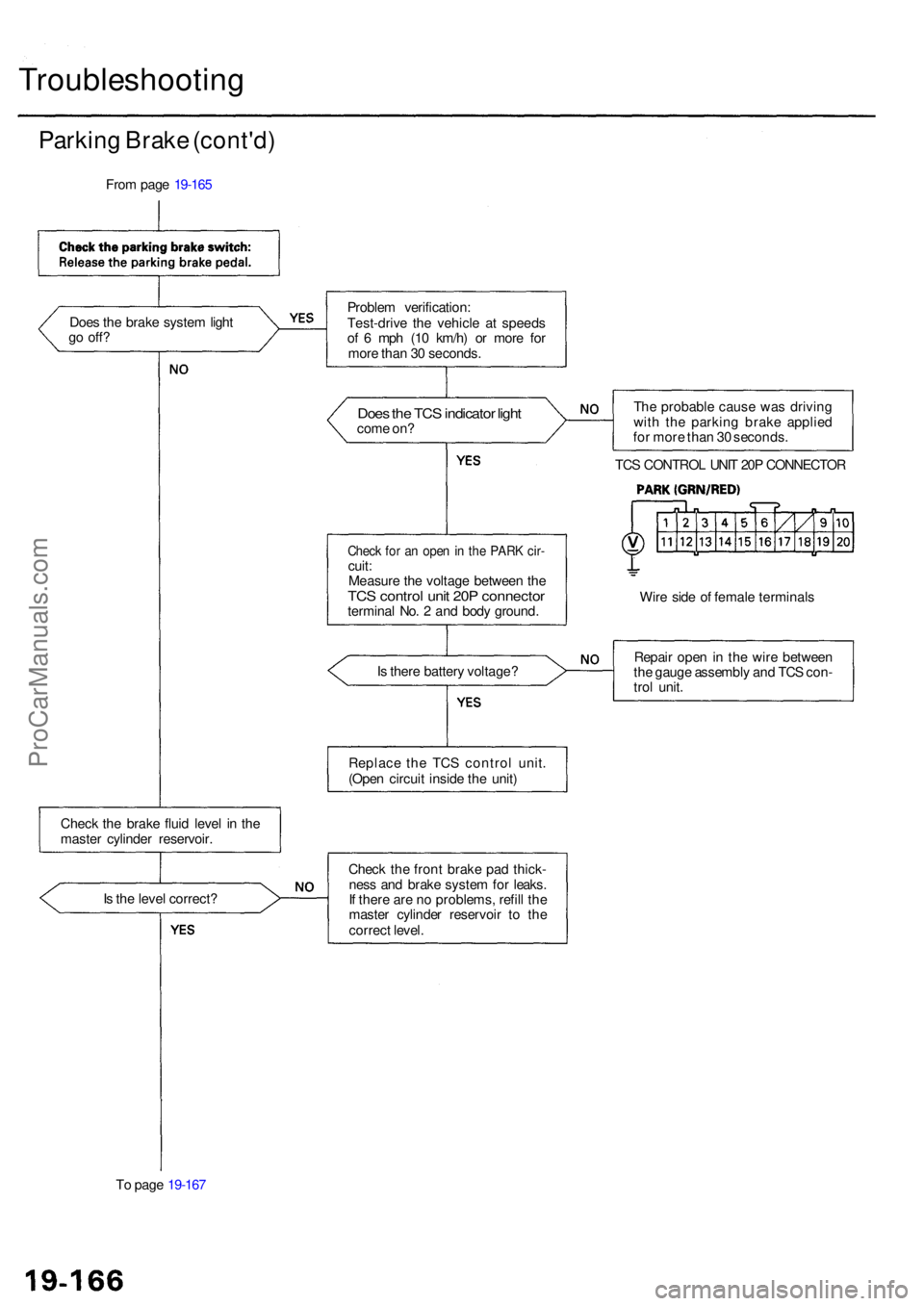

Parking Brak e (cont'd )
From pag e 19-16 5
Doe s th e brak e syste m ligh t
g o off ? Proble
m verification :
Test-driv e th e vehicl e a t speed s
o f 6 mp h (1 0 km/h ) o r mor e fo r
mor e tha n 3 0 seconds .
Does th e TC S indicato r ligh tcom e on ? Th
e probabl e caus e wa s drivin g
wit h th e parkin g brak e applie d
fo r mor e tha n 3 0 seconds .
TC S CONTRO L UNI T 20 P CONNECTO R
Check fo r a n ope n in th e PAR K cir -cuit :
Measur e th e voltag e betwee n th e
TC S contro l uni t 20 P connecto rterminal No . 2 an d bod y ground . Wir
e sid e o f femal e terminal s
I s ther e batter y voltage ? Repai
r ope n in th e wir e betwee n
th e gaug e assembl y an d TC S con -
tro l unit .
Chec k th e fron t brak e pa d thick -
nes s an d brak e syste m fo r leaks .
I f ther e ar e n o problems , refil l th e
maste r cylinde r reservoi r t o th e
correc t level .
T o pag e 19-16 7
I
s th e leve l correct ?
Chec
k th e brak e flui d leve l i n th e
maste r cylinde r reservoir . Replac
e the TCS contro l unit .
(Ope n circui t insid e th e unit )
ProCarManuals.com
Page 1206 of 1954
From pag e 19-16 6
Chec k th e brak e flui d leve l switch :
Disconnec t th e brak e flui d leve lswitch connectors .
Doe s th e brak e syste m ligh t g o off ? Replac
e th e brak e flui d leve l
switch . (Switc h stuc k ON )
Chec k th e parkin g brak e switc h
(se e pag e 19-8) .
Is th e switc h OK ?Replac e th e parkin g brak e switch .
(Switc h stuc k ON )
Chec k fo r a shor t t o bod y groun d
i n th e PAR K circuit :
Disconnec t th e TC S contro l uni tconnector .
Doe s th e brak e syste m ligh t
g o off ? Replac
e th e TC S contro l unit .
(Shor t t o bod y groun d insid e th e
unit )
Repai r shor t t o bod y groun d i n
th e wir e betwee n th e brak e sys -
te m light , parkin g brak e switc h
an d brak e flui d leve l switch .
ProCarManuals.com
Page 1207 of 1954

Troubleshooting
Steering Angl e Senso r
Diagnosti c Troubl e Cod e (DTC ) 2-1 : Steerin g Angl e Senso r Diagnosi s
The TC S contro l uni t perform s th e self-diagnosi s fo r th e steerin g angl e senso r whe n th e spee d o f th e fou r wheel s exceed s
6 mp h (1 0 km/h ) o n a smoot h road . Th e TC S indicato r ligh t come s o n if a ya w rat e is generated , th e correspondin g steer -
ing angl e signa l i s no t inpu t whe n th e steerin g whee l i s turned , an d ther e is n o inpu t fro m th e STO P (brak e peda l positio n
switch signal ) an d PAR K (parkin g brak e switc h signal) .
With engin e running , TC S indi -
cato r ligh t i s ON .
Th e tir e pressur e i s correct ,
an d tire s wit h a correc t diame -
te r ar e installed .
Wit h th e SC S servic e connec -
to r connecte d (se e pag e
19-159 ), DT C 2- 1 is indicated .
Chec k fo r a shor t t o bod y groun d
i n th e wire s betwee n th e TC S con -
tro l uni t an d steerin g angl e sensor :
1 . Disconnec t th e TC S contro l uni t
14P an d 20 P connector s an dsteerin g angl e senso r connec -tor.2. Chec k fo r continuit y betwee n
bod y groun d an d TC S contro l
unit 14 P connecto r terminal sNo. 9 an d No . 1 3 individuall yand betwee n th e 20 P connec -
to r termina l No . 4 an d No . 1 6
individually .
Is ther e continuity ?
Chec k th e STR-VC C circui t insid e
th e TC S contro l unit :
1 . Connec t th e TC S contro l uni t
14 P an d 20 P connectors .
2 . Tur n th e ignitio n switc h O N (II) .
3. Measur e th e voltag e betwee nthe TC S contro l uni t 20 P con -necto r termina l No . 1 6 an dbod y ground .
Is ther e abou t 5 V ?
Chec k th e STR-GN D circui t insid e
th e TC S contro l unit :
Measur e th e voltag e betwee n th e
TC S contro l uni t 20 P connecto r ter -
mina l No . 4 an d No . 16 .
Is ther e abou t 5 V ?
T o pag e 19-16 9 TC
S CONTRO L UNI T 14 P CONNECTO R
Wir e sid e o f femal e terminal s
TC S CONTRO L UNI T 20 P CONNECTO R
Repair shor t t o bod y groun d in th ewire(s ) betwee n th e TC S contro l
uni t an d steerin g angl e sensor . Wir
e sid e o f femal e terminal s
Replac e th e TC S contro l unit .
Replac e th e TC S contro l unit .
ProCarManuals.com
Page 1208 of 1954

From pag e 19-16 8
Chec k fo r a n ope n in th e STR-VC C
circuit :
Measur e th e voltag e betwee n th e
steerin g angl e senso r connecto r
terminal No . 5 an d bod y ground .
Is ther e abou t 5 V ?
Chec k fo r a n ope n i n the STR -
GN D circuit :
Measur e th e voltag e betwee n th e
steerin g angl e senso r connecto r
terminals No . 5 an d No . 1 .
Is ther e abou t 5 V ?
Chec k th e STR- A circui t insid e th e
steerin g angl e sensor :
1. Tur n th e ignitio n switc h OFF .2. Connec t th e steerin g angl e sen -
so r connector .
3. Tur n th e ignitio n switc h O N (II) .4. Measur e th e voltag e betwee n
th e steerin g angl e senso r con -
necto r termina l No . 2 an d bod y
groun d whe n turnin g th e steer -
ing whee l slowly .
Is ther e 5 V 0 V ?
Chec k th e STR- B circui t insid e
th e steerin g angl e sensor :
Measur e th e voltag e betwee n th e
steerin g angl e sensor connecto r
terminal No . 4 an d bod y groun dwhen turnin g th e steerin g whee lslowly.
Is ther e 5 V 0 V ?
T o pag e 19-17 0 STEERIN
G ANGL E SENSO R CONNECTO R
Repai r ope n in th e wir e betwee n
th e TC S contro l uni t an d steerin g
angl e sensor . Wir
e sid e o f femal e terminal s
Repai r ope n i n th e wir e betwee n
th e TC S contro l uni t an d steerin g
angl e sensor .
Replac e th e steerin g angl e sensor .
Replac e th e steerin g angl e sensor .
