1996 ACURA RL KA9 Service Repair Manual

Power Window s
Control Uni t Inpu t Tes t (cont'd )
NOTE:
• Befor e testing , g o t o th e Troubleshootin g Guid e (se e pag e 23-244 ). B e sur e t o g o throug h self-diagnosi s functio n
mode s 1 an d 2 (se e page s 23-24 8 an d 23-252 ).
• Al l connecto r view s ar e fro m th e wir e sid e o f femal e terminal s unles s otherwis e noted .
Multiple x Contro l Uni t (Passenger's )
1 . Remov e th e righ t kic k pane l (se e sectio n 20 ).
2 . Disconnec t th e 22 P an d 26 P connectors , the n remov e th e passenger' s uni t (se e pag e 23-246 ).
3 . Inspec t th e connecto r an d socke t terminal s t o b e sur e the y ar e al l makin g goo d contact .
• I f th e terminal s ar e bent , loos e corroded , repai r the m a s necessary , an d recheck the system .
• I f th e terminal s loo k OK , mak e th e followin g inpu t test s a t th e connector .
I f a tes t indicate s a problem , fin d an d correc t th e cause , the n rechec k th e system .
I f al l th e inpu t test s prov e OK , th e powe r windo w maste r switc h (contro l unit ) mus t b e faulty ; replac e it .
ProCarManuals.com

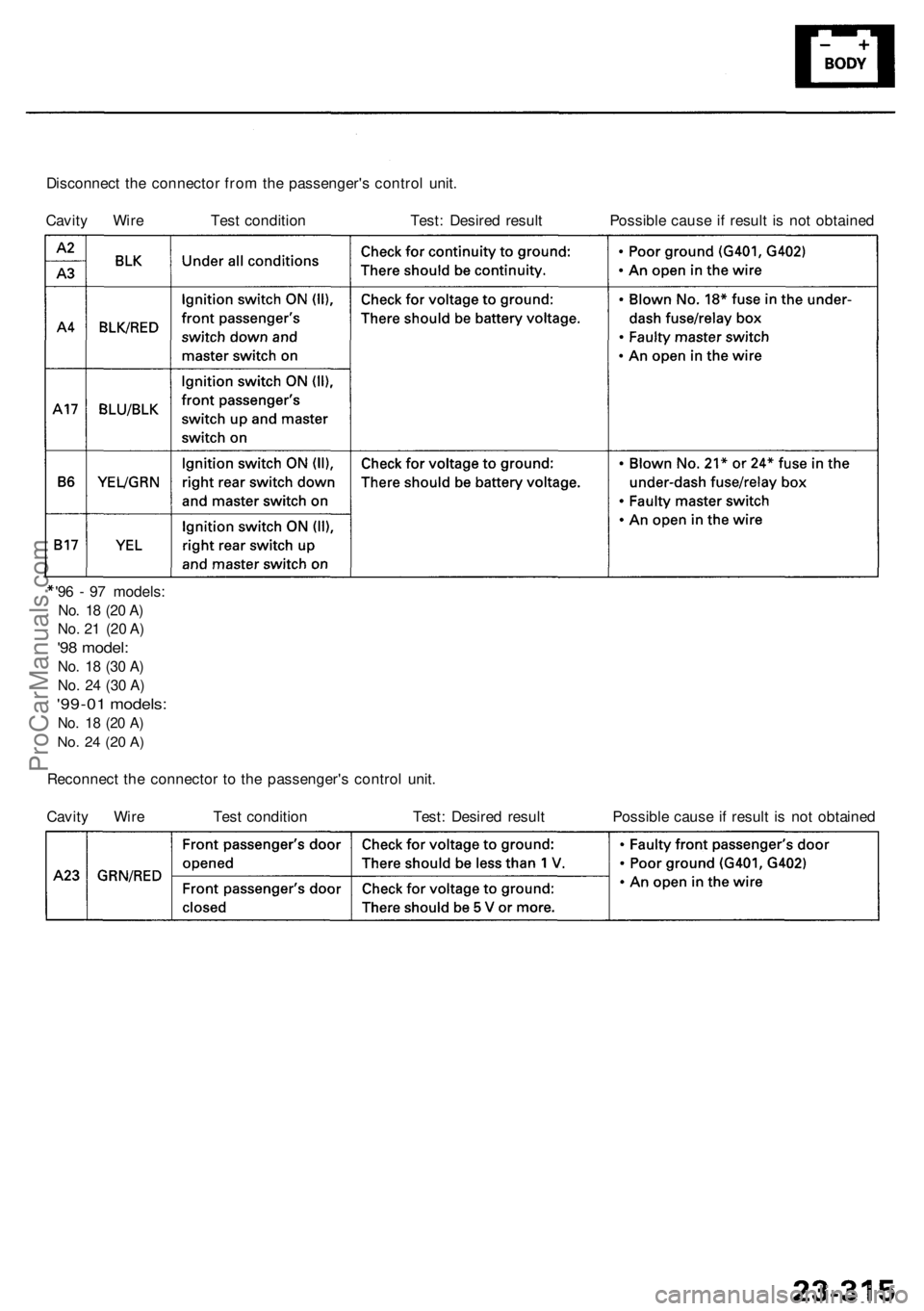

Disconnect th e connecto r fro m th e passenger' s contro l unit .
Cavit y Wir e Tes t conditio n Test : Desire d resul t Possibl e caus e i f resul t i s no t obtaine d
Reconnec t th e connecto r t o th e passenger' s contro l unit .
Cavit y Wir e Tes t conditio n Test : Desire d resul t Possibl e caus e i f resul t i s no t obtaine d
'9
6 - 9 7 models :
No. 1 8 (2 0 A )
No . 2 1 (2 0 A )
'98 model :
No. 1 8 (3 0 A )
No . 2 4 (3 0 A )
'99-0 1 models :
No. 1 8 (2 0 A )
No . 2 4 (2 0 A )
ProCarManuals.com

Power Window s
Master Switc h Replacemen t
1. Remov e th e driver' s doo r pane l (se e sectio n 20 ).
2 . Remov e th e tw o mountin g screws , the n remov e th e
maste r switc h assembl y fro m th e doo r panel .
MASTE R SWITC H ASSEMBL Y
Passenger's Windo w Switc h
Replacemen t
1. Remov e th e passenger' s doo r pane l (se e sectio n 20 ).
2 . Remov e th e tw o screws , the n remov e th e switc h
assembl y fro m th e doo r panel .
3. Remov e th e si x mountin g screws , the n remov e th e
passenger' s windo w switc h fro m th e panel .
PASSENGER' SWINDOW
SWITC H
PANEL
4. Instal l i n th e revers e orde r o f removal .
4 . Instal l i n th e revers e orde r o f removal .
PANEL
3. Remov e th e fiv e mountin g screws , the n remov e th e
maste r switc h fro m th e panel .
MASTE R SWITC H
ProCarManuals.com

Passenger's Windo w Switc h Tes t
1. Remove the passenger's window switch (see
section 20 ).
'9 6 - 9 7 models :
'98 - 0 1 model s
Passenger' s Windo w Moto r Tes t
1. Remov e th e passenger' s doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 2 P connecto r fro m th e windo w motor .
Termina l sid e o f
mal e terminal s
3. Chec k windo w moto r operatio n b y connectin g powe r
an d groun d accordin g to th e table .
CAUTION : Whe n th e moto r stop s running , discon -
nec t on e lea d immediately .
4 . I f th e moto r doe s no t ru n o r fail s t o ru n smoothly ,
replac e it .
3 . Chec k fo r continuit y betwee n th e No . 4 an d No . 6
terminals . ('98-0 1 models )
Ther e shoul d b e continuity .
I f ther e i s n o continuity , chec k th e indicato r ligh t
bulb.
[ ] : '98-0 1 model s
2. Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g to th e table .
PASSENGER' SWINDOW SWITC H
ProCarManuals.com

Power Window s
Driver's Windo w Moto r Tes t
Moto r Test :
1 . Remov e th e driver' s doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 4 P connecto r fro m th e windo w motor .
Termina l sid e o f
mal e terminal s
3. Tes t th e moto r i n eac h directio n b y connectin g bat -
ter y powe r an d groun d accordin g t o th e table .
CAUTION : Whe n th e moto r stop s running , discon -
nec t on e lea d immediately .
4 . I f th e moto r doe s no t ru n o r fail s t o ru n smoothly ,
replace it .
Pulse r Test :
5. Connec t th e tes t lead s o f a n analo g ohmmete r t o
th e No . 3 an d No . 4 terminals .
6 . Ru n th e moto r b y connectin g powe r an d groun d t o
th e No . 1 an d No . 2 terminals . Th e ohmmete r nee -
dl e shoul d mov e bac k an d fort h alternately .
