Electrical Troubleshootin g

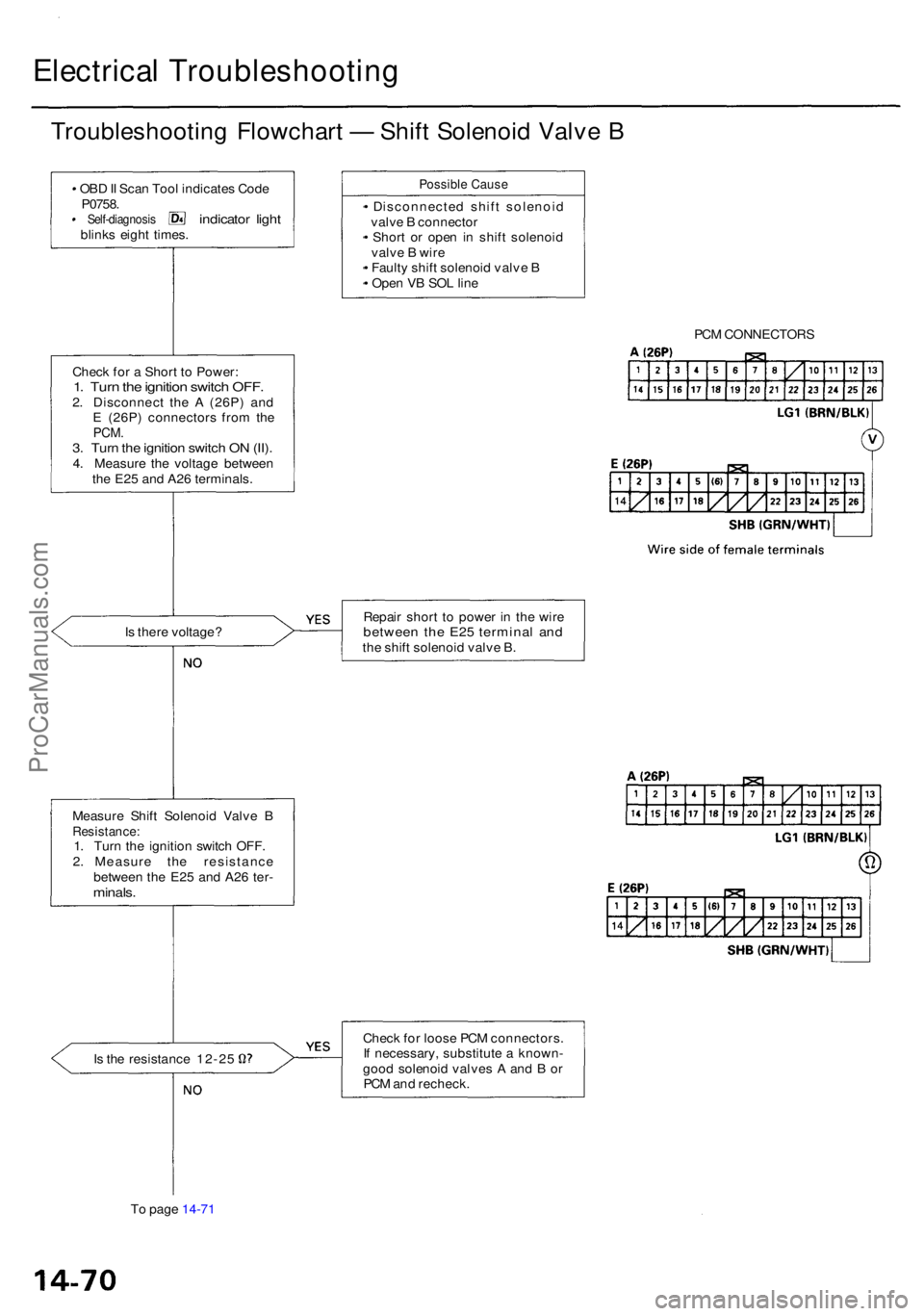

Troubleshooting Flowchar t — Shif t Solenoi d Valv e B
• OB D II Sca n Too l indicate s Cod e
P0758 .
• Self-diagnosi s indicator ligh tblink s eigh t times .
Possibl e Caus e
• Disconnecte d shif t solenoi d
valv e B connecto r
• Shor t o r ope n i n shif t solenoi d
valv e B wir e
• Fault y shif t solenoi d valv e B
• Ope n V B SO L lin e
Chec k fo r a Shor t t o Power :
1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e A (26P ) an d
E (26P ) connector s fro m th e
PCM .3. Tur n th e ignitio n switc h O N (II) .4. Measur e th e voltag e betwee n
th e E2 5 an d A2 6 terminals .
I s ther e voltage ? Repai
r shor t t o powe r i n th e wir e
betwee n th e E2 5 termina l an dthe shif t solenoi d valv e B .
Measur e Shif t Solenoi d Valv e B
Resistance :1. Tur n th e ignitio n switc h OFF .
2 . Measur e th e resistanc e
betwee n th e E2 5 an d A2 6 ter -
minals .
Is th e resistanc e 12-2 5 Chec
k fo r loos e PC M connectors .
I f necessary , substitut e a known -
goo d solenoi d valve s A an d B or
PC M an d recheck .
T o pag e 14-7 1 PC
M CONNECTOR S
ProCarManuals.com
Page 778 of 1954

From pag e 14-7 0
Chec k Shif t Solenoi d Valv e B fo r
a Shor t Circuit :
1 . Remov e th e shif t cabl e cove r
fro m th e transmission .
2 . Disconnec t th e shif t solenoi d
valve/A/ T clutc h pressur e con -
tro l solenoi d valv e harnes s 4 P
connector .
3 . Chec k fo r continuit y betwee n
th e E2 5 an d A2 6 terminals .
I s ther e continuity ?
Measur e Shif t Solenoi d Valv e B
Resistanc e a t th e Solenoi d
Connector :
Measur e th e resistanc e betwee n
th e No . 1 termina l o f th e shif t
solenoi d valve/A/ T clutc h pres -
sur e contro l solenoi d valv e har -
nes s 4 P connecto r an d bod y
ground .
Is th e resistanc e 12-2 5
Replac e th e shif t solenoi d valve s
A an d B .
Repai r shor t t o groun d in th e wir ebetwee n th e E2 5 termina l an d th eshif t solenoi d valv e B .
Chec k fo r ope n i n th e wir e
betwee n th e E2 5 termina l an d
th e shif t solenoi d valv e B .
Chec k fo r ope n i n th e wir e
betwee n th e E 1 termina l an d th e
under-hoo d fuse/rela y box . PC
M CONNECTOR S
SHIF T SOLENOI D
VALVE/A/ T CLUTC H PRESSUR E
CONTRO L SOLENOI D VALV E
HARNES S 4 P CONNECTO R
Termina l sid e o f
mal e terminal s
PC M CONNECTOR S
Wir e sid e o f femal e terminal s
Chec
k th e V B SO L Voltage :
1. Tur n th e ignitio n switc h O N (II) .2. Measur e th e voltag e betwee n
th e E l an d A2 6 terminals .
I s ther e voltage ?
ProCarManuals.com
Page 779 of 1954

Electrical Troubleshootin g
Troubleshooting Flowchar t — Countershaf t Spee d Senso r
• OB D II Sca n Too l indicate s Cod e
P0720 .
• Self-diagnosi s indicato r
ligh t blink s nin e times .
Chec k th e countershaf t spee d
senso r installation .
I s th e countershaf t spee d sen -
so r installe d properly ?
Measur e Countershaf t Spee d
Senso r Resistanc e a t th e Senso r
Connector :
1 . Disconnec t th e 3 P connecto r
fro m th e countershaf t spee d
sensor .
2 . Measur e th e resistanc e o f th e
countershaf t spee d sensor .
Is th e resistanc e 40 0 - 60 0
Chec k Countershaf t Spee d
Senso r fo r a Shor t Circuit :
1 . Disconnec t th e E (26P ) connec -
tor fro m th e PCM .2. Chec k fo r continuit y betwee nthe bod y groun d an d th e E 5
termina l an d E1 8 termina l
individually .
Possible Caus e
• Loos e o r fault y connectio n
betwee n th e PC M an d vehicl e
harness• Disconnecte d countershaf t
spee d senso r connecto r
• Shor t o r ope n i n countershaf t
spee d senso r wir e
• Fault y countershaf t spee d sen -
sor
Reinstal l an d recheck .
COUNTERSHAFT SPEE D
SENSO R 3 P CONNECTO R
Termina l sid e o f mal e terminal s
Replac e th e countershaf t spee d
sensor .
Wire sid e o f femal e terminal s
I s ther e continuity ? Repai
r shor t i n th e wire s betwee n
th e E 5 an d E1 8 terminal s an d th e
countershaf t spee d sensor .
T o pag e 14-7 3 PC
M CONNECTO R E (26P )
ProCarManuals.com
Page 780 of 1954
From pag e 14-7 2
PCM CONNECTO R E (26P )
Measur e Countershaf t Spee d
Senso r Resistance :
1 . Connec t th e countershaf t
spee d senso r 3 P connector .
2 . Measur e th e resistanc e
betwee n th e E 5 an d E1 8 ter -
minals .
Wire sid e o f femal e terminal s
Is th e resistanc e 40 0 - 60 0 Repai
r loos e termina l o r ope n i nth e wire s betwee n th e E 5 an dE18 terminal s an d th e counter -
shaf t spee d sensor .
Chec k fo r loos e PC M connectors .
I f necessary , substitut e a known -
goo d PC M an d recheck .
ProCarManuals.com
Page 781 of 1954

Electrical Troubleshootin g
Troubleshooting Flowchar t — Mainshaf t Spee d Senso r
• OB D II Sca n Too l indicate s Cod e
P0715 .
• Self-diagnosi s indicato r
ligh t indicate s Cod e 15 .
Chec k th e mainshaf t an d counter -
shaf t spee d senso r installation .
Ar e th e mainshaf t an d
countershaf t spee d sensor sinstalled properly ?
Measur e Mainshaf t Spee d Senso r
Resistanc e a t th e Senso r Con -
nector :1. Disconnec t th e 2 P connecto rfrom th e mainshaf t spee dsensor .2. Measur e th e resistanc e o f th e
mainshaf t spee d sensor .
Is th e resistanc e 40 0 - 60 0
YE S
Chec k Mainshaf t Spee d Senso r
fo r a Shor t Circuit :
1 . Disconnec t th e E (26P ) con -
necto r fro m th e PCM .
2. Chec k fo r continuit y betwee nbody groun d an d E 4 termina land th e E1 7 termina l individu -ally.
Possibl e Caus e
• Disconnecte d mainshaf t spee d
senso r connecto r
• Shor t o r ope n i n mainshaf t
spee d senso r wir e
• Fault y mainshaf t spee d senso r
NOTE: Cod e P071 5 (15 ) o n th e PC M
doesn' t alway s mea n there' s a n electrica l
problem in th e mainshaf t o r countershaf t
speed senso r circuit ; cod e P071 5 (15 )
may als o indicat e a mechanica l proble m
in th e transmission .
Reinstall an d recheck .
MAINSHAFT SPEE D
SENSO R 2P CONNECTO R
Termina l sid e o f mal e terminal s
Replac e th e mainshaf t spee d sen -
sor.
Wir e sid e o f femal e terminal s
I s ther e continuity ?
T o pag e 14-7 5 Repai
r shor t i n th e wire s betwee n
th e E 4 an d E1 7 terminal s an d th e
mainshaf t spee d sensor . PC
M CONNECTO R E (26P )
ProCarManuals.com
Page 782 of 1954

From pag e 14-7 4
Measur e Mainshaf t Spee d Sen -
so r Resistance :
1 . Connec t th e mainshaf t spee d
senso r 2 P connector .
2 . Measur e th e resistanc e
betwee n th e E 4 an d E1 7 ter -
minals .
Is th e resistanc e 40 0 - 60 0
Chec k N M Wir e Continuity :1. Disconnec t th e 2 P connecto rfrom th e mainshaf t spee dsensor .2. Chec k fo r continuit y betwee nthe E 4 termina l an d th e No . 1termina l o f th e mainshaf tspeed senso r connector .
Is ther e continuity ?
Check NMS G Wir e Continuity :
Chec k fo r continuit y betwee n th e
E17 termina l an d th e No . 2 termi -nal o f th e mainshaf t spee d sen -
so r connector . Wir
e sid e o f femal e terminal s
I s ther e continuity ?
Chec k fo r loos e PC M connectors .
I f necessary , substitut e a known -
goo d PC M an d recheck . Ru
n th e Electrica l Troubleshootin g
Flowchar t fo r cod e P072 0 (cod e 9) .
Chec k fo r loos e PC M connectors . I f
necessary , substitut e a known -
goo d PC M an d recheck .
MAINSHAF T SPEE DSENSO R 2 P CONNECTO R
Wir e sid e o f femal e terminal s
Repair ope n in th e wir e betwee nthe E 4 termina l an d th e main -shaft spee d sensor .
Repai r ope n i n th e wir e betwee n
th e E1 7 termina l an d th e main -
shaf t spee d sensor . PC
M CONNECTO R E (26P )
PC M CONNECTO R E (26P )
ProCarManuals.com
Page 783 of 1954

Electrical Troubleshootin g
Troubleshooting Flowchar t — A/ T Clutc h Pressur e Contro l Solenoi d Valv e
• OB D II Sca n Too l indicate s Cod e
P1768 .
• Self-diagnosi s indicator ligh t
indicate s Cod e 16 .
Measur e A/ T clutc h pressur e con -
tro l solenoi d valv e Resistanc e a t
Solenoi d Connector :
1 . Disconnec t th e shif t solenoi d
valve/A/ T clutc h pressur e con -
tro l solenoi d valv e harnes s 4 P
connector .
2 . Measur e th e resistanc e o f th e
A/ T clutc h pressur e contro l
solenoi d valve .
Is th e resistanc e approx . 5
Chec k A/ T Clutc h Pressur e
Control Solenoi d Valv e fo r aShor t Circuit :
1 . Disconnec t th e E (26P ) con -
necto r fro m th e PCM .
2 . Chec k fo r continuit y betwee n
body groun d an d th e E1 6 termi -nal an d E 3 termina l individually .
I s ther e continuity ?
Is th e resistanc e approx .
Chec k th e V B SO L Voltage :
1 . Disconnec t th e A (26P ) an d E
(26P ) connector s fro m th ePCM .2. Tur n th e ignitio n switc h O N (II) .3. Measur e th e voltag e betwee n
th e E 1 an d A2 6 terminals .
I s ther e voltage ?
Chec k fo r loos e PC M connectors .
I f necessary , substitut e a known -
goo d PC M an d recheck . Possibl
e Caus e
• Disconnecte d A/ T clutc h pres -
sur e contro l solenoi d valv e con -
necto r
• Shor t o r ope n i n A/ T clutc h
pressur e contro l solenoi d valv e
wir e
• Fault y A/ T clutc h pressur e con -
tro l solenoi d valv e
• Ope n V B SO L lin e
Replac e th e A/ T clutc h pressur e
contro l solenoi d valve .
Repai r shor t i n th e wire s
betwee n th e E1 6 an d E 3 termi -
nal s an d th e A/ T clutc h pressur e
contro l solenoi d valve .
Repai r loos e termina l o r ope n i n
th e wire s betwee n th e E1 6 an d E 3
terminal s an d th e A/ T clutc h pres -
sur e contro l solenoi d valve .
Chec k fo r ope n i n th e wir e
betwee n th e E 1 termina l an d th eunder-hoo d fuse/rela y box . SHIF
T SOLENOI D
VALVE/A/ T CLUTC H PRESSUR E
CONTRO L SOLENOI D VALV E
HARNES S 4 P CONNECTO R
Termina l sid e o f mal e terminal s
Wir e sid e o f femal e terminal s
Measur e A/ T Clutc h Pressur e
Contro l Solenoi d Valv e Resistance :
1. Connec t th e shif t solenoi dvalve/A/T clutc h pressur e con -
tro l solenoi d valv e harnes s 4 P
connector .
2 . Measur e th e resistanc e
between th e E1 6 an d E 3 ter -minals .
ProCarManuals.com
Page 784 of 1954

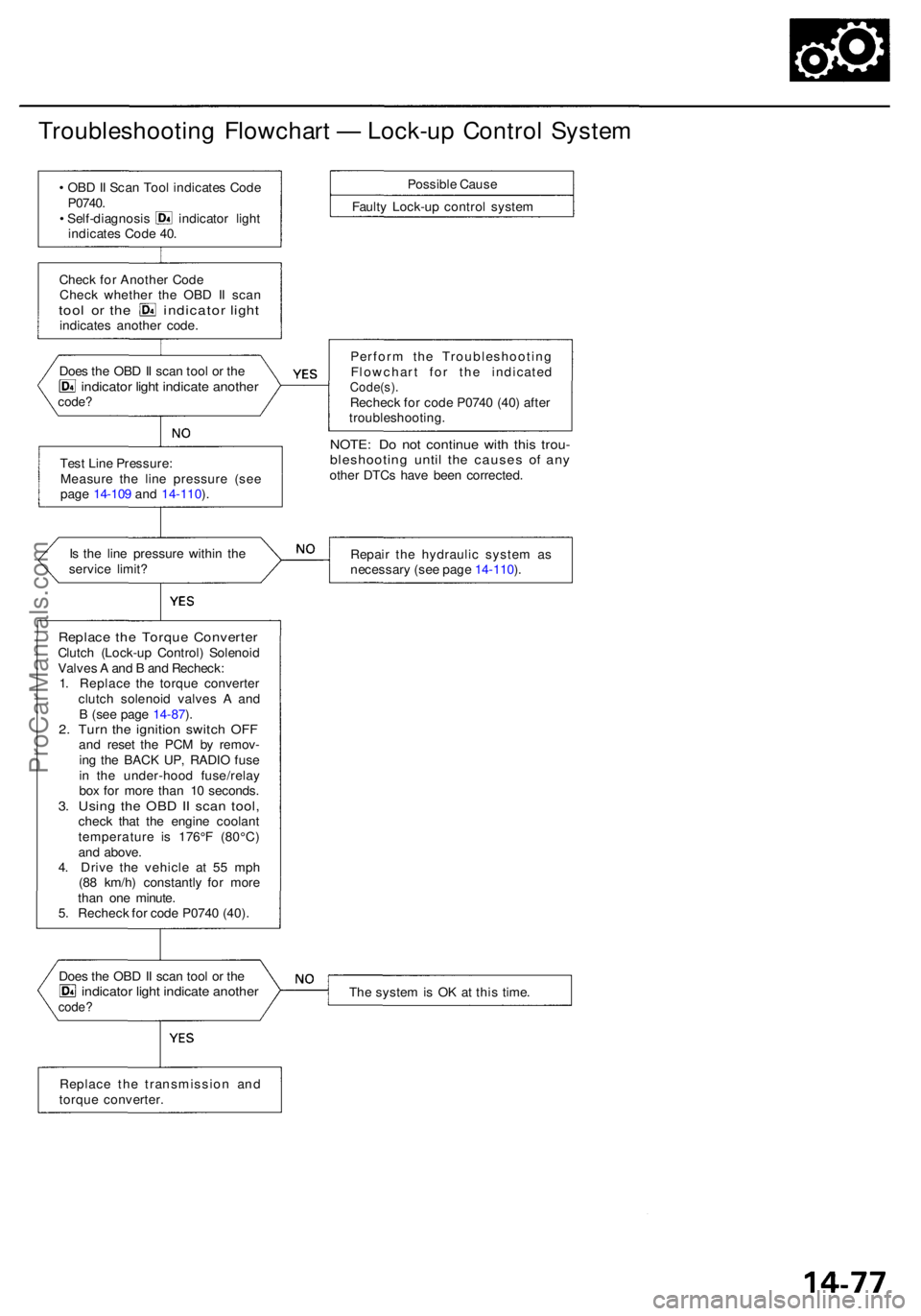

Troubleshooting Flowchar t — Lock-u p Contro l Syste m
• OB D II Sca n Too l indicate s Cod e
P0740 .
• Self-diagnosi s indicato r ligh t
indicate s Cod e 40 .
Chec k fo r Anothe r Cod e
Chec k whethe r th e OB D I I sca n
tool o r th e indicato r ligh tindicate s anothe r code .
Tes t Lin e Pressure :
Measur e th e lin e pressur e (se e
pag e 14-10 9 an d 14-110 ).
I s th e lin e pressur e withi n th e
servic e limit ?
Replac e the Torqu e Converte rClutch (Lock-u p Control ) Solenoi d
Valve s A an d B an d Recheck :
1 . Replac e th e torqu e converte r
clutc h solenoi d valve s A an d
B (se e pag e 14-87 ).
2 . Tur n th e ignitio n switc h OF Fand rese t th e PC M b y remov -
in g th e BAC K UP , RADI O fus e
i n th e under-hoo d fuse/rela y
bo x fo r mor e tha n 1 0 seconds .
3. Usin g th e OB D II sca n tool ,check tha t th e engin e coolan t
temperatur e i s 176° F (80°C )
an d above .
4 . Driv e th e vehicl e a t 5 5 mp h
(8 8 km/h ) constantl y fo r mor e
tha n on e minute .
5 . Rechec k fo r cod e P074 0 (40) .
Doe s th e OB D II sca n too l o r th e
indicato r ligh t indicat e anothe rcode?
Possibl e Caus e
Fault y Lock-u p contro l syste m
Perfor m th e Troubleshootin g
Flowchar t fo r th e indicate d
Code(s).Recheck fo r cod e P074 0 (40 ) afte r
troubleshooting .
NOTE: D o no t continu e wit h thi s trou -bleshootin g unti l th e cause s o f an yothe r DTC s hav e bee n corrected .
Repai r th e hydrauli c syste m a s
necessar y (se e pag e 14-110 ).
Th e syste m is O K a t thi s time .
Doe
s th e OB D II sca n too l o r th e
indicato r ligh t indicat e anothe rcode?
Replac e th e transmissio n an d
torqu e converter .
ProCarManuals.com
