Doors

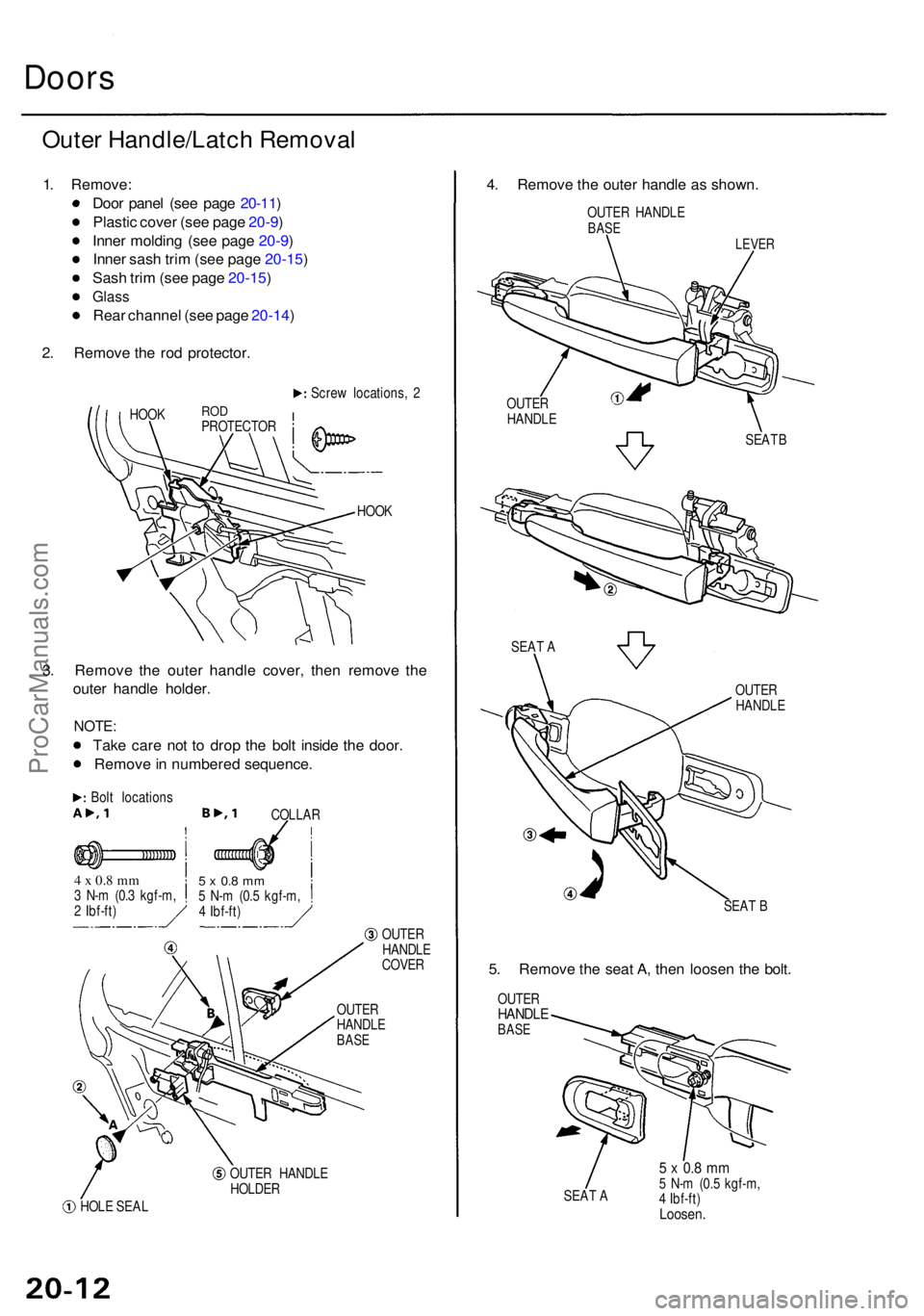

Outer Handle/Latc h Remova l
1. Remove :
Doo r pane l (se e pag e 20-11 )
Plasti c cove r (se e pag e 20-9 )
Inne r moldin g (se e pag e 20-9 )
Inne r sas h tri m (se e pag e 20-15 )
Sas h tri m (se e pag e 20-15 )
Glass
Rear channe l (se e pag e 20-14 )
2 . Remov e th e ro d protector .
Screw locations , 2
HOO K
3. Remov e th e oute r handl e cover , the n remov e th e
oute r handl e holder .
NOTE:
Take car e no t t o dro p th e bol t insid e th e door .
Remov e in numbere d sequence .
Bolt location s
COLLAR
4 x 0. 8 m m3 N- m (0. 3 kgf-m ,
2 Ibf-ft )
OUTER
HANDL E
COVER
OUTER
HANDL E
BASE
OUTE R HANDL E
HOLDE R
HOL E SEA L
4. Remov e th e oute r handl e a s shown .
OUTER HANDL EBASELEVE R
SEAT B
5. Remov e th e sea t A , the n loose n th e bolt .
OUTE RHANDL EBASE
SEAT A
5 x 0. 8 m m5 N- m (0. 5 kgf-m ,
4 Ibf-ft )
Loosen .
RODPROTECTO RHOOK
5 x 0. 8 m m5 N- m (0. 5 kgf-m ,
4 Ibf-ft ) OUTE
R
HANDL E
SEA
T A SEA
T B
OUTE
R
HANDL E
ProCarManuals.com
Page 1322 of 1954

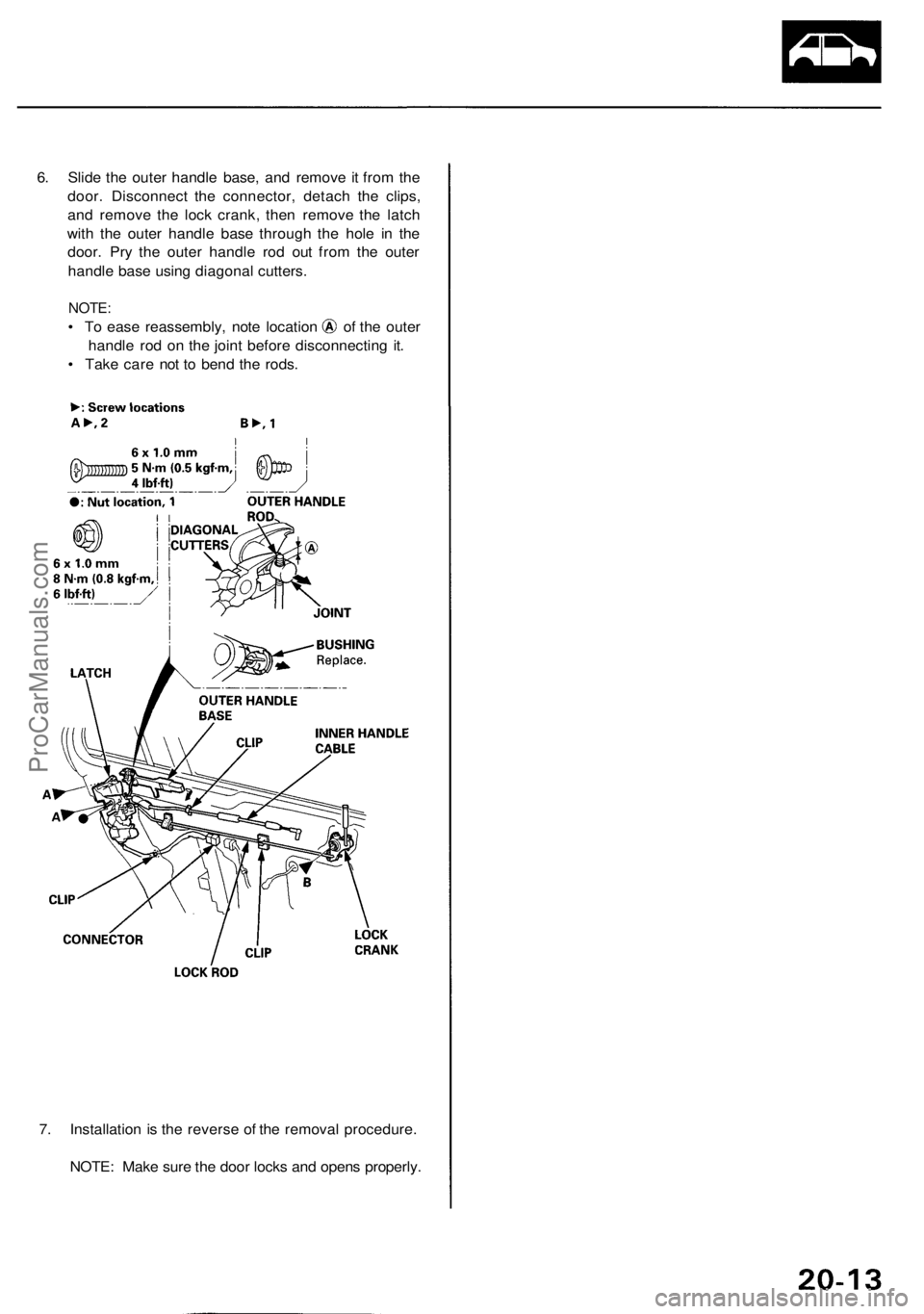

6. Slide the outer handle base, and remove it from the
door. Disconnect the connector, detach the clips,
and remove the lock crank, then remove the latch
with the outer handle base through the hole in the
door. Pry the outer handle rod out from the outer
handle base using diagonal cutters.
NOTE:
• To ease reassembly, note location of the outer
handle rod on the joint before disconnecting it.
• Take care not to bend the rods.
7. Installation is the reverse of the removal procedure.
NOTE: Make sure the door locks and opens properly.ProCarManuals.com
Page 1323 of 1954

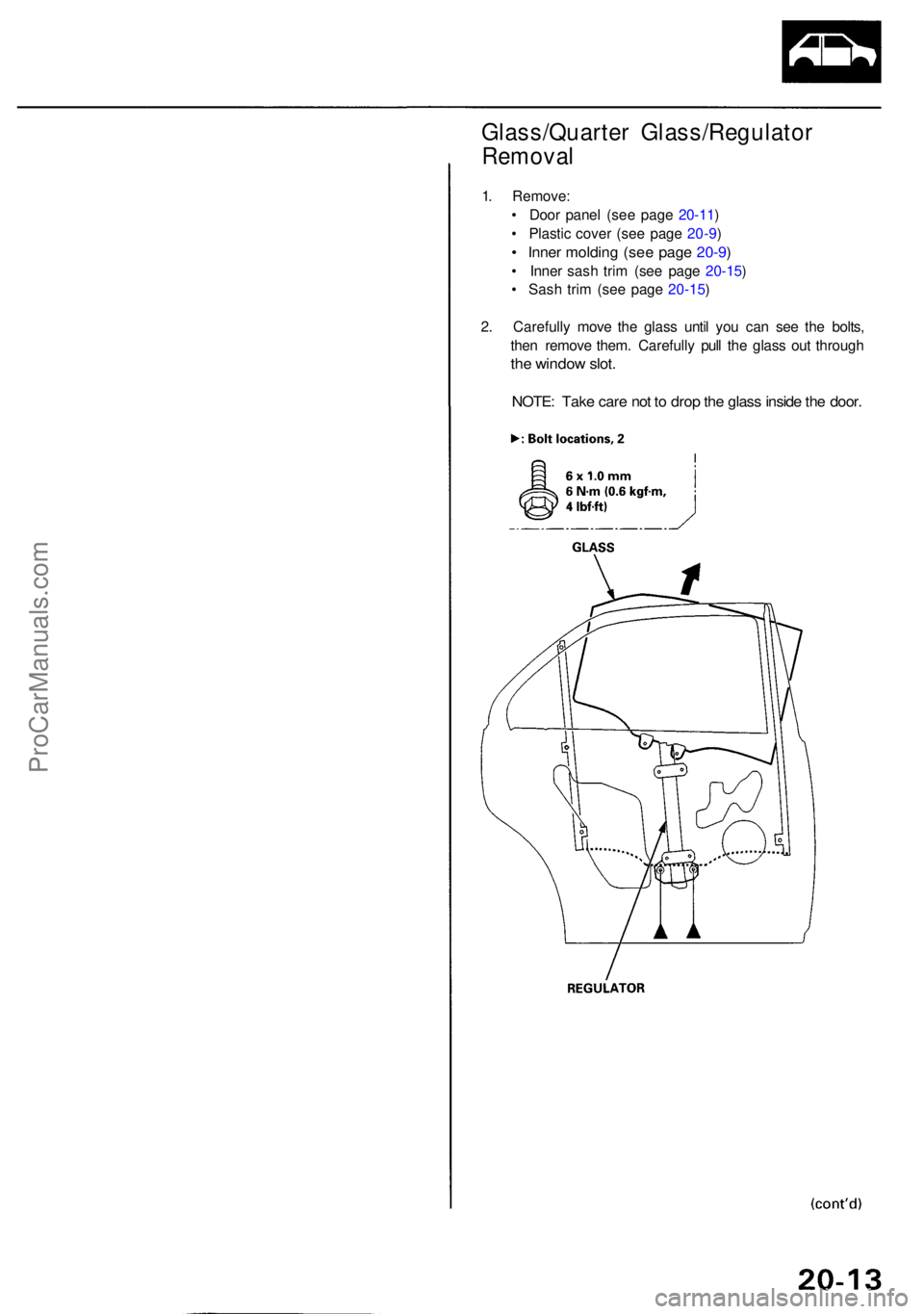

Glass/Quarter Glass/Regulato r
Removal
1. Remove :
• Doo r pane l (se e pag e 20-11 )
• Plasti c cove r (se e pag e 20-9 )
• Inne r moldin g (se e pag e 20-9 )
• Inne r sas h tri m (se e pag e 20-15 )
• Sas h tri m (se e pag e 20-15 )
2 . Carefull y mov e th e glas s unti l yo u ca n se e th e bolts ,
the n remov e them . Carefull y pul l th e glas s ou t throug h
the windo w slot .
NOTE : Tak e car e no t t o dro p th e glas s insid e th e door .
ProCarManuals.com
Page 1324 of 1954

Doors

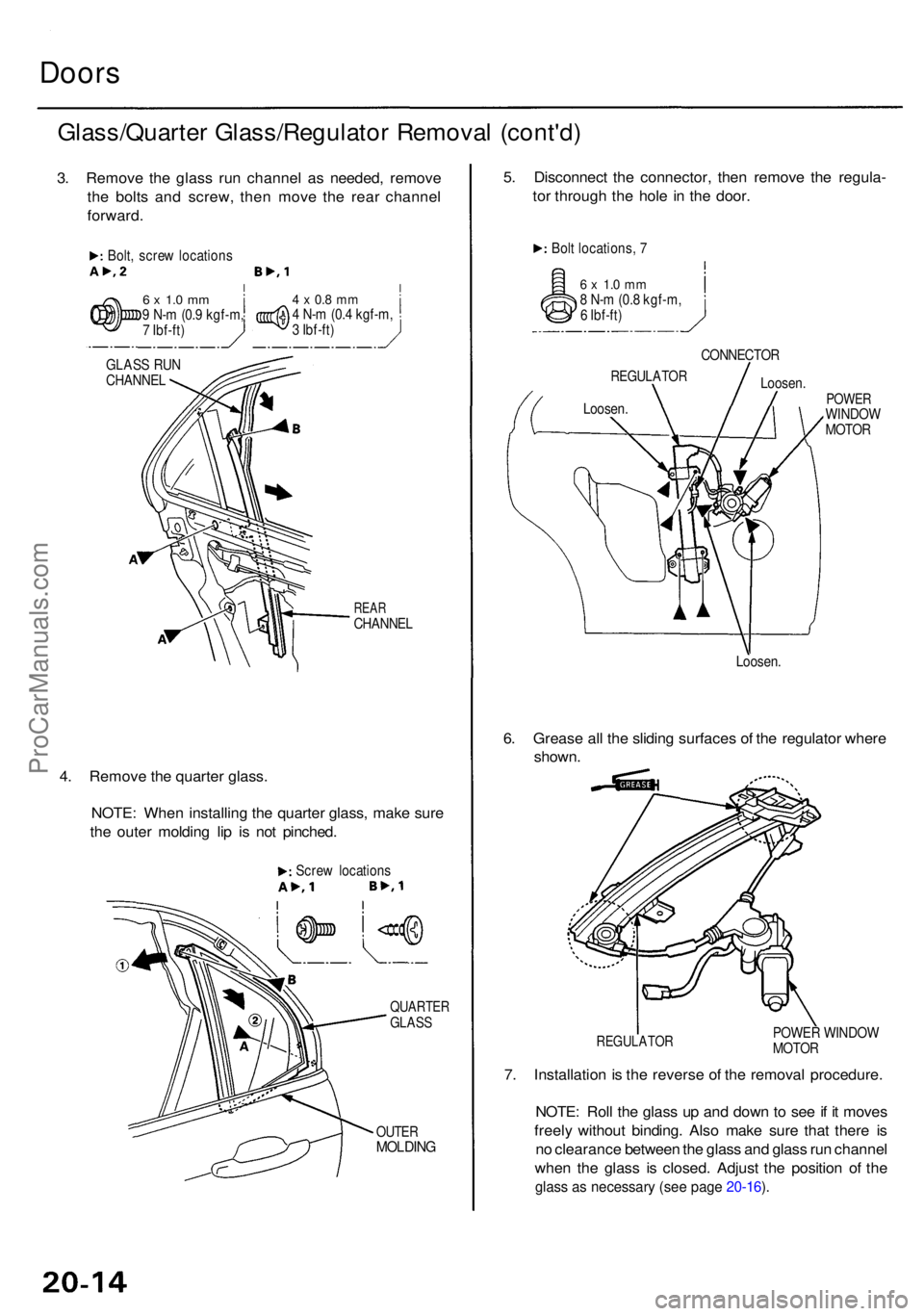

Glass/Quarte r Glass/Regulato r Remova l (cont'd )
3. Remov e th e glas s ru n channe l a s needed , remov e
th e bolt s an d screw , the n mov e th e rea r channe l
forward .
4 x 0. 8 m m4 N- m (0. 4 kgf-m ,
3 Ibf-ft )
GLAS S RU N
CHANNE L
REARCHANNE L
4. Remov e th e quarte r glass .
NOTE : Whe n installin g th e quarte r glass , mak e sur e
th e oute r moldin g li p i s no t pinched .
Screw location s
QUARTE RGLASS
OUTERMOLDIN G
5. Disconnec t th e connector , the n remov e th e regula -
to r throug h th e hol e i n th e door .
Bolt locations , 7
6 x 1. 0 m m8 N- m (0. 8 kgf-m ,
6 Ibf-ft )
CONNECTOR
Loosen .
POWERWINDO W
MOTO R
6. Greas e al l th e slidin g surface s o f th e regulato r wher e
shown .
7 . Installatio n is th e revers e o f th e remova l procedure .
NOTE : Rol l th e glas s u p an d dow n t o se e if i t move s
freel y withou t binding . Als o mak e sur e tha t ther e i s
n o clearanc e betwee n th e glas s an d glas s ru n channe l
whe n th e glas s i s closed . Adjus t th e positio n o f th e
glas s a s necessar y (se e pag e 20-16 ).
6 x 1. 0 m m9 N- m (0. 9 kgf-m ,
7 Ibf-ft )
Bolt
, scre w location s
Loosen.
Loosen.
REGULATO R
REGULATO RPOWER WINDO W
MOTO R
ProCarManuals.com
Page 1325 of 1954

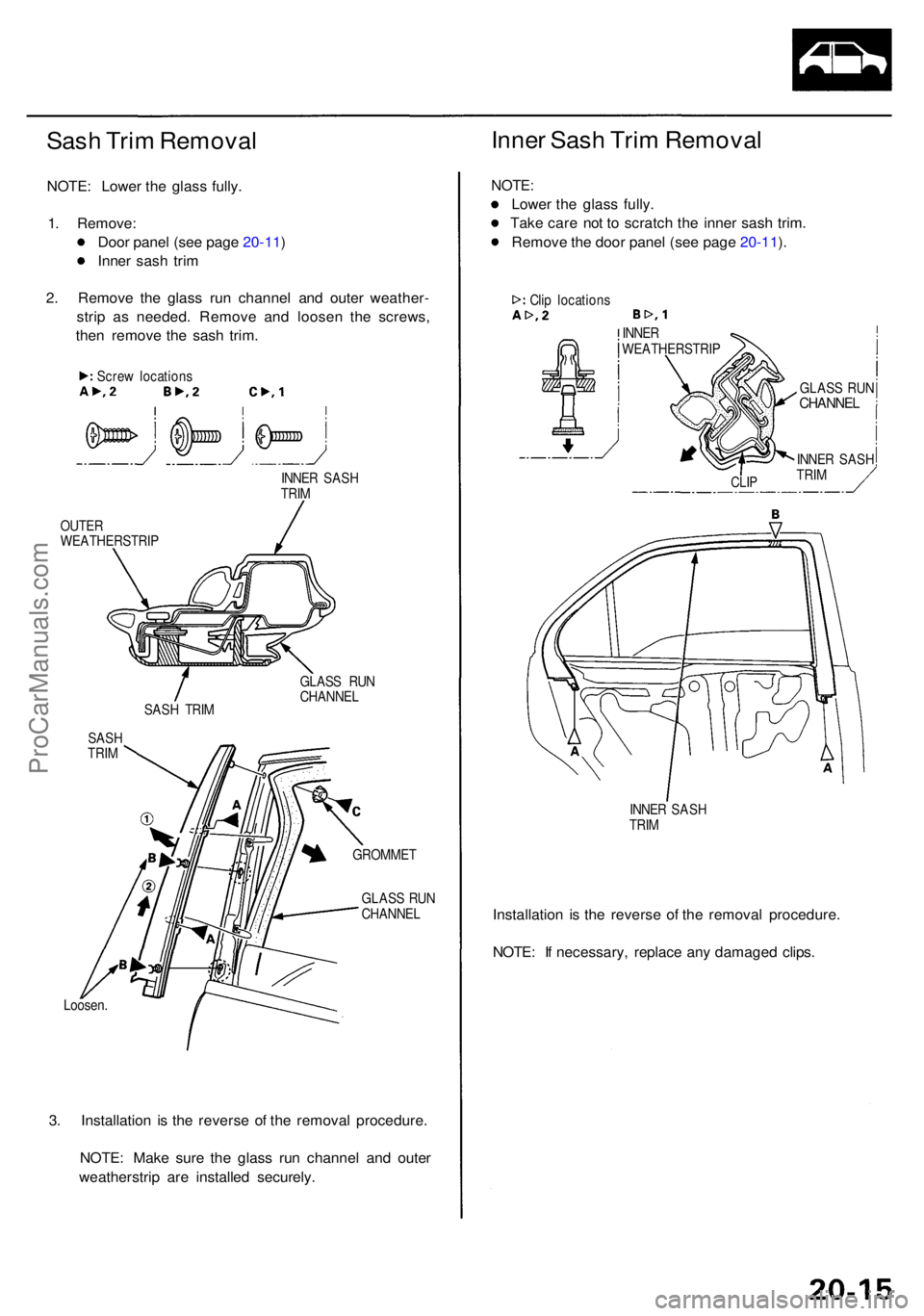

Sash Tri m Remova l
NOTE: Lowe r th e glas s fully .
1 . Remove :
Doo r pane l (se e pag e 20-11 )
Inne r sas h tri m
2 . Remov e th e glas s ru n channe l an d oute r weather -
stri p a s needed . Remov e an d loose n th e screws ,
the n remov e th e sas h trim .
Scre w location s
INNER SAS H
TRI M
OUTE R
WEATHERSTRI P
SAS H TRI M GLAS
S RU N
CHANNE L
SAS H
TRI M
GROMMET
GLAS S RU N
CHANNE L
Loosen .
3. Installatio n i s th e revers e o f th e remova l procedure .
NOTE : Mak e sur e th e glas s ru n channe l an d oute r
weatherstri p ar e installe d securely .
Inner Sas h Tri m Remova l
NOTE:
Lower th e glas s fully .
Tak e car e no t t o scratc h th e inne r sas h trim .
Remov e th e doo r pane l (se e pag e 20-11 ).
Cli p location s
INNE R
WEATHERSTRI P
CLIP
GLAS S RU NCHANNE L
INNER SAS H
TRI M
INNE R SAS H
TRI M
Installatio n i s th e revers e o f th e remova l procedure .
NOTE : I f necessary , replac e an y damage d clips .
ProCarManuals.com
Page 1326 of 1954

Doors

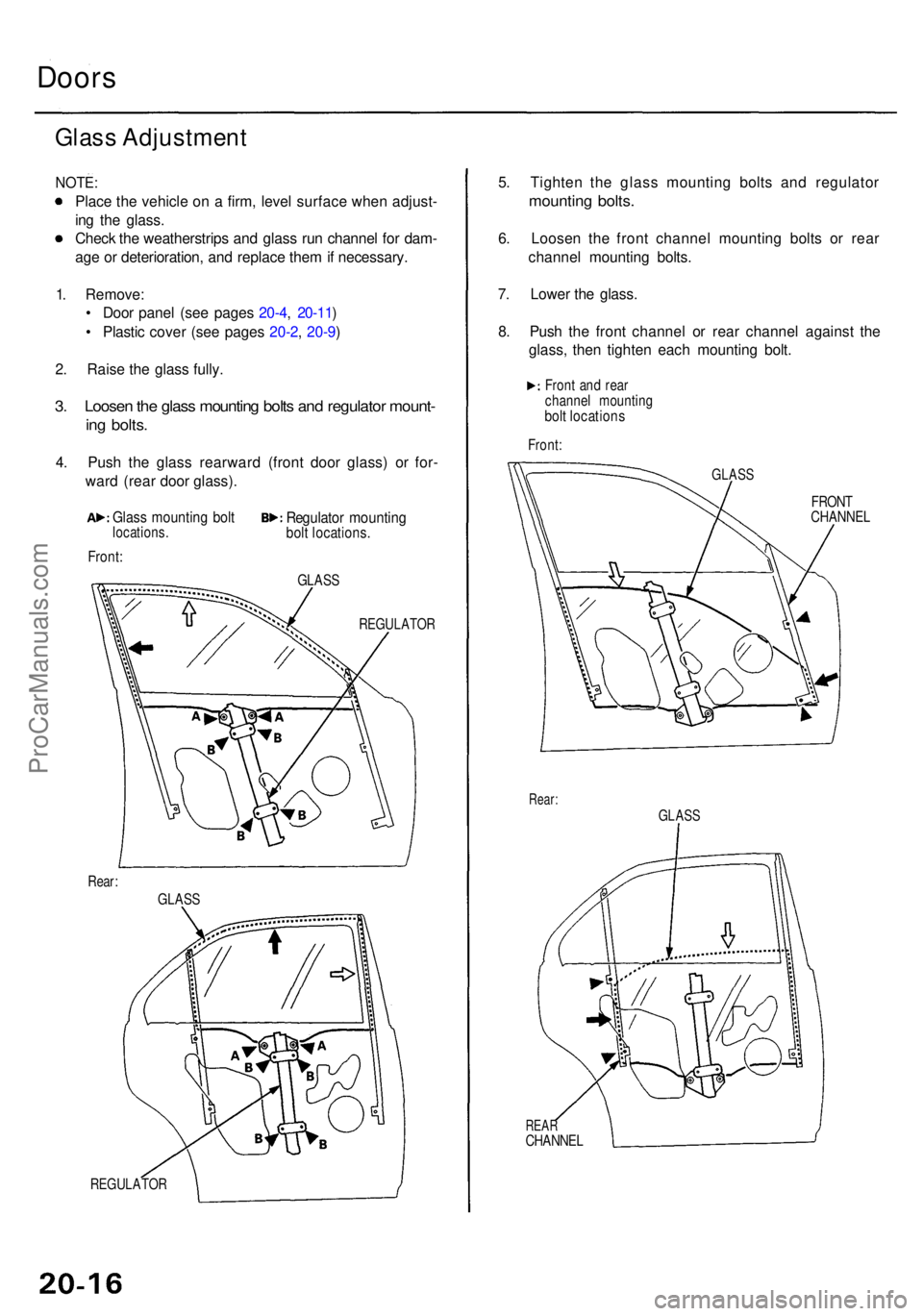

Glass Adjustmen t
NOTE:
Place th e vehicl e o n a firm , leve l surfac e whe n adjust -
in g th e glass .
Chec k th e weatherstrip s an d glas s ru n channe l fo r dam -
ag e o r deterioration , an d replac e the m if necessary .
1 . Remove :
• Doo r pane l (se e page s 20-4 , 20-11 )
• Plasti c cove r (se e page s 20-2 , 20-9 )
2 . Rais e th e glas s fully .
3. Loose n th e glas s mountin g bolt s an d regulato r mount -
ing bolts .
4. Pus h th e glas s rearwar d (fron t doo r glass ) o r for -
war d (rea r doo r glass) .
Front:
GLAS S
REGULATO R
Rear:
GLAS S
REGULATO R
5. Tighte n th e glas s mountin g bolt s an d regulato r
mounting bolts .
6. Loose n th e fron t channe l mountin g bolt s o r rea r
channe l mountin g bolts .
7 . Lowe r th e glass .
8 . Pus h th e fron t channe l o r rea r channe l agains t th e
glass , the n tighte n eac h mountin g bolt .
Front :
GLAS S
FRONT
CHANNE L
Rear:GLAS S
REARCHANNE L
Glass mountin g bol tlocations .Regulator mountin gbolt locations .
Front an d rea r
channe l mountin g
bolt location s
ProCarManuals.com
Page 1327 of 1954

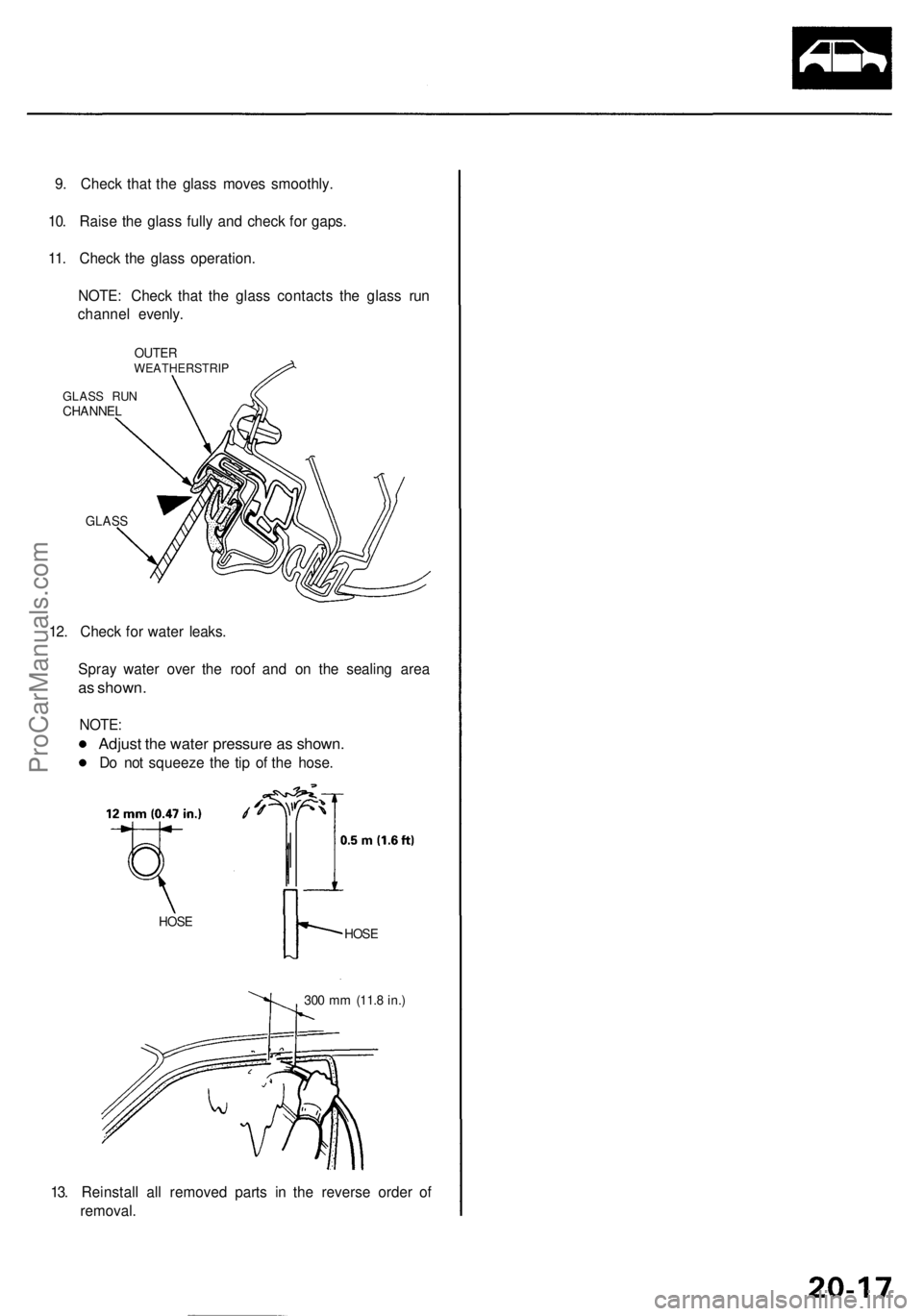

9. Check that the glass moves smoothly.
10. Raise the glass fully and check for gaps.
11. Check the glass operation.
NOTE: Check that the glass contacts the glass run
channel evenly.
OUTER
WEATHERSTRIP
GLASS RUN
CHANNEL
GLASS
12. Check for water leaks.
Spray water over the roof and on the sealing area
as shown.
NOTE:
Adjust the water pressure as shown.
Do not squeeze the tip of the hose.
HOSE
HOSE
300 mm
(11.8 in.)
13. Reinstall all removed parts in the reverse order of
removal.ProCarManuals.com
Page 1328 of 1954

Position Adjustment
NOTE: Place the vehicle on a firm, level surface when
adjusting the doors.
After installing the door, check for a flush fit with the
body, then check for equal gaps between the front, rear,
and bottom door edges and the body. The door and body
edges should also be parallel. Before adjusting, replace
the mounting bolts. Adjust at the hinges as shown.
CAUTION: Place a shop towel on the jack to prevent
damage to the door when loosening the door and hinge
mounting bolts for adjustment.
DOOR MOUNTING BOLTS
8 x
1.25
mm
29 N-m (3.0 kgf-m, 22 Ibf-ft)
Loosen the door mounting bolts slightly
to move the door in or out until
it's flush with the body. If necessary,
you can install a shim behind one
hinge to make the door edges
parallel with the body.
HINGE MOUNTING BOLTS
8 x
1.25
mm
29 N-m (3.0 kgf-m, 22 Ibf-ft)
Remove the inner fender,
loosen the hinge mounting
bolts, and move the door
backward or forward,
up or down as necessary
to equalize the gaps.
HINGES
SHOP
TOWEL
JACK
The door and body edges should be parallel.
If necessary,
adjust the door
cushion.
DOOR CUSHIONS
NOTE:
Apply touch-up point to the hinge mounting bolts
and around the hinges.
Check for water leaks.
DOOR
HINGE
