Page 793 of 1954

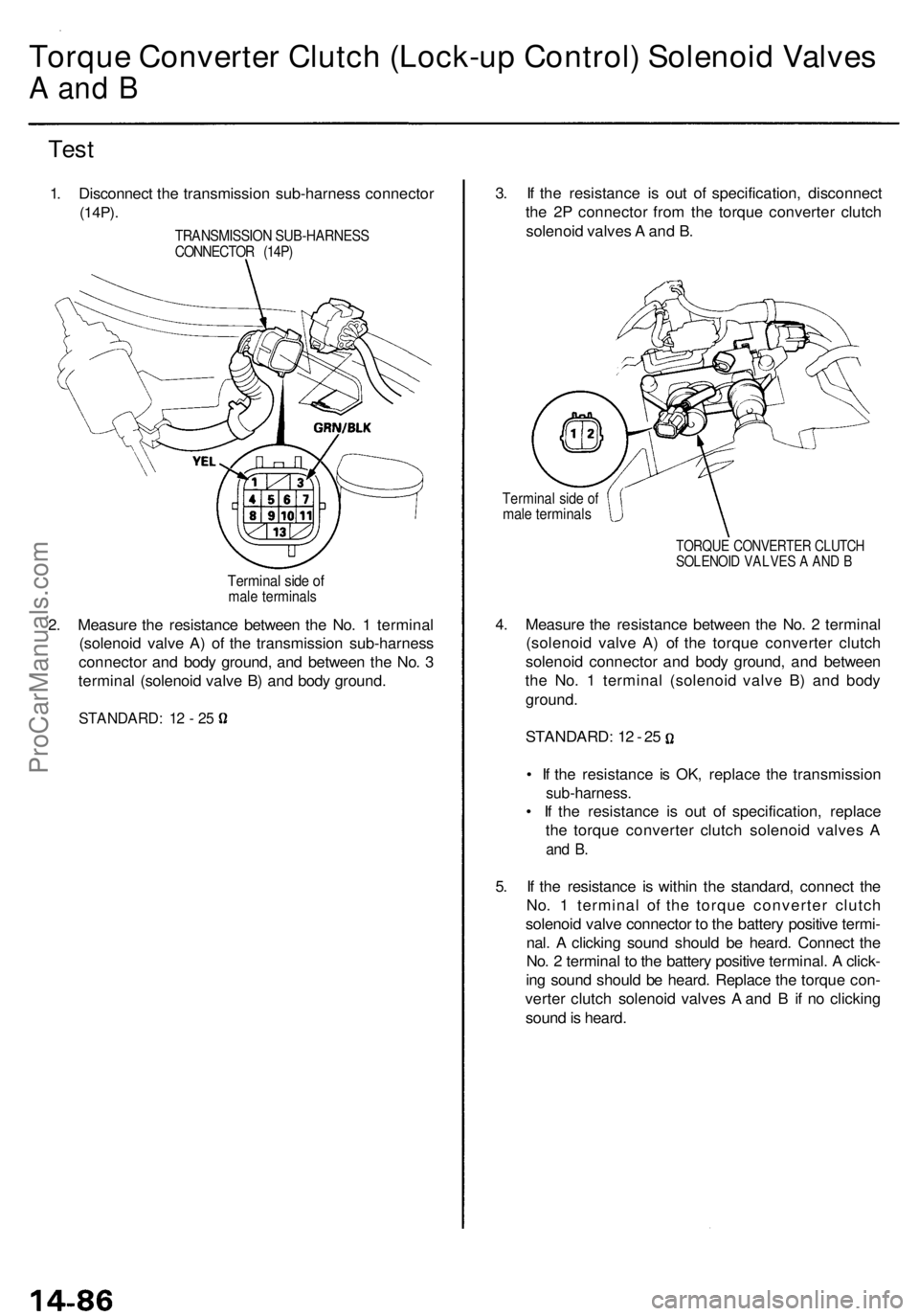

Torque Converter Clutch (Lock-up Control) Solenoid Valves
A an d B
Tes t
1. Disconnec t th e transmissio n sub-harnes s connecto r
(14P).
2. Measur e th e resistanc e betwee n th e No . 1 termina l
(solenoi d valv e A ) o f th e transmissio n sub-harnes s
connecto r an d bod y ground , an d betwee n th e No . 3
termina l (solenoi d valv e B ) an d bod y ground . 3
. I f th e resistanc e i s ou t o f specification , disconnec t
th e 2 P connecto r fro m th e torqu e converte r clutc h
solenoi d valve s A an d B .
Termina l sid e o fmal e terminal s
TORQUE CONVERTE R CLUTC HSOLENOI D VALVE S A AN D B
4. Measur e th e resistanc e betwee n th e No . 2 termina l
(solenoi d valv e A ) o f th e torqu e converte r clutc h
solenoi d connecto r an d bod y ground , an d betwee n
th e No . 1 termina l (solenoi d valv e B ) an d bod y
ground .
STANDARD : 1 2 - 2 5
• I f th e resistanc e i s OK , replac e th e transmissio n
sub-harness.
• I f th e resistance is ou t o f specification , replac e
th e torqu e converte r clutc h solenoi d valve s A
an d B .
5. I f th e resistanc e i s withi n th e standard , connec t th e
No . 1 termina l o f th e torqu e converte r clutc h
solenoi d valv e connecto r t o th e batter y positiv e termi -
nal . A clickin g soun d shoul d b e heard . Connec t th e
No . 2 termina l t o th e batter y positiv e terminal . A click -
in g soun d shoul d b e heard . Replac e th e torqu e con -
verte r clutc h solenoi d valve s A an d B if n o clickin g
soun d is heard .
TRANSMISSIO N SUB-HARNES SCONNECTOR (14P )
Termina l sid e o fmal e terminal s
STANDARD : 1 2 - 2 5
ProCarManuals.com
Page 794 of 1954
Replacement
NOTE: Torque converter clutch (lock-up control)
solenoid valves A and B must be replaced as an assem-
bly.
1. Remove the mounting bolts and torque converter
clutch solenoid valves A and B.
6 x 1.0 mm
12 N-m
(1.2 kgf-m, 8.7 Ibf-ft)
TORQUE CONVERTER CLUTCH
SOLENOID VALVES
A AND B
FILTER/GASKET
Replace.
Install in this
direction.
Clean mounting surface
and fluid passages
2. Clean the mounting surface and fluid passages of
the torque converter clutch solenoid valves A and B,
and install a new torque converter clutch solenoid
valves A and B with a new filter/gasket.
NOTE: Install the filter/gasket in the direction shown.
3. Check connector for rust, dirt or oil, then reconnect
the connector securely.ProCarManuals.com
Page 795 of 1954

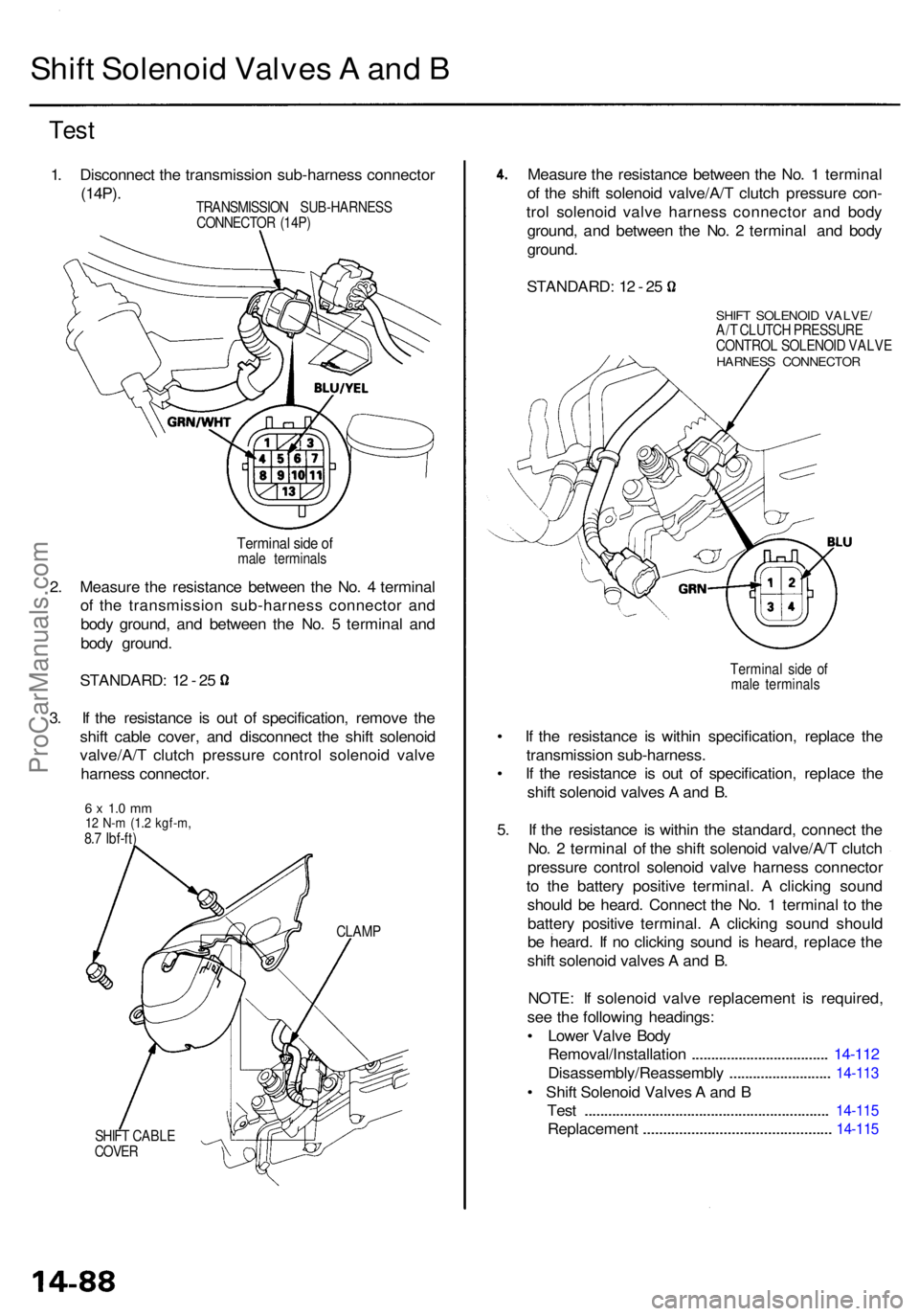

Shift Solenoi d Valve s A an d B
Tes t
1. Disconnec t th e transmissio n sub-harnes s connecto r
(14P).
2. Measur e th e resistanc e betwee n th e No . 4 termina l
o f th e transmissio n sub-harnes s connecto r an d
bod y ground , an d betwee n th e No . 5 termina l an d
bod y ground .
STANDARD : 1 2 - 2 5
3 . I f th e resistanc e i s ou t o f specification , remov e th e
shif t cabl e cover , an d disconnec t th e shif t solenoi d
valve/A/ T clutc h pressur e contro l solenoi d valv e
harnes s connector .
CLAMP
SHIF T CABL E
COVER
Measur e th e resistanc e betwee n th e No . 1 termina l
o f th e shif t solenoi d valve/A/ T clutc h pressur e con -
tro l solenoi d valv e harnes s connecto r an d bod y
ground , an d betwee n th e No . 2 termina l an d bod y
ground .
STANDARD : 1 2 - 2 5
SHIF T SOLENOI D VALVE /A/T CLUTC H PRESSUR E
CONTRO L SOLENOI D VALV E
HARNES S CONNECTO R
Terminal sid e o f
mal e terminal s
• I f th e resistanc e i s withi n specification , replac e th e
transmissio n sub-harness .
• I f th e resistanc e i s ou t o f specification , replac e th e
shif t solenoi d valve s A an d B .
5 . I f th e resistanc e i s withi n th e standard , connec t th e
No . 2 termina l o f th e shif t solenoi d valve/A/ T clutc h
pressur e contro l solenoi d valv e harnes s connecto r
t o th e batter y positiv e terminal . A clickin g soun d
shoul d b e heard . Connec t th e No . 1 termina l t o th e
batter y positiv e terminal . A clickin g soun d shoul d
b e heard . I f n o clickin g soun d i s heard , replac e th e
shif t solenoi d valve s A an d B .
NOTE : I f solenoi d valv e replacemen t i s required ,
se e th e followin g headings :
• Lowe r Valv e Bod y
Removal/Installatio n
................................... 14-11 2
Disassembly/Reassembl y
.......................... 14-11 3
• Shif t Solenoi d Valve s A an d B
Tes t
............................................................. . 14-11 5
Replacemen t .............................................. . 14-11 5
6 x 1. 0 m m12 N-m (1.2 kgf-m,8.7 Ibf-ft ) TRANSMISSIO
N SUB-HARNES S
CONNECTO R (14P )
Termina l sid e o fmal e terminal s
ProCarManuals.com
Page 796 of 1954

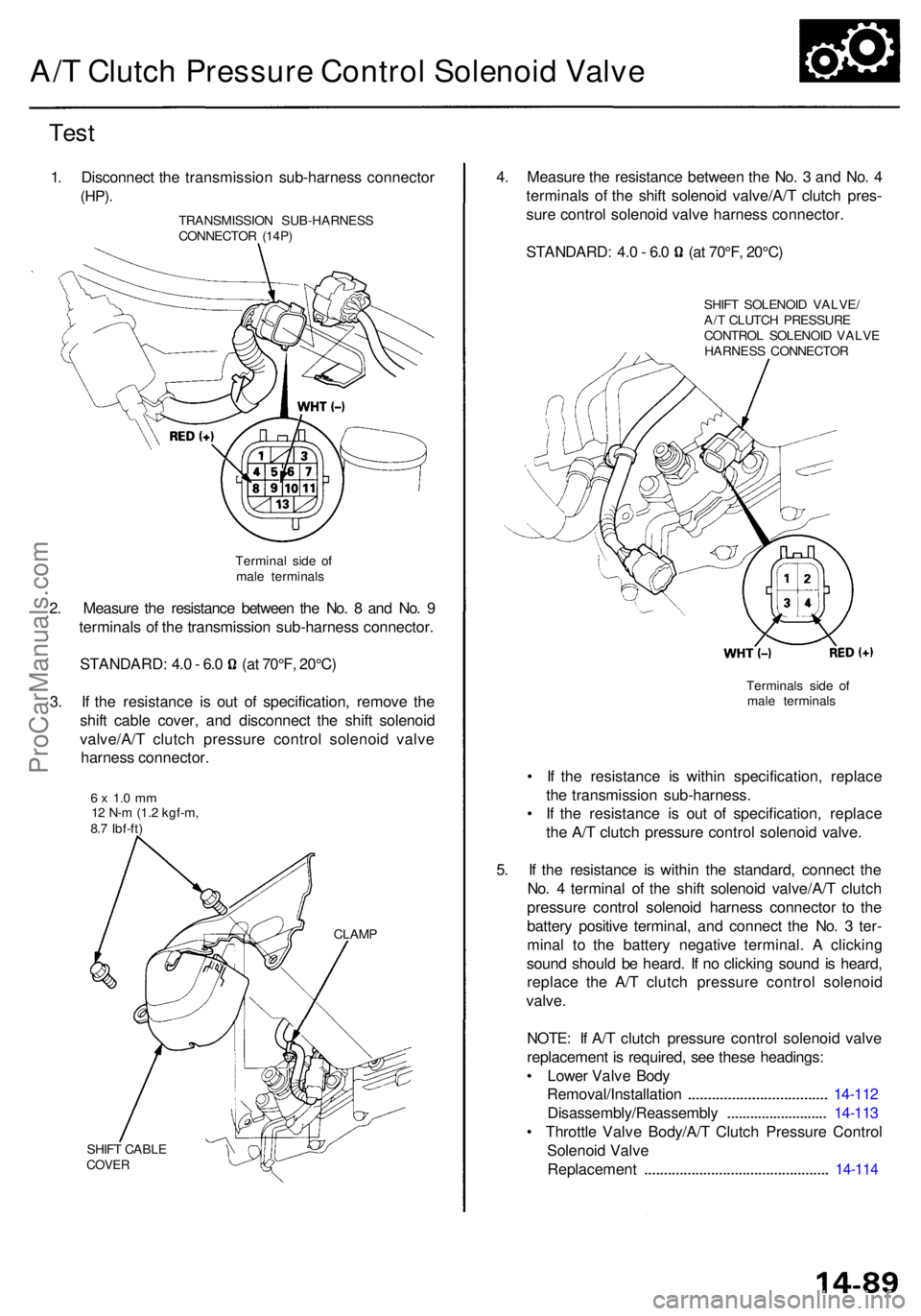

A/T Clutc h Pressur e Contro l Solenoi d Valv e
Test
1. Disconnec t th e transmissio n sub-harnes s connecto r
(HP).
2. Measur e th e resistanc e betwee n th e No . 8 an d No . 9
terminal s o f th e transmissio n sub-harnes s connector .
STANDARD : 4. 0 - 6. 0 (a t 70°F , 20°C )
3 . I f th e resistanc e i s ou t o f specification , remov e th e
shif t cabl e cover , an d disconnec t th e shif t solenoi d
valve/A/ T clutc h pressur e contro l solenoi d valv e
harnes s connector .
CLAMP
SHIF T CABL E
COVER
4. Measur e th e resistanc e betwee n th e No . 3 an d No . 4
terminal s o f th e shif t solenoi d valve/A/ T clutc h pres -
sur e contro l solenoi d valv e harnes s connector .
STANDARD : 4. 0 - 6. 0 (a t 70°F , 20°C )
SHIFT SOLENOI D VALVE /
A/ T CLUTC H PRESSUR E
CONTRO L SOLENOI D VALV E
HARNES S CONNECTO R
Terminal s sid e o f
mal e terminal s
• I f th e resistanc e i s withi n specification , replac e
th e transmissio n sub-harness .
• I f th e resistanc e i s ou t o f specification , replac e
th e A/ T clutc h pressur e contro l solenoi d valve .
5 . I f th e resistanc e i s withi n th e standard , connec t th e
No . 4 termina l o f th e shif t solenoi d valve/A/ T clutc h
pressur e contro l solenoi d harnes s connecto r t o th e
batter y positiv e terminal , an d connec t th e No . 3 ter -
mina l t o th e batter y negativ e terminal . A clickin g
soun d shoul d b e heard . I f n o clickin g soun d is heard ,
replac e th e A/ T clutc h pressur e contro l solenoi d
valve .
NOTE : I f A/ T clutc h pressur e contro l solenoi d valv e
replacemen t i s required , se e thes e headings :
• Lowe r Valv e Bod y
Removal/Installatio n
................................... 14-11 2
Disassembly/Reassembl y
.......................... 14-11 3
• Throttl e Valv e Body/A/ T Clutc h Pressur e Contro l
Solenoi d Valv e
Replacemen t
.............................................. . 14-11 4
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft ) TRANSMISSIO
N SUB-HARNES S
CONNECTO R (14P )
Termina l sid e o f
mal e terminal s
ProCarManuals.com
Page 797 of 1954

Mainshaft/Countershaft Spee d Sensor s
Replacemen t
Make sur e lifts , jacks , an d safet y stand s
ar e place d properl y (se e sectio n 1 ).
1 . Pul l th e carpe t bac k t o expos e th e secondar y heate d
oxyge n senso r (secondar y HO2S ) connector . Discon -
nec t th e connector , the n pus h i t ou t unde r th e vehi -
cle.
NOTE : Th e secondar y HO2 S connecto r i s unde r th e
passenger' s seat .
SECONDAR Y HO2 S CONNECTO R
Remove th e exhaus t pip e A bracket , the n remov e
exhaus t pip e A .
BAN D
EXHAUS TPIPE A
TRANSMISSIO NSTOP COLLA R THRE
E WA Y
CATALYTI C
CONVERTE R
SECONDAR Y
HO2SHARNES SCOVER
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,
7. 2 Ibf-ft )
3. Remov e th e secondar y HO2 S harnes s cover , the n
remov e th e thre e wa y catalyti c converter . 4
. Remov e th e hea t shields .
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,
7. 2 Ibf-ft )
HEATSHIEL D
HEA T
SHIEL D
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,
7. 2 Ibf-ft )
5. Plac e a jac k unde r th e transmission , an d rais e th e
transmissio n jus t enoug h t o tak e weigh t of f o f th e
mounts , the n remov e th e bol t securin g th e shif t
cable guid e bracke t an d th e transmissio n beam .
SHIFT CABL E
GUID E BRACKE T
TRANSMISSIO N BEA M
CARPE T
10 x 1.2 5 mm33 N- m (3. 4 kgf-m ,
2 5 Ibf-ft )
Replace .
GASKETReplace .
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
Replace .
10 x 1.2 5 mm54 N- m (5. 5 kgf-m ,
4 0 Ibf-ft )
Replace .
GASKETReplace .
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
Replace .
10 x 1.2 5 m m38 N- m(3.9 kgf-m , 2 8 Ibf-ft )EXHAUS
T
PIP E A BRACKE T
10 x 1.2 5 mm33 N- m (3. 4 kgf-m ,
2 5 Ibf-ft )
Replace .
ProCarManuals.com
Page 798 of 1954

O-RING
Replace.
COUNTER-
SHAFT
SPEED
SENSOR
O-RING
Replace.
8. Replace the O-rings with new ones before reassem-
bling the mainshaft and countershaft speed sensors.
9. Install washers on the mainshaft and countershaft
speed sensors, then install the sensors on the trans-
mission housing.
10. Raise the transmission with a jack.
11. Install the transmission beam on the rear transmis-
sion mount bracket/mount, then tighten the four
bolts loosely.
TRANSMISSION BEAM
BOLTS
10 x
1.25
mm
38 N-m (3.9 kgf-m,
28 Ibf-ft)
6 x 1.0 mm
9.8 N-m (1.0 kgf-m,
7.2 Ibf-ft)
SHIFT CABLE
GUIDE BRACKET
TRANSMISSION BEAM BOLTS
10 x
1.25
mm
38 N-m (3.9 kgf-m, 28 Ibf-ft)
12. Tighten the four beam bolts to the specified torque,
then tighten the three inner bolts to the specified
torque.
13. Install the shift cable guide bracket on the transmis-
sion beam.
14. Install the heat shields.
15. Install exhaust pipe A and the three way catalytic
converter, then install the exhaust pipe A bracket.
16. Push the secondary HO2S connector into the vehi-
cle, then secure it with the harness grommet.
17. Install the secondary HO2S harness cover.
18. Connect the secondary HO2S connector.
6. Lower the transmission.
7. Remove the 6 mm bolt from the transmission hous-
ing, and remove the mainshaft and countershaft
speed sensors.
6 x 1.0 mm
12 N-m (1.2 kgf-m, 8.7 Ibf-ft)
MAINSHAFT
SPEED SENSOR
WASHER
WASHERProCarManuals.com
Page 799 of 1954

Transmission Rang e Switc h (A/ T Gea r Positio n Switch )
Test
Mak e sur e lifts , jacks , an d safet y stand s ar e place d properl y (se e sectio n 1 ).
1 . Rais e th e fron t o f th e vehicle , an d suppor t i t wit h safet y stand s (se e sectio n 1 ).
2 . Se t th e parkin g brake , an d bloc k bot h rea r wheel s securely .
3 . Pul l th e carpe t bac k t o expos e th e secondar y heate d oxyge n senso r (secondar y HO2S ) connector . Disconnec t th e con -
nector , the n pus h it ou t unde r th e vehicl e (se e pag e 14-90 ).
NOTE : Th e secondar y HO2 S connecto r i s unde r th e passenger' s seat .
4 . Remov e th e exhaus t pip e A bracket , the n remov e exhaus t pip e A .
5 . Remov e th e secondar y HO2 S harnes s cover , the n remov e th e thre e wa y catalyti c converter .
6 . Remov e th e hea t shields .
7 . Disconnec t th e transmissio n rang e switc h connector .
TRANSMISSIO N RANG ESWITCH CONNECTO R(10P)
Termina l sid e o f mal e terminal s
8. Chec k fo r continuit y betwee n th e termina l i n eac h switc h positio n accordin g t o th e tabl e below .
• Mov e th e shif t leve r bac k an d fort h withou t pushin g th e shif t leve r a t eac h switc h position , an d chec k fo r continuit y
withi n th e rang e o f it s fre e play .
• I f ther e i s n o continuit y withi n th e rang e o f fre e play , adjus t th e transmissio n rang e switch .
Neutral
Positio n Switc h
Transmissio
n Rang e Switc h
ProCarManuals.com
Page 800 of 1954

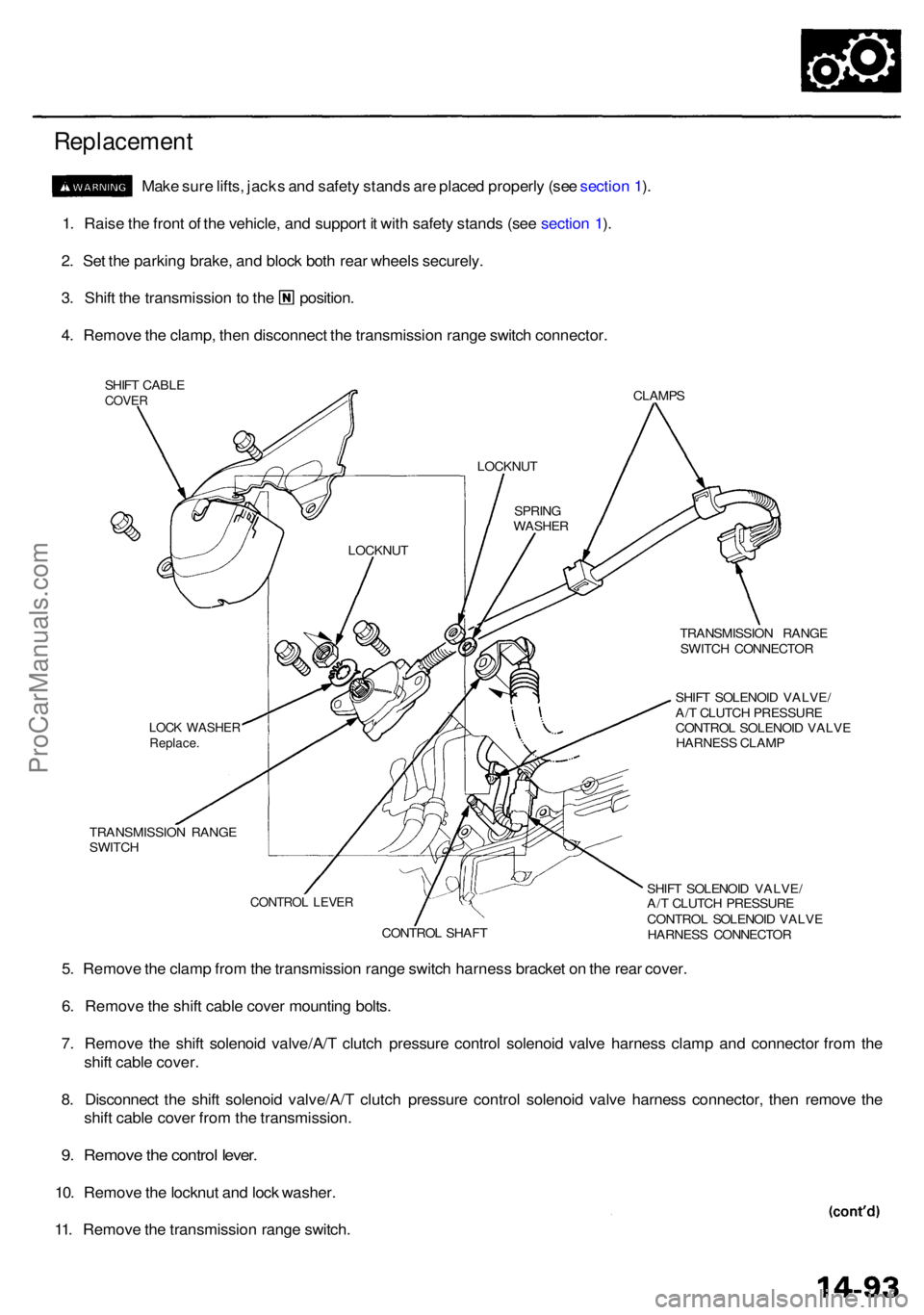

Replacement
Make sur e lifts , jack s an d safet y stand s ar e place d properl y (se e sectio n 1 ).
1 . Rais e th e fron t o f th e vehicle , an d suppor t i t wit h safet y stand s (se e sectio n 1 ).
2 . Se t th e parkin g brake , an d bloc k bot h rea r wheel s securely .
3. Shif t th e transmissio n to th e position .
4 . Remov e th e clamp , the n disconnec t th e transmissio n rang e switc h connector .
SHIFT CABL ECOVERCLAMP S
TRANSMISSIO N RANG E
SWITC H CONNECTO R
SHIF T SOLENOI D VALVE /
A/ T CLUTC H PRESSUR E
CONTRO L SOLENOI D VALV E
HARNES S CLAM P
TRANSMISSIO N RANG E
SWITC H
SHIFT SOLENOI D VALVE /
A/ T CLUTC H PRESSUR E
CONTRO L SOLENOI D VALV E
HARNES S CONNECTO R
5. Remov e th e clam p fro m th e transmissio n rang e switc h harnes s bracke t o n th e rea r cover .
6 . Remov e th e shif t cabl e cove r mountin g bolts .
7 . Remov e th e shif t solenoi d valve/A/ T clutc h pressur e contro l solenoi d valv e harnes s clam p an d connecto r fro m th e
shif t cabl e cover .
8 . Disconnec t th e shif t solenoi d valve/A/ T clutc h pressur e contro l solenoi d valv e harnes s connector , the n remov e th e
shif t cabl e cove r fro m th e transmission .
9. Remov e th e contro l lever .
10. Remov e th e locknu t an d loc k washer .
11 . Remov e th e transmissio n rang e switch .
LOCKNU T
LOCK WASHE RReplace.
CONTRO L SHAF T
CONTRO L LEVE R
SPRIN G
WASHE R
LOCKNU
T
ProCarManuals.com
