1996 ACURA RL KA9 Service Repair Manual

07SAZ-TB4011A
07TAZ-SZ5011A 07SAZ-TB4011 A
07TAZ-SZ5011
A

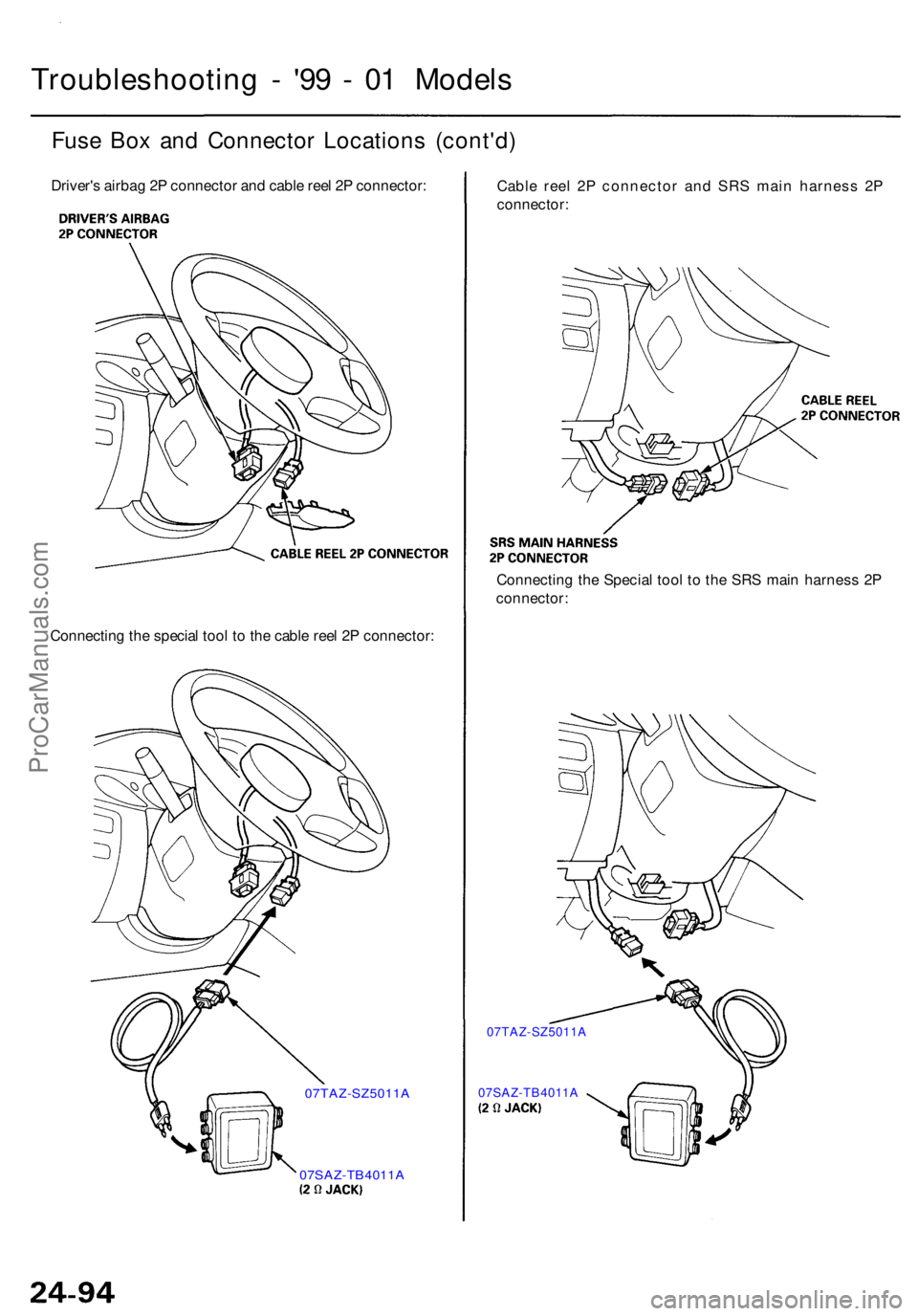

Connecting th e specia l too l t o th e cabl e ree l 2 P connector :Connectin
g th e Specia l too l t o th e SR S mai n harnes s 2 P
connector :
Fuse Bo x an d Connecto r Location s (cont'd )
Driver's airba g 2 P connecto r an d cabl e ree l 2 P connector :
Cable ree l 2 P connecto r an d SR S mai n harnes s 2 P
connector :
Troubleshootin g - '9 9 - 0 1 Model s
ProCarManuals.com

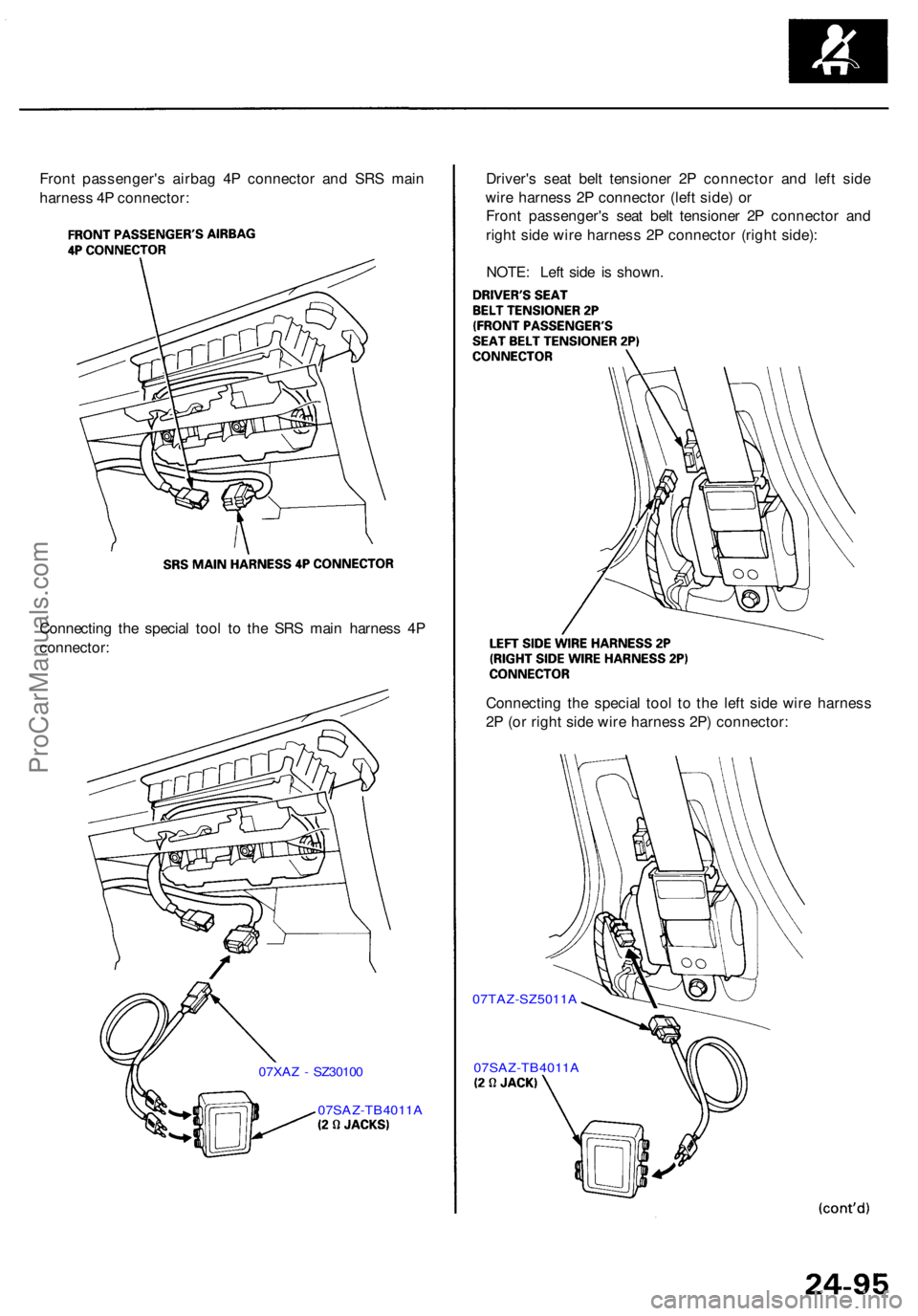

Front passenger' s airba g 4 P connecto r an d SR S mai n
harnes s 4 P connector : Driver'
s sea t bel t tensione r 2 P connecto r an d lef t sid e
wir e harnes s 2 P connecto r (lef t side ) o r
Fron t passenger' s sea t bel t tensione r 2 P connecto r an d
righ t sid e wir e harnes s 2 P connecto r (righ t side) :
NOTE : Lef t sid e i s shown .
Connectin g th e specia l too l t o th e SR S mai n harnes s 4 P
connector :
Connecting th e specia l too l t o th e lef t sid e wir e harnes s
2 P (o r righ t sid e wir e harnes s 2P ) connector :
07TAZ-SZ5011 A
07SAZ-TB4011 A
07SAZ-TB4011A
07XAZ - SZ3010 0
ProCarManuals.com

07XAZ-S1A020 0
07SAZ-TB4011 A
07XAZ-S1A020 0
07SAZ-TB4011A

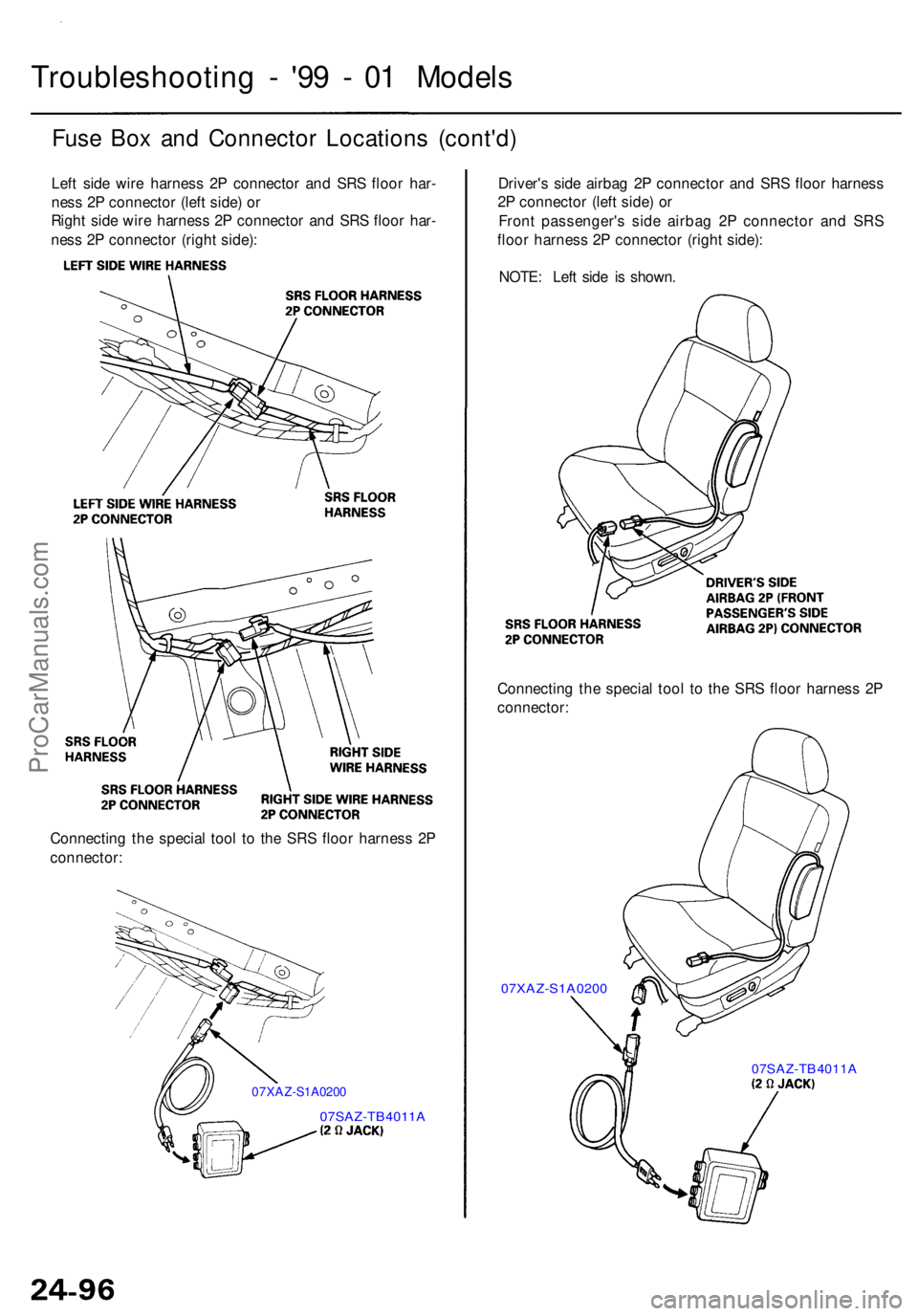

Connecting th e specia l too l t o th e SR S floo r harnes s 2 P
connector : Connectin
g th e specia l too l t o th e SR S floo r harnes s 2 P
connector :
Driver'
s sid e airba g 2 P connecto r an d SR S floo r harnes s
2 P connecto r (lef t side ) o r
Fron t passenger' s sid e airba g 2 P connecto r an d SR S
floo r harnes s 2 P connecto r (righ t side) :
NOTE : Lef t sid e i s shown .
Lef
t sid e wir e harnes s 2 P connecto r an d SR S floo r har -
nes s 2 P connecto r (lef t side ) o r
Righ t sid e wir e harnes s 2 P connecto r an d SR S floo r har -
nes s 2 P connecto r (righ t side) :
Fuse Bo x an d Connecto r Location s (cont'd )
Troubleshootin g - '9 9 - 0 1 Model s
ProCarManuals.com

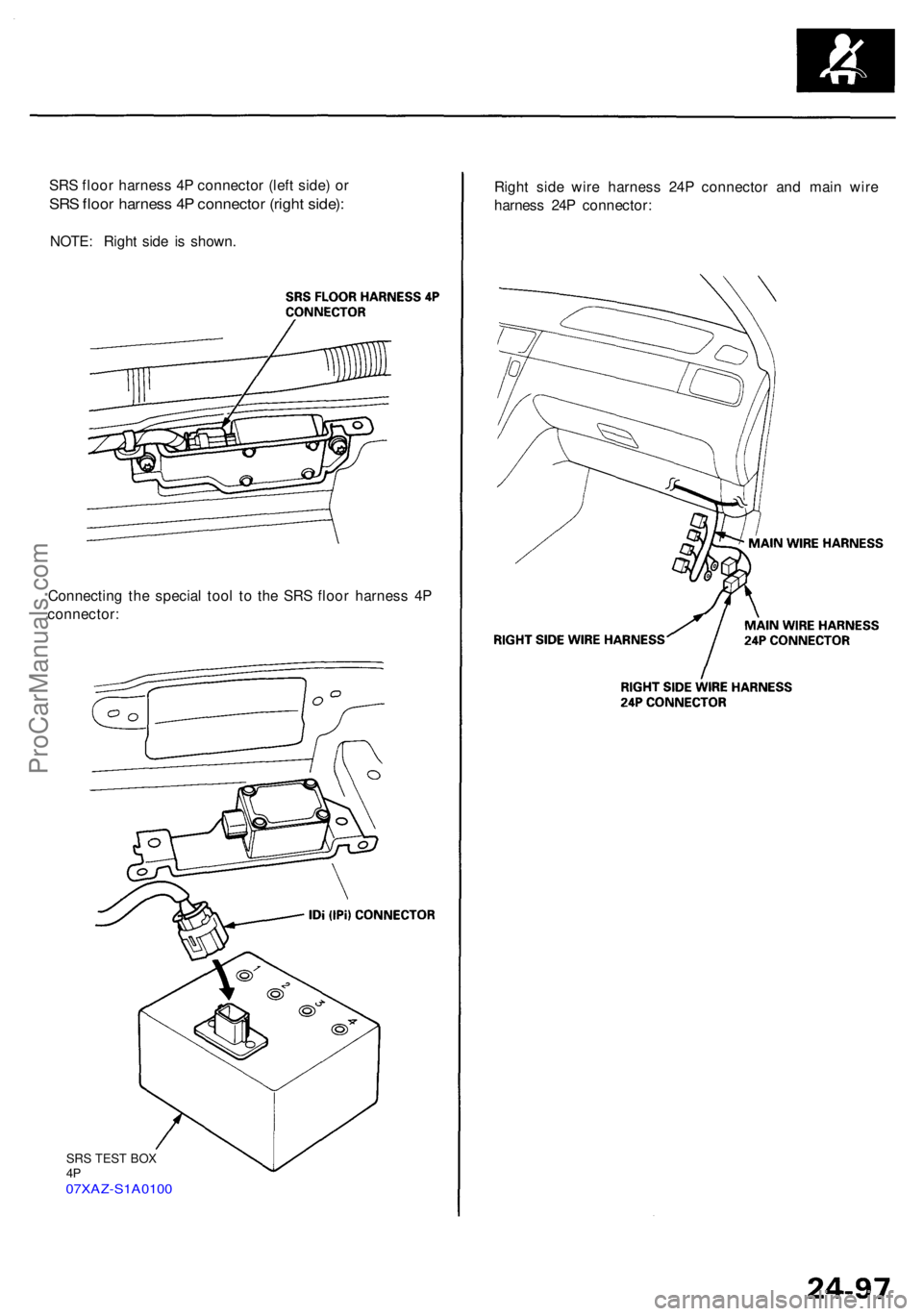

SRS floo r harnes s 4 P connecto r (lef t side ) o r
SR S floo r harnes s 4 P connecto r (righ t side) :
NOTE : Righ t sid e i s shown . Righ
t sid e wir e harnes s 24 P connecto r an d mai n wir e
harnes s 24 P connector :
Connectin g th e specia l too l t o th e SR S floo r harnes s 4 P
connector :
SRS TES T BO X4P07XAZ-S1A010 0
ProCarManuals.com

The SR S Indicato r Ligh t Doesn' t Com e O n
CAUTION : Wheneve r th e ignitio n switc h is O N (II) , o r
ha s bee n turne d OF F fo r les s tha n 3 minutes , b e carefu l
no t t o bum p th e SR S uni t o r th e sid e impac t sensor ; th e
airbag s coul d accidentall y deplo y an d caus e damag e o r
injuries .
Troubleshootin g - '9 9 - 0 1 Model s
Check th e wir e harnes s o f th e SR S indicato r ligh t circui t (1) :1. Tur n th e ignitio n switc h OFF , the n remov e th e climat econtrol uni t an d audi o uni t (se e sectio n 20 ).2 . Disconnec t th e mai n wir e harnes s 8 P connecto r fro m th e
dashboar d wir e harness .
3 . Connec t a voltmete r betwee n th e No . 6 termina l (+ ) o f
the mai n wir e harnes s 8 P connecto r an d bod y ground .4. Tur n th e ignitio n O N (II) , an d measur e voltage .
T o pag e 24-9 9 (C )
ProCarManuals.com

From pag e 24-9 8 (C )
Check th e wir e harnes s o f th e SR S indicato r circui t (3) :
1 . Tur n th e ignitio n switc h OFF . Mak e sur e yo u hav e th e
antithef t cod e fo r th e radio , the n writ e dow n th e frequen -
cie s fo r th e radio' s prese t buttons .
2 . Disconnec t th e batter y negativ e cable , the n th e positiv e
cable , an d wai t 3 minutes .
3 . Disconnec t th e driver' s an d fron t passenger' s airba g con -
nector s (se e pag e 24-33 ).
4 . Disconnec t th e SR S mai n harnes s 18 P connecto r fro m
the SR S unit .5. Reconnec t th e batter y positiv e cable , the n reconnec t th e
negativ e cable .
6 . Connec t a voltmete r betwee n th e No . 4 termina l (+ ) o f
th e SR S mai n harnes s 18 P connecto r an d bod y ground .
7 . Tur n th e ignitio n switc h O N (II) , an d measur e voltage .
Ther e shoul d b e 0. 5 V or less .
Fault y SR S unit ; replac e th e uni t (se e pag e 24-181 ).
Chec
k th e wir e harnes s o f th e SR S indicato r ligh t circui t (2) :
1 . Tur n th e ignitio n switc h OFF .
2 . Disconnec t th e SR S mai n harnes s 8 P connecto r fro m th e
mai n wir e harness .
3 . Connec t a voltmete r betwee n th e No . 6 termina l (+ ) o f
th e SR S mai n harnes s 8 P connecto r an d bod y ground .
4 . Tur n th e ignitio n switc h O N (II) , an d measur e voltage .
