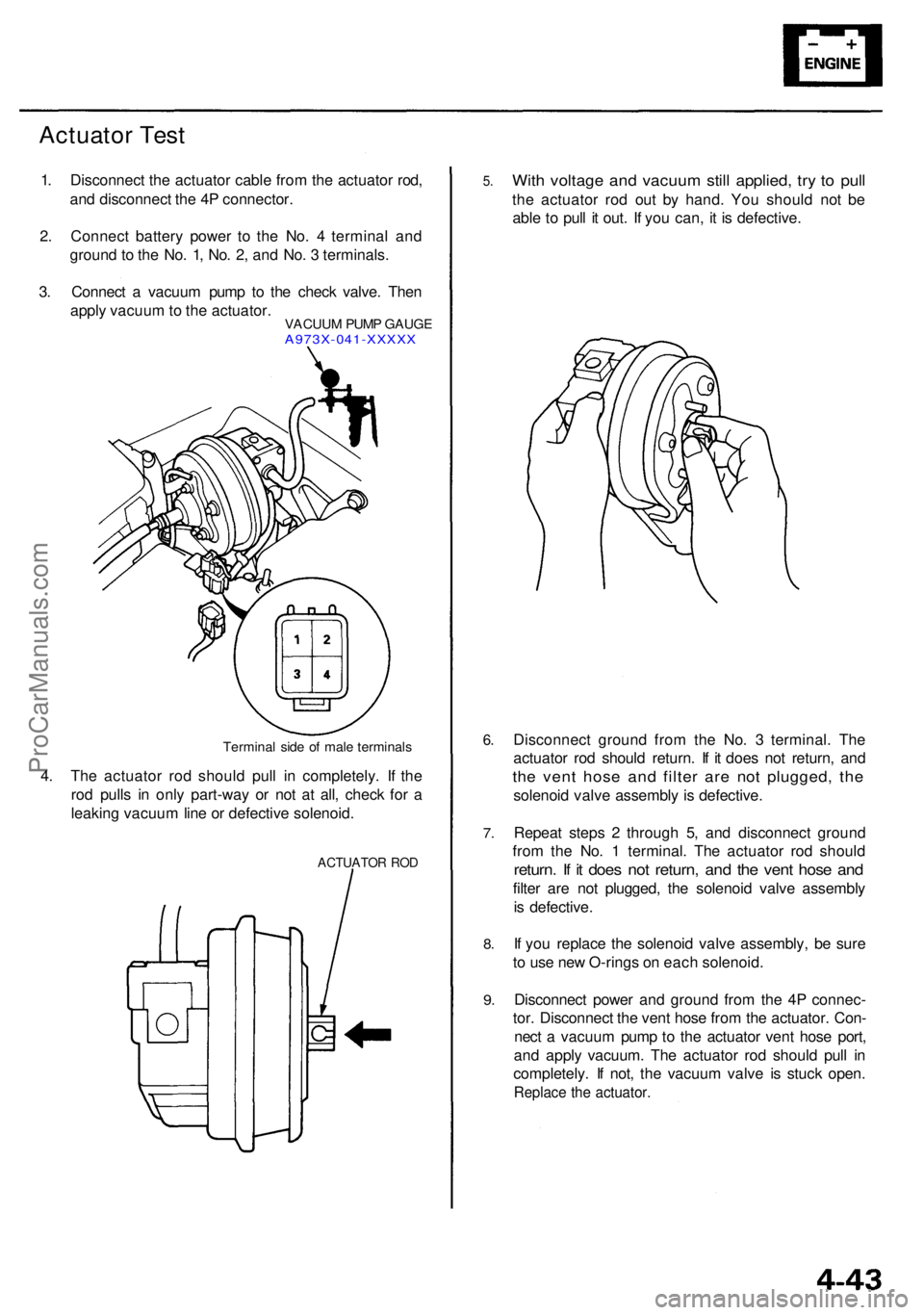

Actuator Tes t
1. Disconnec t th e actuato r cabl e fro m th e actuato r rod ,
an d disconnec t th e 4 P connector .
2 . Connec t batter y powe r t o th e No . 4 termina l an d
groun d to th e No . 1 , No . 2 , an d No . 3 terminals .
3 . Connec t a vacuu m pum p t o th e chec k valve . The n
appl y vacuu m to th e actuator .
VACUUM PUM P GAUG EA973X-041-XXXX X
Terminal sid e o f mal e terminal s
4. Th e actuato r ro d shoul d pul l i n completely . I f th e
ro d pull s i n onl y part-wa y o r no t a t all , chec k fo r a
leakin g vacuu m lin e o r defectiv e solenoid .
ACTUATO R RO D
5.
6.
7 .
8.
9 .
Wit h voltag e an d vacuu m stil l applied , tr y t o pul l
the actuato r ro d ou t b y hand . Yo u shoul d no t b e
abl e t o pul l i t out . I f yo u can , i t i s defective .
Disconnec t groun d fro m th e No . 3 terminal . Th e
actuato r ro d shoul d return . I f i t doe s no t return , an d
the ven t hos e an d filte r ar e no t plugged , th e
solenoi d valv e assembl y i s defective .
Repea t step s 2 throug h 5 , an d disconnec t groun d
fro m th e No . 1 terminal . Th e actuato r ro d shoul d
return. I f i t doe s no t return , an d th e ven t hos e an d
filte r ar e no t plugged , th e solenoi d valv e assembl y
i s defective .
I f yo u replac e th e solenoi d valv e assembly , b e sur e
t o us e ne w O-ring s o n eac h solenoid .
Disconnec t powe r an d groun d fro m th e 4 P connec -
tor . Disconnec t th e ven t hos e fro m th e actuator . Con -
nec t a vacuu m pum p t o th e actuato r ven t hos e port ,
an d appl y vacuum . Th e actuato r ro d shoul d pul l i n
completely . I f not , th e vacuu m valv e i s stuc k open .
Replac e th e actuator .
ProCarManuals.com

Cruise Contro l
Actuator/Cabl e Replacemen t
1. Disconnec t th e 4 P connecto r fro m th e actuator .
2 . Remov e th e thre e mountin g bolt s an d th e actuato r
wit h th e bracket .
4P CONNECTO R
3. Remov e th e vacuu m hose .
4 . Remov e th e thre e nuts .
5 . Disconnec t th e actuato r cabl e fro m th e actuato r ro d
b y releasin g th e cli p fro m th e ro d wit h a screwdrive r
a s shown .
CLIP
ACTUATO RROD ACTUATO
RCABLE NUT S
6. Loose n th e locknut , the n disconnec t th e actuato r
cabl e fro m th e throttl e linkage .
ADJUSTIN GNUTLOCKNU T
ACTUATO RCABLE
CABL E
BRACKE TTHROTTL ELINKAGE
7. Instal l i n th e revers e orde r o f removal , an d adjus t
fre e pla y a t th e throttl e linkag e afte r connectin g th e
actuato r cable .
MOUNTIN G BOLT S
VACUU
M HOS E
MOUNTIN G BOL T
ProCarManuals.com

Actuator Cable Adjustment

1. Check that the actuator cable moves smoothly with

no binding or sticking.

2. Measure the amount of movement of the output

linkage until the engine speed starts to increase. At

first, the output linkage should be located at the

fully closed position. Free play should be 5 ± 0.5 mm

(0.20
±
0.02 in).

OUTPUT

LINKAGE
ADJUSTING

NUT

FREE PLAY: 5 ± 0.5 mm (0.20 ± 0.02 in)
ACTUATOR

CABLE

3. If the free play is not within specs, move the cable to

the point where the engine speed starts to increase,

and tighten the locknut and adjusting nut.

CABLE

BRACKET
ADJUSTING

NUT

LOCKNUT

ACTUATOR

CABLE
4.

Turn the adjusting nut until it is 5 ± 0.5 mm (0.20 ±

0.02 in) away from the bracket.

5 ± 0.5 mm
(0.20
±
0.02
in)

CABLE

BRACKET

ADJUSTING

NUT

5.

Pull the cable so that the adjusting nut touches the

bracket, and tighten the locknut.

ADJUSTING

NUT

LOCKNUTProCarManuals.com
