Radiator
Replacemen t
1. Drai n th e engin e coolant .
2 . Remov e th e uppe r an d lowe r radiato r hose s an d AT F
coole r hoses .
3 . Disconnec t th e fa n moto r connector s an d radiato r fa n
contro l senso r connector .
4 . Remov e th e radiato r uppe r brackets , the n pul l u p
th e radiator . 5
. Remov e th e fa n shrou d assemblie s an d othe r part s
fro m th e radiator .
Instal l th e radiato r i n th e revers e orde r o f removal .
NOTE:
Set th e uppe r an d lowe r cushion s securely .
Fil l th e radiato r wit h engin e coolan t an d blee d th e air .
6 x 1. 0 m m9 N- m (0. 9 kgf-m ,
7 Ibf-ft )
CONDENSE R
FA N SHROU D
6 x 1. 0 m m7 N- m (0. 7 kgf-m ,
5 Ibf-ft )
FA N MOTO R
CONNECTO R AT
F COOLE R
HOSESRefer t o sectio n 1 4whe n installing .
UPPER RADIATO RHOSERADIATO RCAP
UPPE R BRACKE TAND CUSHIO N
RADIATO R
O-RINGReplace .
LOWERCUSHIO N
RADIATO R FA N
CONTRO L SENSO R
2 7 N- m (2. 8 kgf-m ,
2 0 Ibf-ft )
LOWE R RADIATO RHOSE
RADIATO R FA N
SHROU D
RADIATO R FA N
CONTRO L SENSO R
CONNECTO R FA
N MOTO R
CONNECTO RDRAI
N
PLUG
O-RIN GReplace .
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,
7. 2 Ibf-ft )
ProCarManuals.com
Page 490 of 1954

Engine Coolan t Refillin g an d Bleedin g
'96 -0 0 models :
CAUTION : Whe n pourin g engin e coolant , b e sur e t o
shu t th e rela y bo x li d an d no t t o le t coolan t spil l o n th e
electrica l part s o r th e paint . I f an y coolan t spills , rins e it
of f immediately .
NOTE:
Perfor m thi s procedur e whe n th e engin e is cool .
Befor e replacin g th e coolant , tur n th e ignitio n O N (II) ,
slowl y tur n th e climat e contro l temperatur e kno b t o
90° , an d tur n of f th e ignition . Thi s wil l allo w th e
coolan t i n th e heate r t o drai n ou t wit h th e res t o f th e
system .
Whe n th e radiato r i s cool , remov e th e radiato r cap .
Loose n th e drai n plug , an d drai n th e coolant .
DRAINPLUG
DRAI N CA P
2. Remov e th e drai n cap from th e coolan t drai n pip e
t o drai n th e block .
3 . Pu t th e drai n ca p bac k i n place , the n reinstal l th e
cli p o n th e drai n ca p securely .
4 . Tighte n th e radiato r drai n plu g securely .
5 . Remove , drai n an d reinstal l th e reservoir . Fil l th e
tan k halfwa y t o th e MA X mar k wit h water , the n u p
t o th e MA X mar k wit h antifreeze . 6
. Mi x th e recommende d antifreez e wit h a n equa l
amoun t o f wate r i n a clea n container .
NOTE:
Alway s us e onl y genuin e Hond a antifreeze /
coolant .
Fo r bes t corrosio n protection , th e coolan t con -
centratio n mus t b e maintaine d year-roun d a t
50 % minimum . Coolan t concentration s les s tha n
50% ma y no t provid e sufficien t protectio n
against corrosio n o r freezing .
Coolan t concentration s greate r tha n 60 % wil l
impai r coolin g efficienc y an d ar e no t recom -
mended .
CAUTION :
Do no t mi x differen t brand s o f antifreeze/coolants .
D o no t us e additiona l rus t inhibitor s o r anti-rus t
products ; the y ma y no t b e compatibl e wit h th e
coolant .
Engine Coolan t Refil l Capacit y [Includin g reservoi r
(0.65 (0.6 9 U S qt , 0.5 7 Im p qt))] :
6.1 (6. 4 US qt , 5. 4 Im p qt )
7. Remov e th e engin e cove r (se e pag e 5-3 ).
8 . Loose n th e ai r blee d bol t i n th e wate r passage , the n
fill th e radiato r to th e botto m of th e fille r nec k with
the coolan t mixture . Tighte n th e blee d bol t a s soo n
a s coolan t start s t o ru n ou t i n a stead y strea m with -
ou t bubbles .
9 . Wit h th e radiato r ca p off , star t th e engin e an d le t i t
ru n unti l i t i s warme d u p (radiato r fa n come s o n a t
leas t twice) . Then , i f necessary , ad d mor e coolan t mi x
t o brin g th e leve l bac k u p t o th e botto m o f th e fille r
neck .
10. Pu t th e radiato r ca p o n tightly , the n ru n th e engin e
agai n an d chec k fo r leaks .
BLEE D BOL T9.8 N- m (1. 0 kgf-m , 7. 2 Ibf-ft )
ProCarManuals.com
Page 491 of 1954

Radiator
Engine Coolan t Refillin g an d Bleedin g
'01 model :
CAUTION : Whe n pourin g engin e coolant , b e sur e t o
shu t th e rela y bo x li d an d no t t o le t coolan t spil l o n th e
electrica l part s o r th e paint . I f an y coolan t spills , rins e it
of f immediately .
NOTE:
Perfor m thi s procedur e whe n th e engin e is cool .
Befor e replacin g th e coolant , tur n th e ignitio n O N (II) ,
slowl y tur n th e climat e contro l temperatur e kno b t o
90° , an d tur n of f th e ignition . Thi s wil l allo w th e
coolan t i n th e heate r t o drai n ou t wit h th e res t o f th e
system .
Whe n th e radiato r i s cool , remov e th e radiato r cap .
Loose n th e drai n plug , an d drai n th e coolant .
DRAINPLUG
DRAI N CA P
2. Remov e th e drai n ca p fro m th e coolan t drai n pip e
t o drai n th e block .
3 . Pu t th e drai n ca p bac k i n place , the n reinstal l th e
cli p o n th e drai n ca p securely .
4 . Tighte n th e radiato r drai n plu g securely .
5 . Remove , drai n an d reinstal l th e coolan t reservoir .
Fil l th e tan k t o th e MA X mar k wit h Hond a Al l
Seaso n Antifreeze/Coolan t Typ e 2 .
6 . Remov e th e engine cover (se e pag e 5-3 ). 7
. Loose n th e ai r blee d bol t i n th e thermosta t housing ,
the n pou r Hond a Al l Seaso n Antifreeze/Coolan t
Typ e 2 int o th e radiato r t o th e botto m o f th e fille r
neck . D o no t le t coolan t spil l o n an y electrica l part s
o r th e paint . I f an y coolan t spills , rins e i t of f immedi -
ately .
NOTE :
Alway s us e Hond a Al l Seaso n Antifreeze/Coolan t
Typ e 2 . Usin g a non-Hond a coolan t ca n resul t i n
corrosion , causin g th e coolin g syste m to mal -
functio n o r fail .
Hond a Al l Seaso n Antifreeze/Coolan t Typ e 2 is a
mixtur e o f 50 % antifreez e an d 50 % water . Pre -
mixin g i s no t required .
8 . Tighte n th e blee d bol t a s soo n a s coolan t start s t o
ru n ou t i n a stead y stream .
9 . Wit h th e radiato r cap off, star t th e engin e an d le t i t
ru n unti l warme d u p (radiato r fa n come s o n a t leas t
twice) . Then , i f necessary , ad d mor e genuin e Hond a
Al l Seaso n Antifreeze/Coolan t Typ e 2 to brin g th e
leve l bac k u p t o th e botto m o f th e fille r neck .
10 . Pu t th e radiato r ca p o n tightly , the n ru n th e engin e
agai n an d chec k fo r leaks .
Engin
e Coolan t Refil l Capacit y [Includin g reservoi r
(0.65 (0.6 9 U S qt , 0.5 7 Im p qt))] :
6.1 (6. 4 US qt , 5. 4 Im p qt )
BLEE D BOL T9.8 N- m (1. 0 kgf-m , 7. 2 Ibf-ft )
ProCarManuals.com
Page 492 of 1954
Cap Testing
Testing
1. Remove the radiator cap, wet its seal with engine
coolant, then install it on the pressure tester.
RADIATOR
CAP
2. Apply a pressure of 93- 123 kPa (0.95- 1.25 kgf/cm2,
14-18 psi).
3. Check for a drop in pressure.
4. If the pressure drops, replace the cap.
1. Wait until the engine is cool, then carefully remove
the radiator cap and fill the radiator with engine
coolant to the top of the filler neck.
2. Attach the pressure tester to the radiator and apply
a pressure of 93-123 kPa (0.95 - 1.25 kgf/cm2, 14 -
18
psi).
RADIATOR PRESSURE
TESTER
(Commercially available)
3. Inspect for engine coolant leaks and a drop in pres-
sure.
4. Remove the tester and reinstall the radiator cap.
NOTE: Check for engine oil in the coolant and/or
coolant in the engine oil.
RADIATOR PRESSURE TESTER
(Commercially available)
SMALL ADAPTOR
(for 32 mm neck, low profile)
SMALL ADAPTOR
(for 32 mm neck, low profile)ProCarManuals.com
Page 493 of 1954
Thermostat
Replacement
NOTE: Use new O-rings when reassembling.
BLEED BOLT
9.8 N-m (1.0 kgf-m,
7.2 Ibf-ft)
ENGINE COOLANT
TEMPERATURE
(ECT) GAUGE
SENDING UNIT
9 N-m (0.9 kgf-m,
7 Ibf-ft)
ENGINE COOLANT
TEMPERATURE
(ECT) SENSOR
18 N-m (1.8 kgf-m, 13 Ibf-ft)
THERMOSTAT
COVER
O-RING
Replace.
THERMOSTAT
Install with pin up.
RUBBER SEAL
Replace.
6 x 1.0 mm
12 N-m (1.2 kgf-m,
8.7 Ibf-ft)ProCarManuals.com
Page 494 of 1954

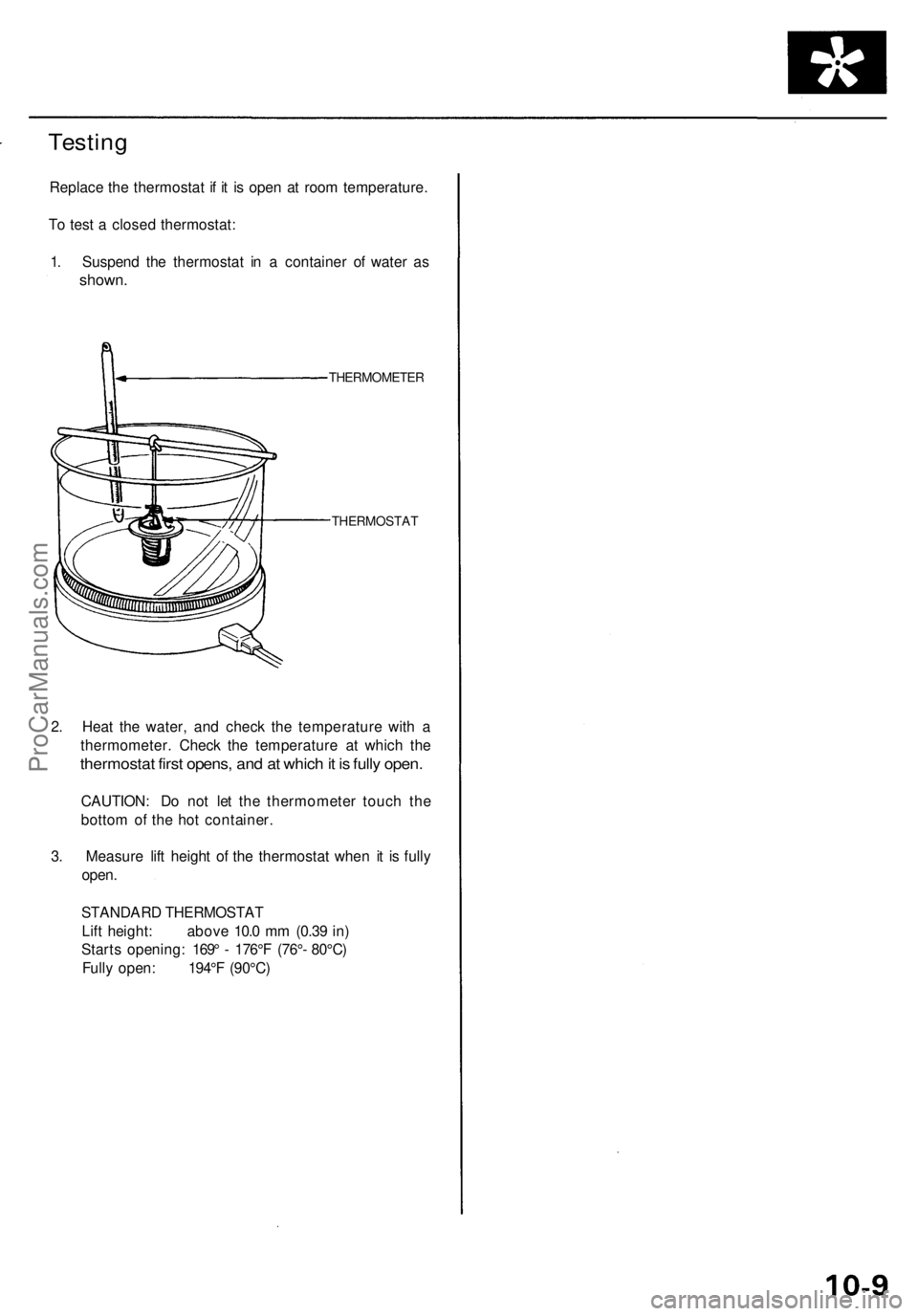

Testing
Replac e th e thermosta t i f i t i s ope n a t roo m temperature .
T o tes t a close d thermostat :
1 . Suspen d th e thermosta t i n a containe r o f wate r a s
shown .
THERMOMETE R
THERMOSTA T
2. Hea t th e water , an d chec k th e temperatur e wit h a
thermometer . Chec k th e temperatur e a t whic h th e
thermosta t firs t opens , an d a t whic h it i s full y open .
CAUTION : D o no t le t th e thermomete r touc h th e
botto m o f th e ho t container .
3 . Measur e lif t heigh t o f th e thermosta t whe n i t i s full y
open .
STANDAR D THERMOSTA T
Lif t height : abov e 10. 0 m m (0.3 9 in )
Start s opening : 169 ° - 176° F (76° - 80°C )
Full y open : 194° F (90°C )
ProCarManuals.com
Page 495 of 1954

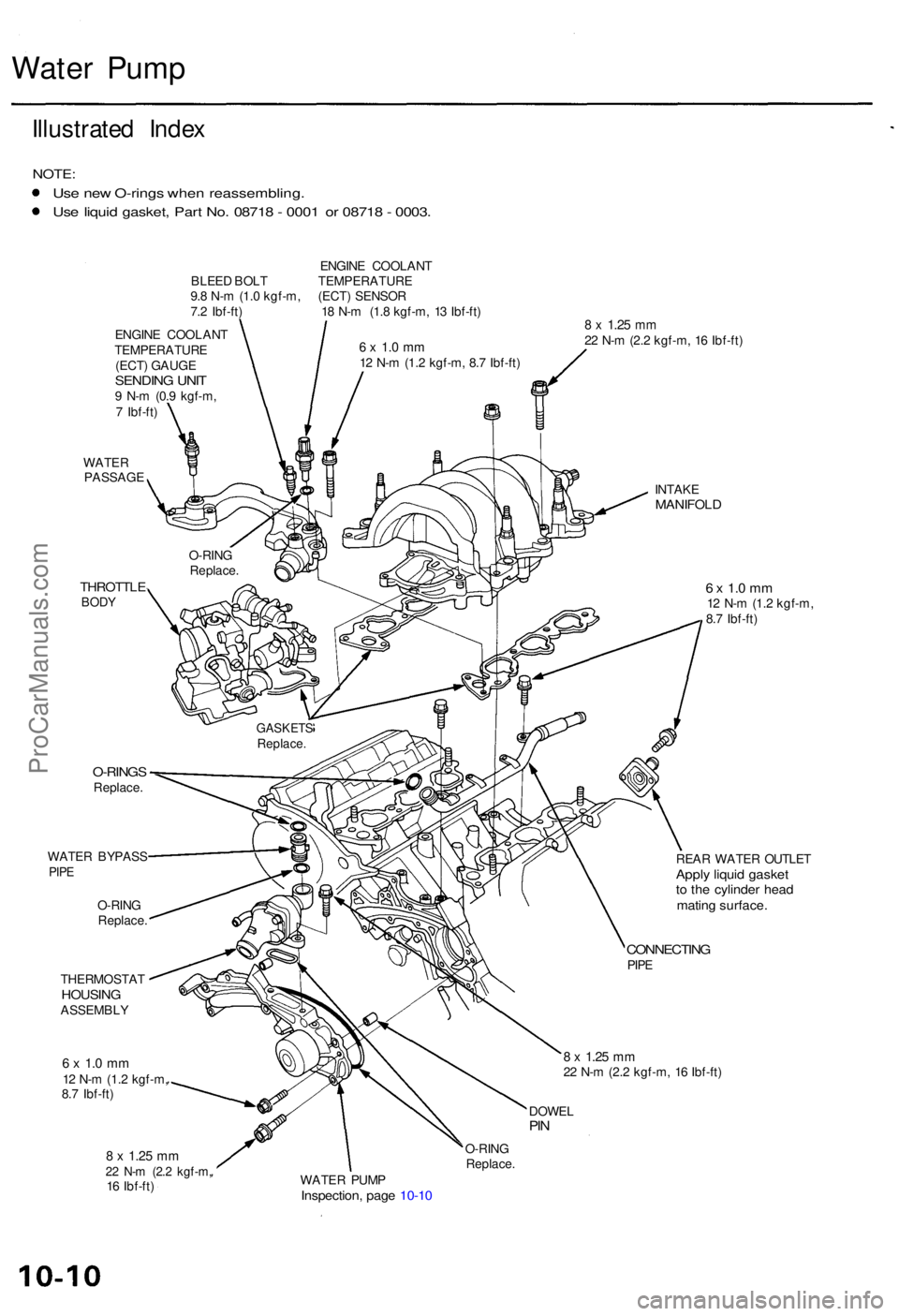

Water Pum p
Illustrate d Inde x
NOTE :
Use ne w O-ring s whe n reassembling .
Use liqui d gasket , Par t No . 0871 8 - 000 1 o r 0871 8 - 0003 .
ENGIN E COOLAN T
BLEE D BOL T TEMPERATUR E
9. 8 N- m (1. 0 kgf-m , (ECT ) SENSO R
7. 2 Ibf-ft ) 1 8 N- m (1. 8 kgf-m , 1 3 Ibf-ft )
ENGIN E COOLAN T
TEMPERATUR E
(ECT ) GAUG E
SENDIN G UNI T9 N- m (0. 9 kgf-m ,
7 Ibf-ft )
6 x 1. 0 m m12 N- m (1. 2 kgf-m , 8. 7 Ibf-ft )
8 x 1.2 5 mm22 N- m (2. 2 kgf-m , 1 6 Ibf-ft )
WATE RPASSAG E
INTAKE
MANIFOL D
THROTTL EBODY
O-RING SReplace .
WATE R BYPAS S
PIPE
O-RIN G
Replace .
THERMOSTA T
HOUSINGASSEMBL Y
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
REA R WATE R OUTLE T
Apply liqui d gaske tto th e cylinde r hea dmatin g surface .
CONNECTIN GPIPE
8 x 1.2 5 mm22 N- m (2. 2 kgf-m , 1 6 Ibf-ft )
DOWE L
PIN
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,16 Ibf-ft ) O-RIN
G
Replace .WATER PUM PInspection , pag e 10-1 0
GASKET SReplace.
O-RING
Replace .
ProCarManuals.com
Page 496 of 1954
Inspection
1. Remov e th e timin g bel t (se e pag e 6-8 ).
2 . Tur n th e wate r pum p pulle y counterclockwise .
Chec k tha t i t turn s freely .
BLEED HOL E
3. Chec k fo r sign s o f sea l leakage .
NOTE: A smal l amoun t o f "weeping " fro m th e blee d
hol e is normal .
Replacemen t
1. Remov e th e timin g bel t (se e pag e 6-8 ).
2 . Remov e th e lef t camshaf t pulle y an d bac k cove r
(see pag e 6-24 ).
3 . Remov e th e wate r pump .
NOTE : Inspec t an d clea n th e O-rin g groov e an d
matin g surfac e wit h th e cylinde r block .
O-RIN GReplace .8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
DOWE LPIN
DOWE L PI N
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
4. Instal l th e wate r pum p in th e revers e orde r o f removal .
NOTE:
Keep th e O-rin g in positio n whe n installing .
Clea n u p th e spille d engin e coolant .
WATERPUMP
O-RIN GReplace .
