PGM-FI Syste m
Engine Coolan t Temperatur e (ECT ) Senso r (cont'd )
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0117 : A lo w voltag e (hig h temperature ) proble m in th e
Engin e Coolan t Temperatur e (ECT ) senso r circuit .
— Th e MI L ha s bee n reporte d on .
— DT C P011 7 is stored .
Proble m verification :
1. Tur n th e ignitio n switc h O N (II) .2. Chec k th e EC T wit h th e sca ntool.
ls302° F (150°C ) o r highe r (o r
H-Limi t i n Hond a mod e o f
PG M Tester ) o r 0 V indicated ?
YES
Chec k fo r a shor t i n th e EC T sen -sor:1. Disconnec t th e EC T senso r
connector .
2 . Chec k th e EC T wit h th e sca n
tool.
ls302° F (150°C ) o r highe r (o r
H-Limi t i n Hond a mod e o f
PG M Tester ) o r 0 V indicated ?
YES
Chec k fo r a shor t i n th e wir e
(EC T line) :
1 . Tur n th e ignitio n switc h OFF .
2 . Disconnec t th e PC M connec -
tor D (22P) .3. Chec k fo r continuit y betwee nNo. 2 termina l o n th e EC Tsenso r connecto r an d bod y
ground .
NO
Intermitten t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t C251 ,
C25 4 (locate d a t lef t shoc k tower) ,
C12 8 (EC T sensor) , C53 1 (climat e
contro l unit ) an d PCM .
Replac e th e EC T sensor .
ECT SENSO R CONNECTO R (C128 )
I s ther e continuity ?
YES
NO
Substitut e a known-goo d PC M
an d rechec k (se e pag e 11-42 fo r
immobilize r information) . I f nor -
ma l EC T is indicated , replac e th e
origina l PCM .
Wire sid e o f femal e terminal s
Is ther e continuity ? Repai
r shor t i n th e wir e betwee nPCM (D7 ) an d EC T sensor .
Replace th e climat e contro l unit .
NO
YE S
Chec k th e climat e contro l uni tcircuits :1. Tur n th e ignitio n switc h OFF .2. Disconnec t 20 P connecto r
fro m th e climat e contro l unit .
3 . Chec k fo r continuit y betwee n
No . 2 termina l o n th e EC T
senso r connecto r an d bod y
ground .
NO
ProCarManuals.com
Page 578 of 1954

The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0118 : A hig h voltag e (lo w temperature ) proble m in th e
Engin e Coolan t Temperatur e (ECT ) senso r circuit .
— Th e MI L ha s bee n reporte d on .
— DT C P011 8 is stored .
Proble m verification :
1 . Tur n th e ignitio n switc h O N (II) .
2 . Chec k th e EC T wit h th e sca n
tool.
Is -4° F (-20°C ) o r les s (o r L -
Limi t i n Hond a mod e o f PG M
Tester ) o r 5 V indicated ?
YES
Chec k fo r a n ope n in th e EC T sen -sor:1. Disconnec t th e EC T senso r
connector.
2 . Instal l a jumpe r wir e betwee n
th e tw o terminal s o n th e har -
ness sid e o f th e EC T senso rconnector .
3 . Chec k th e EC T wit h th e sca n
tool.
Is -4° F (-20°C ) o r les s (o r L -
Limi t i n Hond a mod e o f PG M
Tester ) o r 5 V indicated ?
YES
Chec k fo r a n ope n i n th e wire s
(ECT , SG 2 lines) :
1. Tur n th e ignitio n switc h OFF .2. Instal l a jumpe r wire betwee nD7 an d D2 2 o n th e PC M con -nector .3. Tur n th e ignitio n switc h O N (II) .4. Chec k th e EC T wit h th e sca ntool.
Is -4° F (-20°C ) o r les s (o r L -
Limi t i n Hond a mod e o f PG M
Tester ) o r 5 V indicated ?
YES
Substitut e a known-goo d PC M
an d rechec k (se e pag e 11-42 fo r
immobilize r information) . I f nor -
ma l EC T is indicated , replac e th e
origina l PCM . Intermitten
t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t C251 ,
C25 4 (locate d a t lef t shoc k tower) ,
C128 (EC T sensor ) an d PCM .
ECT SENSO R CONNECTO R (C128 )
SG2(GRN/BLU )
JUMPE R WIR E
Replac e th e EC T sensor .
ECT(RED/WHT )
Wire sid e o f femal e terminal s
Repai r ope n in th e wire s betwee n
PC M (D7 , D22 ) an d EC T sensor . Wir
e sid e o f femal e terminal s
SG2(GRN/BLK )
JUMPER WIR E
PC
M CONNECTO R D (22P )
EC T (RED/WHT )
NO
N O
NO
ProCarManuals.com
Page 579 of 1954

PGM-FI Syste m
Throttl e Positio n (TP ) Senso r
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0122 : A lo w voltag e proble m in th e Throttl e Positio n
(TP) senso r circuit .
The T P Senso r i s a potentiometer . I t i s connecte d t o th e throttl e valv e shaft . A s th e throttl e positio n changes , th e throttl e
position senso r varie s th e voltag e signa l t o th e PCM .
— Th e MI L ha s bee n reporte d on .
— DT C P012 2 is stored .
Proble m verification :
1 . Star t th e engine . Hol d th e
engin e a t 3,00 0 rp m wit h n o
loa d (i n Par k o r neutral ) unti l
th e radiato r fa n come s on ,
the n tur n th e ignitio n switc h
OFF.2. Turn the ignition switch ON (II).3. Chec k th e throttl e positio n
wit h th e sca n tool .
I s ther e approx . 10 % whe n
the throttl e is full y close dand approx . 90 % whe n th e
throttl e is full y opened ?
NO
Chec k fo r a n ope n i n the wire
(VCC 2 line) :
1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e T P senso r con -
nector .
3 . Tur n th e ignitio n switc h O N (II) .
4 . Measur e voltag e betwee n
No. 1 termina l an d No . 3 termi -nal o n th e T P senso r connector . BRUS
H
HOLDE R
BRUS H
RESISTO R
YES
Is ther e abou t 5 V ?NO
YE S
Chec k fo r a n ope n o r shor t i n T Psensor :1. Tur n th e ignitio n switc h OFF .
2 . Measur e resistanc e betwee n
No . 1 termina l an d No . 2 ter -
mina l o n th e senso r sid e o f
T P senso r connecto r wit h th e
throttl e full y closed .
(T o pag e 11-81 )
*: wit h TC S*1: wit h VS A TERMINA
L
INNERBUSHIN GIDLEFUL LTHROTTL E
THROTTLEOPENING
Intermitten t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t C11 3
(T P sensor ) C251 , C253 , C25 4
(locate d a t lef t shoc k tower) ,
C62 3 (TC S contro l unit) * C45 0
(VS A converte r unit)*
1 an d PCM . T
P SENSO R CONNECTO R (C113 )
Wir e sid e o f femal e terminal s
Chec k fo r a n ope n in wir e (VCC2 ,
line):Measur e voltag e betwee n D2 1
termina l an d D2 2 termina l o n th e
PC M connector . Wir
e sid e o f femal e terminal s
I s ther e abou t 5 V ? Repai
r ope n in th e wir e betwee n
PCM (D21 ) an d T P sensor .
NO
Substitut e a known-goo d PC M
an d rechec k (se e pag e 11-42 fo r
immobilize r information) . I f pre -
scribe d voltag e is no w available ,
replac e th e origina l PCM .Termina l sid e o fmal e terminal s
YES
PCM CONNECTO R D (22P )
OUTPU
T VOLTAG E (V )
ProCarManuals.com
Page 580 of 1954

(From pag e 11-78 )
I s ther e abou t 0. 5
YE S
Chec k fo r a n ope n o r shor t i n th eTP sensor :Measure resistanc e betwee n No . 2
termina l an d No . 3 termina l wit h
th e throttl e full y closed .
I s ther e abou t 4. 5
YE S
Chec k fo r a n ope n in th e PCM :
1 . Reconnec t th e T P senso r con -
nector .2. Tur n th e ignitio n switc h O N (II) .3. Measur e voltag e betwee n D 6
termina l an d D2 2 termina l o n
th e PC M connector .
I s ther e approx . 0. 5 V whe n th e
throttl e is full y close d an d
approx . 4. 5 V whe n th e throttl e
i s full y opened ?
(with TCS/VSA* )NO
TP SENSO R
Replace th e throttl e body .
Replac e th e throttl e body . Termina
l sid e o f mal e terminal s
PC M CONNECTO R D (22P )
Substitut e a known-goo d PC M
an d rechec k (se e pag e 11-42 fo r
immobilize r information) . I f pre -
scribe d voltag e is no w available ,
replac e th e origina l PCM . Wir
e sid e o f femal e terminal s
Check fo r a shor t i n th e TC S con -trol unit :1. Tur n th e ignitio n switc h OFF .
2 . Disconnec t th e H P (26P) * con -
necto r fro m th e TC S (VSA) *
control unit .3. Tur n th e ignitio n switc h O N (II) .
4 . Measur e voltag e betwee n D 6
termina l an d D2 2 termina l o n
th e PC M connector.
I s ther e abou t 0. 5 V whe n th e
throttl e is full y close d an d
approx . 4. 5 V whe n th e throttl e
i s full y opened ?
Replace th e TC S contro l unrt/VS Aconverte r unit .
NO
*: '0 0 - 0 1 model sRepair shor t i n th e wir e betwee nPCM (D6 ) an d T P sensor .
YES
YE S
NO
N O
ProCarManuals.com
Page 581 of 1954

PGM-FI Syste m
Throttle Positio n (TP ) Senso r (cont'd )
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0123 : A hig h voltag e proble m in th e Throttl e Positio n
(TP) senso r circuit .
Is ther e abou t 0. 5 V whe n
th e throttl e i s full y close d
an d approx . 4. 5 V whe n th e
throttl e is full y opened ?
NO
Chec k fo r a n ope n in th e T P sen -sor:1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e T P senso r con -
nector .
3 . Tur n th e ignitio n switc h O N (II) .
4 . Measur e voltag e betwee n
No . 3 termina l an d No . 1 ter -
mina l o n th e harnes s sid e o f
the T P senso r connector .
Is ther e abou t 5 V ?
NO
Chec k fo r a n ope n i n th e wir e
(SG 2 line) :
Measur e voltag e betwee n PC M
connecto r terminal s D2 1 an d D22 .
I s ther e abou t 5 V ?
NO
Substitut e a known-goo d PC M
an d rechec k (se e pag e 11-42 fo r
immobilize r information) . I f pre -
scribe d voltag e i s no w available ,
replac e th e origina l PCM . T
P SENSO R CONNECTO R (C113 )
Intermitten t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t C251 ,
C253 , C25 4 (locate d a t lef t shoc k
tower ) C11 3 (T P sensor ) an d PCM .
Wire sid e o f femal e terminal s
Replac e th e throttl e body . PC
M CONNECTO R D (22P )
Wir e sid e o f femal e terminal s
Repai r ope n in th e wir e betwee n
PCM (D22 ) an d T P sensor .
YES
YE S
YE
S
Proble m verification :
1 . Star t th e engine . Hol d th e
engin e a t 3,00 0 rp m wit h n o
loa d (i n Par k o r neutral ) unti l
th e radiato r fa n come s on ,
the n tur n th e ignitio n switc h
OFF.2. Tur n th e ignitio n switc h O N (II) .
3 . Chec k th e throttl e positio n
wit h th e sca n tool .
—
Th e MI L ha s bee n reporte d on .
— DT C P012 3 is stored .
ProCarManuals.com
Page 582 of 1954
The scan tool indicates Diagnostic Trouble Code (DTC) P1121: Throttle Position (TP) lower than expected.
— The MIL has been reported on.
— DTC P1121 is stored.
Problem verification:
1. Turn the ignition switch ON (II).
2. Check the throttle position
with the scan tool.
I
s 14.4% or higher indicated when
the throttle is fully opened?
Intermittent failure, system is OK
at this time.
The scan tool indicates Diagnostic Trouble Code (DTC) P1122: Throttle Position (TP) higher than expected.
— The MIL has been reported on.
— DTC P1122 is stored.
Problem verification:
1. Turn the ignition switch ON (II).
2. Check the throttle position
with the scan tool.
Is 19.1% or less indicated when
the throttle is fully closed?
Intermittent failure, system is OK
at this time.
Replace the TP sensor.
NO
YES
Replace the TP sensor.
NO
YESProCarManuals.com
Page 583 of 1954

PGM-FI Syste m
Primar y Heate d Oxyge n Senso r (HO2S ) (Senso r 1 )
Th e Heate d Oxyge n Sensor s (HO2S ) detec t th e oxyge n conten t i n th e exhaus t ga s an d signa l th e PCM . I n operation , th e
PC M receive s th e signal s fro m th e senso r an d varie s th e duratio n durin g whic h fue l i s injected . T o stabiliz e th e sensor' s
output, th e senso r ha s a n interna l heater . Th e Righ t Primar y HO2 S (Ban k 1 , Senso r 1 ) i s installe d in th e righ t exhaus t man -
ifold, an d th e Lef t Primar y HO2 S (Ban k 2 , Senso r 1 ) i s installe d in th e lef t exhaus t manifold .
ZIRCONIAELEMENT
SENSORTERMINA L
®e
VOLTAG E (V )
HEATE R
STOICHIOMETRI CAIR-FUEL RATI O
HEATE RTERMINA LRICHAIR -FUE LRATI O
LEAN
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0131 : A lo w voltag e proble m in th e Righ t Primar y
Heated Oxyge n Senso r (HO2S ) (Ban k 1 , Senso r 1 ) circuit .
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0151 : A lo w voltag e proble m in th e Lef t Primar y
Heated Oxyge n Senso r (HO2S ) (Ban k 2 , Senso r 1 ) circuit .
— Th e MI L ha s bee n reporte d on .
— DT C P013 1 and/o r P015 1 ar e
stored .
Doe s th e voltag e sta y a t 0. 5 V
o r less ?
Is i t normal ?
(T o pag e 11-85 )
NO
Intermitten t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t C251 ,
C25 4 (locate d a t lef t shoc k tower )
C11 9 (righ t primar y HO2 S (Ban k
1 , Senso r 1) ) o r C12 6 (lef t prima -
r y HO2 S (Ban k 2 , Senso r 1)) * an d
PCM .
Repai r fue l suppl y system .
*: P015 1
NO
YE S
Chec k th e fue l pressure .
YES
Proble m verification :
1 . D o th e PC M Rese t Procedure .
2 . Star t th e engine . Hol d th e
engin e a t 3,00 0 rp m wit h n oloa d (in Par k or neutral ) untilthe radiato r fa n come s on .
3 . Test-driv e wit h th e transmis -
sion in position .
4 . Chec k th e righ t primar y HO2 S
(Ban k 1 , Senso r 1 ) o r lef t pri -
mar y HO2S * (Ban k 2 , Senso r
1 ) outpu t voltag e wit h th e sca n
too l durin g acceleratio n usin g
wid e ope n throttle .
ProCarManuals.com
Page 584 of 1954

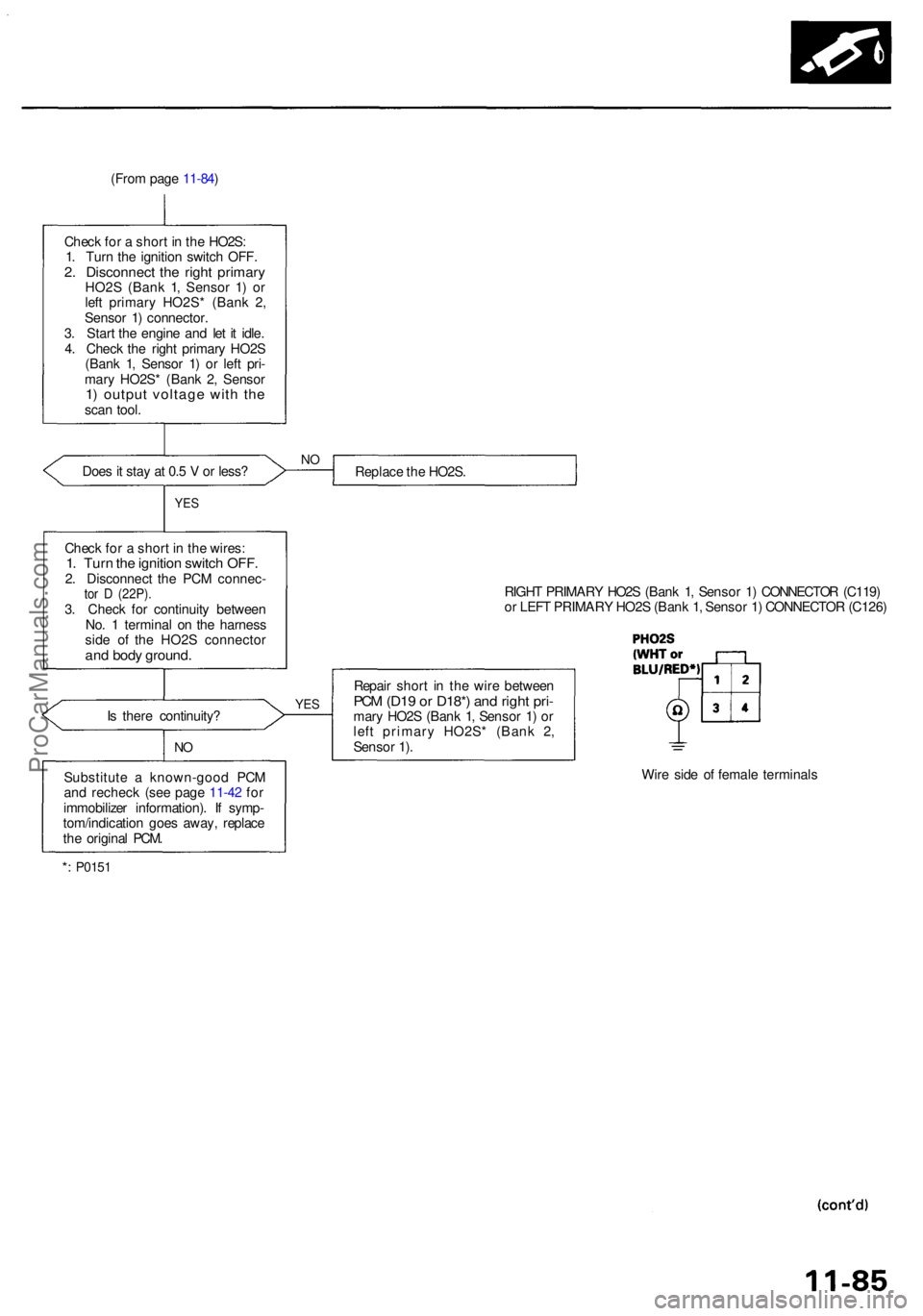

(From pag e 11-84 )
Chec k fo r a shor t i n th e HO2S :
1 . Tur n th e ignitio n switc h OFF .
2. Disconnec t th e righ t primar yHO2S (Ban k 1 , Senso r 1 ) o r
lef t primar y HO2S * (Ban k 2 ,
Senso r 1 ) connector .
3 . Star t th e engin e an d le t i t idle .
4 . Chec k th e righ t primar y HO2 S
(Ban k 1 , Senso r 1 ) o r lef t pri -
mar y HO2S * (Ban k 2 , Senso r
1) outpu t voltag e wit h th esca n tool .
Doe s it sta y a t 0. 5 V or less ?
YES
Chec k fo r a shor t i n th e wires :1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e PC M connec -tor D (22P) .3. Chec k fo r continuit y betwee n
No . 1 termina l o n th e harnes s
sid e o f th e HO2 S connecto r
and bod y ground .
Replace th e HO2S .
I s ther e continuity ?
NO
Substitut e a known-goo d PC M
an d rechec k (se e pag e 11-42 fo r
immobilize r information) . I f symp -
tom/indicatio n goe s away , replac e
th e origina l PCM . Repai
r shor t i n th e wir e betwee n
PCM (D1 9 o r D18* ) an d righ t pri -mar y HO2 S (Ban k 1 , Senso r 1 ) o r
lef t primar y HO2S * (Ban k 2 ,
Senso r 1) . RIGH
T PRIMAR Y HO2 S (Ban k 1 , Senso r 1 ) CONNECTO R (C119 )
o r LEF T PRIMAR Y HO2 S (Ban k 1 , Senso r 1 ) CONNECTO R (C126 )
Wir e sid e o f femal e terminal s
*: P015 1
YES
NO
ProCarManuals.com
