Page 281 of 1954

ACURA RL KA9 1996 Service Repair Manual
1997 Model

Vehicle Identification Number
Transmission Number

Paint Code

Paint Code

B-75M

G-79P

G-83P

NH-585P

NH-592P

RP-25P

YR-508M

YR-511P
Color

Crescent Silver Metallic*2

Juniper Gre

Page 282 of 1954

ACURA RL KA9 1996 Service Repair Manual
Chassis and Paint Codes

1998 Model

Vehicle Identification Number

U.S. model: 000001-

Canada model: 800001-
Transmission Number

*1: U.S. model only

Engine Number
Vehicle Identification Number

Page 283 of 1954

ACURA RL KA9 1996 Service Repair Manual
1999 Model

Vehicle Identification Number

Transmission Number

*1: U.S. model only

Engine Number

C35A1 - 4000001
Vehicle Identification Number

and Federal Motor Vehicle

Safety Standard Certific

Page 284 of 1954

ACURA RL KA9 1996 Service Repair Manual
Chassis and Paint Codes

2000 Model

Vehicle Identification Number

U.S. model: 000001~

Canada model: 800001 ~
Transmission Number

Engine Number
Vehicle Identification Number

and Federal Motor V

Page 285 of 1954

ACURA RL KA9 1996 Service Repair Manual
Chassis and Paint Codes

2001 Model

Vehicle Identification Number

Transmission Number

*1: U.S. model only

Engine Number
Vehicle Identification Number

and Federal Motor Vehicle

Safety Standard

Page 286 of 1954

ACURA RL KA9 1996 Service Repair Manual
Identification Number Locations

Vehicle Identification Number
Vehicle Identification Number

Transmission Number

(Automatic)

Engine NumberProCarManuals.com

Page 287 of 1954

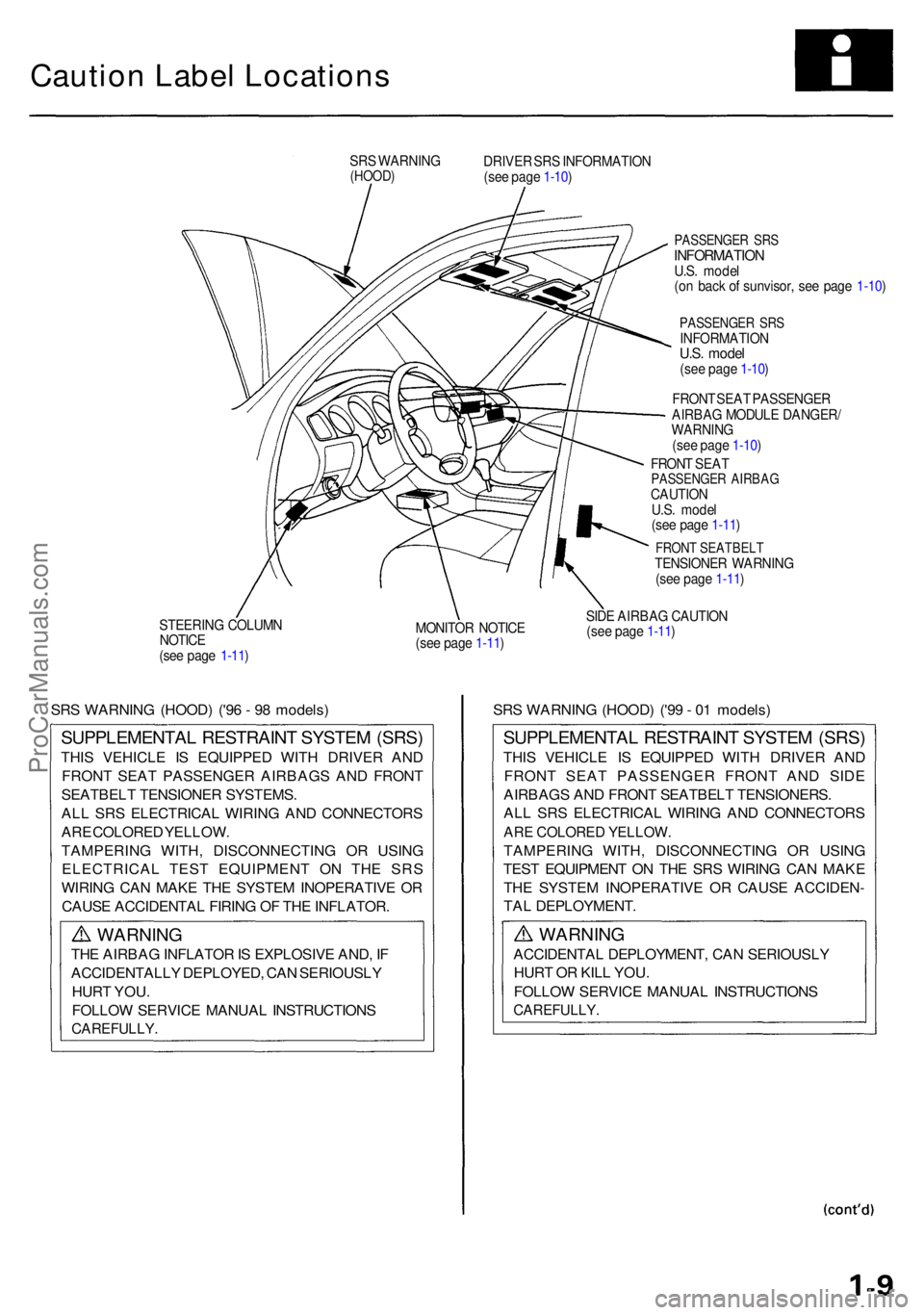

ACURA RL KA9 1996 Service Repair Manual Caution Label Locations
SRS WARNIN G(HOOD)DRIVER SR S INFORMATIO N
(se e pag e 1-10 )
PASSENGE R SR SINFORMATIO NU.S. mode l
(o n bac k o f sunvisor , se e pag e 1-10 )
PASSENGE R SR SINFORMATIO NU.S.

Page 288 of 1954

ACURA RL KA9 1996 Service Repair Manual

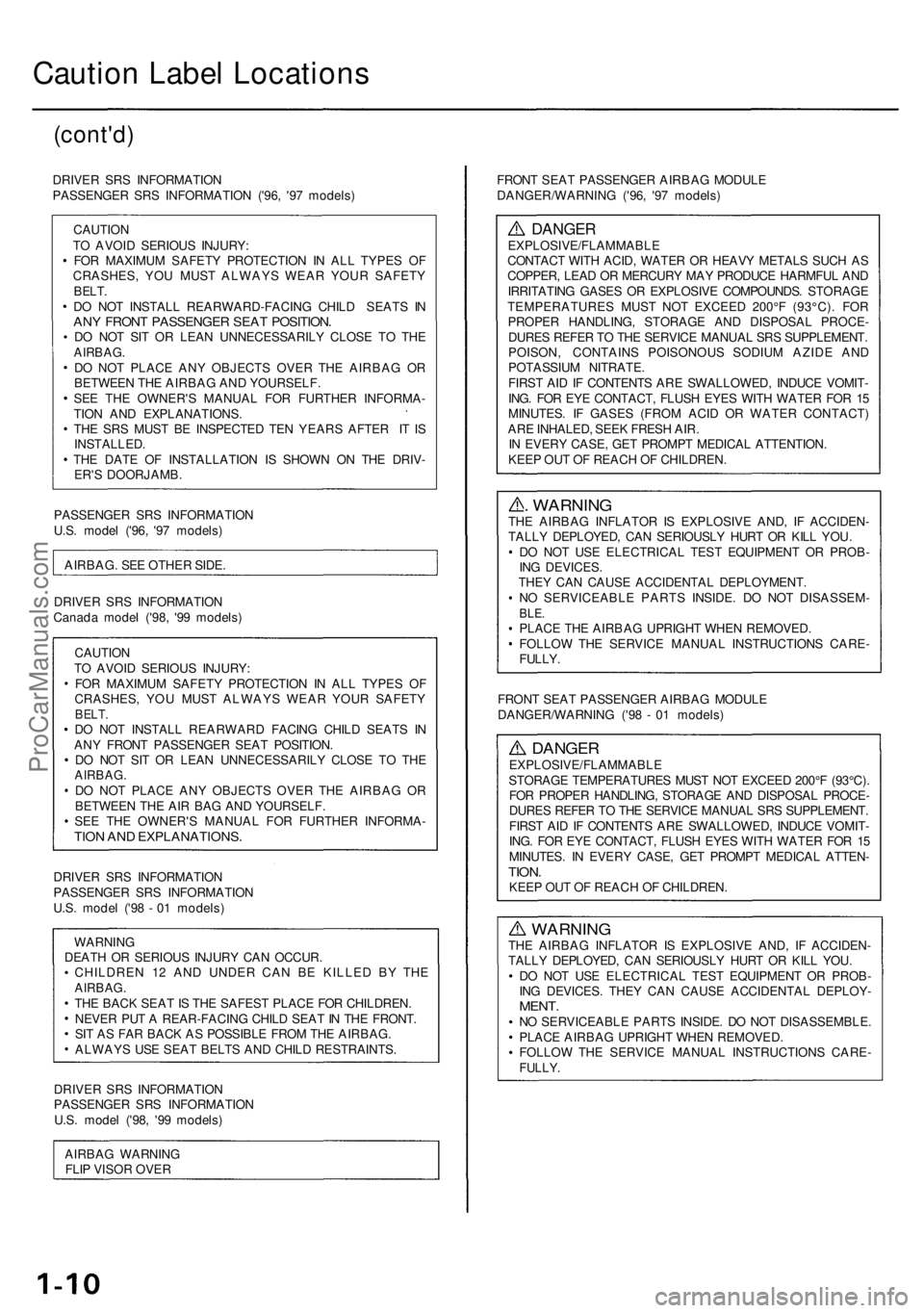

Caution Label Locations

(cont'd)

DRIVER SRS INFORMATION

PASSENGER SRS INFORMATION ('96, '97 models)

CAUTION

TO AVOID SERIOUS INJURY:

FOR MAXIMUM SAFETY PROTECTION IN ALL TYPES OF

C

Caution Label Locations

(cont'd)

DRIVER SRS INFORMATION

PASSENGER SRS INFORMATION ('96, '97 models)

CAUTION

TO AVOID SERIOUS INJURY:

FOR MAXIMUM SAFETY PROTECTION IN ALL TYPES OF

CRASHES, YOU MUST ALWAYS WEAR YOUR SAFETY

BELT.

DO NOT INSTALL REARWARD-FACING CHILD SEATS IN

ANY FRONT PASSENGER SEAT POSITION.

DO NOT SIT OR LEAN UNNECESSARILY CLOSE TO THE

AIRBAG.

DO NOT PLACE ANY OBJECTS OVER THE AIRBAG OR

BETWEEN THE AIRBAG AND YOURSELF.

SEE THE OWNER'S MANUAL FOR FURTHER INFORMA-

TION AND EXPLANATIONS.

THE SRS MUST BE INSPECTED TEN YEARS AFTER IT IS

INSTALLED.

THE DATE OF INSTALLATION IS SHOWN ON THE DRIV-

ER'S DOORJAMB.

PASSENGER SRS INFORMATION

U.S. model ('96, '97 models)

AIRBAG. SEE OTHER SIDE.

DRIVER SRS INFORMATION

Canada model ('98, '99 models)

CAUTION

TO AVOID SERIOUS INJURY:

FOR MAXIMUM SAFETY PROTECTION IN ALL TYPES OF

CRASHES, YOU MUST ALWAYS WEAR YOUR SAFETY

BELT.

DO NOT INSTALL REARWARD FACING CHILD SEATS IN

ANY FRONT PASSENGER SEAT POSITION.

DO NOT SIT OR LEAN UNNECESSARILY CLOSE TO THE

AIRBAG.

DO NOT PLACE ANY OBJECTS OVER THE AIRBAG OR

BETWEEN THE AIR BAG AND YOURSELF.

SEE THE OWNER'S MANUAL FOR FURTHER INFORMA-

TION AND EXPLANATIONS.

DRIVER SRS INFORMATION

PASSENGER SRS INFORMATION

U.S. model ('98 - 01 models)

WARNING

DEATH OR SERIOUS INJURY CAN OCCUR.

CHILDREN 12 AND UNDER CAN BE KILLED BY THE

AIRBAG.

THE BACK SEAT IS THE SAFEST PLACE FOR CHILDREN.

NEVER PUT A REAR-FACING CHILD SEAT IN THE FRONT.

SIT AS FAR BACK AS POSSIBLE FROM THE AIRBAG.

ALWAYS USE SEAT BELTS AND CHILD RESTRAINTS.

DRIVER SRS INFORMATION

PASSENGER SRS INFORMATION

U.S. model ('98, '99 models)

AIRBAG WARNING

FLIP VISOR OVER
FRONT SEAT PASSENGER AIRBAG MODULE

DANGER/WARNING ('96, '97 models)

DANGER

EXPLOSIVE/FLAMMABLE

CONTACT WITH ACID, WATER OR HEAVY METALS SUCH AS

COPPER, LEAD OR MERCURY MAY PRODUCE HARMFUL AND

IRRITATING GASES OR EXPLOSIVE COMPOUNDS. STORAGE

TEMPERATURES MUST NOT EXCEED 200°F (93°C). FOR

PROPER HANDLING, STORAGE AND DISPOSAL PROCE-

DURES REFER TO THE SERVICE MANUAL SRS SUPPLEMENT.

POISON, CONTAINS POISONOUS SODIUM AZIDE AND

POTASSIUM NITRATE.

FIRST AID IF CONTENTS ARE SWALLOWED, INDUCE VOMIT-

ING. FOR EYE CONTACT, FLUSH EYES WITH WATER FOR 15

MINUTES. IF GASES (FROM ACID OR WATER CONTACT)

ARE INHALED, SEEK FRESH AIR.

IN EVERY CASE, GET PROMPT MEDICAL ATTENTION.

KEEP OUT OF REACH OF CHILDREN.

. WARNING

THE AIRBAG INFLATOR IS EXPLOSIVE AND, IF ACCIDEN-

TALLY DEPLOYED, CAN SERIOUSLY HURT OR KILL YOU.

DO NOT USE ELECTRICAL TEST EQUIPMENT OR PROB-

ING DEVICES.

THEY CAN CAUSE ACCIDENTAL DEPLOYMENT.

NO SERVICEABLE PARTS INSIDE. DO NOT DISASSEM-

BLE.

PLACE THE AIRBAG UPRIGHT WHEN REMOVED.

FOLLOW THE SERVICE MANUAL INSTRUCTIONS CARE-

FULLY.

FRONT SEAT PASSENGER AIRBAG MODULE

DANGER/WARNING ('98 - 01 models)

DANGER

EXPLOSIVE/FLAMMABLE

STORAGE TEMPERATURES MUST NOT EXCEED 200°F (93°C).

FOR PROPER HANDLING, STORAGE AND DISPOSAL PROCE-

DURES REFER TO THE SERVICE MANUAL SRS SUPPLEMENT.

FIRST AID IF CONTENTS ARE SWALLOWED, INDUCE VOMIT-

ING. FOR EYE CONTACT, FLUSH EYES WITH WATER FOR 15

MINUTES. IN EVERY CASE, GET PROMPT MEDICAL ATTEN-

TION.

KEEP OUT OF REACH OF CHILDREN.

WARNING

THE AIRBAG INFLATOR IS EXPLOSIVE AND, IF ACCIDEN-

TALLY DEPLOYED, CAN SERIOUSLY HURT OR KILL YOU.

DO NOT USE ELECTRICAL TEST EQUIPMENT OR PROB-

ING DEVICES. THEY CAN CAUSE ACCIDENTAL DEPLOY-

MENT.

NO SERVICEABLE PARTS INSIDE. DO NOT DISASSEMBLE.

PLACE AIRBAG UPRIGHT WHEN REMOVED.

FOLLOW THE SERVICE MANUAL INSTRUCTIONS CARE-

FULLY.ProCarManuals.com
