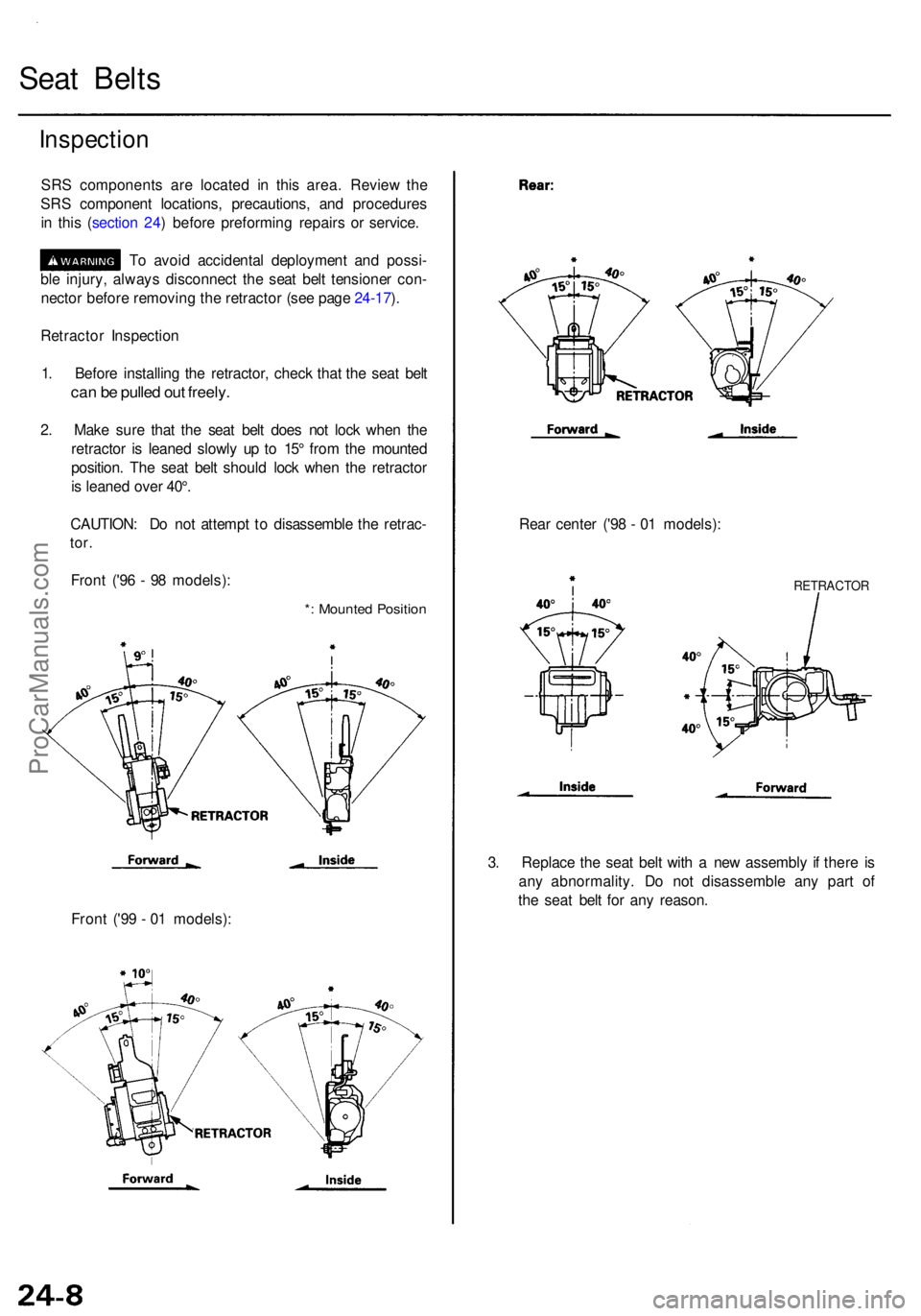

Seat Belt s
Inspectio n
SRS component s ar e locate d i n thi s area . Revie w th e
SR S componen t locations , precautions , an d procedure s
i n thi s ( sectio n 24 ) befor e preformin g repair s o r service .
To avoi d accidenta l deploymen t an d possi -
bl e injury , alway s disconnec t th e sea t bel t tensione r con -
necto r befor e removin g th e retracto r (se e pag e 24-17 ).
Retracto r Inspectio n
1 . Befor e installin g th e retractor , chec k tha t th e sea t bel t
can b e pulle d ou t freely .
2. Mak e sur e tha t th e sea t bel t doe s no t loc k whe n th e
retracto r i s leane d slowl y u p t o 15 ° fro m th e mounte d
position . Th e sea t bel t shoul d loc k whe n th e retracto r
i s leane d ove r 40° .
CAUTION : D o no t attemp t t o disassembl e th e retrac -
tor.
Fron t ('9 6 - 9 8 models) :
*: Mounte d Positio n
Front ('9 9 - 0 1 models) : Rea
r cente r ('9 8 - 0 1 models) :
RETRACTO R
3. Replac e th e sea t bel t wit h a ne w assembl y i f ther e i s
an y abnormality . D o no t disassembl e an y par t of
th e sea t bel t fo r an y reason .
ProCarManuals.com
Page 1786 of 1954

On-the Car Seat Belt Inspection
1. Check that the seat belt is not twisted or caught on
anything.
2. After installing the anchors, check for free move-
ment on the anchor bolts. If necessary, remove the
anchor bolts and check that the washers and other
parts are not damaged or improperly installed.
3. Check the seat belts for damage or discoloration.
Clean with a shop towel if necessary.
CAUTION: Use only soap and water to clean.
NOTE: Dirt build-up in the metal loops of the upper
anchors can cause the seat belts to retract slowly.
Wipe the inside of the loops with a clean cloth damp-
ened in isopropyl alcohol.
4. Check that the seat belt does not lock when pulled
out slowly. The seat belt is designed to lock only
during a sudden stop or impact.
5. Make sure that the seat belt will retract automatically
when released.
6. For each passenger's seat belt, make sure that the
locking mechanism in the seat belt retractor will
engage when the seat belt is pulled all the way out.
7. Replace the seat belt with a new assembly if there is
any abnormality. Do not disassemble any part of
the seat belt for any reason.ProCarManuals.com
Page 1787 of 1954

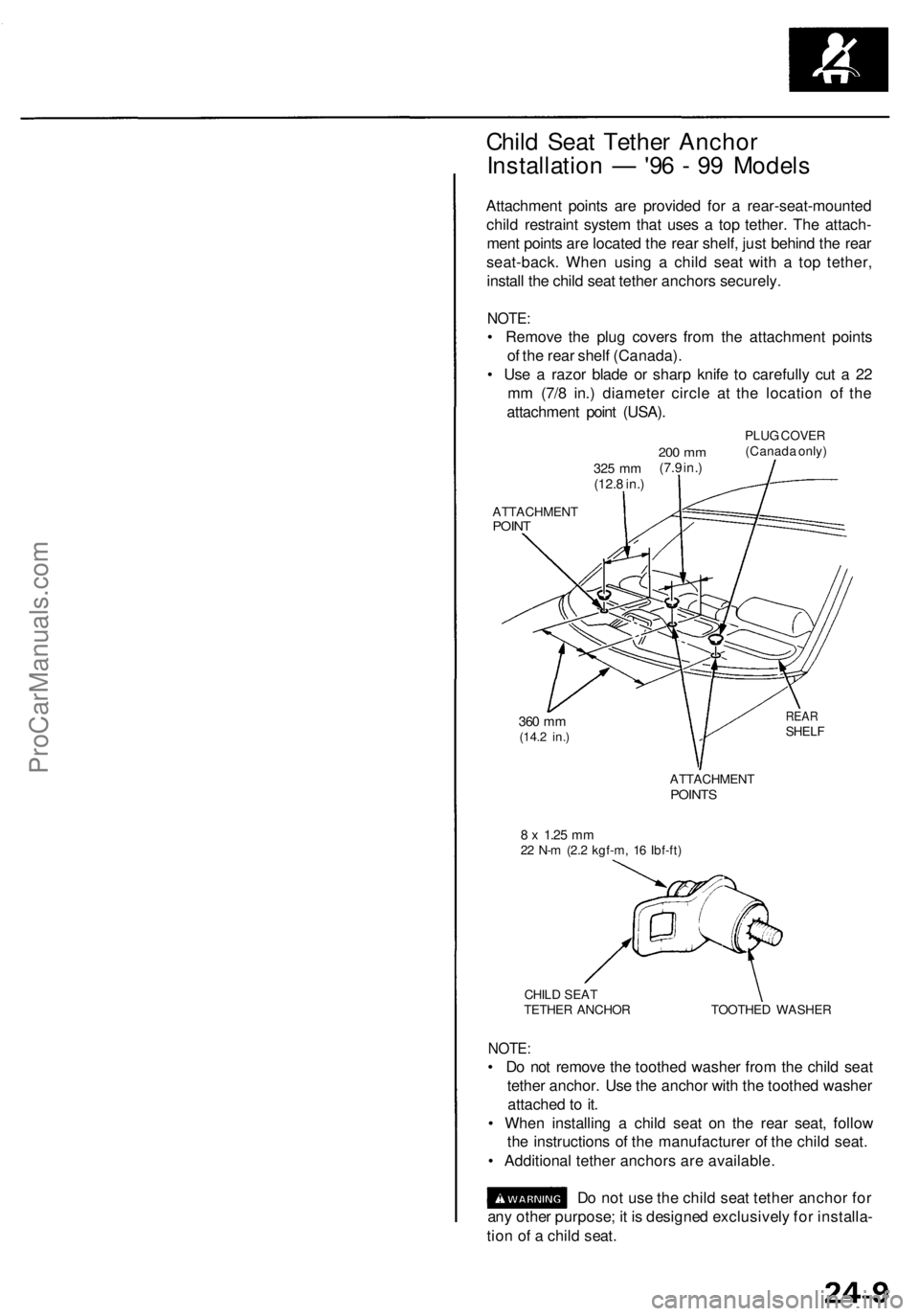

Child Seat Tether Anchor
Installation — '96 - 99 Models
Attachment points are provided for a rear-seat-mounted
child restraint system that uses a top tether. The attach-
ment points are located the rear shelf, just behind the rear
seat-back. When using a child seat with a top tether,
install the child seat tether anchors securely.
NOTE:
• Remove the plug covers from the attachment points
of the rear shelf (Canada).
• Use a razor blade or sharp knife to carefully cut a 22
mm (7/8 in.) diameter circle at the location of the
attachment point (USA).
325 mm
(12.8 in.)
200 mm
(7.9 in.)
PLUG COVER
(Canada only)
ATTACHMENT
POINT
360 mm
(14.2 in.)
REAR
SHELF
ATTACHMENT
POINTS
8 x
1.25
mm
22 N-m (2.2 kgf-m, 16 Ibf-ft)
CHILD SEAT
TETHER ANCHOR
TOOTHED WASHER
NOTE:
• Do not remove the toothed washer from the child seat
tether anchor. Use the anchor with the toothed washer
attached to it.
• When installing a child seat on the rear seat, follow
the instructions of the manufacturer of the child seat.
• Additional tether anchors are available.
Do not use the child seat tether anchor for
any other purpose; it is designed exclusively for installa-
tion of a child seat.ProCarManuals.com
Page 1788 of 1954
Seat Belt s

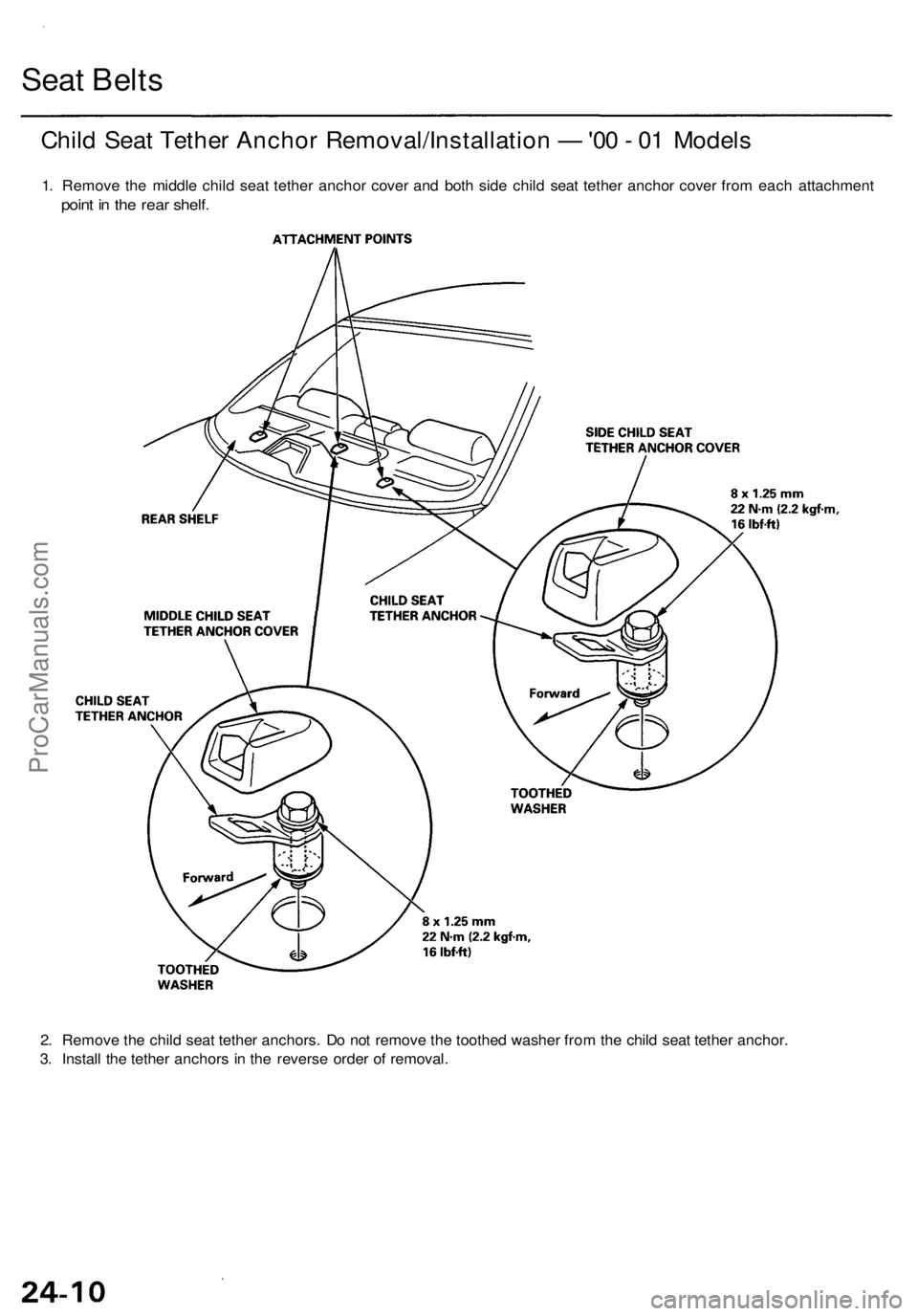

Child Sea t Tethe r Ancho r Removal/Installatio n — '00 - 0 1 Model s
1. Remov e th e middl e chil d sea t tethe r ancho r cove r an d bot h sid e chil d sea t tethe r ancho r cove r fro m eac h attachmen t
point i n th e rea r shelf .
2. Remov e th e chil d sea t tethe r anchors . D o no t remov e th e toothe d washe r fro m th e chil d sea t tethe r anchor .
3 . Instal l th e tethe r anchor s i n th e revers e orde r o f removal .
ProCarManuals.com
Page 1789 of 1954

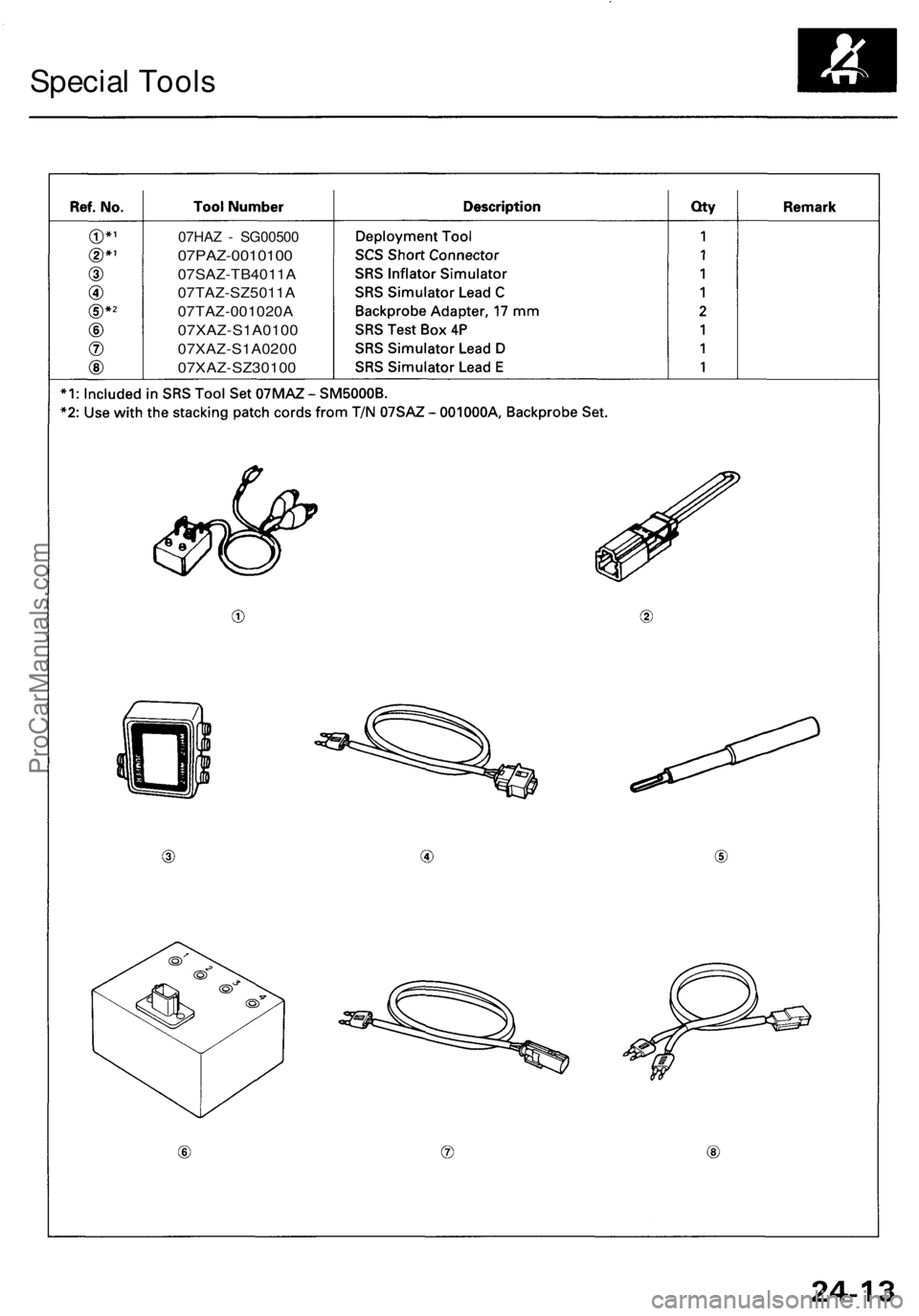

Special Tools
07HAZ - SG00500
07PAZ-0010100
07SAZ-TB4011A
07TAZ-SZ5011A
07TAZ-001020A
07XAZ-S1A0100
07XAZ-S1A0200
07XAZ-SZ30100ProCarManuals.com
Page 1790 of 1954
Component/Wiring Location s Inde x
'96 - 9 8 Model s
SRS INDICATO R LIGH T (I n th e gaug e assembly )
Troubleshooting , pag e 24-3 5 DRIVER'
S AIRBA G
Replacement , pag e 24-16 0
Disposal , pag e 24-16 8
CABL E REE LReplacement ,
pag e 24-17 6
FRON T PASSENGER' S
AIRBAGReplacement , pag e 24-16 0
Disposal , pag e 24-16 8
DRIVER' S SEA T BEL T
TENSIONE R
Replacement , pag e 24-16 5
Disposal , pag e 24-16 8
SRS UNI T(Includin g safin g senso r
an d impac t sensor )
Replacement , pag e 24-18 1
FRON
T
PASSENGER' SSEAT BEL T
TENSIONE R
Replacement ,page 24-16 5
Disposal ,
pag e 24-16 8
ProCarManuals.com
Page 1791 of 1954
DRIVER'S AIRBA GReplacement , pag e 24-16 0
Scrapping , pag e 24-17 2 SR
S INDICATO R LIGH T
Troubleshooting , pag e 24-8 4
CABL E REE LReplacement , pag e 24-17 6
FRON T PASSENGER' S AIRBA G
Replacement , pag e 24-16 0
Scrapping , pag e 24-17 2
Replacement , pag e 24-16 4
Scrapping , pag e 24-17 2
Replacement , pag e 24-16 5
Scrapping , pag e 24-17 2
Replacement , pag e 24-18 3
Replacement , pag e 24-18 1
Replacement , pag e 24-16 4
Scrapping , pag e 24-17 2
Replacement , pag e 24-16 5
Scrapping , pag e 24-17 2
Replacement
, pag e 24-18 3

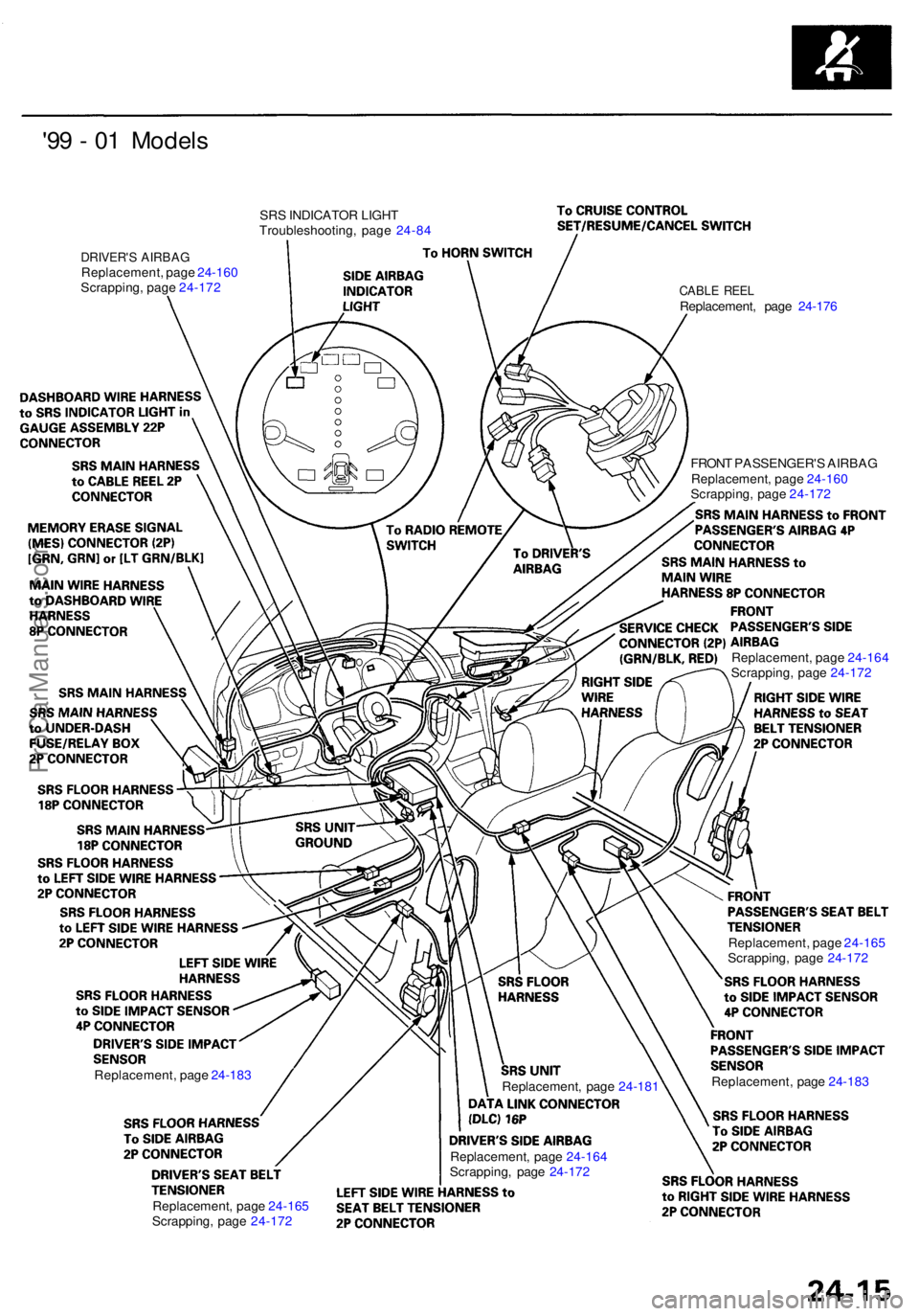

'99 - 0 1 Model s
ProCarManuals.com
Page 1792 of 1954

Description
SRS Airbag System - '96 - 98 Models
The SRS is a safety device which, when used in conjunction with the seat belt, is designed to help protect the driver and
front passenger in a frontal impact exceeding a certain set limit. The system consists of the SRS unit (including safing sen-
sor and impact sensor), the cable reel, the driver's airbag, and front passenger's airbag.
Seat Belt Tensioner
The seat belt tensioner is linked with the SRS airbags to further increase the effectiveness of the seat belt. In a front-end
collision, the tensioner instantly retracts the belt firmly to secure the occupants in their seats.
Operation
The main circuit in the SRS unit senses and judges the force of impact and, if necessary, ignites the inflator charges. If battery
voltage is too low or power is disconnected due to the impact, the back-up power circuit will keep voltage at a constant level.
For the SRS to operate:
(1) The impact sensor and safing sensor must activate and send electric signals to the microprocessor.
(2) The microprocessor must compute the signals and send signals to the airbag inflators and seat belt tensioners.
(3) The inflators must ignite and deploy the airbags and activate the tensioners.
Self-diagnosis System
A self-diagnosis circuit is built into the SRS unit; when the ignition switch is turned ON (II), the SRS indicator light comes
on and goes off after about 6 seconds if the system is operating normally.
If the light does not come on, or does not go off after 6 seconds, or if it comes on while driving, it indicates an abnormality
in the system. The system must be inspected and repaired as soon as possible.
For better serviceability, the memory will store the cause of the malfunction, and the data link circuit passes on the infor-
mation from the memory to the data link connector (DLC). This information can be read with the Honda PGM Tester con-
nected to the DLC (16P).ProCarManuals.com
