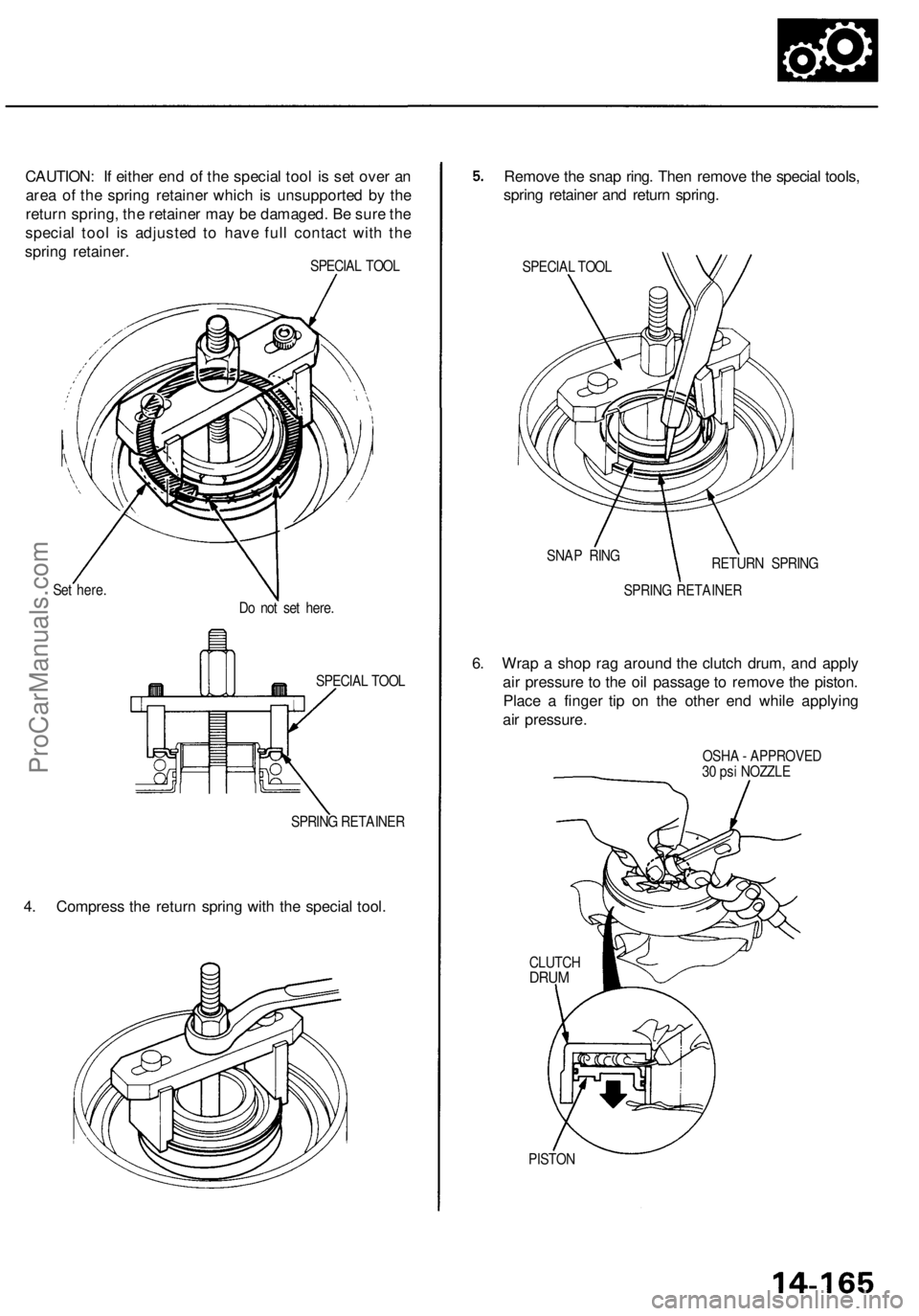

Page 873 of 1954
CAUTION: If either end of the special tool is set over an
area of the spring retainer which is unsupported by the
return spring, the retainer may be damaged. Be sure the
special tool is adjusted to have full contact with the
spring retainer.
Set here.
SPECIAL TOOL
SPRING RETAINER
4. Compress the return spring with the special tool.
Remove the snap ring. Then remove the special tools,
spring retainer and return spring.
SPECIAL TOOL
SNAP RING
SPRING RETAINER
6. Wrap a shop rag around the clutch drum, and apply
air pressure to the oil passage to remove the piston.
Place a finger tip on the other end while applying
air pressure.
CLUTCH
DRUM
PISTON
OSHA - APPROVED
30 psi NOZZLE
Do not set here.
SPECIAL TOOL
RETURN SPRINGProCarManuals.com

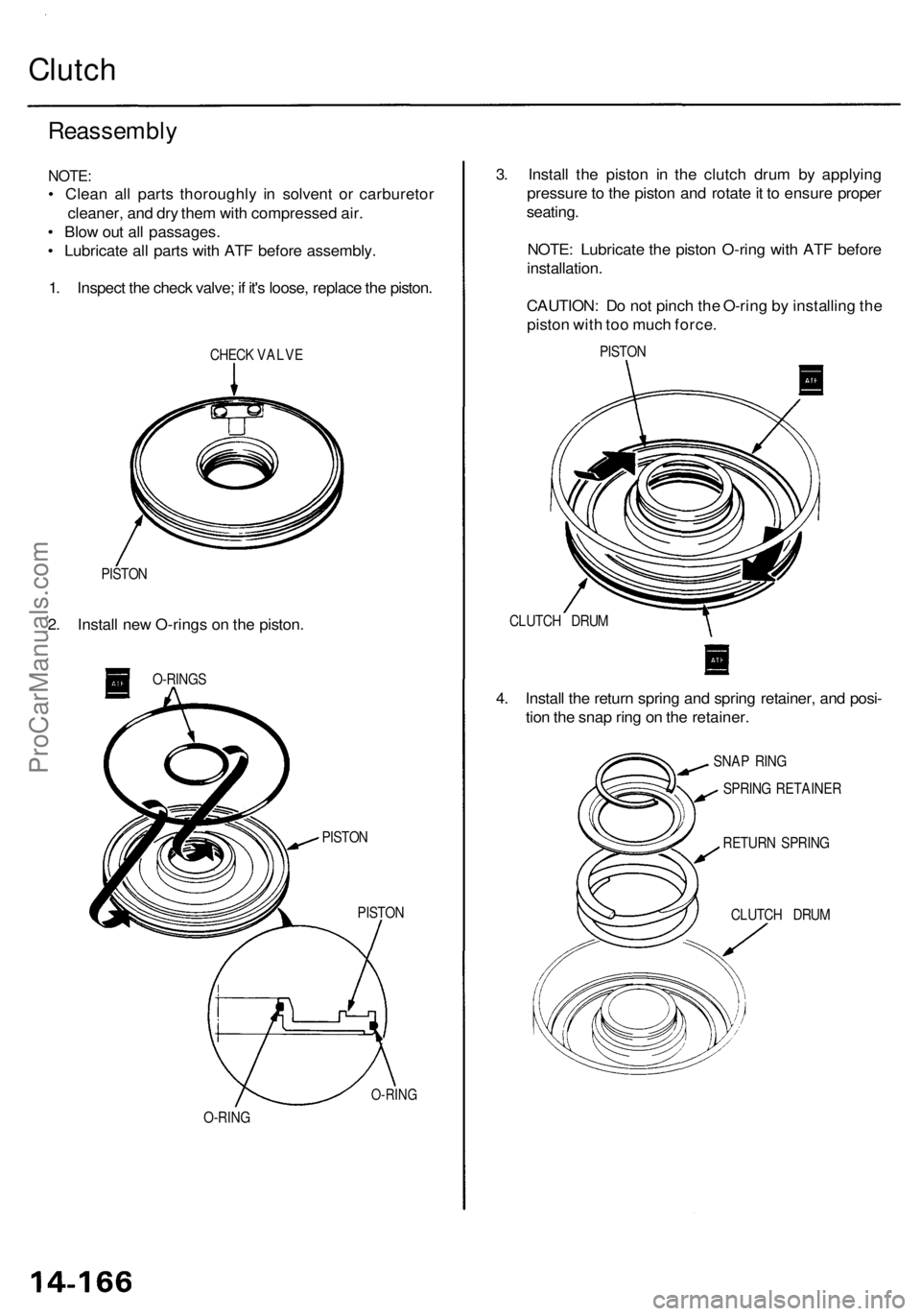

Page 874 of 1954
Clutch
Reassembly
NOTE:
• Clean all parts thoroughly in solvent or carburetor
cleaner, and dry them with compressed air.
• Blow out all passages.
• Lubricate all parts with ATF before assembly.
1. Inspect the check valve; if it's loose, replace the piston.
CHECK VALVE
PISTON
2. Install new O-rings on the piston.
O-RINGS
PISTON
PISTON
O-RING
O-RING
3. Install the piston in the clutch drum by applying
pressure to the piston and rotate it to ensure proper
seating.
NOTE: Lubricate the piston O-ring with ATF before
installation.
CAUTION: Do not pinch the O-ring by installing the
piston with too much force.
CLUTCH DRUM
4. Install the return spring and spring retainer, and posi-
tion the snap ring on the retainer.
SNAP RING
SPRING RETAINER
RETURN SPRING
CLUTCH DRUM
PISTONProCarManuals.com

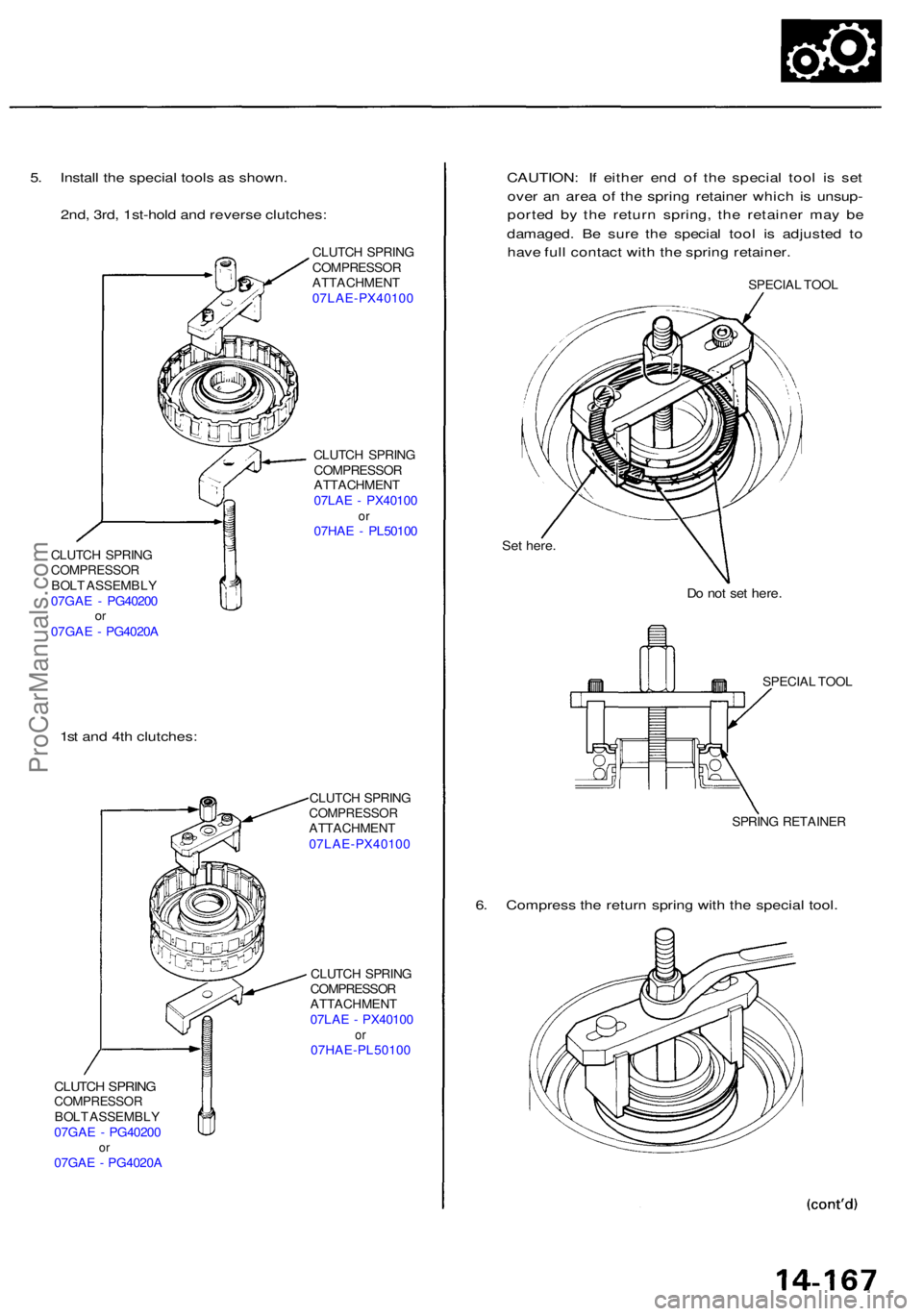

Page 875 of 1954
5. Instal l th e specia l tool s a s shown .
2nd , 3rd , 1st-hol d an d revers e clutches :
CLUTCH SPRIN GCOMPRESSO RBOLT ASSEMBL Y
07GA E - PG4020 0
or07GA E - PG4020 A
1st an d 4t h clutches :
CLUTCH SPRIN GCOMPRESSO RBOLT ASSEMBL Y
07GA E - PG4020 0
or07GA E - PG4020 A CLUTC
H SPRIN G
COMPRESSO R
ATTACHMEN T
07LAE-PX4010 0
CLUTC H SPRIN G
COMPRESSO R
ATTACHMEN T
07LA E - PX4010 0
or07HA E - PL5010 0
CLUTC H SPRIN G
COMPRESSO RATTACHMENT
07LAE-PX4010 0
CLUTC H SPRIN G
COMPRESSO R
ATTACHMEN T
07LA E - PX4010 0
or07HAE-PL5010 0
CAUTION: I f eithe r en d o f th e specia l too l i s se t
ove r a n are a o f th e sprin g retaine r whic h is unsup -
porte d b y th e retur n spring , th e retaine r ma y b e
damaged . B e sur e th e specia l too l i s adjuste d t o
hav e ful l contac t wit h th e sprin g retainer .
SPECIAL TOO L
Set here .
Do no t se t here .
SPECIA L TOO L
SPRIN G RETAINE R
6. Compres s th e retur n sprin g wit h th e specia l tool .
ProCarManuals.com

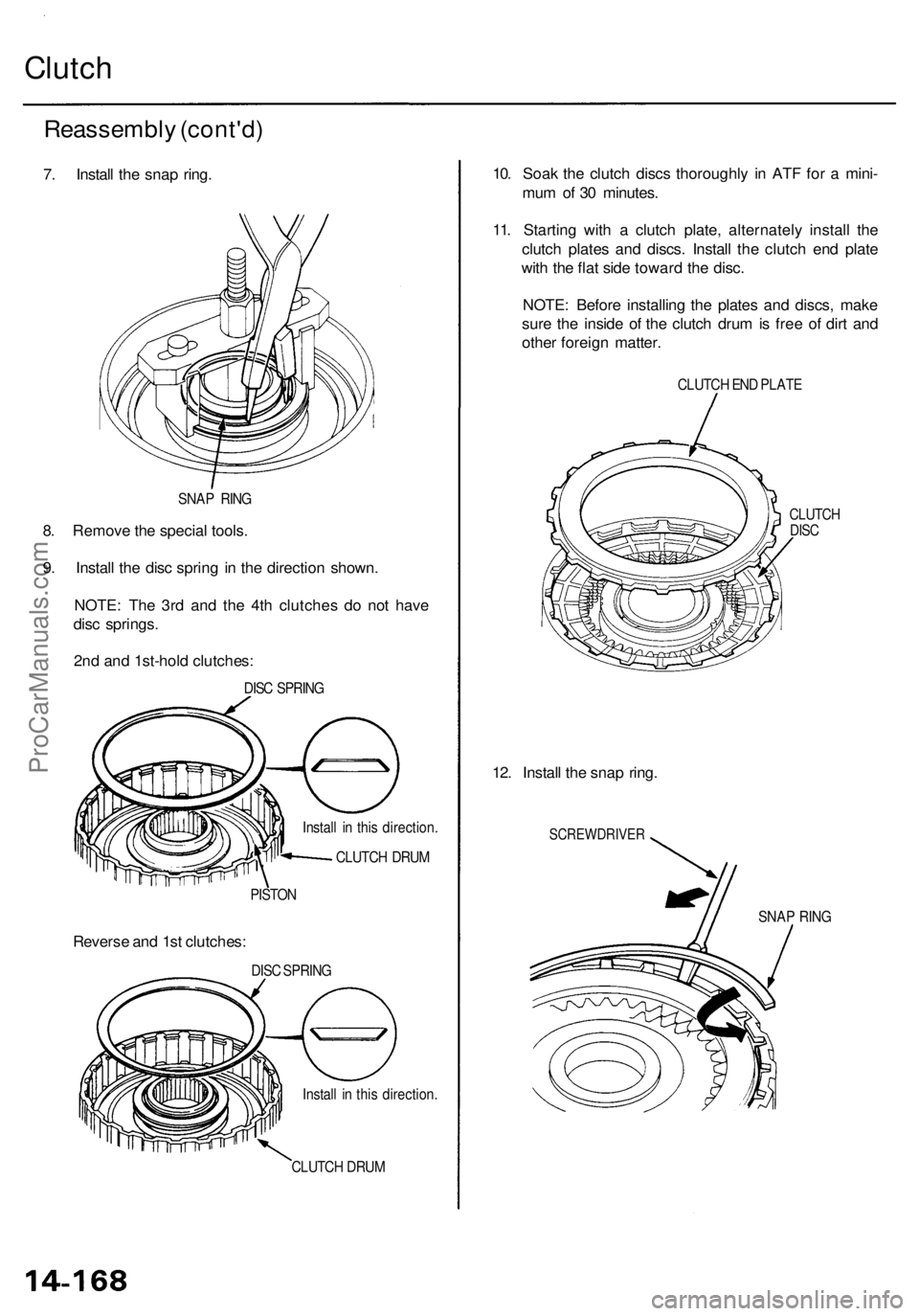

Page 876 of 1954
Clutch
Reassembly (cont'd)
7. Install the snap ring.
8. Remove the special tools.
9. Install the disc spring in the direction shown.
NOTE: The 3rd and the 4th clutches do not have
disc springs.
2nd and 1st-hold clutches:
Install in this direction.
CLUTCH DRUM
PISTON
Reverse and 1st clutches:
DISC SPRING
Install in this direction.
CLUTCH DRUM
10. Soak the clutch discs thoroughly in ATF for a mini-
mum of 30 minutes.
11. Starting with a clutch plate, alternately install the
clutch plates and discs. Install the clutch end plate
with the flat side toward the disc.
NOTE: Before installing the plates and discs, make
sure the inside of the clutch drum is free of dirt and
other foreign matter.
CLUTCH END PLATE
CLUTCH
DISC
12. Install the snap ring.
SCREWDRIVER
SNAP RING
DISC SPRING
SNAP RINGProCarManuals.com
Page 877 of 1954
13. Measure the clearance between the clutch end plate
and top disc with a dial indicator. Zero the dial indi-
cator with the clutch end plate lowered, and lift it up
to the snap ring. The distance that the clutch end
plate moves is the clearance between the clutch end
plate and top disc.
NOTE: Measure at three locations.
Clutch End Plate-to-Top Disc Clearance:
DIAL INDICATOR
TOP DISC
14. If the clearance is not within the service limits, select
a new clutch end plate from the following table.
NOTE: If the thickest clutch end plate is installed,
but the clearance is still over the standard, replace
the clutch discs and clutch plates.
PLATE NUMBER
1ST-HOLD CLUTCH END PLATES
REVERSE CLUTCH END PLATES
CLUTCH END PLATE
1ST, 2ND, 3RD and 4TH CLUTCH END PLATES
Thickness
SNAP RING
CLUTCH END
PLATE
ClearanceProCarManuals.com

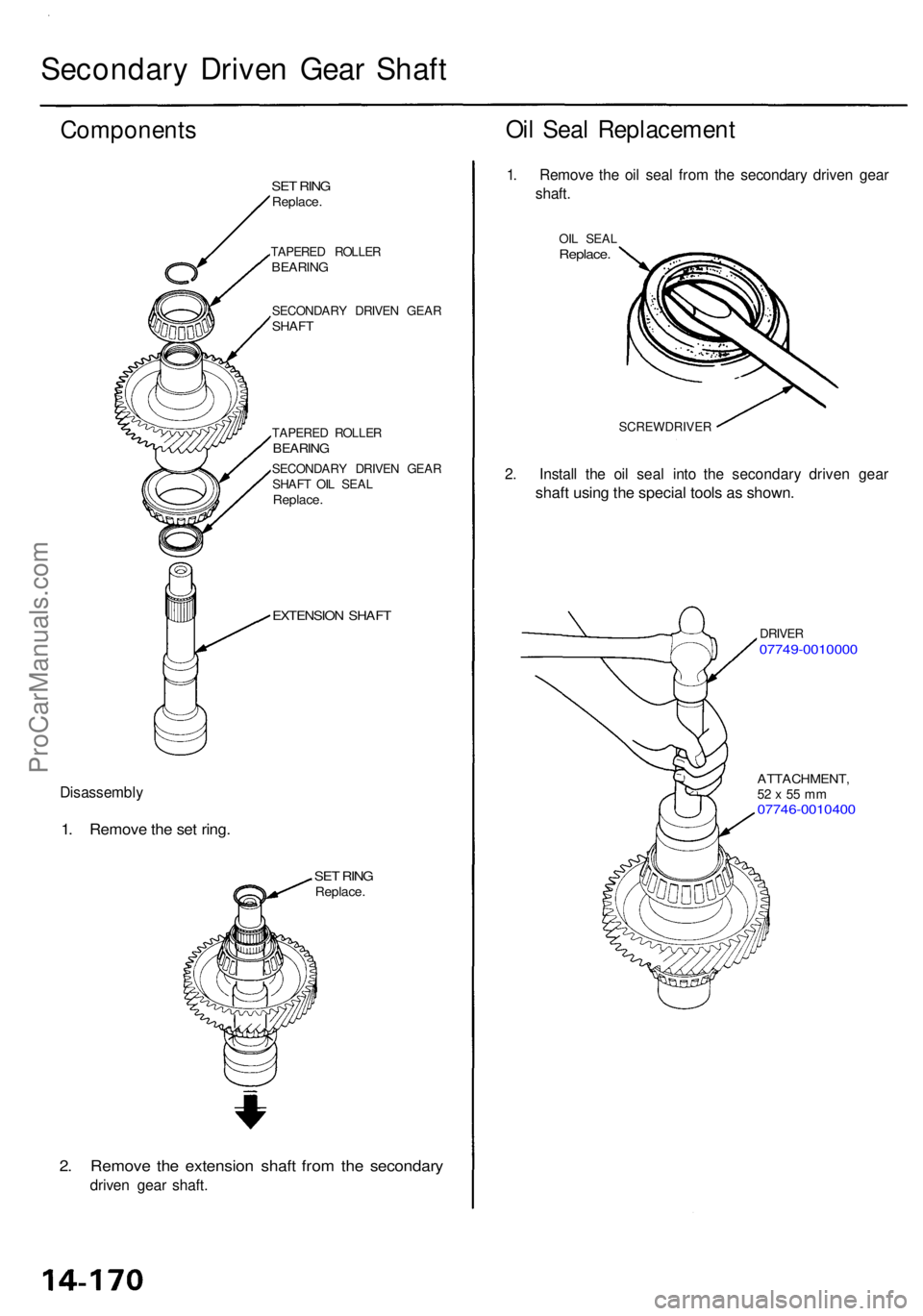

Page 878 of 1954
Secondary Drive n Gea r Shaf t
Component s
Disassembly
1. Remov e th e se t ring .
SET RIN GReplace .
TAPERE D ROLLE RBEARING
SECONDAR Y DRIVE N GEA RSHAFT
TAPERE D ROLLE RBEARING
SECONDAR Y DRIVE N GEA R
SHAF T OI L SEA L
Replace .
EXTENSIO N SHAF T
SET RIN GReplace .
2. Remov e th e extensio n shaf t fro m th e secondar y
driven gea r shaft .
Oil Sea l Replacemen t
1. Remov e th e oi l sea l fro m th e secondar y drive n gea r
shaft .
OIL SEA LReplace .
SCREWDRIVE R
2. Instal l th e oi l sea l int o th e secondar y drive n gea r
shaft usin g th e specia l tool s a s shown .
DRIVER07749-001000 0
ATTACHMENT ,52 x 55 m m07746-001040 0
ProCarManuals.com

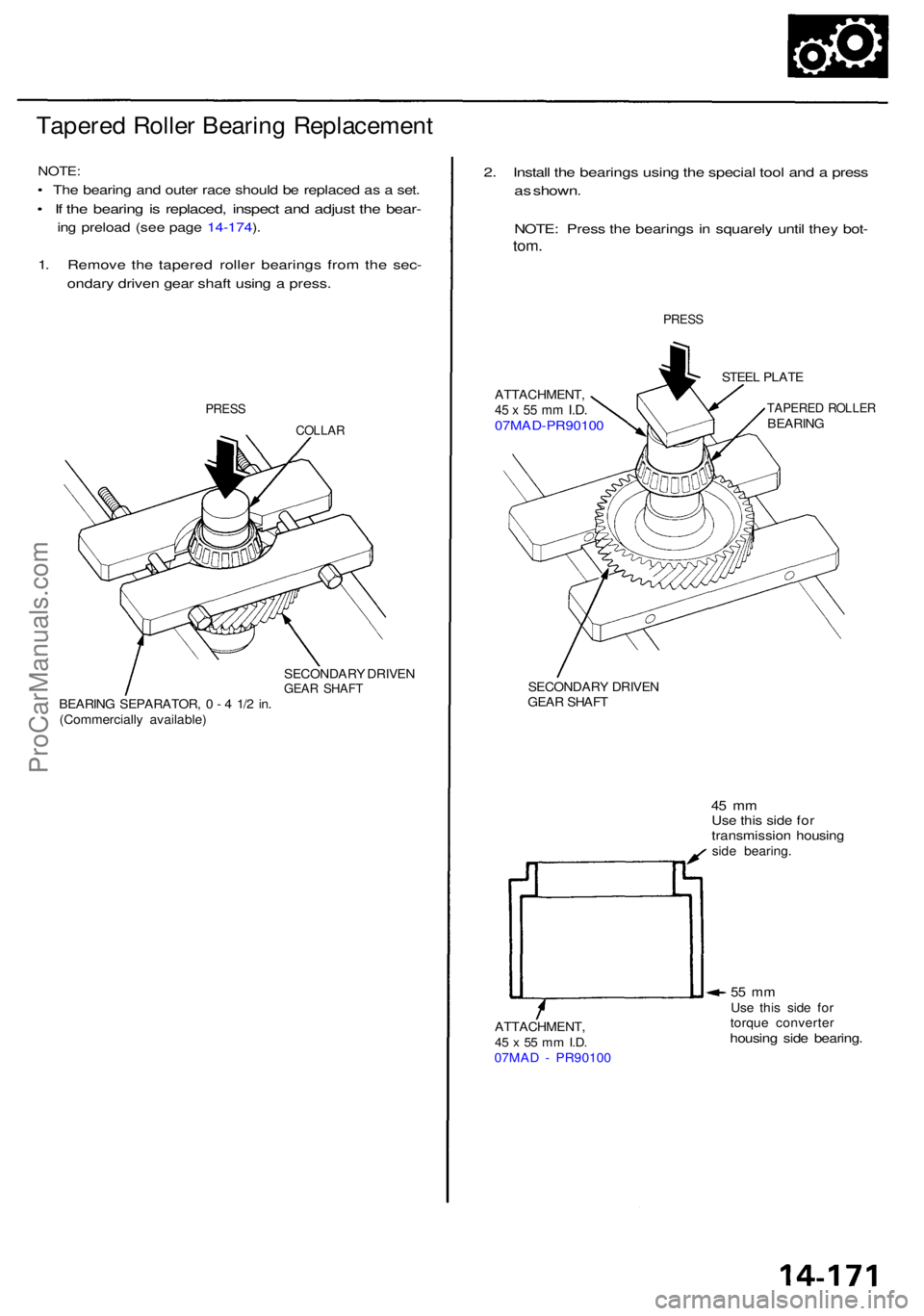

Page 879 of 1954
Tapered Rolle r Bearin g Replacemen t
NOTE:
• Th e bearin g an d oute r rac e shoul d b e replace d a s a set .
• I f th e bearin g is replaced , inspec t an d adjus t th e bear -
ing preloa d (se e pag e 14-174 ).
1 . Remov e th e tapere d rolle r bearing s fro m th e sec -
ondar y drive n gea r shaf t usin g a press .
PRESS
COLLA R
SECONDAR Y DRIVE NGEAR SHAF TBEARIN G SEPARATOR , 0 - 4 1/ 2 in .
(Commerciall y available )
2. Instal l th e bearing s usin g th e specia l too l an d a pres s
as shown .
NOTE: Pres s th e bearing s i n squarel y unti l the y bot -
tom .
PRES S
STEEL PLAT E
ATTACHMENT ,
45 x 55 m m I.D .07MAD-PR9010 0
TAPERED ROLLE RBEARIN G
SECONDAR Y DRIVE N
GEA R SHAF T
ATTACHMENT ,
45 x 55 m m I.D .07MAD - PR90100
55 m mUse thi s sid e fo r
torqu e converte r
housing sid e bearing .
45 m mUse thi s sid e fo rtransmissio n housin gside bearing .
ProCarManuals.com

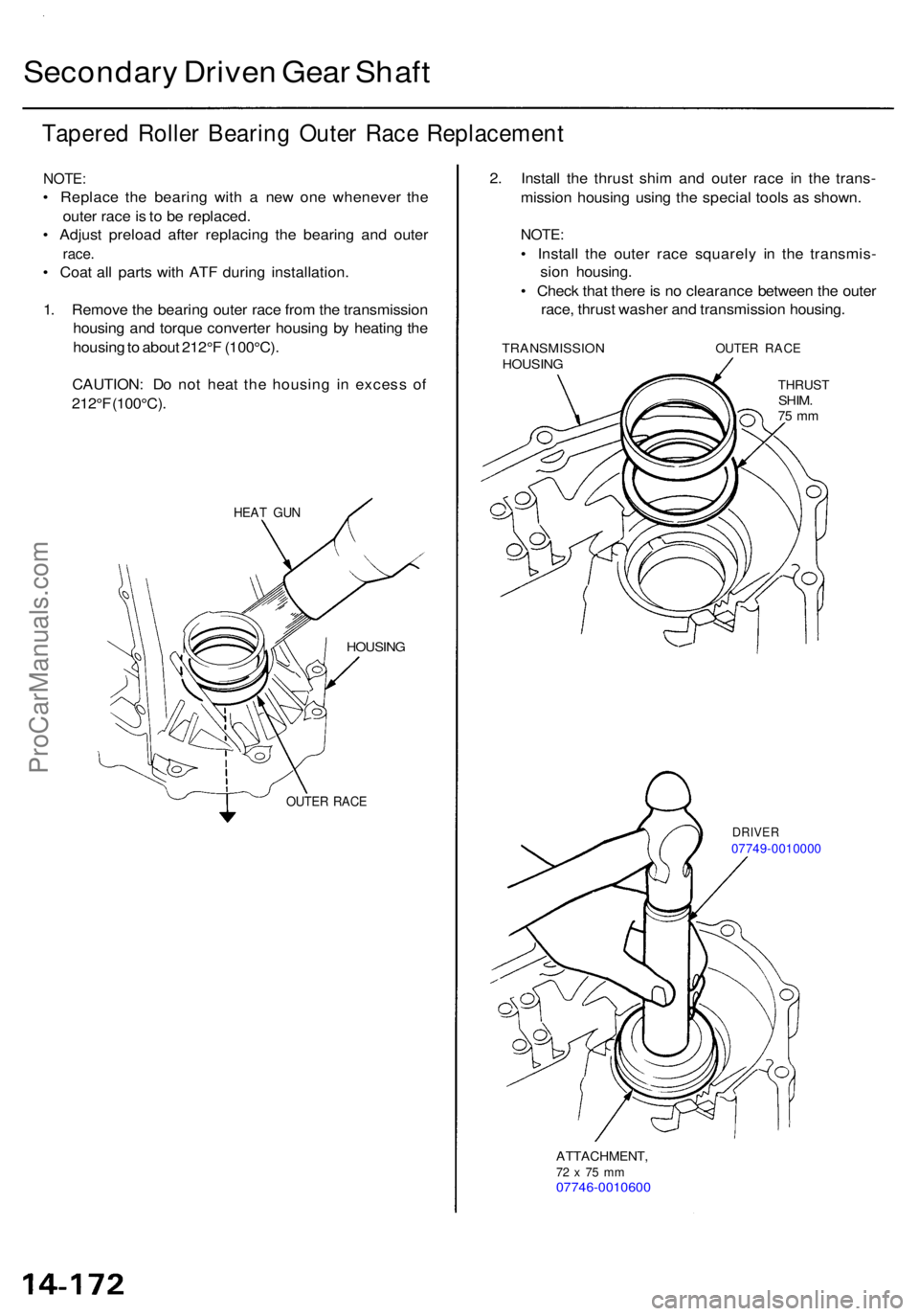

Page 880 of 1954

Secondary Drive n Gea r Shaf t
Tapere d Rolle r Bearin g Oute r Rac e Replacemen t
NOTE:
• Replac e th e bearin g wit h a ne w on e wheneve r th e
oute r rac e is to b e replaced .
• Adjus t preloa d afte r replacin g th e bearin g an d oute r
race.
• Coa t al l part s wit h AT F durin g installation .
1 . Remov e th e bearin g oute r rac e fro m th e transmissio n
housin g an d torqu e converte r housin g b y heatin g th e
housin g to abou t 212° F (100°C) .
CAUTION : D o no t hea t th e housin g i n exces s o f
212° F (100°C) .
HEAT GU N
OUTE R RAC E
2. Instal l th e thrus t shi m an d oute r rac e i n th e trans -
missio n housin g usin g th e specia l tool s a s shown .
NOTE:
• Instal l th e oute r rac e squarel y i n th e transmis -
sio n housing .
• Chec k tha t ther e is n o clearanc e betwee n th e oute r
race , thrus t washe r an d transmissio n housing .
TRANSMISSIO NHOUSINGOUTER RAC E
THRUS TSHIM.75 m m
DRIVE R07749-001000 0
ATTACHMENT ,72 x 75 m m07746-001060 0
HOUSIN
G
