1996 ACURA RL KA9 Service Repair Manual

3. Instal l th e differentia l assembly .
Selec t th e appropriat e 2 6 m m shi m wheneve r th e
oi l pa n o r th e cylinde r bloc k i s replaced .
Refe r t o sectio n 1 5 fo r selectio n o f th e correc t
26 m m shim .
4. Appl y greas e t o th e splin e o f th e extensio n shaft ,
the n instal l th e ne w se t rin g wit h th e ope n sid e fac -
ing up .
EXTENSIO N SHAF T
INSTALLE R
07MA F-PY4010 1SET RIN GReplace .
6. Fil l th e cavit y wit h Hig h Tem p Ure a Greas e (P/ N
0879 8 - 9002) .
7 . Reinstal l th e 3 6 m m sealin g bol t an d th e secondar y
cover .
Appl y liqui d gaske t (P/ N 0871 8 - 0001 ) t o th e sealin g
bol t threads .
11.5 ± 0. 3 m m(0.4 5 ± 0.01 in)12 -1 4 g (0.4-0. 5 oz )
36 m m SEALIN G BOL T
7 8 N- m (8. 0 kgf-m , 5 8 Ibf-ft )
8. Chec k th e followin g afte r reassembly .
• Refil l th e differentia l wit h differentia l oil .
• Refil l th e engine with engin e oil .
• Mak e sur e th e se t ring s o n th e driveshaft s ar e
completel y inserte d int o th e groove s o f th e dif -
ferentia l o r intermediat e shaft .
• Adjus t th e A/ C compresso r bel t tension .
• Adjus t th e P/ S pum p bel t tension .
36 m m SEALIN G BOL T
7 8 N- m (8. 0 kgf-m , 5 8 Ibf-ft )
EXTENSIO N SHAF TINSTALLE R07MAF-PY4010 1
5. Instal l th e extensio n shaf t wit h th e specia l tool .
NOTE : Mak e sur e th e extensio n shaf t lock s in place .
SET RIN G
Replace .
ProCarManuals.com

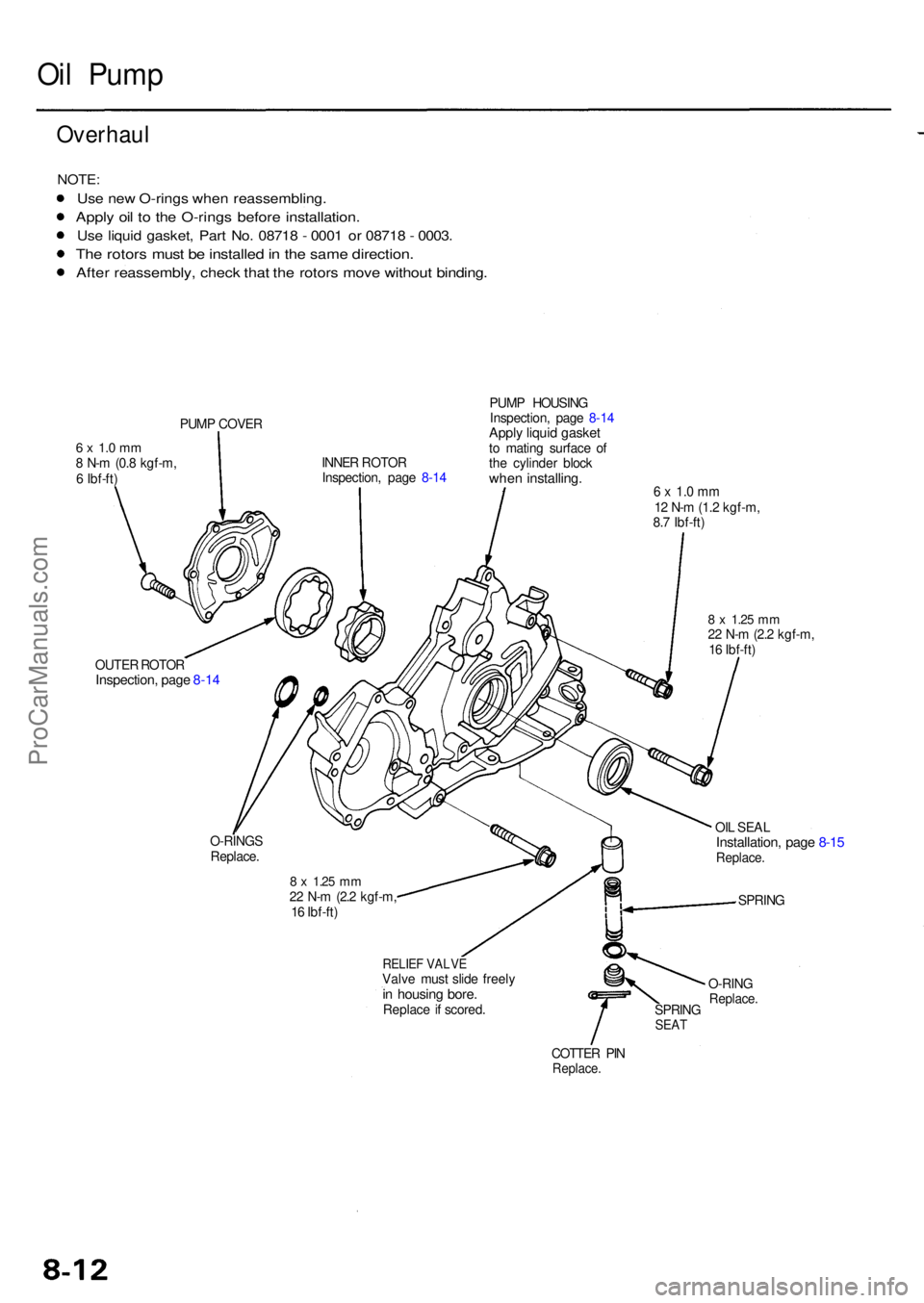

Oil Pum p
Overhau l
NOTE:
Use ne w O-ring s whe n reassembling .
Apply oi l t o th e O-ring s befor e installation .
Use liqui d gasket , Par t No . 0871 8 - 000 1 o r 0871 8 - 0003 .
The rotor s mus t b e installe d in th e sam e direction .
After reassembly , chec k tha t th e rotor s mov e withou t binding .
6 x 1. 0 m m8 N- m (0. 8 kgf-m ,
6 Ibf-ft ) PUM
P COVE R
INNER ROTO R
Inspection , pag e 8-1 4 PUM
P HOUSIN G
Inspection , pag e 8-1 4
Appl y liqui d gaske tto matin g surfac e o f
th e cylinde r bloc k
when installing .6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
OI L SEA L
Installation , pag e 8-1 5Replace .
SPRING
O-RIN G
Replace .SPRINGSEAT
COTTE R PI NReplace .
RELIEF VALV EValve mus t slid e freel yin housin g bore .Replac e if scored .
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
O-RING
S
Replace .
OUTE
R ROTO R
Inspection , pag e 8-1 4
