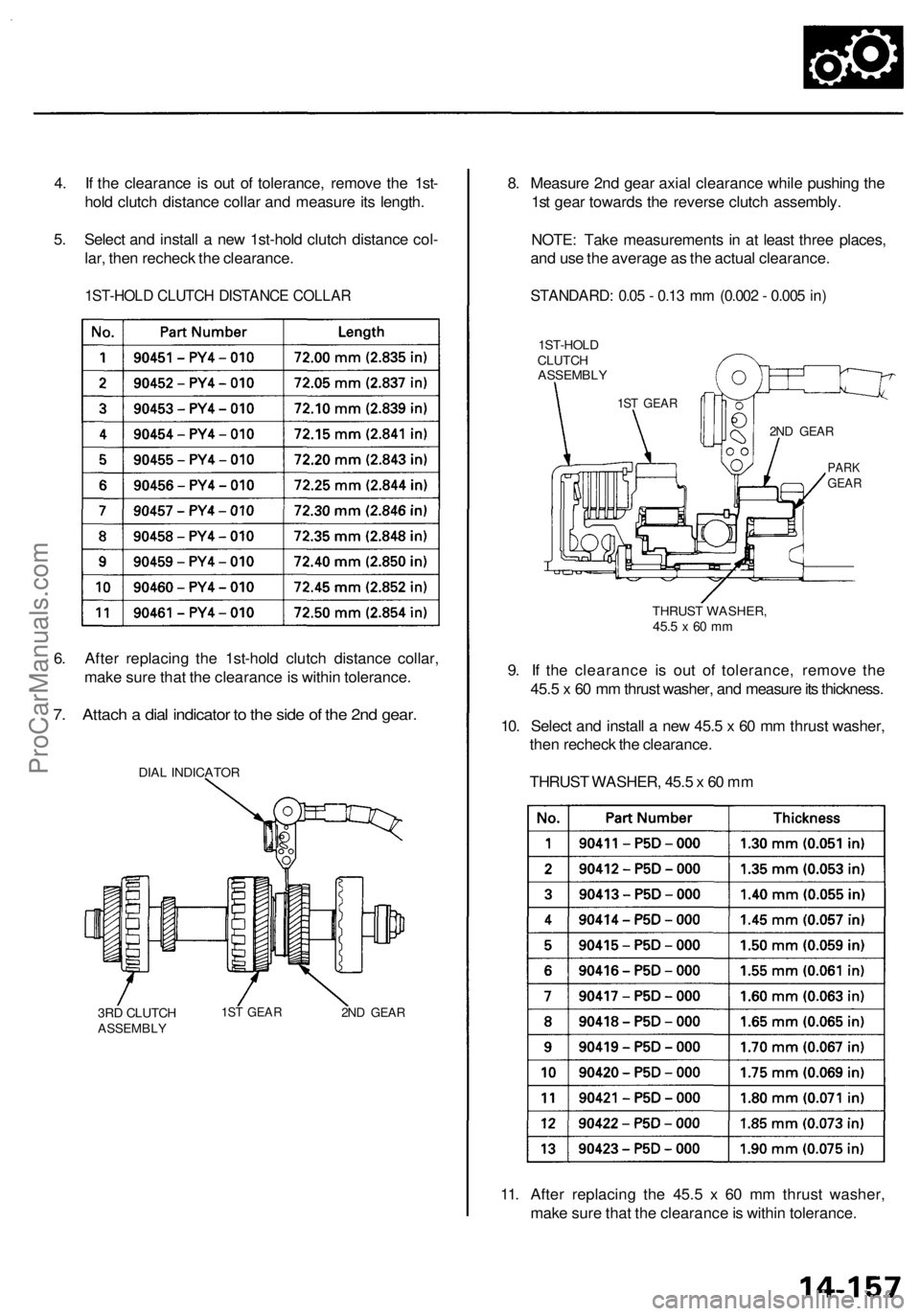

Page 865 of 1954

4. I f th e clearanc e i s ou t o f tolerance , remov e th e 1st -
hol d clutc h distanc e colla r an d measur e it s length .
5 . Selec t an d instal l a ne w 1st-hol d clutc h distanc e col -
lar , the n rechec k th e clearance .
1ST-HOLD CLUTC H DISTANC E COLLA R
6. Afte r replacin g th e 1st-hol d clutc h distanc e collar ,
mak e sur e tha t th e clearanc e is withi n tolerance .
7. Attac h a dia l indicato r t o th e sid e o f th e 2n d gear .
DIAL INDICATO R
3R D CLUTC H
ASSEMBL Y1ST GEA R2ND GEA R
8. Measur e 2n d gea r axia l clearanc e whil e pushin g th e
1s t gea r toward s th e revers e clutc h assembly .
NOTE : Tak e measurement s i n a t leas t thre e places ,
an d us e th e averag e a s th e actua l clearance .
STANDARD : 0.0 5 - 0.1 3 m m (0.00 2 - 0.00 5 in )
11. Afte r replacin g th e 45. 5 x 6 0 m m thrus t washer ,
mak e sur e tha t th e clearanc e is withi n tolerance .
9
. I f th e clearanc e i s ou t o f tolerance , remov e th e
45. 5 x 6 0 m m thrus t washer , an d measur e it s thickness .
10 . Selec t an d instal l a ne w 45. 5 x 6 0 m m thrus t washer ,
the n rechec k th e clearance .
THRUS T WASHER , 45. 5 x 60 m m
1ST-HOL D
CLUTC H
ASSEMBL Y
1ST GEA R
2ND GEA R
PARKGEA R
THRUS T WASHER ,45.5 x 60 m m
ProCarManuals.com

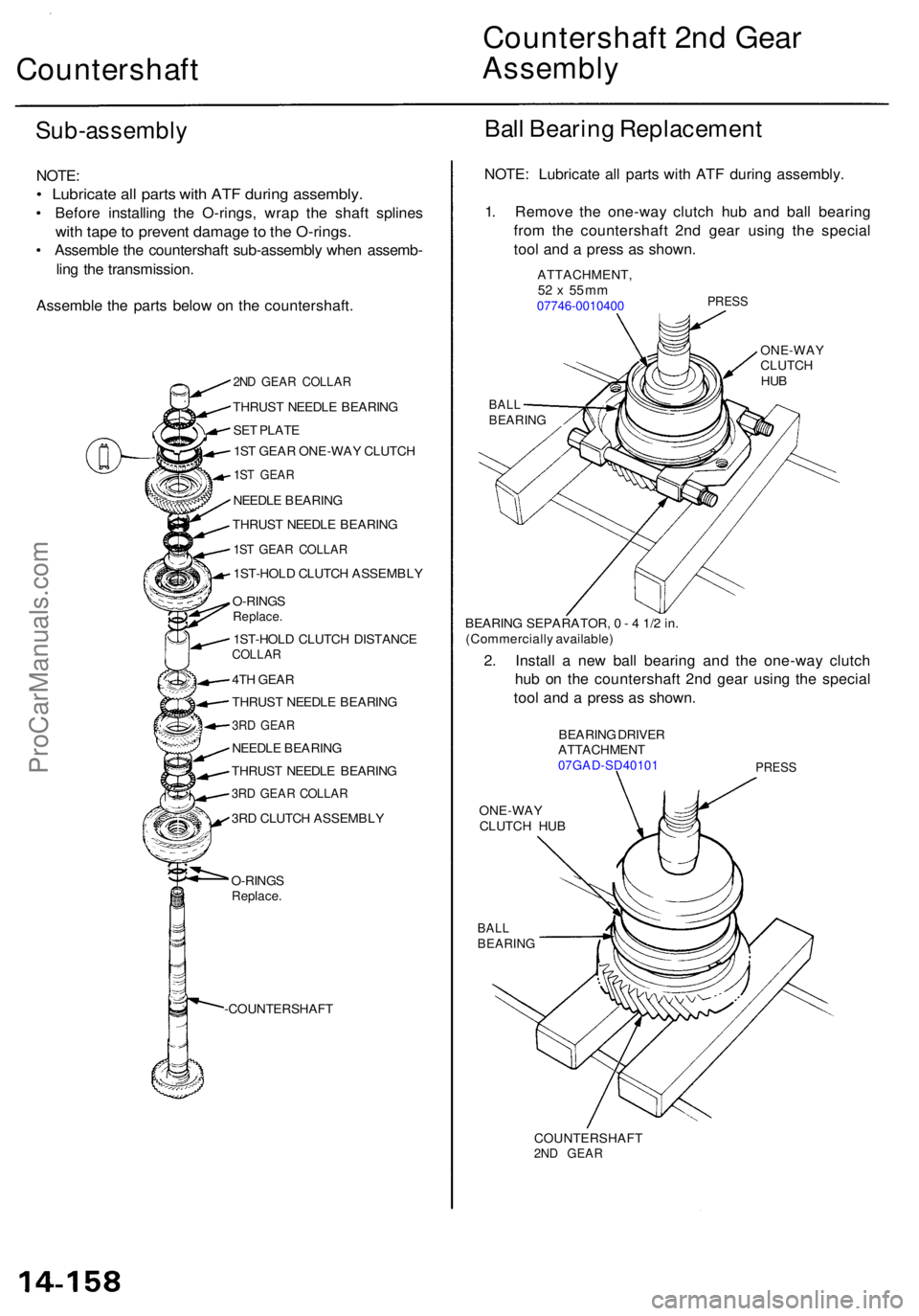

Page 866 of 1954

Countershaft Countershaf
t 2n d Gea rAssembl y
Sub-assembl y
NOTE:
• Lubricat e al l part s wit h AT F durin g assembly .
• Befor e installin g th e O-rings , wra p th e shaf t spline s
with tap e to preven t damag e to th e O-rings .
• Assembl e th e countershaf t sub-assembl y whe n assemb -
lin g th e transmission .
Assembl e th e part s belo w o n th e countershaft .
2ND GEA R COLLA R
THRUST NEEDL E BEARIN G
SE T PLAT E
1S T GEA R ONE-WA Y CLUTC H
1ST GEA R
NEEDL E BEARIN G
THRUS T NEEDL E BEARIN G
1ST GEA R COLLA R
1ST-HOL D CLUTC H ASSEMBL Y
O-RING S
Replace .
1ST-HOL D CLUTC H DISTANC ECOLLAR
4TH GEA R
THRUS T NEEDL E BEARIN G
3RD GEA R
NEEDL E BEARIN G
THRUS T NEEDL E BEARIN G
3RD GEA R COLLA R
3RD CLUTC H ASSEMBL Y
O-RING S
Replace .
-COUNTERSHAF T
Ball Bearin g Replacemen t
NOTE: Lubricat e al l part s wit h AT F during assembly .
1 . Remov e th e one-wa y clutc h hu b an d bal l bearin g
fro m th e countershaf t 2n d gea r usin g th e specia l
too l an d a pres s a s shown .
ATTACHMENT ,52 x 5 5 m m07746-001040 0 PRESS
ONE-WA YCLUTCHHUB
2. Instal l a ne w bal l bearin g an d th e one-wa y clutc h
hu b o n th e countershaf t 2n d gea r usin g th e specia l
too l an d a pres s a s shown .
BEARIN G DRIVE R
ATTACHMEN T
07GAD-SD4010 1PRESS
ONE-WA Y
CLUTC H HU B
BAL LBEARIN G
COUNTERSHAF T2ND GEA R
BALLBEARIN G
BEARING SEPARATOR , 0 - 4 1/ 2 in .
(Commerciall y available )
ProCarManuals.com
Page 867 of 1954
2nd Gear One-way Clutch
Disassembly/lnspection/Reassembly
1. Separate the countershaft 2nd gear from the park
gear by turning the park gear in the direction
shown.
COUNTERSHAFT
2ND GEAR
PARK GEAR
2. Remove the one-way clutch by prying it up with the
end of a screwdriver.
COUNTERSHAFT 2ND GEAR
SCREWDRIVER
COUNTERSHAFT
2ND GEAR
3. Inspect the parts as follows:
PARK GEAR
Inspect for wear and scoring.
ONE-WAY CLUTCH
Inspect for damage and
faulty movement.
NEEDLE BEARINGS
Inspect for galling and rough
movement.
THRUST NEEDLE
BEARING
Inspect for galling and
rough movement.
THRUST WASHER
Inspect for wear and
scoring.
COUNTERSHAFT
2ND GEAR
Inspect for wear and
scoring.
4. After the parts are assembled, hold the countershaft
2nd gear and turn the park gear in the direction
shown to be sure it turns freely. Also make sure the
park gear does not turn in the opposite direction.
COUNTERSHAFT
2ND GEAR
PARK GEARProCarManuals.com

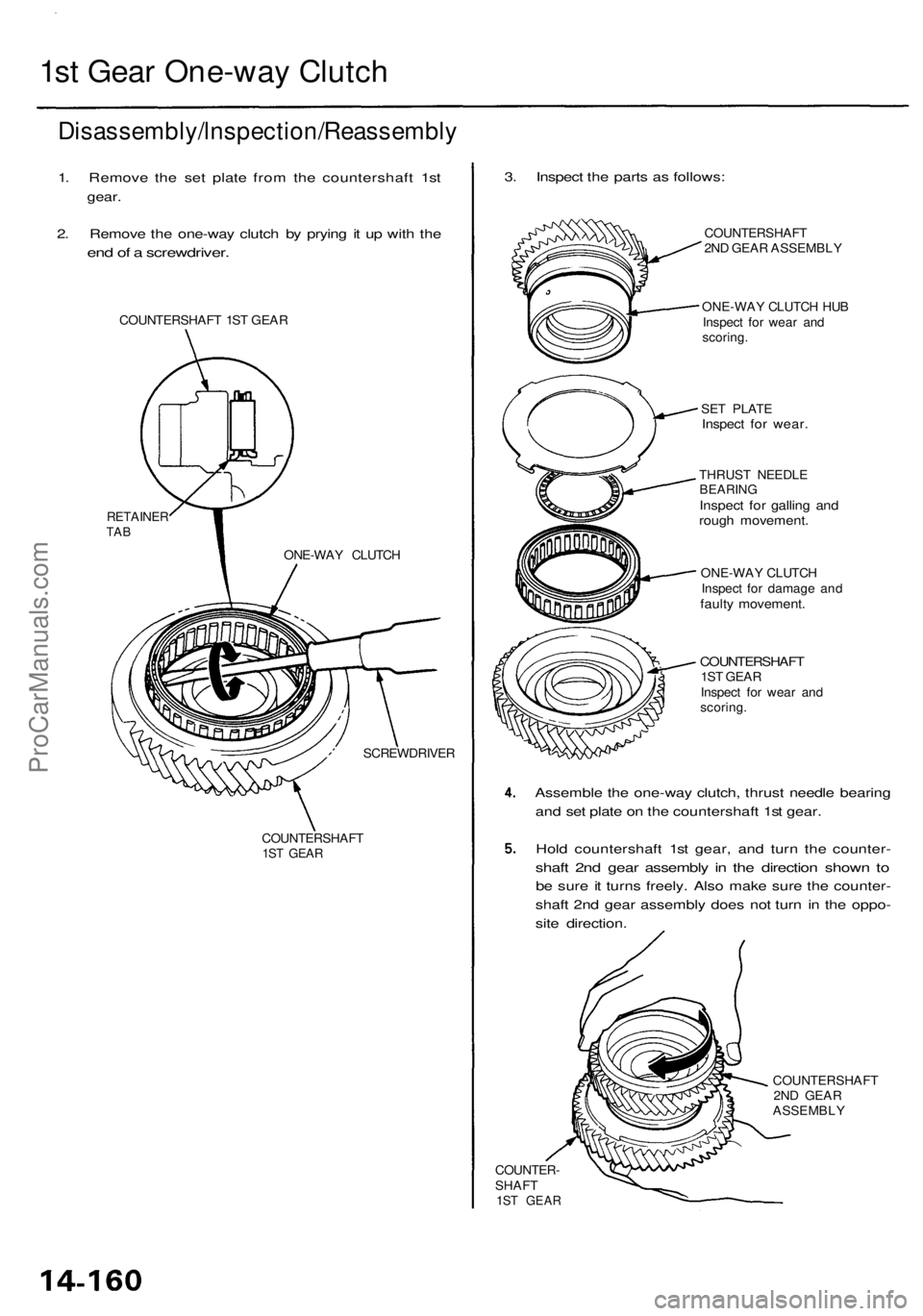

Page 868 of 1954
1st Gear One-way Clutch
Disassembly/lnspection/Reassembly
1. Remove the set plate from the countershaft 1st
gear.
2. Remove the one-way clutch by prying it up with the
end of a screwdriver.
COUNTERSHAFT 1ST GEAR
RETAINER
TAB
SCREWDRIVER
COUNTERSHAFT
1ST GEAR
3. Inspect the parts as follows:
COUNTERSHAFT
2ND GEAR ASSEMBLY
ONE-WAY CLUTCH HUB
Inspect for wear and
scoring.
SET PLATE
Inspect for wear.
THRUST NEEDLE
BEARING
Inspect for galling and
rough movement.
ONE-WAY CLUTCH
Inspect for damage and
faulty movement.
COUNTERSHAFT
1ST GEAR
Inspect for wear and
scoring.
Assemble the one-way clutch, thrust needle bearing
and set plate on the countershaft 1st gear.
Hold countershaft 1st gear, and turn the counter-
shaft 2nd gear assembly in the direction shown to
be sure it turns freely. Also make sure the counter-
shaft 2nd gear assembly does not turn in the oppo-
site direction.
COUNTER-
SHAFT
1ST GEAR
COUNTERSHAFT
2ND GEAR
ASSEMBLY
ONE-WAY CLUTCHProCarManuals.com

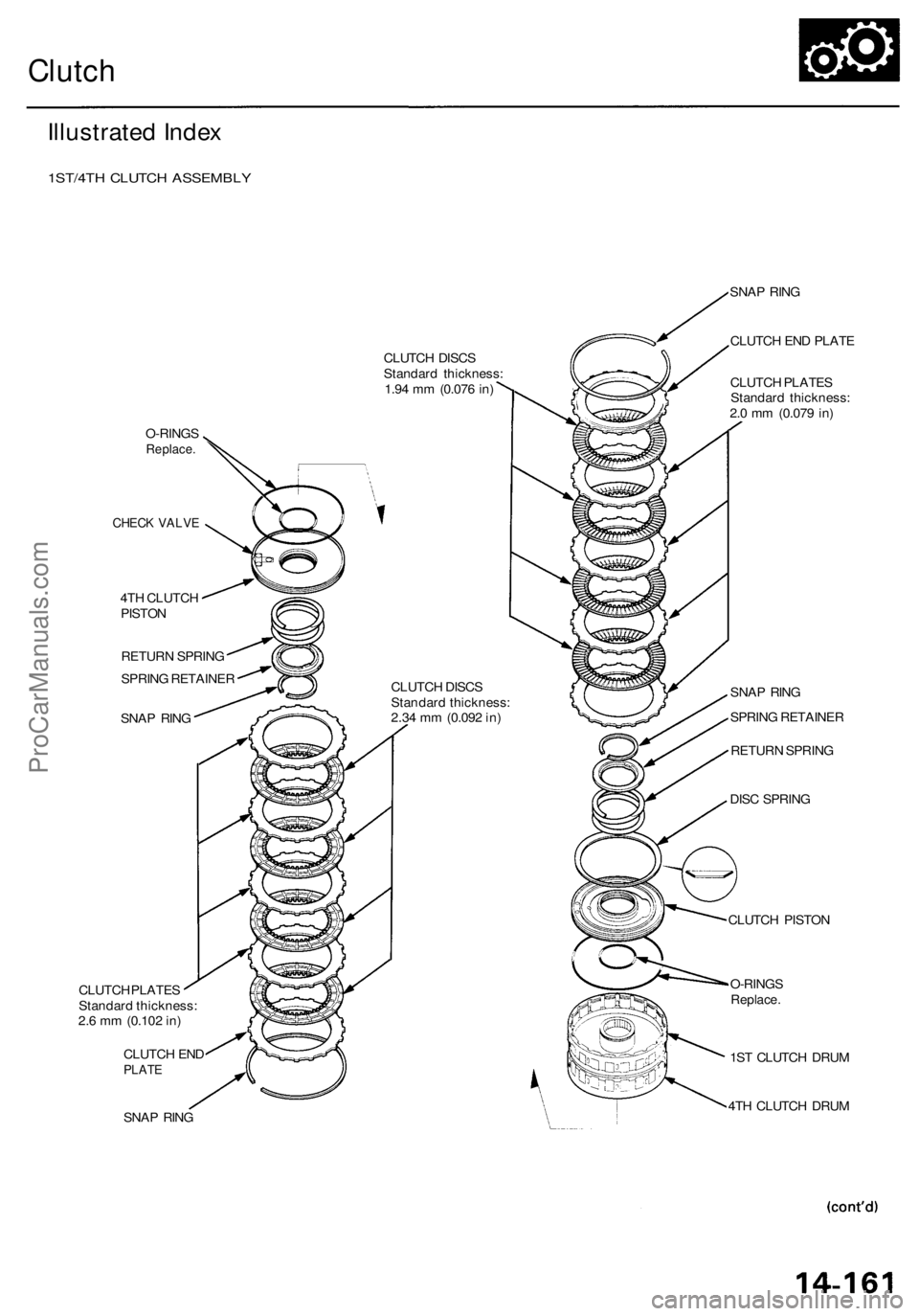

Page 869 of 1954
Clutch
Illustrated Index
1ST/4TH CLUTCH ASSEMBLY
O-RINGS
Replace.
CHECK VALVE
4TH CLUTCH
PISTON
RETURN SPRING
SPRING RETAINER
SNAP RING
CLUTCH PLATES
Standard thickness:
2.6 mm (0.102 in)
CLUTCH END
PLATE
SNAP RING
CLUTCH DISCS
Standard thickness:
1.94 mm (0.076 in)
CLUTCH DISCS
Standard thickness:
2.34 mm (0.092 in)
SNAP RING
CLUTCH END PLATE
CLUTCH PLATES
Standard thickness:
2.0 mm (0.079 in)
SNAP RING
SPRING RETAINER
RETURN SPRING
DISC SPRING
CLUTCH PISTON
O-RINGS
Replace.
1ST CLUTCH DRUM
4TH CLUTCH DRUMProCarManuals.com

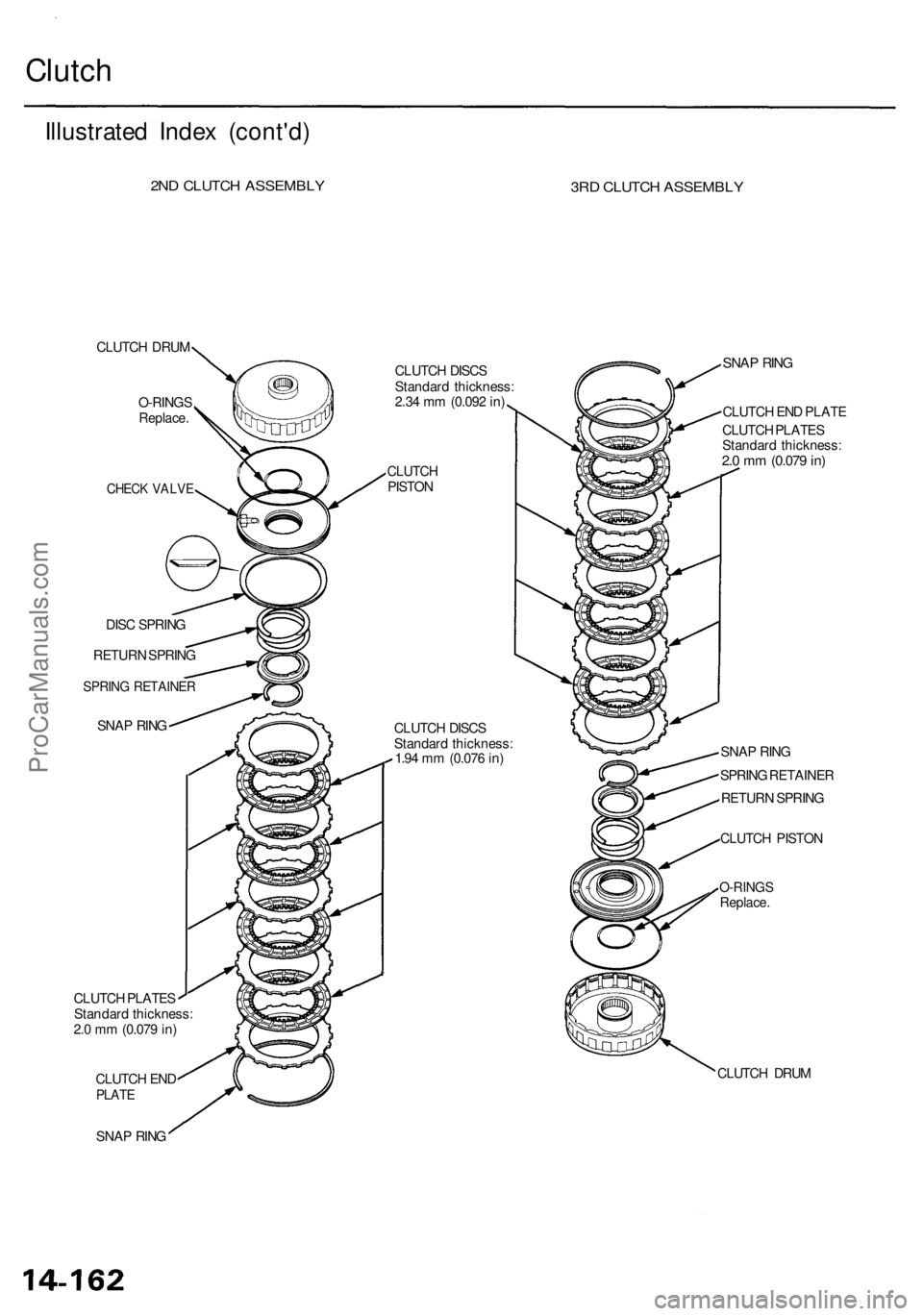

Page 870 of 1954
Clutch
Illustrate d Inde x (cont'd )
2ND CLUTC H ASSEMBL Y3RD CLUTC H ASSEMBL Y
CLUTCH DRU M
O-RING S
Replace .
CHECK VALV E
CLUTC H PLATE S
Standar d thickness :
2. 0 m m (0.07 9 in )
CLUTC H EN D
PLAT E
SNAP RIN G CLUTC
H DISC S
Standar d thickness :
2.3 4 m m (0.09 2 in )
CLUTC HPISTON
CLUTC H DISC S
Standar d thickness :
1.9 4 m m (0.07 6 in )
SNA P RIN G
CLUTC H EN D PLAT E
CLUTC H PLATE S
Standar d thickness :
2.0 m m (0.07 9 in )
SNA P RIN G
SPRIN G RETAINE R
RETUR N SPRIN G
CLUTC H PISTO N
O-RING SReplace .
CLUTCH DRU M
DIS
C SPRIN G
RETUR N SPRIN G
SPRING RETAINE R
SNAP RIN G
ProCarManuals.com

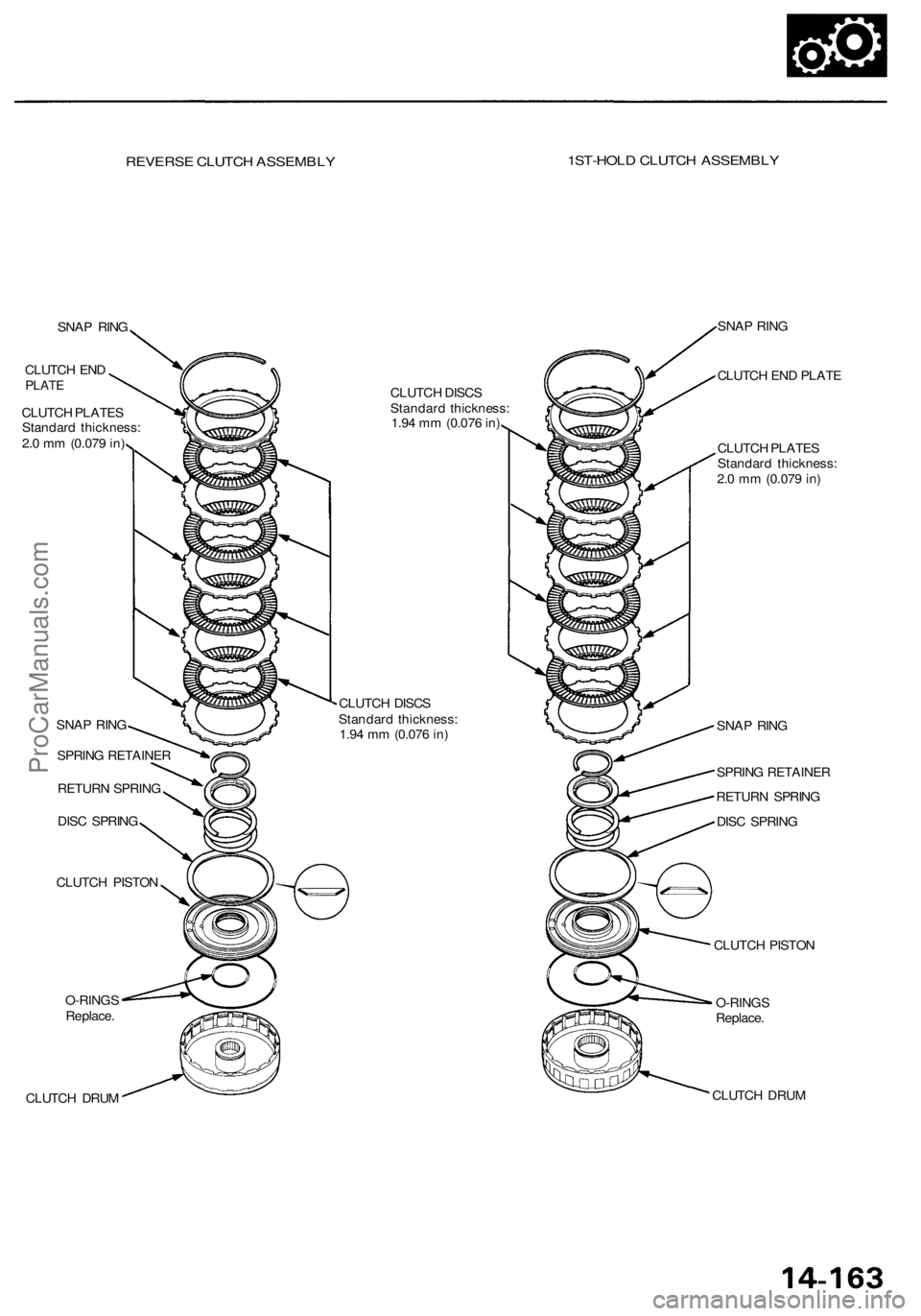

Page 871 of 1954
REVERSE CLUTCH ASSEMBLY
1ST-HOLD CLUTCH ASSEMBLY
SNAP RING
CLUTCH END
PLATE
CLUTCH PLATES
Standard thickness:
2.0 mm (0.079 in)
O-RINGS
Replace.
CLUTCH DRUM
CLUTCH DISCS
Standard thickness:
1.94 mm (0.076 in)
CLUTCH DISCS
Standard thickness:
1.94 mm (0.076 in)
SNAP RING
CLUTCH END PLATE
CLUTCH PLATES
Standard thickness:
2.0 mm (0.079 in)
SNAP RING
SPRING RETAINER
RETURN SPRING
DISC SPRING
CLUTCH PISTON
O-RINGS
Replace.
CLUTCH DRUM
SNAP RING
SPRING RETAINER
RETURN SPRING
DISC SPRING
CLUTCH PISTONProCarManuals.com

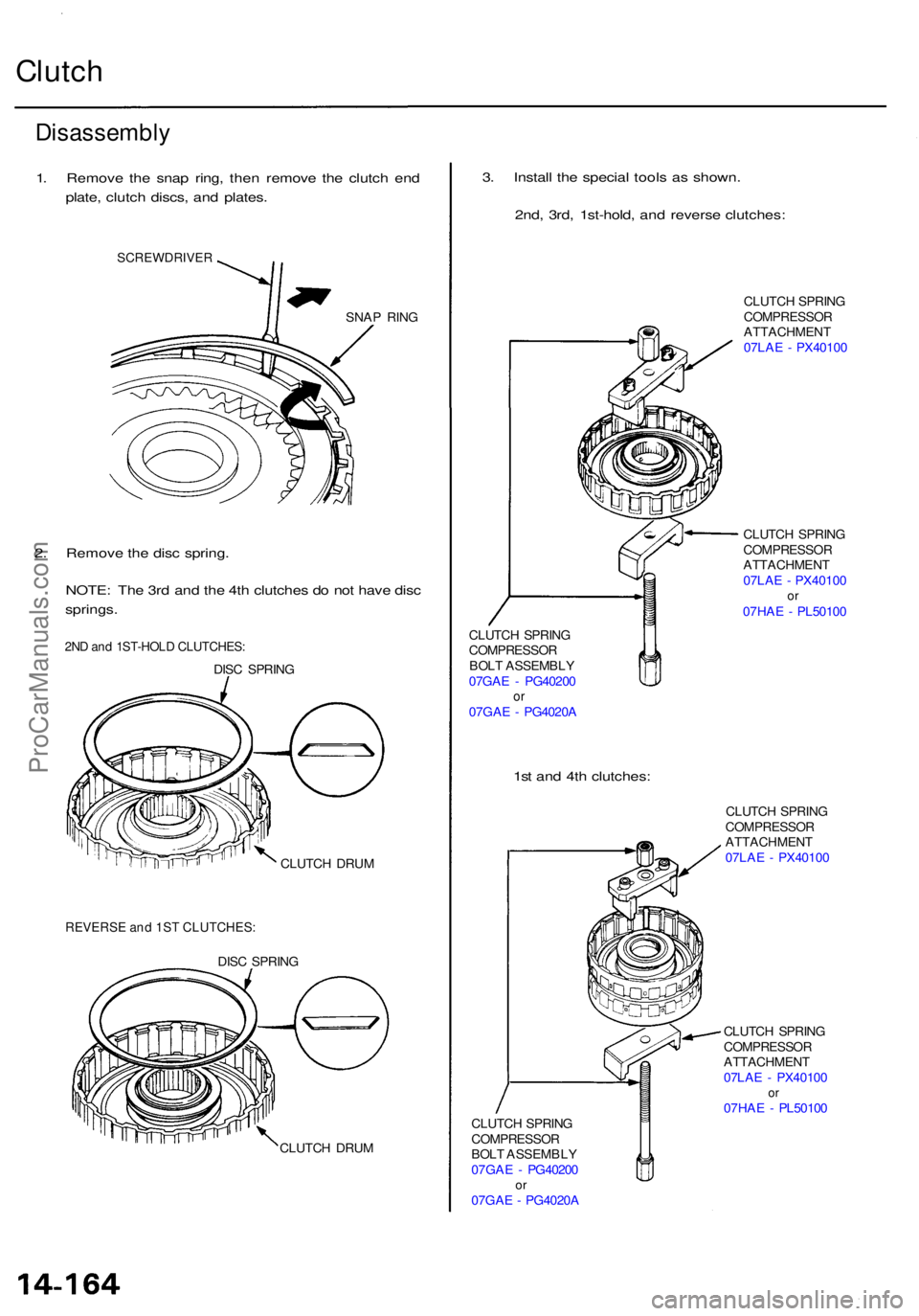

Page 872 of 1954
Clutch
Disassembl y
1. Remov e th e sna p ring , the n remov e th e clutc h en d
plate , clutc h discs , an d plates .
SCREWDRIVE R
SNAP RIN G
2. Remov e th e dis c spring .
NOTE : Th e 3r d an d th e 4t h clutche s d o no t hav e dis c
springs .
2ND an d 1ST-HOL D CLUTCHES :
CLUTCH DRU M
REVERSE and 1ST CLUTCHES:
CLUTC H DRU M
3. Instal l th e specia l tool s a s shown .
2nd , 3rd , 1st-hold , an d revers e clutches :
CLUTCH SPRIN GCOMPRESSO RBOLT ASSEMBL Y
07GA E - PG4020 0
or07GA E - PG4020 A
1st an d 4t h clutches :
CLUTCH SPRIN GCOMPRESSO RBOLT ASSEMBL Y
07GA E - PG4020 0
or07GA E - PG4020 A CLUTC
H SPRIN G
COMPRESSO RATTACHMENT
07LA E - PX4010 0
CLUTC H SPRIN G
COMPRESSO R
ATTACHMEN T
07LA E - PX4010 0
or07HA E - PL5010 0
CLUTC H SPRIN G
COMPRESSO RATTACHMENT
07LA E - PX4010 0
CLUTC H SPRIN G
COMPRESSO R
ATTACHMEN T
07LA E - PX4010 0
or07HA E - PL5010 0
DIS
C SPRIN G
DIS C SPRIN G
