Troubleshooting
Troubleshooting Procedures (cont'd)
Data
Description
Operating Value
Freeze Data
Fuel System
Loop Status
(Bank 1: Right)
(Bank 2: Left)
Loop status is indicated as "open" or "closed".
Closed: Based on the HO2S output, the PCM deter-
mines the air/fuel ratio and controls the amount of
injected fuel.
Open: Ignoring HO2S output, the PCM refers to signals
from the TP, MAP, and ECT sensors to control the
amount of injected fuel.
At idle speed: closed
YES
Short Term
Fuel Trim
(Bank 1: Right)
(Bank 2: Left)
The air/fuel ratio correction coefficient for correcting
the amount of injected fuel when the Fuel System
Status is "closed". When the signal from the HO2S is
weak, short term fuel trim gets higher, and the PCM
increases the amount of injected fuel. The air/fuel ratio
gradually gets richer, causing a higher HO2S output.
Consequently, the short term fuel trim is lowered, and
the PCM reduces the amount of injected fuel. This
cycle keeps the air/fuel ratio close to the stoichiometric
ratio when in closed loop status.
-30%
-
+43%
YES
Long Term
Fuel Trim
(Bank 1: Right)
(Bank 2: Left)
Long term fuel trim in computed from short term fuel
trim and indicates changes occuring in the fuel supply
system over a long period.
If long term fuel trim is higher than 1.00, the amount of
injected fuel must be increased. If it is lower than 1.00,
the amount of injected fuel must be reduced.
±20%
YES
Intake Air
Temperature
(IAT)
The IAT sensor converts intake air temperature into
voltage and signals the PCM. When intake air tempera-
ture is low, the internal resistance of the sensor
increases, and the voltage signal is higher.
With cold engine:
Same as ambient temper-
ature and ECT
YES
Throttle
Position
Based on the accelerator pedal position, the opening
angle of the throttle valve is indicated.
At idle: Approx. 10%
At full throttle: Approx.
90%
YES
Ignition
Timing
The ignition advance angle is set by the PCM. The PCM
matches ignition timing to the driving conditions.
At idle speed: 15 + 2°
BTDC with the SCS service
connector connected.
NO
Calculated
Load Value
(CLV)
CLV is the engine load calculated from the MAP data.
At idle speed:
15
-
35%
At 2,500 rpm with no load:
12
-
30%
YESProCarManuals.com
Page 546 of 1954

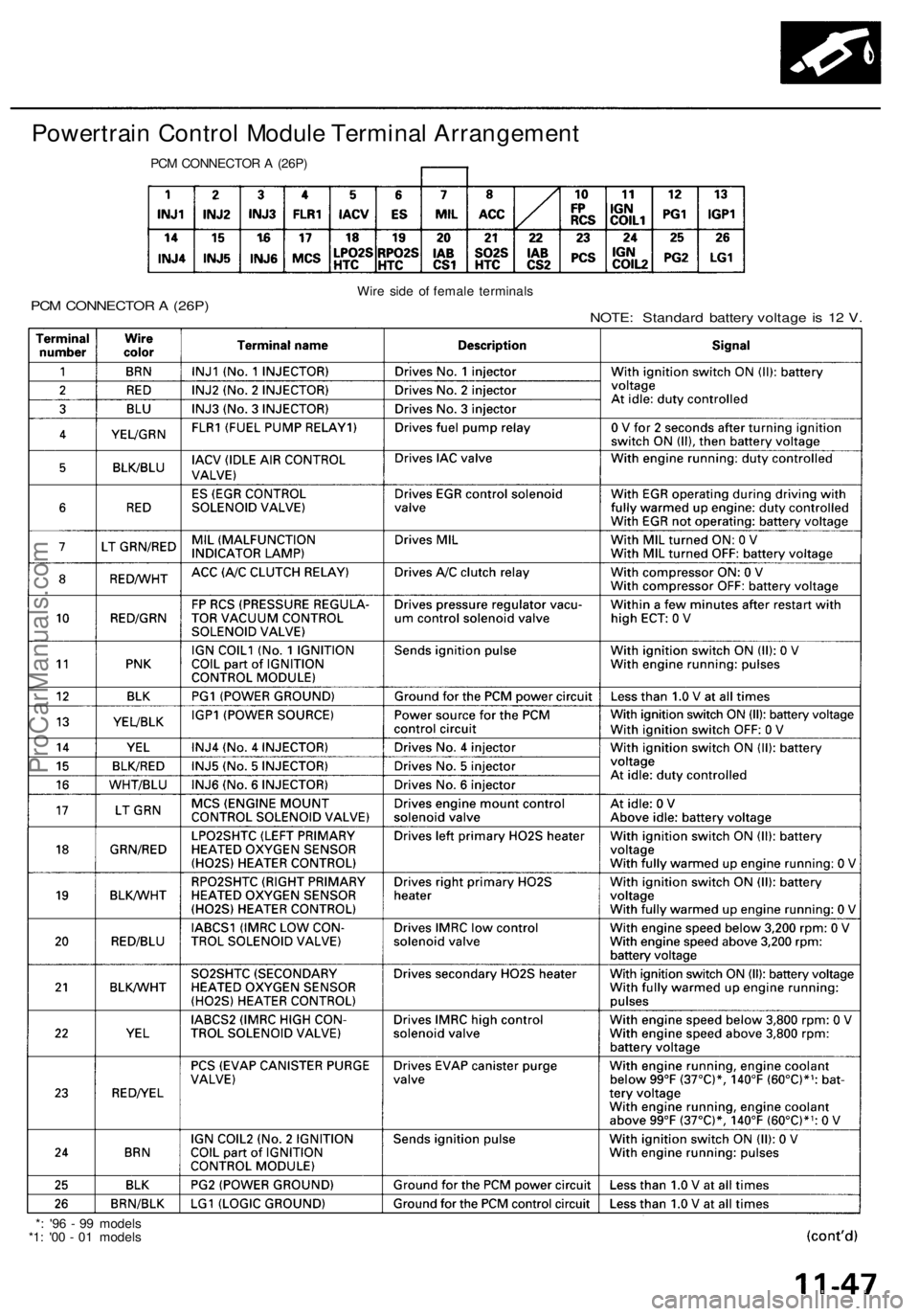

Powertrain Control Module Terminal Arrangement
PCM CONNECTOR A (26P)
PCM CONNECTOR A (26P)
Wire side of female terminals
NOTE: Standard battery voltage is 12 V.
*: '96 - 99 models
*1: '00 - 01 modelsProCarManuals.com
Page 547 of 1954
Troubleshooting
Powertrain Control Module Terminal Arrangement (cont'd)
PCM CONNECTOR B (16P)
Wire side of female terminals
NOTE: Standard battery voltage is 12 V.

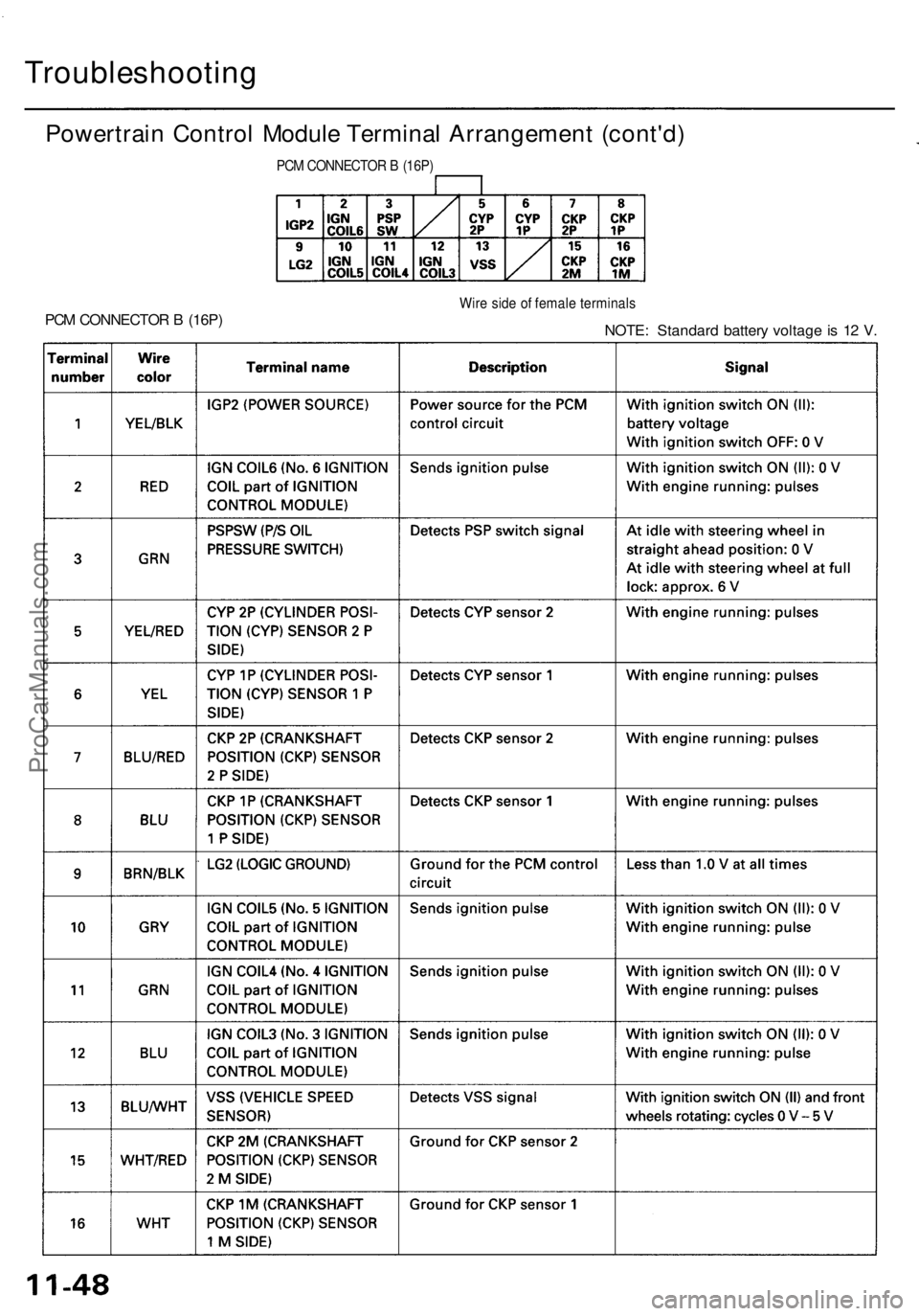

PCM CONNECTOR B (16P)ProCarManuals.com
Page 548 of 1954

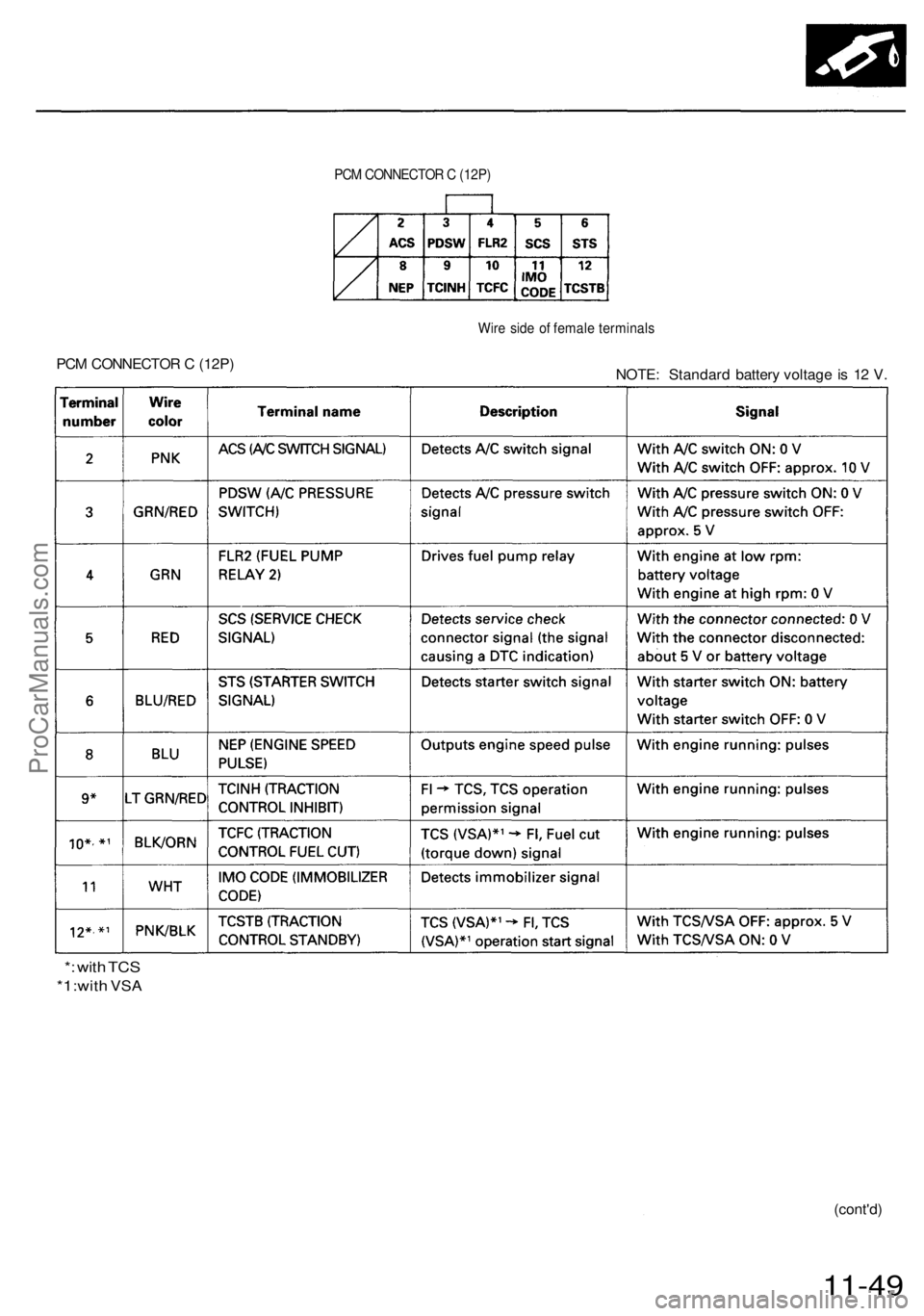

PCM CONNECTOR C (12P)
Wire side of female terminals
PCM CONNECTOR C (12P)
NOTE: Standard battery voltage is 12 V.
*: with TCS
*1:with
VSA
(cont'd)
11-49ProCarManuals.com
Page 549 of 1954
Troubleshooting
Powertrain Control Module Terminal Arrangement (cont'd)

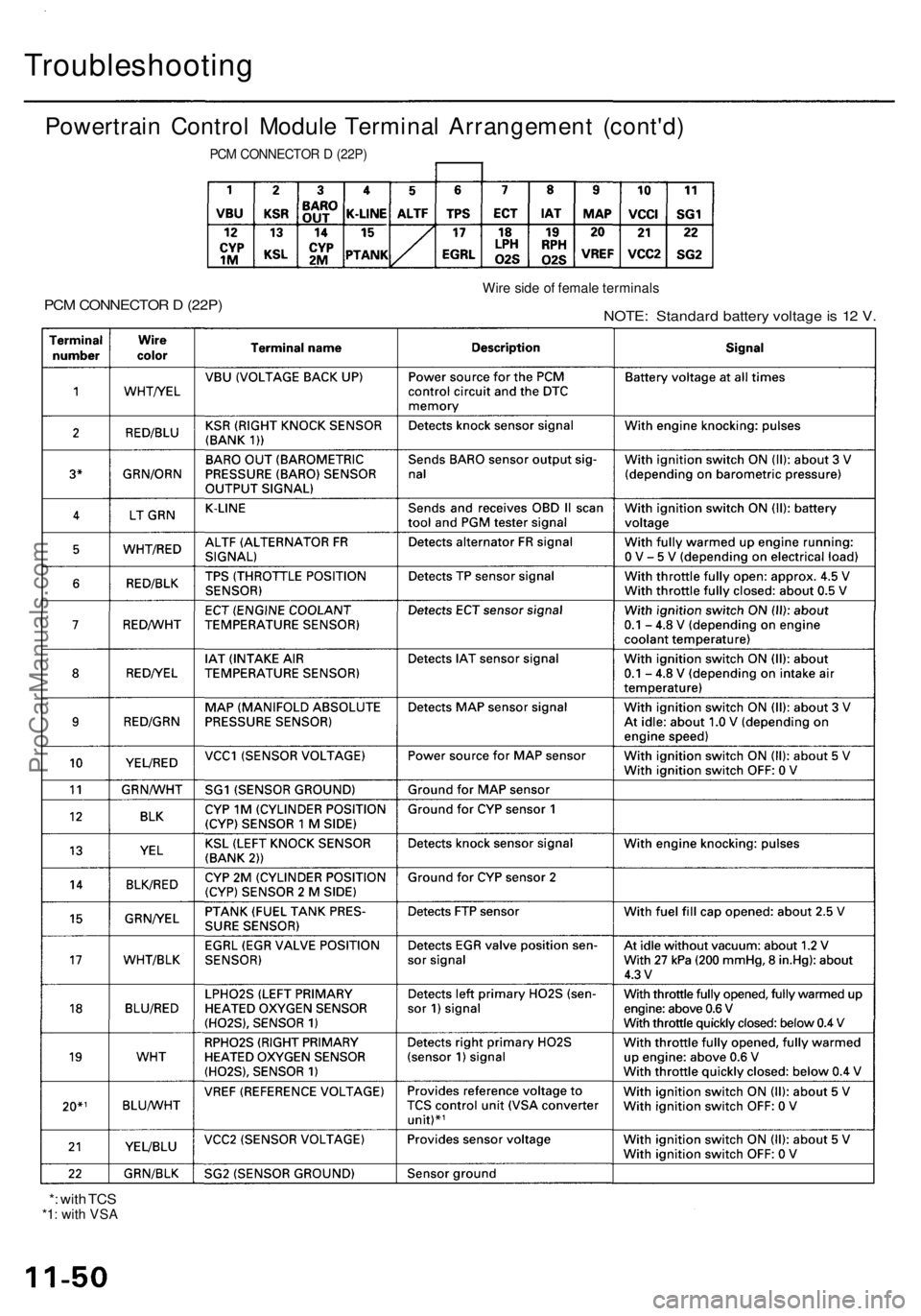

PCM CONNECTOR D (22P)
Wire side of female terminals
*: with TCS
*1: with VSA
NOTE: Standard battery voltage is 12 V.
PCM CONNECTOR D (22P)ProCarManuals.com
Page 550 of 1954

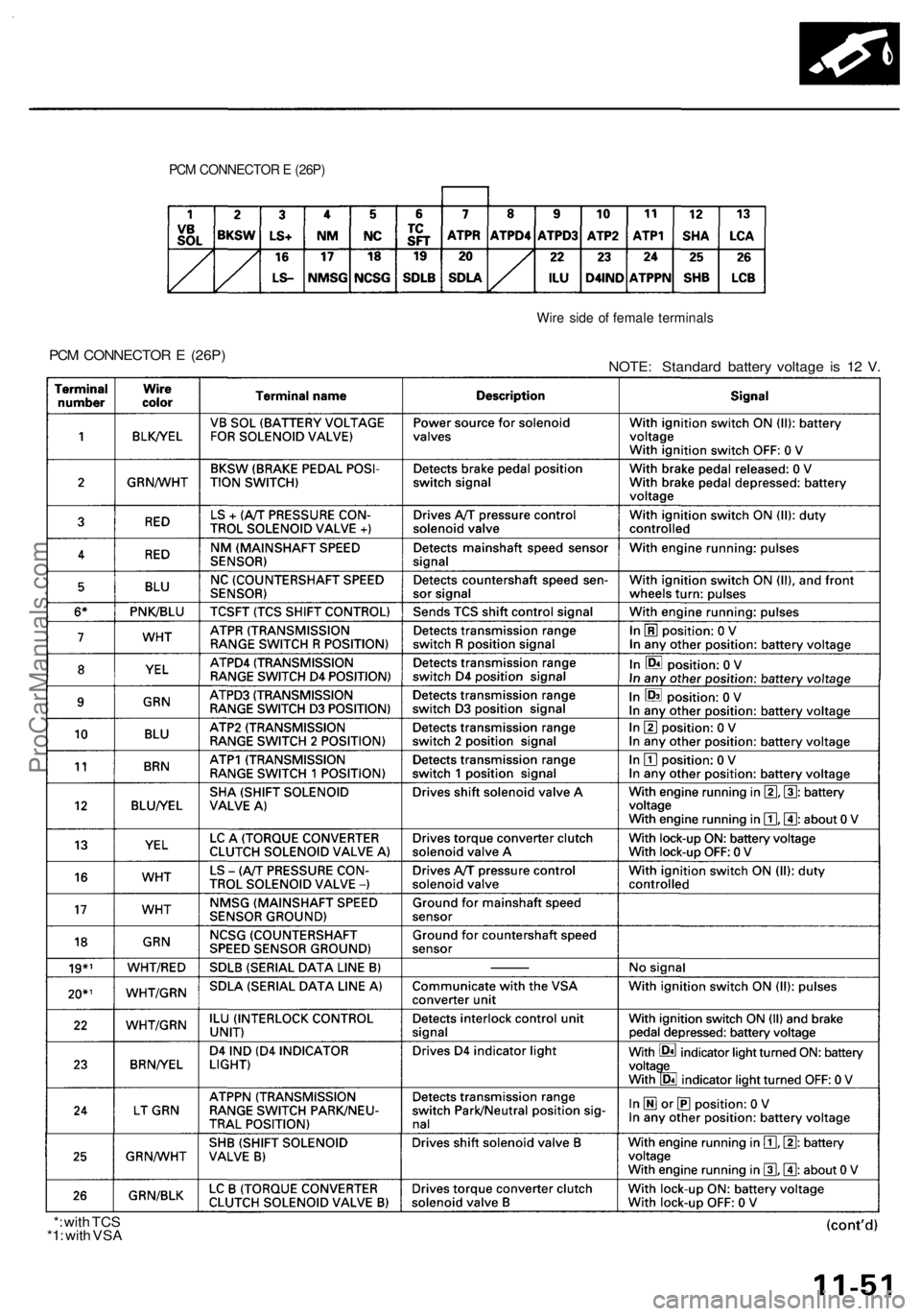

PCM CONNECTOR E (26P)
PCM CONNECTOR E (26P)
Wire side of female terminals
NOTE: Standard battery voltage is 12 V.
*: with TCS
*1: with VSAProCarManuals.com
Page 551 of 1954
Troubleshooting
Powertrain Contro l Modul e Termina l Arrangemen t (cont'd )

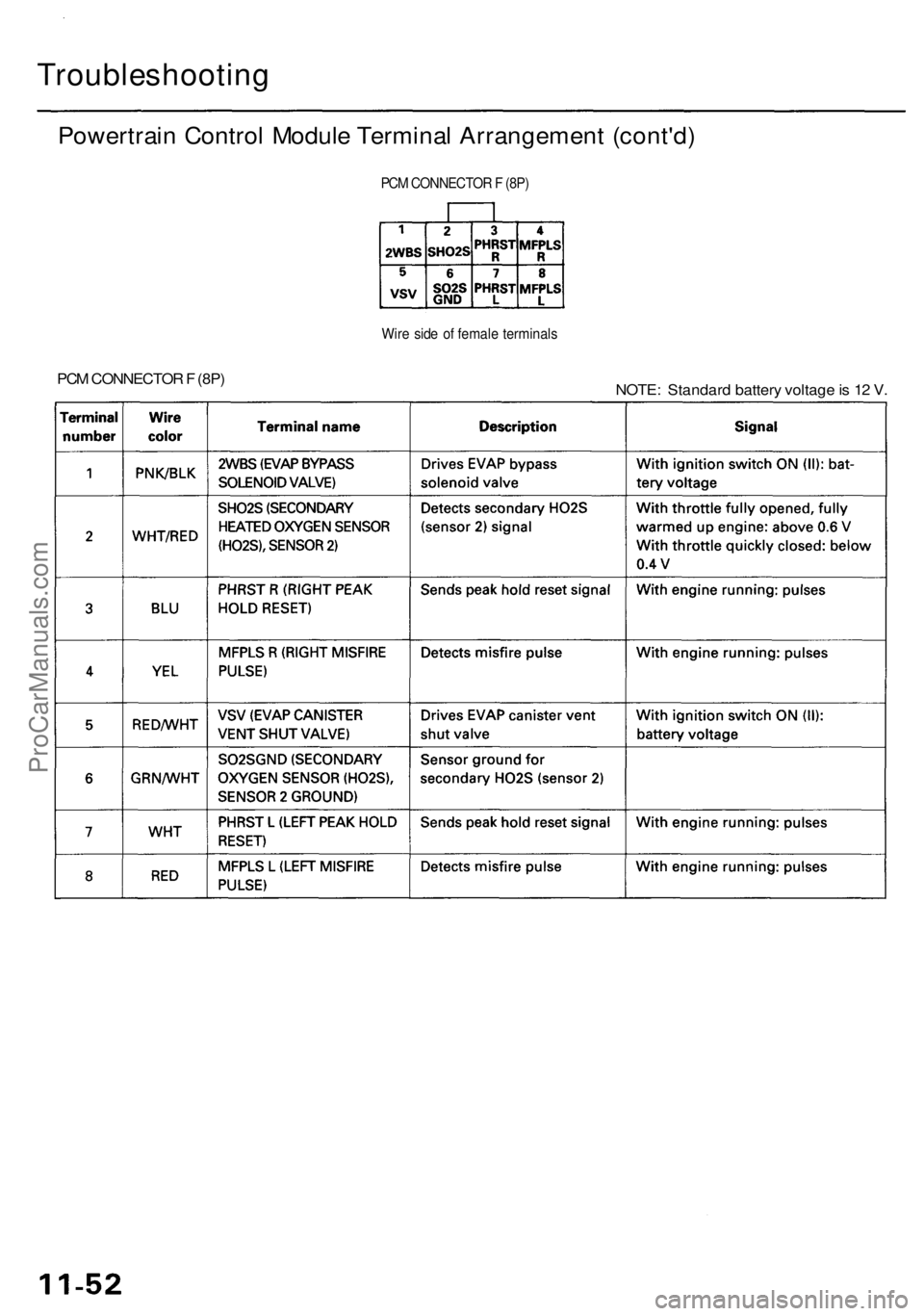

PCM CONNECTO R F (8P )
Wir e sid e o f femal e terminal s
NOTE: Standar d batter y voltag e is 1 2 V .
PC
M CONNECTO R F (8P )
ProCarManuals.com
Page 552 of 1954

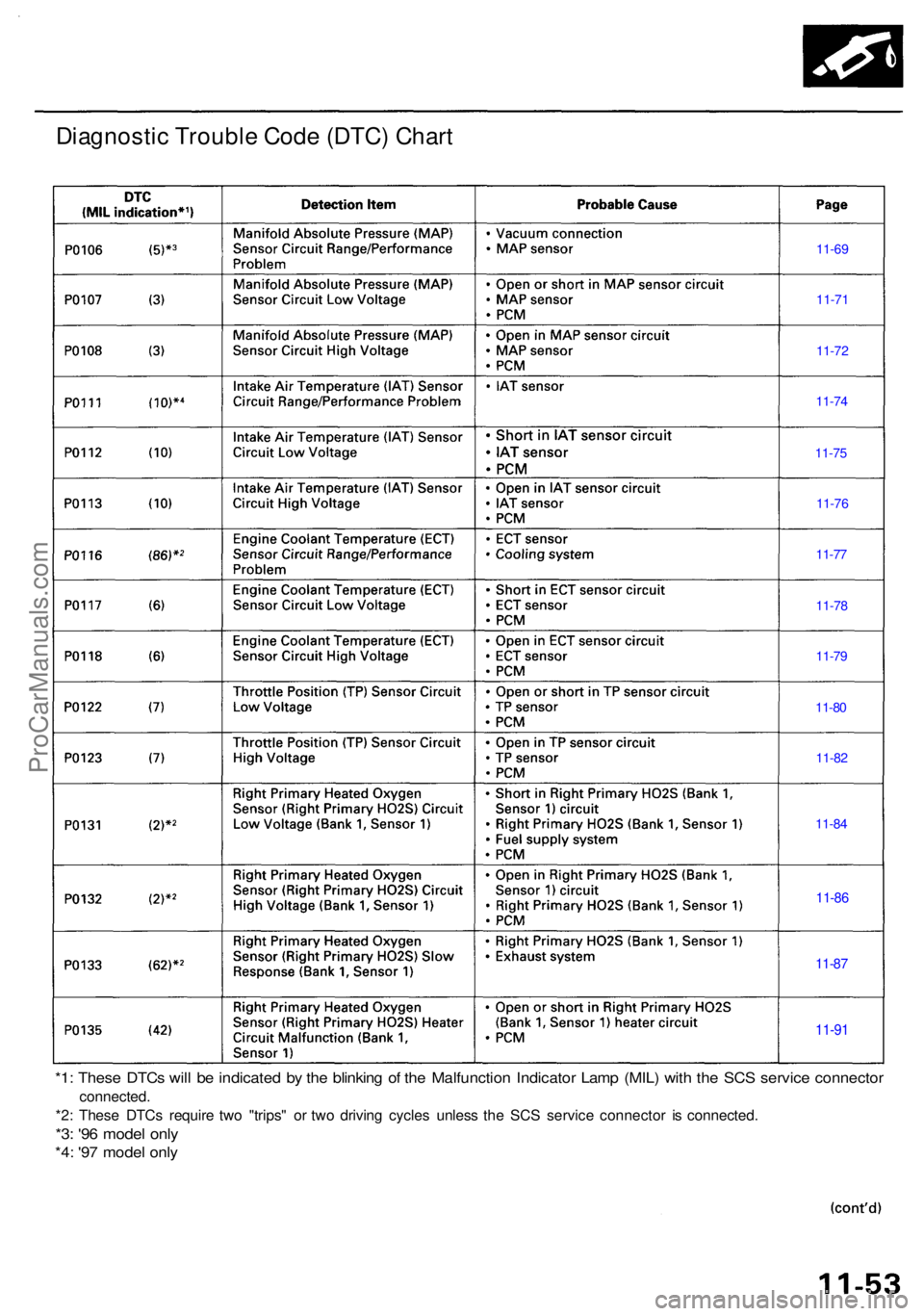

Diagnostic Troubl e Cod e (DTC ) Char t
*1: Thes e DTC s wil l b e indicate d b y th e blinkin g o f th e Malfunctio n Indicato r Lam p (MIL ) wit h th e SC S servic e connecto r
connected .
*2 : Thes e DTC s requir e tw o "trips " o r tw o drivin g cycle s unles s th e SC S servic e connecto r i s connected .
*3: '9 6 mode l onl y
*4: '9 7 mode l onl y
11-9 1
11-87
11-8 6
11-8 4
11-8
2
11-8
0
11-7
9
11-7
8
11-7
7
11-7
6
11-7
5
11-7
4
11-7 2
11-7 1
11-69
