1996 ACURA RL KA9 Service Repair Manual

fuel filter locationjump cableresetservice resetclimate settingsclock setting
Popular search:
navigation systemclutchfuel filterdoor lockgas typemanual radio setimmobilizer
Previous
Next
Load previous 8 pages

Page 73 of 1954

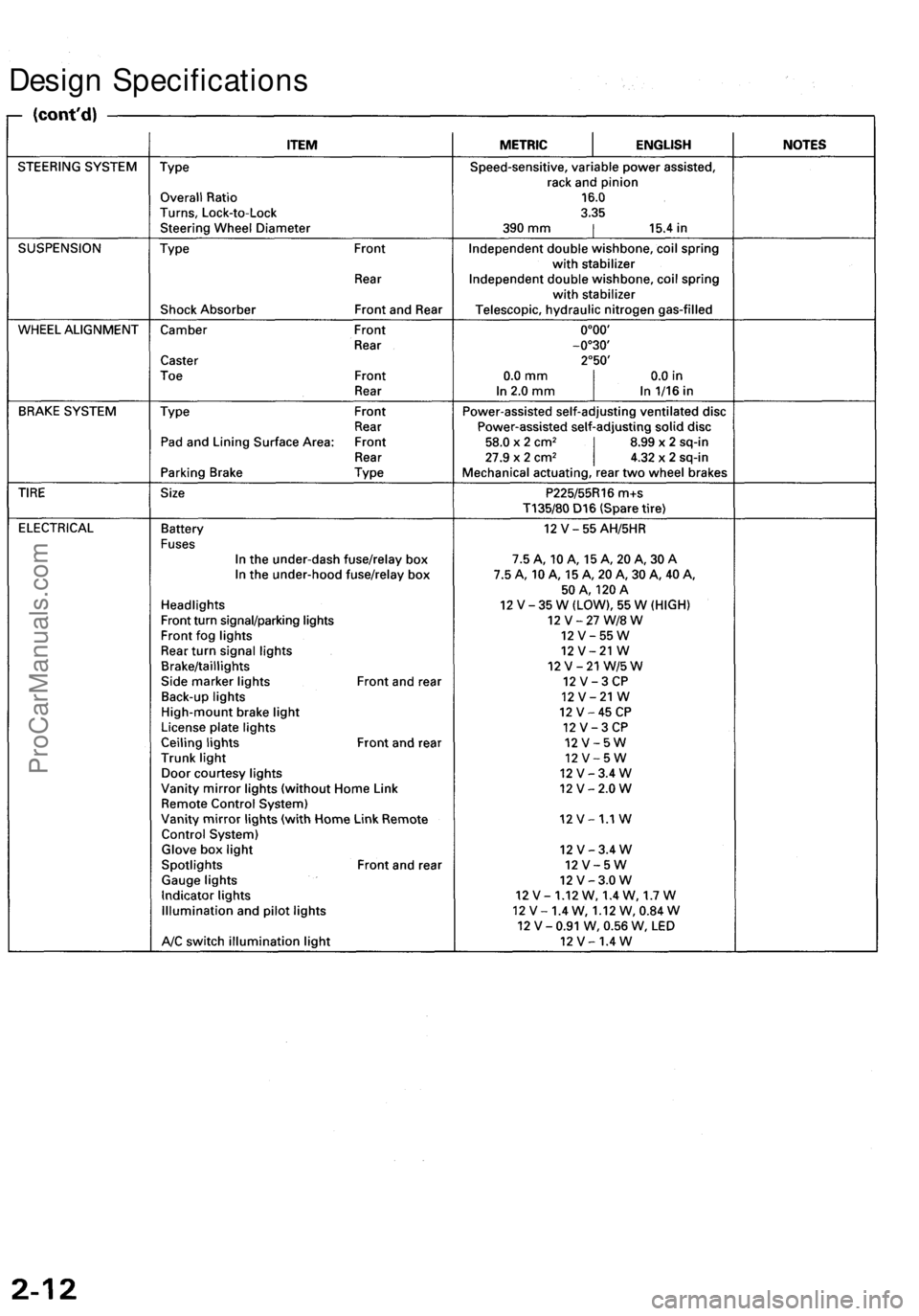

ACURA RL KA9 1996 Service Repair Manual Design SpecificationsProCarManuals.com

Page 74 of 1954

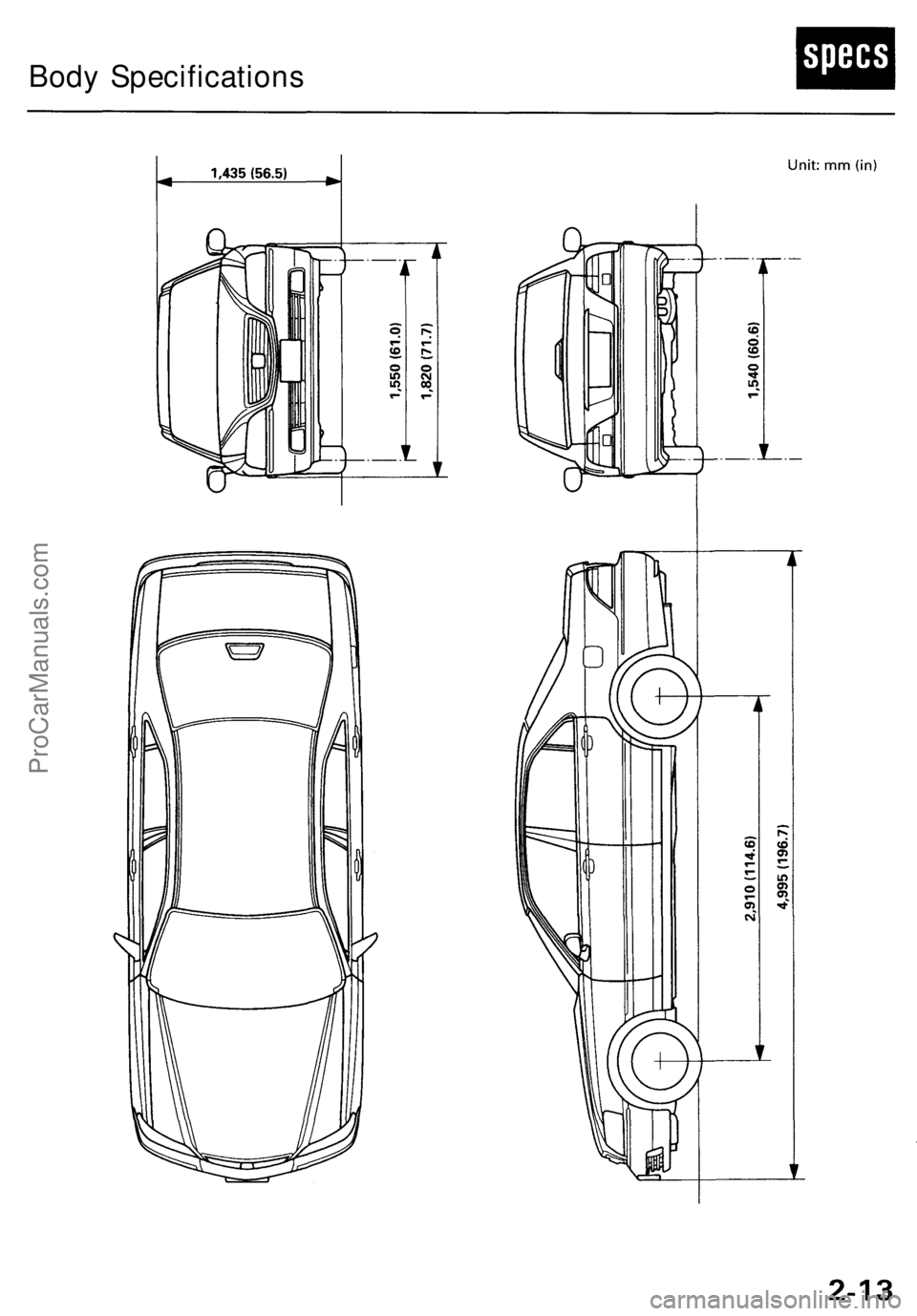

ACURA RL KA9 1996 Service Repair Manual Body SpecificationsProCarManuals.com

Page 75 of 1954

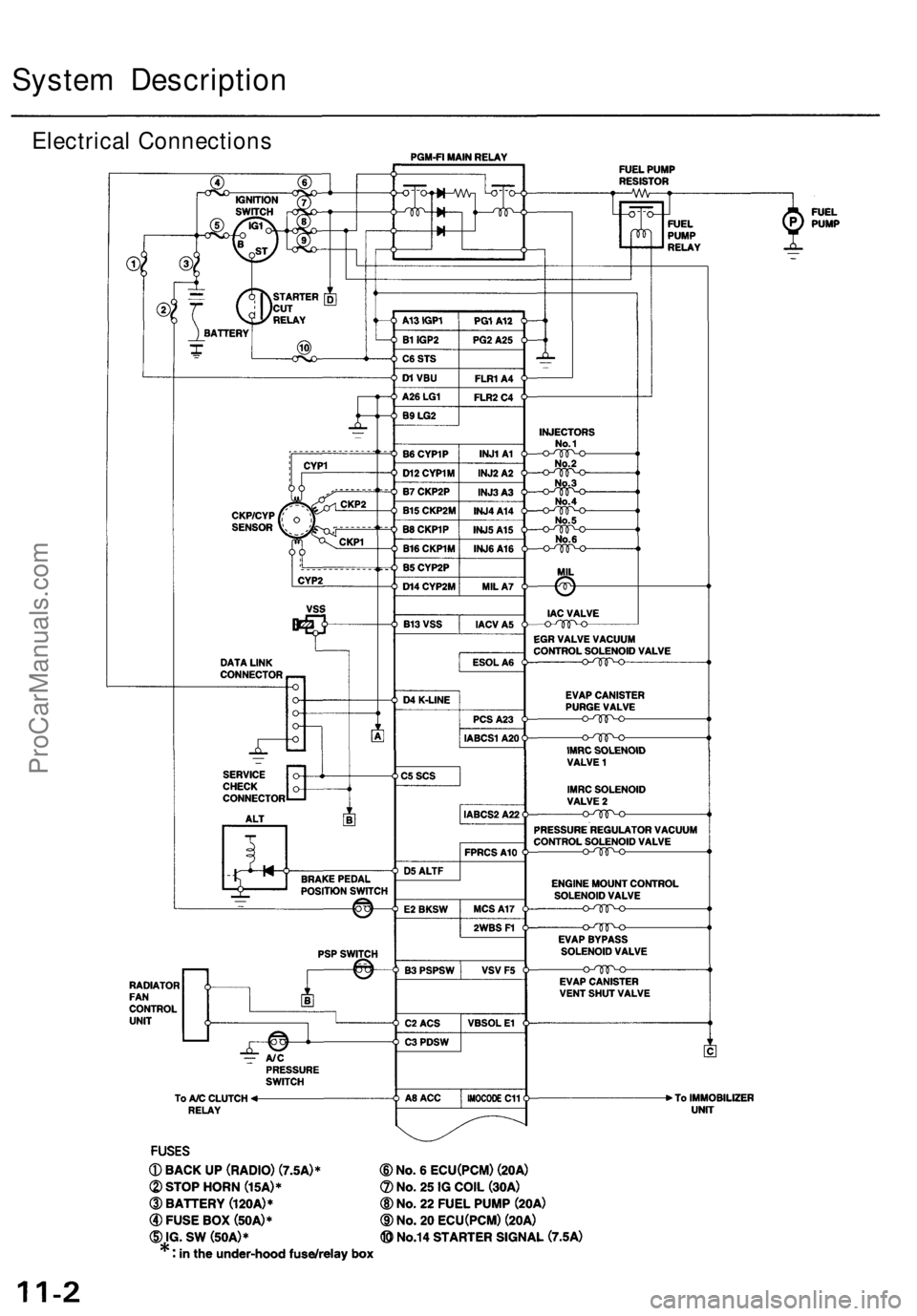

ACURA RL KA9 1996 Service Repair Manual System Description Electrical ConnectionsProCarManuals.com

Page 76 of 1954

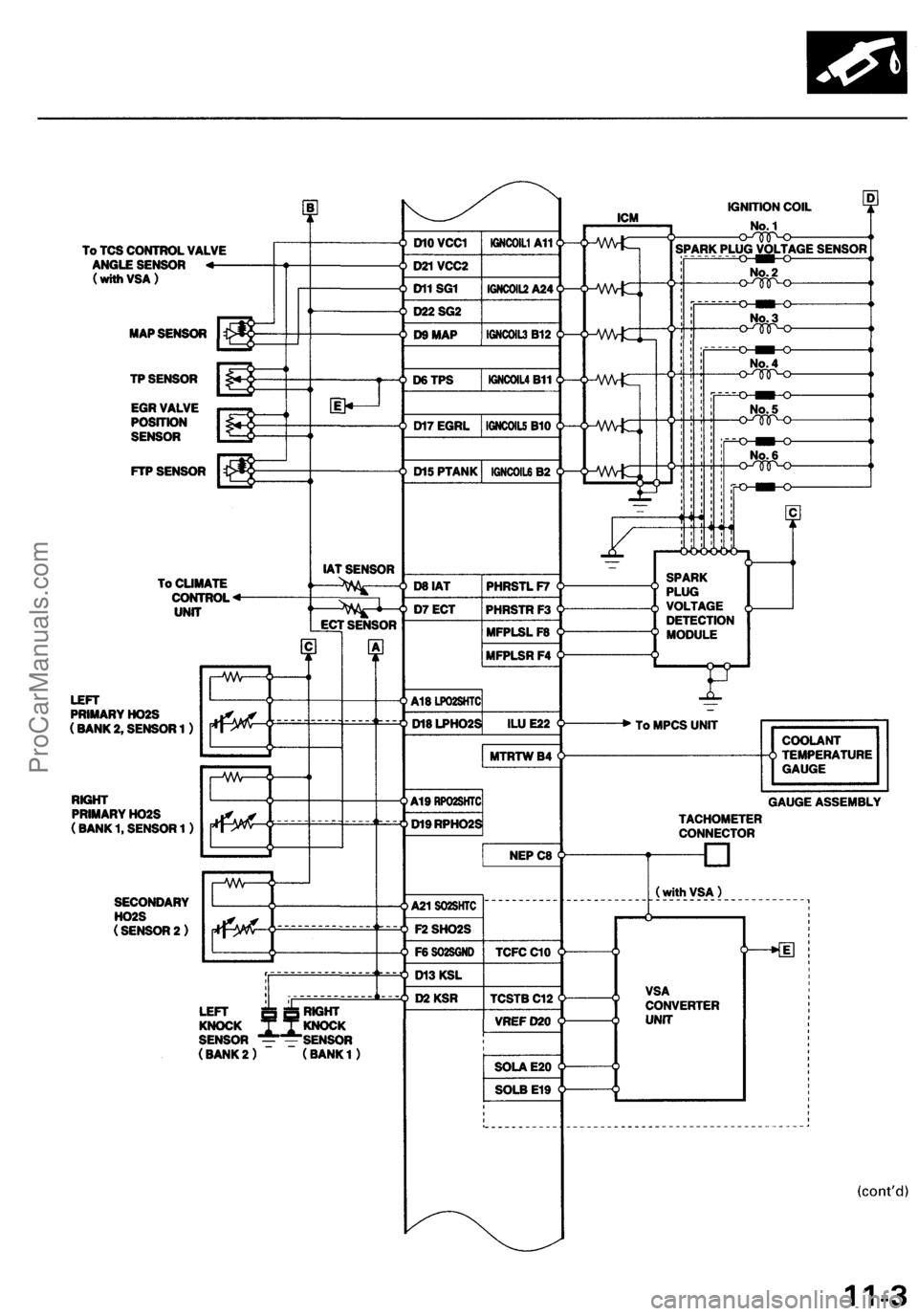

ACURA RL KA9 1996 Service Repair Manual ProCarManuals.com

Page 77 of 1954

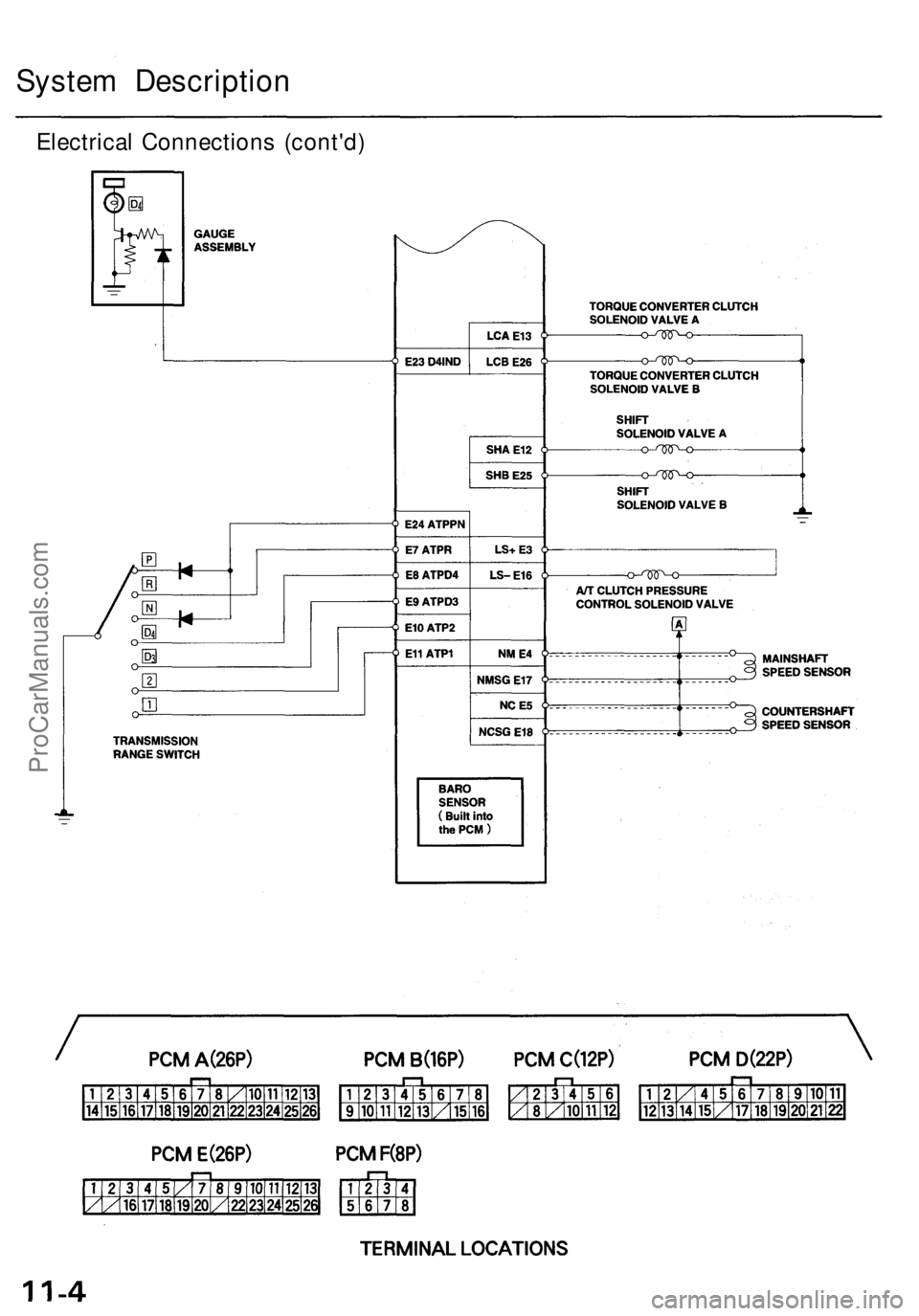

ACURA RL KA9 1996 Service Repair Manual System Description Electrical Connections (cont'd)ProCarManuals.com

Page 78 of 1954

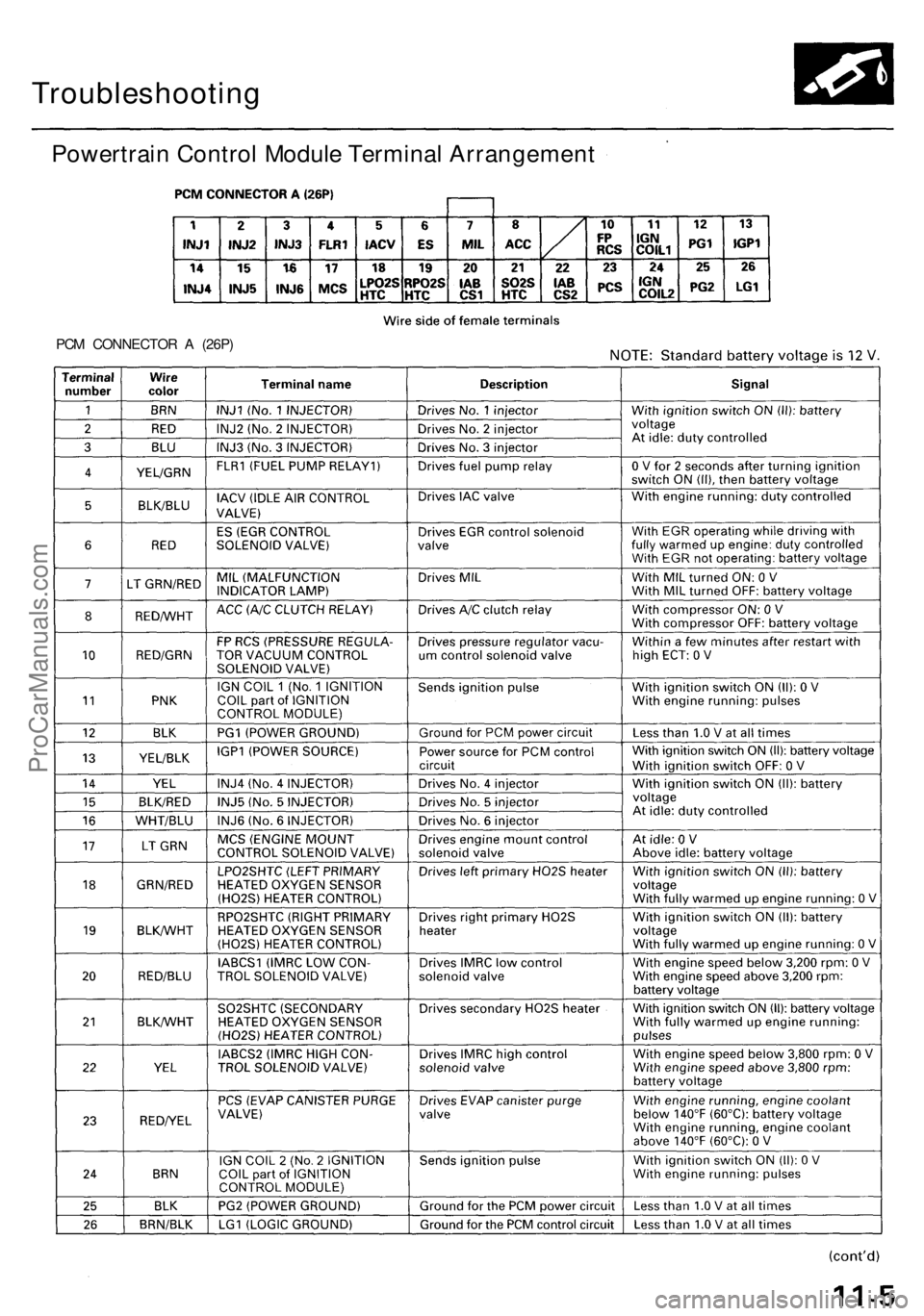

ACURA RL KA9 1996 Service Repair Manual Troubleshooting Powertrain Contro l Modul e Termina l Arrangemen t PCM CONNECTO R A (26P ) ProCarManuals.com

Page 79 of 1954

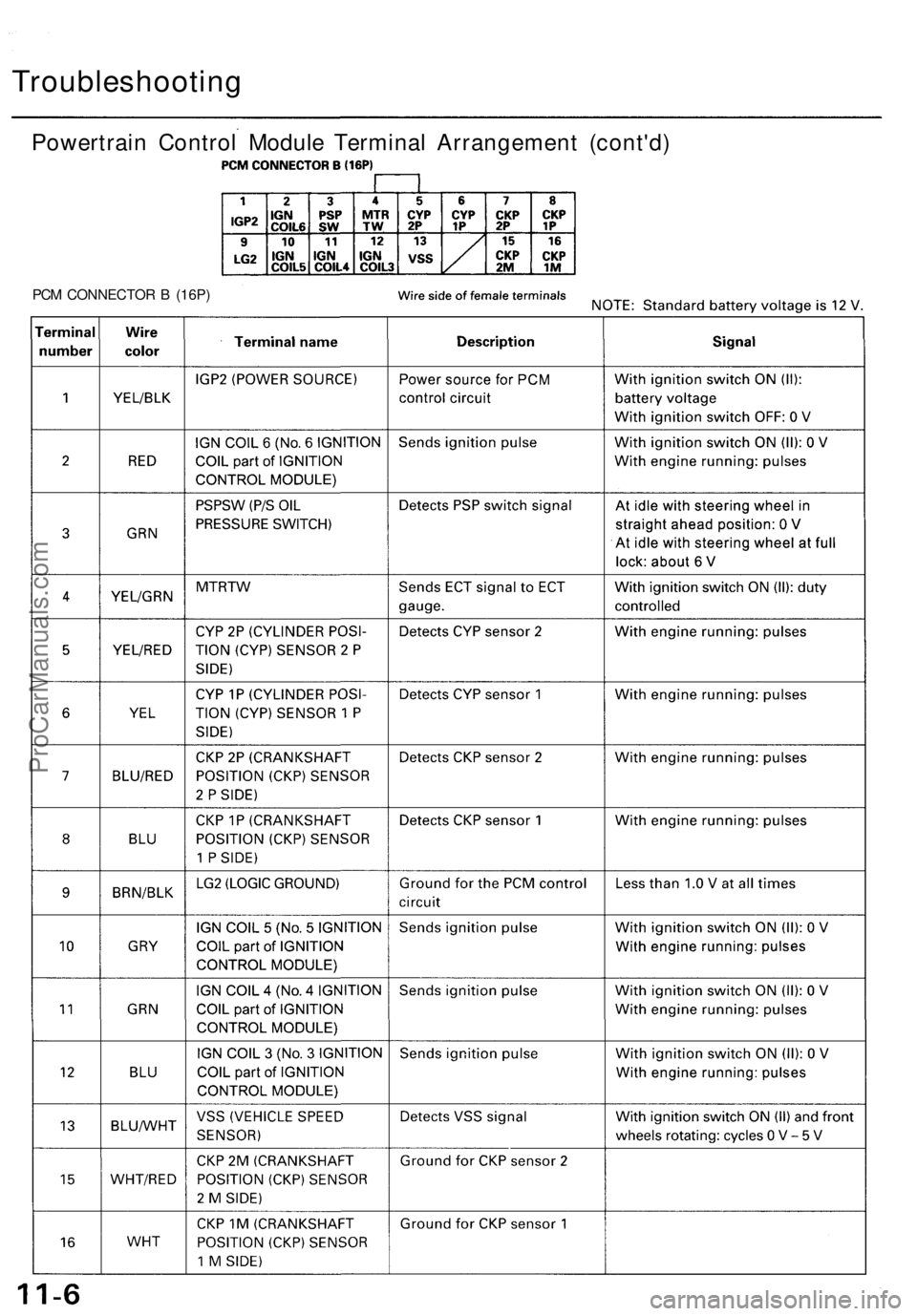

ACURA RL KA9 1996 Service Repair Manual Troubleshooting Powertrain Control Module Terminal Arrangement (cont'd) PCM CONNECTOR B (16P)ProCarManuals.com

Page 80 of 1954

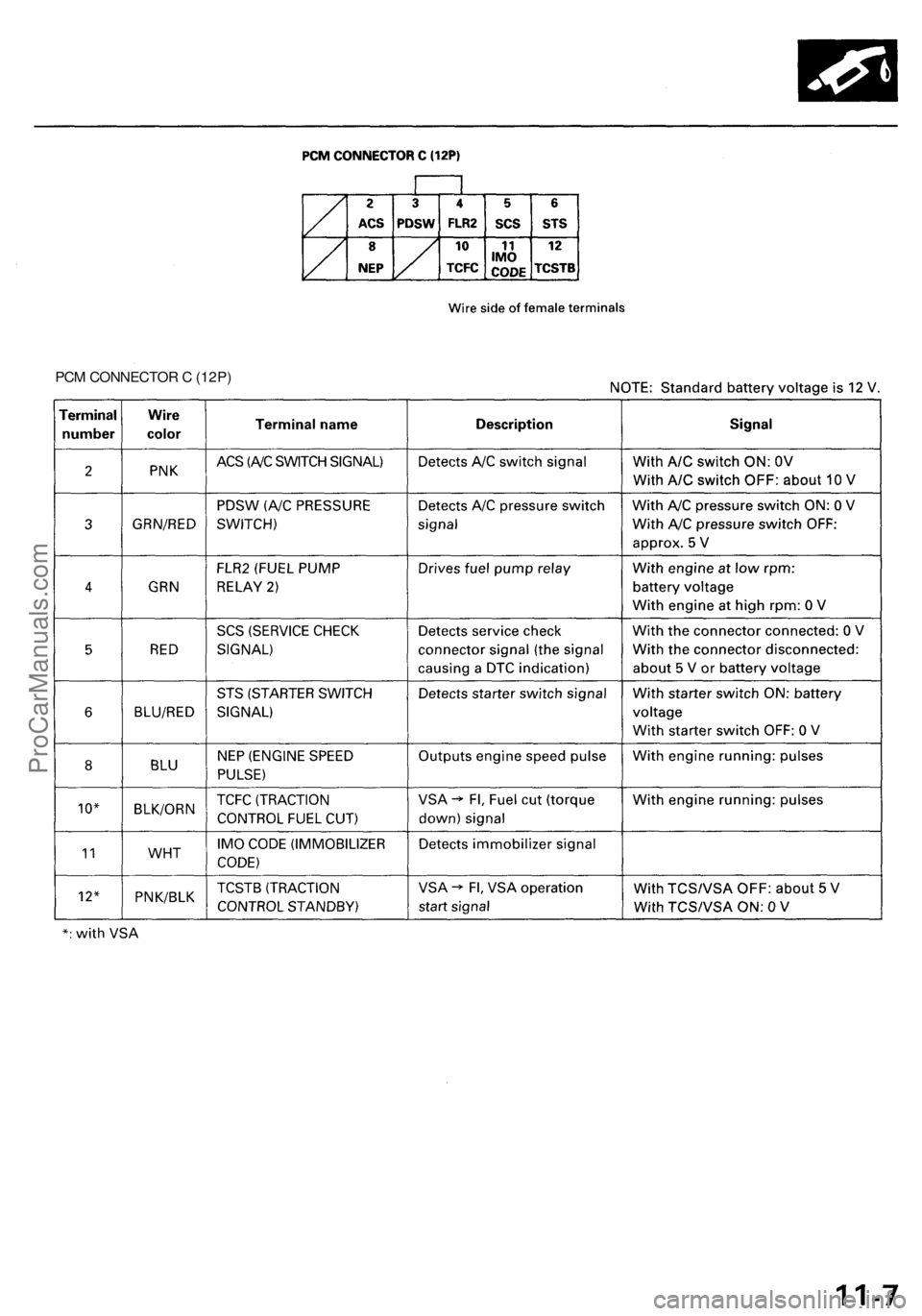

ACURA RL KA9 1996 Service Repair Manual PCM CONNECTOR C (12P)ProCarManuals.com
