Driving Positio n Memor y Syste m (DPMS )
Troubleshootin g (cont'd )

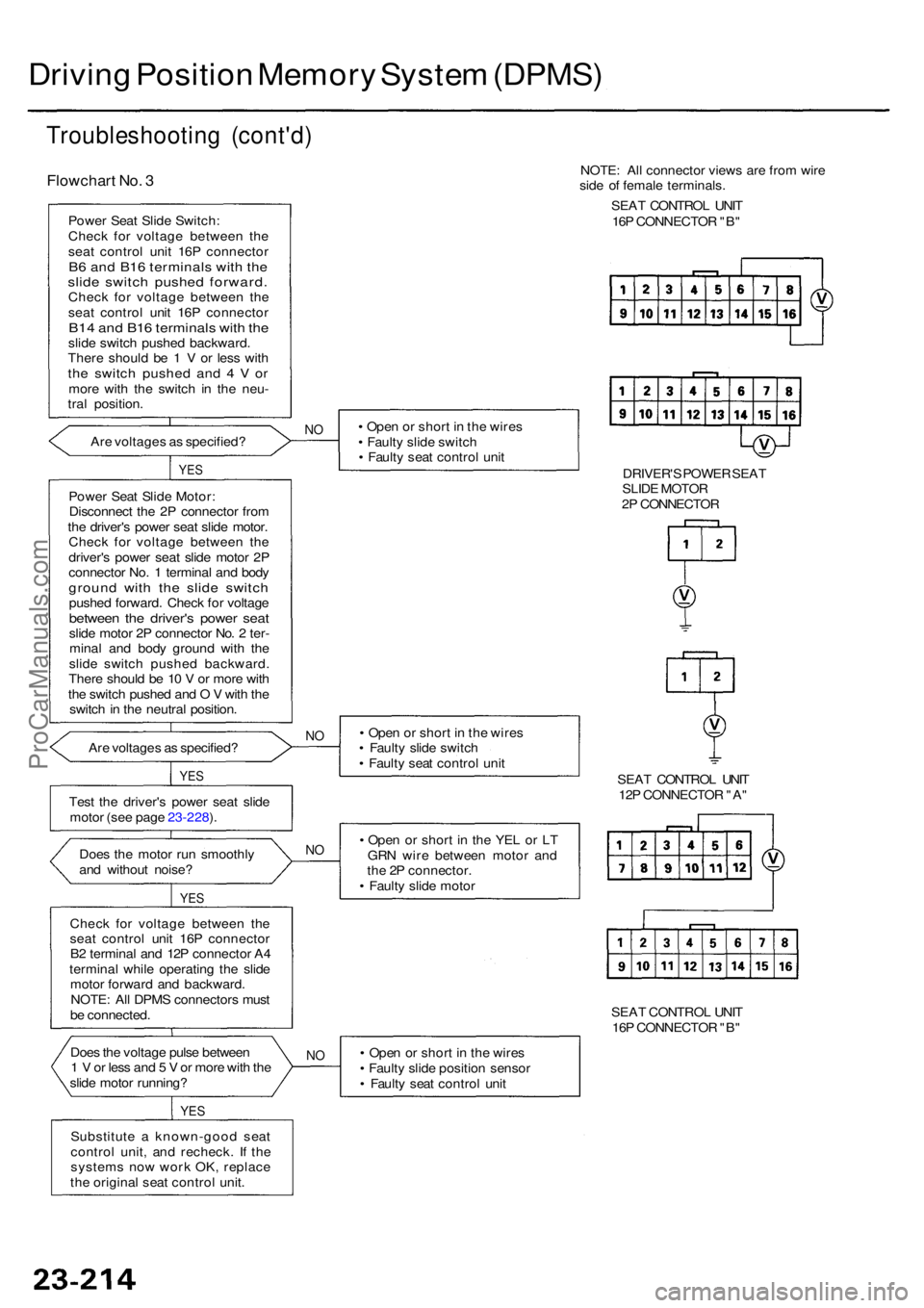

Flowchar t No . 3
Powe r Sea t Slid e Switch :
Chec k fo r voltag e betwee n th e
sea t contro l uni t 16 P connecto r
B6 an d B1 6 terminal s wit h th eslid e switc h pushe d forward .Check fo r voltag e betwee n th e
sea t contro l uni t 16 P connecto r
B14 an d B1 6 terminal s wit h th eslid e switc h pushe d backward .
Ther e shoul d b e 1 V or les s wit h
the switc h pushe d an d 4 V ormor e wit h th e switc h i n th e neu -
tra l position .
Ar e voltage s a s specified ?
NO• Ope n o r shor t i n th e wire s
• Fault y slid e switc h
• Fault y sea t contro l uni t
YES
Powe r Sea t Slid e Motor :
Disconnec t th e 2 P connecto r fro m
th e driver' s powe r sea t slid e motor .
Chec k fo r voltag e betwee n th e
driver' s powe r sea t slid e moto r 2 P
connecto r No . 1 termina l an d bod y
groun d wit h th e slid e switc hpushed forward . Chec k fo r voltag ebetwee n th e driver' s powe r sea tslide moto r 2 P connecto r No . 2 ter -
mina l an d bod y groun d wit h th e
slid e switc h pushe d backward .
Ther e shoul d b e 1 0 V or mor e wit h
th e switc h pushe d an d O V wit h th e
switc h in th e neutra l position .
Ar e voltage s a s specified ?
NO• Ope n o r shor t i n th e wire s
• Fault y slid e switc h
• Fault y sea t contro l uni t
Tes t th e driver' s powe r sea t slid e
moto r (se e pag e 23-228 ).
N O• Ope n o r shor t i n th e YE L o r L T
GR N wir e betwee n moto r an d
th e 2 P connector .
• Fault y slid e moto r
Doe
s th e moto r ru n smoothl y
an d withou t noise ?
Chec k fo r voltag e betwee n th e
sea t contro l uni t 16 P connecto r
B 2 termina l an d 12 P connecto r A 4
termina l whil e operatin g th e slid e
moto r forwar d an d backward .
NOTE : Al l DPM S connector s mus t
b e connected .
YES
YES
Doe s th e voltag e puls e betwee n
1 V or les s an d 5 V or mor e wit h th e
slid e moto r running ? •
Ope n o r shor t i n th e wire s
• Fault y slid e positio n senso r
• Fault y sea t contro l uni tNO
YE S
Substitut e a known-goo d sea t
contro l unit , an d recheck . I f th e
system s no w wor k OK , replac e
th e origina l sea t contro l unit . SEA
T CONTRO L UNI T
16 P CONNECTO R "B "
SEA
T CONTRO L UNI T
12 P CONNECTO R "A "
NOTE
: Al l connecto r view s ar e fro m wire
sid e o f femal e terminals .
SEA T CONTRO L UNI T
16 P CONNECTO R "B "
DRIVER' S POWE R SEA T
SLID E MOTO R
2 P CONNECTO R
ProCarManuals.com
Page 1618 of 1954

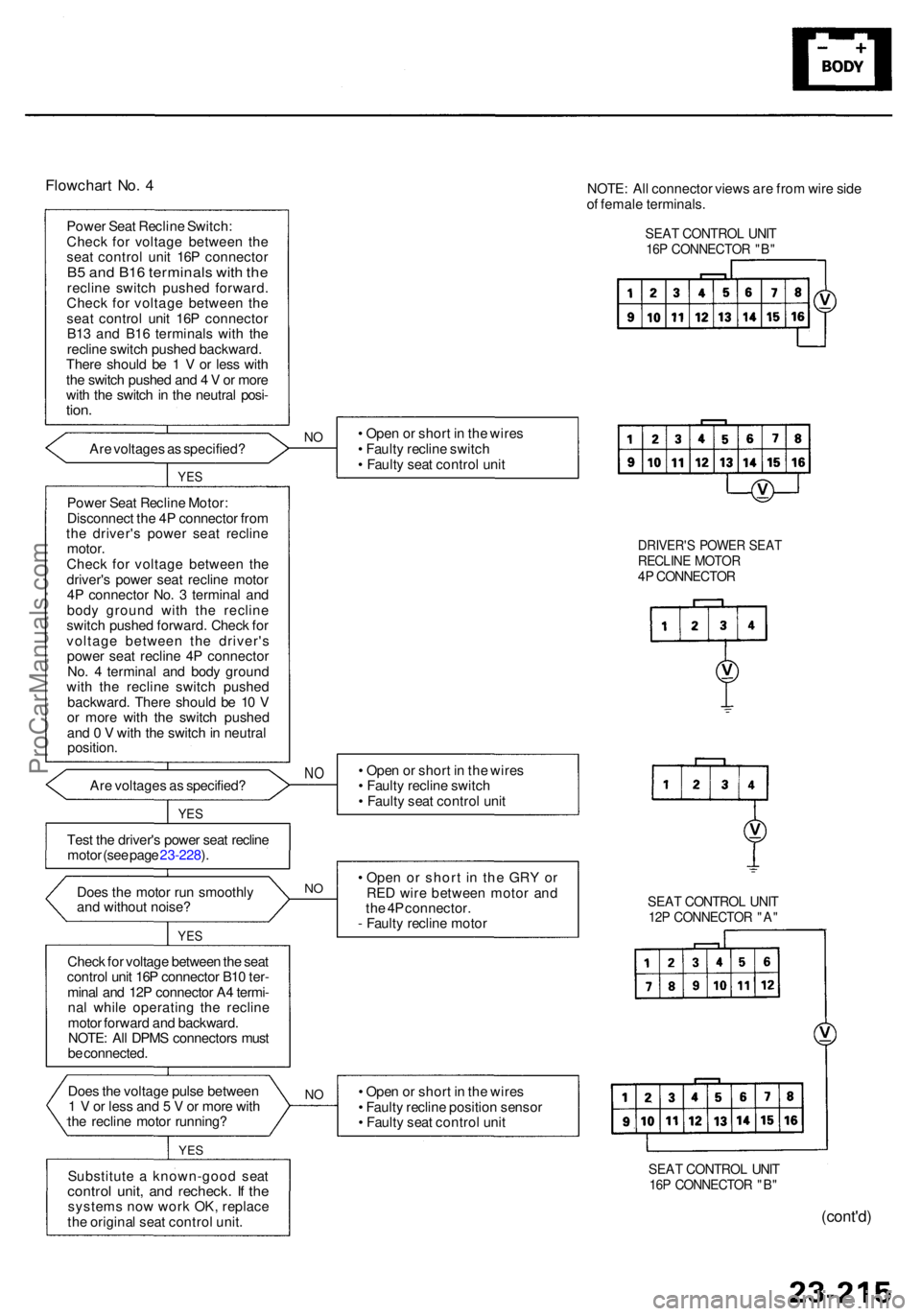

Flowchart No . 4
Powe r Sea t Reclin e Switch :
Chec k fo r voltag e betwee n th e
sea t contro l uni t 16 P connecto r
B5 an d B1 6 terminal s wit h th ereclin e switc h pushe d forward .
Chec k fo r voltag e betwee n th e
sea t contro l uni t 16 P connecto r
B1 3 an d B1 6 terminal s wit h th e
reclin e switc h pushe d backward .
Ther e shoul d b e 1 V or les s wit h
th e switc h pushe d an d 4 V or mor e
wit h th e switc h in th e neutra l posi -
tion.
Are voltage s a s specified ?NO• Ope n o r shor t i n th e wire s
• Fault y reclin e switc h
• Fault y sea t contro l uni t
YES
Powe r Sea t Reclin e Motor :
Disconnec t th e 4 P connecto r fro m
th e driver' s powe r sea t reclin e
motor .
Chec k fo r voltag e betwee n th e
driver' s powe r sea t reclin e moto r
4 P connecto r No . 3 termina l an d
bod y groun d wit h th e reclin e
switc h pushe d forward . Chec k fo r
voltag e betwee n th e driver' s
powe r sea t reclin e 4 P connecto r
No . 4 termina l an d bod y groun d
wit h th e reclin e switc h pushe d
backward . Ther e shoul d b e 1 0 V
o r mor e wit h th e switc h pushe d
an d 0 V wit h th e switc h in neutra l
position .
Ar e voltage s a s specified ? •
Ope n o r shor t i n th e wire s
• Fault y reclin e switc h
• Fault y sea t contro l uni t
NO
YE S
NO• Ope n o r shor t i n th e GR Y o r
RE D wir e betwee n moto r an d
th e 4 P connector .
- Fault y reclin e moto r
Tes
t th e driver' s powe r sea t reclin e
moto r (se e pag e 23-228 ).
Doe s th e moto r ru n smoothl y
an d withou t noise ?
YES
Chec k fo r voltag e betwee n th e sea t
contro l uni t 16 P connecto r B1 0 ter -
mina l an d 12 P connecto r A 4 termi -
na l whil e operatin g th e reclin e
moto r forwar d an d backward .
NOTE : Al l DPM S connector s mus t
b e connected .
I
Does th e voltag e puls e betwee n
1 V or les s an d 5 V or mor e wit h
th e reclin e moto r running ?NO• Ope n o r shor t i n th e wire s
• Fault y reclin e positio n senso r
• Fault y sea t contro l uni t
Substitut e a known-goo d sea t
contro l unit , an d recheck . I f th esystem s no w wor k OK , replac e
th e origina l sea t contro l unit .
YES
SEA T CONTRO L UNI T16P CONNECTO R "B "
DRIVER' S POWE R SEA TRECLIN E MOTO R4P CONNECTO R
NOTE: Al l connecto r view s ar e fro m wire side
o f femal e terminals .
SEAT CONTRO L UNI T16P CONNECTO R "B "
SEA T CONTRO L UNI T12P CONNECTO R "A "
(cont'd )
ProCarManuals.com
Page 1619 of 1954

• Ope n o r shor t i n th e wire s
• Fault y fron t up-dow n positio n
sensor• Fault y sea t contro l uni t
Substitut e a known-goo d sea t
contro l unit , an d recheck . I f th e
system s no w wor k OK , replac e
th e origina l sea t contro l unit .
Doe
s th e voltag e puls e betwee n
1 V or les s an d 5 V or mor e wit hthe fron t up-dow n moto r running ?
YES
NO
Chec k fo r voltag e betwee n th e sea t
contro l uni t 16 P connecto r B 1 ter -
mina l an d 12 P connecto r A 4 termi -
nal whil e operatin g th e fron t up -dow n moto r upwar d an d down -ward.
NOTE : Al l DPM S connector s mus t
b e connected .
Doe
s th e moto r ru n smoothl y
an d withou t noise ?
YES
NO• Ope n o r shor t i n th e OR N o r
BRN/WH T wir e betwee n moto r
an d th e 2 P connector .
• Fault y fron t up-dow n moto r
Tes
t th e driver' s powe r sea t fron t
up-dow n moto r (se e pag e 23-228 ). •
Ope n o r shor t i n th e wire s
• Fault y fron t up-dow n switc h
• Fault y sea t contro l uni t
NOAr e voltage s a s specified ?
YES
Powe r Sea t Fron t Up-dow n Motor :
Disconnec t th e 2 P connecto r fro m
th e driver' s powe r sea t fron t up -
dow n motor . Chec k fo r voltag e
betwee n th e driver' s powe r sea t
fron t up-dow n moto r 2 P connecto r
No. 1 termina l an d bod y groun dwith th e fron t up-dow n switc hpushe d up . Chec k fo r voltag e
betwee n th e driver' s powe r sea t
fron t up-dow n moto r 2 P connecto r
No. 2 an d bod y groun d wit h th efron t up-dow n switc h pushe ddown. Ther e shoul d b e 1 0 V or
mor e wit h th e switc h pushe d an d O
V wit h th e switc h in th e neutra lposition . •
Ope n o r shor t i n th e wire s
• Fault y fron t up-dow n switc h
• Fault y sea t contro l uni t
NO
YE S
Are voltage s a s specified ?
Powe
r Sea t Fron t Up-dow n
Switch :
Chec k fo r voltag e betwee n th e
sea t contro l uni t 16 P connecto r B 4
an d B1 6 terminal s wit h th e fron tup-dow n switc h pushe d up . Chec k
fo r voltag e betwee n th e sea t con -
trol uni t 16 P connecto r B1 2 an dB16 terminal s wit h th e fron t up -dow n switc h pushe d down .
Ther e shoul d b e 1 V or les s wit h
th e switc h pushe d an d 4 V or mor e
wit h th e switc h i n th e neutra l posi -
tion.
Flowchar t No . 5
Troubleshootin g (cont'd )
Driving Positio n Memor y Syste m (DPMS )
NOTE: Al l connecto r view s ar e fro m wir e sid e
o f femal e terminals .
COLUM N CONTRO L UNI T
16 P CONNECTO R "B "
DRIVER' S POWE R SEA T
FRON T UP-DOW N MOTO R
2 P CONNECTO R
SEA T CONTRO L UNI T
12 P CONNECTO R "A "
SEA T CONTRO L UNI T
16 P CONNECTOR"B "
ProCarManuals.com
Page 1620 of 1954

Flowchart No . 6
Powe r Sea t Rea r Up-dow n Switch :
Chec k fo r voltag e betwee n th e sea t
contro l uni t 16 P connecto r B 3 an d
B1 6 terminal s wit h th e rea r up -
dow n switc h pushe d up . Chec k fo r
voltag e betwee n th e sea t contro l
uni t 16 P connecto r B1 1 an d B1 6
terminal s wit h th e rea r up-dow n
switc h pushe d down .
Ther e shoul d b e 1 V or les s wit h
th e switc h pushe d an d 4 V or mor e
wit h th e switc h i n th e neutra l posi -
tion.
Are voltage s a s specified ?NO• Ope n o r shor t i n th e wire s
• Fault y rea r up-dow n switc h
• Fault y sea t contro l uni t
YES
Powe r Sea t Rea r Up-dow n Motor :
Disconnec t th e 2 P connecto r fro m
th e driver' s powe r sea t rea r up -
dow n motor . Chec k fo r voltag e
between th e driver' s powe r sea trear up-dow n moto r 2 P connecto r
No . 1 termina l an d bod y groun d
with th e rea r up-dow n switc hpushed up . Chec k fo r voltag ebetwee n th e driver' s powe r sea t
rea r up-dow n moto r 2 P connecto r
No. 2 an d bod y groun d wit h th erea r up-dow n switc h pushe ddown. Ther e shoul d b e 1 0 V or
mor e wit h th e switc h pushe d an d
O V wit h th e switc h i n th e neutra l
position.
Are voltage s a s specified ?NO• Ope n o r shor t i n th e wire s
• Fault y rea r up-dow n switc h
• Fault y sea t contro l uni t
Tes t th e driver' s powe r sea t rea r
up-dow n moto r (se e pag e 23-228 ).
Doe s th e moto r ru n smoothl y
an d withou t noise ? •
Ope n o r shor t i n th e GR N o r
BRU/GR N wir e betwee n moto r
an d th e 2 P connector .
• Fault y rea r up-dow n moto r
NO
YE S
Chec k fo r voltag e betwee n th e
sea t contro l uni t 16 P connecto r
B 9 termina l an d 12 P connecto r
A4 termina l whil e operatin g th erea r up-dow n moto r upwar d an d
downward .
NOTE : Al l DPM S connector s mus t
b e connected .
• Ope n o r shor t i n th e wire s
• Fault y rea r up-dow n positio n
sensor• Fault y sea t contro l uni t
NODoe s th e voltag e puls e betwee n1 V or les s an d 5 V or mor e wit h
th e rea r up-dow n moto r running ?
YES
Substitut e a known-goo d sea t
contro l unit , an d recheck . I f th e
system s no w wor k OK , replac e
th e origina l sea t contro l unit . SEA
T CONTRO L UNI T
16 P CONNECTO R "B "
SEA
T CONTRO L UNI T
12 P CONNECTO R "A "
NOTE : Al l connecto r view s ar e fro m wir e sid eof femal e terminals .
SEA T CONTRO L UNI T
16 P CONNECTO R "B "
DRIVER' S POWE R SEA T
REA R UP-DOW N MOTO R
2 P CONNECTO R
ProCarManuals.com
Page 1621 of 1954

Driving Positio n Memor y Syste m (DPMS )
Troubleshootin g (cont'd )

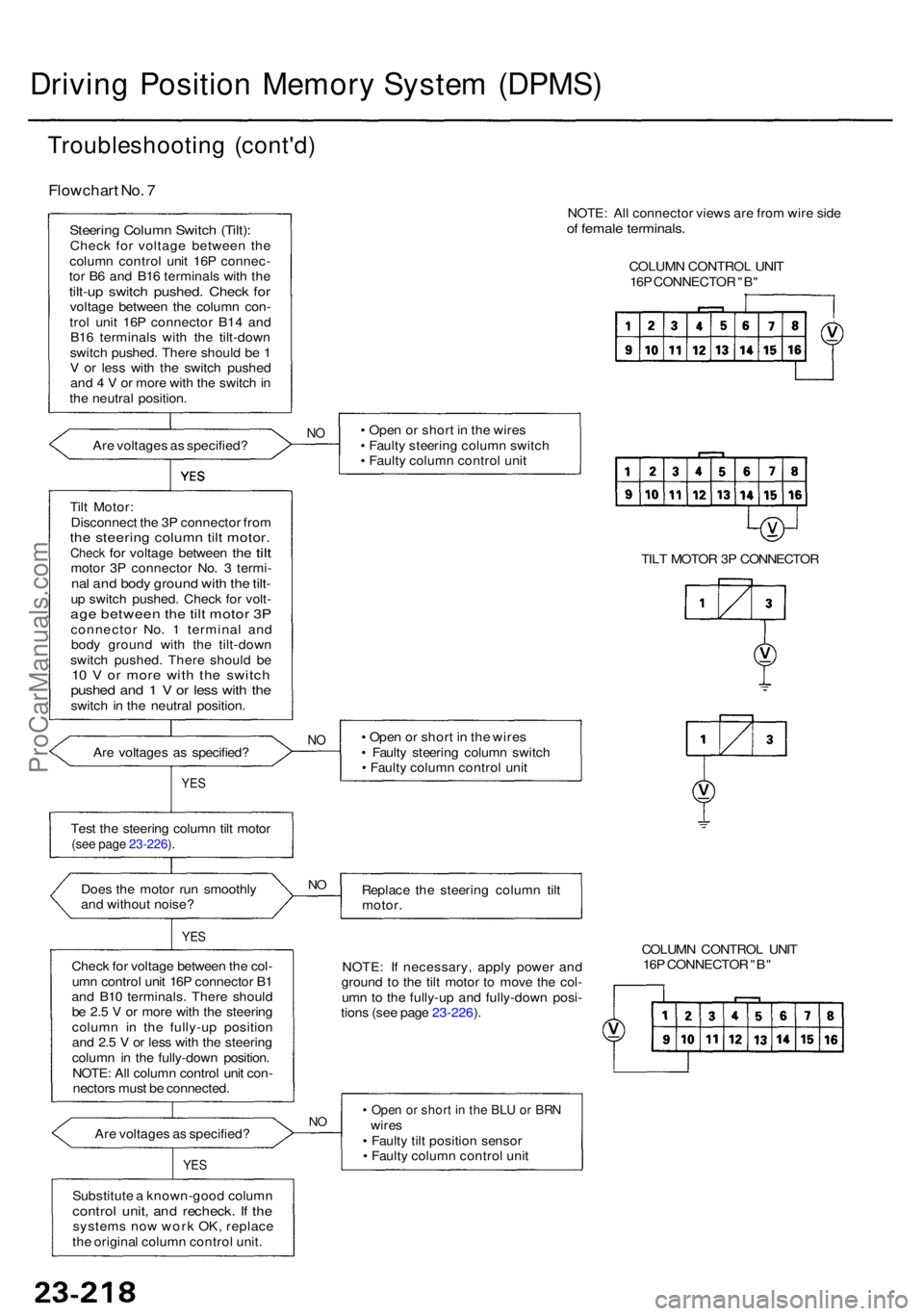

Flowchar t No . 7
Steerin g Colum n Switc h (Tilt) :Chec k fo r voltag e betwee n th e
colum n contro l uni t 16 P connec -
to r B 6 an d B1 6 terminal s wit h th e
tilt-u p switc h pushed . Chec k forvoltag e betwee n th e colum n con -
tro l uni t 16 P connecto r B1 4 an d
B1 6 terminal s wit h th e tilt-dow n
switc h pushed . Ther e shoul d b e 1
V o r les s wit h th e switc h pushe d
an d 4 V or mor e wit h th e switc h in
th e neutra l position .
Ar e voltage s a s specified ?
NO• Ope n o r shor t i n th e wire s
• Fault y steerin g colum n switc h
• Fault y colum n contro l uni t
Til t Motor :
Disconnec t th e 3 P connecto r fro m
the steerin g colum n til t motor .Check for voltag e betwee n the tiltmoto r 3 P connecto r No . 3 termi -nal an d bod y groun d wit h th e tilt -up switc h pushed . Chec k fo r volt -age betwee n th e til t moto r 3 Pconnecto r No . 1 termina l an d
bod y groun d wit h th e tilt-dow n
switc h pushed . Ther e shoul d b e
10 V or mor e wit h th e switc hpushed an d 1 V or les s wit h th eswitc h in th e neutra l position .
Ar e voltage s a s specified ?
NO• Ope n o r shor t i n th e wire s
• Fault y steerin g colum n switc h
• Fault y colum n contro l uni t
YES
Tes t th e steerin g colum n til t moto r(see pag e 23-226 ).
Doe s th e moto r ru n smoothl y
an d withou t noise ? Replac
e th e steerin g colum n til tmotor .
NO
YE S
Chec k fo r voltag e betwee n th e col -
um n contro l uni t 16 P connecto r B 1
an d B1 0 terminals . Ther e shoul d
b e 2. 5 V or mor e wit h th e steerin g
colum n i n th e fully-u p positio n
an d 2. 5 V or les s wit h th e steerin g
colum n i n th e fully-dow n position .
NOTE : Al l colum n contro l uni t con -
nector s mus t b e connected . NOTE
: I f necessary , appl y powe r an d
groun d t o th e til t moto r t o mov e th e col -
um n t o th e fully-u p an d fully-dow n posi -
tion s (se e pag e 23-226 ).
• Ope n o r shor t i n th e BL U o r BR Nwire s• Fault y til t positio n senso r
• Fault y colum n contro l uni t
NO
Substitut e a known-goo d colum ncontrol unit , an d recheck . I f th esystem s no w wor k OK , replac e
th e origina l colum n contro l unit .
Ar
e voltage s a s specified ?
YES
COLUM N CONTRO L UNI T
16 P CONNECTO R "B "
NOTE
: Al l connecto r view s ar e fro m wir e sid e
of femal e terminals .
COLUMN CONTRO L UNI T
16 P CONNECTO R "B "
TIL T MOTO R 3 P CONNECTO R
ProCarManuals.com
Page 1622 of 1954

Flowchart No . 8
Steerin g Colum n Switc h (Extend -
retract )
Chec k fo r voltag e betwee n th e col -
um n contro l uni t 16 P connecto r
B1 3 an d B1 6 terminal s wit h th e
exten d switc h pushed .
Chec k fo r voltag e betwee n th e col -
um n contro l uni t 16 P connecto r B 5
an d B1 6 terminal s wit h th e retrac tswitch pushed . Ther e shoul d b e 1
V o r les s wit h th e switc h pushe d
an d 4 V or mor e wit h th e switc h in
th e neutra l position .
• Ope n o r shor t i n th e wire s
• Fault y steerin g colum n switc h
• Fault y colum n contro l uni t
NOAr e voltage s a s specified ?
YES
Extend-retrac t Motor :Disconnec t th e 2 P connecto r fro m
th e steerin g colum n extend-retrac t
motor.Chec k fo r voltag e betwee n th e
extend-retrac t moto r 2 P connecto r
No . 2 termina l an d bod y groun d
with th e exten d switc h pushed .Check fo r voltag e betwee n th e
extend-retrac t moto r 2 P connecto r
No . 1 termina l an d bod y groun d
wit h th e retrac t switc h pushed .
Ther e shoul d b e 1 0 V or mor e
wit h th e switc h pushe d an d 1 V or
les s wit h th e switc h in th e neutra lposition .
Ar e voltage s a s specified ?
NO• Ope n o r shor t i n th e wire s
• Fault y steerin g colum n switc h
• Fault y colum n contro l uni t
YES
Tes t th e steerin g colum n extend -
retrac t moto r (se e pag e 23-226 ).
Replace th e steerin g colum n
extend-retrac t motor .
Doe
s th e moto r ru n smoothl y
an d withou t noise ?
YES
NO
NOTE : I f necessary , appl y powe r an dgroun d t o th e extend-retrac t moto r t omov e th e colum n t o th e fully-extende d
an d fully-retracte d positio n (se e pag e
23-226 ).
Chec k fo r voltag e betwee n th e col -
um n contro l uni t 16 P connecto r B 9
an d B1 0 terminals . Ther e shoul d
b e 2. 5 V or mor e wit h th e steerin g
colum n i n full y extende d positio n
an d 2. 5 V or les s wit h th e steerin g
colum n in full y retracte d position .
NOTE : Al l colum n contro l uni t con -
nector s mus t b e connected .
Ar e voltage s a s specified ?
NO• Ope n o r shor t i n th e PN K o r BR Nwire s• Fault y extend-retrac t positio nsensor• Fault y colum n contro l uni t
Substitut e a known-goo d colum n
contro l unit , an d recheck . I f th e
system s no w wor k OK , replac e
th e origina l colum n contro l unit .YES
COLUM N CONTRO L UNI T
16 P CONNECTO R "B "
(cont'd )
NOTE: Al l connecto r view s ar e fro m wir e sid e
o f femal e terminals .
COLUM N CONTRO L UNI T
16 P CONNECTO R "B "
EXTEND-RETRAC T MOTO R2P CONNECTO R
ProCarManuals.com
Page 1623 of 1954

Driving Positio n Memor y Syste m (DPMS )
Troubleshootin g (cont'd )
Flowchar t No . 9
MEM O Button :
Chec k fo r voltag e betwee n th e col -
um n contro l uni t 16 P connecto r B 8
an d B1 6 terminals . Ther e shoul d
b e 1 V or les s wit h th e MEM O but -
to n pushe d an d 5 V or mor e wit h
th e MEM O butto n released .
Ar e voltage s a s specified ?
YES
Positio n Butto n 1 :
Chec k fo r voltag e betwee n th e col -
um n contro l uni t 16 P connecto r B 7
an d B1 6 terminals . Ther e shoul d b e
1 V or les s wit h th e positio n butto n
1 pushe d an d 5 V or mor e wit h th e
positio n butto n 1 released .
Ar e voltage s a s specified ?
YES
Positio n Butto n 2 :
Chec k fo r voltag e betwee n th e
colum n contro l uni t 16 P connec -tor B1 5 an d B1 6 terminals . Ther e
shoul d b e 1 V or les s wit h th e
positio n butto n 2 pushe d an d 5 V
or mor e wit h th e positio n butto n2 released .
Ar e voltage s a s specified ?
YES
Communicatio n Lines :
Chec k fo r continuit y betwee n th e
colum n contro l uni t 12 P connecto r
A 1 termina l an d sea t contro l uni t
12 P connecto r A 1 terminal . Chec k
fo r continuit y betwee n th e colum n
contro l uni t 12 P connecto r A 7 ter -
mina l an d sea t contro l uni t 12 P
connecto r A 7 terminal .
I s ther e continuity ?
YES
Communicatio n Lines :
Chec k fo r continuit y betwee n th e
colum n contro l uni t 12 P connec -
to r A 1 termina l an d mirro r contro l
unit 12 P connecto r A 1 terminal .Check fo r continuit y betwee n th e
colum n contro l uni t 12 P connec -
to r A 7 termina l an d mirro r contro l
uni t 12 P connecto r A 7 terminal .
I s ther e continuity ?
YES
Substitut e a known-goo d colum n
contro l unit , an d recheck . I f th e
system s no w wor k OK , replac e
th e origina l colum n contro l unit . NOTE
: Al l connecto r view s ar e fro m wir e sid e
o f femal e terminals .
COLUM N CONTRO L UNI T
16 P CONNECTO R "B "
Ope n o r shor t i n th e BLU/YE L o r
YEL/BL U wire s
Fault y drivin g positio n memor y
switc h COLUM
N CONTRO L UNI T
12 P CONNECTO R "A "
Ope n in th e L T GRN/RE D o r BLK /
WH T wire s SEA
T CONTRO L UNI T
12 P CONNECTO R "A "
COLUM N CONTRO L UNI T
12 P CONNECTO R "A "
Ope n in th e L T GRN/RE D o r BLK /
WH T wire s
MIRROR CONTRO L UNI T
12 P CONNECTO R "A "
NO
NO
N O
NO
N O
Ope n o r shor t i n th e YEL/WH T o r
YEL/BL U wire s
Fault y drivin g positio n memor y
switc h
Ope n o r shor t i n th e BLU/WH T o r
YEL/BL U wire sFault y drivin g positio n memor y
switc h
ProCarManuals.com
Page 1624 of 1954

Flowchart No . 1 0
Powe r Mirro r Switch :
Tur n th e ignitio n switc h O N (II) .
Chec k fo r voltag e betwee n th e
powe r mirro r switc h connecto r A 6
an d A 7 terminals .
I s ther e batter y voltage ?
NO• Ope n o r shor t i n th e YEL/BL K
wir e
• Ope n in th e BL K wir e
• Fault y powe r mirro r switc h
Powe r Mirro r Switch :
Chec k fo r voltag e betwee n th e mir -
ro r contro l uni t 12 P connecto r A 5
an d A1 2 terminal s wit h th e mirro r
switc h presse d toward UP.
• Ope n o r shor t i n th e RED/WH T
wire• Fault y powe r mirro r switc h
NOIs ther e batter y voltage ?
YES
Powe r Mirro r Switc h (Righ t Mir -ror):1. Mov e th e selecto r switc h t oRIGHT .2. Chec k fo r voltag e betwee n th emirro r contro l uni t 12 P con -necto r A 3 an d A1 2 terminal s
wit h th e mirro r switc h presse d
towar d RIGHT .
• Ope n o r shor t i n th e BLU/GR N
wir e
• Fault y powe r mirro r switc h
NOIs ther e batter y voltage ?
YES
Powe r Mirro r Switc h (Righ t Mir -ror):Chec k fo r voltag e betwee n th e mir -
ro r contro l uni t 12 P connecto r A 4
an d A1 2 terminal s wit h th e mirro r
switc h presse d towar d LEF T o r
DOWN .
Is ther e batter y voltage ? •
Ope n o r shor t i n th e BLU/OR N
wir e
• Fault y powe r mirro r switc h
YES
NO
Powe r Mirro r Switc h (Lef t Mirror) :
Chec k fo r voltag e betwee n th e mir -
ro r contro l uni t 12 P connecto r A1 0
an d A1 2 terminal s wit h th e mirro r
switch presse d towar d LEF T o rDOWN .
To pag e 23-222
YE S
NOIs ther e batter y voltage ? •
Ope n o r shor t i n th e YE L wir e
• Fault y powe r mirro r switc h
NOTE: Al l connecto r view s ar e fro m wir e sid eof femal e terminals .
MIRRO R CONTRO L UNI T
12 P CONNECTO R "A "
ProCarManuals.com
