Page 585 of 1954

PGM-FI Syste m
Primar y Heate d Oxyge n Senso r (HO2S ) (Senso r 1 ) (cont'd )
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0132 : A hig h voltag e proble m in th e Righ t Primar y
Heated Oxyge n Senso r (Righ t Primar y HO2S ) (Ban k 1 , Senso r 1 ) circuit .
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0152 : A hig h voltag e proble m in th e Lef t Primar yHeated Oxyge n Senso r (Lef t Primar y HO2S ) (Ban k 2 , Senso r 1 ) circuit .
— Th e MI L ha s bee n reporte d on .
— DT C P013 2 and/o r P015 2 ar e
stored .
Proble m verification :
1 . D o th e PC M Rese t Procedure .
2 .
Start the engine. Hold the enginea t 3,00 0 rp m wit h n o loa d (i nPar k o r neutral ) unti l th e radia -
torfancomeson .
3. Test-driv e wit h th e transmis -sion in position .4. Chec k th e righ t primar y HO2 S
(Ban k 1 , Senso r 1 ) o r lef t primar y
HO2S * (Ban k 2 , Senso r 1 ) out -
pu t voltag e wit h th e sca n too l
durin g deceleratio n usin g com -
pletel y close d throttle .
Doe s th e voltag e sta y a t 0. 9 V
o r more ?
YES
Chec k fo r a n ope n in th e HO2S :1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e righ t primar yHO2S (Ban k 1 , Senso r 1 ) o r lef t
primar y HO2S * (Ban k 2 , Sen -
so r 1 (connector .
3. Instal l a jumpe r wir e o n th eharnes s sid e o f th e righ t primar y
HO2 S (Ban k 1 , Senso r 1 ) o r lef t
primar y HO2S * connecto r
betwee n terminal s No . 1 an d
No. 2 .4. Tur n th e ignitio n switc h O N (II) .
5 . Chec k th e righ t primar y HO2 S
(Ban k 1 , Senso r 1 ) o r lef t pri -
mar y HO2S *
(Bank 2, Sensor 1)outpu t voltag e wit h th e sca n tool .
I s ther e 0. 9 V or more ?
YES
Chec k fo r a n ope n i n th e wire s
(PO2 S line) :
1. Tur n th e ignitio n switc h OFF .2. Instal l a jumpe r wir e o n th ePC M connecto r betwee n D19 ,or D18 * and D22 .3. Tur n th e ignitio n switc h O N (II) .4. Chec k th e righ t primar y HO2 S
(Ban k 1 , Senso r 1 ) o r lef t pri -
mar y HO2S * (Ban k 2 , Senso r 1 )
outpu t voltag e wit h th e sca n tool .
I s ther e 0. 9 V or more ?
YES
Substitut e a known-goo d PC M an d
rechec k (se e pag e 11-42 fo r immo -
bilize r information) . I f symp -
tom/indicatio n goe s away , replac e
th e origina l PCM .
NO
Intermitten t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t C251 ,
C25 4 (locate d a t lef t shoc k tower) ,
C11 9 (righ t primar y HO2 S (Ban k 1 ,
Senso r 1) ) o r C12 6 (lef t primar y
HO2 S (Ban k 2 , Senso r 1)) *
RIGH T PRIMAR Y HO2 S (Ban k 1 , Senso r 1 ) CONNECTO R (C119 )
o r LEF T PRIMAR Y HO2 S (Ban k 2 , Senso r 1 ) CONNECTO R (C126 )
JUMPE R WIR E
Replac e th e HO2S . Wir
e sid e o f femal e terminal s
PC M CONNECTO R D (22P )
Repai r ope n i n th e wir e betwee n
PCM (D1 9 o r D18* ) an d righ t pri -mar y HO2 S (Ban k 1 , Senso r 1 ) o r
lef t primar y HO2S * (Ban k 2 ,
Senso r 1) . Wir
e sid e o f femal e terminal s
* : P015 2NO
N
O
JUMPE RWIRE
ProCarManuals.com
Page 586 of 1954

The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0133 : A slo w respons e proble m in th e Righ t Primar y
Heate d Oxyge n Senso r (Righ t Primar y HO2S ) (Ban k 1 , Senso r 1 ) circuit .
Th e sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0153 : A slo w respons e proble m in th e Lef t Primar y
Heate d Oxyge n Senso r (Lef t Primar y HO2S ) (Ban k 2 , Senso r 1 ) circuit .
Descriptio n
B y controllin g th e air/fue l rati o wit h a Primar y HO2 S (Senso r 1 ) an d a Secondar y HO2 S (Senso r 2) , th e deterioratio n o f th e
Primar y HO2 S (Senso r 1 ) ca n b e evaluate d b y it s feedbac k period . Whe n th e feedbac k perio d o f th e HO2 S exceed s a certai n
valu e durin g stabl e drivin g conditions , th e senso r wil l b e judge d a s deteriorated . Whe n deterioratio n ha s bee n detecte d dur -
in g tw o consecutiv e trips , th e MI L come s o n an d DT C P013 3 o r P015 3 wil l b e stored .
NOTE : I f DT C P0131 , P013 2 and/o r P013 5 ar e store d a t th e sam e tim e a s DT C P0133 , troubleshoo t thos e DTC s first , the n
troubleshoo t DT C P0133 . I f DT C P0151 , P015 2 and/o r P015 5 ar e store d a t th e sam e tim e a s DT C P0153 , troubleshoo t thos e
DTC s first , the n troubleshoo t DT C P0153 .
Is DT C P013 3 and/o r P015 3
indicated ?
YES
Replace the primary HO2S (Sen-
sor 1).
NO
Intermitten t failure , syste m is O Kat thi s time . Chec k fo r poo r con -nection s o r loos e wire s a t C251 ,
C25 4 (locate d a t lef t shoc k tower) ,
C11 9 (righ t primar y HO2 S (Ban k 1 ,
Senso r 1) ) o r C12 6 (lef t primar y
HO2 S (Ban k 2 , Senso r 1)) * an d
PCM .
*: P015 3
Proble m verification :
1 . D o th e PC M Rese t Procedure .
2 . Star t th e engine . Hol d th e
engin e a t 3,00 0 rp m wit h n oloa d (i n Par k o r neutral ) unti l
th e radiato r fa n come s on .
3 . Connec t th e SC S servic e con -
nector .
4 . Test-driv e unde r followin g
conditions .— 5 5 mp h (8 8 km/h ) stead y
spee d
— Transmissio n i n posi -tion— Unti l readines s cod e come son
Possibl e Caus e
• Primar y HO2 S (Senso r 1 ) Deterioratio n
• Primar y HO2 S Heate r (Senso r 1 ) Deterioratio n
• Exhaus t syste m leakag e
Troubleshootin g Flowchar t
— Th e MI L ha s bee n reporte d on .
— DT C P013 3 and/o r P015 3
stored.
ProCarManuals.com
Page 587 of 1954

PGM-FI Syste m
Secondar y Heate d Oxyge n Senso r (HO2S ) (Senso r 2 )
Th e sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0137 : A lo w voltag e proble m in th e Secondar y Heate d
Oxygen Senso r (Secondar y HO2S ) (Senso r 2 ) circuit .
— Th e MI L ha s bee n reporte d on .
— DT C P013 7 is stored .
Proble m verification :
1 . D o th e PC M Rese t Procedure .
2. Star t th e engine . Hol d th eengin e a t 3,00 0 rp m wit h n oloa d (i n Par k o r neutral ) unti l
th e radiato r fa n come s on .
3 . Chec k th e secondar y HO2 S
(Senso r 2 ) outpu t voltag e wit hthe sca n too l a t 3,00 0 rpm .
Doe s th e voltag e sta y a t 0. 3 V
o r less ?
YES
Chec k fo r a shor t i n th e HO2S :1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e secondar y
HO2 S (Senso r 2 ) connector .
3 . Star t th e engine .
4 . Chec k th e secondar y HO2 S
(Senso r 2 ) outpu t wit h th e sca n
tool.
Doe s th e voltag e sta y a t 0. 3 Vor less ?
YES
Chec k fo r a shor t i n th e wir e(SO2 S line) :1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e PC M connec -tor F (8P) .3. Chec k fo r continuit y betwee nNo. 1 termina l o n th e second -ary HO2 S (Senso r 2 ) connec -tor an d bod y ground .
Is ther e continuity ?
NO
Substitut e a known-goo d PC M
an d rechec k (se e pag e 11-42 fo r
immobilize r information) . I f symp -
tom/indicatio n goe s away , replac e
th e origina l PCM .
NO
Intermitten t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t C44 4
(locate d behin d righ t kic k panel) ,
C61 0 (secondar y HO2 S (Senso r
2)) an d PCM .
Replac e th e HO2 S (Senso r 2) .
SECONDAR YHO2S (Senso r 2 ) CONNECTO R (C610 )
SHO2S(WHT /RED)
Repai r shor t i n th e wir e betwee n
PC M (F2 ) an d secondar y HO2 S
(Senso r 2) . Wir
e sid e o f femal e terminal sYES
NO
ProCarManuals.com
Page 588 of 1954

The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0138 : A hig h voltag e proble m in th e Secondar y Heate d
Oxygen Senso r (HO2S ) (Senso r 2 ) circuit .
— Th e MI L ha s bee n reporte d on .
— DT C P013 8 is stored .
Proble m verification :
1 . D o th e PC M Rese t Procedure .
2 . Star t th e engine . Hol d th e
engin e a t 3,00 0 rp m wit h n oloa d (i n Par k o r neutral ) unti l
th e radiato r fa n come s on .
3 . Chec k th e secondar y HO2 S
(Senso r 2 ) outpu t a t 3,00 0 rp m
voltag e wit h th e sca n tool .
Doe s th e voltag e sta y a t 0. 6 V
o r more ?
YES
Chec k fo r a n ope n in th e HO2S :
1 . Tur n th e ignitio n switc h OFF .
2 . Disconnec t th e secondar y
HO2 S (Senso r 2 ) connector .
3 . Instal l a jumpe r wire betwee n
th e secondar y HO2 S (Senso r 2 )
connecto r (harnes s side ) No . 1
termina l an d No . 2 terminal .
4. Tur n th e ignitio n switc h O N (II) .5. Chec k th e secondar y HO2 S
(Senso r 2 ) outpu t voltag e wit h
th e sca n tool .
I s ther e 0. 6 V or more ?
YES
Chec k fo r a n ope n i n th e wir e
(SO2 S line) :
1 . Tur n th e ignitio n switc h OFF .
2 . Instal l a jumpe r wir e betwee n
the PC M connecto r terminal sF2 an d F6 .3. Tur n th e ignitio n switc h O N (II) .
4 . Chec k th e secondar y HO2 S
(Senso r 2 ) outpu t voltag e wit h
the sca n tool .
Is ther e 0. 6 V or more ?
YES
Substitut e a known-goo d PC M
an d rechec k (se e pag e 11-42 fo r
immobilize r information) . I f symp -
tom/indicatio n goe s away , replac e
th e origina l PCM .
NO
Intermitten t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t C44 4
(locate d behin d righ t kic k panel) ,
C61 0 (secondar y HO2 S (Senso r
2)) an d PCM .
SECONDAR Y HO2 S (Senso r 2 ) CONNECTO R (C610 )
SHO2 S
(WHT /RED)
SO2S GN D(GRN/WHT )
Wire sid e o f femal e terminal s
Replac e th e secondar y HO2 S (Sen -
sor 2) .
JUMPE RWIRE
SO2S GN D(GRN/WHT )
Repair ope n i n th e wir e betwee nPCM (F2 ) o r (F6 ) an d secondar yHO2S (Senso r 2) . Wir
e sid e o f femal e terminal s
NO
PC M CONNECTO R F (8P )
SO2 S(WHT/RED )
JUMPER WIR E
ProCarManuals.com
Page 589 of 1954
PGM-FI System
Secondary Heated Oxygen Sensor (HO2S) (Sensor 2) (cont'd)
Does the voltage stay within
0.3 - 0.6 V for 2 minutes?
NO
Intermittent failure, system is OK
at this time. Check for poor con-
nections or loose wires at C444
(located behind right kick panel),
C610 (secondary HO2S (Sensor
2)) and
PCM.
The scan tool indicates Diagnostic Trouble Code (DTC) P0139: A slow response problem in the Secondary
Heated Oxygen Sensor (Secondary HO2S) (Sensor 2) circuit.
— The MIL has been reported on.
— DTC P0139 is stored.
Problem verification:
1. Do the PCM Reset Procedure.
2. Start the engine. Hold the
engine at 3,000 rpm with no
load (in Park or neutral) until
the radiator fan comes on.
3. Check the secondary HO2S
(Sensor 2) or output at 3,000
rpm with the scan tool.
Replace the secondary HO2S (Sen-
sor 2).
YESProCarManuals.com
Page 590 of 1954

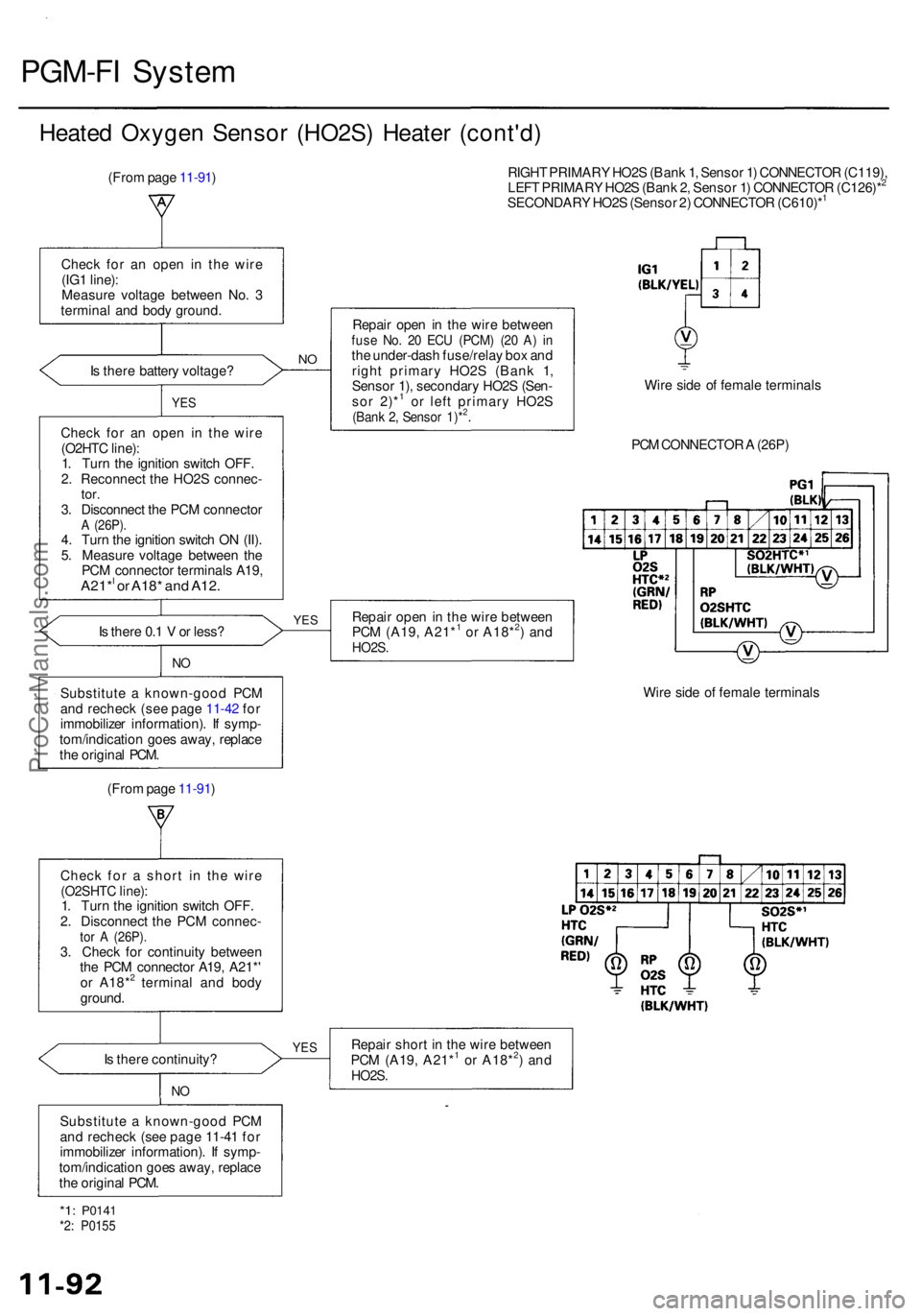

Heated Oxyge n Senso r (HO2S ) Heate r
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0135 : A proble m in th e Righ t Primar y Heate d Oxyge n
Sensor (Righ t Primar y HO2S ) (Ban k 1 , Senso r 1 ) Heate r circuit .
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0141 : A proble m in th e Secondar y Heate d Oxyge n
Sensor (Secondar y HO2S ) (Senso r 2 ) Heate r circuit .
The sca n too l indicate s Diagnosti c Troubl e Cod e (DTC ) P0155 : A proble m in th e Lef t Primar y Heate d Oxyge n
Sensor (Lef t Primar y HO2S ) (Ban k 2 , Senso r 1 ) Heate r circuit .
— Th e MI L ha s bee n reporte d on .
— DT C P0135 , P014 1 and/o r
P015 5 ar e stored .
Proble m verification :
1 . D o th e PC M Rese t Procedure .
2 . Star t th e engine .
I s DT C P0135 , P014 1 o r P015 5
indicated ?
YES
Chec k fo r a n ope n o r shor t i n th eHO2S :1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e righ t primar y
HO2 S (Ban k 1 , Senso r 1) , sec -
ondar y HO2 S (Senso r 2)*
1 o rleft primar y HO2 S (Ban k 2 ,Senso r 1 )*2 connector .
3 . Measur e resistanc e betwee n
th e 4 P connecto r No . 3 an d
No . 4 terminal s o n th e HO2 S
side .
Is there 10 - 40 ?
YE S
Chec k fo r continuit y t o bod y
groun d o n HO2 S terminal s No . 3
termina l an d No . 4 individually .
Is ther e continuity ?
NO
Chec k fo r a n ope n o r shor t i n th e
wire s H G 1, O2SHT C lines) :
1. Tur n th e ignitio n switc h O N (II) .2. Measur e voltag e betwee n No .
3 termina l an d No . 4 termina l
o n th e harnes s sid e o f th e 4 P
connector . RIGH
T PRIMAR Y HO2 S (Ban k 1 , Senso r 1 ) CONNECTOR ,
LEF T PRIMAR Y HO2 S (Ban k 2 , Senso r 1 ) CONNECTOR *
SECONDAR Y HO2 S (Senso r 2 ) CONNECTOR*
1
N O
Intermitten t failure , syste m is O K
a t thi s time . Chec k fo r poo r con -
nection s o r loos e wire s a t C251 ,
C25 3 (locate d a t lef t shoc k tower) ,
C442 , C44 4 (locate d behin d righ t
kic k panel)*
1, C11 9 (righ t primar y
HO2 S (Ban k 1 , Senso r 1)) , C61 0
(secondar y HO2 S (Senso r 2))*
1 o r
C12 6 (lef t primar y HO2 S (Ban k 2 ,
Senso r 1)*
2 an d PCM . Termina
l sid e o f mal e terminal s
Replac e th e HO2S .
Replac e th e HO2S .
RIGHT PRIMAR Y HO2 S (Ban k 1 , Senso r 1 ) CONNECTO R (C119) ,
LEF T PRIMAR Y HO2 S (Ban k 2 , Senso r 1 ) CONNECTO R (C126)*
2
SECONDAR Y HO2 S (Senso r 2 ) CONNECTO R (C610)*1
Is ther e batter y voltage ?YES
NO
(T o pag e 11-92 ) (T
o pag e 11-92 ) Wir
e sid e o f femal e terminal s*1: P014 1*2: P015 5
YES
NO
ProCarManuals.com
Page 591 of 1954

PGM-FI Syste m
Heated Oxyge n Senso r (HO2S ) Heate r (cont'd )
(From pag e 11-91 ) RIGH
T PRIMAR Y HO2 S (Ban k 1 , Senso r 1 ) CONNECTO R (C119) ,
LEF T PRIMAR Y HO2 S (Ban k 2 , Senso r 1 ) CONNECTO R (C126)*2
SECONDAR Y HO2 S (Senso r 2 ) CONNECTO R (C610)*1
Chec k fo r a n ope n i n th e wir e
(IG 1 line) :
Measur e voltag e betwee n No . 3
termina l an d bod y ground .
I s ther e batter y voltage ?
YES
Chec k fo r a n ope n i n th e wir e
(O2HT C line) :
1 . Tur n th e ignitio n switc h OFF .
2 . Reconnec t th e HO2 S connec -
tor.3. Disconnec t th e PC M connecto rA (26P) .4. Tur n th e ignitio n switc h O N (II) .
5 . Measur e voltag e betwee n th e
PC M connecto r terminal s A19 ,
A21*l or A18 * an d A12 .
Is ther e 0. 1 V or less ?
NO
Substitut e a known-goo d PC M
an d rechec k (se e pag e 11-42 fo r
immobilize r information) . I f symp -
tom/indicatio n goe s away , replac e
th e origina l PCM .
(Fro m pag e 11-91 )
Chec k fo r a shor t i n th e wir e
(O2SHT C line) :1. Tur n th e ignitio n switc h OFF .
2 . Disconnec t th e PC M connec -
tor A (26P) .3. Chec k fo r continuit y betwee n
th e PC M connecto r A19 , A21* '
o r A18*
2 termina l an d bod y
ground .
I s ther e continuity ?
NO
Substitut e a known-goo d PC M
an d rechec k (se e pag e 11-4 1 fo r
immobilize r information) . I f symp -
tom/indicatio n goe s away , replac e
th e origina l PCM .
*1: P014 1*2: P015 5
NO
Repai r ope n in th e wir e betwee nfuse No . 2 0 EC U (PCM ) (2 0 A ) i nth e under-das h fuse/rela y bo x an d
righ t primar y HO2 S (Ban k 1 ,
Senso r 1) , secondar y HO2 S (Sen -
so r 2)*
1 o r lef t primar y HO2 S(Bank 2 , Senso r 1)*2.
Wir e sid e o f femal e terminal s
PC M CONNECTO R A (26P )
Repai r ope n in th e wir e betwee n
PC M (A19 , A21*
1 o r A18*2) an dHO2S .
Wire sid e o f femal e terminal s
Repai r shor t i n th e wir e betwee n
PC M (A19 , A21*
1 o r A18*2) an dHO2S .
YES
YES
ProCarManuals.com
Page 592 of 1954

Fuel Supply System
Description
By monitoring the Long Term Fuel Trim, long term malfunctions in the fuel system will be detected.
If a
malfunction
has
been detected during
two
consecutive
trips,
the MIL
will
come
on and DTC
P0171, P0172,
P0174
and/or P0175 will be stored.
NOTE: If some of the DTCs listed below are stored at the same time as DTC P0171, P0172, P0174 and/or P0175, trou-
bleshoot those DTCs first, then troubleshoot DTC P0171, P0172, P0174 and/or P0175.
P0106*1, P0107, P0108, P1128*2, P1129*2: MAP Sensor
P0135: Right Primary HO2S Heater (Bank 1, Sensor 1)
P0137, P0138: Secondary HO2S (Sensor 2)
P0141: Secondary HO2S Heater (Sensor 2)
P0155: Left Primary HO2S Heater (Bank 2, Sensor 1)
P0401: EGR Flow Insufficient
P1491: EGR Valve Lift Insufficient
P1498: EGR Valve Position Sensor High Voltage
*1: '96 model only
*2: '97 - 01 models
DTC P0172, P0175
System too rich
• Fuel Pump insufficient flow/pressure
• Fuel Feed Line clogged, leaking
• Fuel Pressure Regulator stuck open
• Fuel Filter clogged
• Injector clogged, air inclusion
• Gasoline doesn't meet Owner's Manual spec.
• Primary HO2S (Sensor 1) deteriorated
• MAP Sensor range/performance*1
• EGR System insufficient flow
• Exhaust leak
• Fuel Pressure Regulator clogged, stuck closed
• Fuel Return Pipe clogged
• Injector leaking
• Gasoline doesn't meet Owner's Manual spec.
• Primary HO2S (Sensor 1) deteriorated
• MAP Sensor range/performance*1
• EGR System malfunction (too much flow)
• EVAP Canister Purge Valve leaking, stuck opened
DTCP0171, P0174
System too lean
The scan tool indicates Diagnostic Trouble Code (DTC) P0171: The fuel system is too lean [Right Bank (Bank 1)].
The scan tool indicates Diagnostic Trouble Code (DTC) P0172: The fuel system is too rich [Right Bank (Bank 1)].
The scan tool indicates Diagnostic Trouble Code (DTC) P0174: The fuel system is too lean [Left Bank (Bank 2)].
The scan tool indicates Diagnostic Trouble Code (DTC) P0175: The fuel system is too rich [Left Bank (Bank 2)].
Possible CauseProCarManuals.com
