1996 ACURA RL KA9 Service Repair Manual

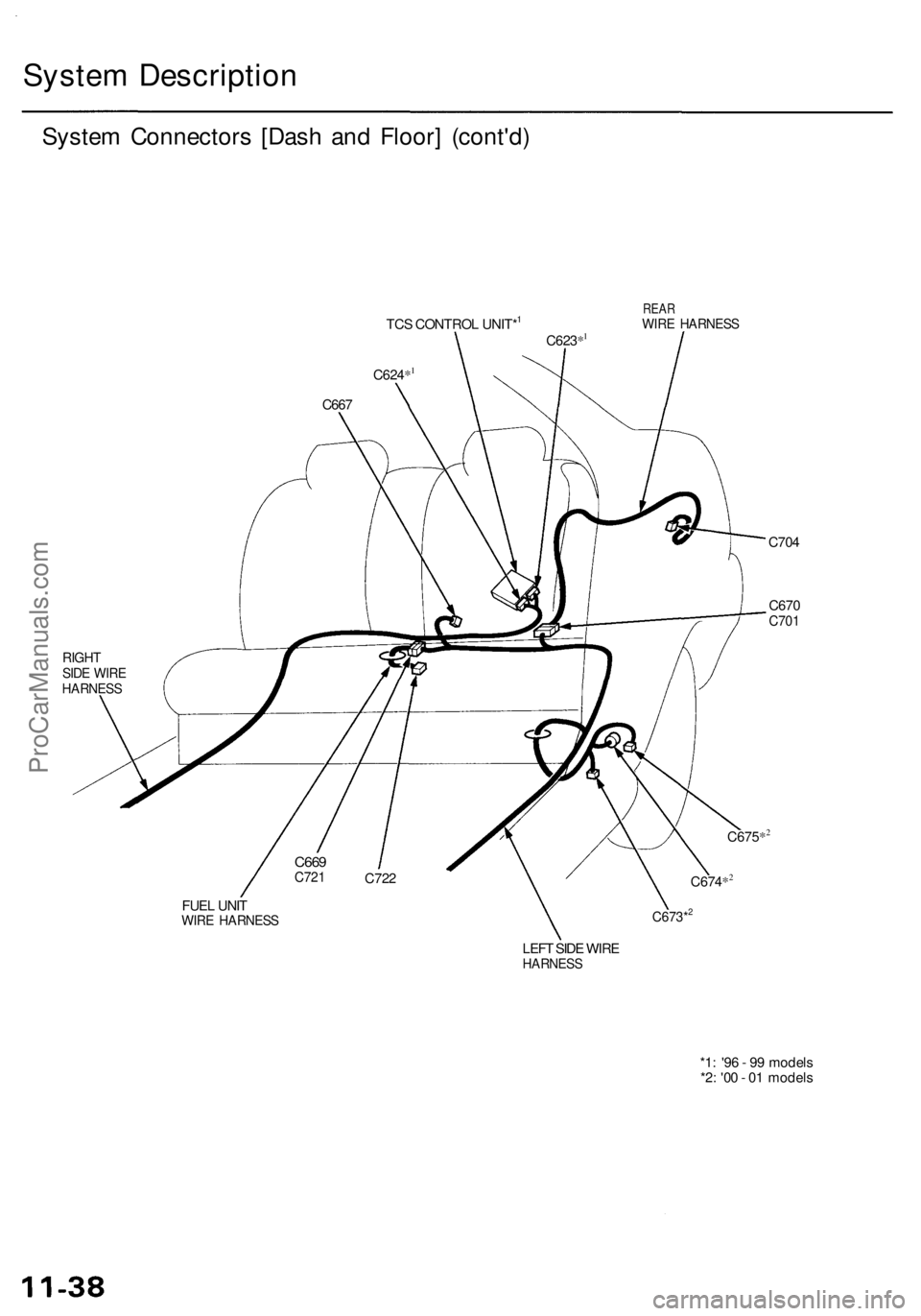

System Descriptio n
System Connector s [Das h an d Floor ] (cont'd )
TCS CONTRO L UNIT*1
C624 *1
REARWIRE HARNES S
C667
C704
RIGH TSIDE WIR EHARNES S
C675*2
FUEL UNI TWIR E HARNES S
LEFT SID E WIR EHARNES S
*1: '9 6 - 9 9 model s
*2 : '0 0 - 0 1 model s
C669C72 1 C72 2
C673*2
C674 *2
C670C70 1
C623 *1
ProCarManuals.com

*1: '96 - 99 models

*2: '00 - 01 models

NOTE:
Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1

and YEL/BLK2 are not the same).

Connector with male terminals (double outline): View from terminal side

Connector with female terminals (single outline): View from wire side

Related to Fuel and Emissions System.ProCarManuals.com

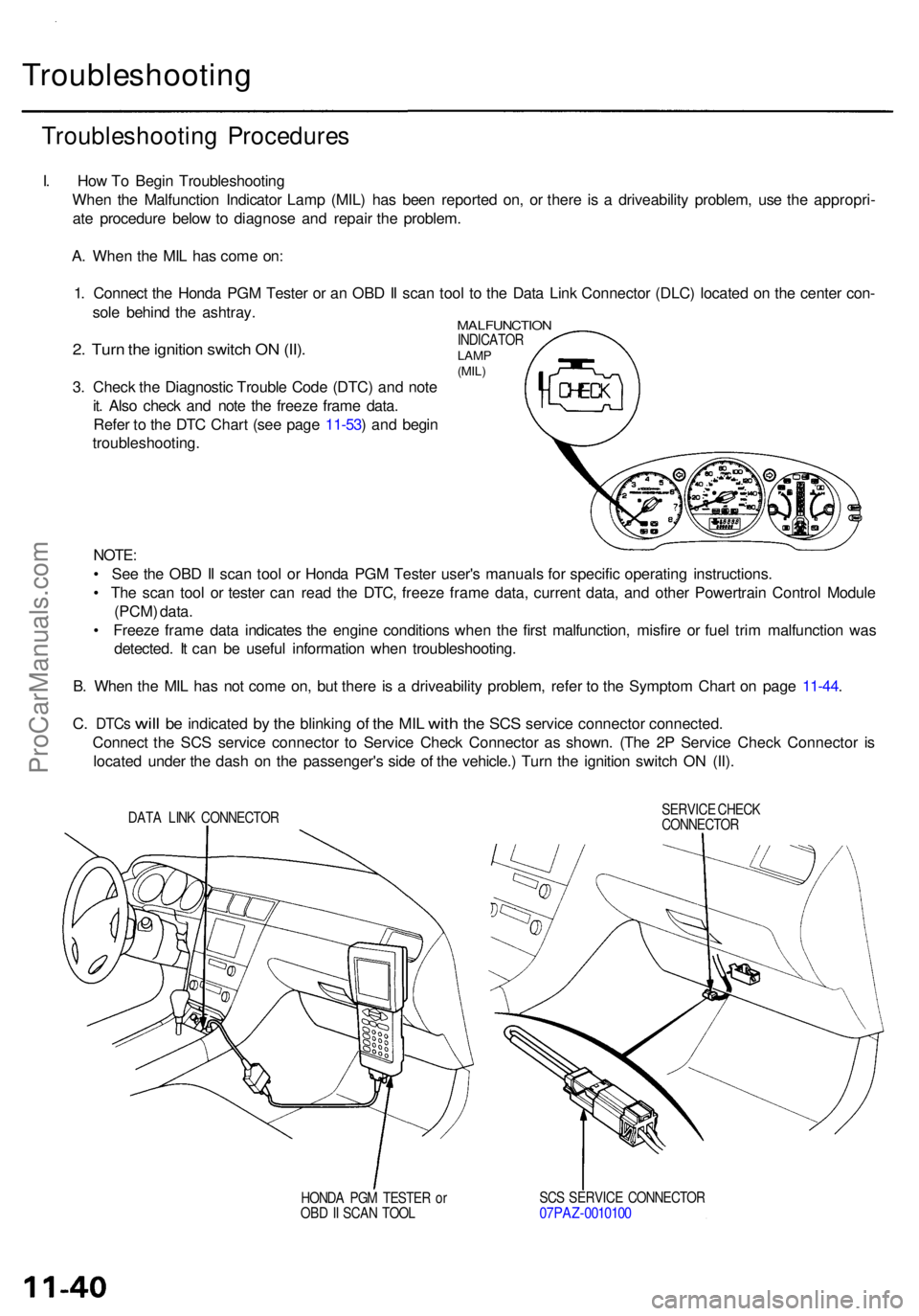

Troubleshooting
Troubleshooting Procedure s
I. Ho w T o Begi n Troubleshootin g
Whe n th e Malfunctio n Indicato r Lam p (MIL ) ha s bee n reporte d on , o r ther e i s a driveabilit y problem , us e th e appropri -
at e procedur e belo w to diagnos e an d repai r th e problem .
A . Whe n th e MI L ha s com e on :
1 . Connec t th e Hond a PG M Teste r o r a n OB D II sca n too l t o th e Dat a Lin k Connecto r (DLC ) locate d o n th e cente r con -
sol e behin d th e ashtray .
MALFUNCTIO NINDICATORLAMP
(MIL )2. Tur n th e ignitio n switc h O N (II) .
3. Chec k th e Diagnosti c Troubl e Cod e (DTC ) an d not e
it . Als o chec k an d not e th e freez e fram e data .
Refe r t o th e DT C Char t (se e pag e 11-53 ) an d begi n
troubleshooting .
NOTE:
• Se e th e OB D II sca n too l o r Hond a PG M Teste r user' s manual s fo r specifi c operatin g instructions .
• Th e sca n too l o r teste r can read th e DTC , freez e fram e data , curren t data , an d othe r Powertrai n Contro l Modul e
(PCM ) data .
• Freez e fram e dat a indicate s th e engin e condition s whe n th e firs t malfunction , misfir e o r fue l tri m malfunctio n wa s
detected . I t ca n b e usefu l informatio n whe n troubleshooting .
B . Whe n th e MI L ha s no t com e on , bu t ther e i s a driveabilit y problem , refe r t o th e Sympto m Char t o n pag e 11-44 .
C. DTC s will be indicate d by th e blinkin g of th e MI L wit h the SC S servic e connecto r connected .
Connec t th e SC S servic e connecto r t o Servic e Chec k Connecto r a s shown . (Th e 2 P Servic e Chec k Connecto r i s
locate d unde r th e das h o n th e passenger' s sid e o f th e vehicle. ) Tur n th e ignitio n switc h O N (II) .
SERVIC E CHEC K
CONNECTO R
DAT
A LIN K CONNECTO R
SCS SERVIC E CONNECTO R
07PAZ-001010 0HONDA PG M TESTE R o r
OB D II SCA N TOO L
ProCarManuals.com

II. Powertrai n Contro l Modul e (PCM ) Rese t Procedur e
NOTE : Th e PC M memor y settin g is neede d afte r resettin g th e PC M (se e pag e 11-125 ).
Eithe r o f th e followin g action s wil l rese t th e PCM .
• Us e th e OB D II sca n too l o r Hond a PG M Teste r t o clea r th e PCM' s memory .
NOTE : Se e th e OB D II sca n too l o r Hond a PG M Teste r user' s manual s fo r specifi c operatin g instructions .
• Tur n th e ignitio n switc h OFF . Remov e th e BAC K U P RADI O (7. 5 A ) fus e fro m th e under-hoo d fuse/rela y bo x fo r
1 0 seconds .
NOTE : I f th e BAC K U P RADI O (7. 5 A ) fus e i s remove d an d th e ignitio n switc h O N (II) , MI L wil l repor t o n an d
BAC K U P RADI O
(7. 5 A ) FUS EPCM wil l stor e th e DT C P0560 .
UNDER-HOO DFUSE/RELA YBOX
III. Fina l Procedur e (thi s procedur e mus t b e don e afte r an y troubleshooting )
1 . Remov e th e SC S servic e connecto r i f i t i s connected .
NOTE : I f th e SC S servic e connecto r i s connecte d an d ther e ar e n o DTC s store d i n th e PCM , th e MI L wil l sta y
on whe n th e ignitio n switc h is turne d O N (II) .
2. D o th e PC M Rese t Procedure .
3 . Tur n th e ignitio n switc h OFF .
4 . Disconnec t th e OB D II sca n too l o r Hond a PG M Teste r fro m th e Dat a Lin k Connector .
ProCarManuals.com

PCM
PCM

COVER
9.8 N-m

(1.0 kgf-m,

7.2 Ibf-ft)
6. After completing your tests, reinstall both PCM's, and destroy the temporary key.

If the inspection for a particular code requires voltage or resistance checks at the PCM connectors, remove the right

door sill molding. Pull the carpet back to expose the PCM. Unbolt the PCM cover, and connect the backprobe sets and

a digital multimeter as described below. Check the system according to the procedure described for the appropriate code(s)

listed on the following pages.
DONOR

KEY
TEMPORARY

KEY
Troubleshooting

Troubleshooting Procedures (cont'd)

IV. Known-Good PCM Substitution

Use the following procedure if you need a known-good PCM to test a vehicle. It allows you to swap an PCM from a

"donor" vehicle without having to program it to the test vehicle's ignition key.

1. Cut a temporary ignition key for the test vehicle with a non-immobilizer key blank.

2. Remove the PCM from the test vehicle.

3. Write the test vehicle's VIN on the PCM you just removed to avoid confusing it with the donor vehicle's PCM.

4. Remove the known-good PCM from the donor vehicle, and install it in the test vehicle.

5. Tape the donor vehicle's ignition key head-to-head to the test vehicle's temporary key. The PCM will recognize the code

from the donor vehicle's key and allow you to start the engine with the temporary key.ProCarManuals.com
