Page 465 of 1954

Engine Oi l
Replacemen t
CAUTION: Remov e th e drai n bol t carefull y whil e th e
engin e is hot ; th e ho t oi l ma y caus e scalding .
1 . War m u p th e engine .
2 . Drai n th e engin e oil .
WASHE RReplace.
DRAIN BOL T44 N- m (4. 5 kgf-m , 3 3 Ibf-ft )Do no t overtighten .
3. Reinstal l th e drai n bol t wit h a ne w washer , an d refil l
with th e recommende d oil .
Requiremen tAPI Servic e Grade : Us e "Energ y
Conserving " S J o r "Energ y Con -
servin g II " S H grad e oil . SA E 5 W - 30
preferred . Yo u ca n als o us e a n oi l tha t
bear s th e AP I CERTIFICATIO N mark .
Capacit y
4.3 (4. 5 US qt , 3. 8 Im p qt )
at oi l change .
4.6 (4. 9 US qt , 4. 0 Im p qt )
at oi l chang e includin g filter .
5.3 (5. 6 US qt , 4. 7 Im p qt )
afte r engin e overhaul .
Change
interval Ever
y 7,50 0 mile s (12,00 0 km ) o r
1 2 month s
(Norma l conditions) .
Ever y 3,75 0 mile s (6,00 0 km ) o r
6 month s (Sever e conditions) .
NOTE : Unde r norma l conditions , th e oi l filte r shoul d b e
replace d a t ever y othe r oi l change . Unde r sever e condi -
tions , th e oi l filte r shoul d b e replace d a t eac h oi l change .
ProCarManuals.com
Page 466 of 1954
The numbers in the middle of the API Service label tell
you the oil's SAE viscosity or weight. Select the oil for
your vehicle according to this chart:
Ambient Temperature
An oil with a viscosity of 5W - 30 is preferred for
improved fuel economy and year-round protection in
the vehicle. You may use a 10W - 30 oil if the climate in
your area is limited to the temperature range shown on
the chart.
API SERVICE LABEL
4. Run the engine for more than 3 minutes, then check
for oil leakage.ProCarManuals.com
Page 467 of 1954
Oil Filter
Replacement
CAUTION: Loosen the engine oil filter carefully while
the engine is hot, the hot oil may cause scalding.
1. Remove the oil filter with the special oil filter
wrench.
2. Inspect the threads and rubber seal on the new fil-
ter. Wipe off the seat on the engine block, then
apply a light coat of oil to the filter rubber seal.
NOTE: Use only filters with a built-in bypass sys-
tem.
Inspect threads and
rubber seal surface.
Apply oil to rubber seal
before installing.
(cont'd)ProCarManuals.com
Page 468 of 1954

Replacement (cont'd )
3. Instal l th e oi l filte r b y hand .
4 . Afte r th e rubbe r sea l seats , tighte n th e oi l filte r
clockwis e wit h th e tool .
Tighten : 7/ 8 tur n clockwise .
Tightenin g torque : 2 2 N- m (2. 2 kgf-m , 1 6 Ibf-ft )
Oil Filte r
OIL FILTE R WRENC H07912-611000 1
Use thi s procedur e t o tighte n th e filte r i f eigh t number s
( 1 t o 8 ) ar e printe d o n th e surfac e o f th e filter .
1 ) Mak e a mar k o n th e oi l pa n unde r th e numbe r tha t
show s a t th e botto m o f th e filte r whe n th e rubbe r
sea l i s seated .
2 ) Tighte n th e filte r b y turnin g i t clockwis e seve n num -
ber s fro m th e marke d point . Fo r example , i f a mar k
i s mad e unde r th e numbe r 2 whe n th e rubbe r sea l
i s seated , th e filte r shoul d b e tightene d unti l th e
numbe r 1 come s u p to th e marke d point .
Numbe r whe n rubbe r Numbe r afte r tightening ,seal i s seated .
CAUTION : Usin g an y procedur e othe r tha n thos e
show n coul d resul t i n seriou s engin e damag e du e
t o oi l leakage .
5. Afte r installation , fil l th e engin e wit h oi l u p t o th e
specifie d level , ru n th e engine for mor e tha n thre e
minutes , the n chec k fo r oi l leakage .
ProCarManuals.com
Page 469 of 1954

3. I f th e switc h fail s t o operate , chec k th e engin e oi l
level . I f th e engin e oi l leve l i s OK , chec k th e engin e
oi l pressure .
YEL/RED WIR E(Covere d wit hinsulation )
Testing
1. Remov e th e YEL/RE D wir e fro m th e engin e oi l pres -
sur e switch .
2 . Chec k fo r continuit y betwee n th e positiv e termina l
an d th e engin e (ground) .
• Ther e shoul d b e continuit y wit h th e engin e
stopped .
• Ther e shoul d b e n o continuit y wit h th e engin e
running .
POSITIV E TERMINA LENGIN
E OI L
PRESSUR E SWITC H
1 8 N- m (1. 8 kgf-m ,
1 3 Ibf-ft )
Apply liqui d sealan tto th e threads .
Oil Pressur e Switc hOil Pressur e
Testing
If th e oi l pressur e indicato r ligh t stay s o n wit h th e
engin e running , chec k th e engin e oi l level . I f th e oi l leve l
i s correct :
1 . Connec t a tachometer .
2 . Remov e th e engin e oi l pressur e switch , an d instal l
a n oi l pressur e gauge .
ADAPTE R(1/8"-28 BSPT ) ENGIN
E OI L PRESSUR E
SWITC H MOUNTIN GHOLE
OIL PRESSUR EGAUGE(Commerciall y available )
3. Star t th e engine . Shu t i t of f immediatel y i f th e gaug e
register s n o oi l pressure . Repai r th e proble m befor e
continuing .
4. Allo w th e engin e to reac h operatin g temperatur e (fa n
come s o n a t leas t twice) . Th e pressur e shoul d be :
Engin e Oi l Temperature : 176° F (80°C )
Engin e Oi l Pressure :
A t Idle : 7 0 kP a (0. 7 kgf/cm
2, 1 0 psi )
minimu m
At 3,00 0 rpm : 34 0 kP a (3. 5 kgf/cm2, 5 0 psi )
minimu m
I f oi l pressur e i s NO T withi n specifications , inspec t
th e oi l pum p (se e pag e 8-14 ).
ProCarManuals.com
Page 470 of 1954

Oil Pa n
Remova l
Engine remova l i s no t require d i n thi s procedure .
• Mak e sur e jack s an d safet y stand s ar e place d properl y
(se e sectio n 1 ).
• Appl y th e parkin g brak e an d bloc k th e rea r wheel s s o
th e vehicl e wil l no t rol l of f stand s whil e yo u ar e
workin g unde r it .
CAUTION :
• Us e fende r cover s t o avoi d damagin g painte d sur -
faces .
• Unplu g th e wirin g connector s carefull y whil e holdin g
th e connecto r portio n to avoi d damaging .
• Mar k al l wirin g an d hose s t o avoi d misconnection .
Also , b e sur e tha t the y d o no t contac t othe r wirin g
o r hose s o r interfer e wit h othe r parts .
1 . Loose n th e idle r pulle y cente r nu t an d adjustin g bolt ,
the n remov e th e ai r conditionin g (A/C ) compresso r
bel t (se e pag e 5-7 ).
2 . Disconnec t th e powe r steerin g pressur e (PSP )
switc h connector , the n remov e th e powe r steerin g
pum p bel t an d pum p (se e pag e 5-8 ).
3 . Remov e th e lef t an d righ t sid e exhaus t manifol d
covers (se e pag e 9-4 ).
4 . Rais e th e hois t t o ful l height .
5 . Remov e th e fron t tires/wheel s an d splas h shiel d
(se e pag e 5-8 ).
6 . Remov e th e dampe r fork s (se e sectio n 18 ).
7 . Disconnec t th e suspensio n lowe r ar m bal l joint s
with the specia l tool . Refe r t o sectio n 1 8 fo r th e
prope r procedure .
8 . Remov e th e driveshaft s an d intermediat e shaf t (se e
sectio n 16 ).
9 . Drai n th e differentia l oil . Reinstal l th e drai n plu g usin g
a ne w washe r (se e sectio n 15 ).
10 . Drai n th e engin e oil . Reinstal l th e drai n bol t usin g a
ne w washe r (se e pag e 8-4 ).
11 . Disconnec t th e vehicl e spee d senso r (VSS ) connec -
tor , the n remov e th e VSS/powe r steerin g spee d
senso r (se e pag e 5-9 ).
D o no t disconnec t th e flui d hoses .
12 x 1.2 5 mm64 N- m (6. 5 kgf-m , 4 7 Ibf-ft )Apply liqui d gaske t t o th ebol t threads .
12 x 1.2 5 mm64 N- m (6. 5 kgf-m ,
4 7 Ibf-ft )
12. Remov e th e lowe r plat e fro m th e rea r beam .
LOWE R PLAT E
10 x 1.2 5 mm38 N- m (3. 9 kgf-m ,
2 8 Ibf-ft )
13. Remov e th e A/ C compresso r (se e pag e 5-9 ).
14 . Attac h th e chai n hois t t o th e engin e (se e pag e 5-11 ).
15 . Remov e th e lef t engin e moun t bracke t (se e pag e 5-14 ).
16 . Remov e th e righ t engin e moun t bracket .
10 x 1.2 5 mm38 N- m (3. 9 kgf-m ,
2 8 Ibf-ft )12 x 1.2 5 mm64 N- m (6. 5 kgf-m ,
4 7 Ibf-ft )
RIGHT ENGIN E
MOUN T BRACKE T
ProCarManuals.com

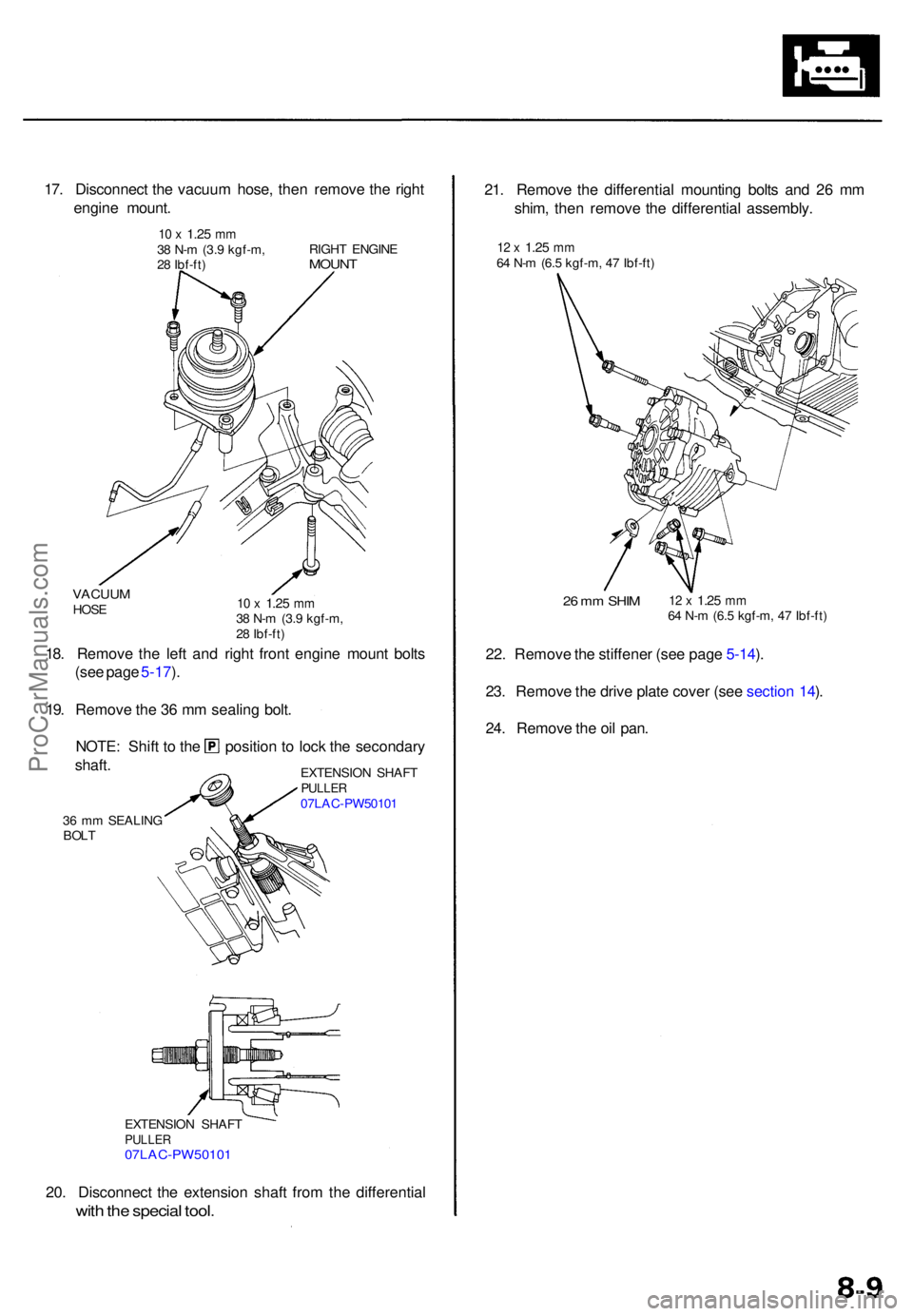

Page 471 of 1954
20. Disconnec t th e extensio n shaf t fro m th e differentia l
with th e specia l tool .
EXTENSIO N SHAF TPULLE R07LAC-PW5010 1
36 m m SEALIN G
BOL T EXTENSIO
N SHAF T
PULLE R07LAC-PW5010 1
18. Remov e th e lef t an d righ t fron t engin e moun t bolt s
(se e pag e 5-17 ).
19 . Remov e th e 3 6 m m sealin g bolt .
NOTE : Shif t t o th e
shaft . positio
n t o loc k th e secondar y
VACUUMHOSE10 x 1.2 5 mm38 N- m (3. 9 kgf-m ,
2 8 Ibf-ft )
17. Disconnec t th e vacuu m hose , the n remov e th e righ t
engin e mount .
10 x 1.2 5 mm38 N- m (3. 9 kgf-m ,
2 8 Ibf-ft ) RIGH
T ENGIN EMOUNT
21. Remov e th e differentia l mountin g bolt s an d 2 6 m m
shim , the n remov e th e differentia l assembly .
12 x 1.2 5 mm64 N- m (6. 5 kgf-m , 4 7 Ibf-ft )
22. Remov e th e stiffene r (se e pag e 5-14 ).
23 . Remov e th e driv e plat e cove r (se e sectio n 14 ).
24 . Remov e th e oi l pan .
26 m m SHI M12 x 1.2 5 mm64 N- m (6. 5 kgf-m , 4 7 Ibf-ft )
ProCarManuals.com
Page 472 of 1954

Oil Pan
Installation
Install the oil pan in the reverse order of removal:
• Always use new O-rings.
• Oil pan and cylinder block mating surface must be
clean.
1. Apply liquid gasket to the cylinder block, then install
the oil
pan.
NOTE:
• Use liquid gasket, Part No. 08718 - 0001 or 08718
0003.
• Check that the mating surfaces are clean and dry
before applying liquid gasket.
• Apply liquid gasket evenly, being careful to cover
all the mating surface.
• Do not apply liquid gasket to O-ring grooves.
• To prevent oil leakage, apply liquid gasket to the
inner threads of the bolt holes.
• Do not install the parts if 5 minutes or more have
elapsed since applying liquid gasket.
Instead, reapply liquid gasket after removing old
residue.
•
After assembly,
wait
at
least
30
minutes before
fill-
ing the engine with oil.
CYLINDER
BLOCK
O-RING GROOVE
Apply liquid gasket
along the broken line.
NOTE: Use new O-rings. Apply oil to the O-rings
before installation.
DOWEL PIN
O-RINGS
Replace.
DOWEL PIN
OIL PAN
ASSEMBLY
8 x
1.25
mm
22 N-m (2.2 kgf-m,
16 Ibf-ft)
2. Tighten the oil pan bolts as shown.
OIL PAN BOLT TORQUE SEQUENCE
8 x 1.25 mm: 22 N-m (2.2 kgf-m, 16 Ibf-ft)ProCarManuals.com
