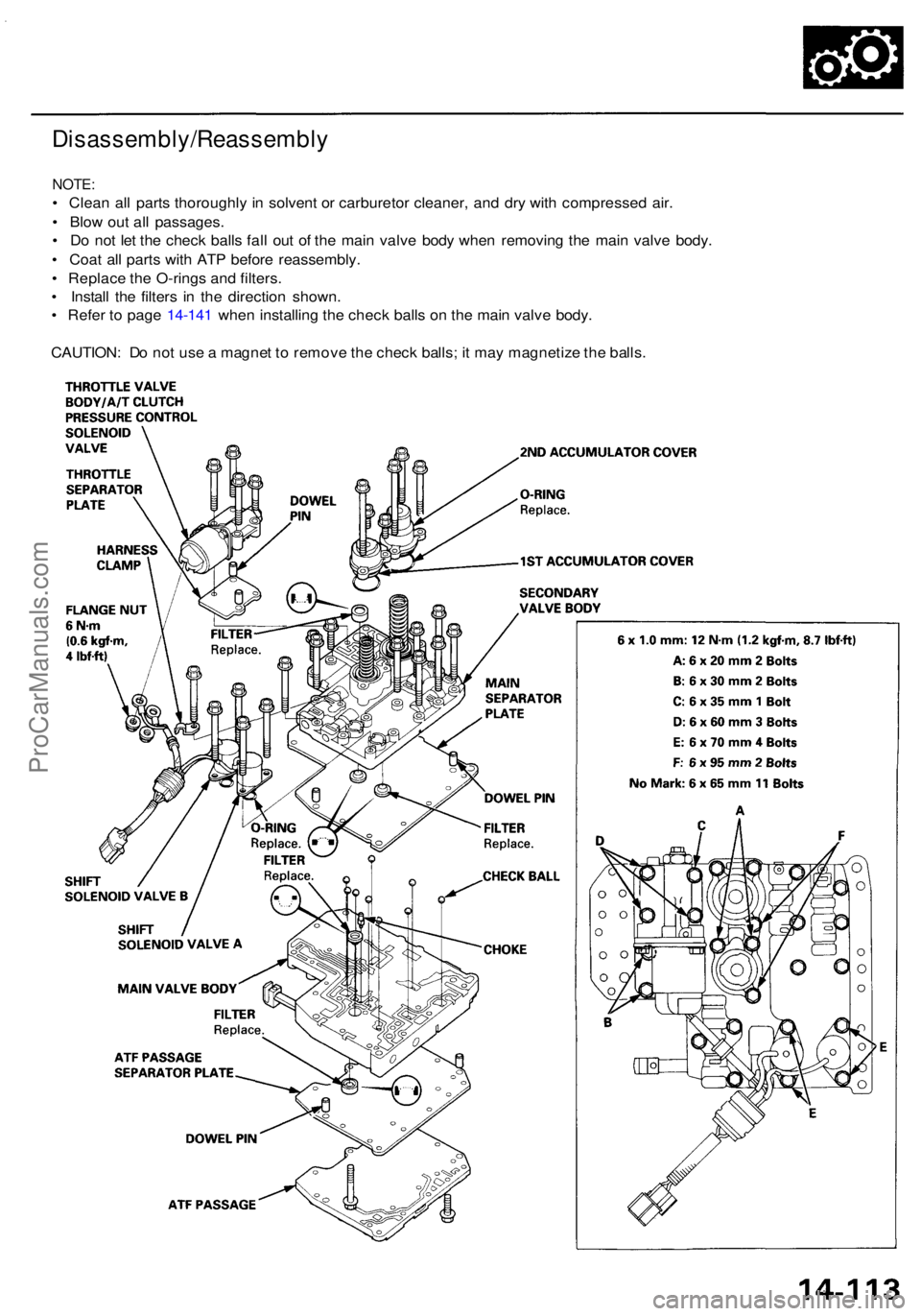

Disassembly/Reassembly
NOTE:
• Clea n al l part s thoroughl y i n solven t o r carbureto r cleaner , an d dr y wit h compresse d air .
• Blo w ou t al l passages .
• D o no t le t th e chec k ball s fal l ou t o f th e mai n valv e bod y whe n removin g th e mai n valv e body .
• Coa t al l part s wit h AT P befor e reassembly .
• Replac e th e O-ring s an d filters .
• Instal l th e filter s i n th e directio n shown .
• Refe r t o pag e 14-14 1 whe n installin g th e chec k ball s o n th e mai n valv e body .
CAUTION : D o no t us e a magne t t o remov e th e chec k balls ; i t ma y magnetiz e th e balls .
