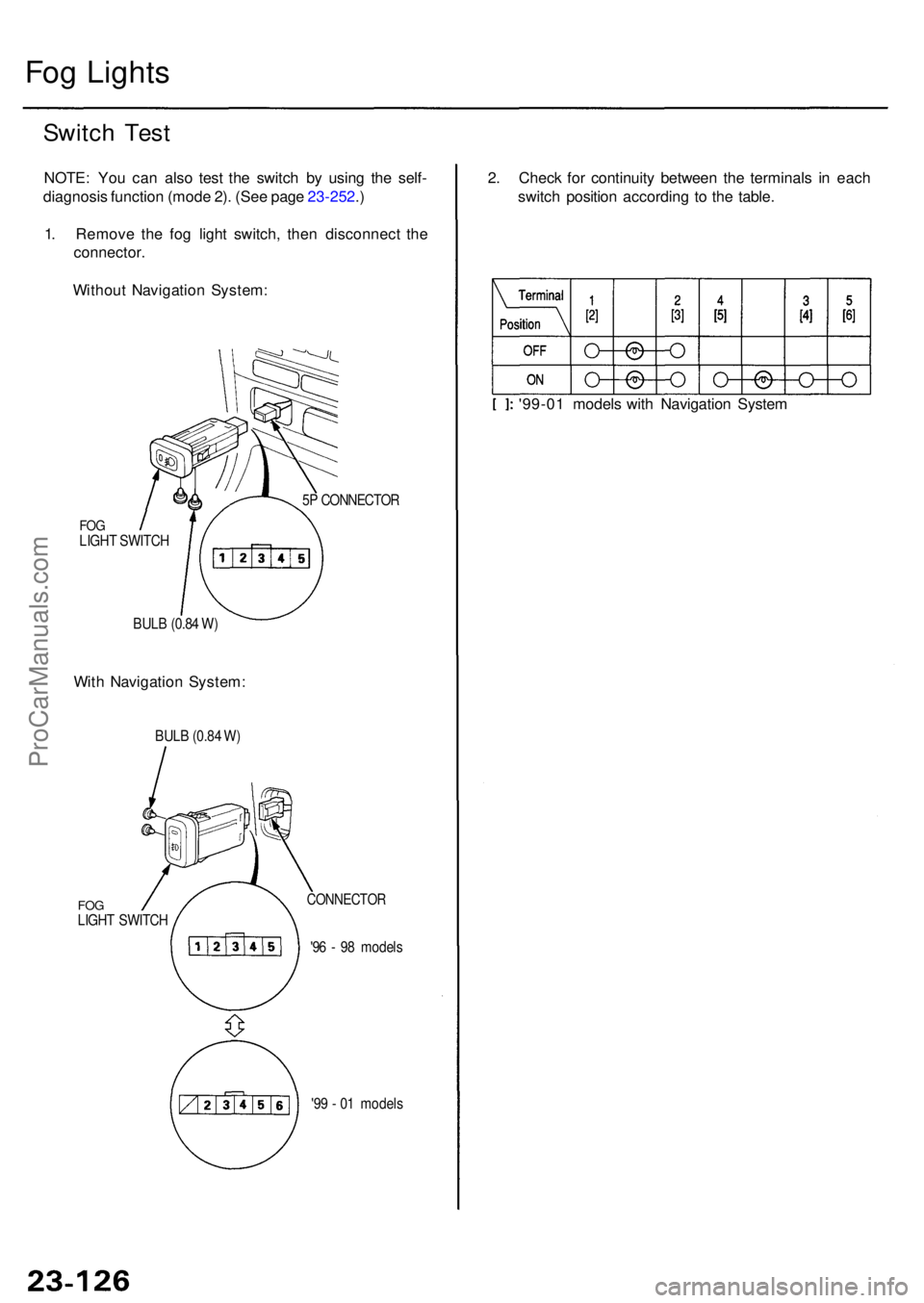

Fog Light s
Switch Tes t
NOTE : Yo u ca n als o tes t th e switc h b y usin g th e self -
diagnosi s functio n (mod e 2) . (Se e pag e 23-252 .)
1 . Remov e th e fo g ligh t switch , the n disconnec t th e
connector .
Withou t Navigatio n System :
FOGLIGH T SWITC H
BUL B (0.8 4 W ) 5
P CONNECTO R
With Navigatio n System : 2
. Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table .
'99-0 1 model s wit h Navigatio n Syste m
BULB (0.8 4 W )
FO GLIGH T SWITC H
CONNECTO R
'96 - 9 8 model s
'9 9 - 0 1 model s
ProCarManuals.com

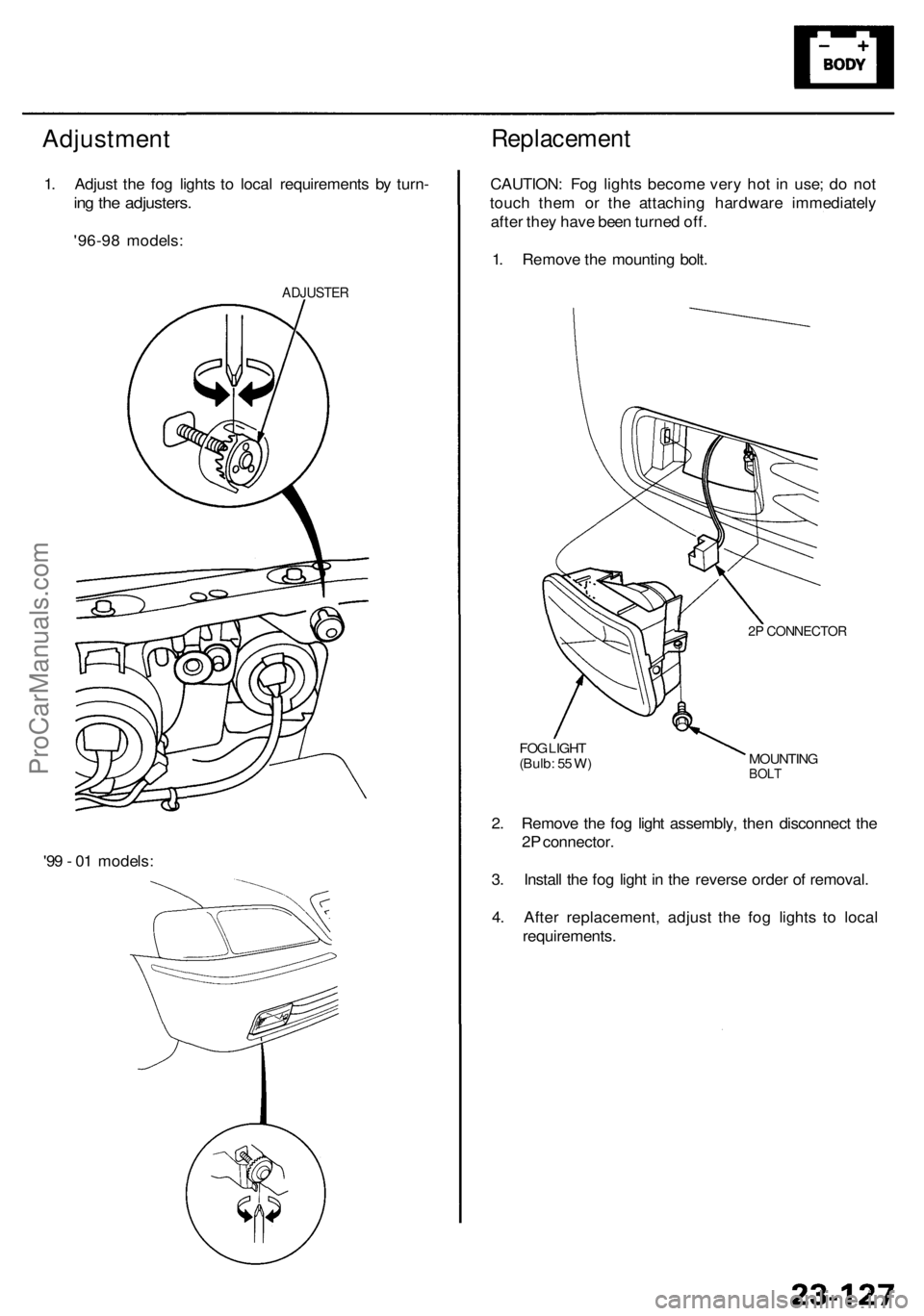

Adjustment
1. Adjus t th e fo g light s t o loca l requirement s b y turn -
ing th e adjusters .
'96-98 models :
ADJUSTE R
Replacemen t
CAUTION: Fo g light s becom e ver y ho t i n use ; d o no t
touc h the m o r th e attachin g hardwar e immediatel y
afte r the y hav e bee n turne d off .
1 . Remov e th e mountin g bolt .
2P CONNECTO R
MOUNTINGBOLT
FOG LIGH T
(Bulb : 5 5 W )
2. Remov e th e fo g ligh t assembly , the n disconnec t th e
2 P connector .
3 . Instal l th e fo g ligh t i n th e revers e orde r o f removal .
4 . Afte r replacement , adjus t th e fo g light s t o loca l
requirements .
