Troubleshooting

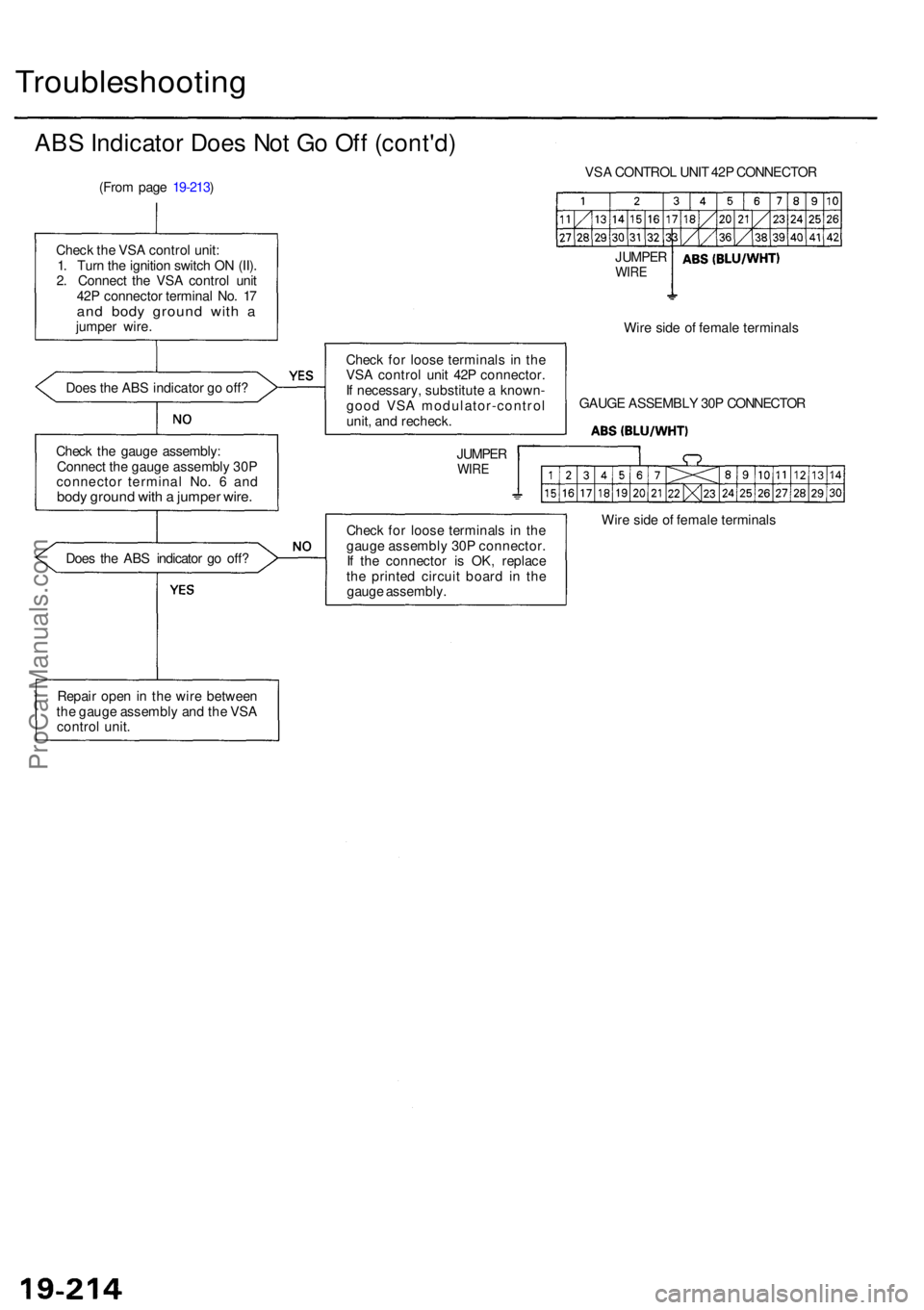

ABS Indicato r Doe s No t G o Of f (cont'd )
(From pag e 19-213 ) VS
A CONTRO L UNI T 42 P CONNECTO R
Chec k th e VS A contro l unit :
1 . Tur n th e ignitio n switc h O N (II) .
2 . Connec t th e VS A control unit
42 P connecto r termina l No . 1 7
an d bod y groun d wit h ajumpe r wire .
Doe s th e AB S indicato r g o off ?
Chec k th e gaug e assembly :
Connec t th e gaug e assembl y 30 P
connecto r termina l No . 6 an d
body groun d wit h a jumpe r wire .
Chec k fo r loos e terminal s i n th e
VS A contro l uni t 42 P connector .
I f necessary , substitut e a known -
goo d VS A modulator-contro l
unit , an d recheck . Wir
e sid e o f femal e terminal s
GAUG E ASSEMBL Y 30 P CONNECTO R
Doe s th e AB S indicato r g o off ? Chec
k fo r loos e terminal s i n th e
gaug e assembl y 30 P connector .
I f th e connecto r i s OK , replac e
th e printe d circui t boar d i n th e
gaug e assembly . Wir
e sid e o f femal e terminal s
Repai r ope n in th e wir e betwee n
th e gaug e assembl y an d th e VS A
contro l unit . JUMPE
R
WIRE
JUMPE RWIRE
ProCarManuals.com
Page 1250 of 1954

VSA Syste m Indicato r Doe s No t Com e O n
Doe s th e brak e syste m indica -
to r com e on ?
Chec k th e VS A contro l unit :
1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e VS A contro l
uni t 42 P connector .
3. Tur n th e ignitio n switc h O N (II) .
Doe s th e VS A syste m indica -
to r com e on ?
Chec k th e VS A indicator :
1. Tur n th e ignitio n switc h OFF .2. Chec k th e VS A syste m indica -
to r bul b in th e gaug e assembly .
Is th e bul b OK ?
Chec k fo r a shor t t o bod y groun d
i n th e VS A circuit :
1 . Disconnec t th e gaug e assem -
bl y 30 P connector.
2 . Chec k fo r continuit y betwee n
termina l No . 2 2 an d bod yground .
I s ther e continuity ?
(T o pag e 19-216 ) Gaug
e rela y stuc k OFF .
Blow n METE R (1 5 A ) fus e in th e
under-hoo d fuse/rela y box .
Blow n METE R (7. 5 A ) fus e i n
th e under-das h fuse/rela y box .
Repai r ope n in th e wir e betwee n
th e METE R (1 5 A ) fus e an d th e
gaug e assembly .Repair ope n in th e wir e betwee n
th e METE R (7. 5 A ) fus e an d bod y
ground .Replac e th e under-hoo d fuse /
rela y bo x o r under-das h fuse /
rela y box . (Ope n circui t insid e
the box. )
Chec k fo r loos e terminal s i n th e
VS A contro l uni t 42 P connector .
I f necessary , substitut e a known -
goo d VS A modulator-contro l
unit , an d recheck .
Replac e th e VS A syste m indica -
to r bulb .
GAUGE ASSEMBL Y 30 P CONNECTO R
Wir e sid e o f femal e terminal s
Repai r shor t t o bod y groun d in th e
wir e betwee n th e gaug e assembl y
an d th e VS A contro l unit .
ProCarManuals.com
Page 1251 of 1954
Troubleshooting
VSA Syste m Indicato r Doe s No t Com e O n (cont'd )
(From pag e 19-215 )
Chec k fo r loos e terminal s i n th e
gaug e assembl y 22 P connector . I f
th e connecto r i s OK , replac e th e
printe d circui t boar d in th e gaug e
assembly .
GAUGE ASSEMBL Y 22 P CONNECTO R
Wir e sid e o f femal e terminal s
Repai r ope n in th e wir e betwee n
th e gaug e assembl y an d th e
VS A contro l unit .
Repai r poo r groun d (G401 ,
G402) .
I
s ther e continuity ?
Chec
k fo r a n ope n in th e indicato r
GN D circuit :
1 . Connec t th e gaug e assembl y
30P connector .
2 . Disconnec t th e gaug e assem -
bly 22 P connector .3. Chec k fo r continuit y betwee n
th e gaug e assembl y 22 P con -
necto r termina l No . 1 0 an d
bod y ground .
ProCarManuals.com
Page 1252 of 1954

VSA Syste m Indicato r Doe s No t G o Of f
Chec k th e VS A (2 0 A ) fus e i n th e
under-hoo d fuse/rela y box , an d
reinstal l th e fus e i f i t i s OK .
I s th e fus e OK ?
Chec k th e R/ C MIRRO R (7. 5 A ) fus ein th e under-das h fuse/rela y box ,
an d reinstal l th e fus e if i t i s OK .
I s th e fus e OK ?
Chec k fo r a n ope n in th e + B FS R
circuit :
1 . Disconnec t th e VS A contro l
uni t 42 P connector .
2 . Measur e th e voltag e betwee n
termina l No . 6 an d bod yground .
I s ther e batter y voltage ?
I s ther e batter y voltage ?
Chec k fo r a n ope n in th e GN D cir -
cuit :
1. Tur n th e ignitio n switc h OFF .2. Chec k fo r continuit y betwee nthe VS A contro l uni t 42 P con -necto r termina l No . 5 an d bod yground .
I s ther e continuity ?
(T o pag e 19-218 ) Replac
e th e fuse , an d recheck . I f
th e fus e i s blown , chec k fo r a
shor t t o bod y groun d in thi s fus e
circuit . I f th e circui t i s OK , replac e
th e VS A modulator-contro l unit .
Replac e th e fuse , an d recheck . I f
th e fus e is blown , chec k fo r a shor t
t o bod y groun d in thi s fus e circuit .
VSA CONTRO L UNI T 42 P CONNECTO R
Wir e sid e o f femal e terminal s
Repai r ope n in th e wir e betwee n
th e VS A (2 0 A ) fus e an d th e VS A
contro l unit .
Repai r ope n in th e wir e betwee nthe R/ C MIRRO R (7. 5 A ) fus e an d
th e VS A contro l unit .
Repai r ope n in th e wir e betwee n
th e VS A contro l uni t an d bod y
ground .Repair poo r groun d (G251) .
Chec
k fo r a n ope n in th e IG 2 cir -
cuit :1. Tur n th e ignitio n switc h O N (II) .
2 . Measur e th e voltag e betwee n
the VS A contro l uni t 42 P con -necto r termina l No . 2 3 an d
bod y ground .
ProCarManuals.com
Page 1253 of 1954

Troubleshooting
VSA Syste m Indicato r Doe s No t G o Of f (cont'd )
(From pag e 19-217 )
Chec k th e VS A contro l unit :
1 . Tur n th e ignitio n switc h O N (II) .
2. Connec t th e VS A contro l uni t42P connecto r termina l No . 3 3an d bod y groun d wit h ajumpe r wire .
Doe s th e VS A syste m indica -
tor g o off ?
Chec k th e gaug e assembly :
Connec t th e gaug e assembl y 30 P
connecto r termina l No . 2 2 an dbod y groun d wit h a jumpe r wire .
Doe s th e VS A syste m indica -
tor g o off ?
Repai r ope n i n th e wir e betwee n
th e gaug e assembl y an d th e VS A
contro l unit . VS
A CONTRO L UNI T 42 P CONNECTO R
Chec k fo r loos e terminal s in th e
VS A contro l uni t 42 P connector .
I f necessary , substitut e a known -
goo d VS A modulator-contro l
unit , an d recheck . Wir
e sid e o f femal e terminal s
GAUG E ASSEMBL Y 30 P CONNECTO R
Chec k fo r loos e terminal s in th e
gaug e assembl y 30 P connector .
I f th e connecto r i s OK , replac e
the printe d circui t boar d in th egaug e assembly .
JUMPERWIRE
Termina l sid e o f femal e terminal s
JUMPE
R
WIRE
ProCarManuals.com
Page 1254 of 1954

VSA Activation Indicator Does Not Come On
Does the brake system indica-
tor come on?
Check the VSA activation indica-
tor:
1. Turn the ignition switch OFF.
2. Check the VSA activation indi-
cator bulb in the gauge assem-
bly.
Is the bulb OK?
Check the VSA control unit:
1. Disconnect the VSA control
unit 42P connector.
2. Turn the ignition switch ON (II).
3. Connect the VSA control unit
42P connector terminal No. 7
and body ground with a
jumper wire.
Does the VSA activation
indicator come on?
Check the gauge assembly:
Connect the gauge assembly 22P
connector terminal No. 2 and
body ground with a jumper wire.
Does the VSA activation
indicator come ON?
Repair open in the wire between
the gauge assembly and the VSA
control unit.
Gauge relay stuck OFF.
Blown METER (15 A) fuse in the
under-hood fuse/relay box.
Blown METER (7.5 A) fuse in
the under-dash fuse/relay box.
Repair open in the wire between
the METER (15 A) fuse and the
gauge assembly.
Repair open in the wire between
the METER (7.5 A) fuse and body
ground.
Replace the under-hood fuse/
relay box or under-dash fuse/
relay box. (Open circuit inside
the
box.)
Replace the VSA activation indi-
cator bulb.
VSA CONTROL UNIT 42P CONNECTOR
JUMPER
WIRE
Check for loose terminals in the
VSA control unit 42P connector.
If necessary, substitute a known-
good VSA modulator-control
unit, and recheck.
JUMPER
WIRE
Wire side of female terminals
GAUGE ASSEMBLY 22P CONNECTOR
Wire side of female terminals
Check for loose terminals in the
gauge assembly 22P connector.
If the connector is OK, replace
the printed circuit board in the
gauge assembly.ProCarManuals.com
Page 1255 of 1954
Troubleshooting

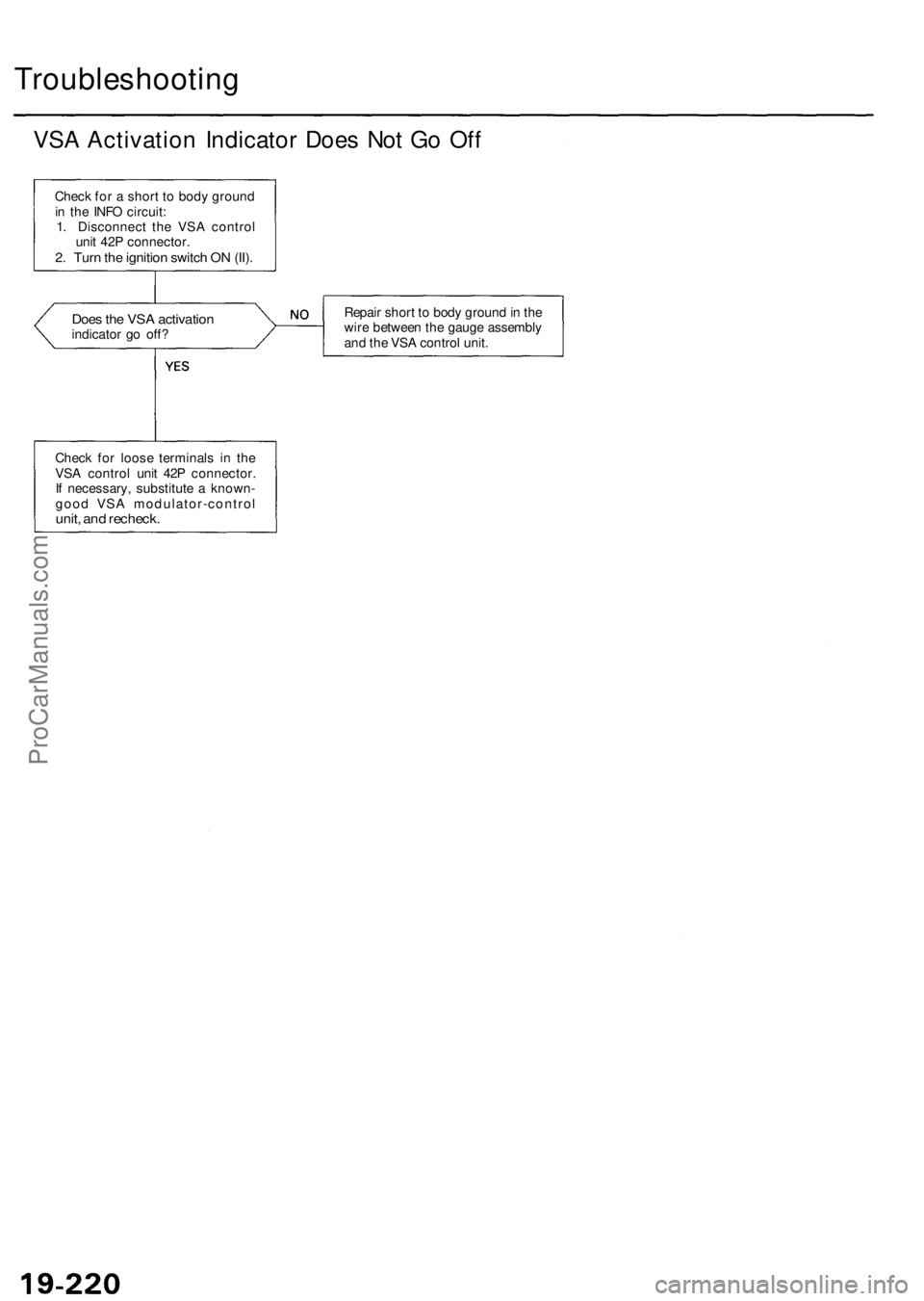

VSA Activation Indicator Does Not Go Off
