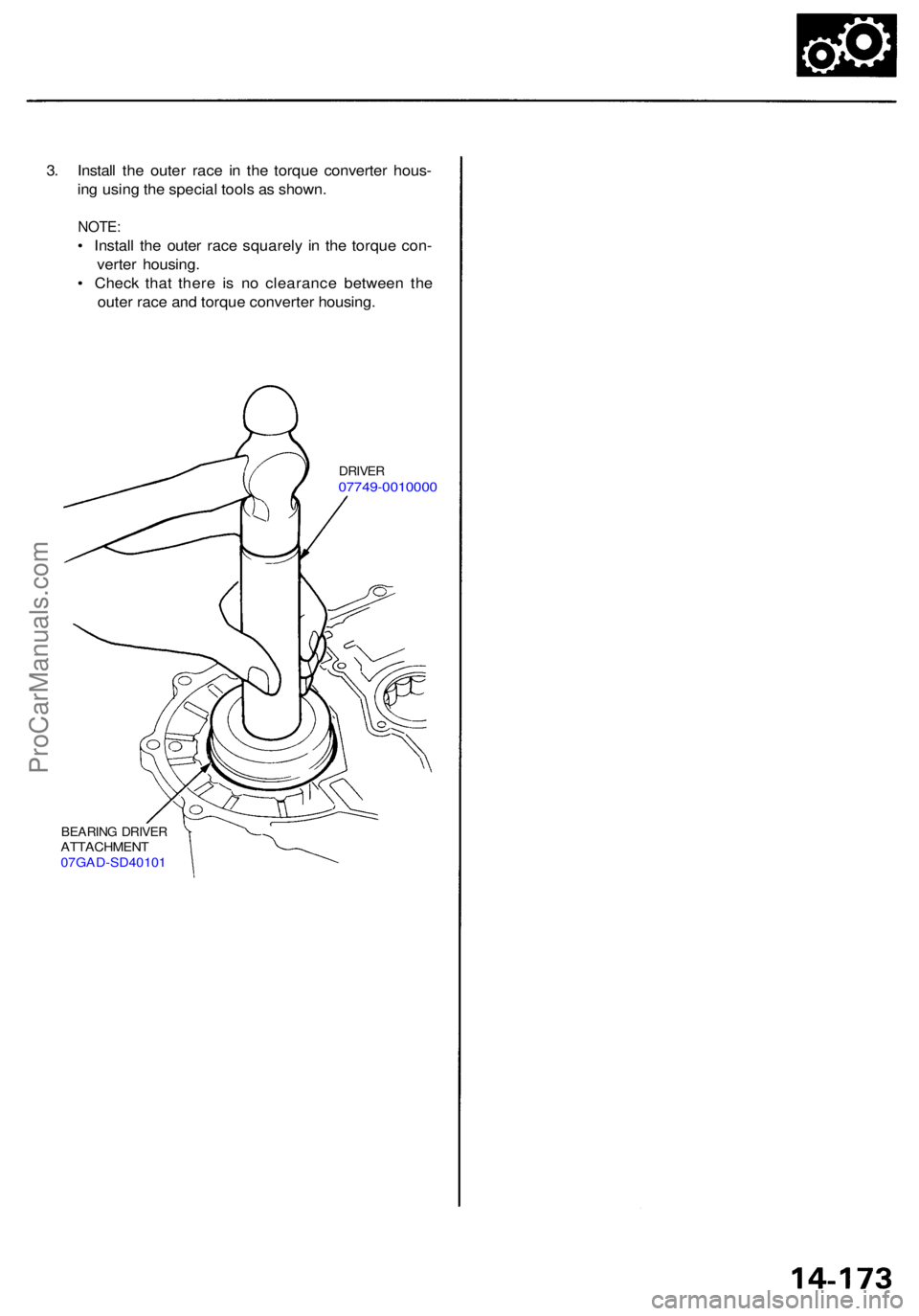

3. Instal l th e oute r rac e i n th e torqu e converte r hous -
in g usin g th e specia l tool s a s shown .
NOTE:
• Instal l th e oute r rac e squarel y i n th e torqu e con -
verte r housing .
• Chec k tha t ther e i s n o clearanc e betwee n th e
oute r rac e an d torqu e converte r housing .
DRIVER07749-001000 0
BEARING DRIVE RATTACHMEN T
07GAD-SD4010 1
ProCarManuals.com

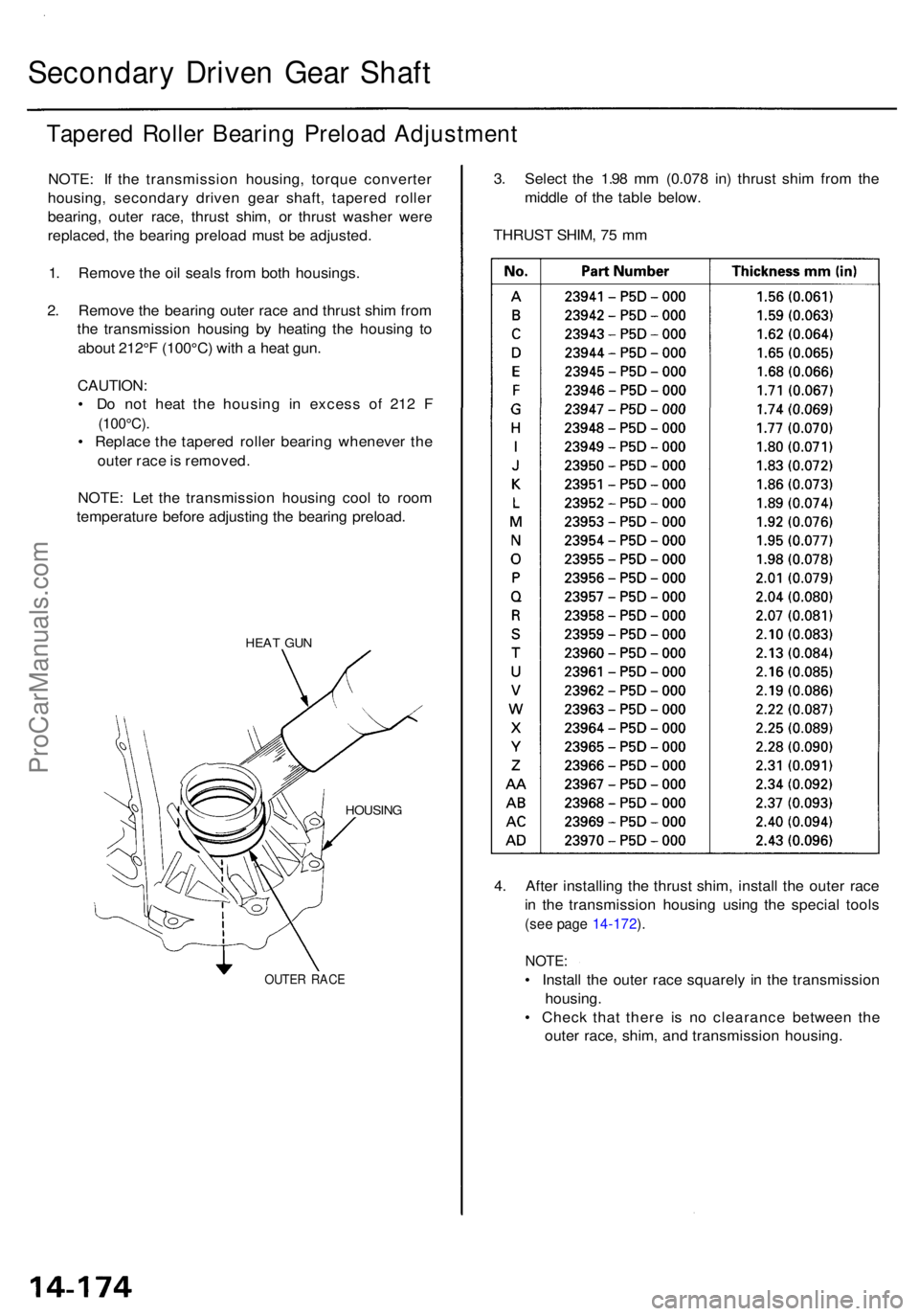

Secondary Drive n Gea r Shaf t
Tapere d Rolle r Bearin g Preloa d Adjustmen t
NOTE: I f th e transmissio n housing , torqu e converte r
housing , secondar y drive n gea r shaft , tapere d rolle r
bearing , oute r race , thrust shim, o r thrust washe r wer e
replaced , th e bearin g preloa d mus t b e adjusted .
1 . Remov e th e oi l seal s fro m bot h housings .
2 . Remov e th e bearin g oute r rac e an d thrus t shi m fro m
th e transmissio n housin g b y heatin g th e housin g t o
abou t 212° F (100°C ) wit h a hea t gun .
CAUTION :
• D o no t hea t th e housin g i n exces s o f 21 2 F
(100°C) .
• Replac e th e tapere d rolle r bearin g wheneve r th e
oute r rac e is removed .
NOTE : Le t th e transmissio n housin g coo l t o roo m
temperatur e befor e adjustin g th e bearin g preload .
HEAT GU N
OUTE R RAC E
3. Selec t th e 1.9 8 m m (0.07 8 in ) thrus t shi m fro m th e
middl e o f th e tabl e below .
THRUS T SHIM , 7 5 m m
4 . Afte r installin g th e thrus t shim , instal l th e oute r rac e
i n th e transmissio n housin g usin g th e specia l tool s
(see pag e 14-172 ).
NOTE :
• Instal l th e oute r rac e squarel y i n th e transmissio n
housing .
• Chec k tha t ther e i s n o clearanc e betwee n th e
oute r race , shim , an d transmissio n housing .
HOUSING
ProCarManuals.com

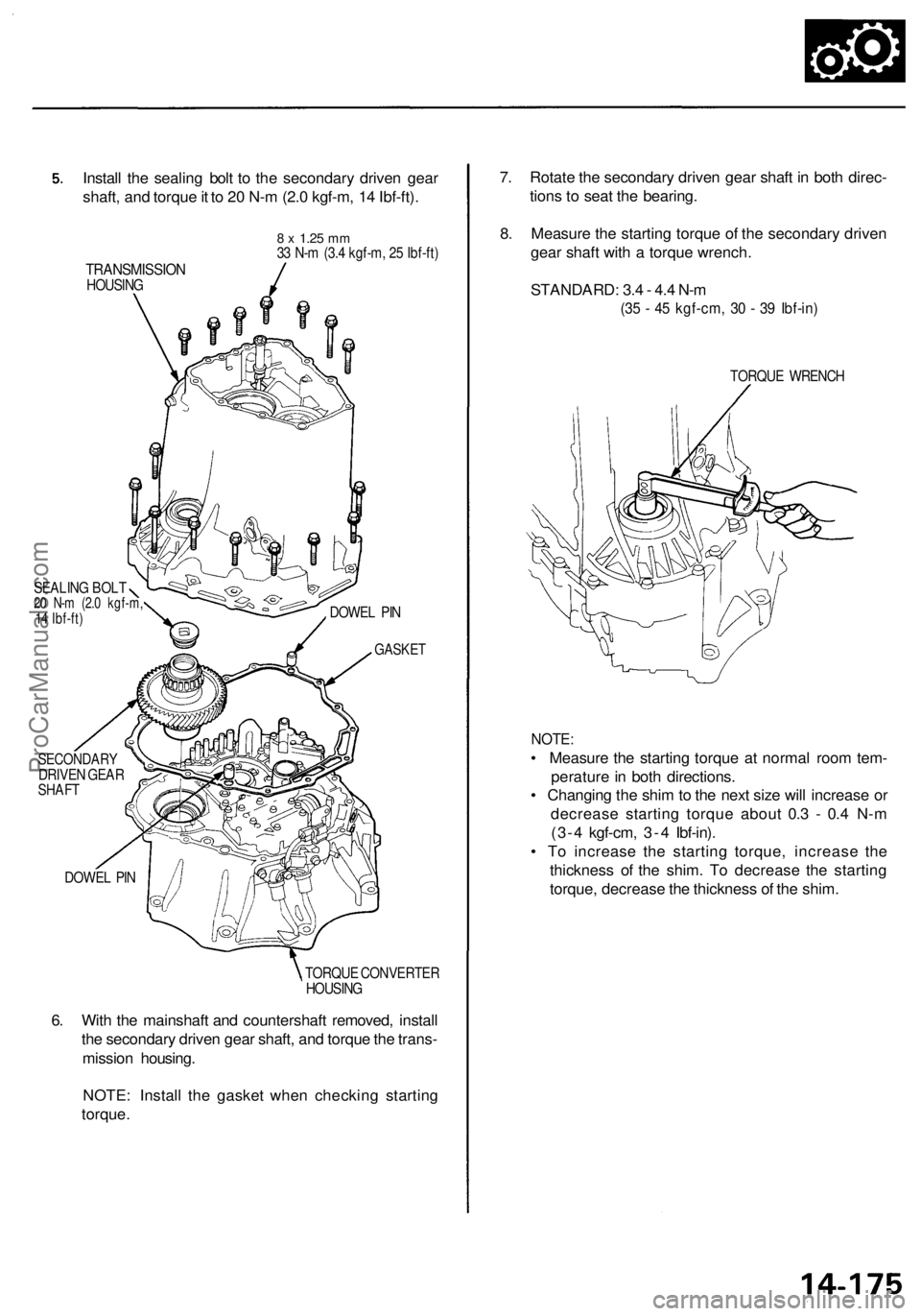

Install th e sealin g bol t t o th e secondar y drive n gea r
shaft , an d torqu e it t o 2 0 N- m (2. 0 kgf-m , 1 4 Ibf-ft) .
8 x 1.2 5 mm33 N- m (3. 4 kgf-m , 2 5 Ibf-ft )TRANSMISSIO NHOUSING
SEALIN G BOL T
20 N- m (2. 0 kgf-m,14 Ibf-ft )
SECONDAR YDRIVEN GEA RSHAF T
DOWE L PI N
TORQUE CONVERTE R
HOUSIN G
6. Wit h th e mainshaf t an d countershaf t removed , instal l
th e secondar y drive n gea r shaft , an d torqu e th e trans -
missio n housing .
NOTE : Instal l th e gaske t whe n checkin g startin g
torque . 7
. Rotat e th e secondar y drive n gea r shaf t i n bot h direc -
tion s t o sea t th e bearing .
8 . Measur e th e startin g torqu e o f th e secondar y drive n
gea r shaf t wit h a torqu e wrench .
STANDARD : 3. 4 - 4. 4 N- m
(35 - 4 5 kgf-cm , 3 0 - 3 9 Ibf-in )
TORQU E WRENC H
NOTE:
• Measur e th e startin g torqu e a t norma l roo m tem -
peratur e in bot h directions .
• Changin g th e shi m to th e nex t siz e wil l increas e o r
decreas e startin g torqu e abou t 0. 3 - 0. 4 N- m
(3- 4 kgf-cm , 3- 4 Ibf-in) .
• T o increas e th e startin g torque , increas e th e
thicknes s o f th e shim . T o decreas e th e startin g
torque , decreas e th e thicknes s o f th e shim .
GASKE T
DOWEL PI N
ProCarManuals.com

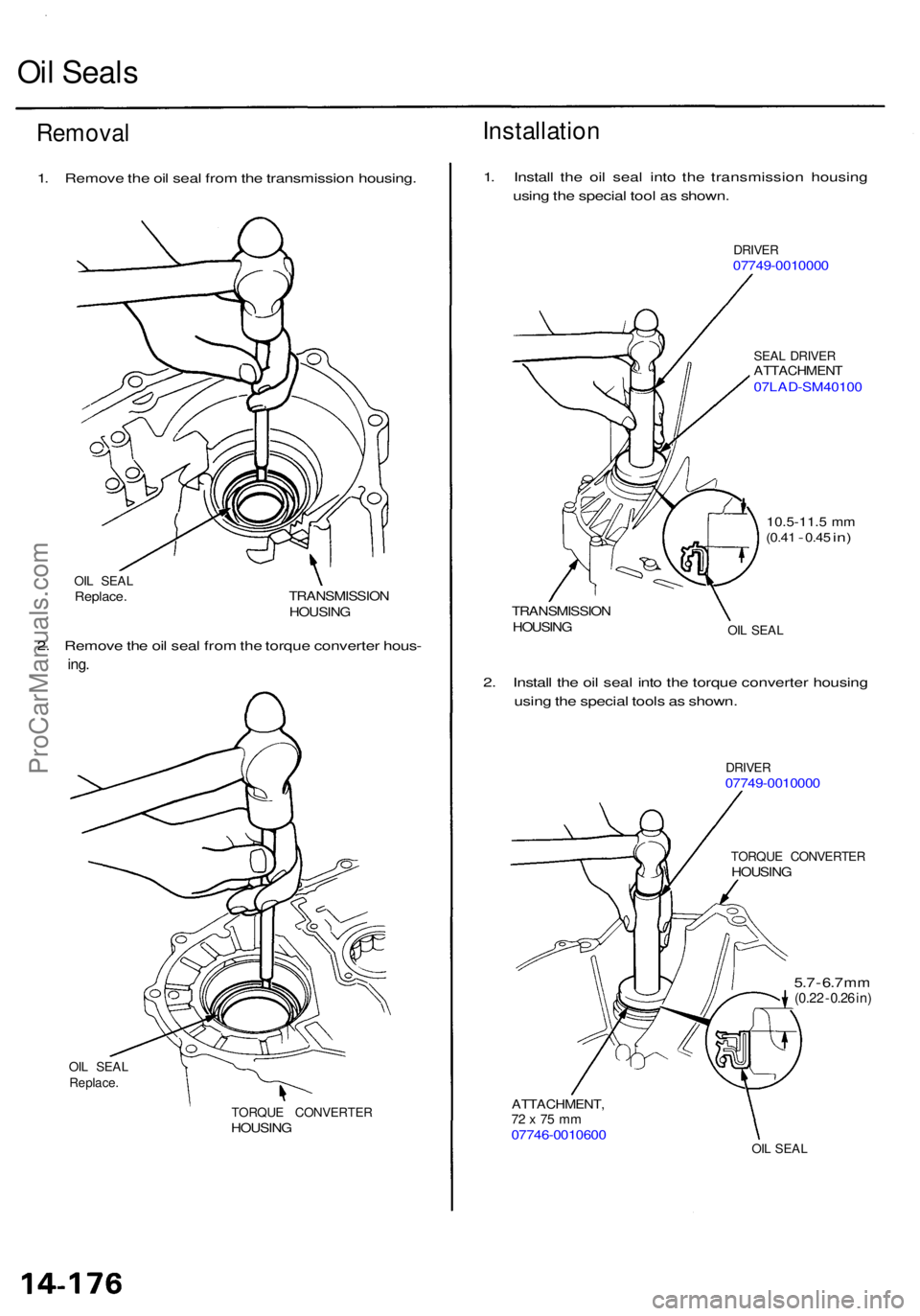

Oil Seal s
Remova l
1. Remov e th e oi l sea l fro m th e transmissio n housing .
OIL SEA LReplace .TRANSMISSIO N
HOUSIN G
2. Remov e th e oi l sea l fro m th e torqu e converte r hous -
ing.
OIL SEA L
Replace .
TORQUE CONVERTE R
HOUSING
Installatio n
1. Instal l th e oi l sea l int o th e transmissio n housin g
usin g th e specia l too l a s shown .
DRIVER07749-001000 0
SEAL DRIVE RATTACHMEN T07LAD-SM4010 0
10.5-11. 5 m m
(0.4 1 - 0.45 in)
TRANSMISSIO N
HOUSIN G
OIL SEA L
2. Instal l th e oi l sea l int o th e torqu e converte r housin g
usin g th e specia l tool s a s shown .
DRIVER07749-001000 0
TORQUE CONVERTE RHOUSING
5.7 - 6. 7 m m(0.2 2 - 0.2 6 in )
ATTACHMENT ,72 x 75 m m07746-001060 0OIL SEA L
