Page 1081 of 1954

ACURA RL KA9 1996 Service Repair Manual
Component Locations

ABS CONTROL UNIT

MODULATOR UNIT
SERVICE CHECK CONNECTOR (2P)

ABS INSPECTION CONNECTOR (6P)

RIGHT-REAR WHEEL SENSOR

RIGHT-FRONT WHEEL

SENSOR CONNECTOR

RIGHT-FRONT

WHEEL SE

Page 1082 of 1954

ACURA RL KA9 1996 Service Repair Manual

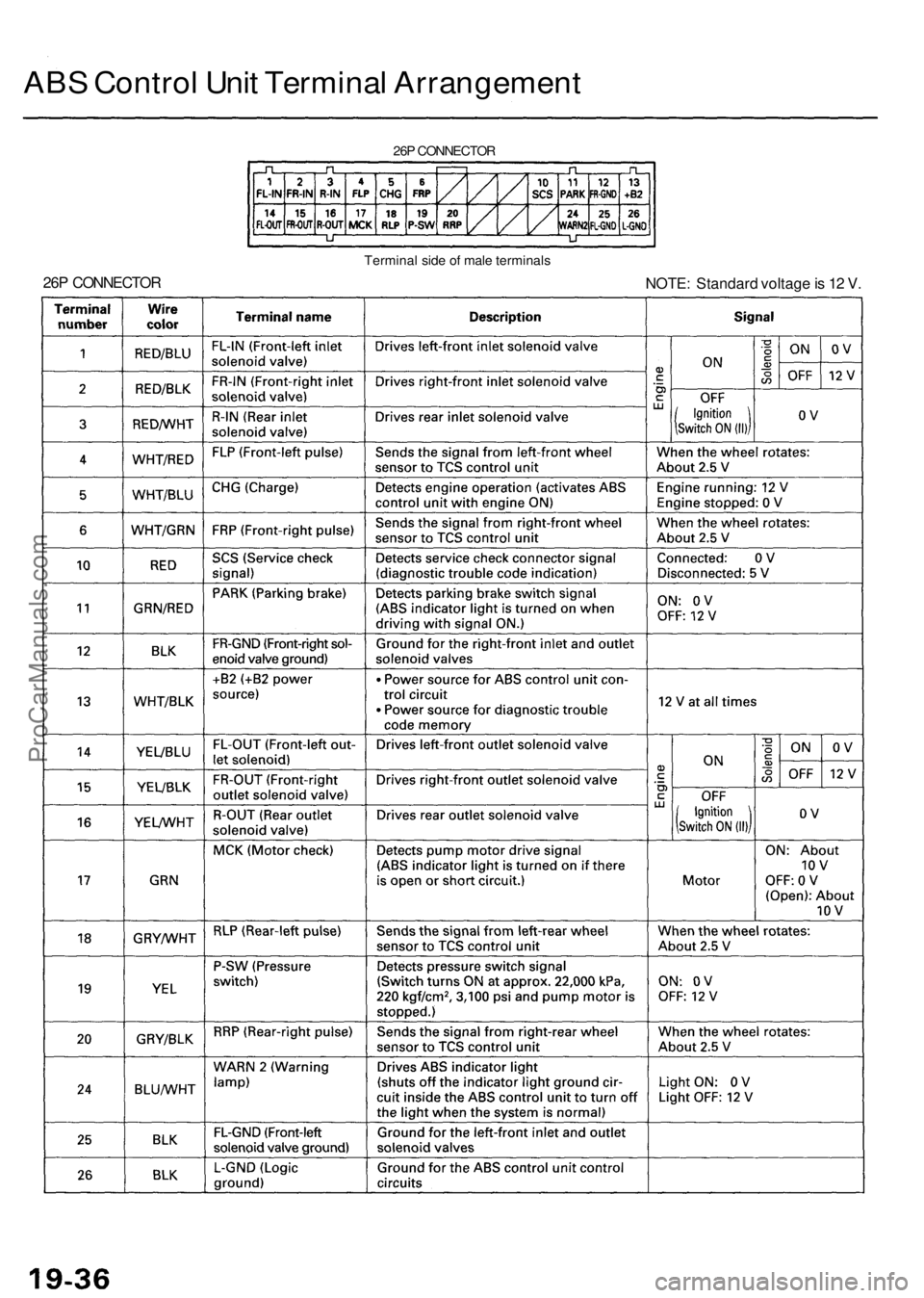

ABS Control Unit Terminal Arrangement

26P CONNECTOR

Terminal side of male terminals

26P CONNECTOR

NOTE: Standard voltage is 12 V.ProCarManuals.com

Page 1083 of 1954

ACURA RL KA9 1996 Service Repair Manual

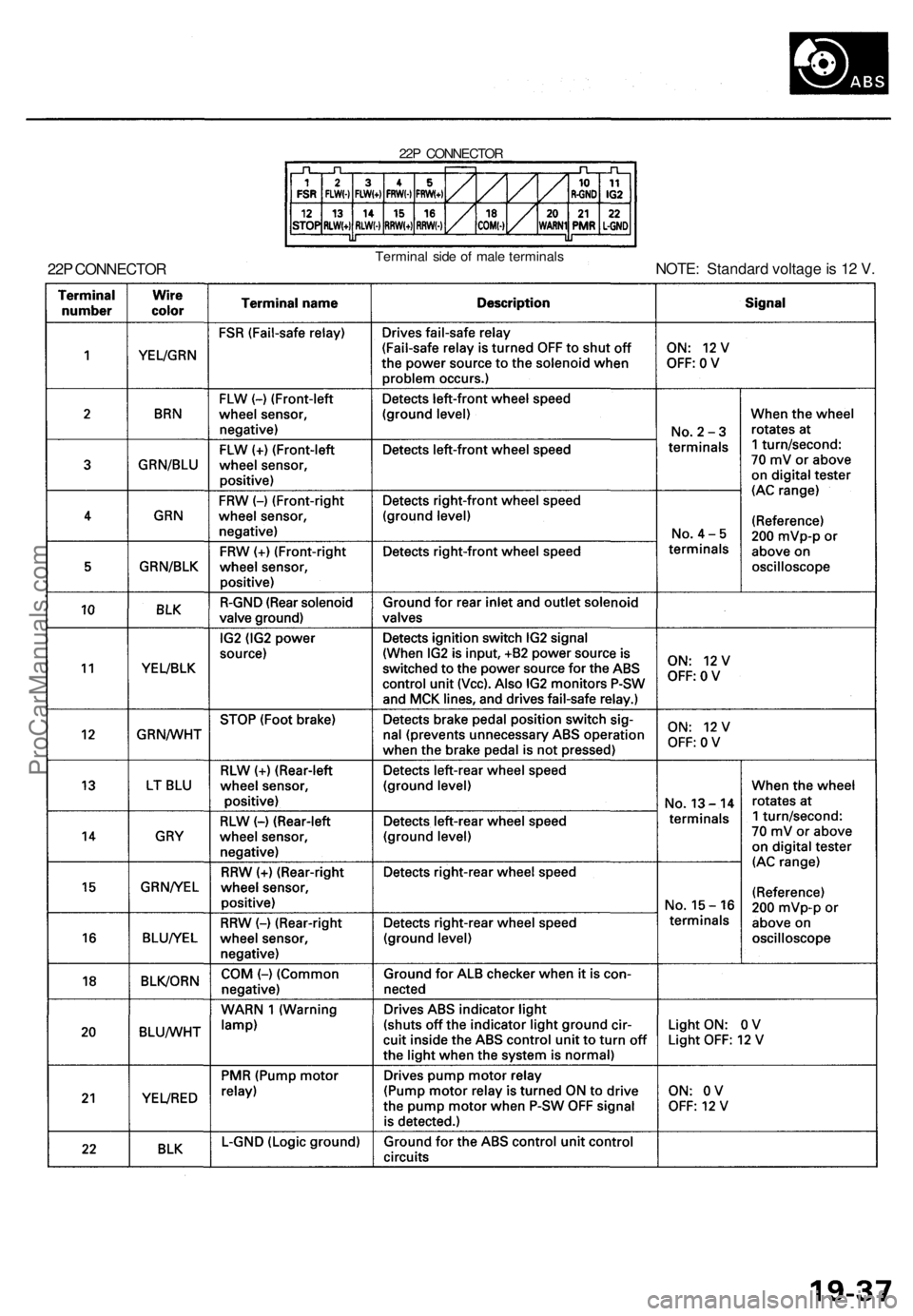

22P CONNECTOR

22P CONNECTOR
Terminal side of male terminals

NOTE: Standard voltage is 12 V.ProCarManuals.com

Page 1084 of 1954

ACURA RL KA9 1996 Service Repair Manual
Troubleshooting Precautions

ABS Indicator Light:

The ABS indicator light comes on for 3 seconds and then goes off when the control unit detects no problem during the ini-

tial diagnosis right afte

Troubleshooting Precautions

ABS Indicator Light:

The ABS indicator light comes on for 3 seconds and then goes off when the control unit detects no problem during the ini-

tial diagnosis right after the engine starts. However, the ABS indicator light can stay on for up to 40 seconds when the

control unit starts to check for pump overrun, etc. during the initial diagnosis. The ABS indicator light comes on, and the

ABS control unit memorizes the diagnostic trouble code (DTC) under certain conditions.

The parking brake is applied for more than 30 seconds while the vehicle is being driven. (DTC 2-1)

The transmission downshifted excessively. (DTC 4-1, 4-2)

The vehicle loses traction, and the front wheels spin for more than 1 minute when starting from a stuck condition on a

muddy, snowy, or sandy road. (DTC 4-8)

Tire adhesion is lost due to excessive cornering speed. (DTC 5, 5-4, 5-8)

The vehicle is driven on an extremely rough road. (DTC 8-1)

The vehicle is interfered by strong radio waves (noise), for example, illegal radio, etc. (DTC 8-2)

NOTE: If there is any trouble in the system, the ABS indicator light comes on during driving.

Diagnostic Trouble Code (DTC):

When the control unit detects a problem and the ABS indicator light comes on, the control unit memorizes the DTC.

The control unit has three memory registers. When a problem occurs, the control unit stores the DTC in the first memory

register. If another problem occurs, or the same problem occurs again, the control unit moves the first DTC to the next

memory register, and stores the second DTC in the first register. If there's a third problem occurrence, the two existing

DTCs are moved up one register, and the third DTC is stored in the first register. If problems continue to occur, the oldest

problem is moved out of the last register and lost, and the most recent problem is stored in the first register. When the

same problem occurs three times, the same DTC is stored in all memory registers. (Refer to the Symptom-to-System

Chart for diagnostic period.)

The most recent DTC is indicated first, and the oldest DTC is indicated last.

The DTCs are erased from the control unit when the ABS control unit +B2 power supply or connector is disconnected.

The control unit's memory can be erased by disconnecting the ABS B2 fuse for more than 3 seconds.

Self-diagnosis:

There are three self-diagnoses described below.

Initial diagnosis: Performed right after the engine starts until the ABS indicator light goes off.

Regular diagnosis: Continuously performed (under some conditions) after the ABS indicator light goes off until the

engine stops.

Individual part/system diagnosis: Diagnosis about a specific part/system under its operating conditions.

The CPU (central processing unit) controls the following when it detects a problem during self-diagnosis:

Turns the ABS indicator light ON.

Turns the front and rear fail-safe relays off.

Stops the ABS control.

Stops the ABS pump. (The pump may work under some conditions.)

After the DTC is stored in the control unit, the CPU stops self-diagnosis.ProCarManuals.com

Page 1085 of 1954

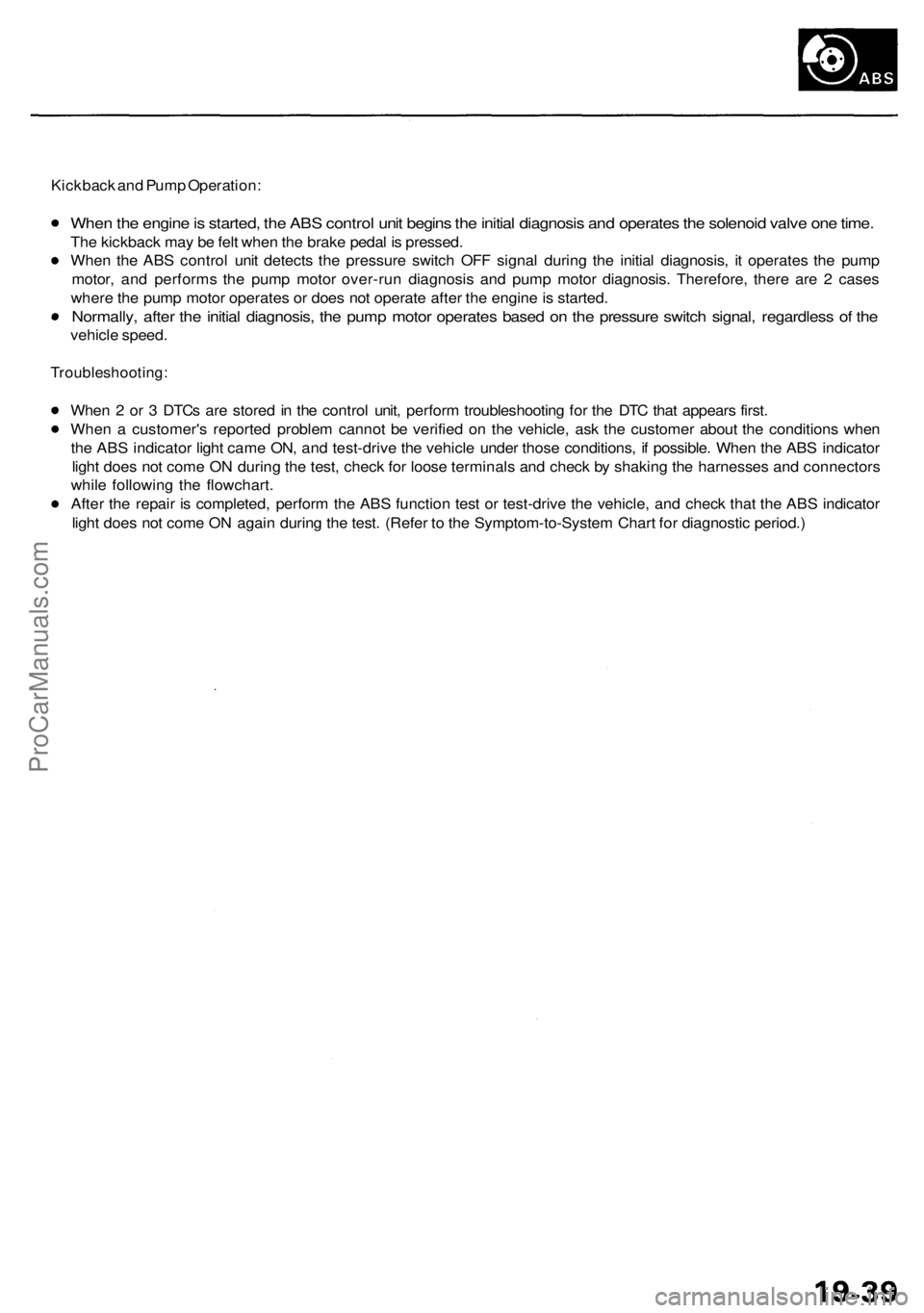

ACURA RL KA9 1996 Service Repair Manual Kickback an d Pum p Operation :
When th e engin e is started , th e AB S contro l uni t begin s th e initia l diagnosi s an d operate s th e solenoi d valv e on e time .
The kickbac k ma y b e fel t

Page 1086 of 1954

ACURA RL KA9 1996 Service Repair Manual Diagnostic Troubl e Cod e (DTC ) Indicatio n
1. Connec t th e SC S servic e connecto r t o th e servic e chec k connecto r unde r th e glov e box .
SERVIC E CHEC KCONNECTO R (2P )
SCS SERVIC E CONNEC

Page 1087 of 1954

ACURA RL KA9 1996 Service Repair Manual
DTC Indication Pattern (When the ABS control unit detected a problem three times.):

Turn the ignition switch ON (II). The ABS indicator light comes on for 2 seconds to check the bulb.

The ABS contr

Page 1088 of 1954

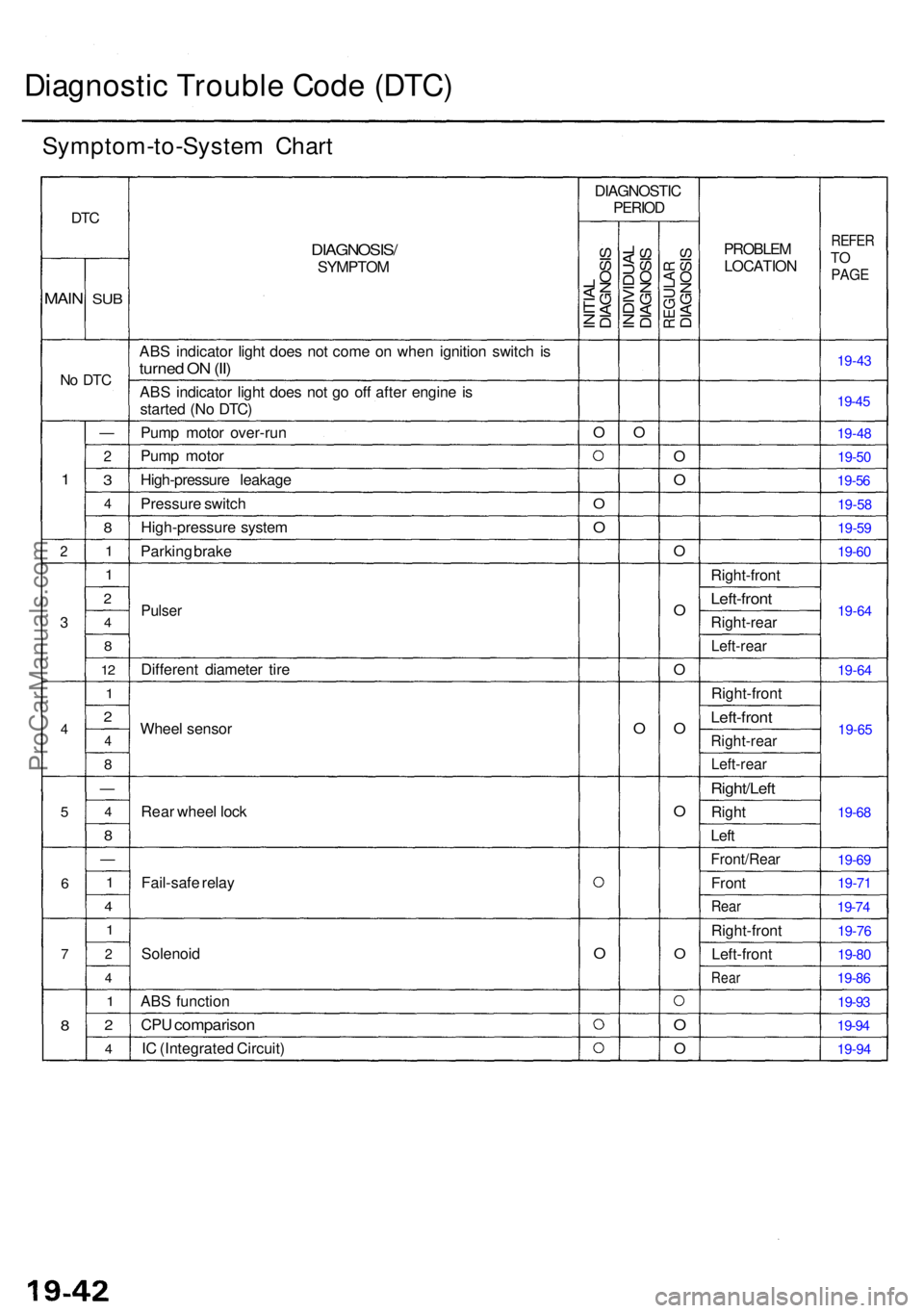

ACURA RL KA9 1996 Service Repair Manual Diagnostic Troubl e Cod e (DTC )
Symptom-to-Syste m Char t
DTC
MAI NSUB
No DT C
1
2
3
4
5
6
7
8
—
2
3
4
8
1
1
2
4
8
12
1
2
4
8
—
4
8
—
1
4
1
2
4
1
2
4
DIAGNOSIS /
SYMPTOM
AB S indicato r ligh t
