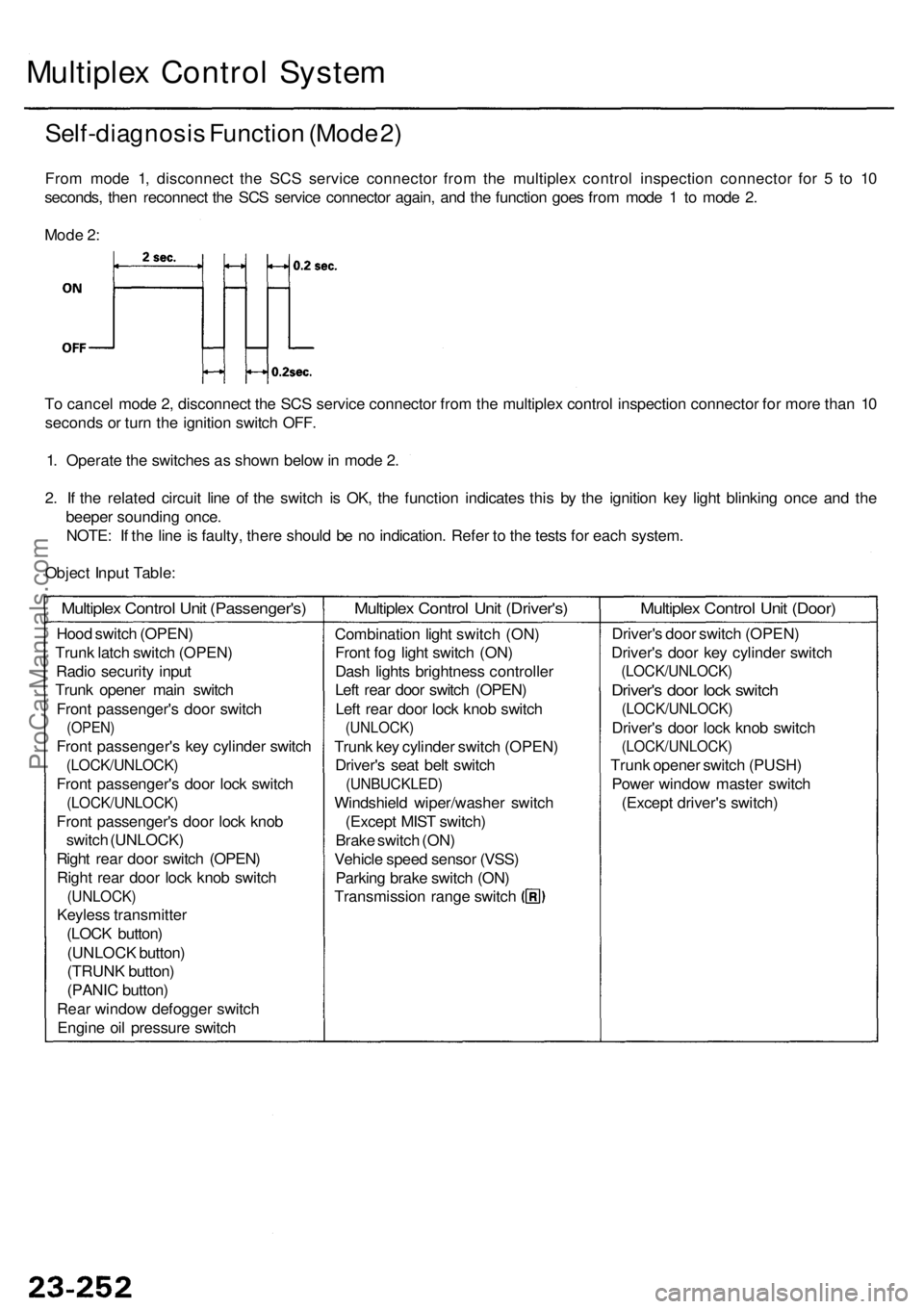

Multiplex Contro l Syste m
Self-diagnosi s Functio n (Mod e 2 )
Fro m mod e 1 , disconnec t th e SC S servic e connecto r fro m th e multiple x contro l inspectio n connecto r fo r 5 to 1 0
seconds , the n reconnec t th e SC S servic e connecto r again , an d th e functio n goe s fro m mod e 1 to mod e 2 .
T o cance l mod e 2 , disconnec t th e SC S servic e connecto r fro m th e multiple x contro l inspectio n connecto r fo r mor e tha n 1 0
second s o r tur n th e ignitio n switc h OFF .
1 . Operat e th e switche s a s show n belo w in mod e 2 .
2 . I f th e relate d circui t lin e o f th e switc h i s OK , th e functio n indicate s thi s b y th e ignitio n ke y ligh t blinkin g onc e an d th e
beepe r soundin g once .
NOTE : I f th e lin e is faulty , ther e shoul d b e n o indication . Refe r t o th e test s fo r eac h system .
Objec t Inpu t Table :
Mod
e 2 :
Hoo d switc h (OPEN )
Trun k latc h switc h (OPEN )
Radi o securit y inpu t
Trun k opene r mai n switc h
Fron t passenger' s doo r switc h
(OPEN )
Front passenger' s ke y cylinde r switc h
(LOCK/UNLOCK )
Front passenger' s doo r loc k switc h
(LOCK/UNLOCK )
Front passenger' s doo r loc k kno b
switc h (UNLOCK )
Righ t rea r doo r switc h (OPEN )
Righ t rea r doo r loc k kno b switc h
(UNLOCK )
Keyless transmitte r
(LOC K button )
(UNLOC K button )
(TRUN K button )
(PANI C button )
Rea r windo w defogge r switc h
Engin e oi l pressur e switc h
Multiple x Contro l Uni t (Passenger's )Multiplex Contro l Uni t (Driver's )
Combinatio n ligh t switc h (ON )
Fron t fo g ligh t switc h (ON )
Das h light s brightnes s controlle r
Lef t rea r doo r switc h (OPEN )
Lef t rea r doo r loc k kno b switc h
(UNLOCK )
Trunk ke y cylinde r switc h (OPEN )
Driver' s sea t bel t switc h
(UNBUCKLED )
Windshield wiper/washe r switc h
(Excep t MIS T switch )
Brak e switc h (ON )
Vehicl e spee d senso r (VSS )
Parkin g brak e switc h (ON )
Transmissio n rang e switc h
Multiple x Contro l Uni t (Door )
Driver' s doo r switc h (OPEN )
Driver' s doo r ke y cylinde r switc h
(LOCK/UNLOCK )
Driver's doo r loc k switc h
(LOCK/UNLOCK )
Driver's doo r loc k kno b switc h
(LOCK/UNLOCK )
Trunk opene r switc h (PUSH )
Powe r windo w maste r switc h
(Excep t driver' s switch )
ProCarManuals.com
*: Yo u can also tes t th e switc h b y usin g th e self-diagnosi s functio n (mod e 2) . (Se e pag e 23-252 ).

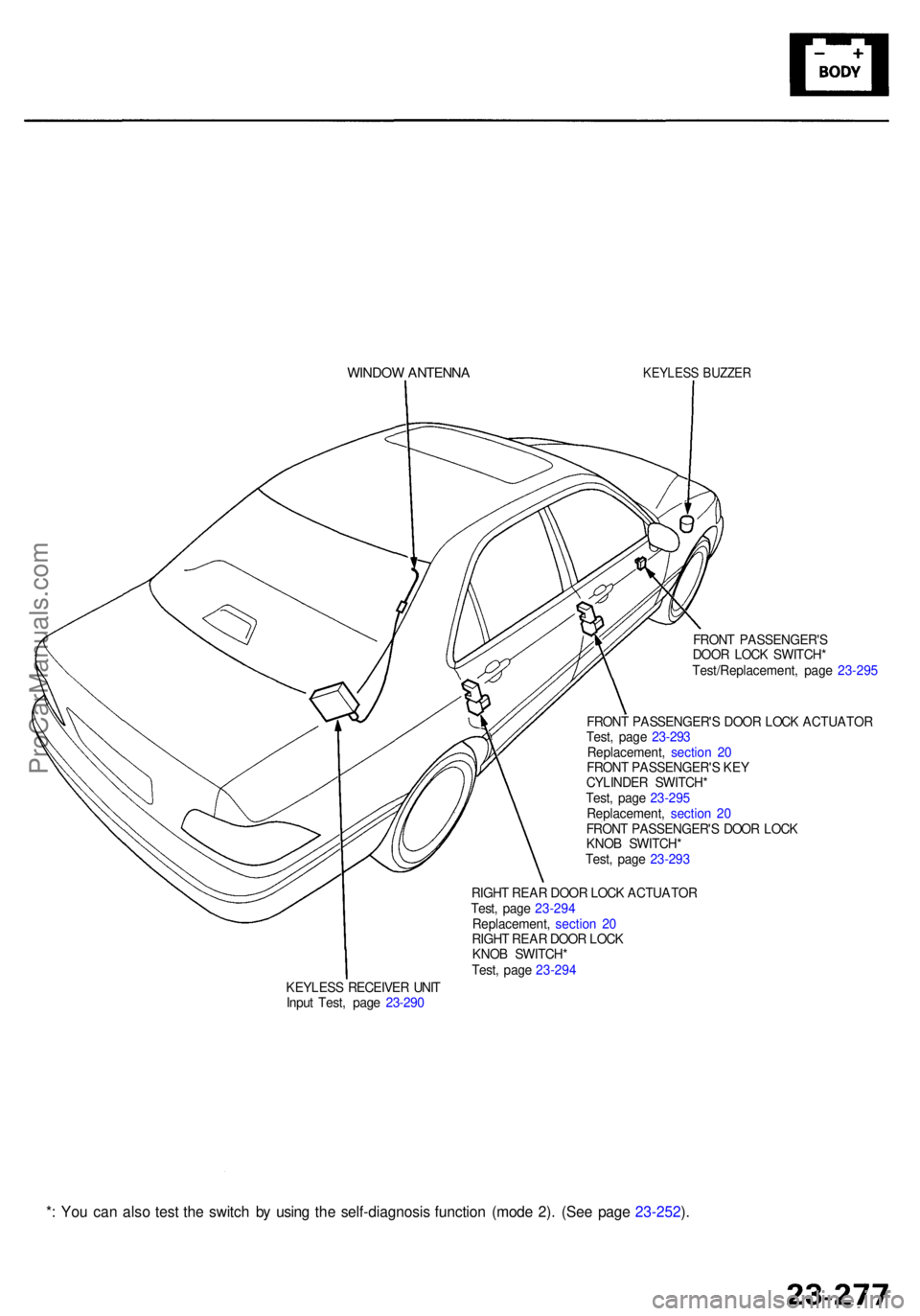

WINDO W ANTENN AKEYLESS BUZZE R
KEYLES S RECEIVE R UNI T
Inpu t Test , pag e 23-29 0 RIGH
T REA R DOO R LOC K ACTUATO R
Test , pag e 23-29 4
Replacement , sectio n 2 0
RIGH T REA R DOO R LOC K
KNO B SWITCH *
Test , pag e 23-29 4FRON
T PASSENGER' S DOO R LOC K ACTUATO R
Test , pag e 23-29 3
Replacement , sectio n 2 0
FRON T PASSENGER' S KE Y
CYLINDE R SWITCH *
Test , pag e 23-29 5
Replacement , sectio n 2 0
FRON T PASSENGER' S DOO R LOC K
KNO B SWITCH *
Test , pag e 23-29 3FRON
T PASSENGER' S
DOO R LOC K SWITCH *
Test/Replacement , pag e 23-29 5
