Mirrors
Rearvie w Mirro r Remova l - wit h OnSta r Syste m
1. Carefull y remov e th e rearvie w mirro r bas e lowe r
cove r wit h a flat-ti p screwdriver .
CAUTION : Whe n pryin g wit h a flat-ti p screwdriver ,
wra p it wit h protectiv e tap e t o preven t damage .
REARVIE W MIRRO RHARNES S UPPE R
COVE R
HOOK S
REARVIE W MIRRO R
BAS E LOWE R COVE RHOOK
LOWE RCOVER
2. Carefull y remov e th e rearvie w mirro r harnes s uppe r
cover wit h a flat-ti p screwdriver .
CAUTION: Whe n pryin g wit h a flat-ti p screwdriver ,
wra p it wit h protectiv e tap e t o preven t damage .
HARNES S COVE RCLIP
HOO K
HOO K
UPPE RCOVE R
REARVIE W MIRRO R
HARNES S UPPE R
COVERREARVIE W MIRRO R
HARNES S COVE R
CLIP
3. Disconnec t th e connector , an d loose n th e scre w
wit h a Tor x T2 0 bit , the n slid e th e rearvie w mirro r
rearwar d an d of f th e lug .
LUG
CONNECTO R
SCREW5 x 0.8 m m2.8 N- m (0.2 9 kgf-m ,2.1 Ibf-ft )Loosen . REARVIE
W MIRRO R
4. Instal l th e mirro r i n th e revers e orde r o f removal .
NOTE:
• Befor e installin g th e mirror , remov e th e Tor x
screw , an d appl y liqui d threa d loc k t o it .
• Mak e sur e th e connecto r i s plugge d i n properly .
HOOKS
REARVIEWMIRRO RBASE
ProCarManuals.com

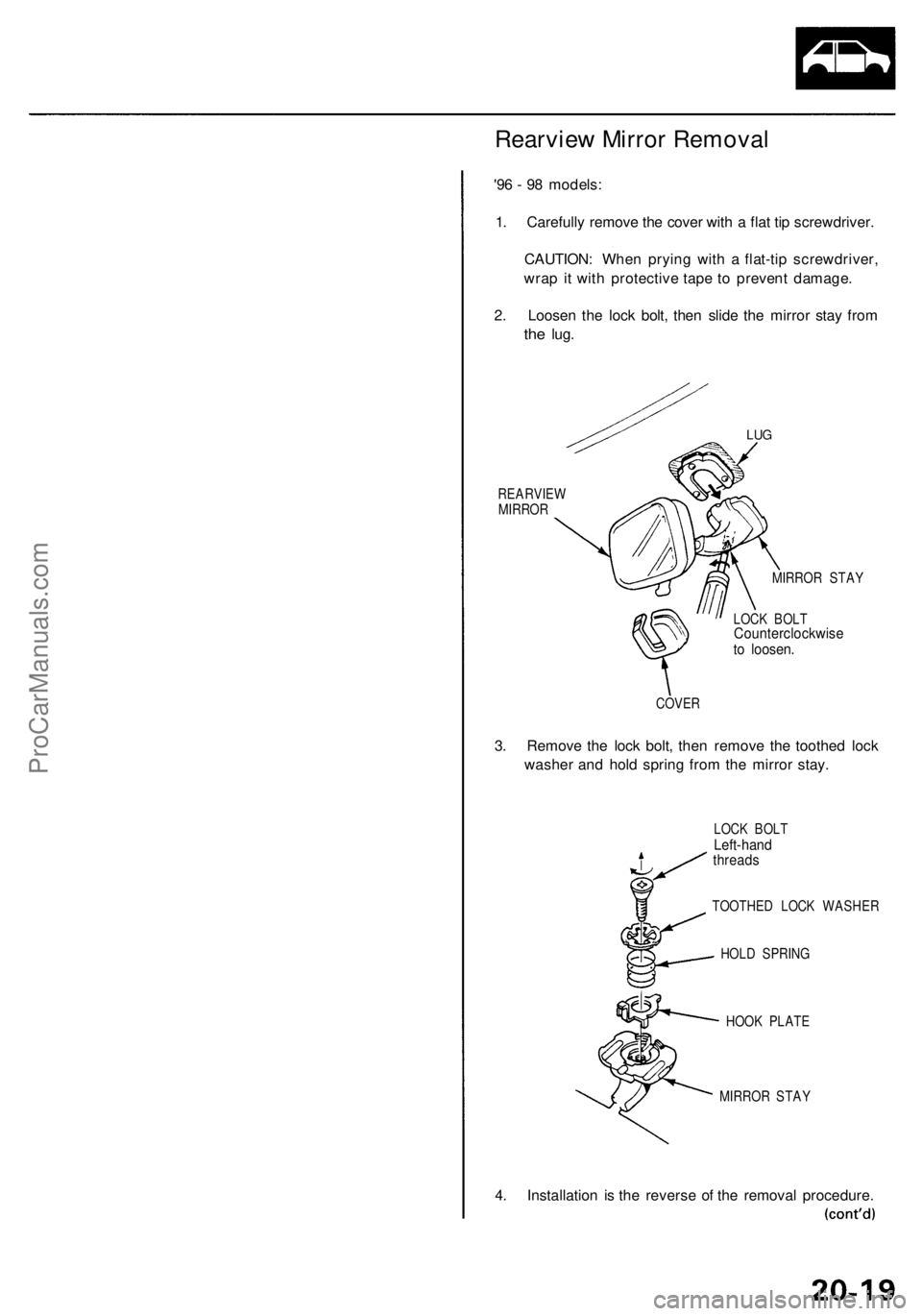

Rearview Mirror Removal
'96 - 98 models:
1. Carefully remove the cover with a flat tip screwdriver.
CAUTION: When prying with a flat-tip screwdriver,
wrap it with protective tape to prevent damage.
2. Loosen the lock bolt, then slide the mirror stay from
the
lug.
LUG
REARVIEW
MIRROR
MIRROR STAY
LOCK BOLT
Counterclockwise
to loosen.
COVER
3. Remove the lock bolt, then remove the toothed lock
washer and hold spring from the mirror stay.
LOCK BOLT
Left-hand
threads
TOOTHED LOCK WASHER
HOLD SPRING
HOOK PLATE
MIRROR STAY
4. Installation is the reverse of the removal procedure.ProCarManuals.com
