TOYOTA RAV4 2006 Service Repair Manual EM–1062AZ-FE ENGINE MECHANICAL – ENGINE ASSEMBLY EM INSTALLATION 1. INSTALL DRIVE PLATE SUB-ASSEMBLY (a) Clean the 8 bolts and 8 bolt holes. (b) Apply adhesive to 2 or 3 threads of the 8 bolts.

Page 642 of 2000

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–107 EM (f) Using several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration. Torque: 98 N*m (1,000 kgf*cm, 7

Page 643 of 2000

TOYOTA RAV4 2006 Service Repair Manual EM–1082AZ-FE ENGINE MECHANICAL – ENGINE ASSEMBLY EM (b) Attach the sling device and the engine with the chain block. 9. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE (a) Lift the engine assembly (with

Page 644 of 2000

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–109 EM 12. REMOVE ENGINE HANGER (a) Remove the No. 1 and No. 2 engine hangers. 13. INSTALL ENGINE MOUNTING INSULATOR RR (a) Install the engine mounti

Page 645 of 2000

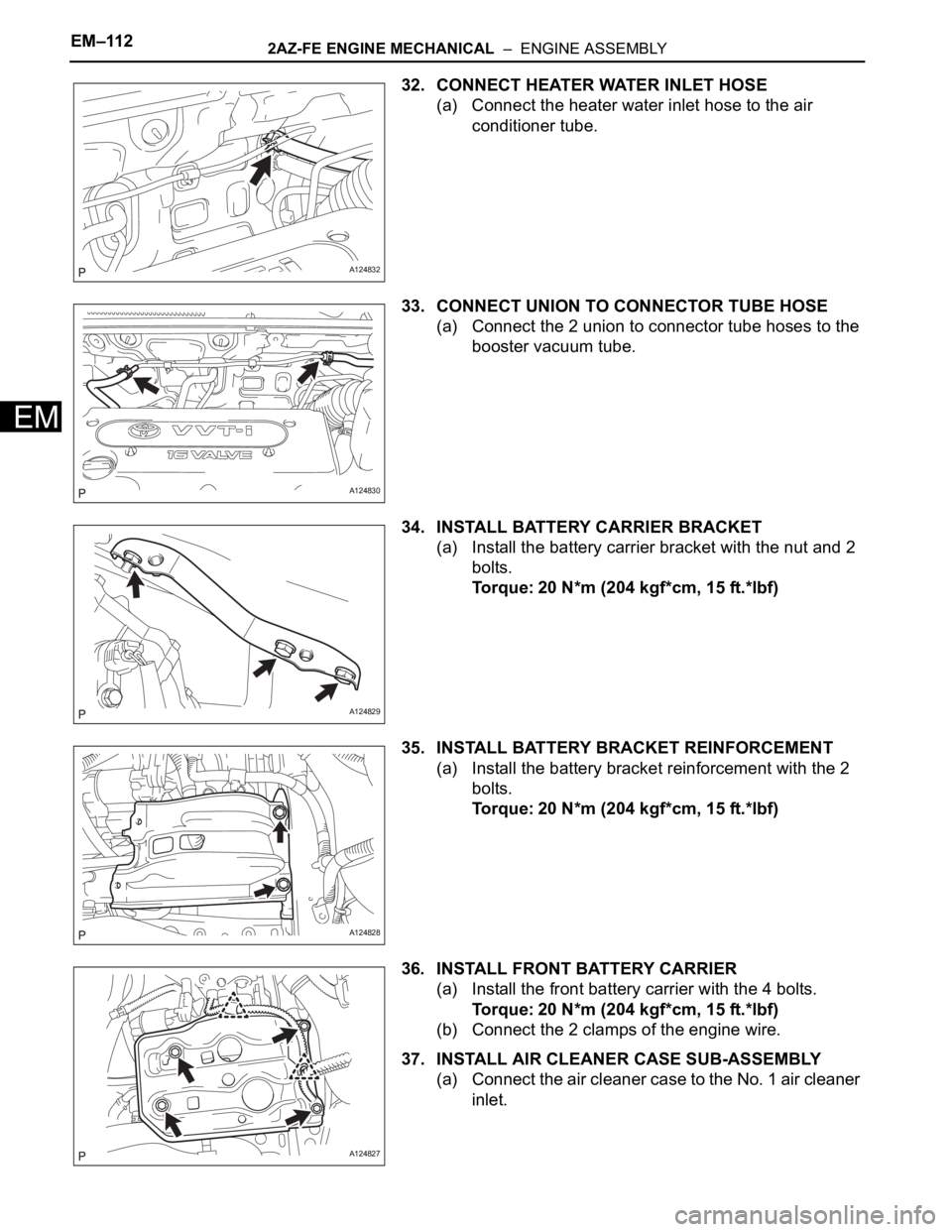

TOYOTA RAV4 2006 Service Repair Manual EM–1102AZ-FE ENGINE MECHANICAL – ENGINE ASSEMBLY EM (b) Install the through bolt and nut which is used to secure the front engine mounting bracket FR. HINT: Install the through bolt by tighteni

Page 646 of 2000

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–111 EM (e) Connect the 2 engine wire connectors and install the nut. (f) Install the engine room relay block cover. (g) Attach the clamp of the engi

Page 647 of 2000

TOYOTA RAV4 2006 Service Repair Manual EM–1122AZ-FE ENGINE MECHANICAL – ENGINE ASSEMBLY EM 32. CONNECT HEATER WATER INLET HOSE (a) Connect the heater water inlet hose to the air conditioner tube. 33. CONNECT UNION TO CONNECTOR TUBE

Page 648 of 2000

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–113 EM (b) Install the air cleaner case with the 3 bolts. Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf) 38. INSTALL AIR CLEANER FILTER ELEMENT SUB- ASSEMBL
