TOYOTA RAV4 2006 Service Repair Manual EM–262GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY EM (h) Remove the 6 bolts and front suspension member brace rear RH and LH. (i) Remove the 6 bolts, crossmember and suspension member. (j) Using

Page 202 of 2000

TOYOTA RAV4 2006 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–27 EM 51. REMOVE DRIVE PLATE AND RING GEAR SUB- ASSEMBLY (a) Using SST, hold the crankshaft. SST 09213-70011, 09330-00021 (b) Remove the 8 bolts, fro

Page 203 of 2000

TOYOTA RAV4 2006 Service Repair Manual EM–282GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY EM (g) Disconnect the connector. (h) Using a 5 mm socket hexagon wrench, remove the 4 bolts. (i) Remove the 2 nuts, 2 bolts and surge tank. (j) R

Page 204 of 2000

TOYOTA RAV4 2006 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–29 EM 62. REMOVE OIL DIPSTICK GUIDE (a) Remove the dipstick. (b) Remove the 2 bolts, and the No. 1 and No. 2 guides. (c) Remove the O-rings from the

Page 205 of 2000

TOYOTA RAV4 2006 Service Repair Manual EM–302GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY EM 73. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY (a) Using a 24 mm deep socket wrench, remove the pressure switch. 74. REMOVE KNOCK SENSOR (See

Page 206 of 2000

TOYOTA RAV4 2006 Service Repair Manual FU–42AZ-FE FUEL – FUEL SYSTEM FU PARTS LOCATION A126790E01

Page 207 of 2000

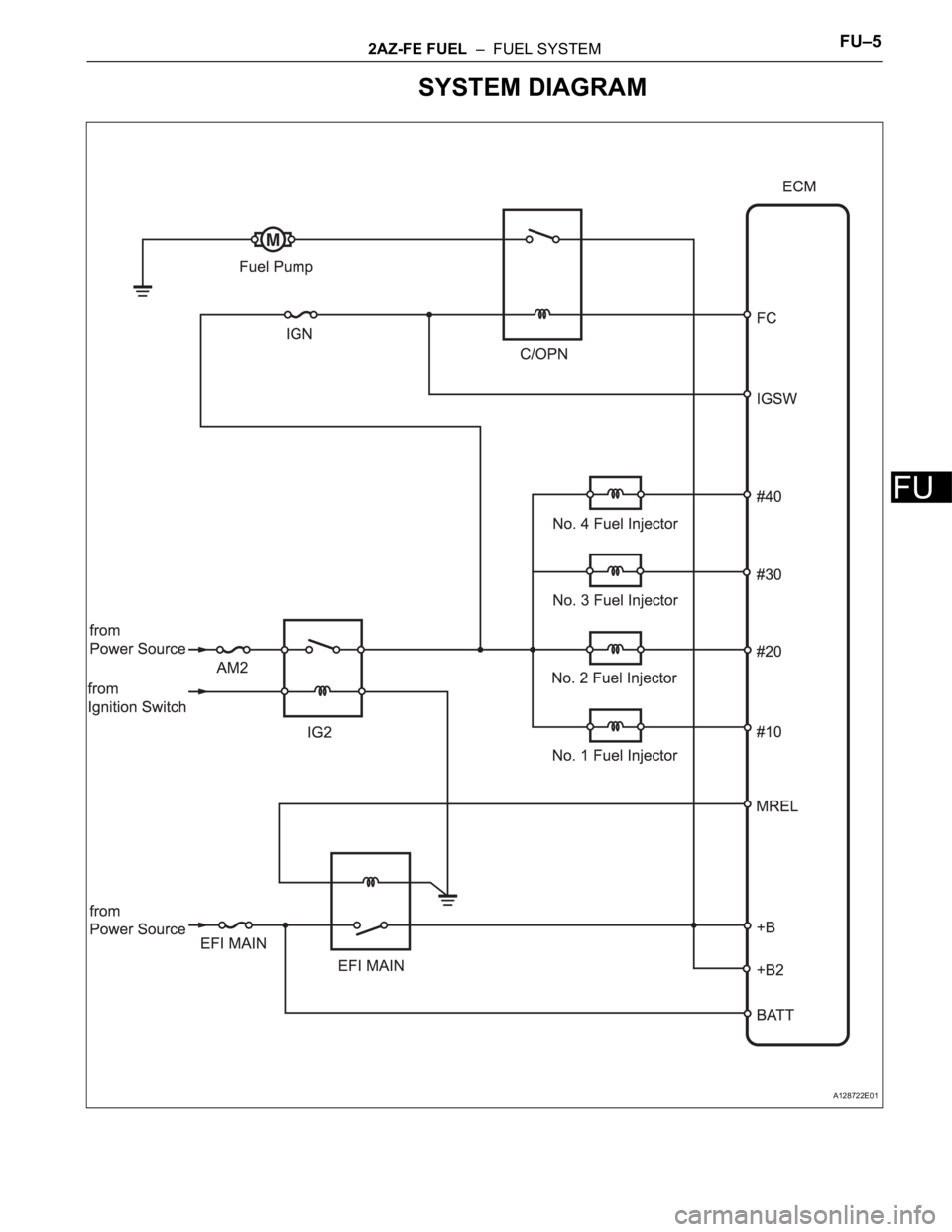

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE FUEL – FUEL SYSTEMFU–5 FU SYSTEM DIAGRAM A128722E01

Page 208 of 2000

TOYOTA RAV4 2006 Service Repair Manual FU–62AZ-FE FUEL – FUEL SYSTEM FU ON-VEHICLE INSPECTION 1. CHECK FUEL PUMP OPERATION (a) Connect the intelligent tester to the DLC3. (b) Turn the ignition switch ON. Do not start the engine. (c)
