Page 1225 of 2000

TOYOTA RAV4 2006 Service Repair Manual U151F AUTOMATIC TRANSAXLE – SECOND BRAKE PISTONAX–253 AX REASSEMBLY 1. INSTALL 2ND BRAKE PISTON O-RING (a) Coat 2 new O-rings with ATF, and install them in the 2nd brake piston. NOTICE: Make su

Page 1226 of 2000

TOYOTA RAV4 2006 Service Repair Manual AX–256U151F AUTOMATIC TRANSAXLE – FORWARD CLUTCH AX (d) Remove the forward clutch return spring from the input shaft. 4. REMOVE FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY (a) Place the forward

Page 1227 of 2000

TOYOTA RAV4 2006 Service Repair Manual U151F AUTOMATIC TRANSAXLE – FORWARD CLUTCHAX–257 AX 2. INSPECT FORWARD MULTIPLE DISC CLUTCH DISC (a) Check if the sliding surface of the disc, plate and flange are worn or burnt. If necessary,

Page 1228 of 2000

TOYOTA RAV4 2006 Service Repair Manual AX–258U151F AUTOMATIC TRANSAXLE – FORWARD CLUTCH AX 3. INSTALL FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY (a) Install the return spring to the forward clutch drum. NOTICE: After installing the s

Page 1229 of 2000

TOYOTA RAV4 2006 Service Repair Manual U151F AUTOMATIC TRANSAXLE – FORWARD CLUTCHAX–259 AX (b) Install the 5 plates, 5 discs and flange to the forward clutch drum. NOTICE: Make sure that the plates, discs, and flange are installed

Page 1230 of 2000

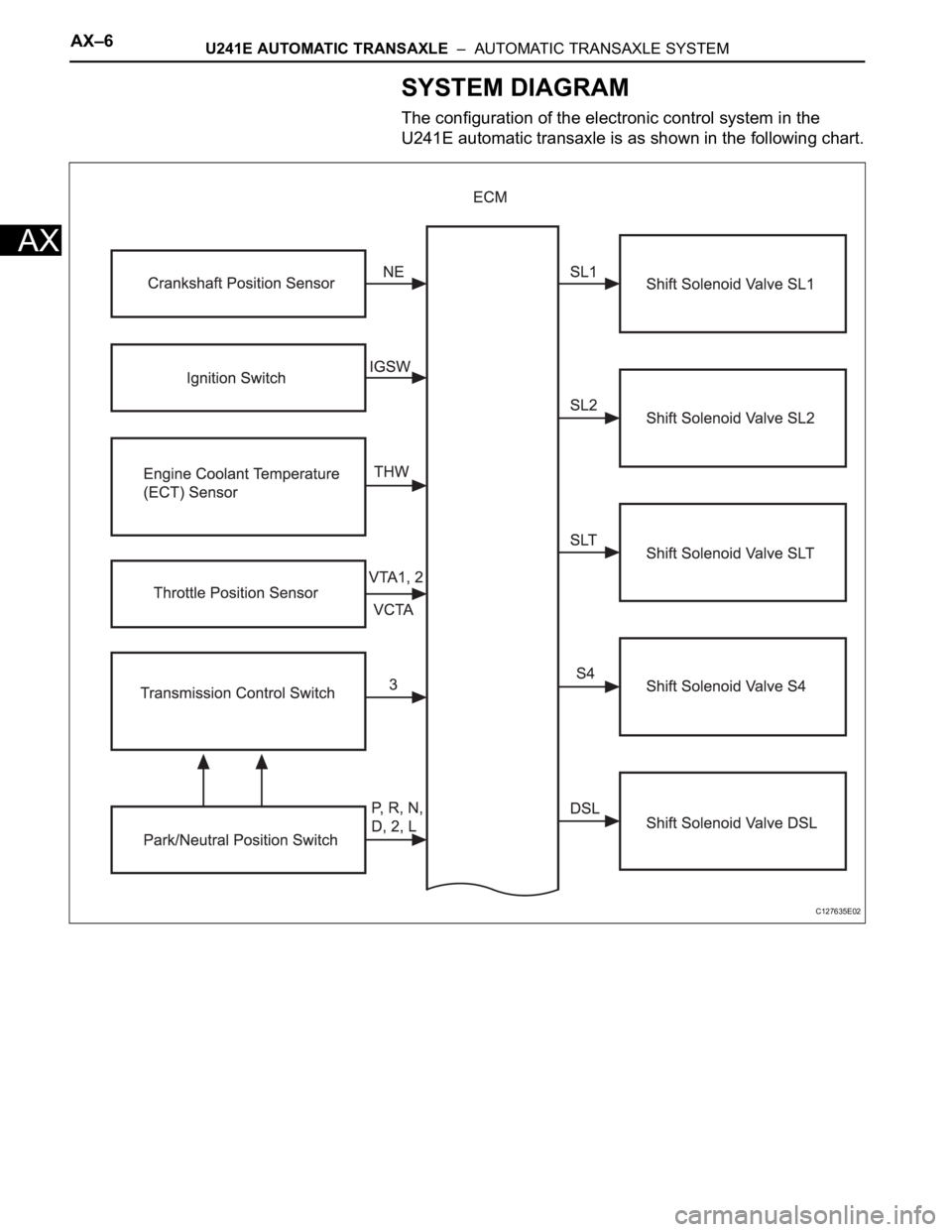

TOYOTA RAV4 2006 Service Repair Manual AX–6U241E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE SYSTEM AX SYSTEM DIAGRAM The configuration of the electronic control system in the U241E automatic transaxle is as shown in the following cha

Page 1231 of 2000

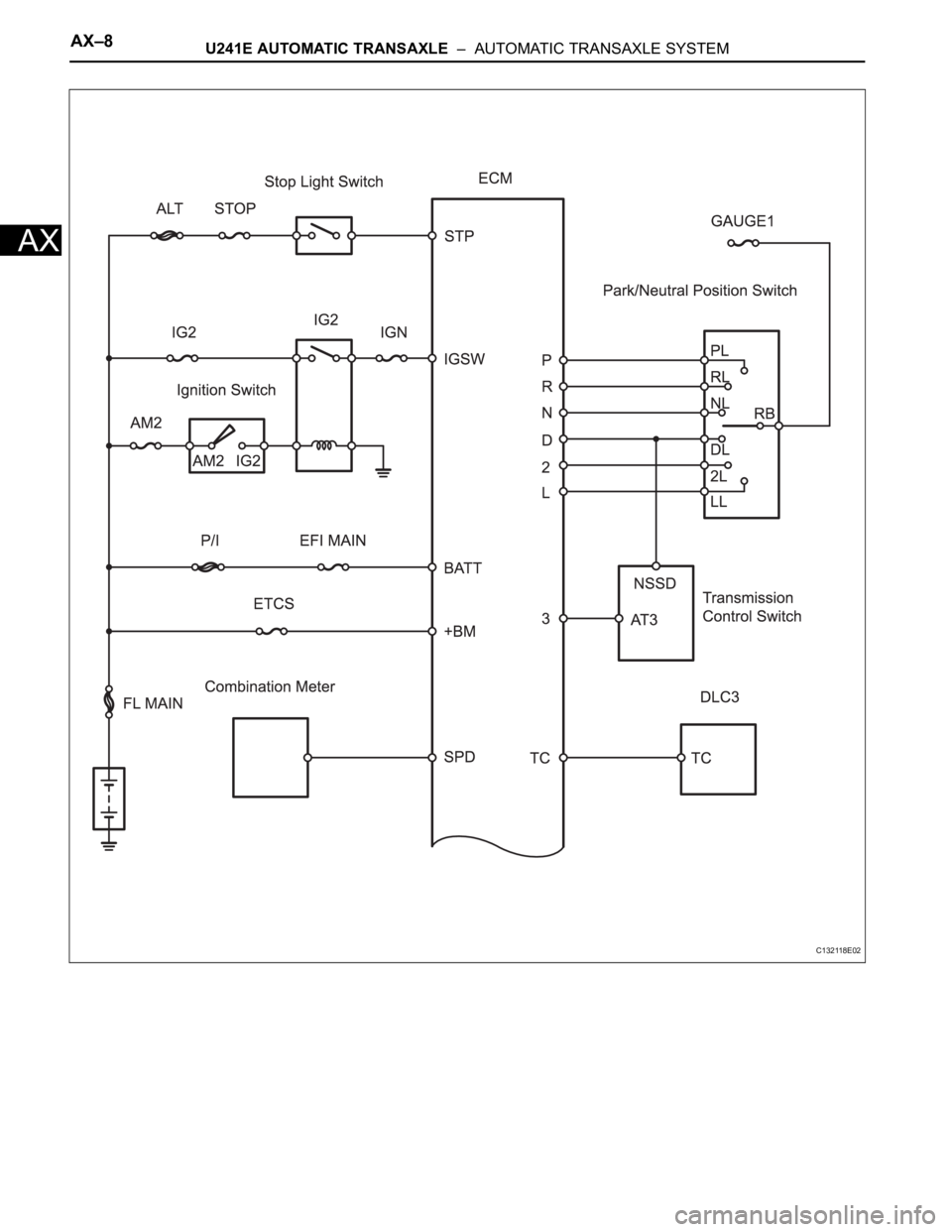

TOYOTA RAV4 2006 Service Repair Manual U241E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE SYSTEMAX–7 AX C116585E02

Page 1232 of 2000

TOYOTA RAV4 2006 Service Repair Manual AX–8U241E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE SYSTEM AX C132118E02
