LI–26LIGHTING – LIGHTING SYSTEM
LI
DESCRIPTION
When the stop light switch is turned on, current flows to the stop lights to illuminate them.

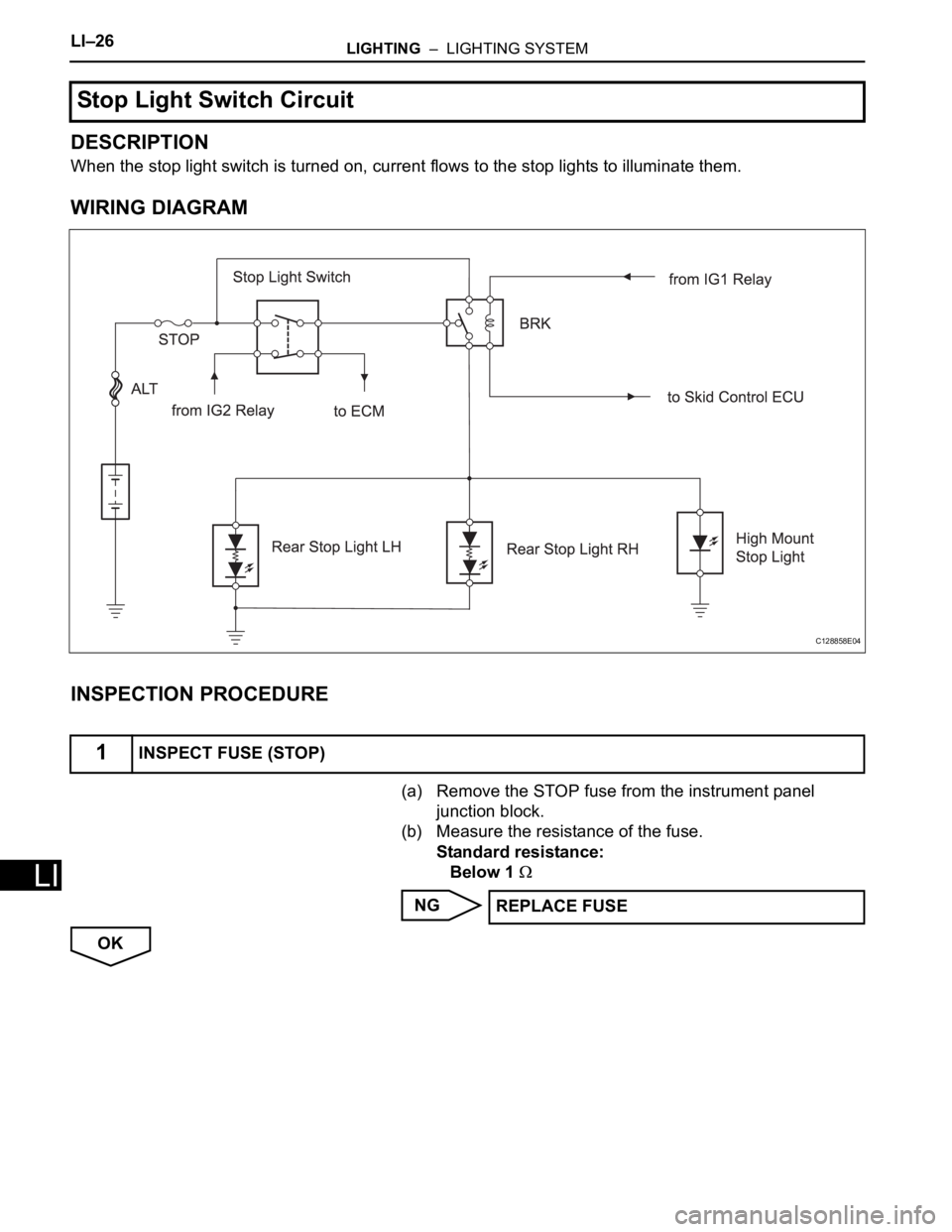

WIRING DIAGRAM
INSPECTION PROCEDURE
(a) Remove the STOP fuse from the instrument panel
junction block.
(b) Measure the resistance of the fuse.
Standard resistance:
Below 1
NG
OK
Stop Light Switch Circuit
1INSPECT FUSE (STOP)
C128858E04
REPLACE FUSE
Page 1858 of 2000

LIGHTING – LIGHTING SYSTEMLI–27
LI
(a) Remove the rear combination light.
(b) Connect the positive (+) lead from the battery to terminal
4 and the negative (-) lead to terminal 1, then check that
the light comes on.
OK:
Light comes on.
NG
OK
(a) Remove the high mount stop light assembly.
(b) Connect the positive (+) lead from the battery to terminal
2 and the negative (-) lead to terminal 1, then check that
the light comes on.
OK:
Light comes on
NG
OK
(a) Remove the BRK relay from the engine room No. 1 relay
block.
(b) Measure the resistance of the relay.
Standard resistance
NG
OK

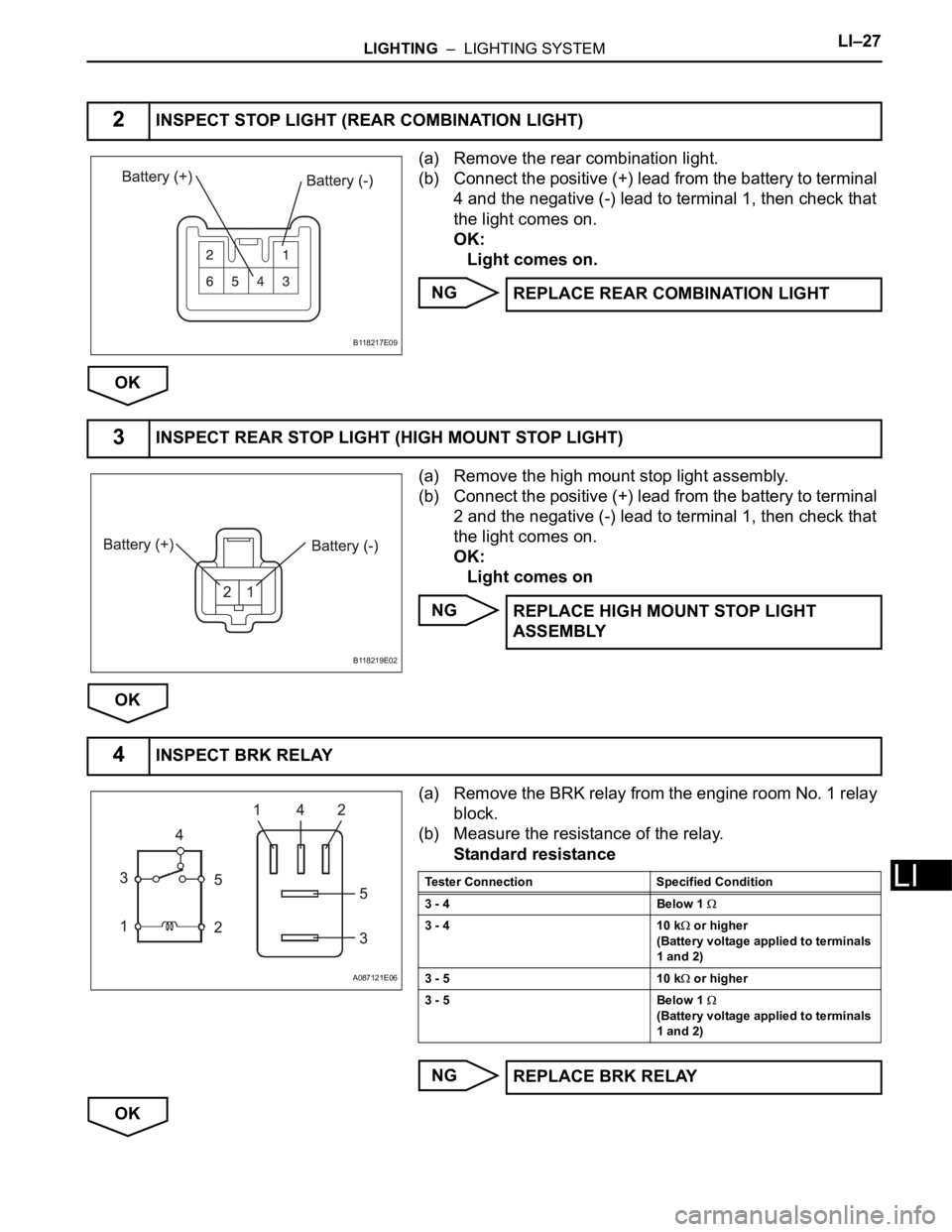

2INSPECT STOP LIGHT (REAR COMBINATION LIGHT)
B118217E09
REPLACE REAR COMBINATION LIGHT
3INSPECT REAR STOP LIGHT (HIGH MOUNT STOP LIGHT)
B118219E02
REPLACE HIGH MOUNT STOP LIGHT
ASSEMBLY
4INSPECT BRK RELAY
A087121E06
Tester Connection Specified Condition
3 - 4 Below 1
3 - 4 10 k or higher
(Battery voltage applied to terminals
1 and 2)
3 - 5 10 k
or higher
3 - 5 Below 1
(Battery voltage applied to terminals
1 and 2)
REPLACE BRK RELAY
Page 1859 of 2000
LI–28LIGHTING – LIGHTING SYSTEM
LI
(a) Remove the stop light switch.
(b) Measure the resistance of the switch.
Standard resistance
NG
OK
(a) Disconnect the A3 stop light switch connector.
(b) Measure the voltage of the wire harness side connector.
Standard voltage
NG
OK

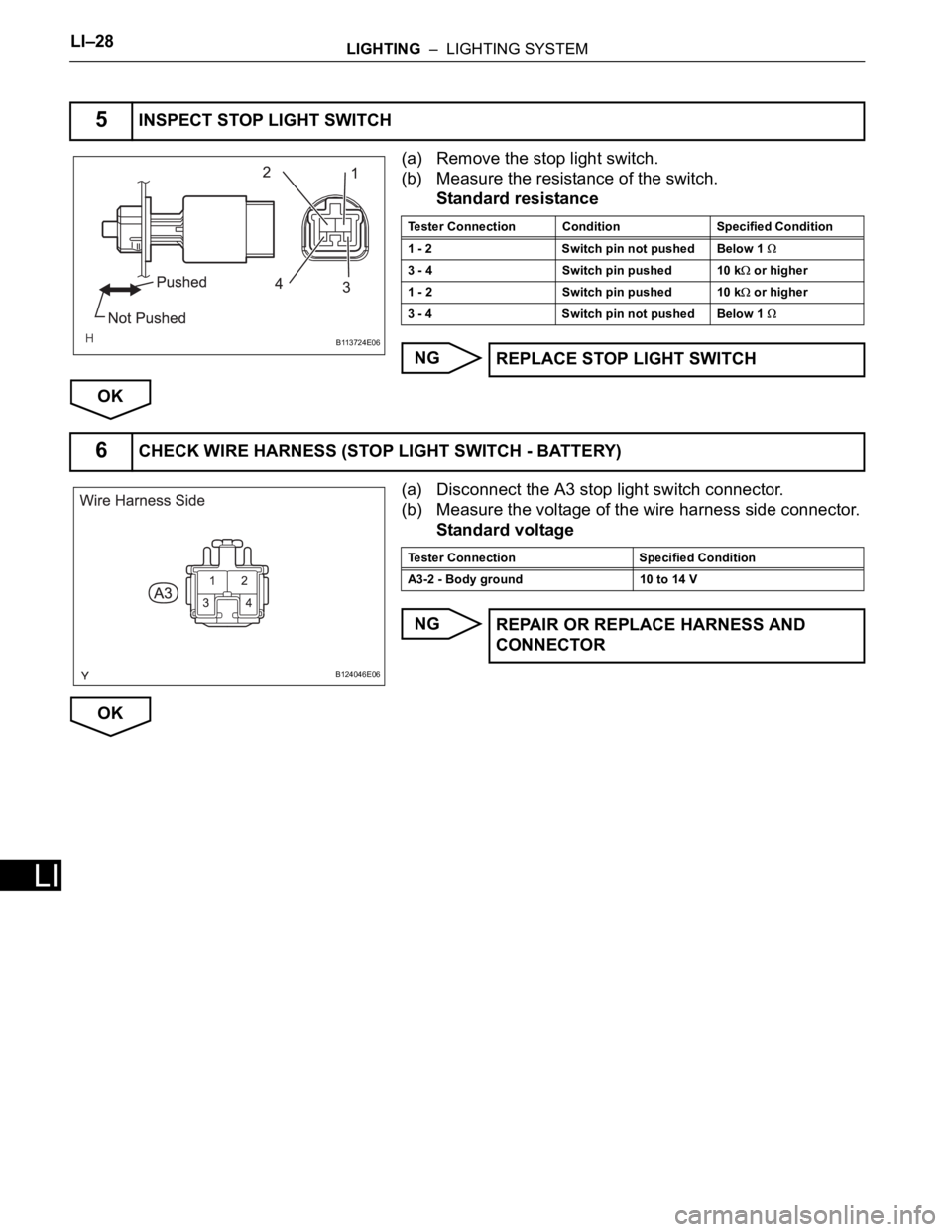

5INSPECT STOP LIGHT SWITCH
B113724E06
Tester Connection Condition Specified Condition
1 - 2 Switch pin not pushed Below 1
3 - 4 Switch pin pushed 10 k or higher
1 - 2 Switch pin pushed 10 k
or higher
3 - 4 Switch pin not pushed Below 1
REPLACE STOP LIGHT SWITCH
6CHECK WIRE HARNESS (STOP LIGHT SWITCH - BATTERY)
B124046E06
Tester Connection Specified Condition
A3-2 - Body ground 10 to 14 V
REPAIR OR REPLACE HARNESS AND
CONNECTOR
Page 1860 of 2000
LIGHTING – LIGHTING SYSTEMLI–29
LI
(a) Disconnect the A3 stop light switch connector.
(b) Disconnect the K12 and K14 rear combination light
connectors.
(c) Disconnect the Q1 high mount stop light connector.
(d) Measure the resistance of the wire harness side
connectors.
Standard resistance
NG
OK

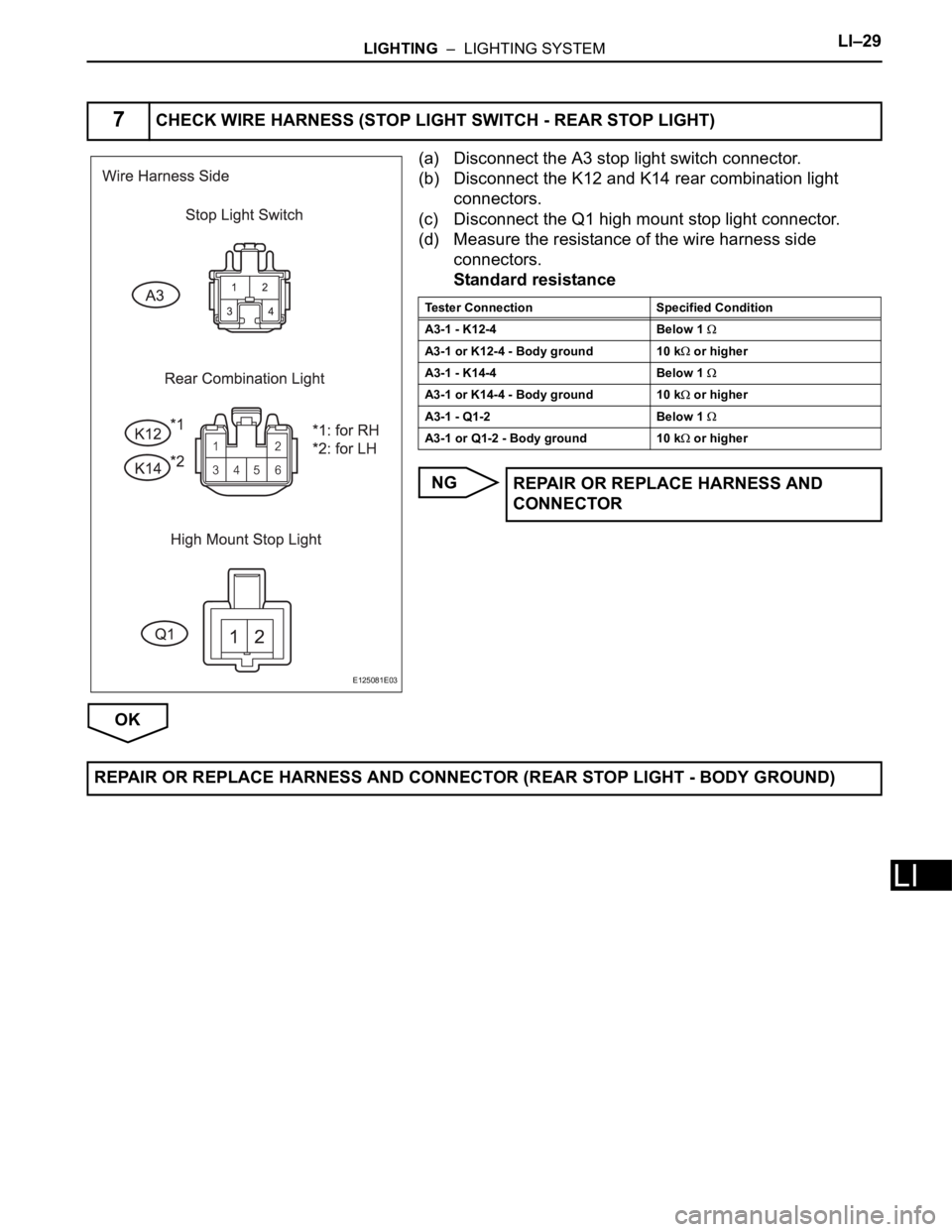

7CHECK WIRE HARNESS (STOP LIGHT SWITCH - REAR STOP LIGHT)
E125081E03
Tester Connection Specified Condition
A3-1 - K12-4 Below 1
A3-1 or K12-4 - Body ground 10 k or higher
A3-1 - K14-4 Below 1
A3-1 or K14-4 - Body ground 10 k or higher
A3-1 - Q1-2 Below 1
A3-1 or Q1-2 - Body ground 10 k or higher
REPAIR OR REPLACE HARNESS AND
CONNECTOR
REPAIR OR REPLACE HARNESS AND CONNECTOR (REAR STOP LIGHT - BODY GROUND)
Page 1861 of 2000
LI–30LIGHTING – LIGHTING SYSTEM
LI
DESCRIPTION
When the light control switch, located on the headlight dimmer switch, is turned to the HEAD position, the
HEAD relay illuminates the headlights.
WIRING DIAGRAM
INSPECTION PROCEDURE
(a) Connect the intelligent tester (with CAN VIM) to the
DLC3.
(b) Turn the ignition switch ON and press the intelligent
tester main switch ON.
(c) Select the item below in the ACTIVE TEST and then
check the relay operation.
Headlight Relay Circuit
1PERFORM ACTIVE TEST BY INTELLIGENT TESTER (HEADLIGHT)
B118193E04
Page 1862 of 2000
LIGHTING – LIGHTING SYSTEMLI–31
LI
Main body ECU
OK:
Headlight comes on
OK
NG
(a) Remove the HEAD LL fuse and HEAD RL fuse from the
engine room No. 2 relay block.
(b) Measure the resistance of the fuses.
Standard resistance:
Below 1
NG
OK
(a) Remove the headlight relay from the engine room No. 2
relay block.
(b) Measure the resistance of the relay.
Standard resistance
NG
OK
(a) Remove the headlight bulbs (LOW).
(b) Connect the positive (+) lead from the battery to terminal
2 and the negative (-) lead to terminal 1, then check that
the bulb illuminates.
OK:
Bulb illuminates.
NG
Item Test Details: Display (Range) Diagnostic Note
HEAD LIGHT Headlight Relay ON/OFF -
Go to step 7
2INSPECT FUSE (HEAD LL, HEAD RL)
REPLACE FUSE

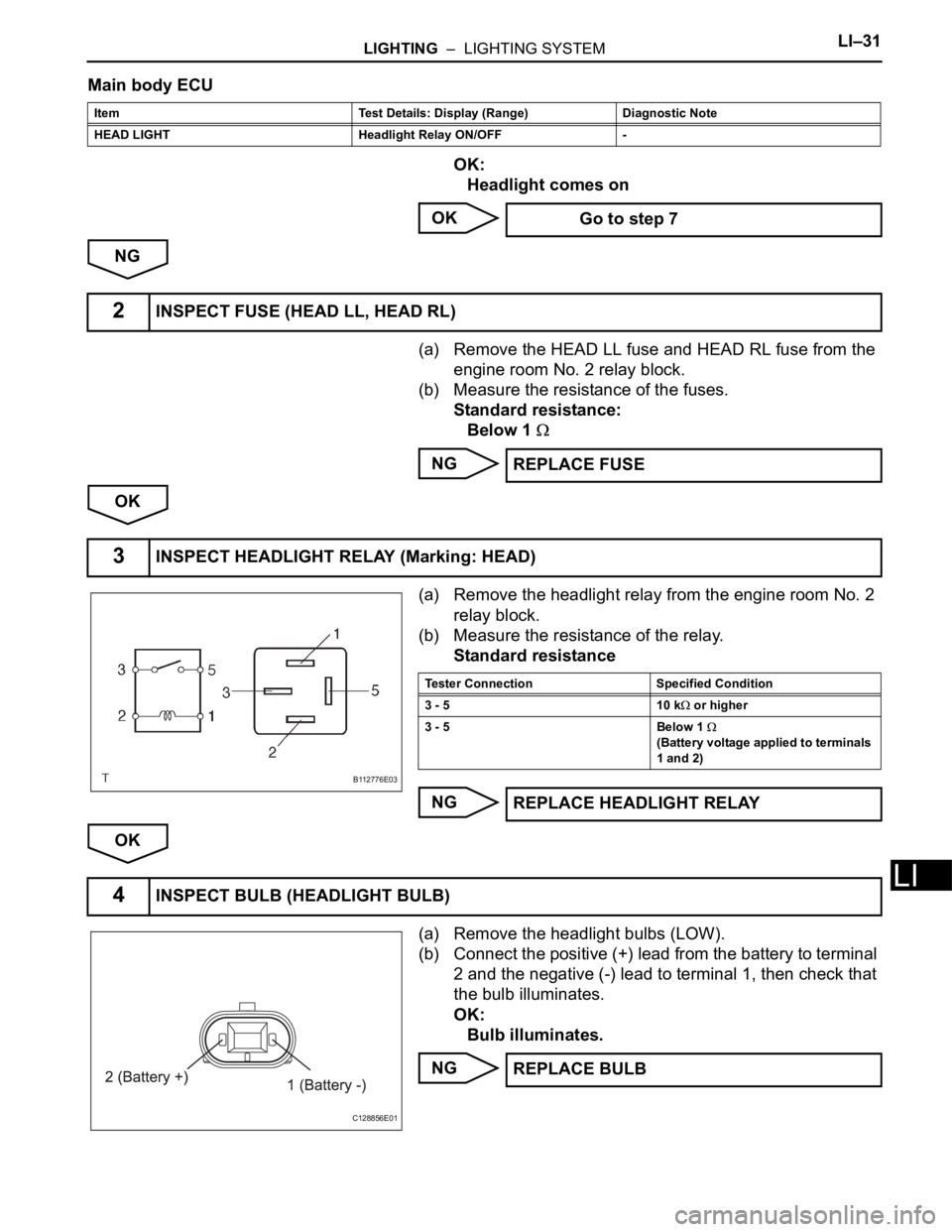

3INSPECT HEADLIGHT RELAY (Marking: HEAD)
B112776E03
Tester Connection Specified Condition
3 - 5 10 k
or higher
3 - 5 Below 1
(Battery voltage applied to terminals
1 and 2)
REPLACE HEADLIGHT RELAY
4INSPECT BULB (HEADLIGHT BULB)
C128856E01
REPLACE BULB
Page 1863 of 2000
LI–32LIGHTING – LIGHTING SYSTEM
LI
OK
(a) Disconnect the E15 main body ECU connector.
(b) Measure the voltage of the wire harness side connector.
Standard voltage
NG
OK
(a) Measure the voltage of the main body ECU.
Standard voltage
NG
OK

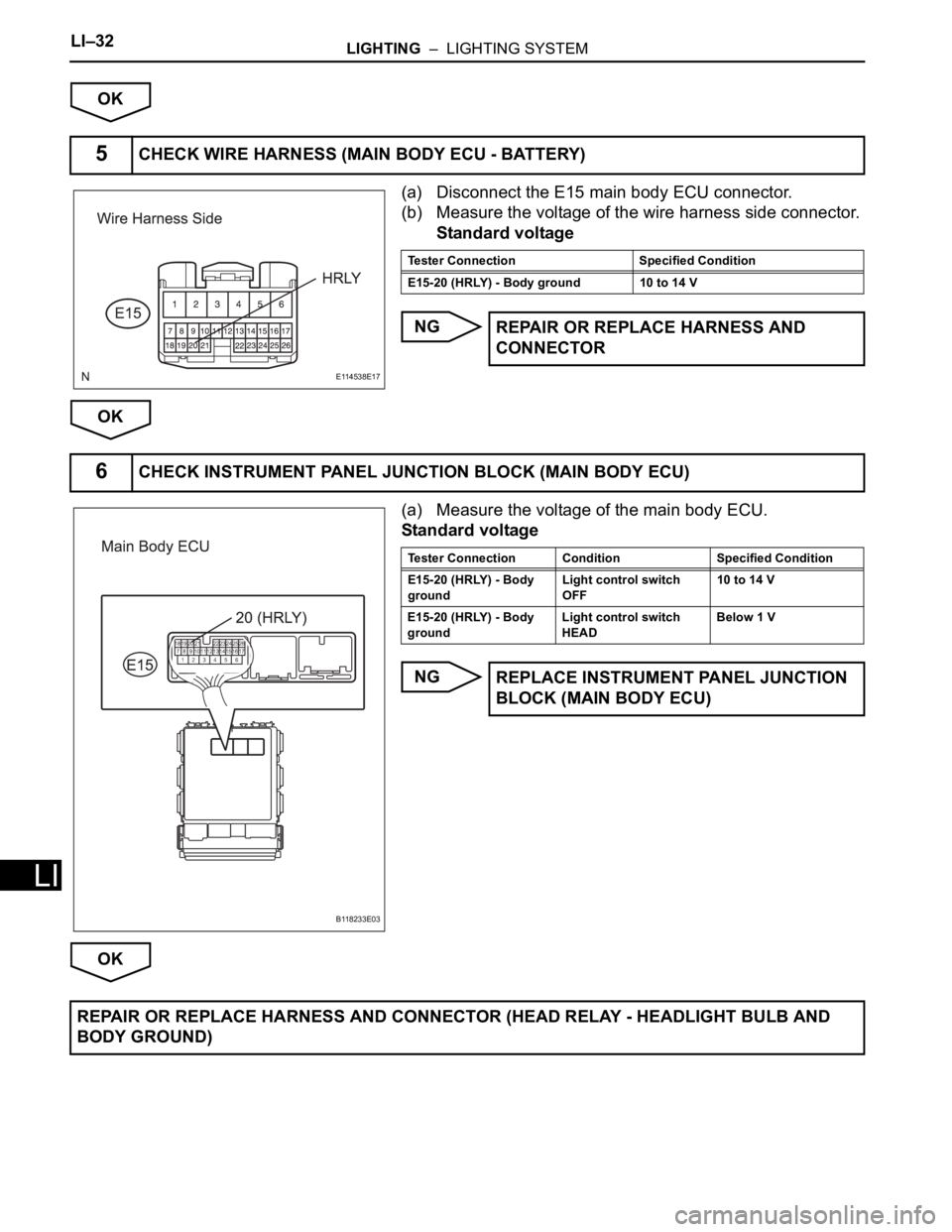

5CHECK WIRE HARNESS (MAIN BODY ECU - BATTERY)
E114538E17
Tester Connection Specified Condition
E15-20 (HRLY) - Body ground 10 to 14 V
REPAIR OR REPLACE HARNESS AND
CONNECTOR
6CHECK INSTRUMENT PANEL JUNCTION BLOCK (MAIN BODY ECU)
B118233E03
Tester Connection Condition Specified Condition
E15-20 (HRLY) - Body
groundLight control switch
OFF10 to 14 V
E15-20 (HRLY) - Body
groundLight control switch
HEADBelow 1 V
REPLACE INSTRUMENT PANEL JUNCTION
BLOCK (MAIN BODY ECU)
REPAIR OR REPLACE HARNESS AND CONNECTOR (HEAD RELAY - HEADLIGHT BULB AND
BODY GROUND)
Page 1864 of 2000
LIGHTING – LIGHTING SYSTEMLI–33
LI
(a) Disconnect the E17 main body ECU connector.
(b) Disconnect the E12 headlight dimmer switch connector.
(c) Measure the resistance of the wire harness side
connectors.
Standard resistance
NG
OK
(a) Disconnect the E12 headlight dimmer switch.
(b) Measure the resistance of the switch.
Standard resistance
NG

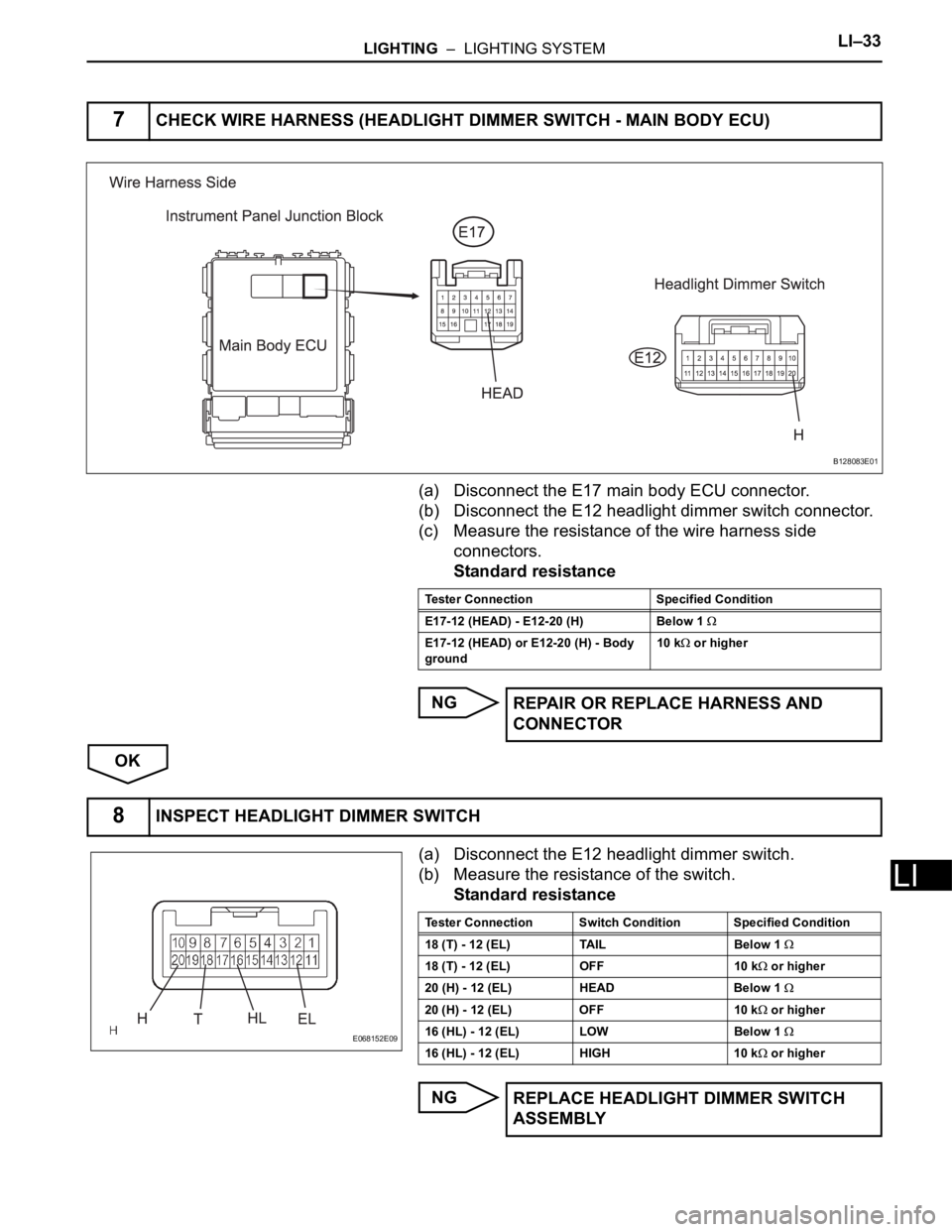

7CHECK WIRE HARNESS (HEADLIGHT DIMMER SWITCH - MAIN BODY ECU)
B128083E01
Tester Connection Specified Condition
E17-12 (HEAD) - E12-20 (H) Below 1
E17-12 (HEAD) or E12-20 (H) - Body
ground10 k or higher
REPAIR OR REPLACE HARNESS AND
CONNECTOR
8INSPECT HEADLIGHT DIMMER SWITCH
E068152E09
Tester Connection Switch Condition Specified Condition
18 (T) - 12 (EL) TAIL Below 1
18 (T) - 12 (EL) OFF 10 k or higher
20 (H) - 12 (EL) HEAD Below 1
20 (H) - 12 (EL) OFF 10 k or higher
16 (HL) - 12 (EL) LOW Below 1
16 (HL) - 12 (EL) HIGH 10 k or higher
REPLACE HEADLIGHT DIMMER SWITCH
ASSEMBLY
