Page 1281 of 2000

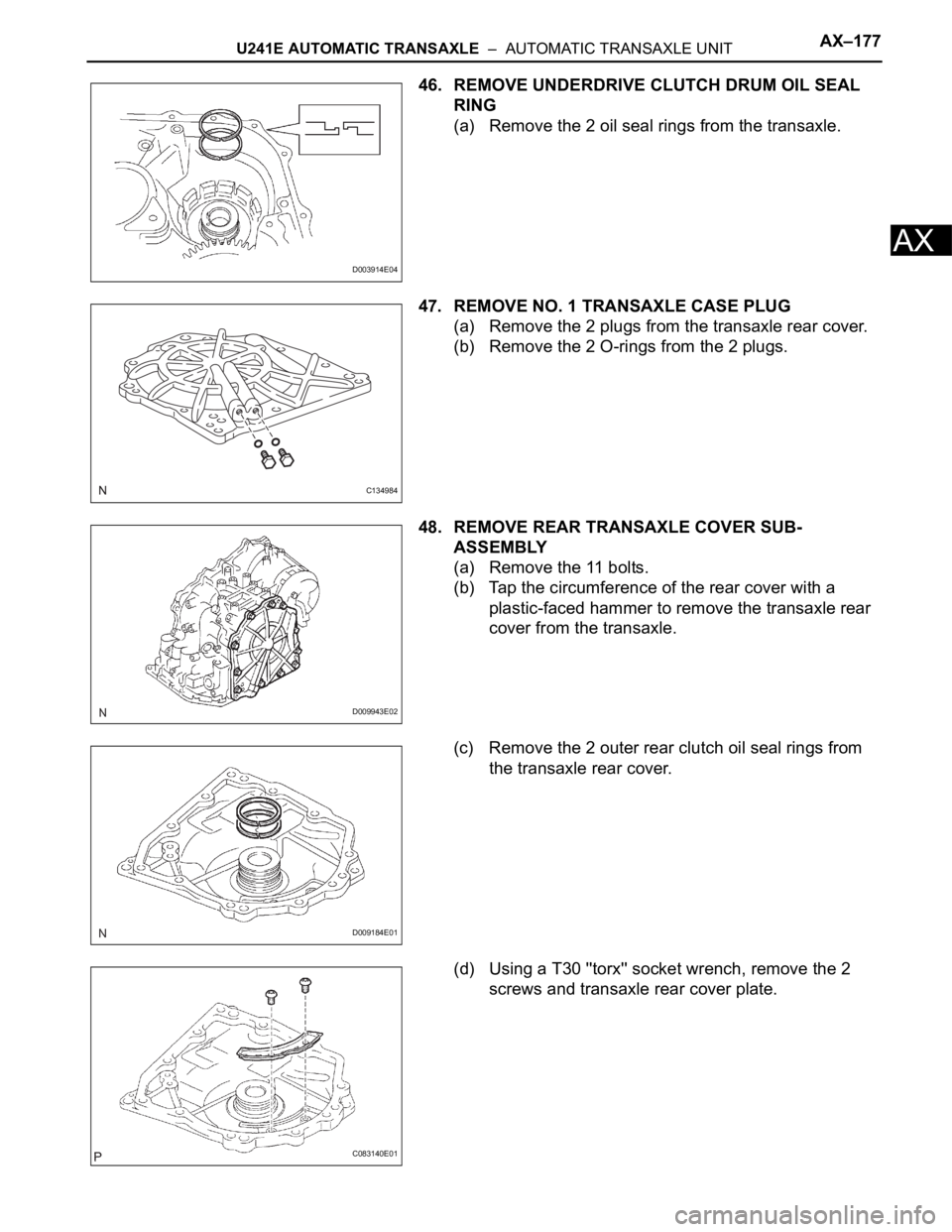

TOYOTA RAV4 2006 Service Repair Manual U241E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–177 AX 46. REMOVE UNDERDRIVE CLUTCH DRUM OIL SEAL RING (a) Remove the 2 oil seal rings from the transaxle. 47. REMOVE NO. 1 TRANSAXLE CASE

Page 1282 of 2000

TOYOTA RAV4 2006 Service Repair Manual AX–178U241E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT AX (e) Using SST, remove the needle-roller bearing from the transaxle rear cover. SST 09387-00041 (09387-01010, 09387-01030, 09387-01

Page 1283 of 2000

TOYOTA RAV4 2006 Service Repair Manual U241E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–179 AX 53. REMOVE DIRECT CLUTCH ASSEMBLY (a) Remove the thrust bearing and direct clutch from the transaxle. (b) Remove the bearing race f

Page 1284 of 2000

TOYOTA RAV4 2006 Service Repair Manual AX–180U241E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT AX 55. REMOVE 1-WAY CLUTCH ASSEMBLY (a) Remove the 1-way clutch from the transaxle. (b) Remove the 1-way clutch inner race from the 1-w

Page 1285 of 2000

TOYOTA RAV4 2006 Service Repair Manual U241E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–181 AX (b) Remove the 2nd brake piston from the transaxle. 60. REMOVE 1ST AND REVERSE BRAKE CLUTCH DISC (a) Remove the flange, 5 discs and

Page 1286 of 2000

TOYOTA RAV4 2006 Service Repair Manual AX–182U241E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT AX (d) Remove the thrust bearing race from the rear planetary gear. 63. REMOVE INPUT SUN GEAR (a) Remove the 2 thrust bearings, bearin

Page 1287 of 2000

TOYOTA RAV4 2006 Service Repair Manual U241E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–183 AX (d) Remove the front planetary gear from the brake hub. 65. REMOVE FRONT PLANETARY RING GEAR (a) Using a screwdriver, pry out the b

Page 1288 of 2000

TOYOTA RAV4 2006 Service Repair Manual AX–184U241E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT AX (d) Remove the 2 O-rings from the 1st and reverse brake piston. 67. INSPECT 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY (See
