Page 777 of 2000

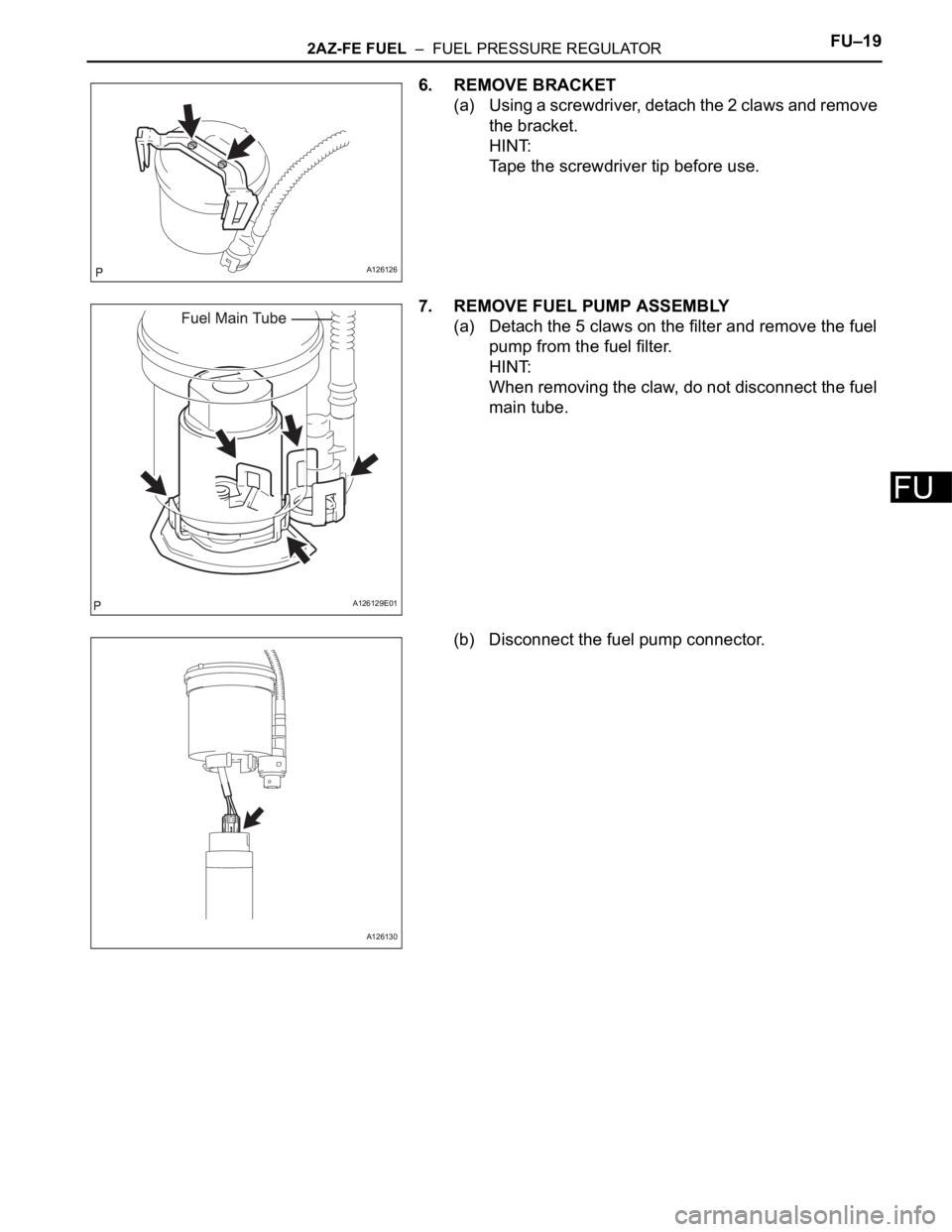

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE FUEL – FUEL PRESSURE REGULATORFU–19 FU 6. REMOVE BRACKET (a) Using a screwdriver, detach the 2 claws and remove the bracket. HINT: Tape the screwdriver tip before use. 7. REMOVE FUEL PUM

Page 778 of 2000

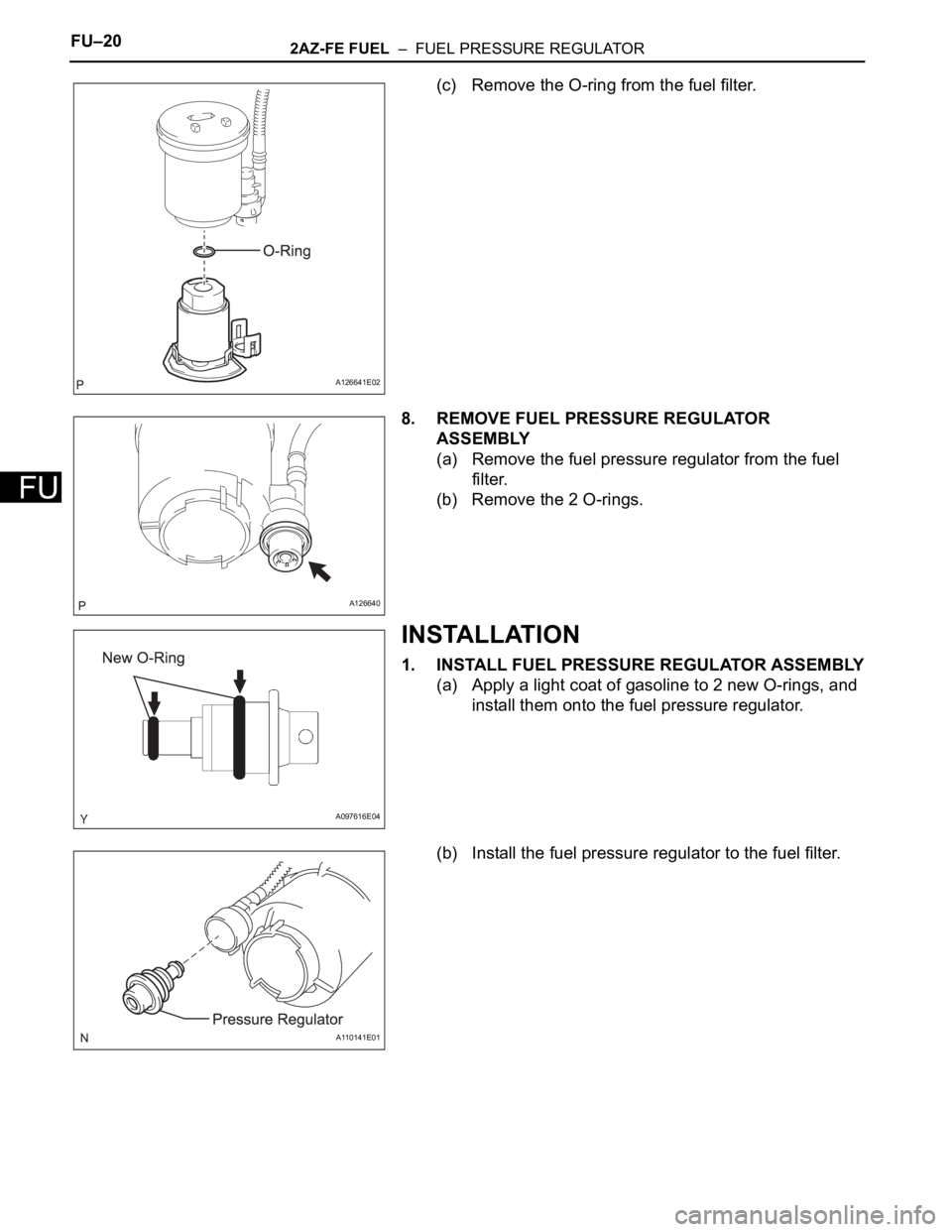

TOYOTA RAV4 2006 Service Repair Manual FU–202AZ-FE FUEL – FUEL PRESSURE REGULATOR FU (c) Remove the O-ring from the fuel filter. 8. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY (a) Remove the fuel pressure regulator from the fuel filter

Page 779 of 2000

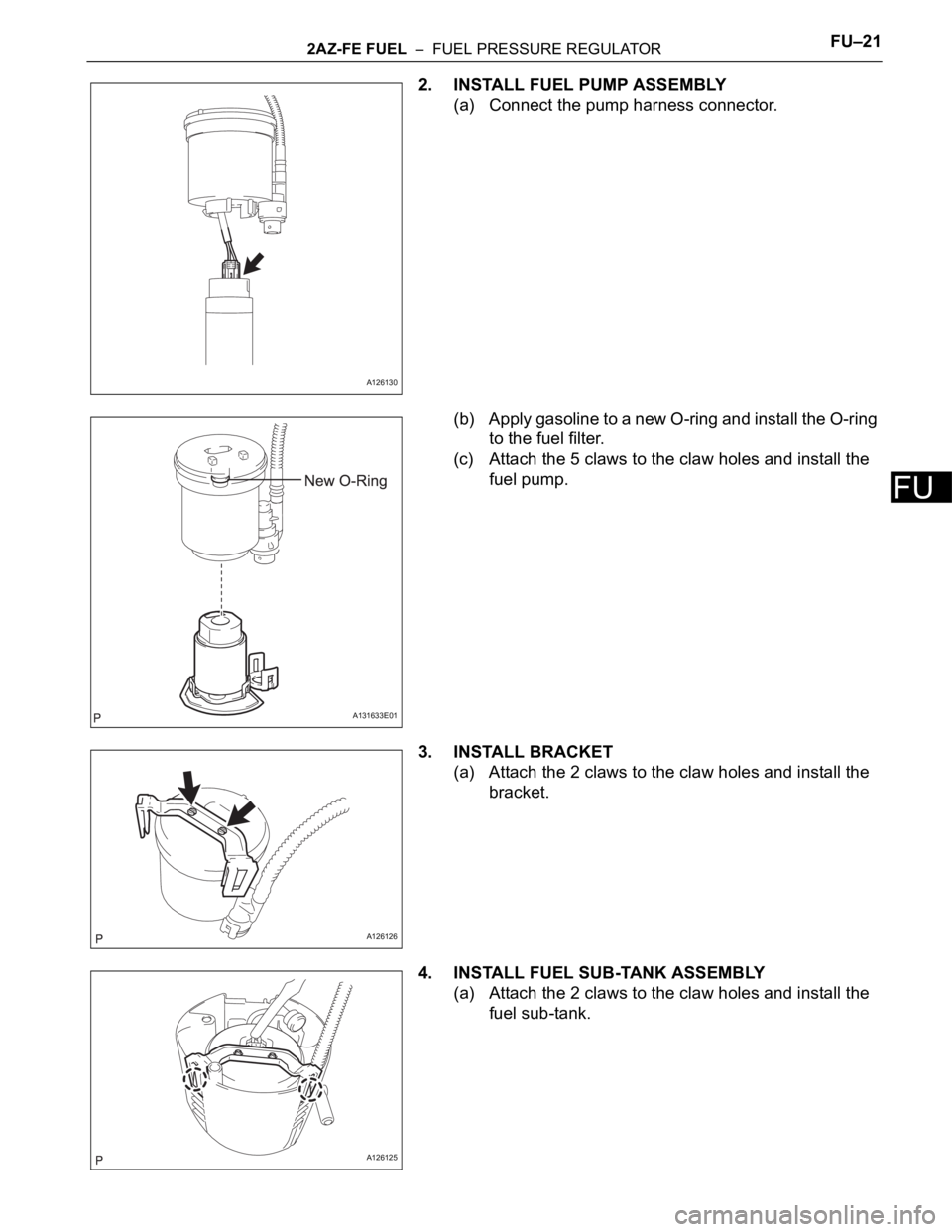

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE FUEL – FUEL PRESSURE REGULATORFU–21 FU 2. INSTALL FUEL PUMP ASSEMBLY (a) Connect the pump harness connector. (b) Apply gasoline to a new O-ring and instal l the O-ring to the fuel filter

Page 780 of 2000

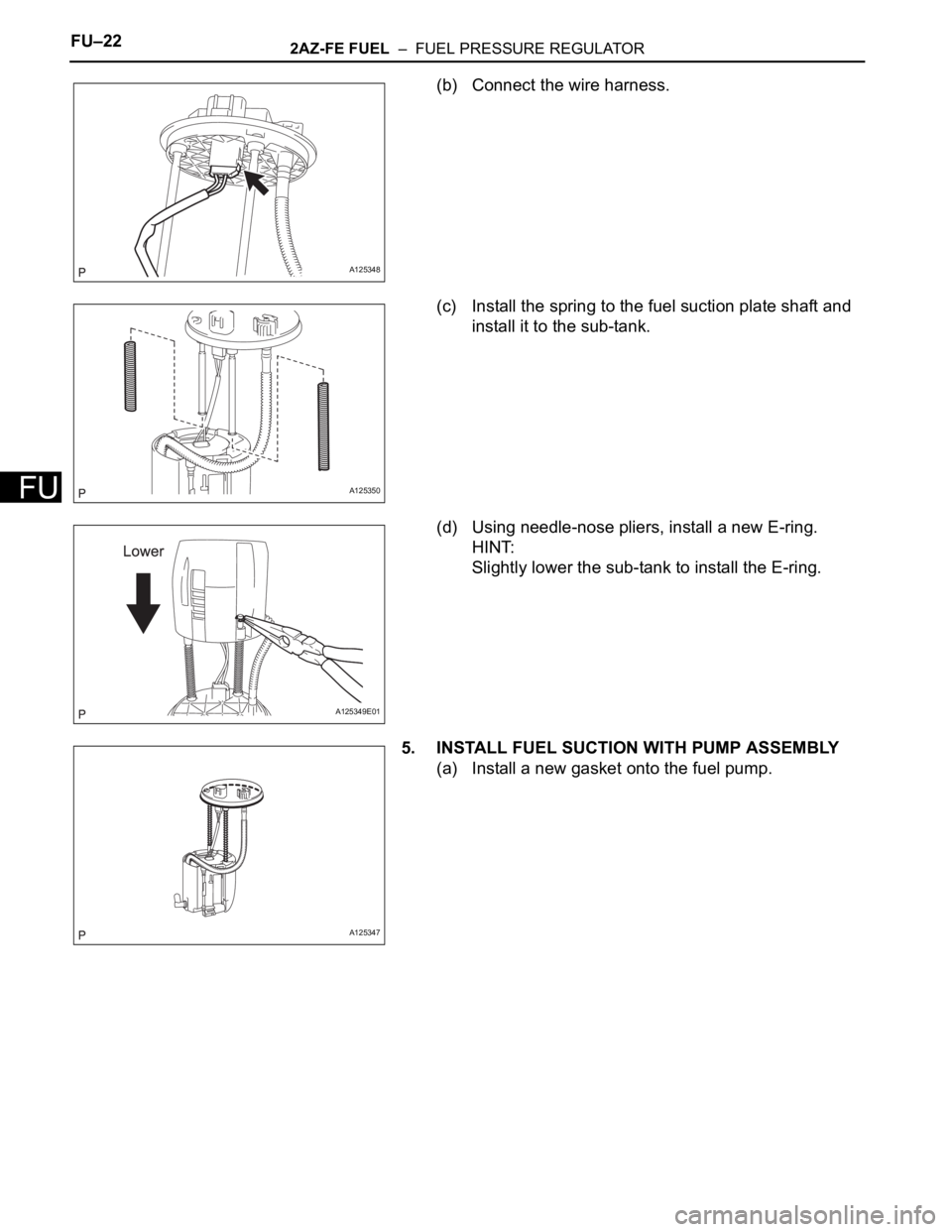

TOYOTA RAV4 2006 Service Repair Manual FU–222AZ-FE FUEL – FUEL PRESSURE REGULATOR FU (b) Connect the wire harness. (c) Install the spring to the fuel suction plate shaft and install it to the sub-tank. (d) Using needle-nose pliers,

Page 781 of 2000

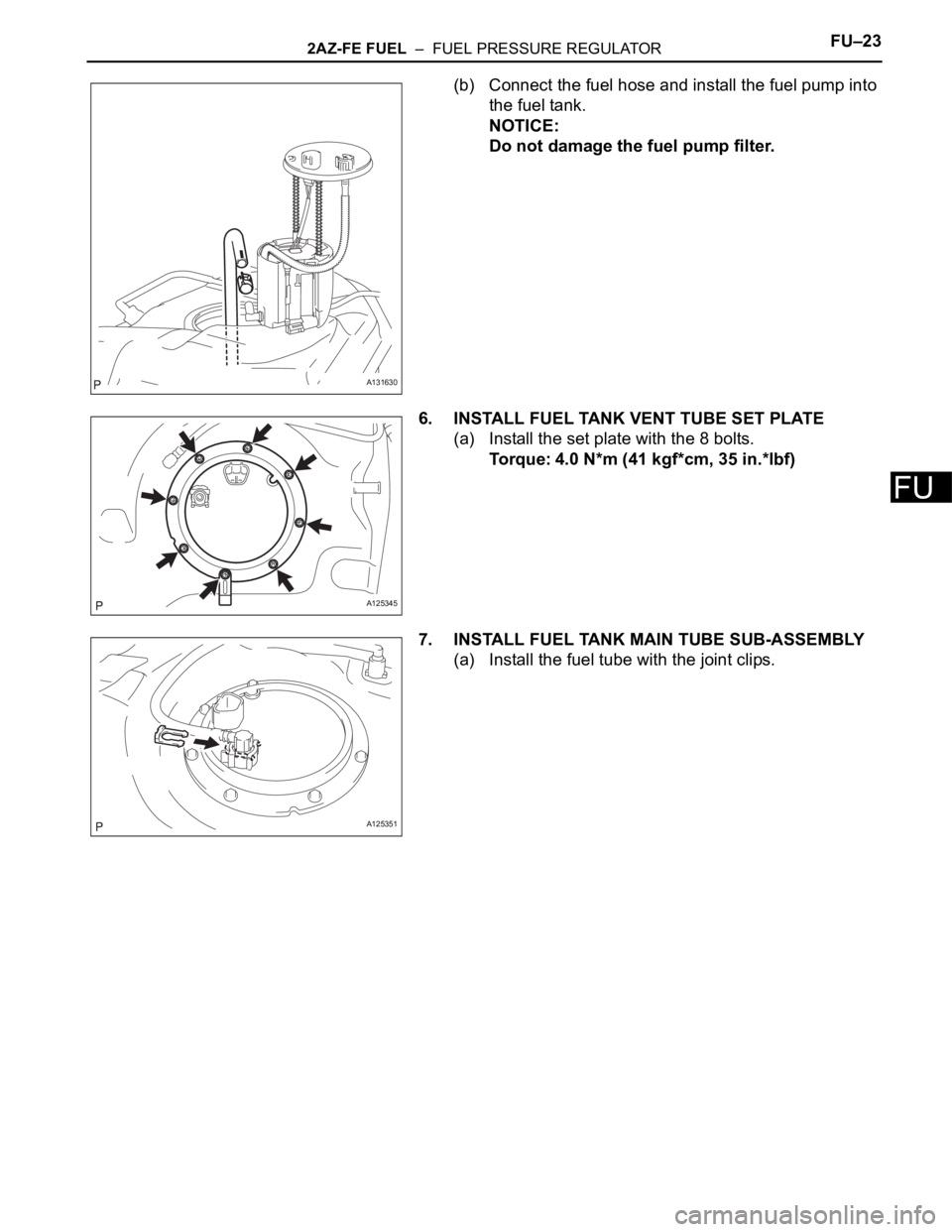

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE FUEL – FUEL PRESSURE REGULATORFU–23 FU (b) Connect the fuel hose and install the fuel pump into the fuel tank. NOTICE: Do not damage the fuel pump filter. 6. INSTALL FUEL TANK VENT TUBE

Page 782 of 2000

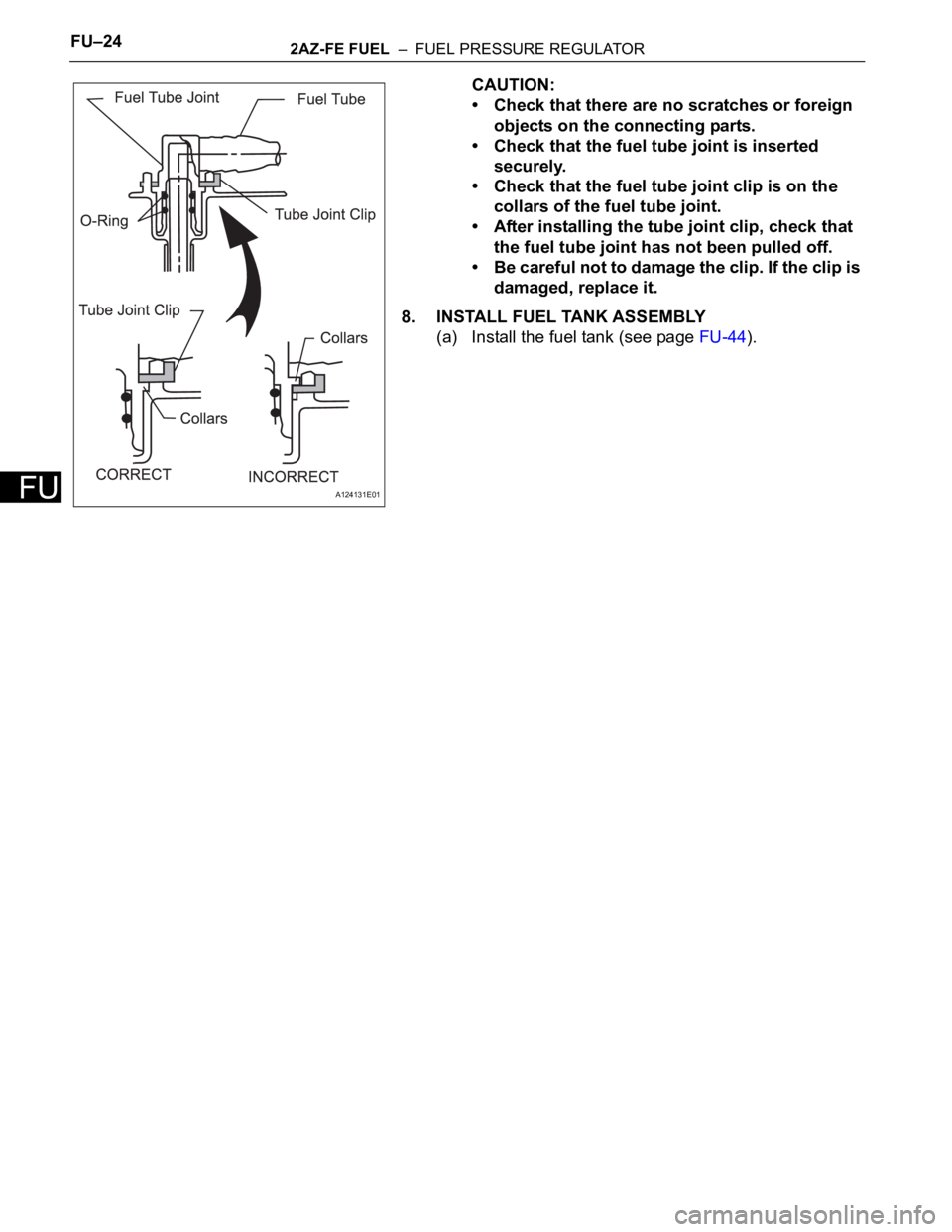

TOYOTA RAV4 2006 Service Repair Manual FU–242AZ-FE FUEL – FUEL PRESSURE REGULATOR FU CAUTION: • Check that there are no scratches or foreign objects on the connecting parts. • Check that the fuel tube joint is inserted securely

Page 783 of 2000

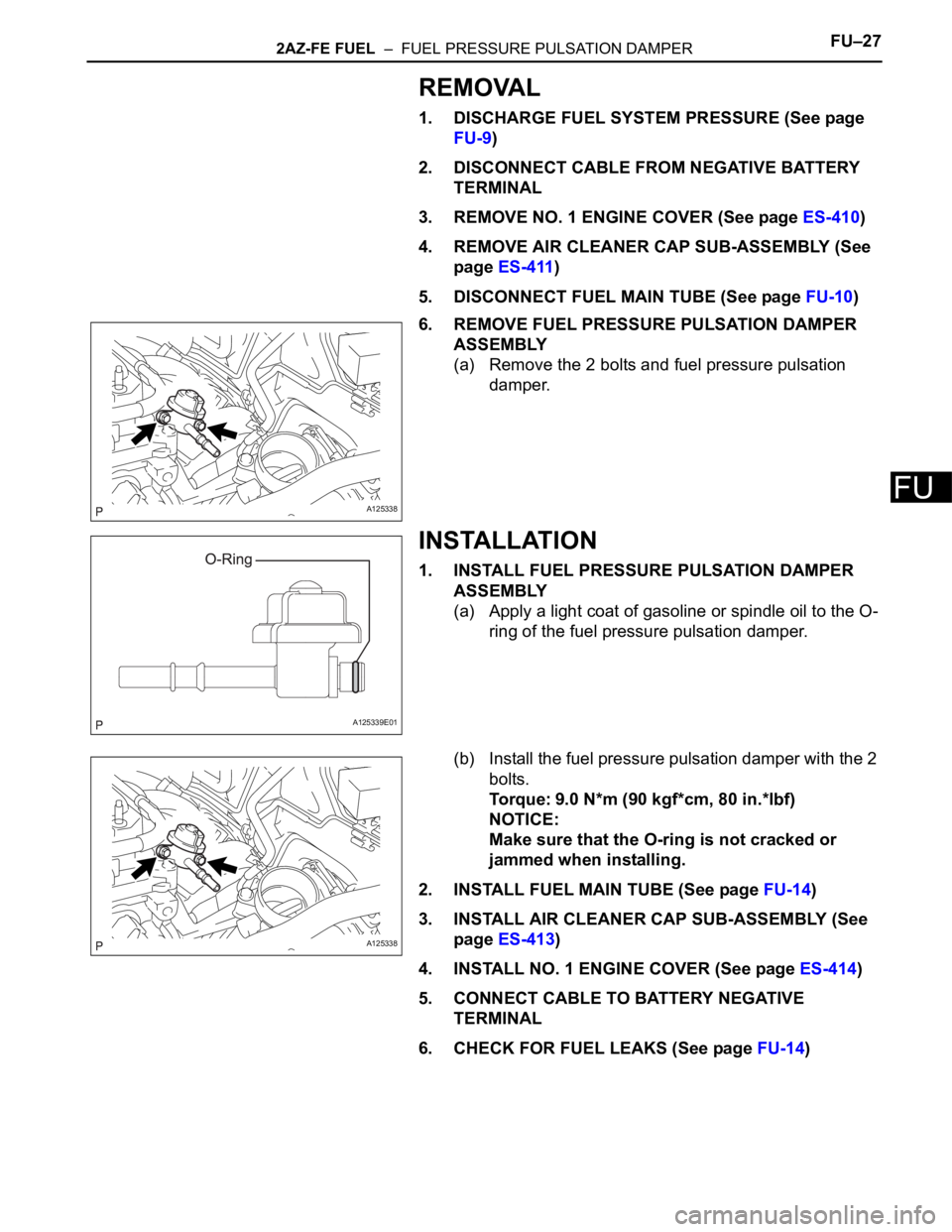

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE FUEL – FUEL PRESSURE PULSATION DAMPERFU–27 FU REMOVAL 1. DISCHARGE FUEL SYSTEM PRESSURE (See page FU-9) 2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 3. REMOVE NO. 1 ENGINE COVER (

Page 784 of 2000

TOYOTA RAV4 2006 Service Repair Manual FU–302AZ-FE FUEL – FUEL PUMP FU REMOVAL 1. REMOVE FUEL TANK ASSEMBLY (a) Remove the fuel tank (see page FU-39). 2. REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY (a) Remove the joint clip and fuel tank
