Page 225 of 2000

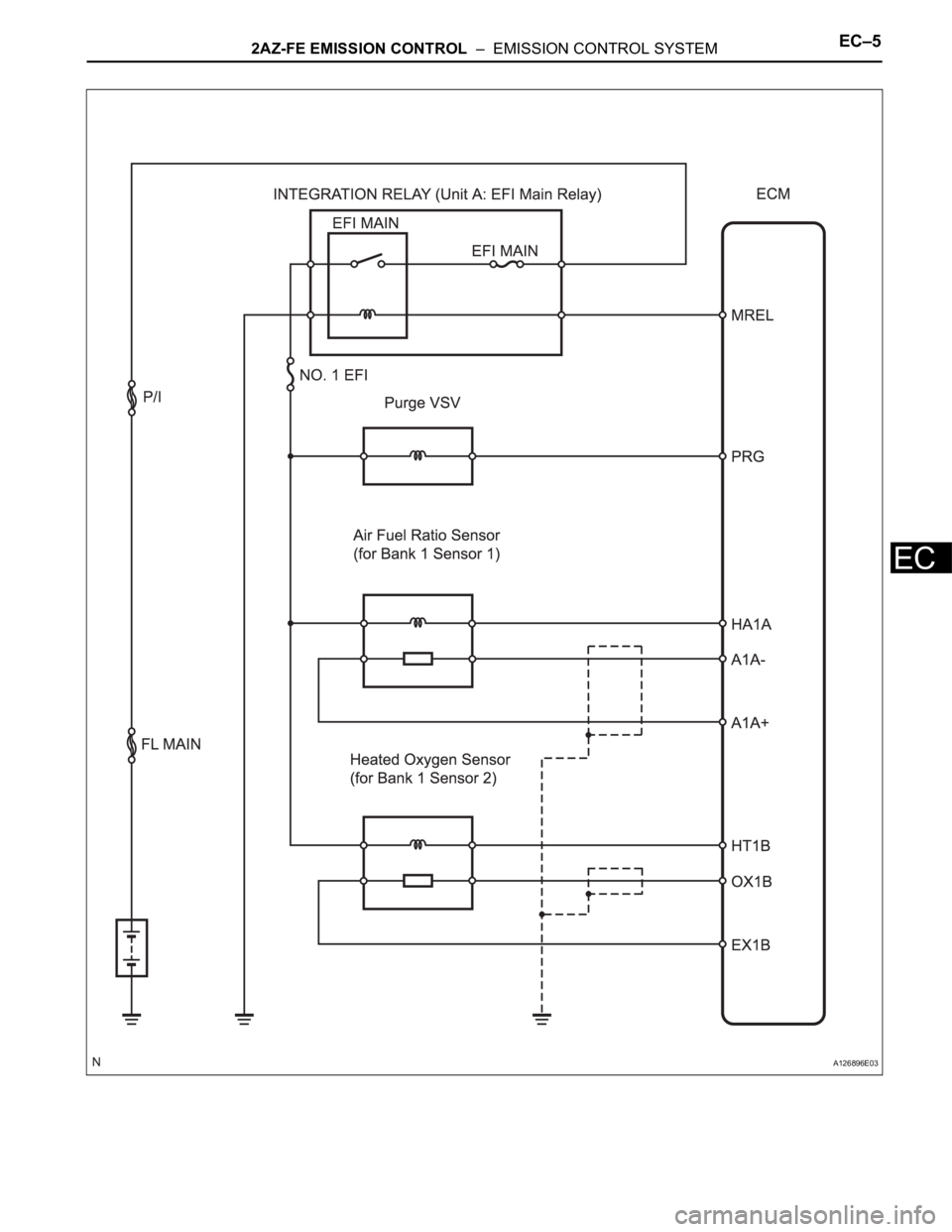

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE EMISSION CONTROL – EMISSION CONTROL SYSTEMEC–5 EC A126896E03

Page 226 of 2000

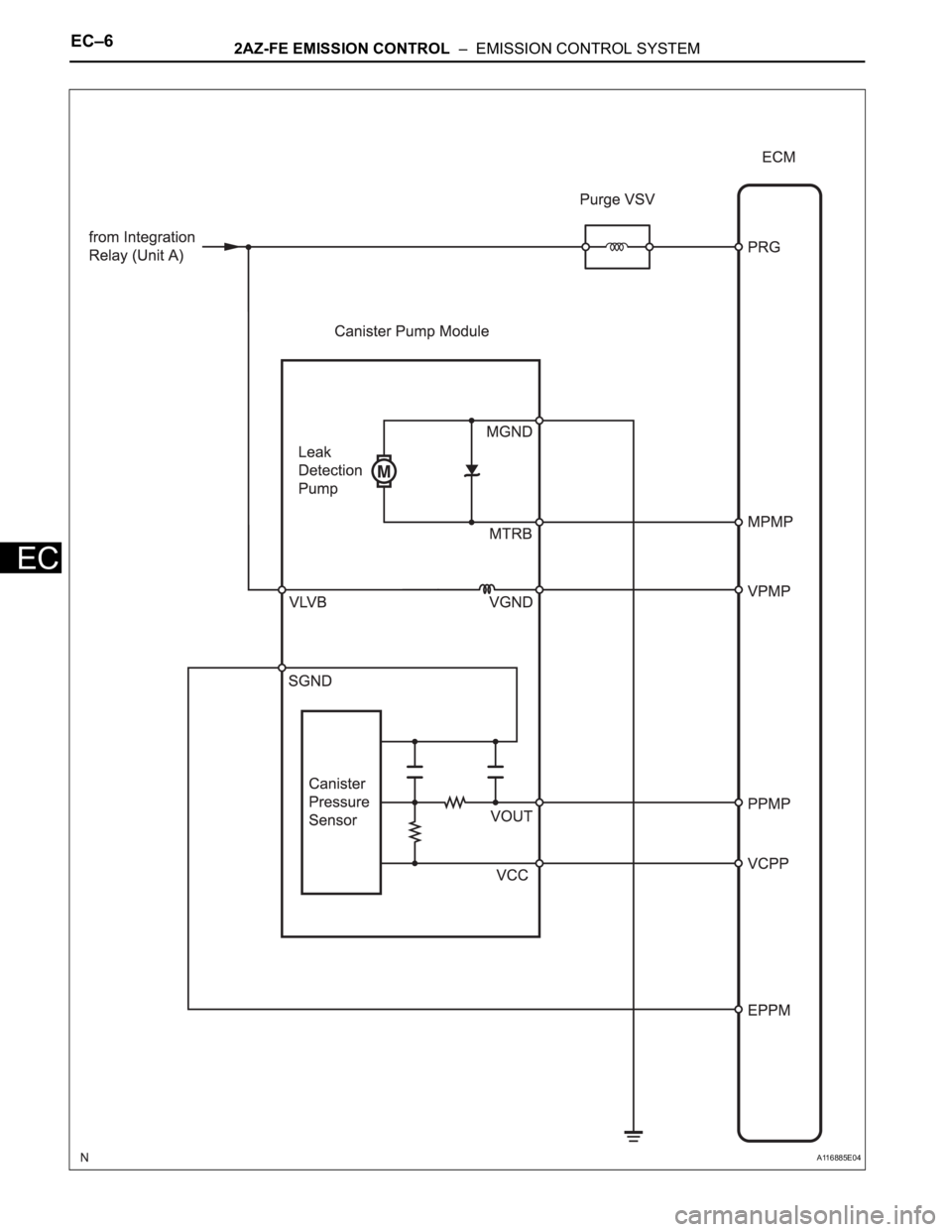

TOYOTA RAV4 2006 Service Repair Manual EC–62AZ-FE EMISSION CONTROL – EMISSION CONTROL SYSTEM EC A116885E04

Page 227 of 2000

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE EMISSION CONTROL – EMISSION CONTROL SYSTEMEC–7 EC ON-VEHICLE INSPECTION 1. CHECK FUEL CUT RPM (a) Increase the engine speed to at least 3,500 rpm. (b) Use a sound scope to check for injec

Page 228 of 2000

TOYOTA RAV4 2006 Service Repair Manual EC–82AZ-FE EMISSION CONTROL – EMISSION CONTROL SYSTEM EC (c) Apply 4 kPa (41 kgf/cm2, 30 mmHg) of pressure to the vent line of the fuel tank. HINT: Perform this inspection with the fuel tank le

Page 229 of 2000

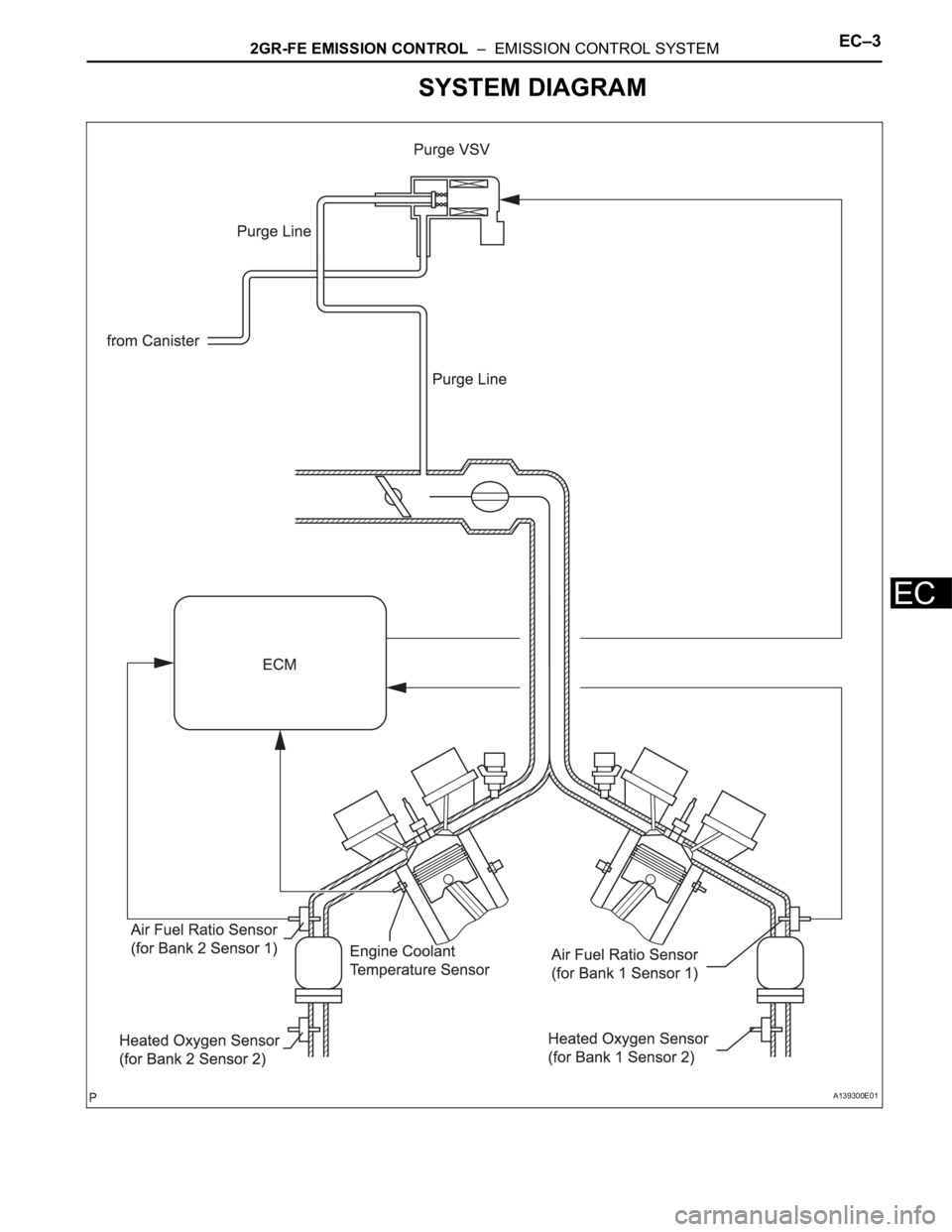

TOYOTA RAV4 2006 Service Repair Manual 2GR-FE EMISSION CONTROL – EMISSION CONTROL SYSTEMEC–3 EC SYSTEM DIAGRAM A139300E01

Page 230 of 2000

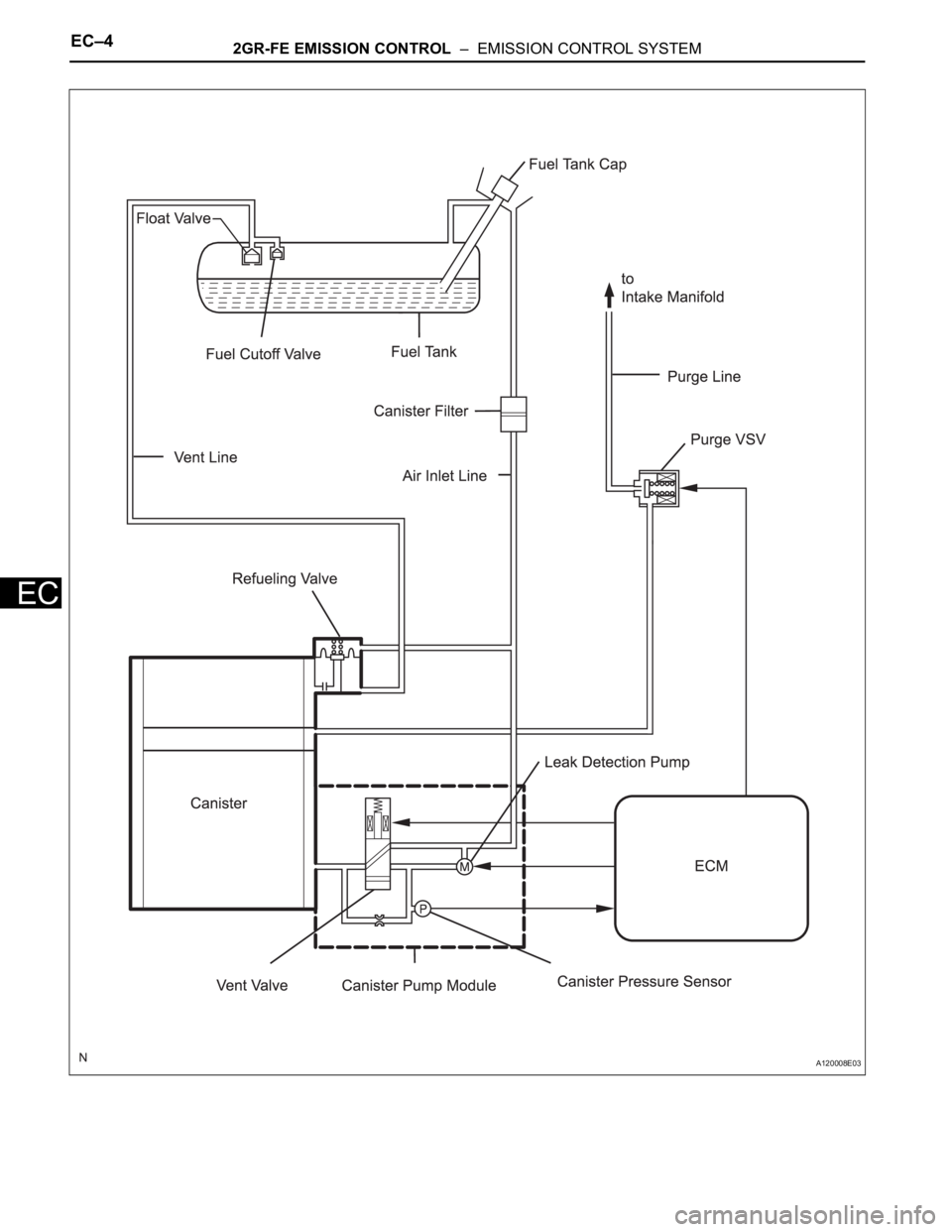

TOYOTA RAV4 2006 Service Repair Manual EC–42GR-FE EMISSION CONTROL – EMISSION CONTROL SYSTEM EC A120008E03

Page 231 of 2000

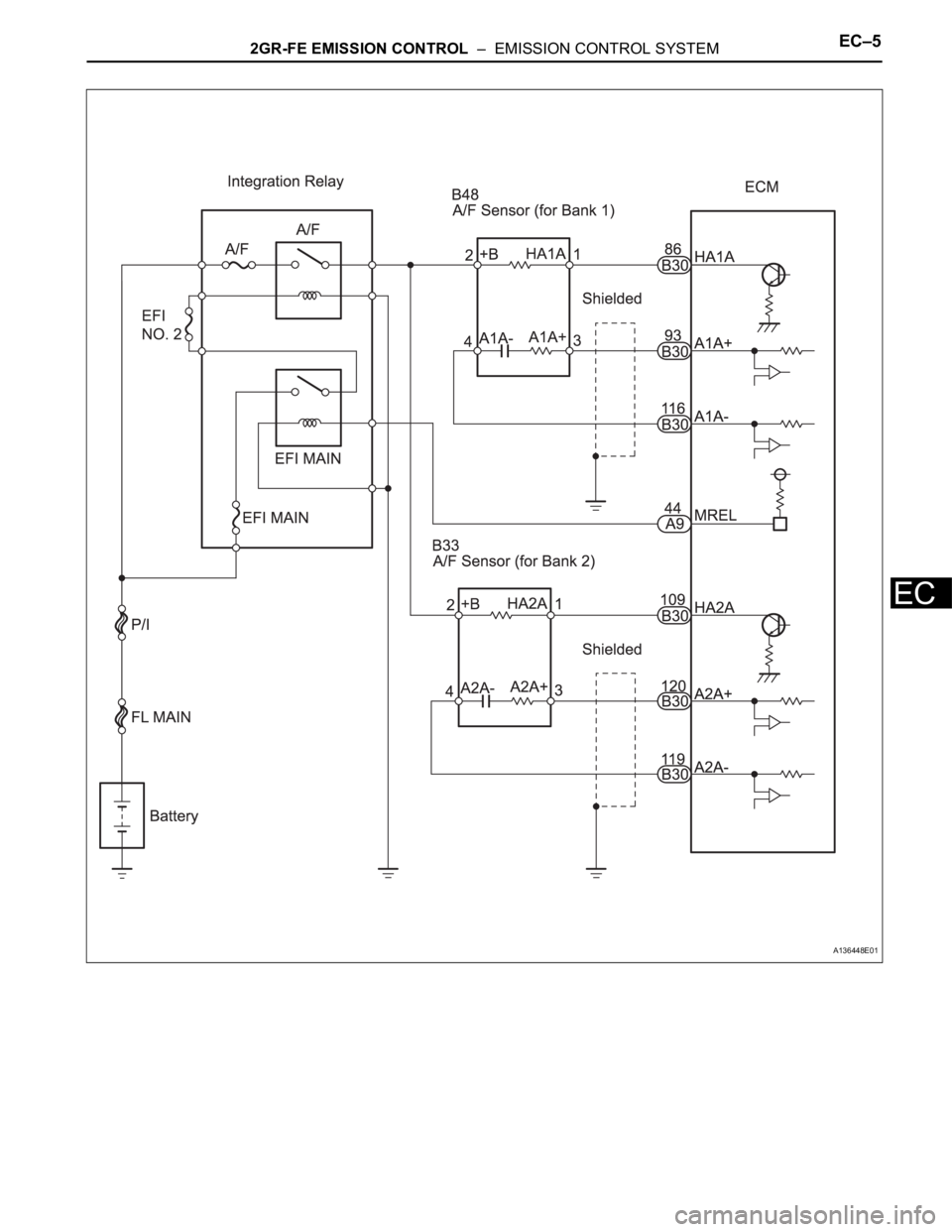

TOYOTA RAV4 2006 Service Repair Manual 2GR-FE EMISSION CONTROL – EMISSION CONTROL SYSTEMEC–5 EC A136448E01

Page 232 of 2000

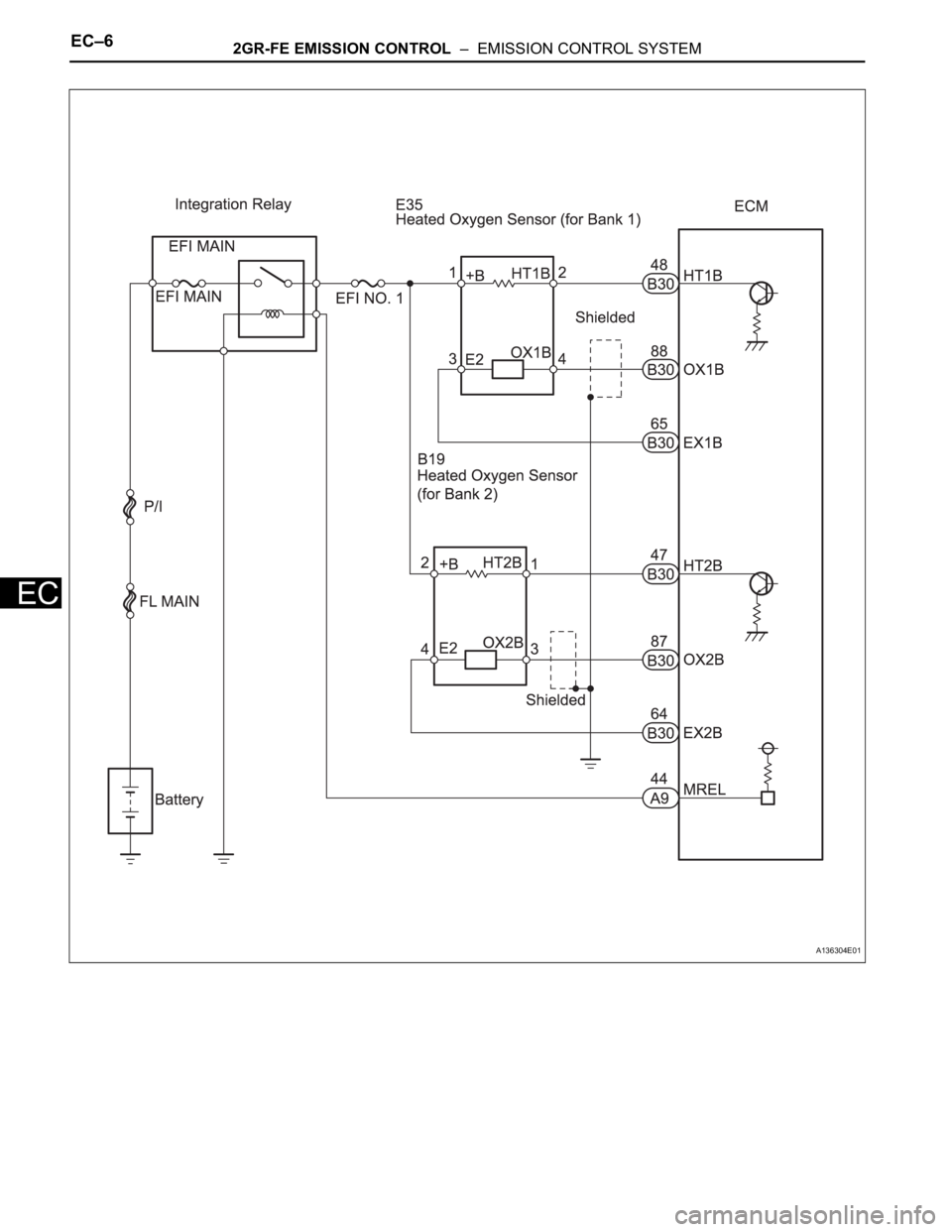

TOYOTA RAV4 2006 Service Repair Manual EC–62GR-FE EMISSION CONTROL – EMISSION CONTROL SYSTEM EC A136304E01
