Page 825 of 2000
2GR-FE FUEL – FUEL TANKFU–41
FU
4. CONNECT FUEL TANK BREATHER HOSE
(a) Connect the fuel tank breather hose to the fuel tank.
NOTICE:
• Before installing the tube connector to the
pipe, check the connector for damage and
foreign matter.
• Check that the connector and pipe are
securely connected by trying to pull them
apart.
5. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
NOTICE:
Before installing the tube connector to the pipe,
check the connector for damage and foreign matter.
(a) Connect the main tube connector to the pipe. Push
the 2 parts together firmly until a "click" sound is
heard.
NOTICE:
Check that the connector and pipe are securely
connected by trying to pull them apart.
(b) Connect the EVAP hose to the fuel tank.
6. INSTALL NO. 1 FLOOR UNDER COVER
(a) Install the floor cover with the clip and 2 nuts.
7. INSTALL FRONT FLOOR COVER
(a) Install the floor under cover with the 3 clips, bolt and
nut.
A131632E01
A127714E01
A124659
Page 826 of 2000
FU–422GR-FE FUEL – FUEL TANK
FU
8. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY
(a) Install the parking brake cable with the 2 bolts.
9. INSTALL FUEL TANK CAP
10. CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
11. CHECK FOR FUEL LEAKS
A124660
Page 827 of 2000
2AZ-FE EMISSION CONTROL – CANISTEREC–11
EC

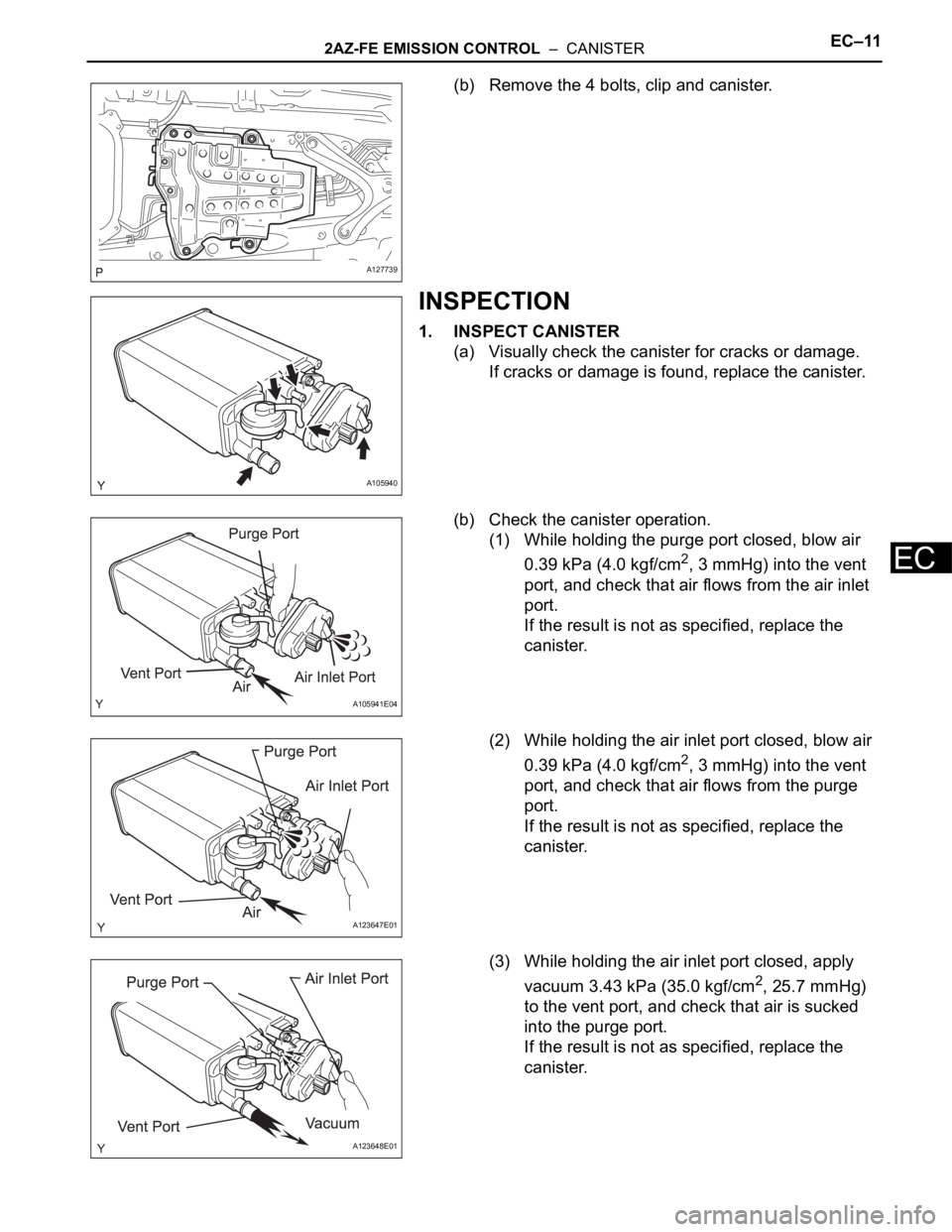

(b) Remove the 4 bolts, clip and canister.
INSPECTION
1. INSPECT CANISTER
(a) Visually check the canister for cracks or damage.
If cracks or damage is found, replace the canister.
(b) Check the canister operation.
(1) While holding the purge port closed, blow air
0.39 kPa (4.0 kgf/cm
2, 3 mmHg) into the vent
port, and check that air flows from the air inlet
port.
If the result is not as specified, replace the
canister.
(2) While holding the air inlet port closed, blow air
0.39 kPa (4.0 kgf/cm
2, 3 mmHg) into the vent
port, and check that air flows from the purge
port.
If the result is not as specified, replace the
canister.
(3) While holding the air inlet port closed, apply
vacuum 3.43 kPa (35.0 kgf/cm
2, 25.7 mmHg)
to the vent port, and check that air is sucked
into the purge port.
If the result is not as specified, replace the
canister.
A127739
A105940
A105941E04
A123647E01
A123648E01
Page 828 of 2000

EC–122AZ-FE EMISSION CONTROL – CANISTER
EC

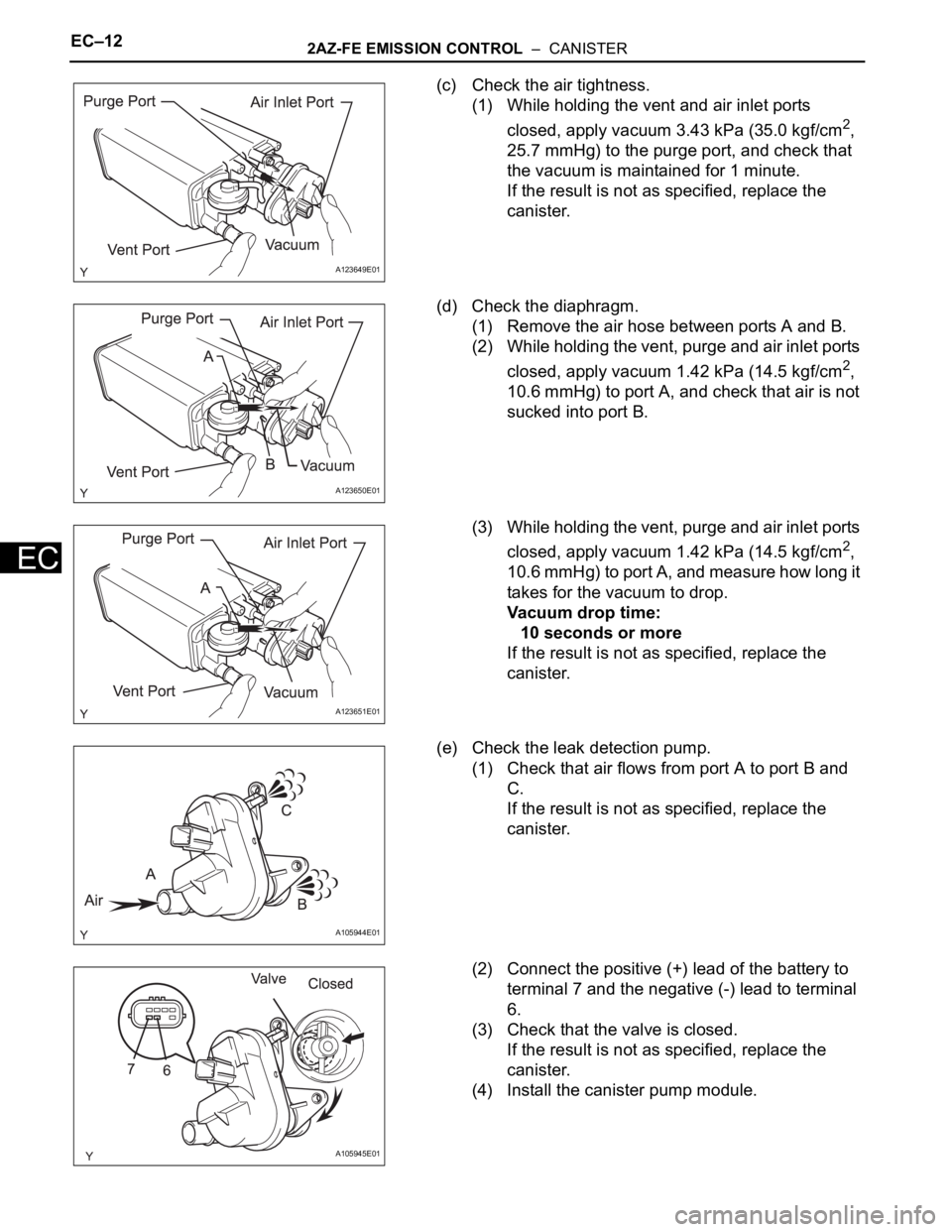

(c) Check the air tightness.
(1) While holding the vent and air inlet ports
closed, apply vacuum 3.43 kPa (35.0 kgf/cm
2,
25.7 mmHg) to the purge port, and check that
the vacuum is maintained for 1 minute.
If the result is not as specified, replace the
canister.
(d) Check the diaphragm.
(1) Remove the air hose between ports A and B.
(2) While holding the vent, purge and air inlet ports
closed, apply vacuum 1.42 kPa (14.5 kgf/cm
2,
10.6 mmHg) to port A, and check that air is not
sucked into port B.
(3) While holding the vent, purge and air inlet ports
closed, apply vacuum 1.42 kPa (14.5 kgf/cm
2,
10.6 mmHg) to port A, and measure how long it
takes for the vacuum to drop.
Vacuum drop time:
10 seconds or more
If the result is not as specified, replace the
canister.
(e) Check the leak detection pump.
(1) Check that air flows from port A to port B and
C.
If the result is not as specified, replace the
canister.
(2) Connect the positive (+) lead of the battery to
terminal 7 and the negative (-) lead to terminal
6.
(3) Check that the valve is closed.
If the result is not as specified, replace the
canister.
(4) Install the canister pump module.
A123649E01
A123650E01
A123651E01
A105944E01
A105945E01
Page 829 of 2000
2AZ-FE EMISSION CONTROL – CANISTEREC–13
EC

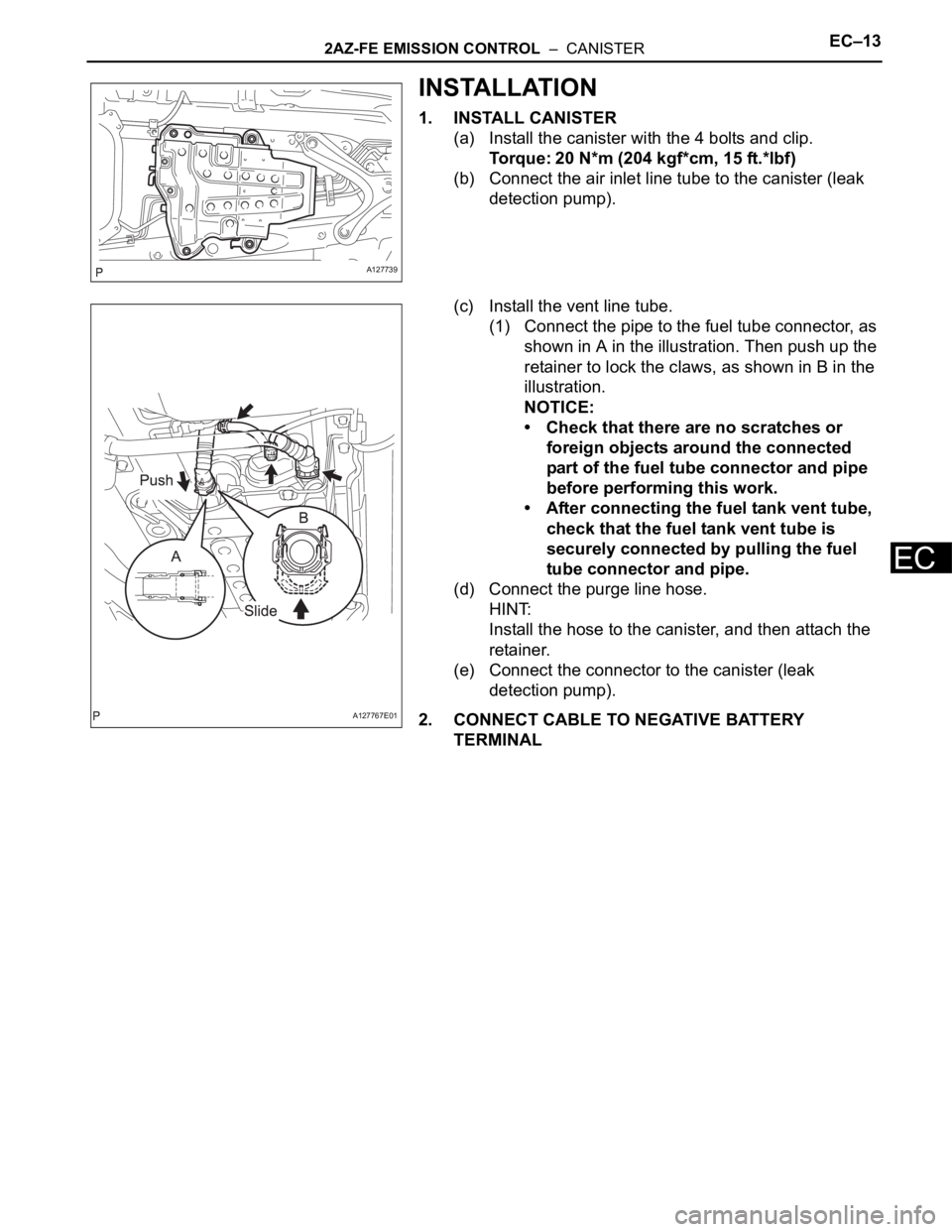

INSTALLATION
1. INSTALL CANISTER
(a) Install the canister with the 4 bolts and clip.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
(b) Connect the air inlet line tube to the canister (leak
detection pump).
(c) Install the vent line tube.
(1) Connect the pipe to the fuel tube connector, as
shown in A in the illustration. Then push up the
retainer to lock the claws, as shown in B in the
illustration.
NOTICE:
• Check that there are no scratches or
foreign objects around the connected
part of the fuel tube connector and pipe
before performing this work.
• After connecting the fuel tank vent tube,
check that the fuel tank vent tube is
securely connected by pulling the fuel
tube connector and pipe.
(d) Connect the purge line hose.
HINT:
Install the hose to the canister, and then attach the
retainer.
(e) Connect the connector to the canister (leak
detection pump).
2. CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
A127739
A127767E01
Page 830 of 2000
2AZ-FE EMISSION CONTROL – VENTILATION VALVEEC–19
EC

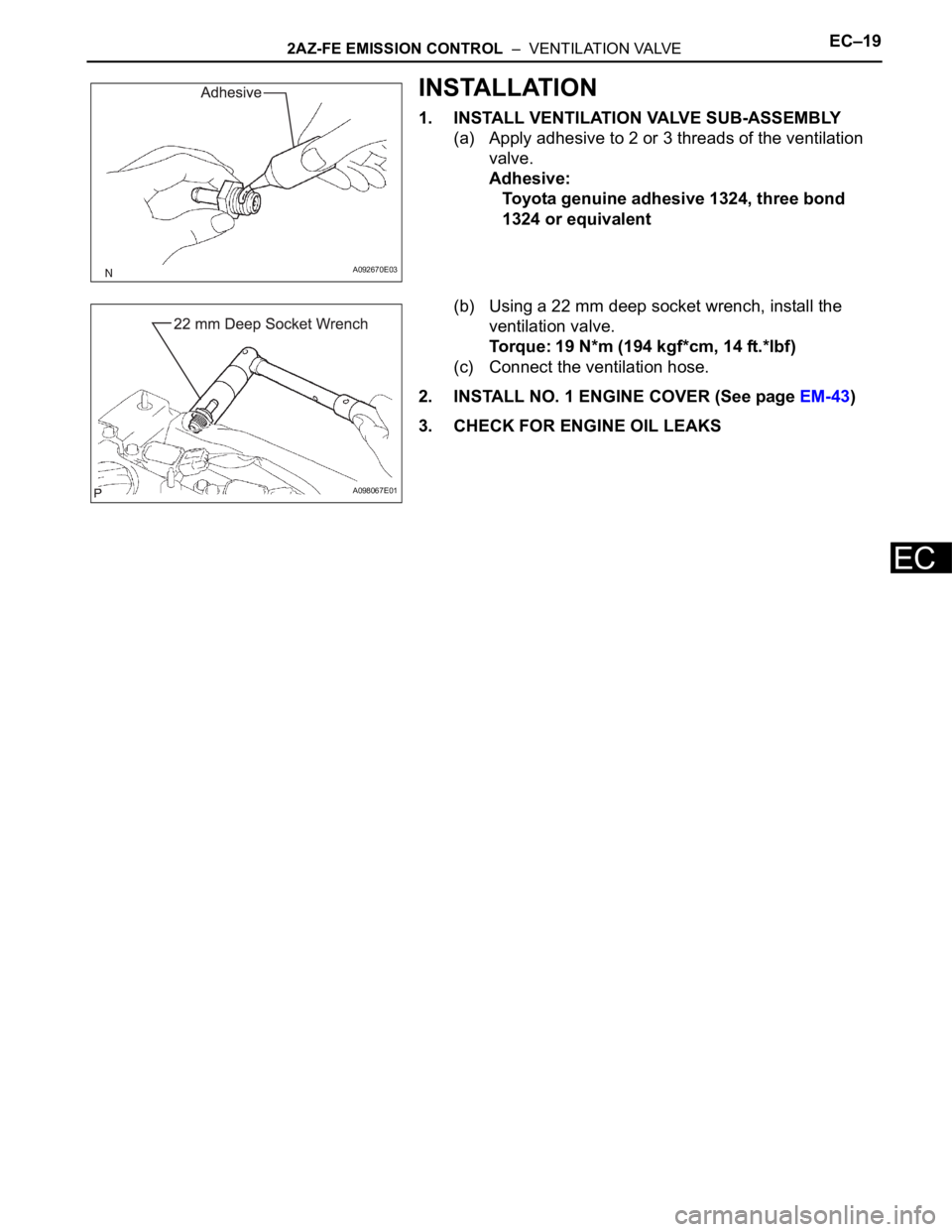

INSTALLATION
1. INSTALL VENTILATION VALVE SUB-ASSEMBLY
(a) Apply adhesive to 2 or 3 threads of the ventilation
valve.
Adhesive:
Toyota genuine adhesive 1324, three bond
1324 or equivalent
(b) Using a 22 mm deep socket wrench, install the
ventilation valve.
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
(c) Connect the ventilation hose.
2. INSTALL NO. 1 ENGINE COVER (See page EM-43)
3. CHECK FOR ENGINE OIL LEAKS
A092670E03
A098067E01
Page 831 of 2000

EC–222AZ-FE EMISSION CONTROL – AIR FUEL RATIO SENSOR
EC
REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the
cable from the negative (-) battery terminal to
prevent airbag and seat belt pretensioner activation.
2. REMOVE AIR FUEL RATIO SENSOR (for Bank 1
Sensor 1)
(a) Disconnect the sensor connector.
(b) Using SST, remove the sensor from the exhaust
manifold.
SST 09224-00010
INSPECTION
1. INSPECT AIR FUEL RATIO SENSOR (for Bank 1
Sensor 1)
(a) Measure the resistance of the sensor.
Standard resistance
If the resistance is not as specified, replace the
sensor.
INSTALLATION
1. INSTALL AIR FUEL RATIO SENSOR (for Bank 1
Sensor 1)
(a) Using SST, install the sensor to the exhaust
manifold.
SST 09224-00010
Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf) for use
with SST
44 N*m (449 kgf*cm, 32 ft.*lbf) for use
without SST
HINT:
• Use a torque wrench with a fulcrum length of 30
cm (11.81 in.).
• Make sure SST and wrench are connected in a
straight line.
(b) Connect the sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
3. CHECK FOR EXHAUST GAS LEAKS
A124797E01
A133069E01
Tester Connection Specified Condition
1 (HA1A) - 2 (+B) 1.8 to 3.4
at 20C (68F)
1 (HA1A) - 4 (A1A-) 10 k
or higher
A124798E01
Page 832 of 2000

EC–82GR-FE EMISSION CONTROL – EMISSION CONTROL SYSTEM
EC
ON-VEHICLE INSPECTION
1. CHECK FUEL CUT RPM
(a) Increase the engine speed to at least 3,500 rpm.
(b) Use a sound scope to check for injector operating
noise.
(c) Check that the operating sounds stop momentarily
and then resume when the throttle lever is released.
HINT:
Measure with the A/C OFF.
Fuel return rpm:
1,400 rpm
2. CHECK FOR LEAKS
(a) Visually check that the hoses, connections and
gaskets have no cracks, leaks or damage.
NOTICE:
• Detachment or other problems with the
engine oil dipstick, filler cap, PCV hose and
other components may cause the engine to
run improperly.
• Disconnection, looseness or cracks in the
parts of the air induction system between the
throttle body and cylinder head will allow air
suction and cause an engine failure or engine
malfunctions.
If the result is not as specified, replace parts as
necessary.
3. CHECK LINE AND CONNECTORS
(a) Visually check for loose connections, sharp bends
or damage.
4. CHECK FUEL TANK ASSEMBLY
(a) Visually check for deformation, cracks or fuel
leakage.
5. CHECK FUEL TANK AND VENT LINE
(a) Disconnect the vent line tube from the canister.
(b) Connect a pressure gauge to the vent line tube.
A094394E01
A127736E01
