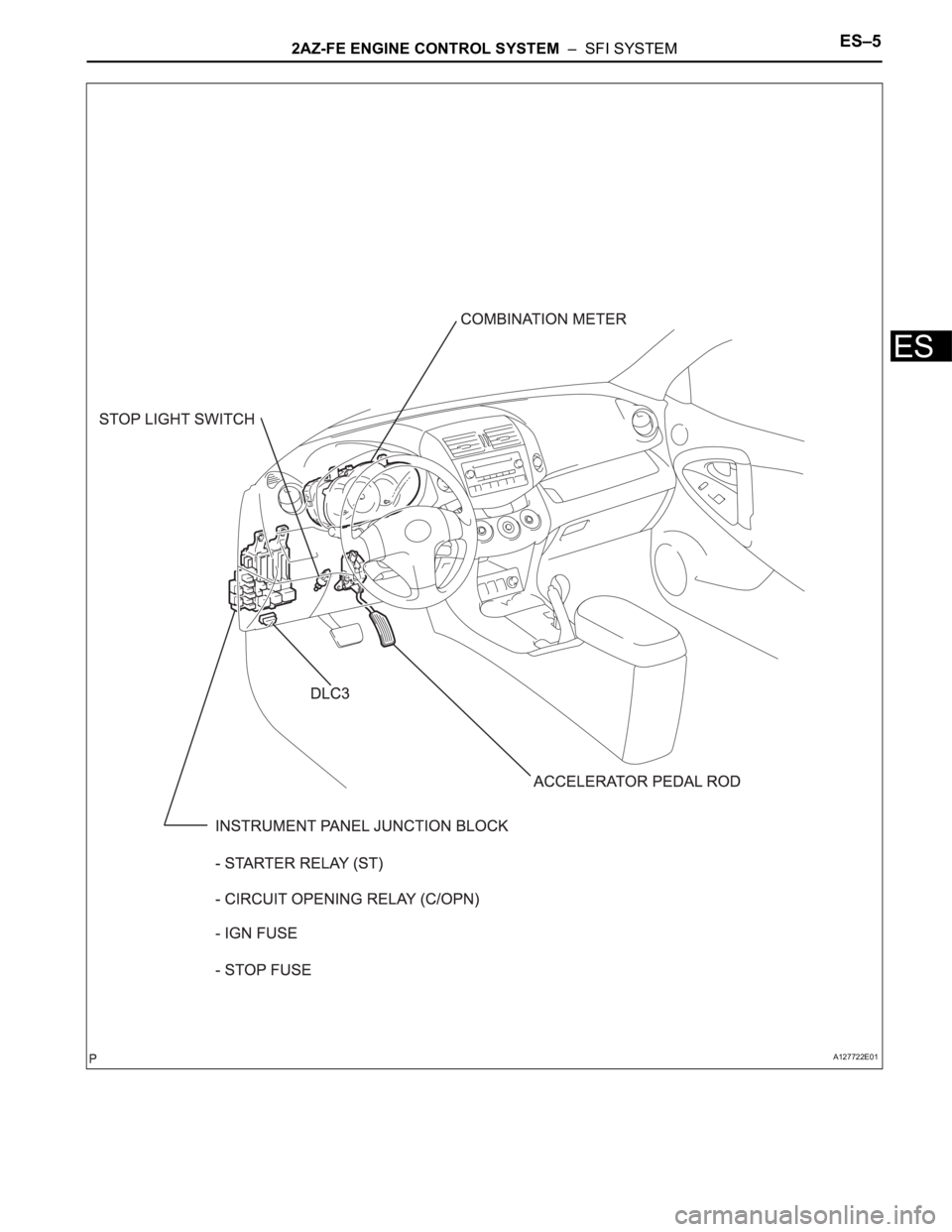

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–5 ES A127722E01

Page 186 of 2000

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE ENGINE CONTROL SYSTEM – ECMES–429 ES REMOVAL 1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) bat

Page 187 of 2000

TOYOTA RAV4 2006 Service Repair Manual ES–4302AZ-FE ENGINE CONTROL SYSTEM – ECM ES (d) Remove the 4 screws and 2 ECM brackets. INSTALLATION 1. INSTALL ECM (a) Install the 2 brackets to the ECM with the 4 screws. Torque: 3.0 N*m (30 k

Page 188 of 2000

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE ENGINE CONTROL SYSTEM – ECMES–431 ES 2. INSTALL AIR CLEANER CASE (a) Install the air cleaner case with the 3 bolts. Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf) (b) Connect the harness clamp.

Page 189 of 2000

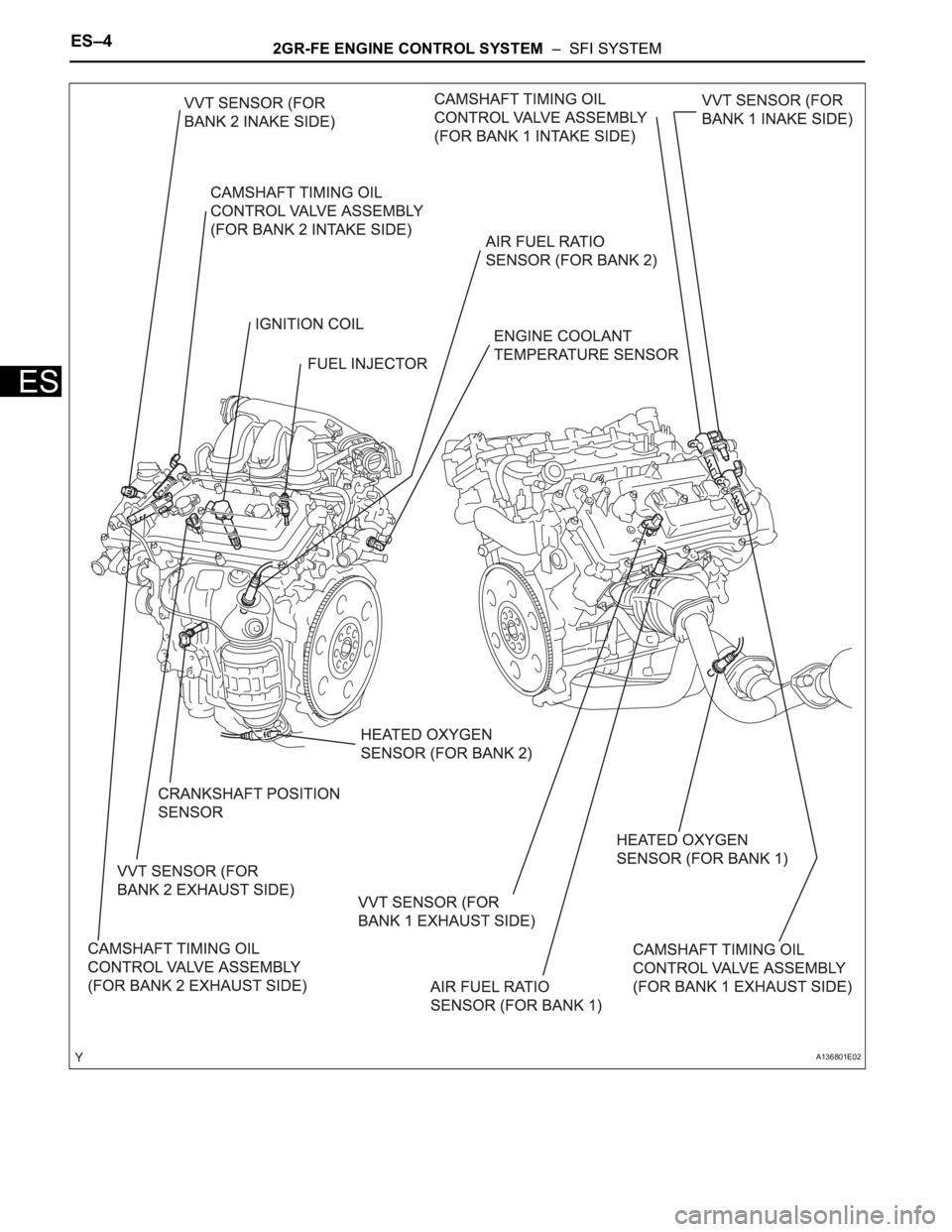

TOYOTA RAV4 2006 Service Repair Manual 2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–3 ES PARTS LOCATION A136802E02

Page 190 of 2000

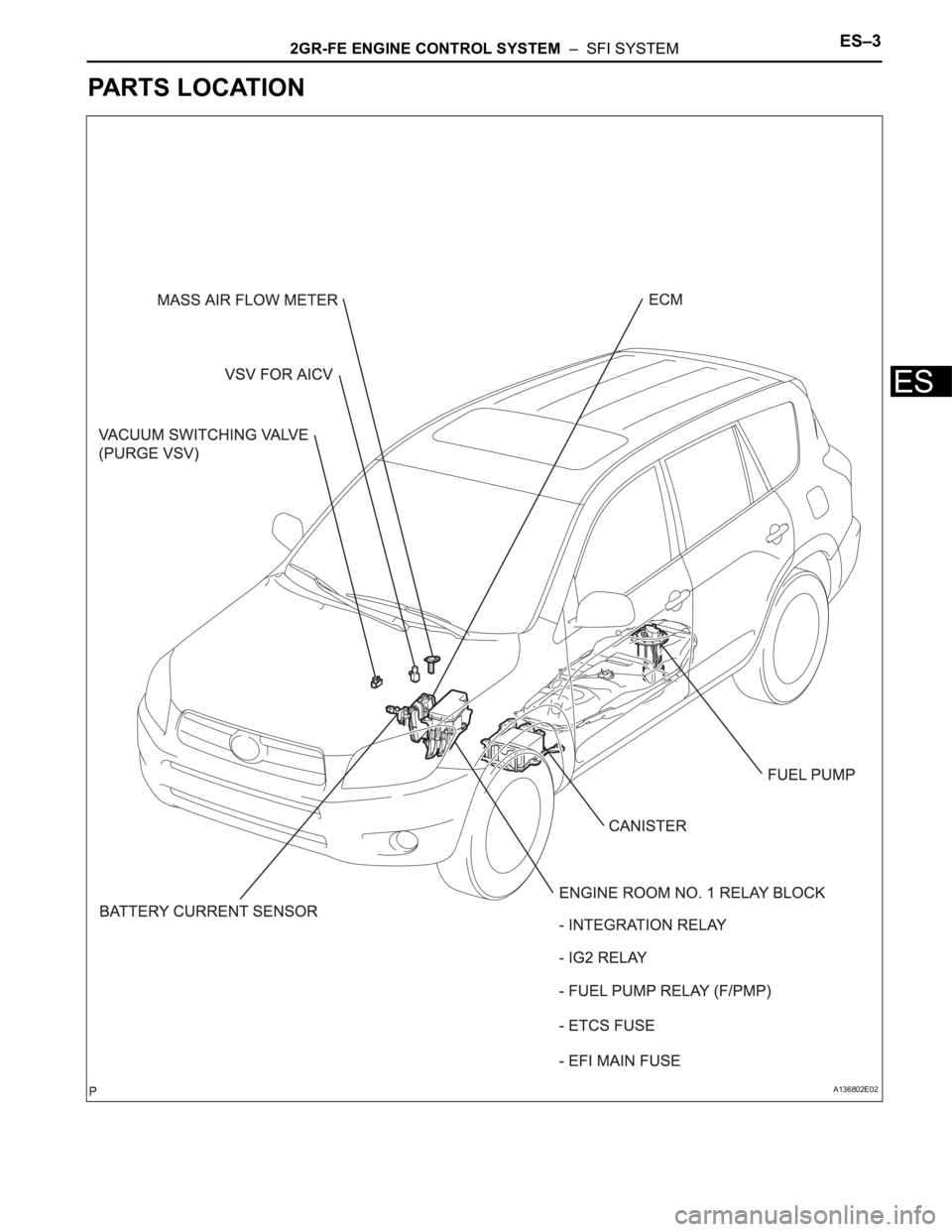

TOYOTA RAV4 2006 Service Repair Manual ES–42GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM ES A136801E02

Page 191 of 2000

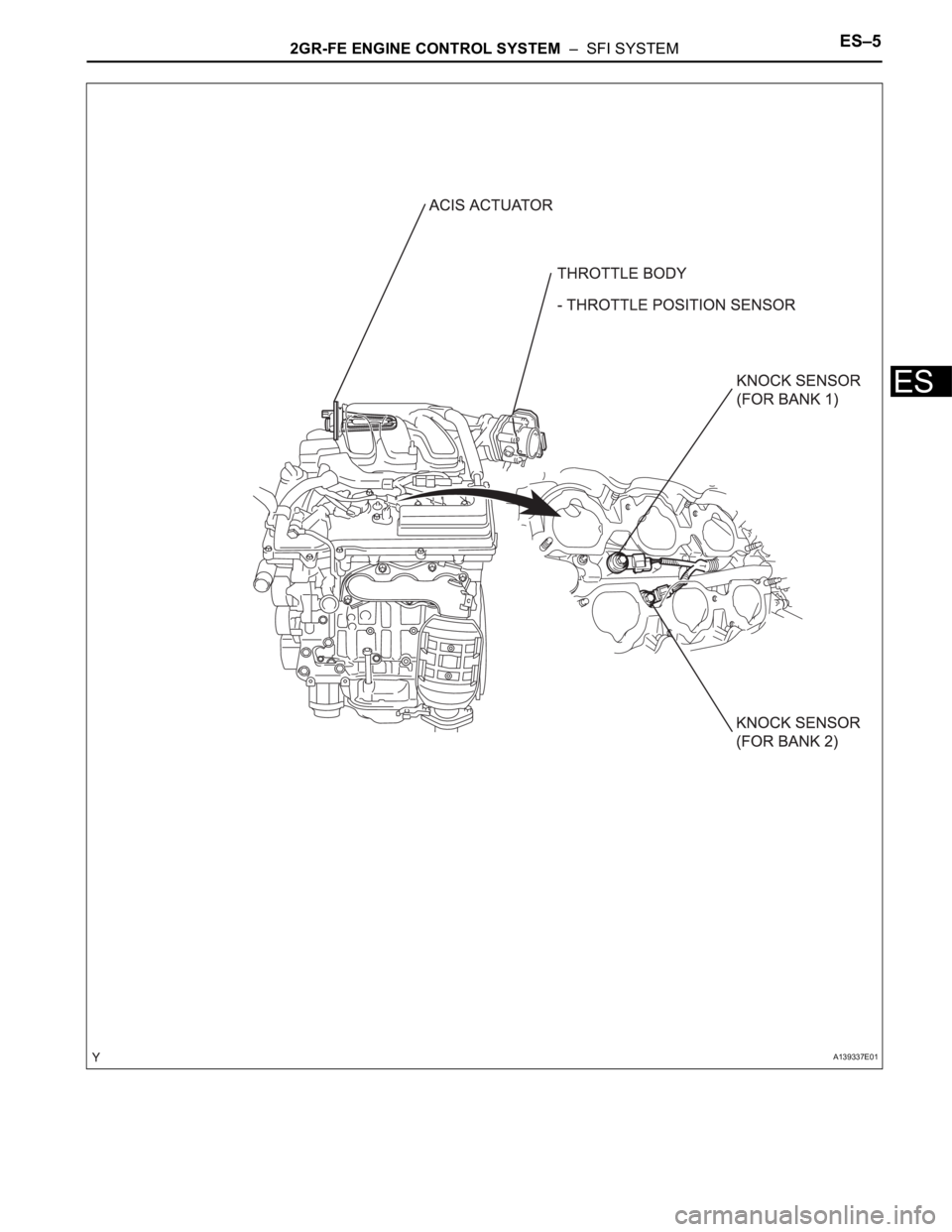

TOYOTA RAV4 2006 Service Repair Manual 2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–5 ES A139337E01

Page 192 of 2000

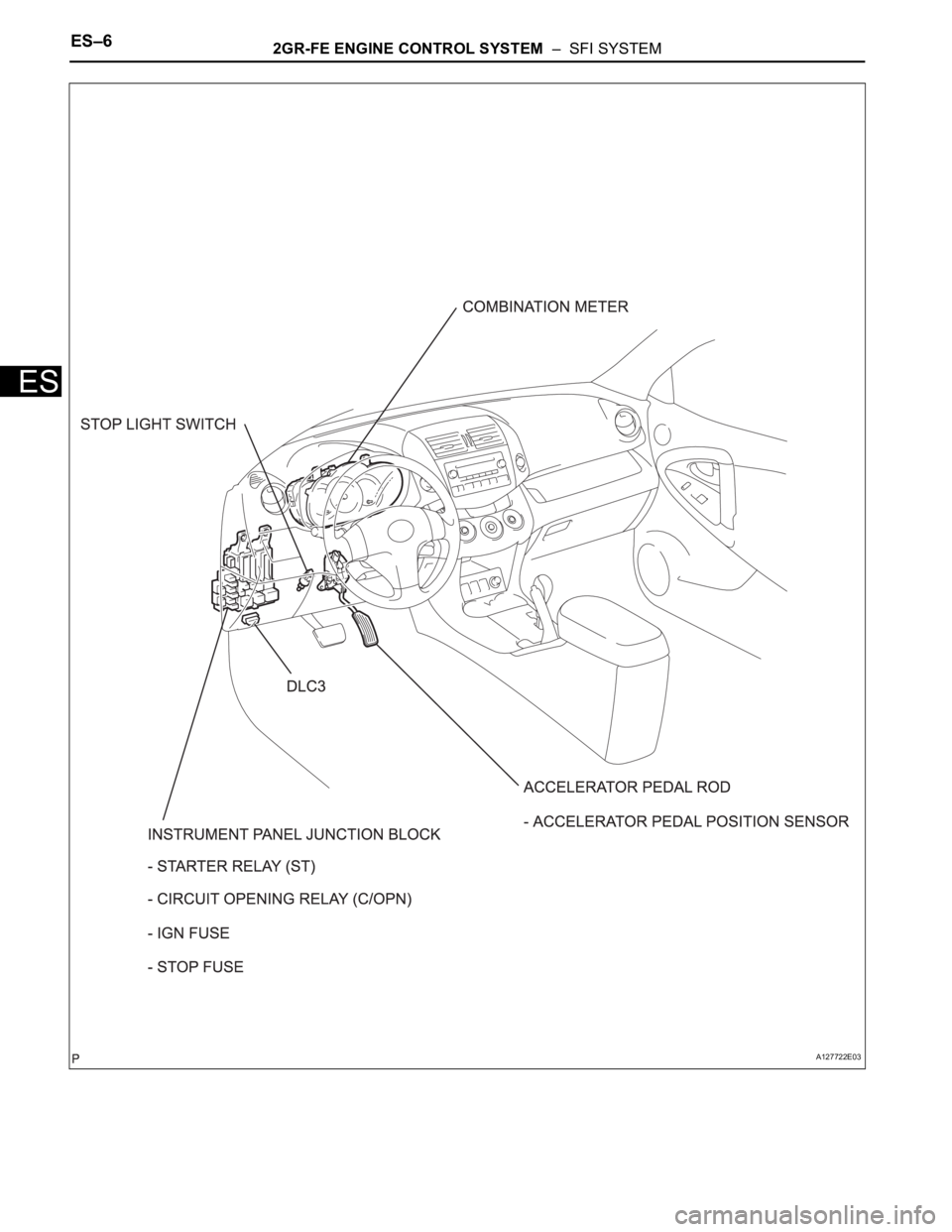

TOYOTA RAV4 2006 Service Repair Manual ES–62GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM ES A127722E03
