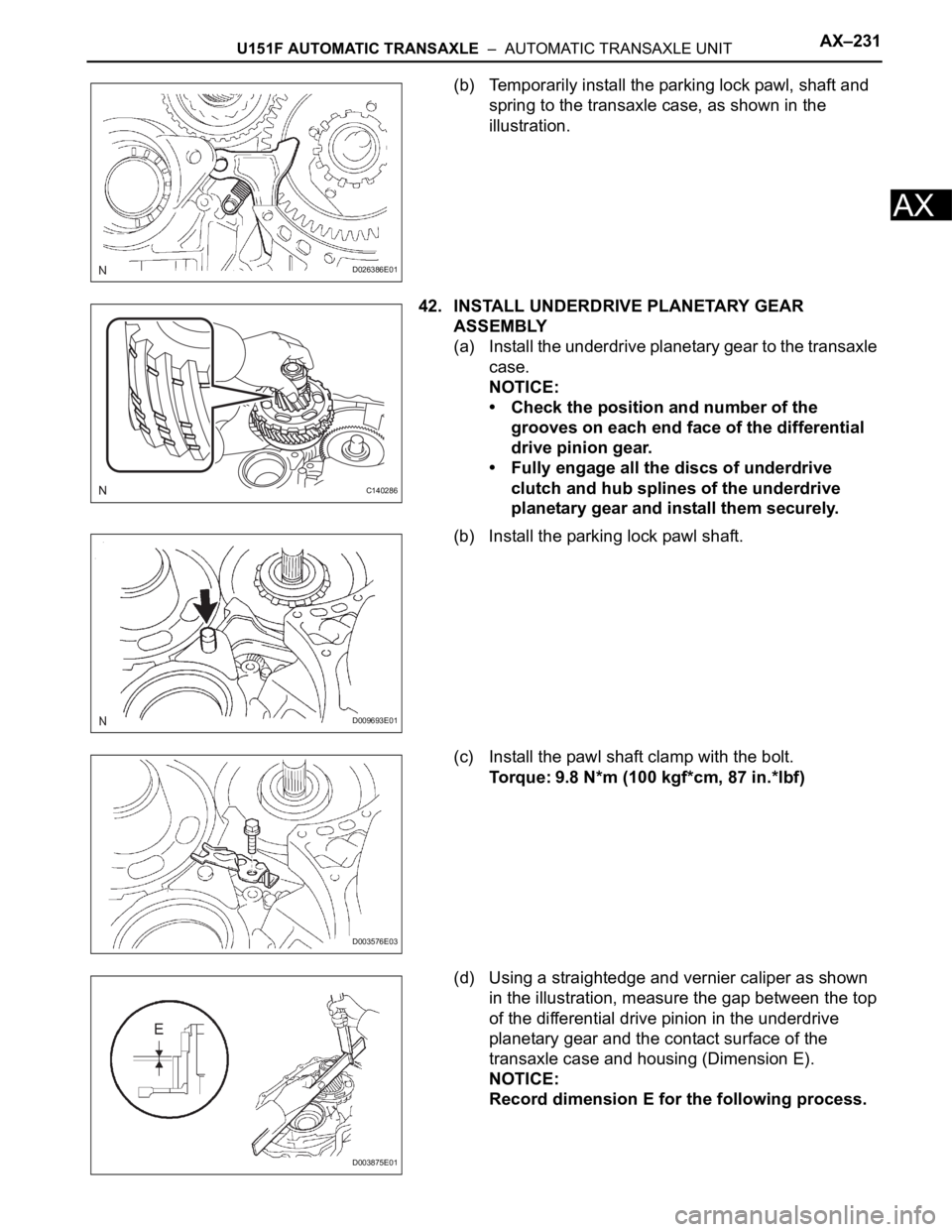

42. INSTALL UNDERDRIVE PLANETARY GEAR
ASSEMBLY
(a) Install the underdrive planetary gear to the transaxle
case.
NOTICE:
• Check the position and number of the
grooves on each end face of the differential
drive pinion gear.
• Fully engage all the discs of underdrive
clutch and hub splines of the underdrive
planetary gear and install them securely.
(b) Install the parking lock pawl shaft.
(c) Install the pawl shaft clamp with the bolt.
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
(d) Using a straightedge and vernier caliper as shown
in the illustration, measure the gap between the top
of the differential drive pinion in the underdrive
planetary gear and the contact surface of the
transaxle case and housing (Dimension E).
NOTICE:
Record dimension E for the following process.
D026386E01
C140286
D009693E01
D003576E03
D003875E01
Page 1210 of 2000

AX–232U151F AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT
AX
(e) As shown in the illustration, measure the 2 places of
the transaxle housing, and calculate dimension F
using the formula below.
NOTICE:
Record dimension F for the following process.
HINT:
Dimension F = Dimension (1) - Dimension (2)

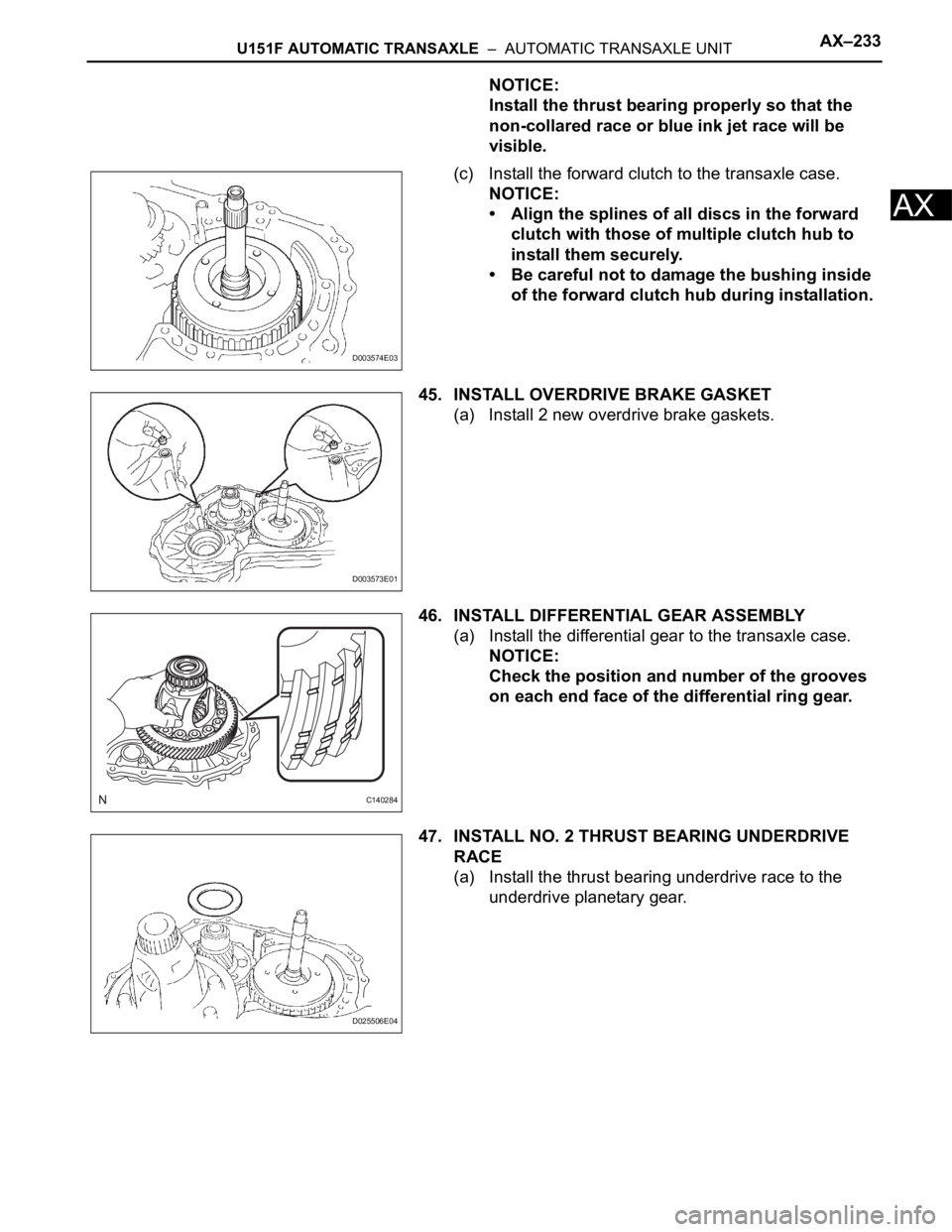

43. INSTALL MULTIPLE DISC CLUTCH HUB
(a) Install the thrust bearing race to the transaxle case
while checking its direction.
Standard bearing race diameter
(b) Coat the thrust needle roller bearing and race with
yellow petrolatum, and install them onto the multiple
disc clutch hub.
Standard thrust bearing and race diameter
(c) Coat the needle roller bearing with ATF.
(d) Install the needle roller bearing to the multiple clutch
hub.
Standard bearing diameter
(e) Install the multiple clutch hub to the transaxle case.
44. INSTALL FORWARD CLUTCH ASSEMBLY
(a) Coat the thrust needle roller bearing with ATF.
(b) Install the thrust needle roller bearing to the forward
clutch.
Standard thrust bearing diameter
D025511E01
D008087E03
Item Inside Outside
Bearing race 39.5 mm (1.555 in.) 45.8 mm (1.803 in.)
D026710E04
Item Inside Outside
Thrust Bearing 36.4 mm (1.433 in.) 52.2 mm (2.055 in.)
D026711E04
Item Inside Outside
Bearing 23.6 mm (0.929 in.) 44 mm (1.732 in.)
D003820E02
Item Inside Outside
Thrust Bearing 33.58 mm (1.3220 in.) 51.9 mm (2.043 in.)
Page 1211 of 2000
U151F AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–233
AX
NOTICE:
Install the thrust bearing properly so that the
non-collared race or blue ink jet race will be
visible.
(c) Install the forward clutch to the transaxle case.
NOTICE:
• Align the splines of all discs in the forward
clutch with those of multiple clutch hub to
install them securely.
• Be careful not to damage the bushing inside
of the forward clutch hub during installation.
45. INSTALL OVERDRIVE BRAKE GASKET
(a) Install 2 new overdrive brake gaskets.
46. INSTALL DIFFERENTIAL GEAR ASSEMBLY
(a) Install the differential gear to the transaxle case.
NOTICE:
Check the position and number of the grooves
on each end face of the differential ring gear.
47. INSTALL NO. 2 THRUST BEARING UNDERDRIVE
RACE
(a) Install the thrust bearing underdrive race to the
underdrive planetary gear.
D003574E03
D003573E01
C140284
D025506E04
Page 1212 of 2000

AX–234U151F AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT
AX
48. INSTALL THRUST NEEDLE ROLLER BEARING
(a) Coat the thrust needle roller bearing with ATF.
(b) Calculate the end play value using the following
formula and values of Dimension E and F that were
measured when installing the cylindrical roller
bearing and underdrive planetary gear. Select an
appropriate underdrive planetary gear thrust
bearing race which satisfies the specified end play
value, and install the selected bearing race.
Standard end play:
0.498 to 0.993 mm (0.01961 to 0.03909 in.)
HINT:
End play = Dimension F - Dimension E - thrust
bearing thickness 2.5 mm (0.0984 in.) - underdrive
thrust bearing race thickness.
Standard race thickness
Standard bearing and bearing race diameter
49. INSTALL OIL PUMP ASSEMBLY
(a) Install the oil pump to the transaxle case with the 7
bolts.
Torque: 22 N*m (226 kgf*cm, 16 ft.*lbf)
(b) Coat the O-ring of oil pump with ATF.
NOTICE:
Confirm that the input shaft rotates smoothly by
manual operation after installing the oil pump.
D025505E03
F - E Thickness
Less than 7.72 mm (0.3039 in.) 3.5 mm (0.138 in.)
7.72 mm (0.3039 in.) 3.8 mm (0.150 in.)
Item Inside Outside
Bearing 57.2 mm (2.252 in.) 84.96 mm (3.345 in.)
Bearing race 56.4 mm (2.22 in.) 83 mm (3.268 in.)
D003569E03
D003629E04
Page 1213 of 2000

U151F AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–235
AX

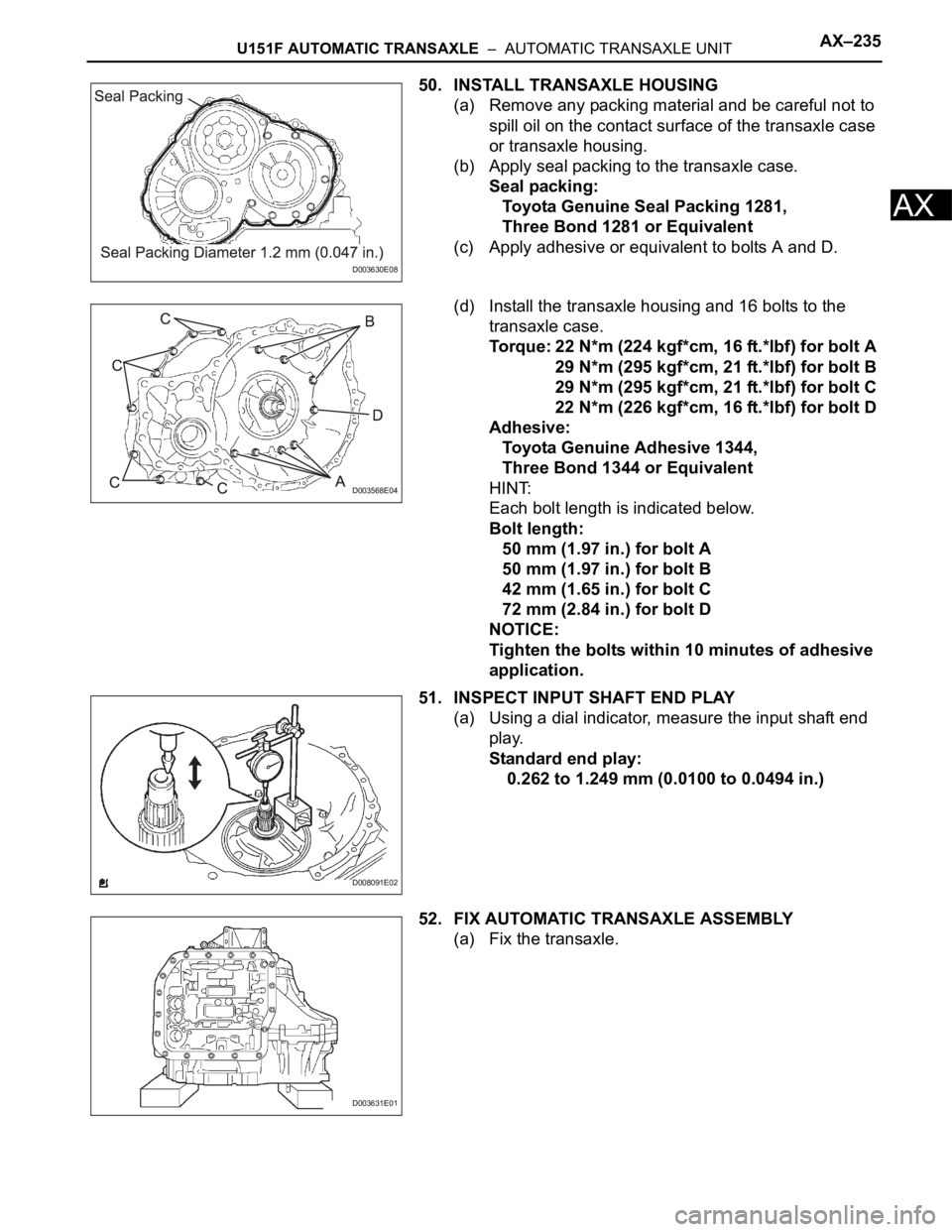

50. INSTALL TRANSAXLE HOUSING
(a) Remove any packing material and be careful not to
spill oil on the contact surface of the transaxle case
or transaxle housing.
(b) Apply seal packing to the transaxle case.
Seal packing:
Toyota Genuine Seal Packing 1281,
Three Bond 1281 or Equivalent
(c) Apply adhesive or equivalent to bolts A and D.
(d) Install the transaxle housing and 16 bolts to the
transaxle case.
Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf) for bolt A
29 N*m (295 kgf*cm, 21 ft.*lbf) for bolt B
29 N*m (295 kgf*cm, 21 ft.*lbf) for bolt C
22 N*m (226 kgf*cm, 16 ft.*lbf) for bolt D
Adhesive:
Toyota Genuine Adhesive 1344,
Three Bond 1344 or Equivalent
HINT:
Each bolt length is indicated below.
Bolt length:
50 mm (1.97 in.) for bolt A
50 mm (1.97 in.) for bolt B
42 mm (1.65 in.) for bolt C
72 mm (2.84 in.) for bolt D
NOTICE:
Tighten the bolts within 10 minutes of adhesive
application.
51. INSPECT INPUT SHAFT END PLAY
(a) Using a dial indicator, measure the input shaft end
play.
Standard end play:
0.262 to 1.249 mm (0.0100 to 0.0494 in.)
52. FIX AUTOMATIC TRANSAXLE ASSEMBLY
(a) Fix the transaxle.
D003630E08
D003568E04
D008091E02
D003631E01
Page 1214 of 2000

AX–236U151F AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT
AX

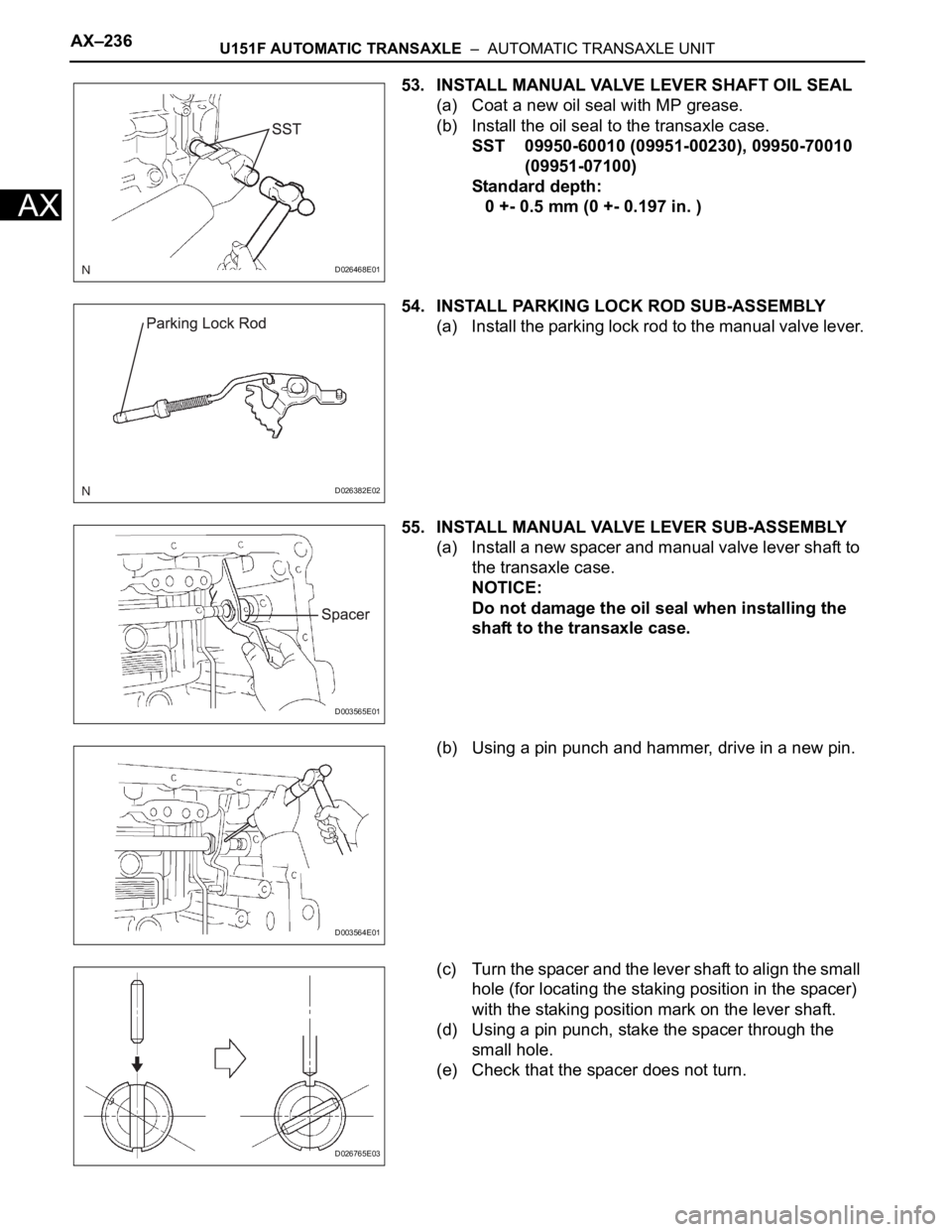

53. INSTALL MANUAL VALVE LEVER SHAFT OIL SEAL
(a) Coat a new oil seal with MP grease.
(b) Install the oil seal to the transaxle case.
SST 09950-60010 (09951-00230), 09950-70010
(09951-07100)
Standard depth:
0 +- 0.5 mm (0 +- 0.197 in. )
54. INSTALL PARKING LOCK ROD SUB-ASSEMBLY
(a) Install the parking lock rod to the manual valve lever.
55. INSTALL MANUAL VALVE LEVER SUB-ASSEMBLY
(a) Install a new spacer and manual valve lever shaft to
the transaxle case.
NOTICE:
Do not damage the oil seal when installing the
shaft to the transaxle case.
(b) Using a pin punch and hammer, drive in a new pin.
(c) Turn the spacer and the lever shaft to align the small
hole (for locating the staking position in the spacer)
with the staking position mark on the lever shaft.
(d) Using a pin punch, stake the spacer through the
small hole.
(e) Check that the spacer does not turn.
D026468E01
D026382E02
D003565E01
D003564E01
D026765E03
Page 1215 of 2000

U151F AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–237
AX
56. INSTALL MANUAL VALVE LEVER SHAFT RETAINER
SPRING
(a) Using needle-nose pliers, install the retainer spring.
NOTICE:
Hang the spring on the shaft firmly.
57. INSTALL PARKING LOCK PAWL BRACKET
(a) Install the parking lock pawl bracket with the 2 bolts.
Torque: 20 N*m (205 kgf*cm, 15 ft.*lbf)
HINT:
The bolt length is indicated below.
Bolt length:
25 mm (0.984 in.)
NOTICE:
Make sure that the parking rod is placed
between the parking pawl and the guide of the
parking bracket when the parking bracket is
installed.
58. INSTALL MANUAL DETENT SPRING SUB-
ASSEMBLY
(a) Install the manual detent spring and cover with the 2
bolts.
NOTICE:
Make sure to install the manual detent spring
and cover in this order.
HINT:
Tighten bolt A first, and then bolt B.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf) for bolt A
12 N*m (122 kgf*cm, 9 ft.*lbf) for bolt B
HINT:
Each bolt length is indicated below.
Bolt length:
27 mm (1.06 in.) for bolt A
16 mm (0.63 in.) for bolt B
59. INSTALL B-3 ACCUMULATOR PISTON
(a) Coat a new O-ring with ATF, and install it to the B-3
accumulator piston.
NOTICE:
Make sure that the O-ring is not twisted and that
it does not protrude abnormally from the
accumulator piston. Apply sufficient ATF before
installing the O-ring. The O-ring must be
installed in the correct position.
D003559E01
D003561E01
D003560E01
D003904E05
Page 1216 of 2000

AX–238U151F AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT
AX
(b) Install the accumulator piston to the transaxle case.
(1) Coat the piston with ATF.
(2) Install the 2 springs to the piston, and install the
piston (with springs) to the transaxle case.
NOTICE:
Before installing the springs, check the
identification color of each spring.
Standard accumulator spring
60. INSTALL REVERSE CLUTCH ACCUMULATOR
PISTON
(a) Coat 2 new O-rings with ATF, and install them to the
reverse accumulator piston.
NOTICE:
Make sure that the O-ring is not twisted and that
it does not protrude abnormally from the
accumulator piston. Apply sufficient ATF before
installing the O-ring. The O-ring must be
installed in the correct position.
(b) Install the piston to the transaxle case.
(1) Coat the accumulator piston with ATF.
(2) Install the spring to the piston, and install the
piston (with spring) to the transaxle case.
NOTICE:
Before installing the spring, check the
identification color of the spring.
Standard accumulator spring
61. INSTALL C-3 ACCUMULATOR PISTON
(a) Coat a new O-ring with ATF, and install it to the C-3
accumulator piston.
NOTICE:
Make sure that the O-ring is not twisted and that
it does not protrude abnormally from the
accumulator piston. Apply sufficient ATF before
installing the O-ring. The O-ring must be
installed in the correct position.
D025512E02Spring Free length /
Outer diameterIdentification Color
Inner 62.00 mm (2.4409 in.) /
15.50 mm (0.610 in.)Purple
Outer 74.23 mm (2.9224 in.) /
21.70 mm (0.854 in.)
D026402E09
C092978E03Free length
Outer diameterIdentification Color
60.96 mm (2.3999 in.) /
14.10 mm (0.555 in.)Yellow
D003902E02
