DL–108DOOR LOCK – DOOR CONTROL RECEIVER
DL
INSTALLATION
1. INSTALL DOOR CONTROL RECEIVER
(a) Install the receiver with the bolt.
(b) Connect the receiver connector.
2. INSTALL INNER ROOF SIDE GARNISH ASSEMBLY
RH (w/o Rear No. 2 Seat)
(a) Attach the 7 clips to install the garnish.
3. INSTALL INNER ROOF SIDE GARNISH ASSEMBLY
RH (w/ Rear No. 2 Seat)
(a) Attach the 7 slips to install the garnish.
(b) Connect the rear No. 2 seat belt's shoulder anchor.
(1) Connect the shoulder anchor with the bolt.
Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
(2) Attach the claws to close the seat belt anchor
cover.
4. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
(w/o Rear No. Seat) (See page IR-53)
5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
(w/ Rear No. 2 Seat) (See page IR-54)
B132568
B137548
B137549
B084915E06
Page 458 of 2000

DOOR LOCK – DOOR CONTROL RECEIVERDL–109
DL
6. INSTALL TETHER ANCHOR BRACKET SUB-
ASSEMBLY (w/o Rear No. 2 Seat)
(a) Install the tether anchor bracket with the bolt.
7. INSTALL RECLINING REMOTE CONTROL LEVER
BEZEL RH (w/o Rear No. 2 Seat) (See page SE-105)
8. INSTALL REAR DECK TRIM COVER RH (w/ Rear No.
2 Seat)
(a) Attach the 4 claws to install the trim cover.
(b) Install the belt.
9. INSTALL REAR FLOOR FINISH PLATE (See page IR-
55)
10. INSTALL REAR FLOOR NO. 1 MAT SUPPORT SIDE
PLATE (See page IR-55)
11. INSTALL REAR FLOOR NO. 3 BOARD
12. INSTALL REAR FLOOR NO. 2 BOARD
13. INSTALL REAR NO. 2 SEAT ASSEMBLY LH (w/ Rear
No. 2 Seat) (See page SE-121)
14. INSTALL REAR NO. 2 SEAT ASSEMBLY RH (w/ Rear
No. 2 Seat)
HINT:
Use the same procedures described for the LH side.
15. INSTALL NO. 2 SEAT LEG COVER LH (w/ Rear No. 2
Seat) (See page SE-123)
16. INSTALL NO. 2 SEAT LEG COVER RH (w/ Rear No. 2
Seat)
HINT:
Use the same procedures described for the LH side.
17. INSTALL NO. 2 SEAT HINGE COVER LH (w/ Rear No.
2 Seat) (See page SE-123)
18. INSTALL NO. 2 SEAT HINGE COVER RH (w/ Rear No.
2 Seat)
HINT:
Use the same procedures described for the LH side.
19. INSTALL DECK BOARD ASSEMBLY (w/o Rear No. 2
Seat)
20. INSTALL REAR FLOOR NO. 1 BOARD (w/o Rear No.
2 Seat)
21. INSTALL REAR DOOR OPENING TRIM
WEATHERSTRIP RH
B137550
Page 459 of 2000
DL–110DOOR LOCK – DOOR CONTROL RECEIVER
DL
22. INSTALL REAR DOOR SCUFF PLATE RH
(a) Attach the 9 claws and 2 clips to install the scuff
plate.
B132566
Page 460 of 2000
ES–62AZ-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES

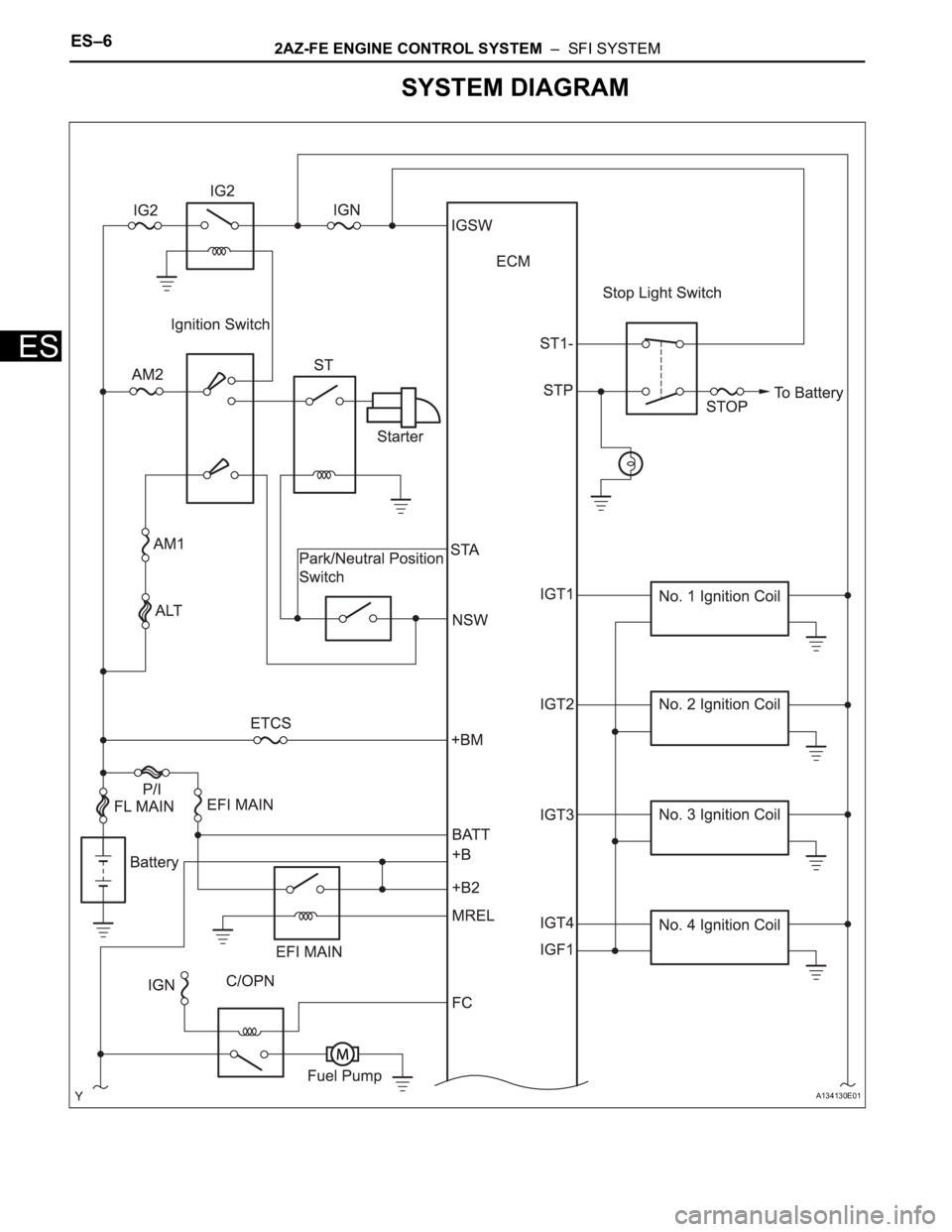

SYSTEM DIAGRAM
A134130E01
Page 461 of 2000
2AZ-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–7
ES

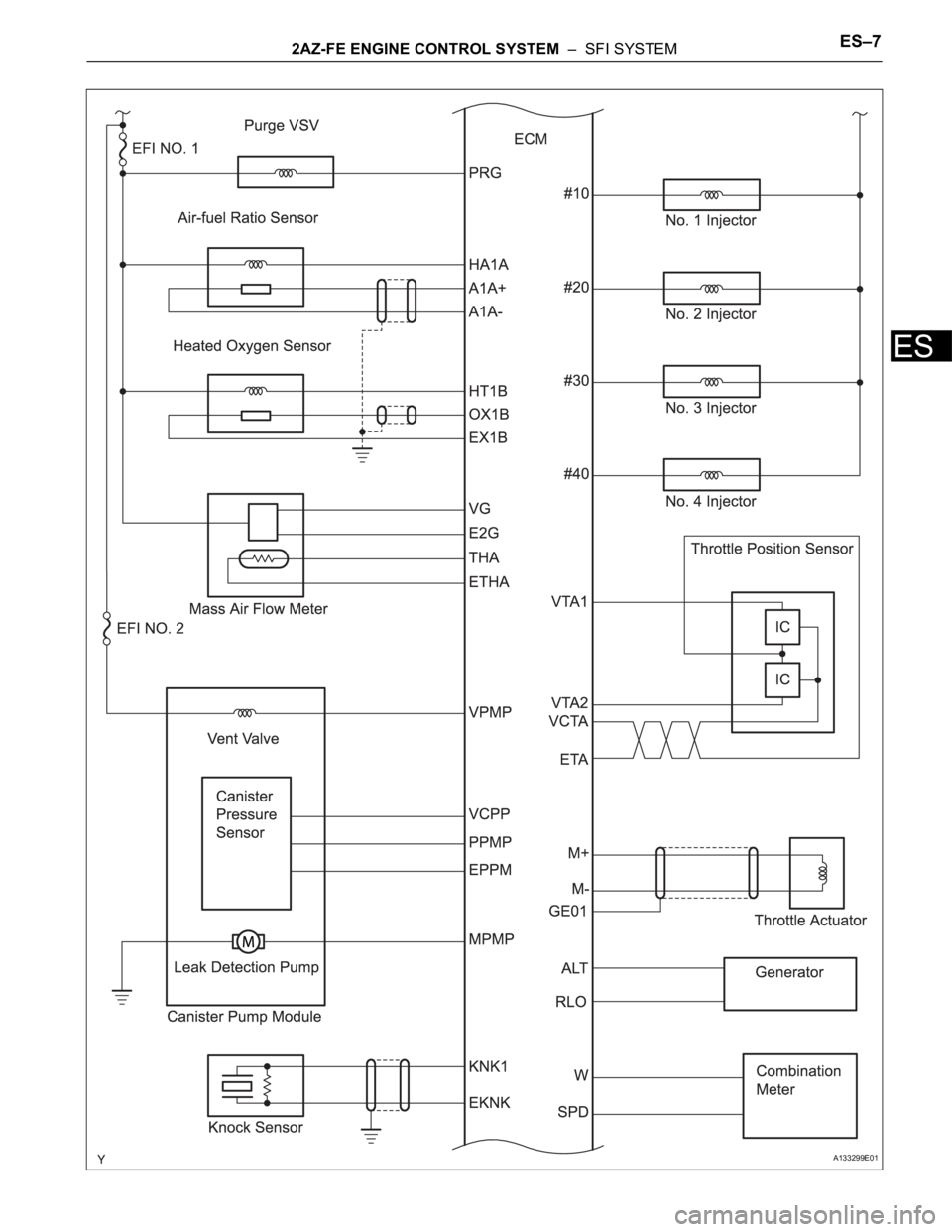

A133299E01
Page 462 of 2000
ES–82AZ-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES

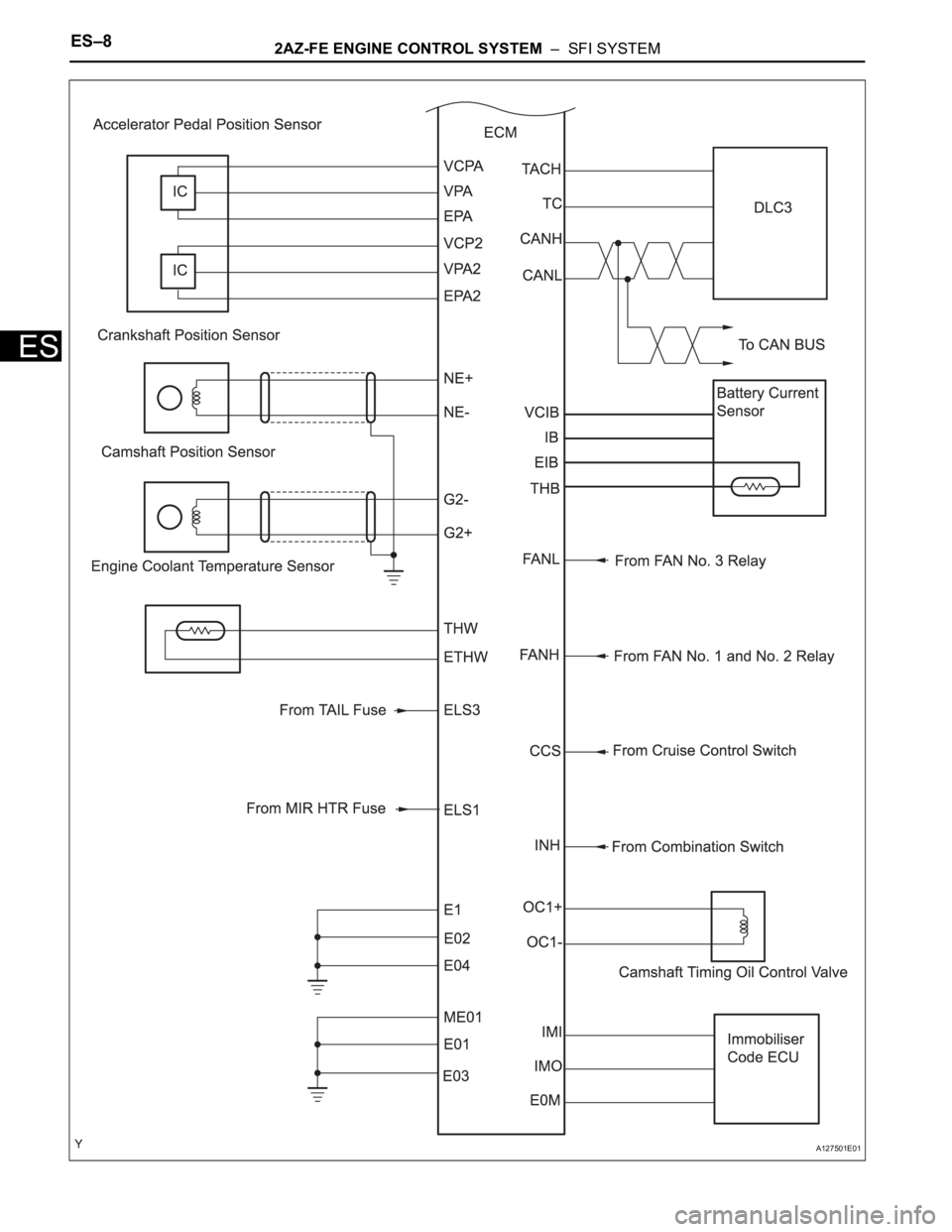

A127501E01
Page 463 of 2000
2AZ-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–9
ES
HOW TO PROCEED WITH
TROUBLESHOOTING
HINT:
*: Use the intelligent tester.
NEXT
NEXT
HINT:
If the display indicates a communication fault in the tester,
inspect the DLC3.
NEXT
HINT:
Record or print DTCs and freeze frame data, if necessary.
NEXT
NEXT
NEXT
NEXT
1VEHICLE BROUGHT TO WORKSHOP
2CUSTOMER PROBLEM ANALYSIS
3CONNECT INTELLIGENT TESTER TO DLC3*
4CHECK DTC AND FREEZE FRAME DATA*
5CLEAR DTC AND FREEZE FRAME DATA*
6CONDUCT VISUAL INSPECTION
7SET CHECK MODE DIAGNOSIS*
Page 464 of 2000
ES–102AZ-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES
HINT:
If the engine does not start, first perform the "CHECK DTC"
procedures and "CONDUCT BASIC INSPECTION"
procedures below.
B
A
NEXT
B
A
NEXT
B
A
8CONFIRM PROBLEM SYMPTOMS
Result Proceed to
Malfunction does not occur A
Malfunction occurs B
GO TO STEP 10
9SIMULATE SYMPTOMS
10CHECK DTC*
Result Proceed to
Malfunction code A
No code B
GO TO STEP 12
11REFER TO DTC CHART
GO TO STEP 14
12CONDUCT BASIC INSPECTION
Result Proceed to
Malfunctioning parts not confirmed A
Malfunctioning parts confirmed B
GO TO STEP 17
