Page 425 of 2000

POWER STEERING – ELECTRONIC POWER STEERING SYSTEMPS–5
PS
SYSTEM DESCRIPTION
1. DESCRIPTION
The EPS (Electronic Power Steering) system generates
torque through the operation of the motor and the
reduction gear installed on the column shaft in order to
assist steering effort.
The power steering ECU determines directions and the
amount of assisting power in accordance with vehicle
speed signals and signals from the torque sensor built
into the steering column assembly. As a result, the power
steering adjusts the steering effort so that it is lighter
during low speed driving and heavier during high speed
driving.
(a) Power steering ECU:
The power steering ECU calculates assisting power
based on steering torque signals from the torque
sensor and vehicle speed signals from the skid
control ECU.
(b) Torque sensor:
The torque sensor detects the steering effort
generated when the steering wheel is turned and
converts it to an electrical signal.
(c) EPS motor:
The EPS motor is activated by the current from the
power steering ECU and generates torque to assist
the steering effort.
(d) Motor rotation angle sensor:
The motor rotation angle sensor consists of the
resolver sensor, which excels in reliability and
durability. The rotation angle sensor detects the
rotation angle of the motor and outputs it to the
power steering ECU. As a result, it ensures efficient
EPS control.
Page 426 of 2000
AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)AC–3
AC

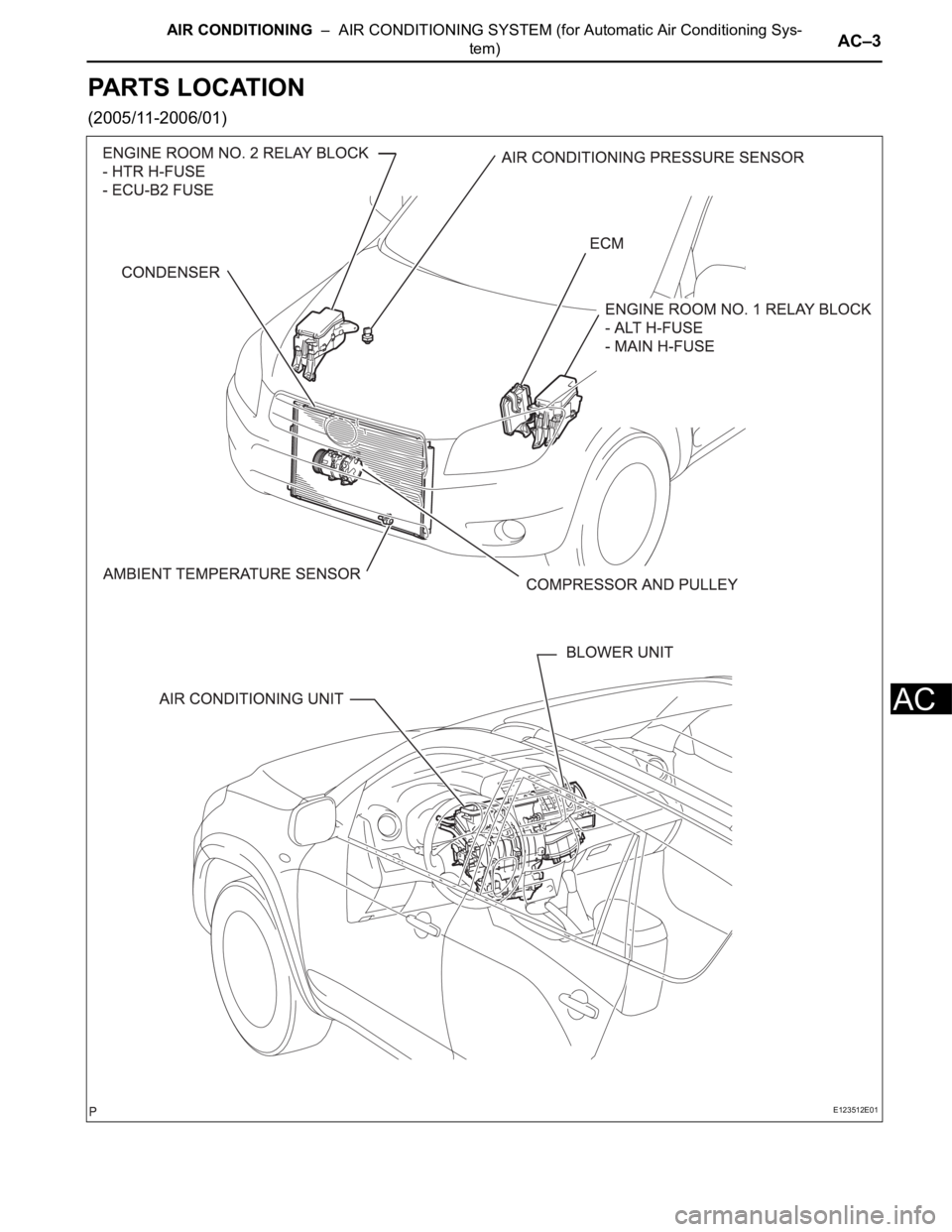

PARTS LOCATION
(2005/11-2006/01)
E123512E01
Page 427 of 2000
AC–4AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)
AC
E123513E01
Page 428 of 2000
AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)AC–5
AC
E123514E01
Page 429 of 2000
AIR CONDITIONING – AIR OUTLET CONTROL SERVO MOTOR (for Automatic Air Condi-
tioning System)AC–213
AC
INSTALLATION
1. INSTALL AIR OUTLET CONTROL SERVO MOTOR
(See page AC-196)
2. INSTALL AIR CONDITIONING UNIT
(a) Install the air conditioning radiator (see page AC-
197).
Page 430 of 2000
AIR CONDITIONING – AIR CONDITIONING CONTROL ASSEMBLY (for Manual Air Condi-
tioning System)AC–245
AC
INSTALLATION
1. INSTALL AIR VENT MODE CONTROL SWITCH
(a) Attach the 2 claws to install the mode control switch.
2. INSTALL BLOWER CONTROL SWITCH
(a) Attach the 2 claws to install the blower control
switch.
3. INSTALL AIR MIX CONTROL SWITCH
(a) Attach the 2 claws to install the air mix control
switch.
4. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
(a) Connect the connectors.
(b) Attach the 3 clips to install the air conditioning
control.
(c) Install the 2 screws.
5. INSTALL RADIO RECEIVER ASSEMBLY (w/ Radio
Receiver) (See page IP-10)
6. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH
PANEL CENTER (See page IP-10)
7. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH
PANEL CENTER (See page IP-10)
8. CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
9. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light (see page RS-37).
E118688
Page 431 of 2000
SUPPLEMENTAL RESTRAINT SYSTEM – AIRBAG SYSTEMRS–21
RS
PARTS LOCATION
C123528E03
Page 432 of 2000
RS–22SUPPLEMENTAL RESTRAINT SYSTEM – AIRBAG SYSTEM
RS
C128667E03
