Page 505 of 2000

TOYOTA RAV4 2006 Service Repair Manual IP–4INSTRUMENT PANEL – UPPER INSTRUMENT PANEL
IP
REMOVAL
1. TABLE OF BOLT, SCREW AND NUT
HINT:
All bolts, screws and nuts relevant to installing and
removing the instrument panel are shown alon

Page 506 of 2000

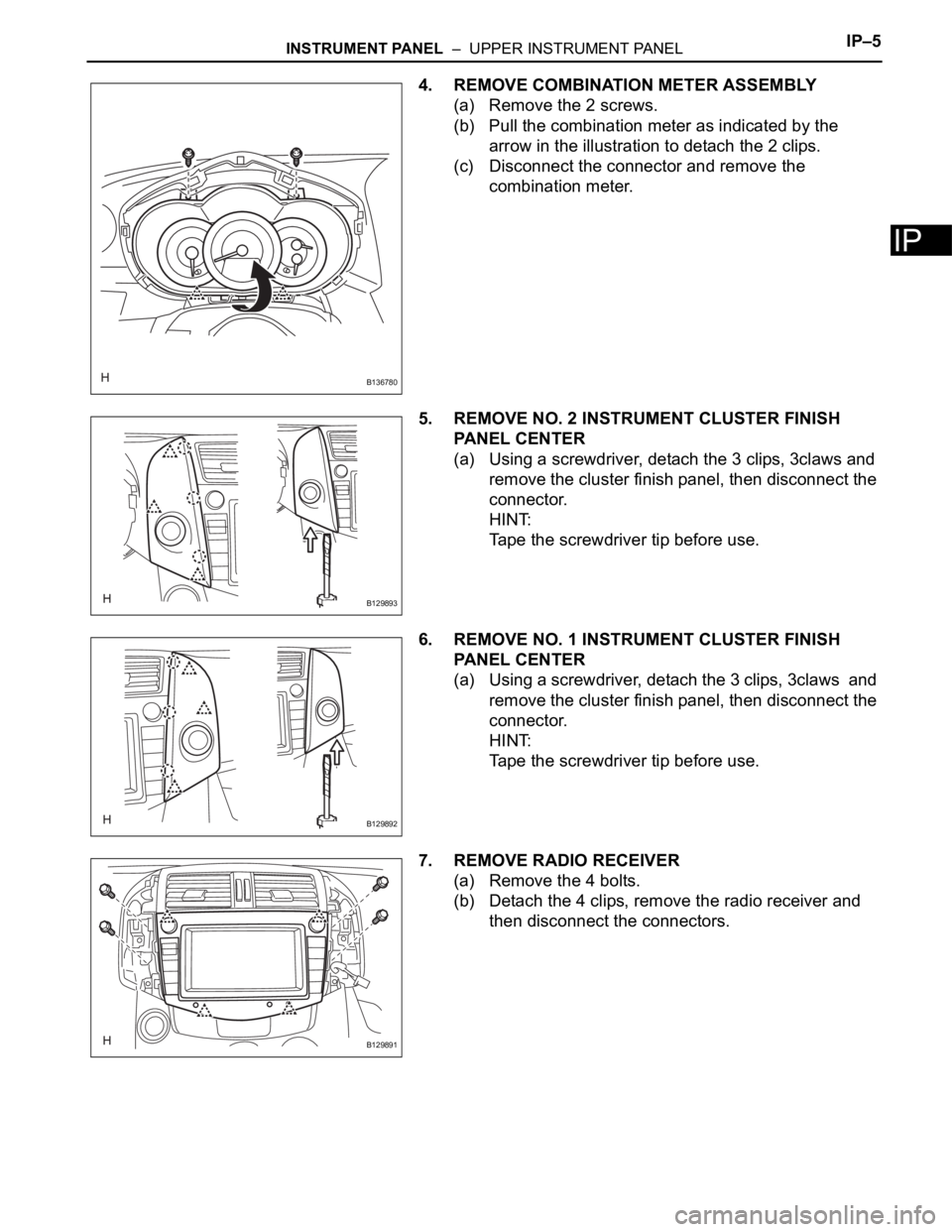

TOYOTA RAV4 2006 Service Repair Manual INSTRUMENT PANEL – UPPER INSTRUMENT PANELIP–5
IP
4. REMOVE COMBINATION METER ASSEMBLY
(a) Remove the 2 screws.
(b) Pull the combination meter as indicated by the
arrow in the illustration to de

Page 507 of 2000

TOYOTA RAV4 2006 Service Repair Manual IP–6INSTRUMENT PANEL – UPPER INSTRUMENT PANEL
IP
8. REMOVE INSTRUMENT PANEL REGISTER
ASSEMBLY CENTER
(a) Using a screwdriver, detach the 5 clips and remove
the instrument panel register.
HINT:

Page 508 of 2000

TOYOTA RAV4 2006 Service Repair Manual SEAT – FRONT POWER SEAT CONTROL SYSTEMSE–3
SE
PROBLEM SYMPTOMS TABLE
HINT:
Use the table below to help determine the cause of the
problem symptom. The potential causes of the symptoms are
list

SEAT – FRONT POWER SEAT CONTROL SYSTEMSE–3
SE
PROBLEM SYMPTOMS TABLE
HINT:
Use the table below to help determine the cause of the
problem symptom. The potential causes of the symptoms are
listed in order of probability in the "Suspected Area" column
of the table. Check each symptom by checking the suspected
areas in the order they are listed. Replace parts as
necessary.
Front power seat control system
ON-VEHICLE INSPECTION
1. CHECK POWER SEAT FUNCTION
(a) Check the basic functions.
(1) Operate the power seat switches and check to
make sure each seat function works:
• Sliding
•Front vertical
•Lifter
• Reclining
• Lumbar support
2. CHECK FRONT SEAT FRAME WITH ADJUSTER
(SLIDING, FRONT VERTICAL, LIFTER AND
RECLINING FUNCTIONS)
(a) Check the PTC operation inside the power seat
motor.
HINT:
The PTC thermistor's resistance increases when the
power seat switch is held down even after the power
seat has been moved to the maximum in one
direction. If the resistance increases beyond a
specified level, current is cut to prevent a short
circuit.
Symptom Suspected area See page
All functions do not operate (except lumbar support)1. P/SEAT fuseSE-1
2. Front power seat switchSE-124
3. Wire harness -
Only slide operation function does not operate1. Front power seat switchSE-124
2. Front seat frame with adjuster (slide motor)SE-125
3. Wire harness -
Only front vertical operation function does not operate1. Front power seat switchSE-124
2. Front seat frame with adjuster (front vertical motor)SE-125
3. Wire harness -
Only lifter operation function does not operate1. Front power seat switchSE-124
2. Front seat frame with adjuster (lifter motor)SE-125
3. Wire harness -
Only reclining operation function does not operate1. Front power seat switchSE-124
2. Front seat frame with adjuster (reclining motor)SE-125
3. Wire harness -
Only lumbar support operation function does not
operate1. Front power seat lumbar switchSE-127
2. Lumbar support adjuster (lumbar support motor)SE-127
3. Wire harness -
B131377E01

Page 509 of 2000

TOYOTA RAV4 2006 Service Repair Manual SE–4SEAT – FRONT POWER SEAT CONTROL SYSTEM
SE
NOTICE:
• The inspection should be performed with the
seat installed in the vehicle.
• Perform the 4 steps below for the full range of
motion

Page 510 of 2000

TOYOTA RAV4 2006 Service Repair Manual ET–4EXTERIOR – FRONT BUMPER
ET
REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the
cable from the negative (-) battery terminal

Page 511 of 2000

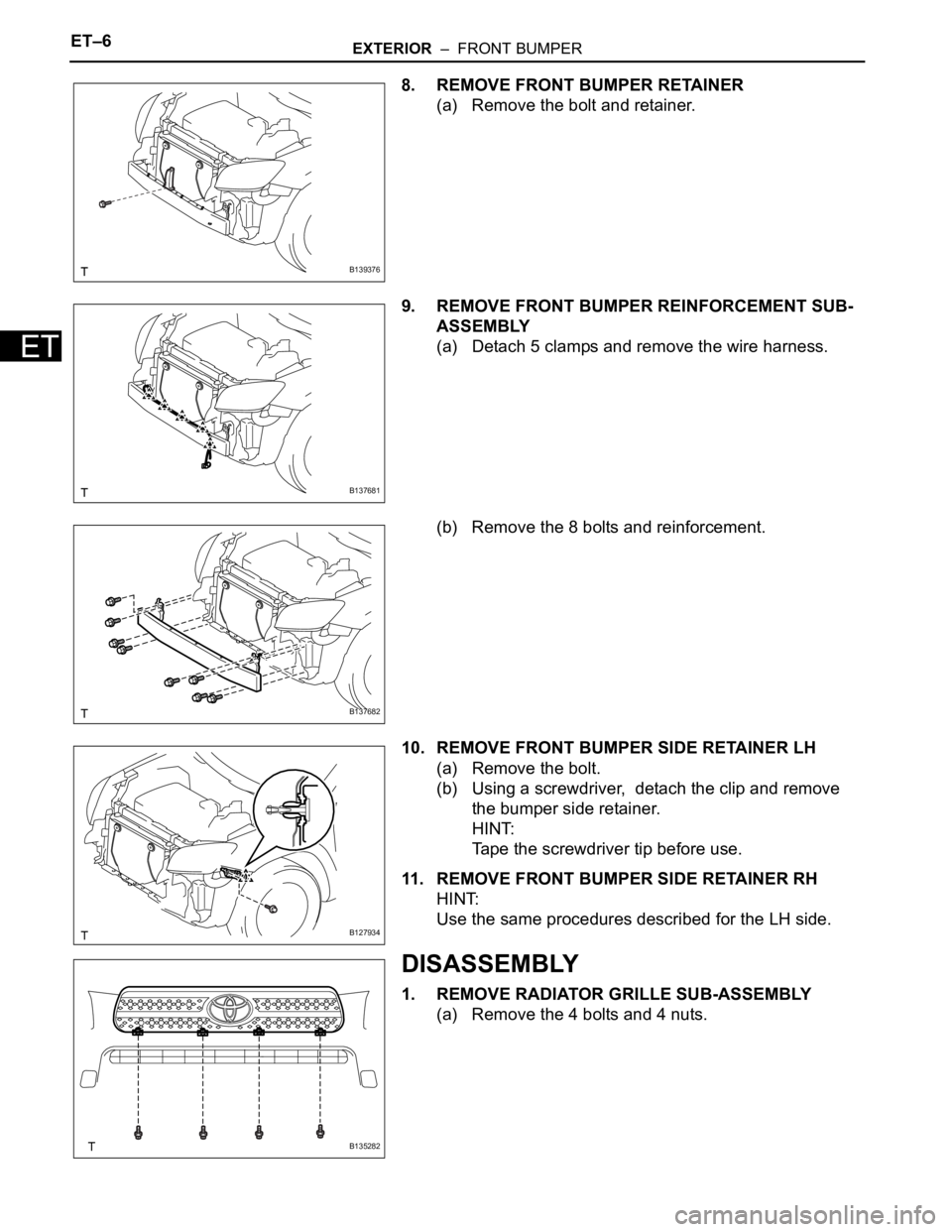

TOYOTA RAV4 2006 Service Repair Manual EXTERIOR – FRONT BUMPERET–5
ET
6. REMOVE FRONT BUMPER COVER
(a) Remove the 8 screws.
(b) Apply protective tape under the front fender and
headlight.
(c) Using a screwdriver, detach the 4 claws.

Page 512 of 2000

TOYOTA RAV4 2006 Service Repair Manual ET–6EXTERIOR – FRONT BUMPER
ET
8. REMOVE FRONT BUMPER RETAINER
(a) Remove the bolt and retainer.
9. REMOVE FRONT BUMPER REINFORCEMENT SUB-
ASSEMBLY
(a) Detach 5 clamps and remove the wire harnes
