INSPECTION
1. CHECK TORQUE SENSOR
(a) Check the torque sensor (see page PS-19).
2. CHECK POWER STEERING MOTOR
(a) Check the power steering motor (see page PS-22).
3. CHECK MOTOR ROTATION ANGLE SENSOR
(a) Check the motor rotation angle sensor (see page
PS-25).
REASSEMBLY
1. INSTALL IGNITION OR STARTER SWITCH
ASSEMBLY
(a) Attach the 2 claws to install the ignition switch onto
the steering column bracket upper.
2. INSTALL KEY INTERLOCK SOLENOID
(a) for Automatic Transaxle:
(1) Install the key interlock solenoid onto the
steering column bracket upper with the 2
screws.
3. INSTALL UNLOCK WARNING SWITCH ASSEMBLY
(a) Attach the 2 claws to install the unlock warning
switch onto the steering column bracket upper.
HINT:
Slide the unlock warning switch in the direction
shown by the arrow in the illustration to install it.
4. INSTALL IGNITION SWITCH LOCK CYLINDER
ASSEMBLY
(a) Turn the ignition switch to ON (ACC).
(b) Install the ignition switch lock cylinder into the
steering column bracket upper.
(c) Make sure that the ignition switch lock cylinder is
securely fixed onto the ignition switch lock cylinder.
C128812
C128811
C128815
C128816
Page 1602 of 2000
SR–18STEERING COLUMN – STEERING COLUMN ASSEMBLY
SR
5. INSPECT STEERING LOCK OPERATION
(a) Remove the key and check that the steering lock
function is activated.
(b) Insert the key, turn the ignition switch ON (ACC) and
check that the steering lock function is deactivated.
6. INSTALL STEERING COLUMN UPPER W/ SWITCH
BRACKET ASSEMBLY
(a) Fix the steering column assembly in a vise between
aluminum plates.
NOTICE:
Do not overtighten the vise.
(b) Install the steering column upper with switch bracket
and steering column clamp upper with new steering
lock set bolt, and then tighten the bolts until their
heads come off.
7. INSTALL TRANSPONDER KEY AMPLIFIER
(a) Attach the 2 claws and install the transponder key
amplifier onto the steering column upper with the
switch bracket.
C128817
C128818
C128819
C128820
Page 1603 of 2000

STEERING COLUMN – STEERING COLUMN ASSEMBLYSR–19
SR
INSTALLATION
1. INSTALL STEERING COLUMN ASSEMBLY
(a) Install the steering column onto the instrument panel
reinforcement with the 3 bolts.
Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)
(b) Connect all the connectors and clamp the wire
harnesses onto the steering column bracket.
2. INSTALL BRAKE PEDAL SUPPORT ASSEMBLY
(a) Install the brake pedal support (see page BR-16).
3. INSTALL NO.2 STEERING INTERMEDIATE SHAFT
ASSEMBLY

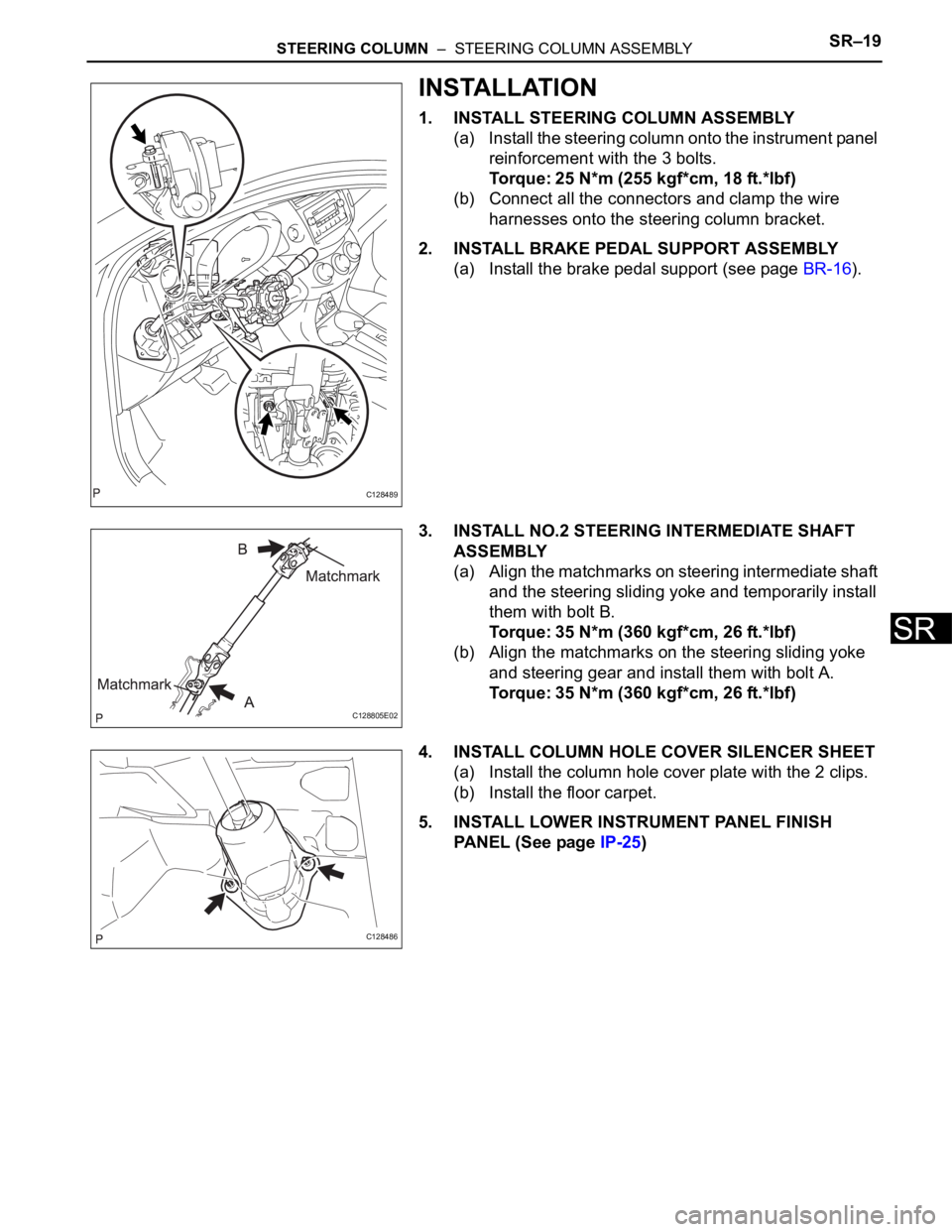

(a) Align the matchmarks on steering intermediate shaft
and the steering sliding yoke and temporarily install
them with bolt B.
Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
(b) Align the matchmarks on the steering sliding yoke
and steering gear and install them with bolt A.
Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
4. INSTALL COLUMN HOLE COVER SILENCER SHEET
(a) Install the column hole cover plate with the 2 clips.
(b) Install the floor carpet.
5. INSTALL LOWER INSTRUMENT PANEL FINISH
PANEL (See page IP-25)
C128489
C128805E02
C128486
Page 1604 of 2000
SR–20STEERING COLUMN – STEERING COLUMN ASSEMBLY
SR
6. CONNECT POWER STEERING ECU
(a) Connect the 2 steering column connectors to the
power steering ECU.
(b) Install the power steering motor wire harness and
torque sensor wire harness clamps onto the side of
the power steering ECU.
(c) Tilt the steering column assembly up and down to
make sure that the power steering motor wire
harness and torque sensor wire harness do not
interfere with any components.
7. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
(a) Install the instrument panel (see page IP-9).
8. INSTALL COMBINATION SWITCH ASSEMBLY
(a) Install the turn signal switch onto the steering
column with the clamp.
9. INSTALL SPIRAL CABLE SUB-ASSEMBLY
(a) Install the spiral cable onto the turn signal switch.
(b) Connect all the connectors to the turn signal switch
with spiral cable.
10. INSTALL STEERING COLUMN COVER
(a) Attach the claw to install the upper steering column
cover.
C128905E02
C128800
C128493E04
C128492
Page 1605 of 2000
STEERING COLUMN – STEERING COLUMN ASSEMBLYSR–21
SR
(b) Attach the 4 claws to install the lower steering
column cover.
11. INSTALL STEERING WHEEL ASSEMBLY
(a) Align the matchmarks and install the steering wheel
onto the steering column.
(b) Install the nut.
Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
(c) Connect all the connectors to the spiral cable.
12. INSTALL STEERING PAD (See page RS-336)
13. POSITION FRONT WHEELS FACING STRAIGHT
AHEAD
14. CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
15. INSPECT SRS WARNING LIGHT
(a) Inspect the SRS warning light (see page RS-52).
C128491
C132123E02
Page 1606 of 2000
PS–6POWER STEERING – ELECTRONIC POWER STEERING SYSTEM
PS
HOW TO PROCEED WITH
TROUBLESHOOTING
HINT:
Perform troubleshooting in accordance with the following
flowchart.
*: Use the intelligent tester.
NEXT
Standard voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery
before proceeding.
NEXT
NEXT
(a) Check for DTC (see page PS-11).
Result
HINT:
• When any CAN communication system DTCs are
output, perform troubleshooting on the CAN
communication system first.
• When communication to the power steering ECU is
not established through the intelligent tester, inspect
terminals SIL of the DLC3 and the power steering
ECU, and the IG circuit of the power steering ECU.
B
A
1VEHICLE BROUGHT TO WORKSHOP
2INSPECT BATTERY VOLTAGE
3PROBLEM SYMPTOM CONFIRMATION
4CHECK CAN COMMUNICATION SYSTEM*
Result Proceed to
CAN system DTC is not output A
CAN system DTC is output B
PROCEED TO CAN COMMUNICATION
SYSTEM
Page 1607 of 2000
POWER STEERING – ELECTRONIC POWER STEERING SYSTEMPS–7
PS
(a) Check for DTC (see page PS-11).
Result
A
B
Result
B
A
(a) Terminals of ECU (see page PS-8).
(b) DATA LIST / ACTIVE TEST (see page PS-14).
NEXT
NEXT
NEXT
5CHECK DTC*
Result Proceed to
DTC is output A
DTC is not output B
Go to step 8
6PROBLEM SYMPTOMS TABLE
Result Proceed to
Fault is not listed in problem symptoms
tableA
Fault is listed in problem symptoms
tableB
Go to step 8
7OVERALL ANALYSIS AND TROUBLESHOOTING*
8REPAIR OR REPLACE
9CONFIRMATION TEST
END
Page 1608 of 2000

PS–8POWER STEERING – ELECTRONIC POWER STEERING SYSTEM
PS
PROBLEM SYMPTOMS TABLE
HINT:
Use the table below to help determine the cause of the
problem symptom. The potential causes of the symptoms are
listed in order of probability in the "Suspected area" column of
the table. Check each symptom by checking the suspected
areas in the order they are listed. Replace parts as
necessary.
Electronic power steering system
Symptom Suspected area See page
Heavy steering1. Front tires (improperly inflated, unevenly worn)TW-1
2. Front wheel alignment (incorrect)SP-3
3. Front suspension (lower ball joint)SP-27
4. Steering gear assemblyPS-42
5. Power steering motor PS-25
6. Power source voltage of power steering ECUPS-37
7. Power steering ECUPS-46
Steering effort differs between turning right and left, or
steering effort uneven1. Front tires (improperly inflated, unevenly worn)TW-1
2. Front wheel alignment (incorrect)SP-3
3. Front suspension (lower ball joint)SP-27
4. Steering gear assemblyPS-42
5. Torque sensor (built into steering column) PS-22
6. Steering column assemblySR-11
7. Power steering motor PS-25
8. Power steering ECUPS-46
While driving, steering effort does not change in
accordance with vehicle speed or steering wheel does
not return properly1. Front suspension (lower ball joint)SP-27
2. Speed sensorBC-28
3. Skid control ECUBC-41
4. Torque sensor (built into steering column) PS-22
5. Power steering motor PS-25
6. Power steering ECUPS-46
7. Controlling CAN communication systemCA-8
Friction occurs when turning steering wheel during low
speed driving1. Power steering motor PS-25
2. Steering column assemblySR-11
High-pitched sound (squeaking) occurs when turning
steering wheel slowly with vehicle stopped1. Power steering motor PS-25
Steering wheel vibrates and noise occurs when turning
steering wheel with vehicle stopped1. Power steering motor PS-25
2. Steering column assemblySR-11
P/S warning always indicated on combination meter1. Power source voltage of power steering ECUPS-37
2. Combination meterME-53
3. Power steering ECUPS-46
