Page 785 of 2000

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE FUEL – FUEL PUMPFU–31 FU (b) Remove the gasket from the fuel pump. 5. REMOVE FUEL SUB-TANK ASSEMBLY (a) Disconnect the wire harness. (b) Using needle nose pliers, remove the E-ring. HINT:

Page 786 of 2000

TOYOTA RAV4 2006 Service Repair Manual FU–322AZ-FE FUEL – FUEL PUMP FU (e) Disengage the claw of the jet pump nozzle. (f) Using a screwdriver with the tip taped, remove the jet pump. (g) Remove the O-ring from the jet pump. 6. REMOV

Page 787 of 2000

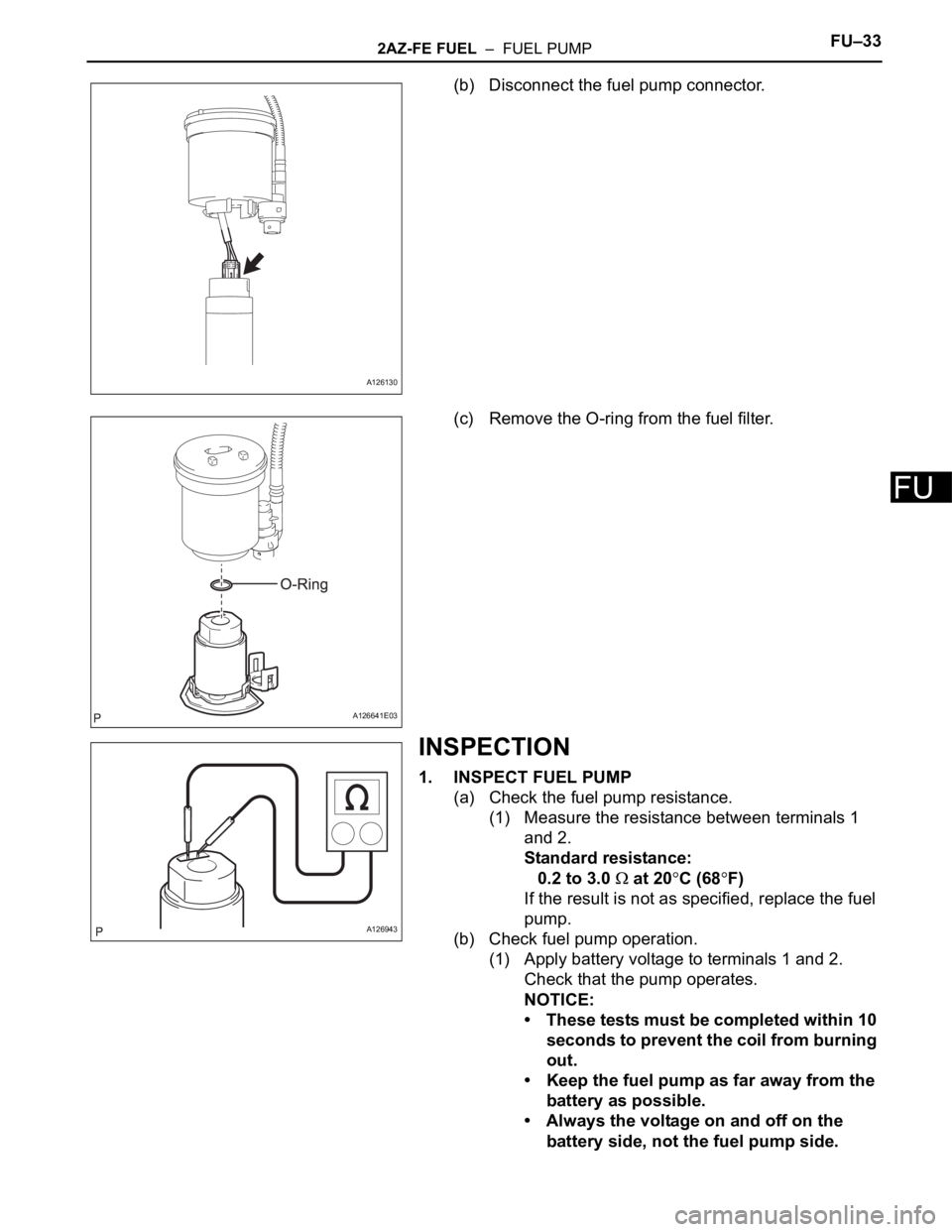

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE FUEL – FUEL PUMPFU–33 FU (b) Disconnect the fuel pump connector. (c) Remove the O-ring from the fuel filter. INSPECTION 1. INSPECT FUEL PUMP (a) Check the fuel pump resistance. (1) Measu

Page 788 of 2000

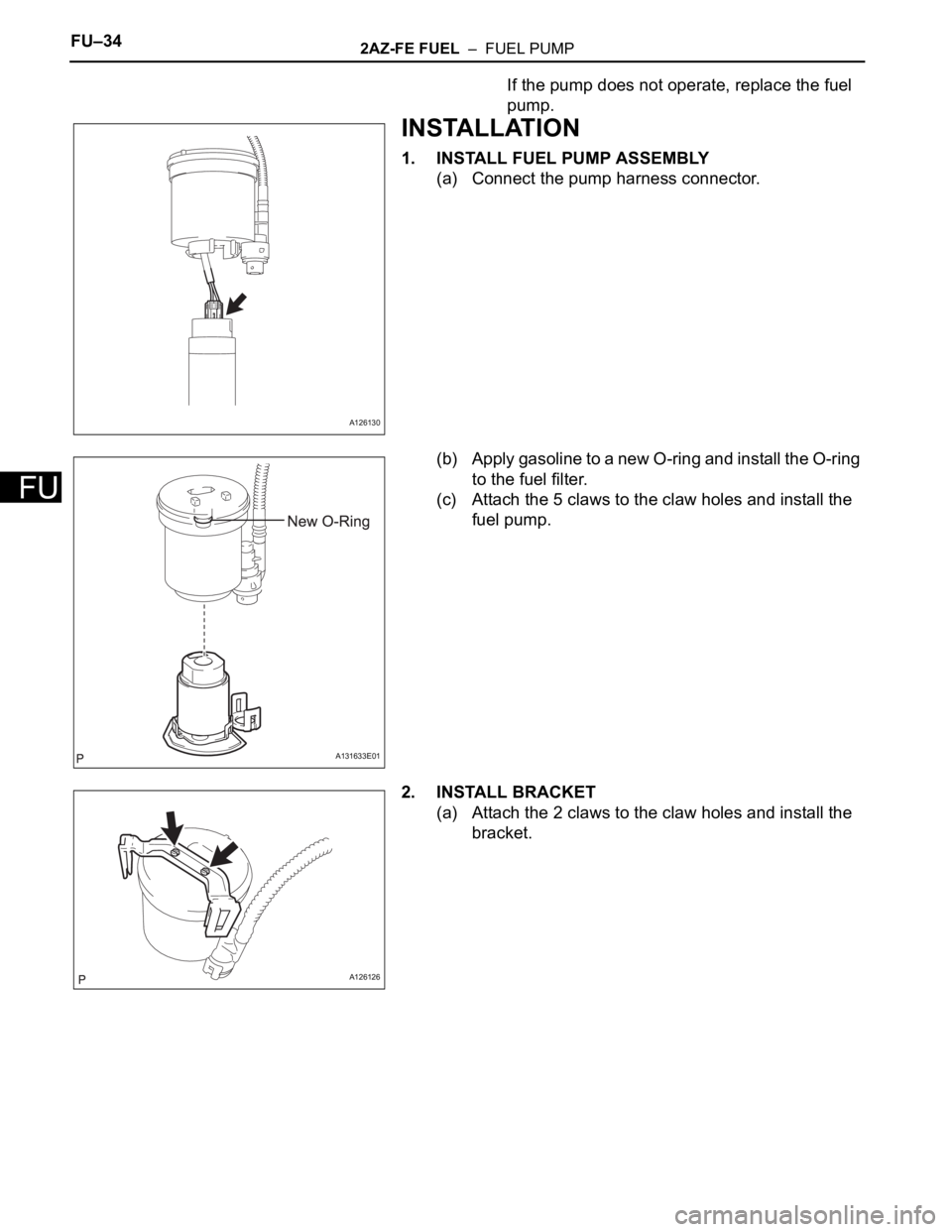

TOYOTA RAV4 2006 Service Repair Manual FU–342AZ-FE FUEL – FUEL PUMP FU If the pump does not operate, replace the fuel pump. INSTALLATION 1. INSTALL FUEL PUMP ASSEMBLY (a) Connect the pump harness connector. (b) Apply gasoline to a n

Page 789 of 2000

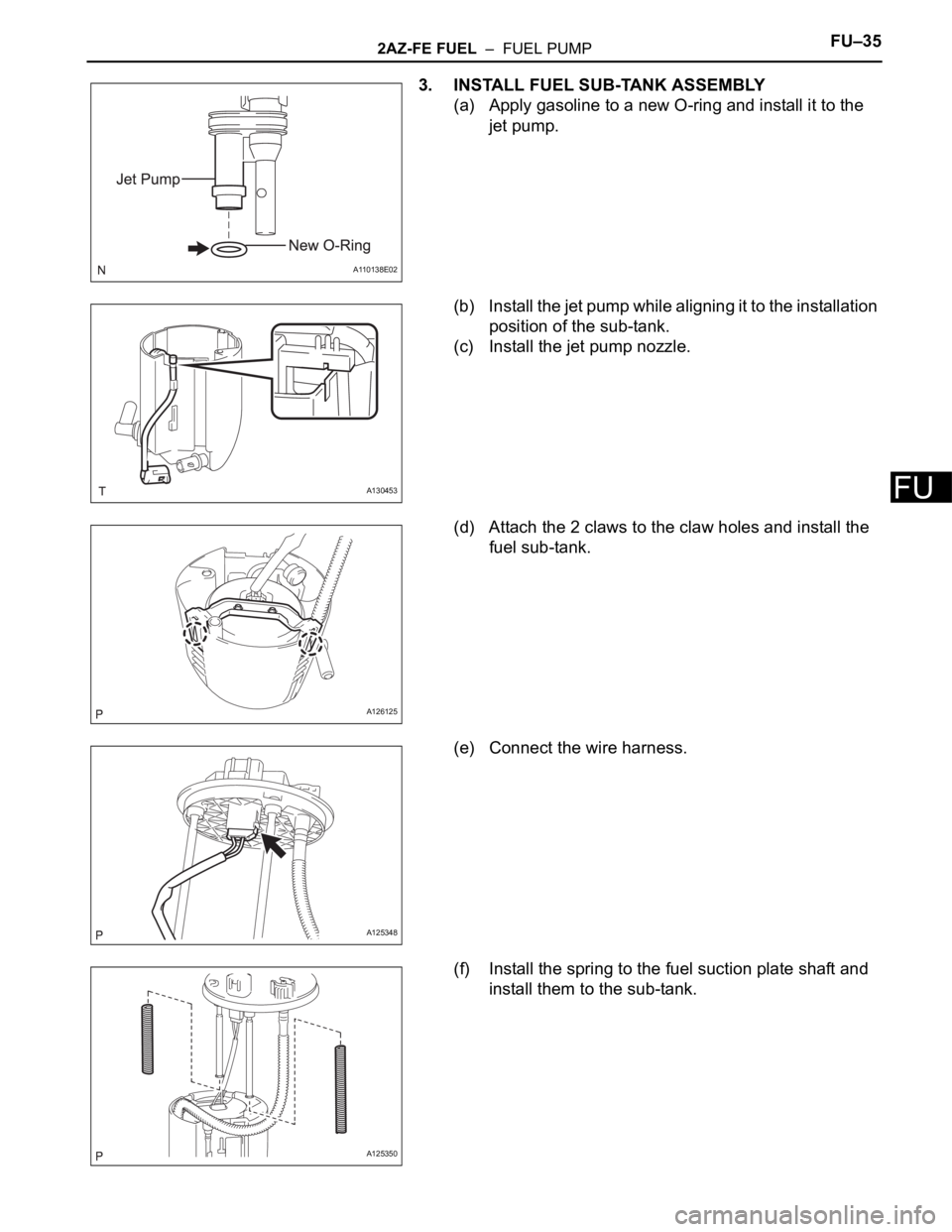

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE FUEL – FUEL PUMPFU–35 FU 3. INSTALL FUEL SUB-TANK ASSEMBLY (a) Apply gasoline to a new O-ring and install it to the jet pump. (b) Install the jet pump while aligning it to the installati

Page 790 of 2000

TOYOTA RAV4 2006 Service Repair Manual FU–362AZ-FE FUEL – FUEL PUMP FU (g) Using needle-nose pliers, install a new E-ring. HINT: Slightly lower the sub-tank to install the E-ring. 4. INSTALL FUEL SUCTION WITH PUMP ASSEMBLY (a) Instal

Page 791 of 2000

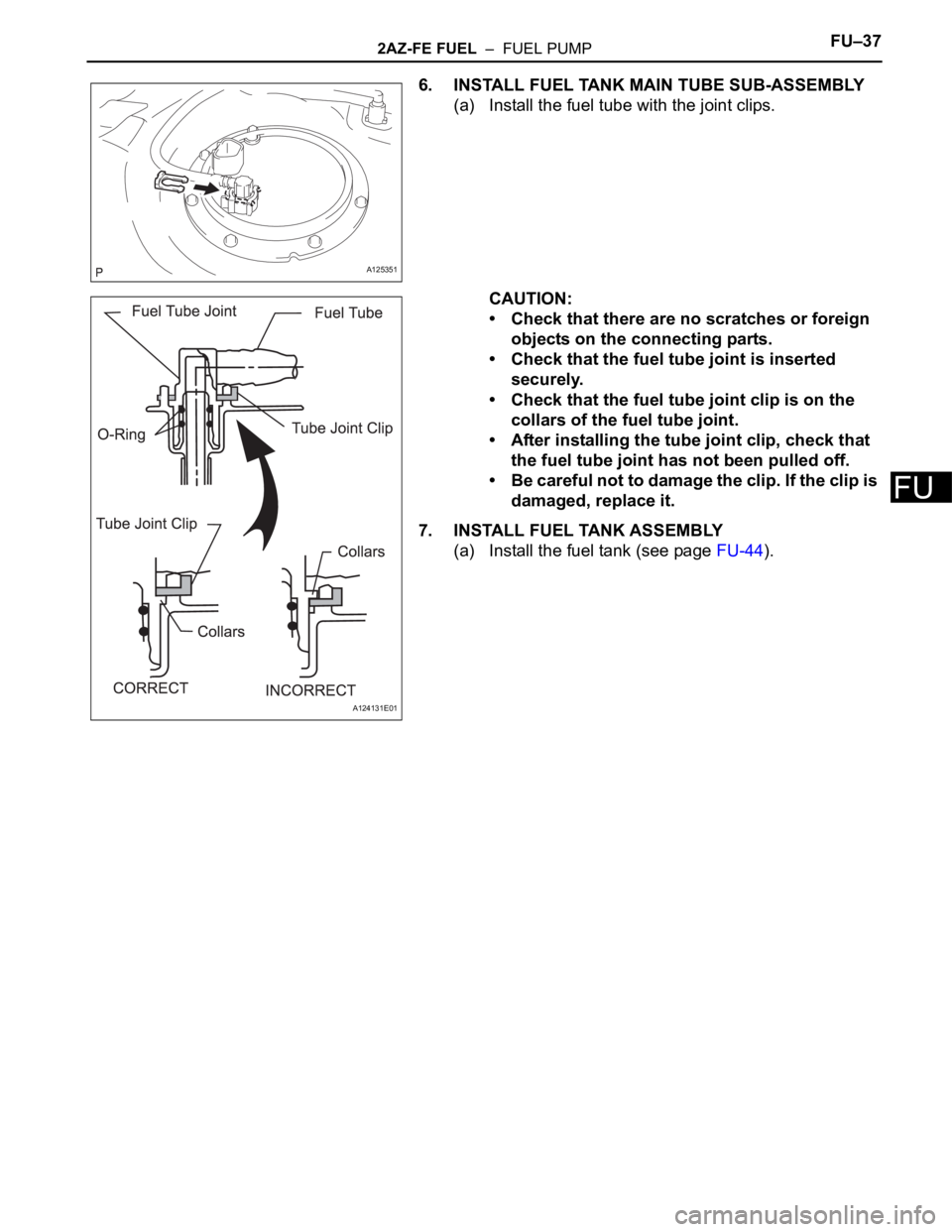

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE FUEL – FUEL PUMPFU–37 FU 6. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY (a) Install the fuel tube with the joint clips. CAUTION: • Check that there are no scratches or foreign objects on

Page 792 of 2000

TOYOTA RAV4 2006 Service Repair Manual FU–402AZ-FE FUEL – FUEL TANK FU REMOVAL 1. DISCHARGE FUEL SYSTEM PRESSURE (See page FU-9) 2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecti
