SB–24SEAT BELT – FRONT SEAT INNER BELT ASSEMBLY
SB
INSTALLATION
HINT:
A bolt without a torque specification is shown in the standard
bolt chart (see page SS-2).
1. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for
Power Seat)
(a) Install the front seat inner belt assembly with the
nut.
Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
NOTICE:
Do not overlap the anchor part of the seat belt
and protruding part of the seat adjuster.
(b) for driver seat:
Attach the 2 clamps and connect the 2 connector.
(c) for Passenger Seat:
Attach the clamp and connect the 2 connector.
2. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for
Manual Seat)
(a) Install the front seat inner belt assembly with the
nut.
Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
NOTICE:
Do not overlap the anchor part of the seat belt
and protruding part of the seat adjuster.
(b) for driver seat:
Attach the 3 clamps and connect the 2 connector.
(c) for Passenger Seat:
Attach the 2 clamps and connect the connector.
3. INSTALL FRONT SEAT CUSHION INNER SHIELD LH
(See page SE-21)
4. INSTALL FRONT SEAT CUSHION INNER SHIELD RH
(See page SE-21)
5. INSTALL FRONT SEAT ASSEMBLY (for Power Seat)
(See page SE-27)
6. INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)
(See page SE-11)
7. INSTALL FRONT SEAT TRACK BRACKET OUTER
COVER LH (See page SE-23)
8. INSTALL FRONT SEAT TRACK BRACKET INNER
COVER LH (See page SE-23)
9. INSTALL FRONT SEAT TRACK BRACKET INNER
COVER RH
(a) Use the same procedures described for the LH side.
B133641E01
B133641E01
Page 1762 of 2000
SEAT BELT – FRONT SEAT INNER BELT ASSEMBLYSB–25
SB
10. INSTALL FRONT SEAT TRACK BRACKET OUTER
COVER RH
(a) Use the same procedures described for the LH side.
11. CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Page 1763 of 2000

SEAT BELT – FRONT SEAT OUTER BELT ASSEMBLYSB–27
SB
REMOVAL
HINT:
• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the
cable from the negative (-) battery terminal to
prevent airbag and seat belt pretensioner activation.
2. REMOVE FRONT DOOR SCUFF PLATE LH (See page
IR-26)
3. REMOVE FRONT DOOR OPENING TRIM
WEATHERSTRIP LH
4. REMOVE REAR DOOR SCUFF PLATE LH (See page
IR-29)
5. REMOVE REAR DOOR OPENING TRIM
WEATHERSTRIP LH
6. REMOVE CENTER PILLAR GARNISH LOWER LH
(a) Remove the lap belt anchor cover.
(b) Remove the anchor's built-in bolt from the pillar and
disconnect the outer belt.
(c) Using a screwdriver, detach the 2 claws.
HINT:
Tape the screwdriver tip before use.
(d) Using a clip remover, detach the 2 clips and remove
the garnish.
7. REMOVE CENTER PILLAR GARNISH LH
(a) Using a screwdriver, remove the 2 screws.
(b) Using a clip remover, detach the clip then remove
the garnish.
(c) Pull out the outer belt anchor from the center pillar
garnish.
B131505E01
B129700
B129701
Page 1764 of 2000
SB–28SEAT BELT – FRONT SEAT OUTER BELT ASSEMBLY
SB

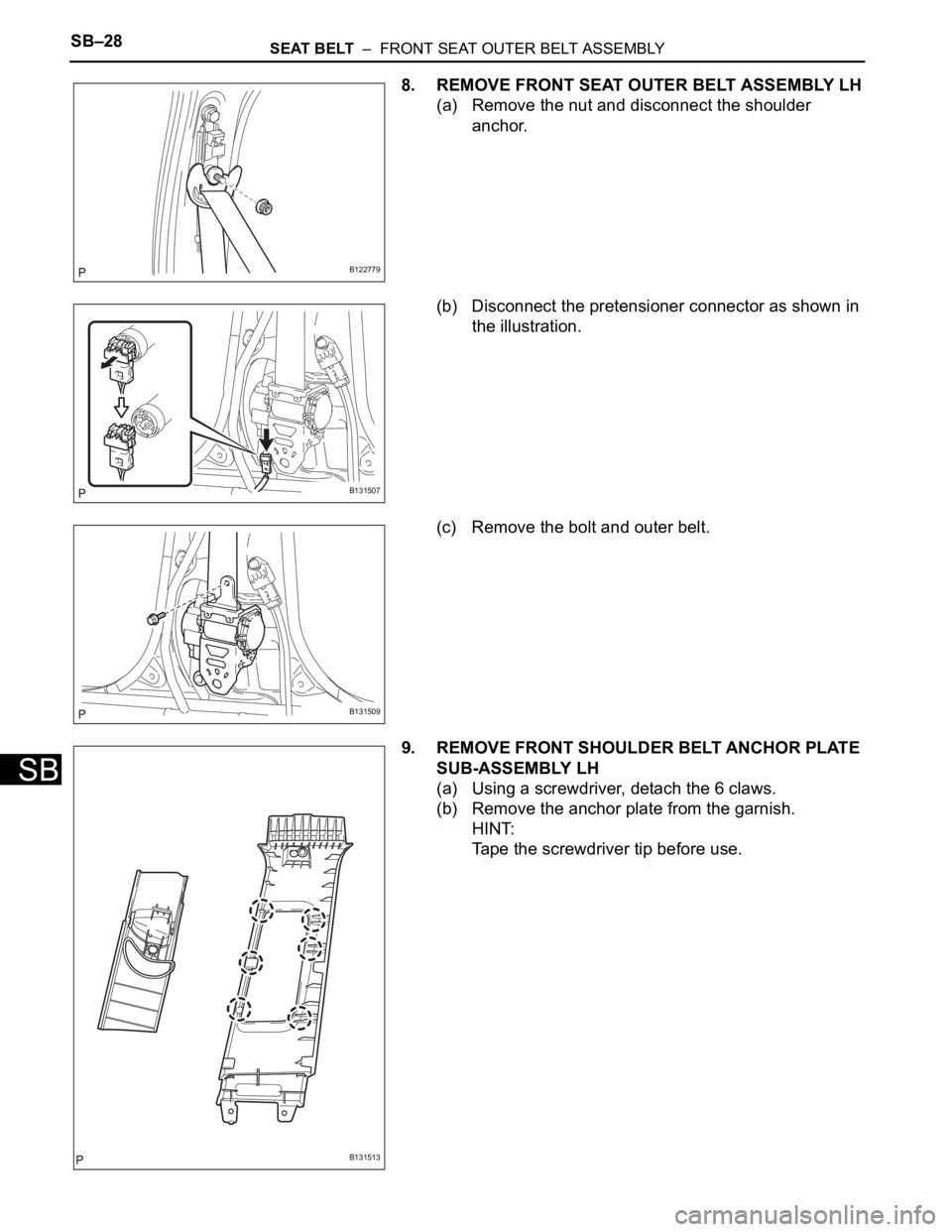

8. REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH
(a) Remove the nut and disconnect the shoulder
anchor.
(b) Disconnect the pretensioner connector as shown in
the illustration.
(c) Remove the bolt and outer belt.
9. REMOVE FRONT SHOULDER BELT ANCHOR PLATE
SUB-ASSEMBLY LH
(a) Using a screwdriver, detach the 6 claws.
(b) Remove the anchor plate from the garnish.
HINT:
Tape the screwdriver tip before use.
B122779
B131507
B131509
B131513
Page 1765 of 2000
SEAT BELT – FRONT SEAT OUTER BELT ASSEMBLYSB–29
SB

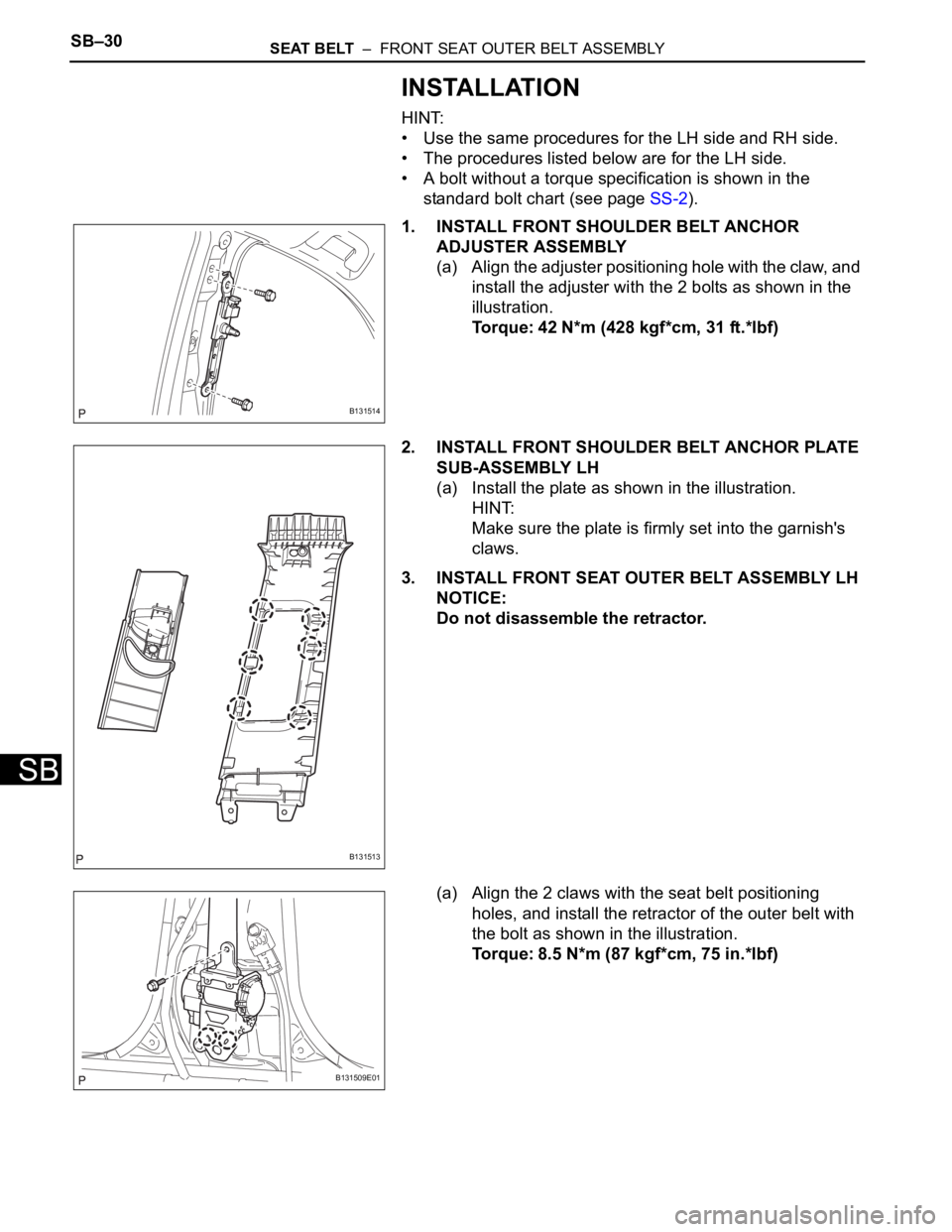

10. REMOVE FRONT SHOULDER BELT ANCHOR
ADJUSTER ASSEMBLY
(a) Remove the 2 bolts and anchor.
INSPECTION

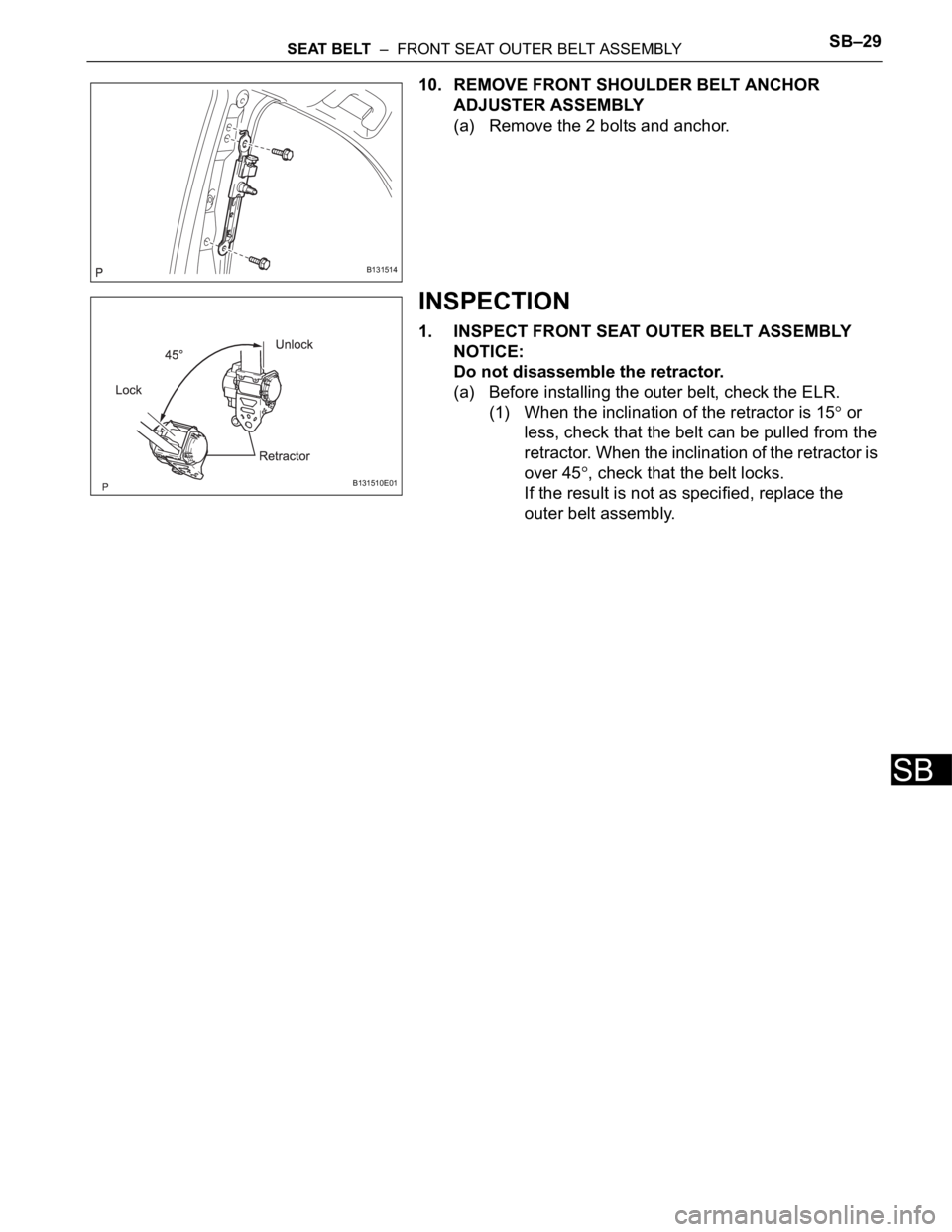

1. INSPECT FRONT SEAT OUTER BELT ASSEMBLY
NOTICE:
Do not disassemble the retractor.
(a) Before installing the outer belt, check the ELR.
(1) When the inclination of the retractor is 15
or
less, check that the belt can be pulled from the
ret rac tor. When th e i ncl i nat ion of the retrac tor i s
over 45
, check that the belt locks.
If the result is not as specified, replace the
outer belt assembly.
B131514
B131510E01
Page 1766 of 2000
SB–30SEAT BELT – FRONT SEAT OUTER BELT ASSEMBLY
SB
INSTALLATION
HINT:
• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.
• A bolt without a torque specification is shown in the
standard bolt chart (see page SS-2).

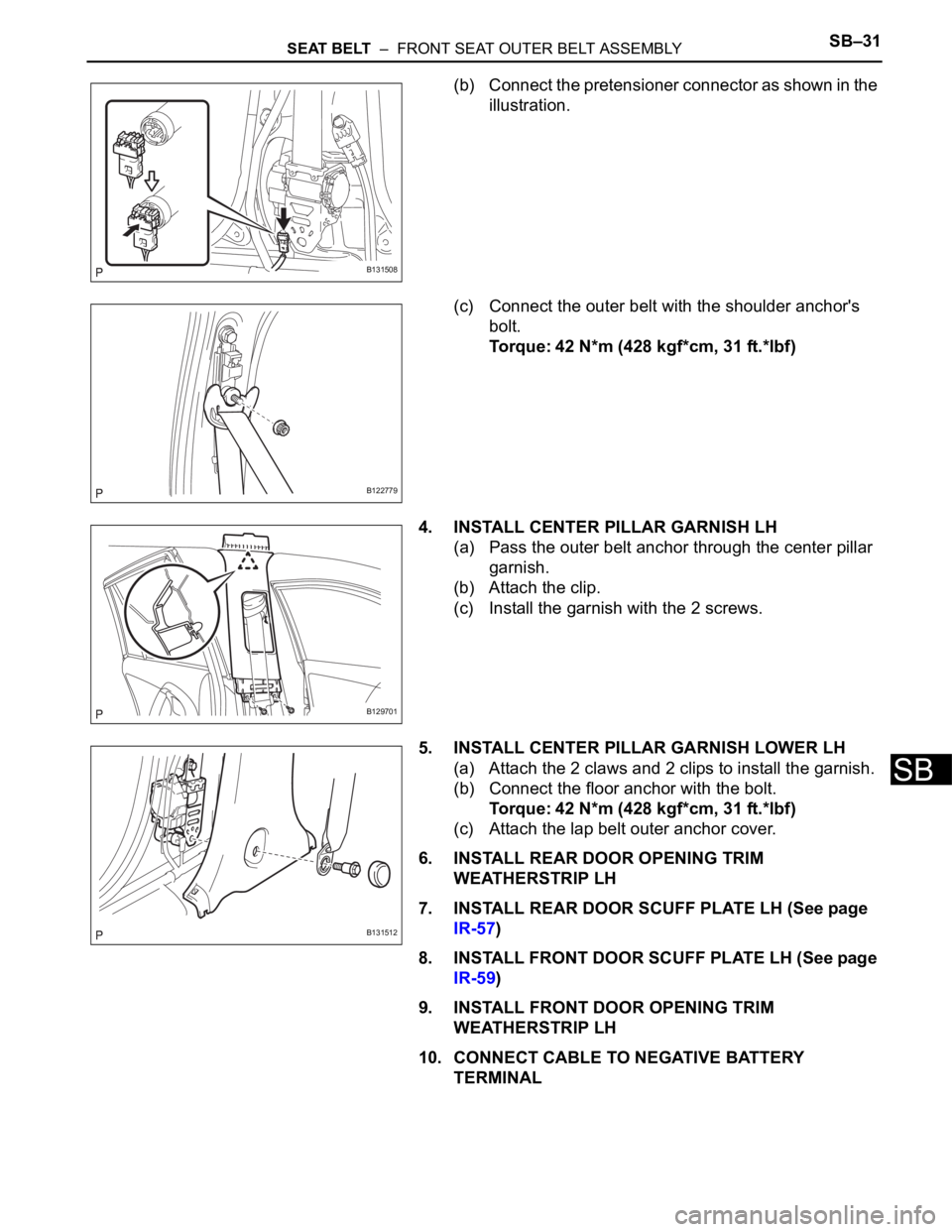

1. INSTALL FRONT SHOULDER BELT ANCHOR
ADJUSTER ASSEMBLY
(a) Align the adjuster positioning hole with the claw, and
install the adjuster with the 2 bolts as shown in the
illustration.
Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
2. INSTALL FRONT SHOULDER BELT ANCHOR PLATE
SUB-ASSEMBLY LH
(a) Install the plate as shown in the illustration.
HINT:
Make sure the plate is firmly set into the garnish's
claws.
3. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH
NOTICE:
Do not disassemble the retractor.
(a) Align the 2 claws with the seat belt positioning
holes, and install the retractor of the outer belt with
the bolt as shown in the illustration.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
B131514
B131513
B131509E01
Page 1767 of 2000
SEAT BELT – FRONT SEAT OUTER BELT ASSEMBLYSB–31
SB
(b) Connect the pretensioner connector as shown in the
illustration.
(c) Connect the outer belt with the shoulder anchor's
bolt.
Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
4. INSTALL CENTER PILLAR GARNISH LH
(a) Pass the outer belt anchor through the center pillar
garnish.
(b) Attach the clip.
(c) Install the garnish with the 2 screws.
5. INSTALL CENTER PILLAR GARNISH LOWER LH
(a) Attach the 2 claws and 2 clips to install the garnish.
(b) Connect the floor anchor with the bolt.
Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
(c) Attach the lap belt outer anchor cover.
6. INSTALL REAR DOOR OPENING TRIM
WEATHERSTRIP LH
7. INSTALL REAR DOOR SCUFF PLATE LH (See page
IR-57)
8. INSTALL FRONT DOOR SCUFF PLATE LH (See page
IR-59)
9. INSTALL FRONT DOOR OPENING TRIM
WEATHERSTRIP LH
10. CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
B131508
B122779
B129701
B131512
Page 1768 of 2000

SB–32SEAT BELT – FRONT SEAT OUTER BELT ASSEMBLY
SB
DISPOSAL
HINT:
When scrapping vehicles equipped with a seat belt
pretensioner or disposing of a front seat outer belt (with seat
belt pretensioner), always first activate the seat belt
pretensioner in accordance with the procedures described
below. If any abnormality occurs during activation of the seat
belt pretensioner, contact the SERVICE DEPARTMENT of
TOYOTA MOTOR SALES, U.S.A., INC.
CAUTION:
• Never dispose of a front seat outer belt that has a non-
activated pretensioner.
• The seat belt pretensioner produces a loud, exploding
sound when it activates. Perform the operation where
it will not be a nuisance to nearby people.
• When activating a front seat outer belt (with seat belt
pretensioner), stand at least 10 m (33 ft.) away from
the front seat outer belt.
• Use gloves and safety glasses when handling a front
seat outer belt with an activated pretensioner.
• Always wash your hands with water after completing
the disposal.
• Do not apply water to a front seat outer belt that has
an activated pretensioner.
• Perform procedures in a place away from electrical
interference.
• When activating the seat belt pretensioner, always use
the specified SST (SRS airbag deployment tool).
1. DISPOSE OF FRONT SEAT OUTER BELT ASSEMBLY
RH (WHEN INSTALLED IN VEHICLE)
HINT:
Prepare a battery to activate the seat belt pretensioner.
(a) Check if SST is functioning properly.
SST 09082-00700
CAUTION:
When activating the seat belt pretensioner,
always use the specified SST.
(1) Connect SST's red clip to the battery's positive
(+) terminal and the black clip to the battery's
negative (-) terminal.
HINT:
Do not connect the yellow connector. The
yellow connector is used to connect to the seat
belt pretensioner.
B106111E01
