Page 873 of 2000

TOYOTA RAV4 2006 Service Repair Manual CO–442GR-FE COOLING – RADIATOR CO 27. INSTALL NO. 1 ENGINE UNDER COVER (See page EM-41)

Page 874 of 2000

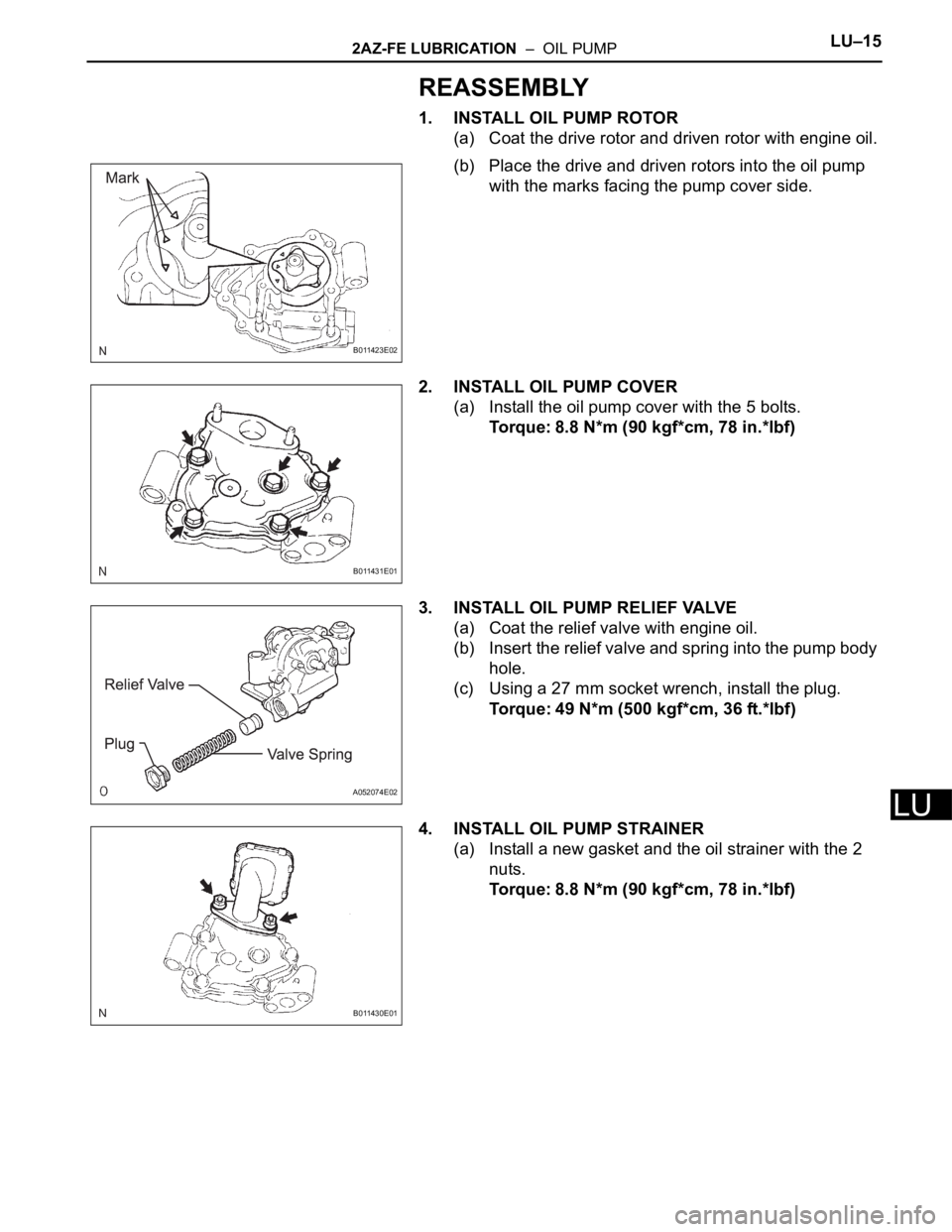

TOYOTA RAV4 2006 Service Repair Manual 2AZ-FE LUBRICATION – OIL PUMPLU–15 LU REASSEMBLY 1. INSTALL OIL PUMP ROTOR (a) Coat the drive rotor and driven rotor with engine oil. (b) Place the drive and driven rotors into the oil pump wit

Page 875 of 2000

TOYOTA RAV4 2006 Service Repair Manual LU–162AZ-FE LUBRICATION – OIL PUMP LU INSTALLATION 1. INSTALL OIL PUMP ASSEMBLY (a) Install a new gasket and the oil pump with the 3 bolts. Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf) 2. INSTALL CH

Page 876 of 2000

TOYOTA RAV4 2006 Service Repair Manual LU–162GR-FE LUBRICATION – OIL PUMP LU INSPECTION 1. INSPECT OIL PUMP RELIEF VALVE (a) Coat the relief valve with engine oil and drop it into the relief valve hole. (b) Check that the relief val

Page 877 of 2000

TOYOTA RAV4 2006 Service Repair Manual 2GR-FE LUBRICATION – OIL PUMPLU–17 LU (d) Check the side clearance. (1) Using a feeler gauge and precision straightedge, measure the clearance between the rotors and precision straightedge. St

Page 878 of 2000

TOYOTA RAV4 2006 Service Repair Manual LU–182GR-FE LUBRICATION – OIL PUMP LU (c) Using a 27 mm socket wrench, install the plug. Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf) INSTALLATION 1. INSTALL TIMING CHAIN COVER SUB-ASSEMBLY (w/ Oil

Page 879 of 2000

TOYOTA RAV4 2006 Service Repair Manual 2GR-FE LUBRICATION – OIL PUMPLU–19 LU (c) Apply seal packing in a continuous bead to the engine unit as shown in the illustration. Seal packing: Toyota Genuine Seal Packing Block, Three Bond 1

Page 880 of 2000

TOYOTA RAV4 2006 Service Repair Manual LU–202GR-FE LUBRICATION – OIL PUMP LU (d) Apply seal packing in a continuous line to the timing chain cover as shown in the illustration. Seal packing: For oil related part: Toyota Genuine Seal
